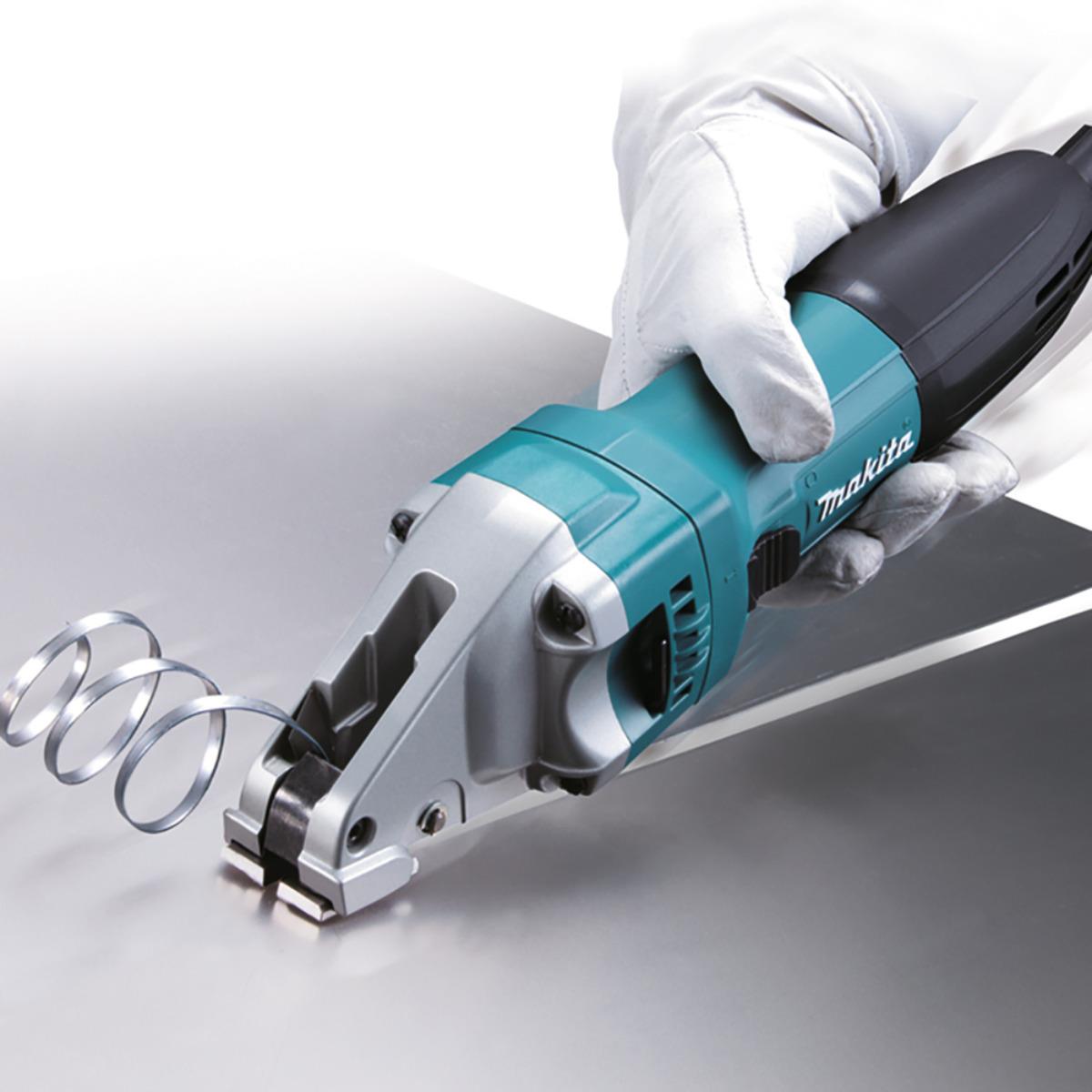

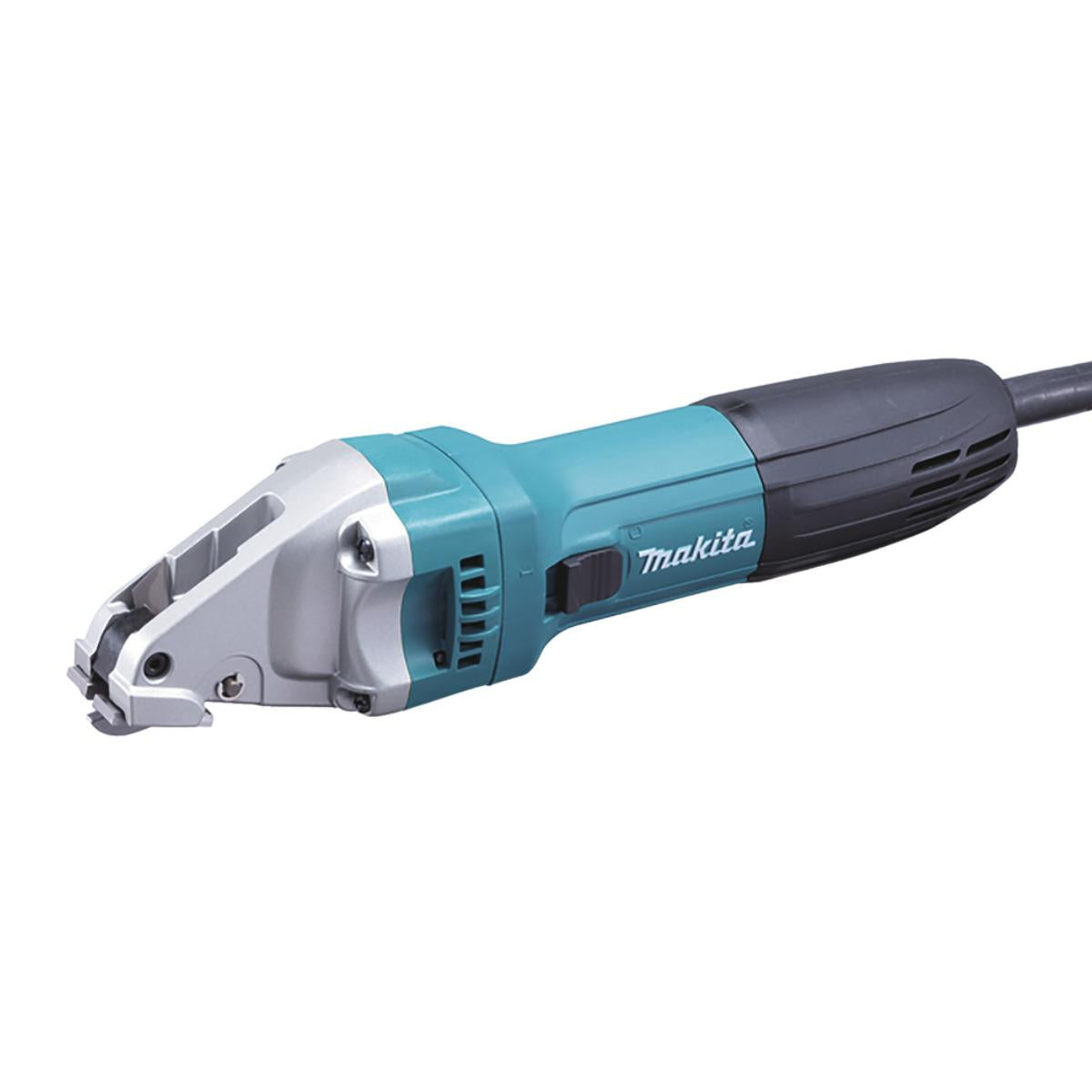

Makita JS1601/1 Corded Metal Shear 110V
Makita JS1601/1 Corded Metal Shear 110V
The Makita JS1601/1 Corded Metal Shear is a powerful and precise cutting tool designed for professional sheet metal applications. Its high-performance motor delivers smooth, clean cuts through mild steel, stainless steel, and other metal materials with minimal distortion. The lightweight and ergonomic design enhances control and reduces user fatigue during extended operation. Operating on a 110V power supply, this shear is ideal for fabrication, roofing, HVAC, and general metalworking tasks.
Features:
Compact and lightweight design
The material to be cut is removed in the middle as a strip; the material around the edges remains intact.
The blade is adjustable for the best possible cut.
Comes With:
1 x Accessory Set (191665-0)
1 x Hex Wrench 3Mm (783201-2)
Product Specification:
Part Number: JS1601/1
Barcode: 0088381609159
Voltage: 110V
Min. Internal Cutting Radius: 250 mm
Min. External Cutting Radius: 254 mm
Cutting Capacity Aluminium (Up To 200N/Mm²): 2,5 mm
Cutting Capacity Mild Steel (up to 400N/mm²): 1,6 mm
Cutting Capacity Stainless Steel (up to 600N/mm²): 1,2 mm
Cutting Capacity Stainless Steel (up to 800N/mm²): 0,8 mm
Power Supply Cord: 2,5 m
Strokes per Minute (SPM): 4500 min⁻¹
Weight Without Cable: 1,4 kg
Product Dimensions (L x W x H):: 320 x 70 x 78 mm
Sound and Vibration
Sound Power Level (LWA): 88 dB(A)
Sound Pressure Level (LpA): 77 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level, Cutting Sheet Metal: 9,5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1,5 m/s²
**images for illustrative purposes only – please refer to description and specification for full details of product**
