Makita JV103DZ 12V Max CXT Slide Brushless Bow Handle Jigsaw Body Only
- Regular price
-
£55.00
£45.83 Ex.VAT -
-
£55.00 £45.83 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
- 3 Orbital Action
- Variable speed
- Tool-less blade change
- Dust Extraction Facility

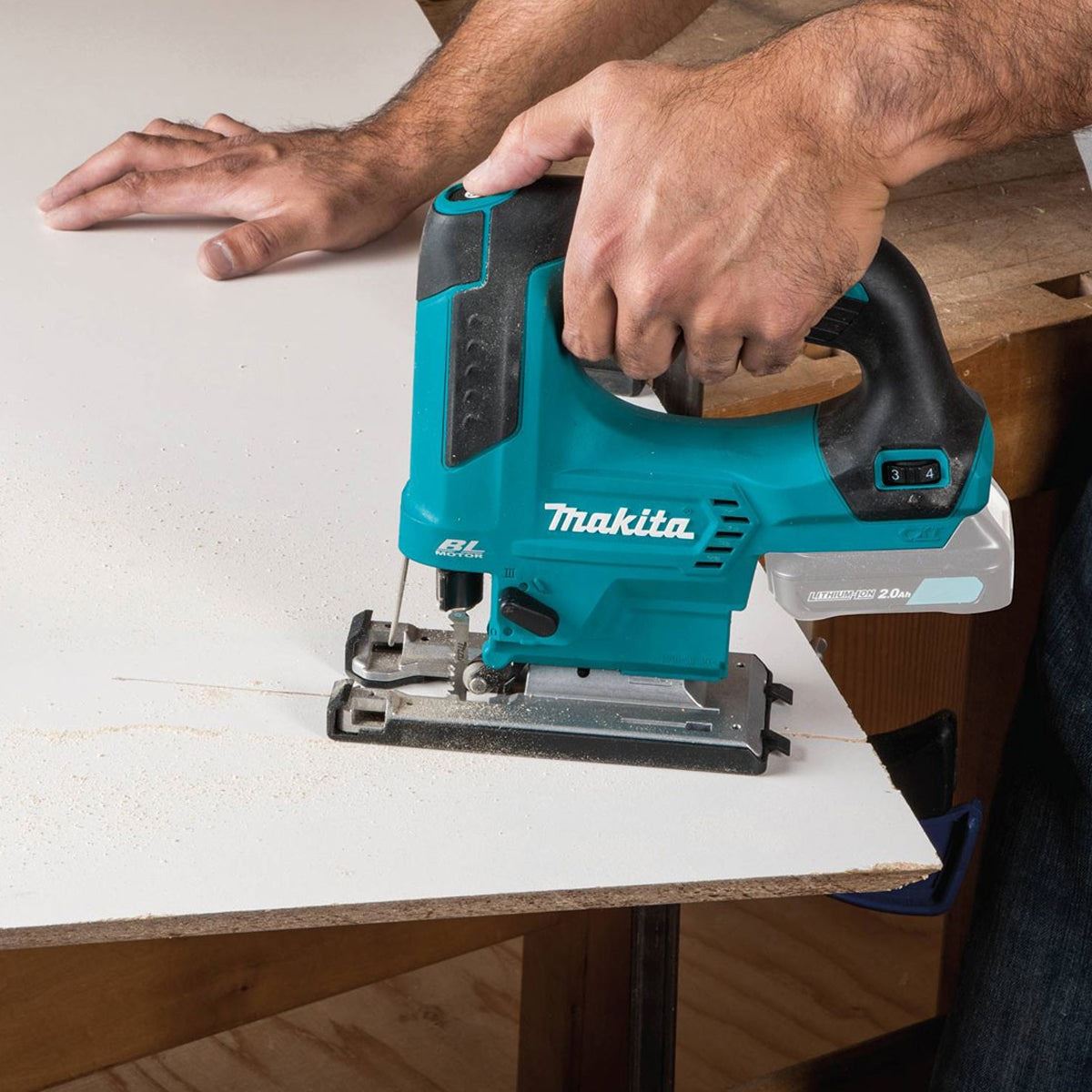

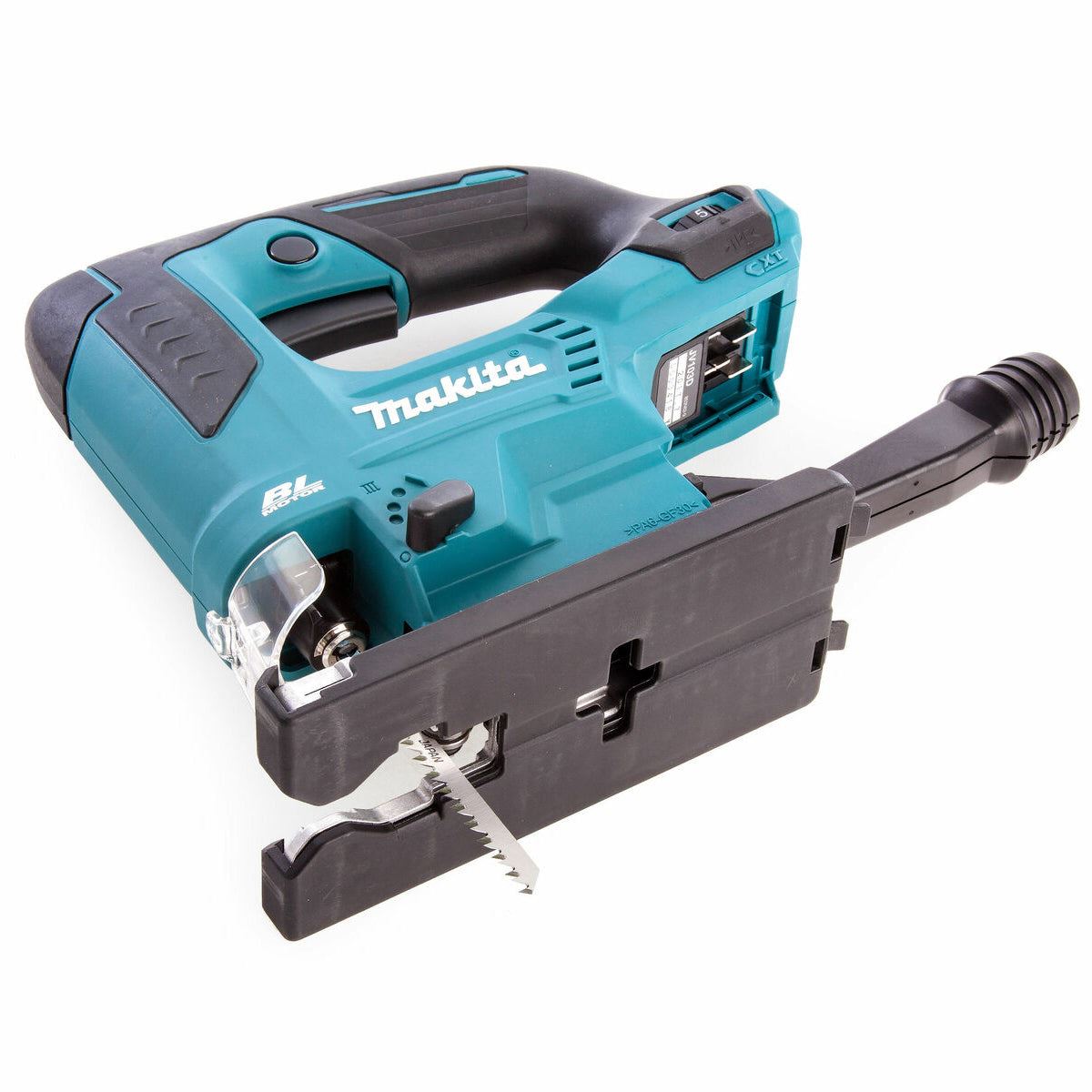

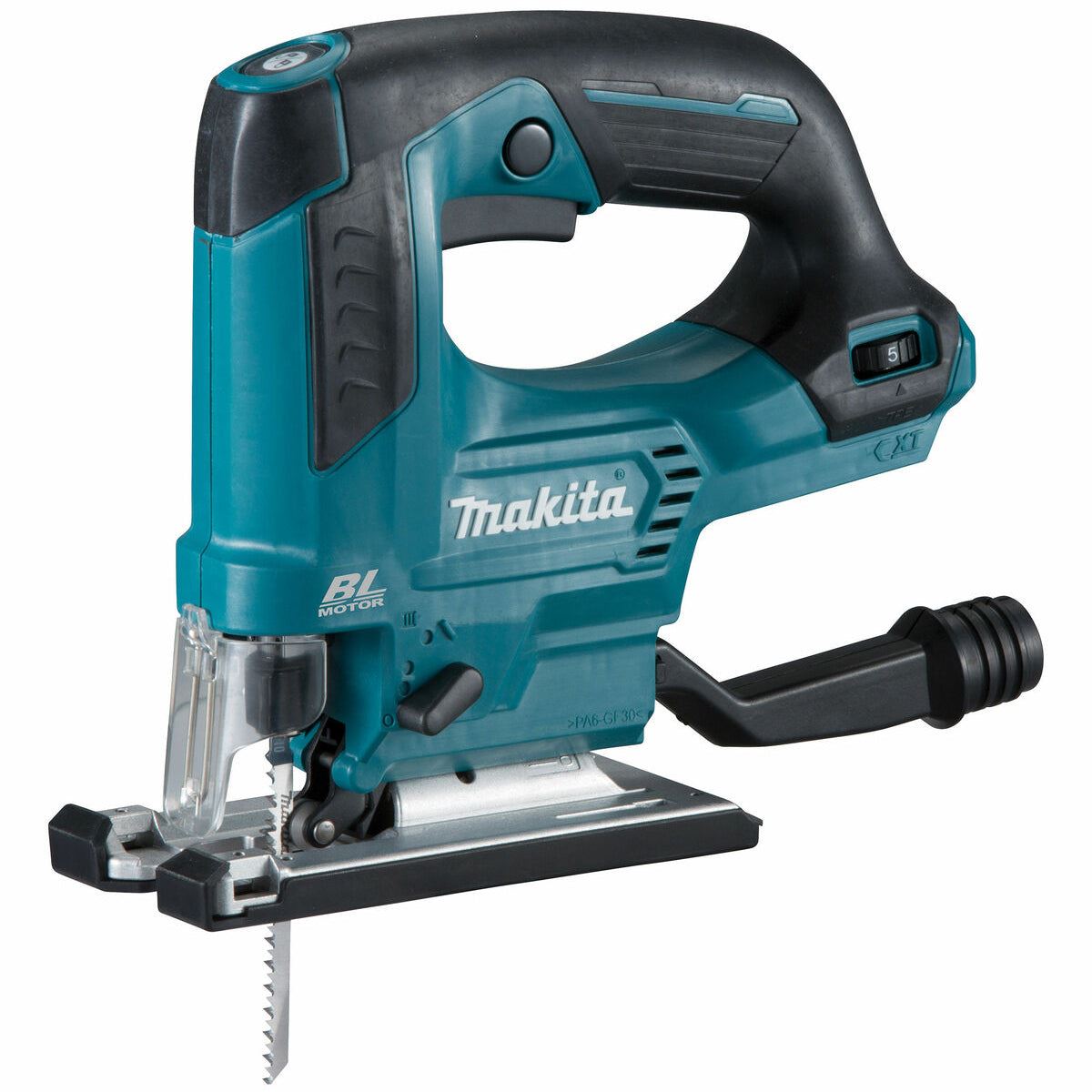

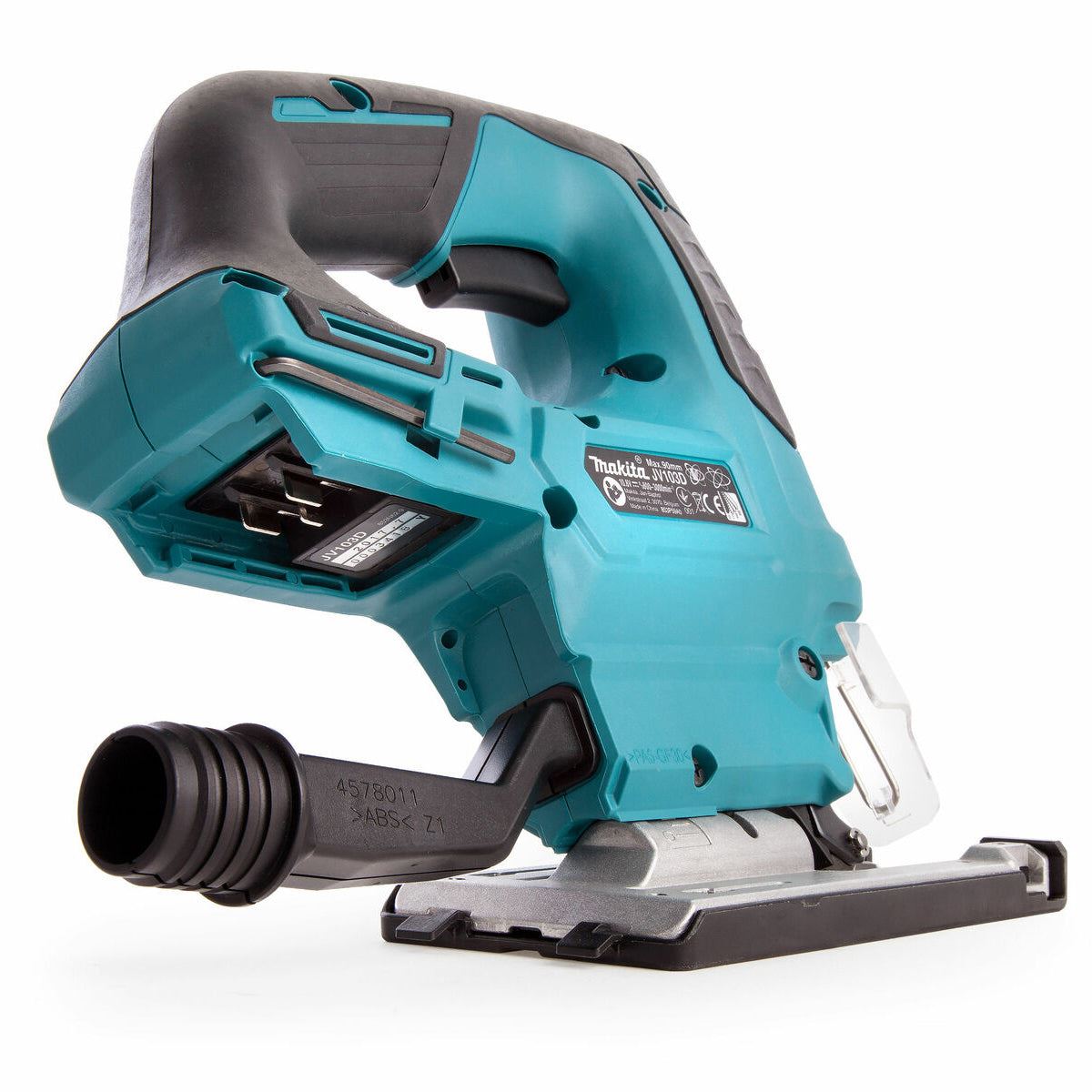

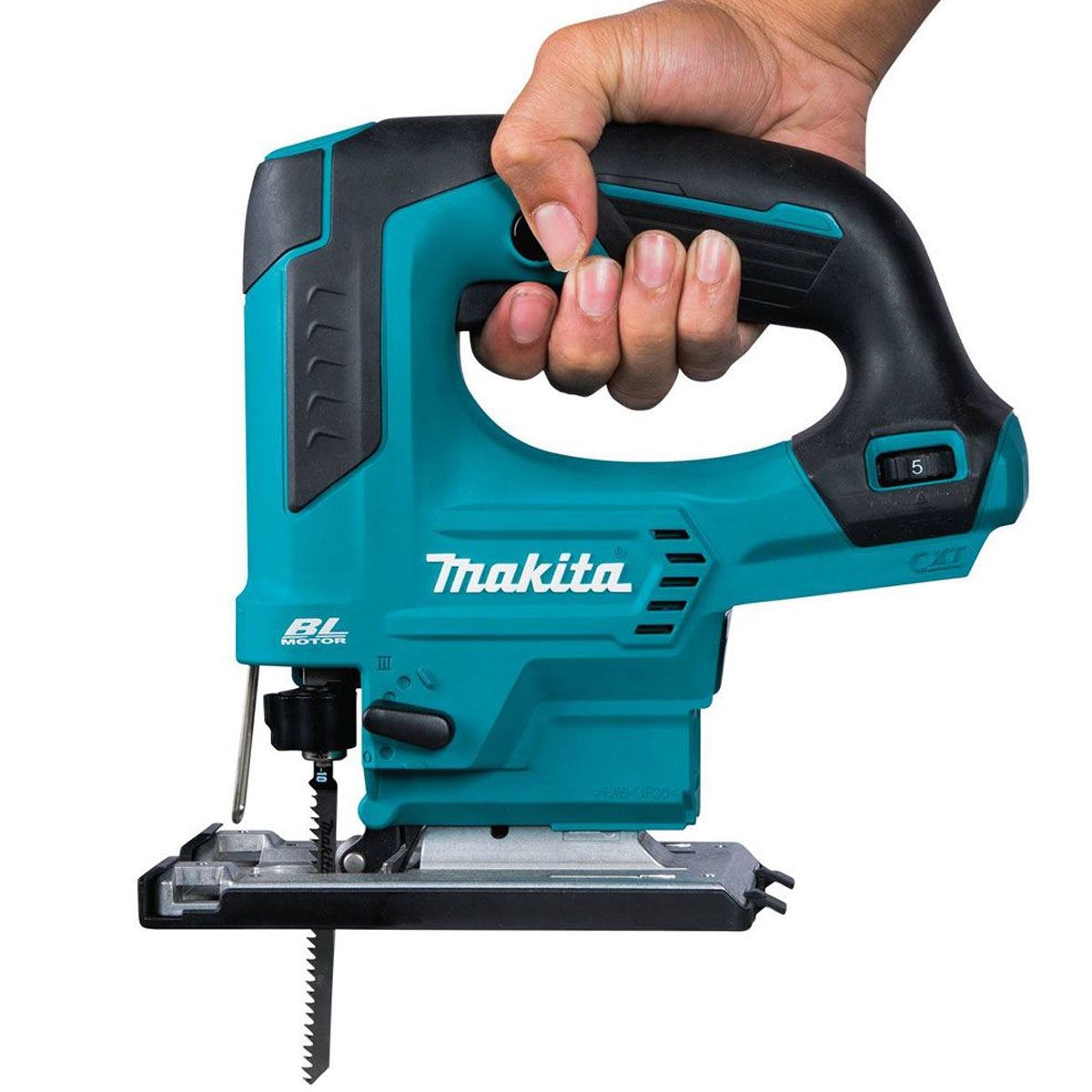

Makita JV103DZ 12V Max CXT Slide Brushless Bow Handle Jigsaw Body Only
The Makita JV103DZ Bow Handle Jigsaw is a compact and lightweight tool designed for precision and ease of use. Powered by a reliable brushless motor, it delivers long-lasting performance with adjustable speeds ranging from 800 to 3,000 min⁻¹ for versatile applications. Its three-stage pendulum action and 23 mm stroke length ensure efficient and effective cutting in wood and steel. The tool-less blade change system and tilting base up to 45° make it convenient for quick adjustments and bevel cuts. With dust extraction compatibility and a battery protection system, this jigsaw offers both cleaner operation and enhanced durability.
Features:
Compact and Lightweight: Easy to handle and reduces operator fatigue.
Brushless Motor: Maintenance-free and long-lasting.
Adjustable Speed: Engine speed is between 800 and 3,000 min⁻¹ for versatile cutting.
Three-Stage Pendulum Action: Enhances cutting efficiency.
Tool-less Blade Change: Quick and easy blade replacement.
Stroke Length: 23 mm for effective cutting performance.
Cutting Capacity: 90 mm in wood and 10 mm in steel.

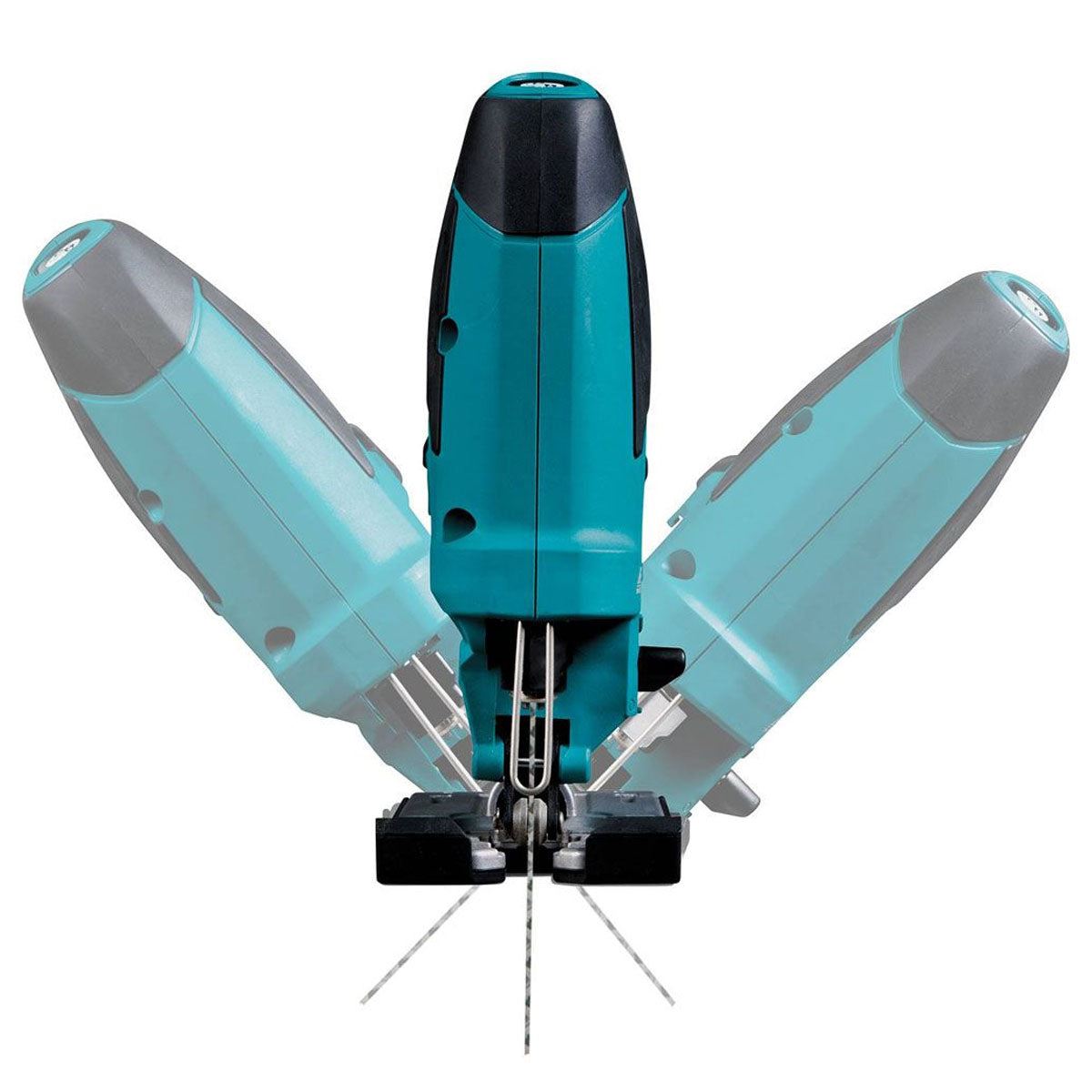

Tilting Base: Allows for bevel cuts from 0° to 45°.
Dust Extraction: Connectable to a vacuum hose for a cleaner work environment.
Battery Protection System: Automatically shuts off power when the battery level is low to prevent damage.
Comes With:
1 x Accessory Set 192734-0
1 x Dust nozzle Ø 23 / 28 mm 457801-1
1 x Cover Plate JV102 JV104 457867-1
1 x Dust Cover 458191-5
1 x Hex Wrench 3mm 783201-2
Product Specification:
Part Number: JV103DZ
Barcode: 0088381844932
Voltage: 12V
Battery Chemistry: Li-ion
CXT Battery: Yes
Brushless Motor: Yes
Length of Stroke: 23 mm
Max. Cutting Capacity in Wood (90°): 90 mm
Max. Cutting Capacity in Steel (90°): 10 mm
Capacity Aluminium: 20 mm
Orbital Action: Yes
Max. Bevel Range (Left): 0 - 45 º
Strokes per Minute (SPM): 800 - 3000 min⁻¹
Max. Bevel Range (Right): 0 - 45 º
Electronic brake: Yes
Tool weight with battery: 1.9 - 2.0 kg
Product Dimensions (L x W x H): 237 x 76 x 206 mm
Sound Power Level (LWA): 96 dB(A)
Sound Pressure Level (LpA): 88 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level, Cutting Sheet Metal: 6,0 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal: 1,5 m/s²
Vibration Level, Cutting Boards: 8,5 m/s²
Vibration Uncertainty (K Factor), Cutting Boards: 1,5 m/s²
Vacuum cleaner connection Ø in / out: 23 / 28 mm
**images for illustrative purposes only – please refer to description and specification for full details of product**
