Trend GAUGE/D60 Digital Depth Gauge

Trend GAUGE/D60 Digital Depth Gauge

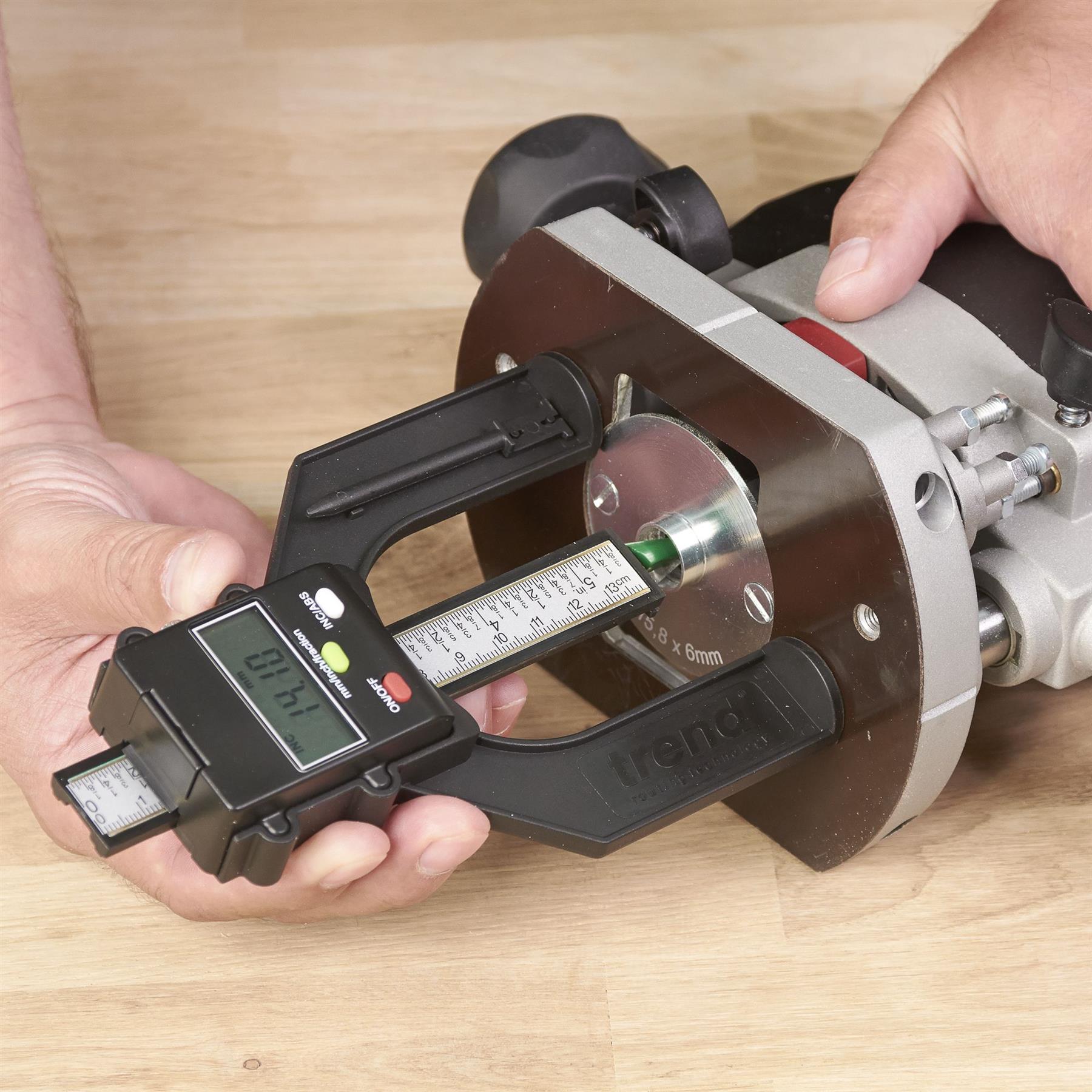

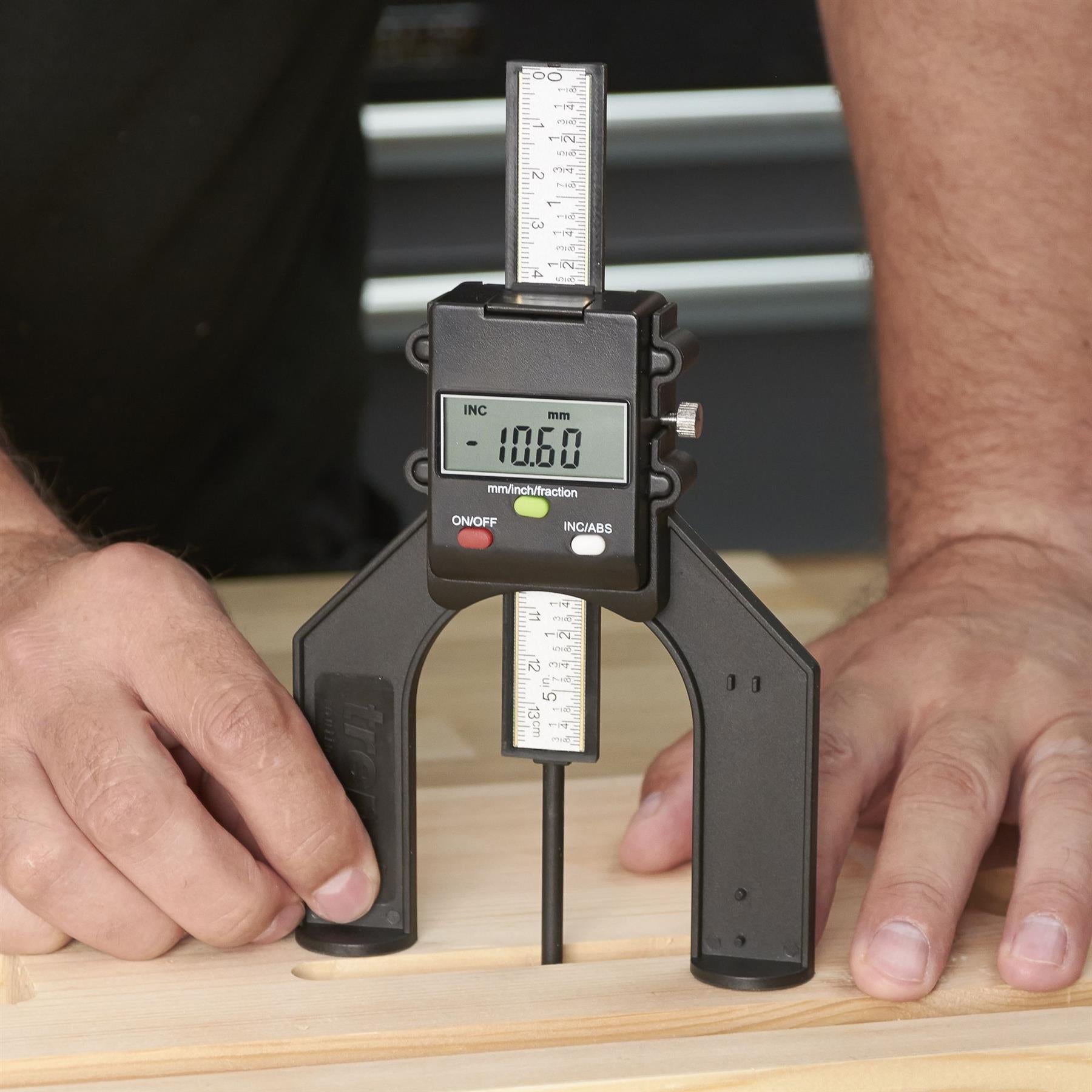

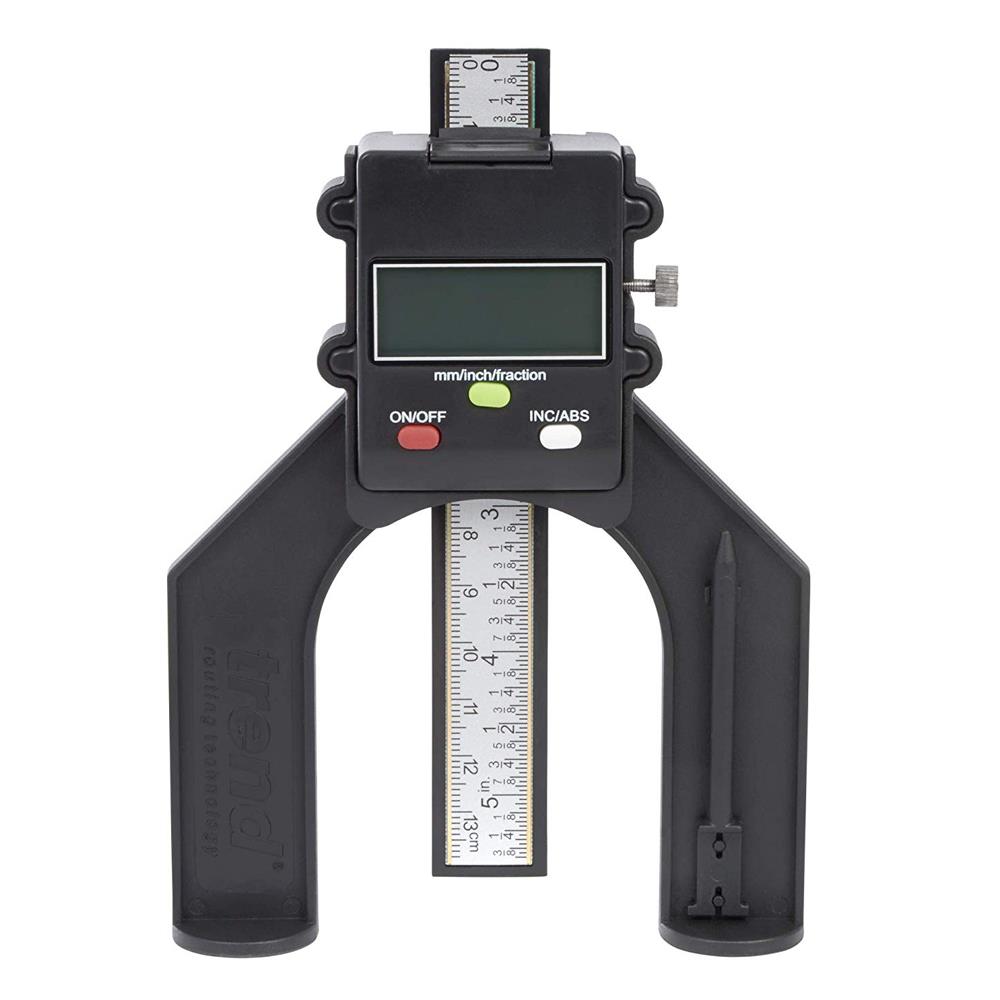

The Trend GAUGE/D60 Digital Depth Gauge is a precision measuring tool used to set and check depth measurements on woodworking machines like routers, saws, and benches. It features a clear digital display that shows readings in metric, imperial and fractional units for versatile use. It offers both relative and absolute measuring modes for flexible measurement. Powered by a 3 V battery, it provides reliable performance with an auto-off feature to save power.

Features:

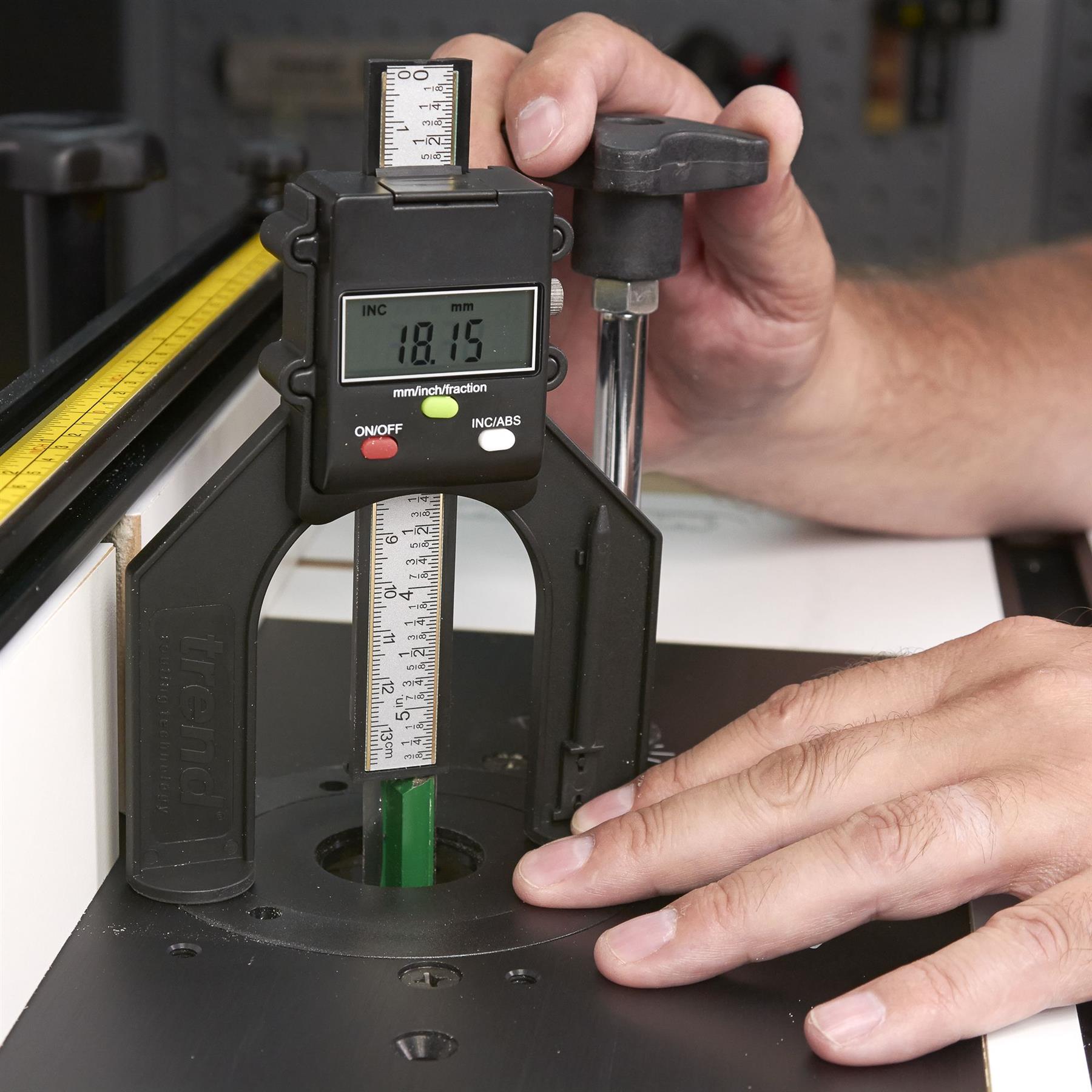

For hand routers, router tables and saw benches.
LCD readout for mm, imperial and fractions with auto shut off 5 mins.

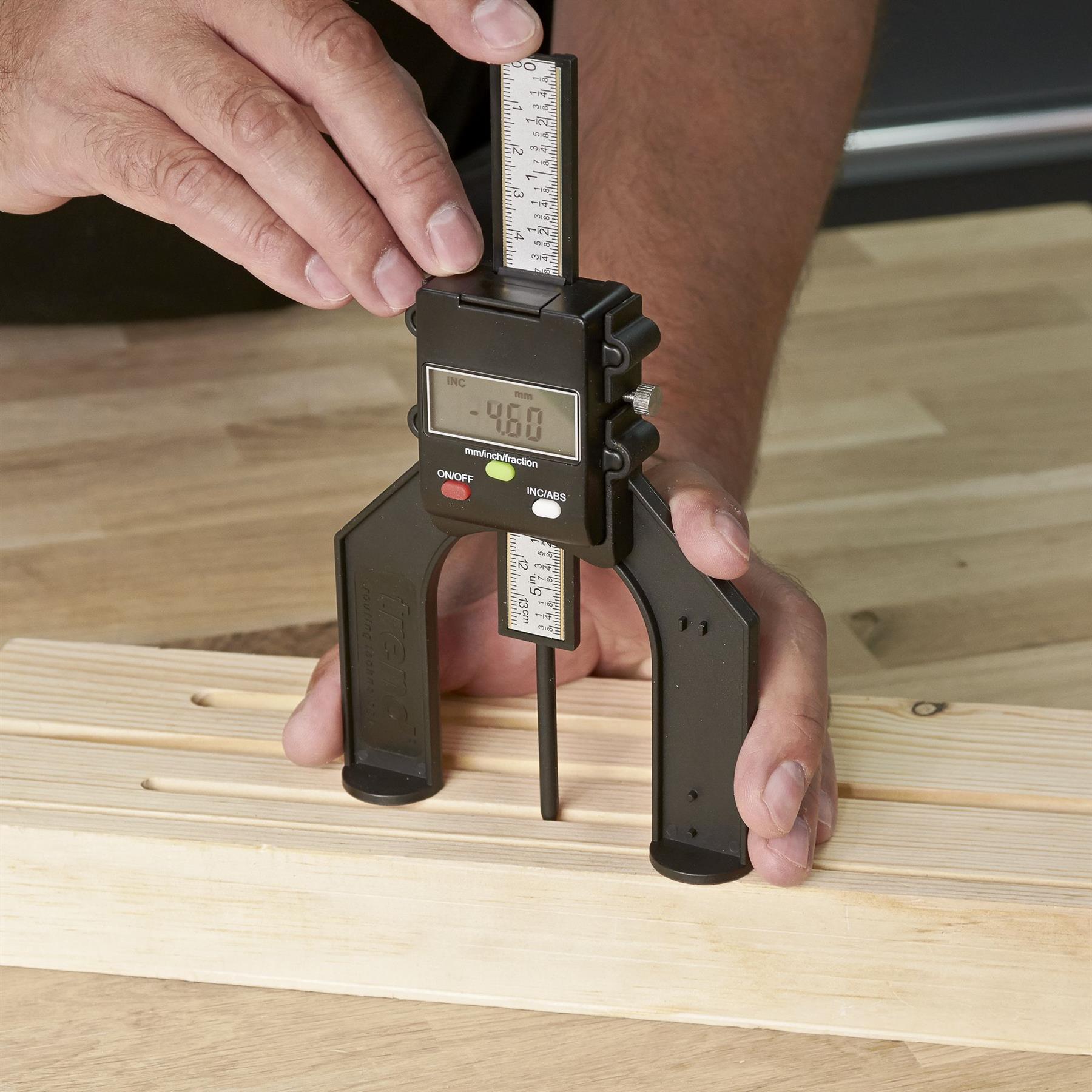

Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).

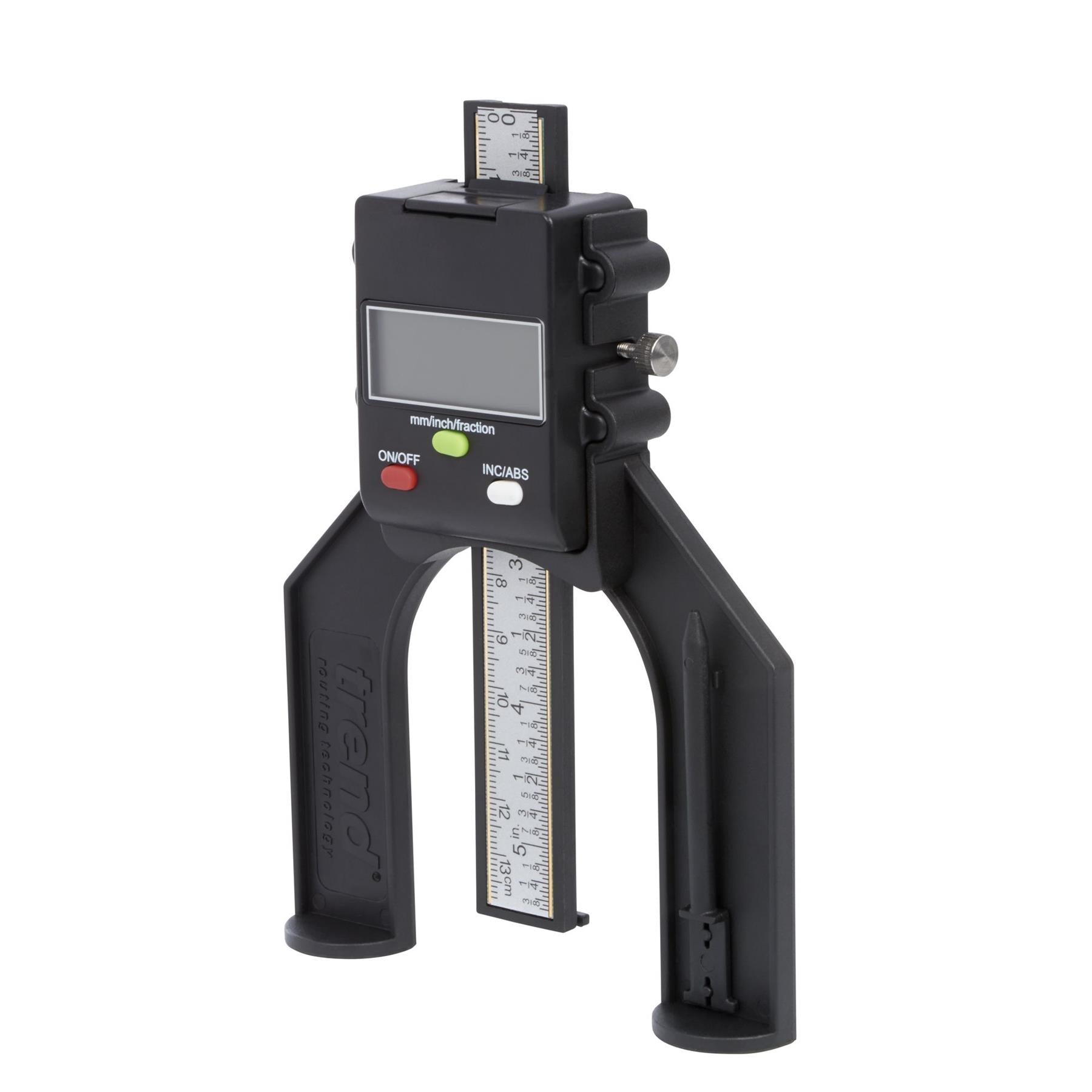

Self standing with magnetic feet and flat back.
Injection plastic moulding with plastic rule.
Read-out has relative co-ordinate and absolute function.

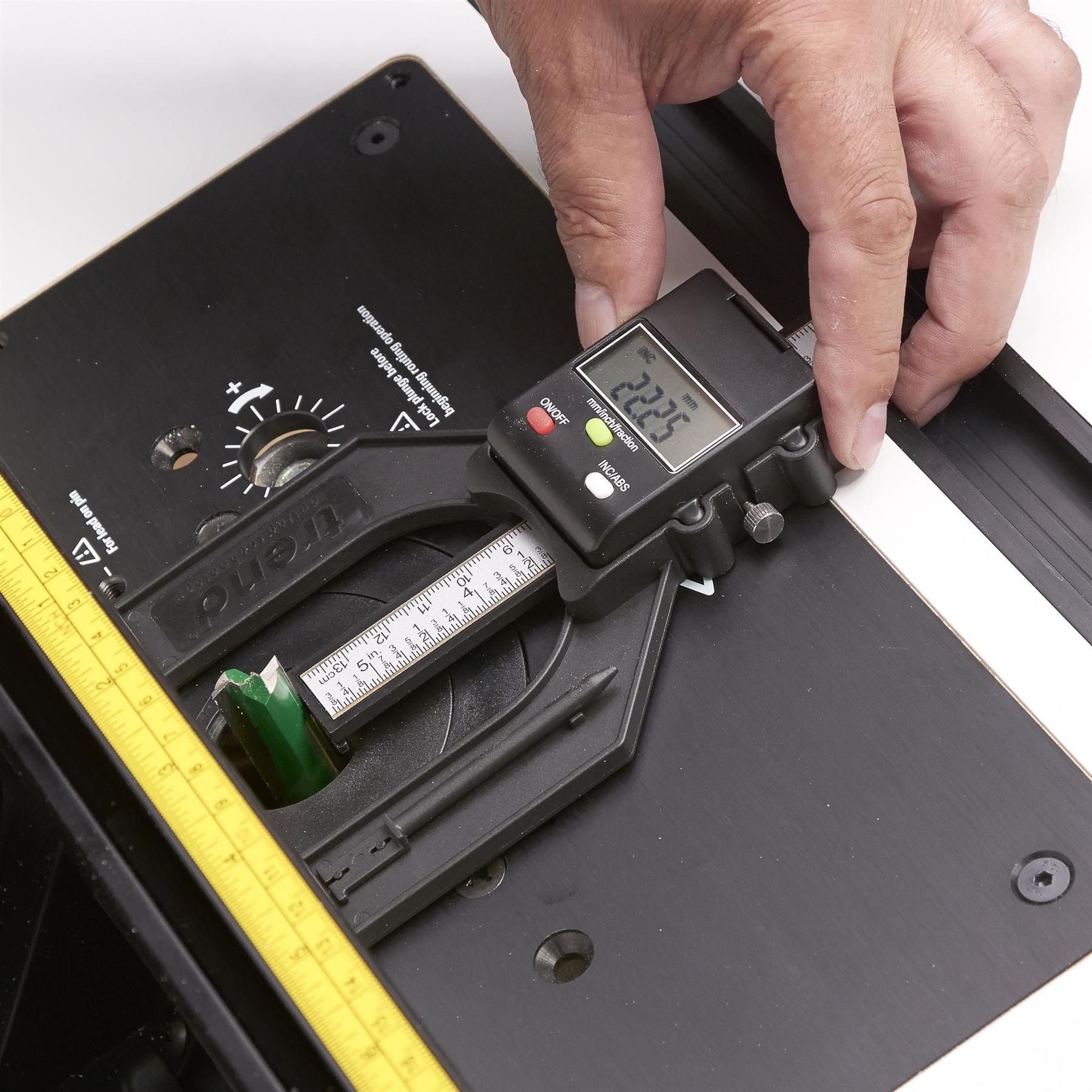

Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.

Comes with:

1 x 3V CR2032 Lithium Battery
1 x Small Rebate Clip

Product Specification:

Part Number: GAUGE/D60
Barcode: 5027654554326
Voltage: 3 volt
Measuring range: 80 mm (3-1/8")
Opening width: 60 mm (2-3/8")
Resolution: 0.05 mm (0.002")
Accuracy: +/- 0.1 mm (0.004")
Repeatability: +/- 0.1 mm (0.004")
Max. measuring speed: 1.5 m/s (60 in/s)
Pin diameter: 4.5 mm
ABS mode (Absolute): Measuring single amounts from Zero
INC mode (Relative): Measuring from last point
Weight: 92g

**images for illustrative purposes only – please refer to description and specification for full details of product**
