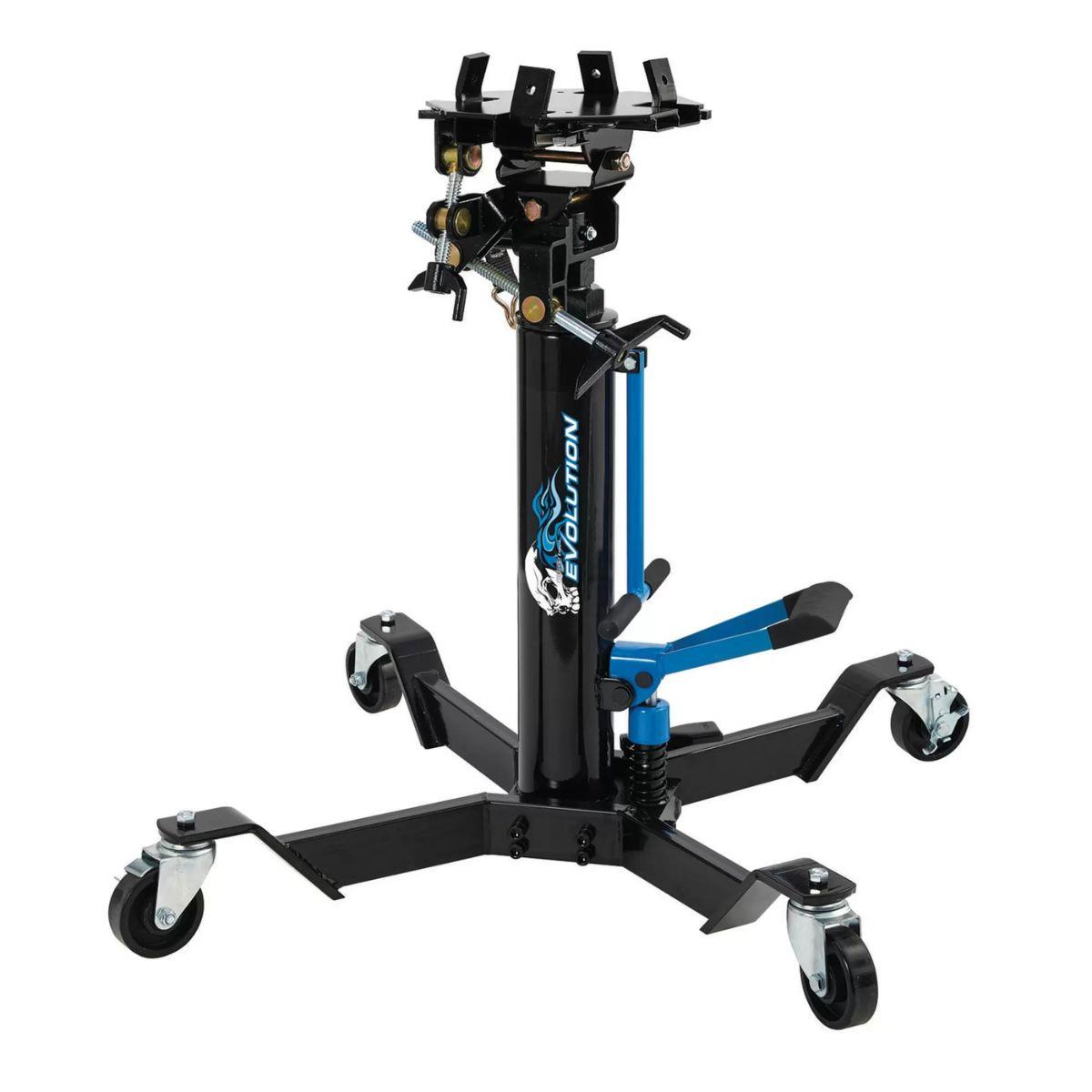

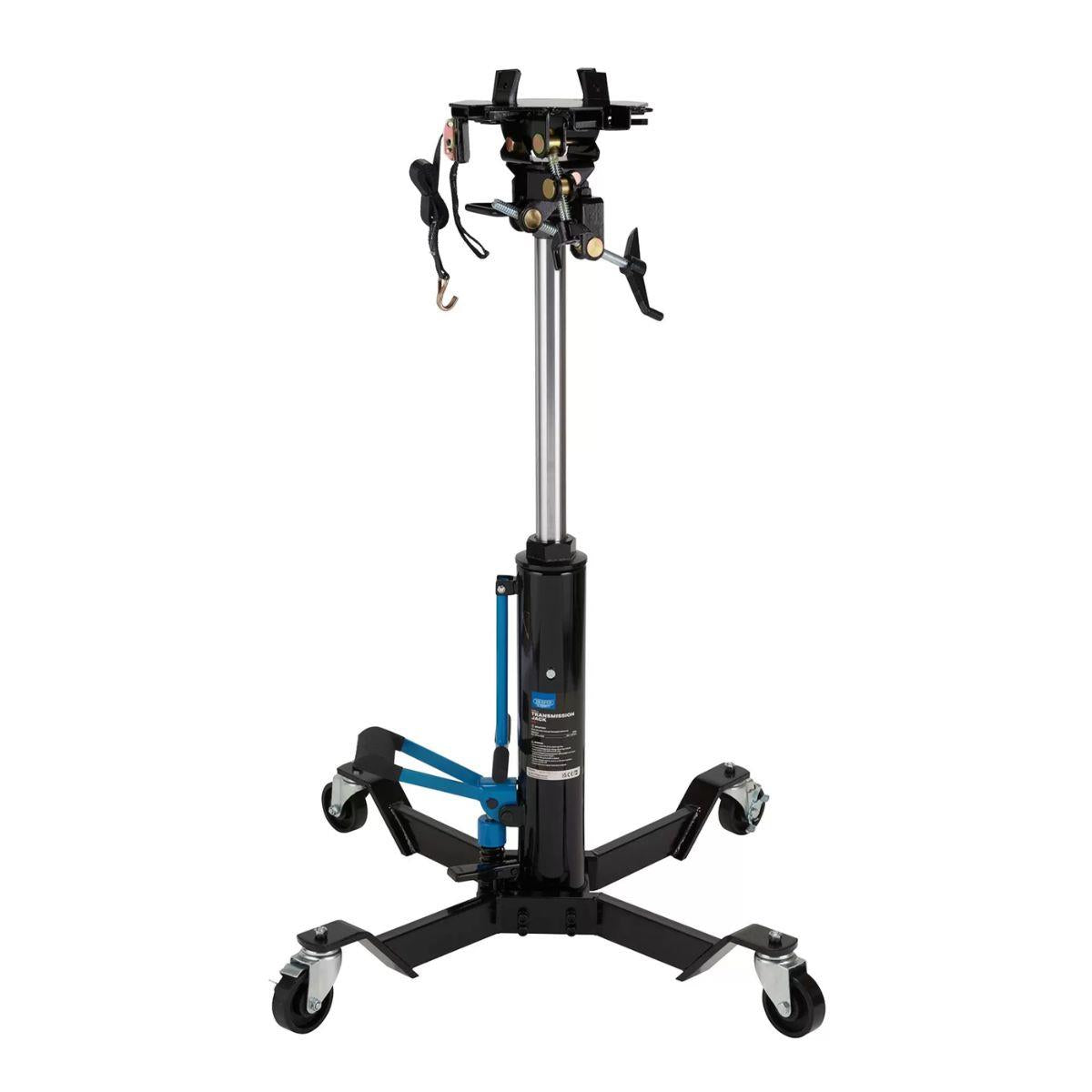

Draper TJ500EVO Expert Evolution Vertical Transmission Jack 500kg 08557
Draper TJ500EVO Expert Evolution Vertical Transmission Jack 500kg 08557
This vertical transmission jack is part of the stylish and distinctive Evolution range. Telescopic twin stage ram with a low entry height for reduced clearances. Operated by foot pedal for easy hands-free operation. Fully adjustable saddle able to accept a wide range of components. Has forward, backward and side-to-side tilting action to aid the user further. Ratchet saddle claws enhance the operating speed when clamping the load. There are two non-marking ratchet straps for added support. Fitted with four extra-large 100mm nylon castors that prevent damage to floors and provide quiet and smooth operation. The side mounted T-handle further aids positioning and manoeuvrability. Fitted with overload safety valve. Fully tested and certified for safe, reliable operation. Capacity 500kg.
Features:
Telescopic twin-stage ram with low entry height for reduced clearance work.
Foot pedal operation enables safe, easy and completely hands-free lifting.
Fully adjustable tilting saddle with ratchet claws for fast secure clamping.
Forward, backward and side tilt action for precise component alignment.
Four 100mm nylon castors for smooth, quiet and floor-safe mobility.
500kg capacity with overload safety valve, fully tested and certified.
Comes With:
1 x Draper Expert Evolution Vertical Transmission Jack, 500kg
Product Specification:
Part number: TJ500EVO
Barcode: 5059482058905
Stock no: 08557
Capacity: 500kg
Minimum height: 902mm
Maximum height stage 1: 1,387mm
Maximum height stage 2: 1,891mm
Saddle type: Adjustable
Base dimensions: 290 x 290mm
Castor diameter: 100mm
Weight: 66kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
