Festool KAPEX KS 120 REB 230V GB 260mm Sliding Compound Mitre Saw - 575304 With SYS-AIR M Air purifier 577785
- Regular price
-
£2,202.00
£1,835.00 Ex.VAT -
£2,297.99
-
£2,202.00 £1,835.00 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
- Lightweight, compact design
- Up to 120 mm cutting depth
- Compact & lightweight design
- High 680 m³/h circulation
Festool KAPEX KS 120 REB 230V GB 260mm Sliding Compound Mitre Saw - 575304 With SYS-AIR M Air purifier 577785
Features:
Festool KAPEX KS 120 REB GB Sliding Mitre Saw:
Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation

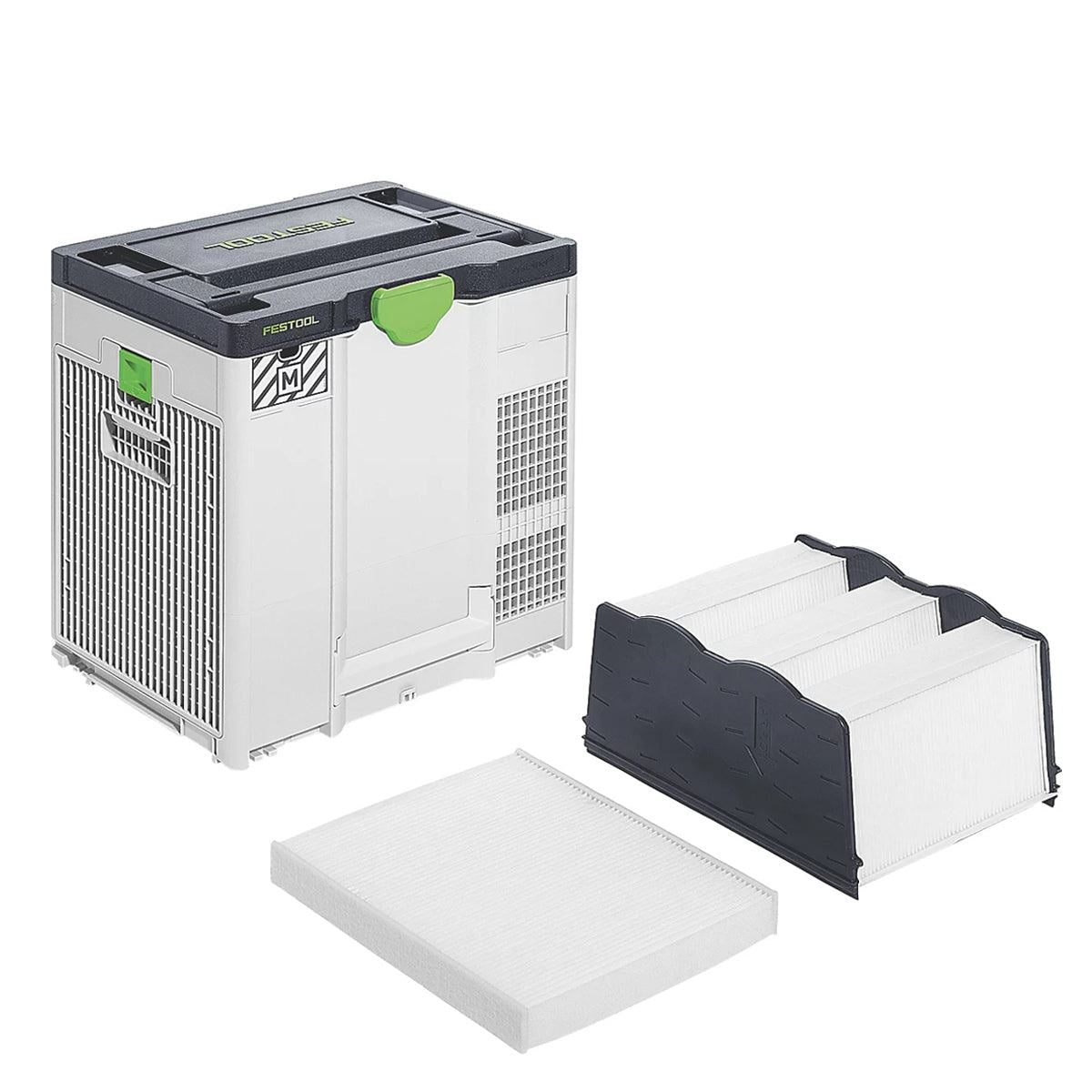

Festool SYS-AIR M GB Air purifier:
Compact and lightweight: Low weight (under 10 kg), in a practical Systainer M437 format.
Air renewal rate: Extremely powerful air purifier with up to 680 m³/h air circulation. For rooms up to 57 m² at three times the air renewal rate per hour.
Flexibility for every room size: Depending on requirements, up to six air purifiers can be connected in series. This can increase the air renewal rate and improve the air quality.
Electrical outlet module: For connecting additional SYS-AIR air purifiers or power tools.
Adjustable: Two levels of volume flow can be selected depending on the volumes of dust.
Clever: The airflow is dispersed upwards in three directions (left, right, back). This means less swirling up of dust and fewer disruptive air currents.
Preliminary filter: Filters most of the dust and thus protects the main filter. Low-dust, quickly replaceable and cost saving.
Clean: Specially developed main filter in TripleV shape, with particularly large filter surface for less rapid clogging and longer service life. In dust class M.
Healthier work: > 99.9% filtration in dust class M
Signal light: Warns of clogged filters and indicates when a filter change is due
Port: For connecting an air supply hose (accessory) of dia. 200 mm for awkward spots or dust protection walls
Compatible: Can be connected to Systainers and extractors via T-LOC. Can be integrated into bott vehicle equipment
Mobile: Easy to carry thanks to Systainer handle. Easy to transport when connected with SYS-RB roll board or extractor
Safely stored: Power cable fixed and securely stowed in the lid compartment
Mobile air purifier for filtering airborne dust for construction sites and workshops with filter class M
Comes With:
1 x HW 260x2, 5x30 W60 Saw blade
1 x SM-KS Bevel
1 x KL-KS 120 Terminal
1 x WAF 6 hex key
1 x Main Filter HF-SYS-AIR M
1 x Preliminary Filter VF-SYS-AIR
Product Specification:
Festool KAPEX KS 120 REB GB Sliding Mitre Saw:
Part Number: 575304
Voltage: 230V
Power consumption: 1600 W
Idle engine speed: 1400 - 3600 min⁻¹
Saw blade diameter: 260.00 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth at 45°/90°: 215 x 88 mm
Special cutting depth 90°/90°: 60 x 120 mm
Crown moulding diagonal cut 45°/90°: 168.00 mm
Inclination angle: 47/47 °
Mitre angle: 50/60 °
Dimensions (W x D x H): 713 x 500 x 470 mm
Cable length: 3.50 m
Dust extraction connection diameter: 27/36 mm
Special cut. depth 45°/90° (left): 40 x 120 mm
Special cutting depth 45°/90° (right): 20 x 120 mm
Cutting depth 50°/90° (left): 196 x 88 mm
Cutting depth 60°/90° (right): 152 x 88 mm
Cutting depth 45°/45° (left): 215 x 55 mm
Cutting depth 45°/45° (right): 215 x 35 mm
Crown moulding diagonal cut at 90°/90°: 168.00 mm
Work height: 900.00 mm
Product weight without accessories: 24.30 kg
Drive type: Mains
Noise and Vibration:
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Standards series EN: 61029-2-9
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 101.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 88.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
Festool SYS-AIR M GB Air purifier:
Part Number: 577785
Voltage: 230V
Power Consumption: 200 W
Max. Volume Flow: 680.00 m³/h
Filter Surface of Preliminary Filter: 8,600.00 cm²
Filter Surface of main Filter: 24,600.00 cm²
Cable Length: 7.50 m
Noise Level: 55 - 65 dB
Dimensions (L x W x H): 396 x 296 x 437 mm
Max. Appliance Socket Connected Load: 2,200.00 W
Dust Class: M
Drive Type: Mains
Product Weight without Accessories: 9.80 kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
