Festool MB 40 Mobile Drilling Attachment - 577970 With Adapter & Stop Set

Festool MB 40 Mobile Drilling Attachment - 577970 With Adapter & Stop Set

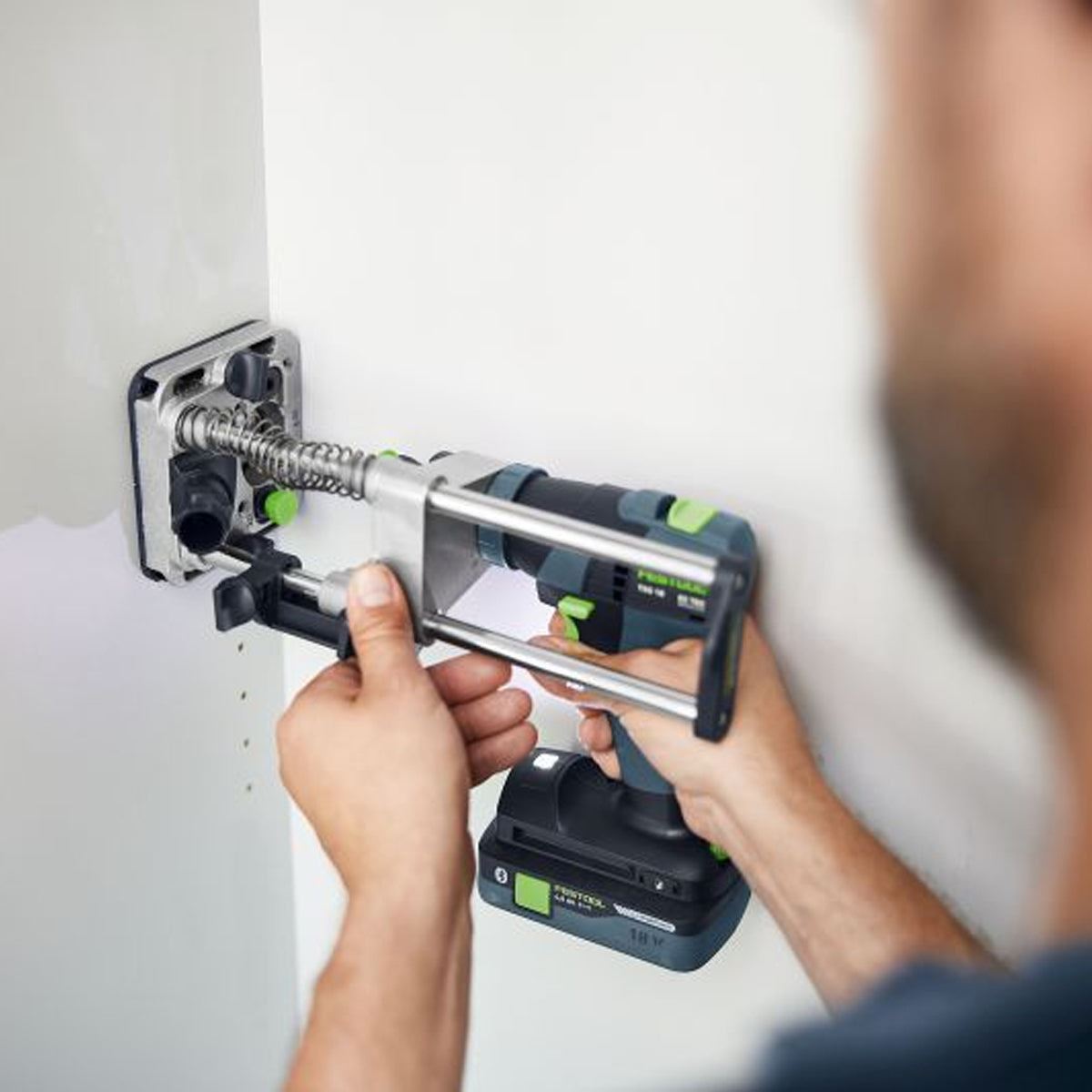

The MB 40 mobile drilling attachment is your companion when precision is required. As a compact drilling aid, it enables you to drill at right angles with pinpoint accuracy and repeat accuracy, no matter where you are working. Versatile stops and exact depth adjustment are available as options, so that you can drill vertical holes, end face holes and a series of holes. For a good view of the drilling point, you can couple the dust extraction directly with the base plate. As a further FastFix attachment, it is ideally suited to your drilling applications in wood, metal and plastic, thus expanding the range of possible uses for your Festool cordless drills.

Features:

Precise: Built to be robust and stable – for exact holes.
Exact depth adjustment: With zero position and readable drilling depth up to 50 mm. Display in mm and inches.
Exceptional: With hole series function for holes in the 32-type system.
Compatible: The tool chuck can be fitted quickly and without tools. The CENTROTEC chuck also enables quick insertion and replacement of drilling tools.
Integrated: Chip extraction for extractors from dust class M and hose diameter D 27.

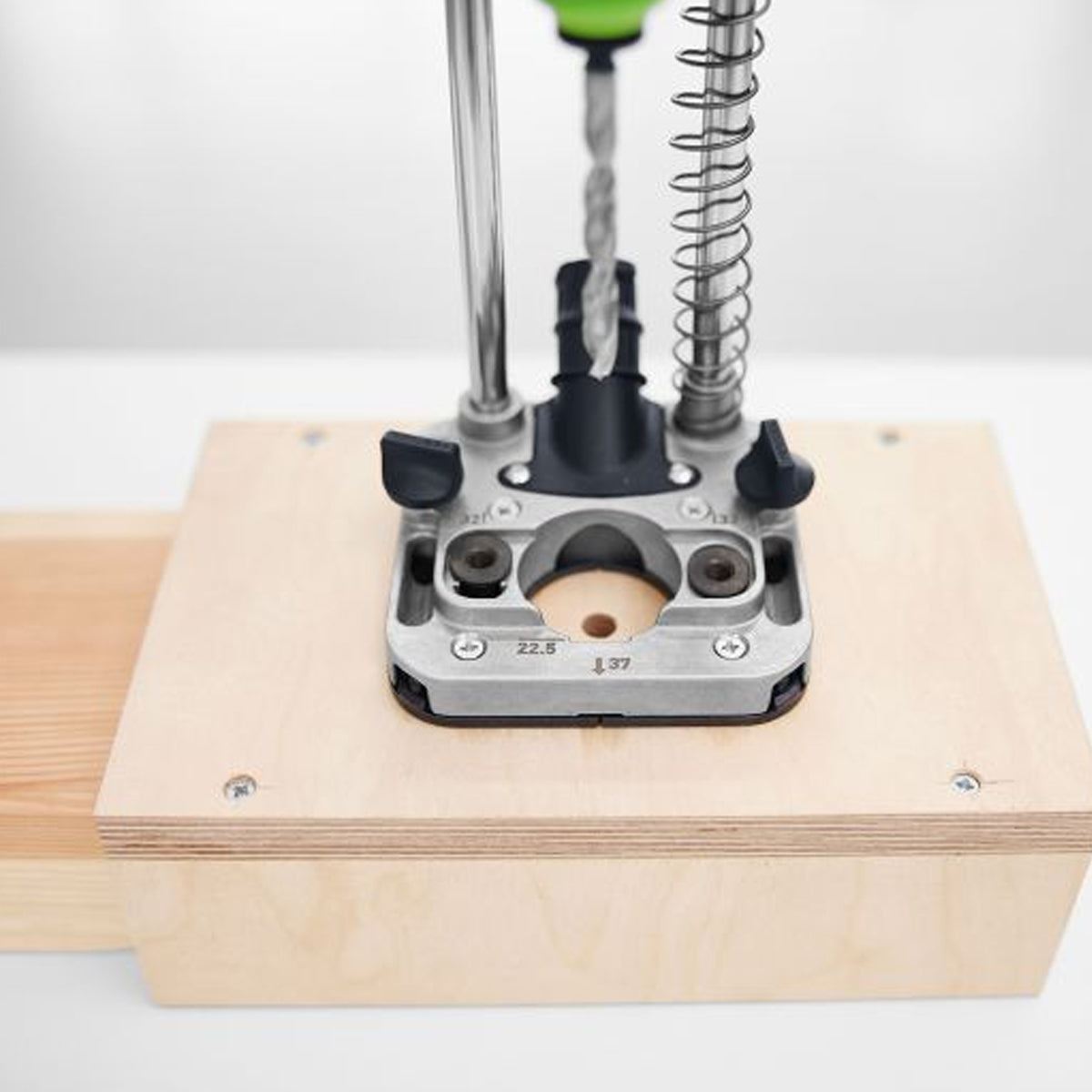

Easy positioning: Markings on the base plate simplify exact alignment on the workpiece.
Sturdy: Rubberised base for precise alignment without slipping.

Main Application:

Creating holes at a 90° angle
Making short hole series in the System 32
Drilled holes for fittings like cupboard hinges
Holes for shelf support
Drilling in wood, metal and plastic
Drilling knot holes
Assembly work
Kitchen fitting
Furniture manufacture

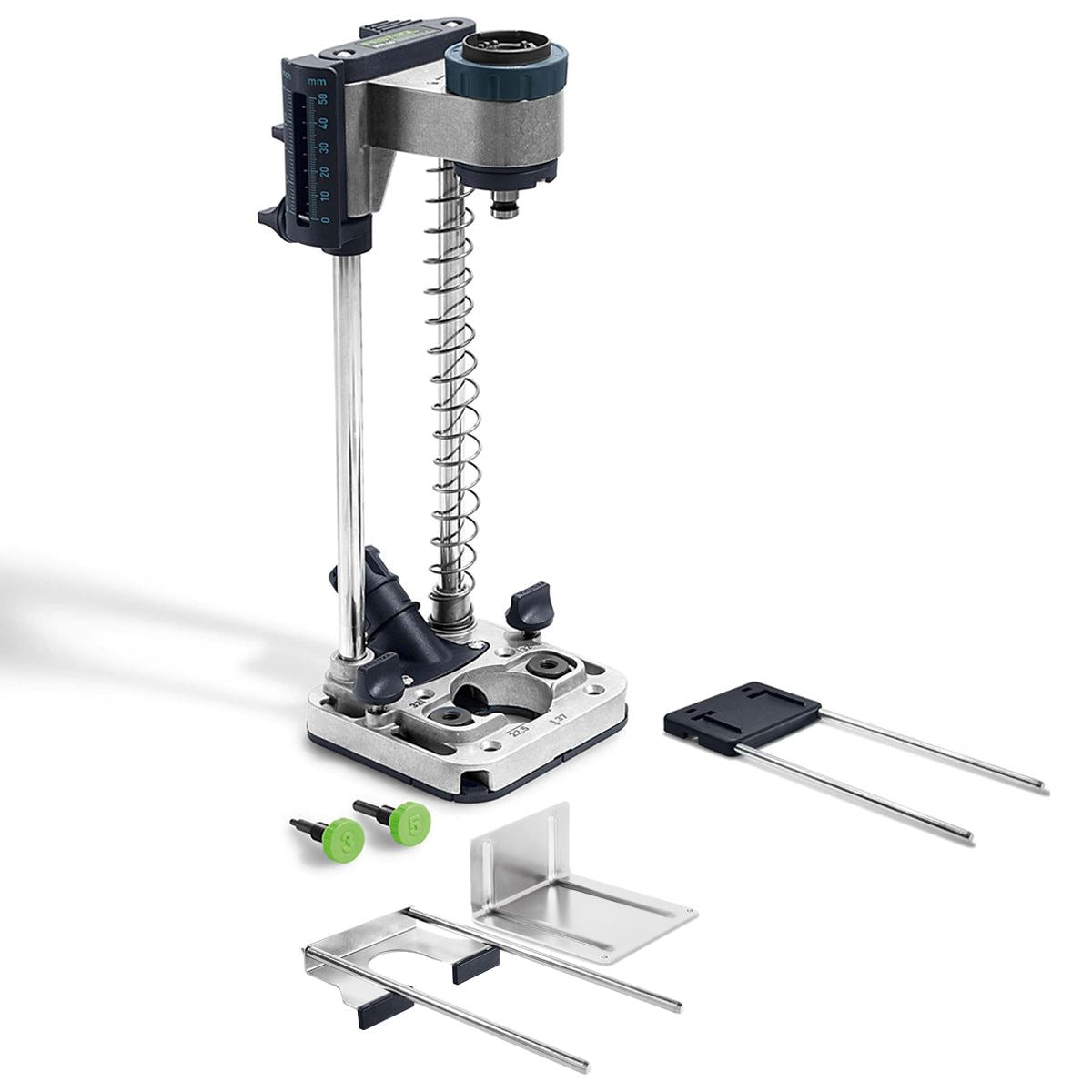

Comes With:

1 x Hole Series Pin 5 mm
1 x Hole Series Pin 3 mm
1 x FSA-MB 40 Adapter
1 x PA-MB 40 Stop Set

Product Specification:

Part Number: 577970
Holder: FastFix
Max. drilling diameter for softwood (Forstner drill bit): 40.00 mm
Max. drilling diameter for softwood (auger bit): 16.00 mm
BASE: 110 x 114 mm
Height: 312.00 mm
Setting range of depth stop: 0 - 50 mm
Max. screw diameter (templates/fixtures): 4.00 mm
Stroke with depth stop, incl. spring: 187.00 mm
Stroke without depth stop, without spring: 203.00 mm
Dust extraction connection diameter: 27 mm

**images for illustrative purposes only – please refer to description and specification for full details of product**
