Festool TS 55 FEQ-Plus 110V GB 160mm Circular Plunge-Cut Saw - 576707 With SYS-AIR M Air purifier 577786
Festool TS 55 FEQ-Plus 110V GB 160mm Circular Plunge-Cut Saw - 576707 With SYS-AIR M Air purifier 577786
Features:

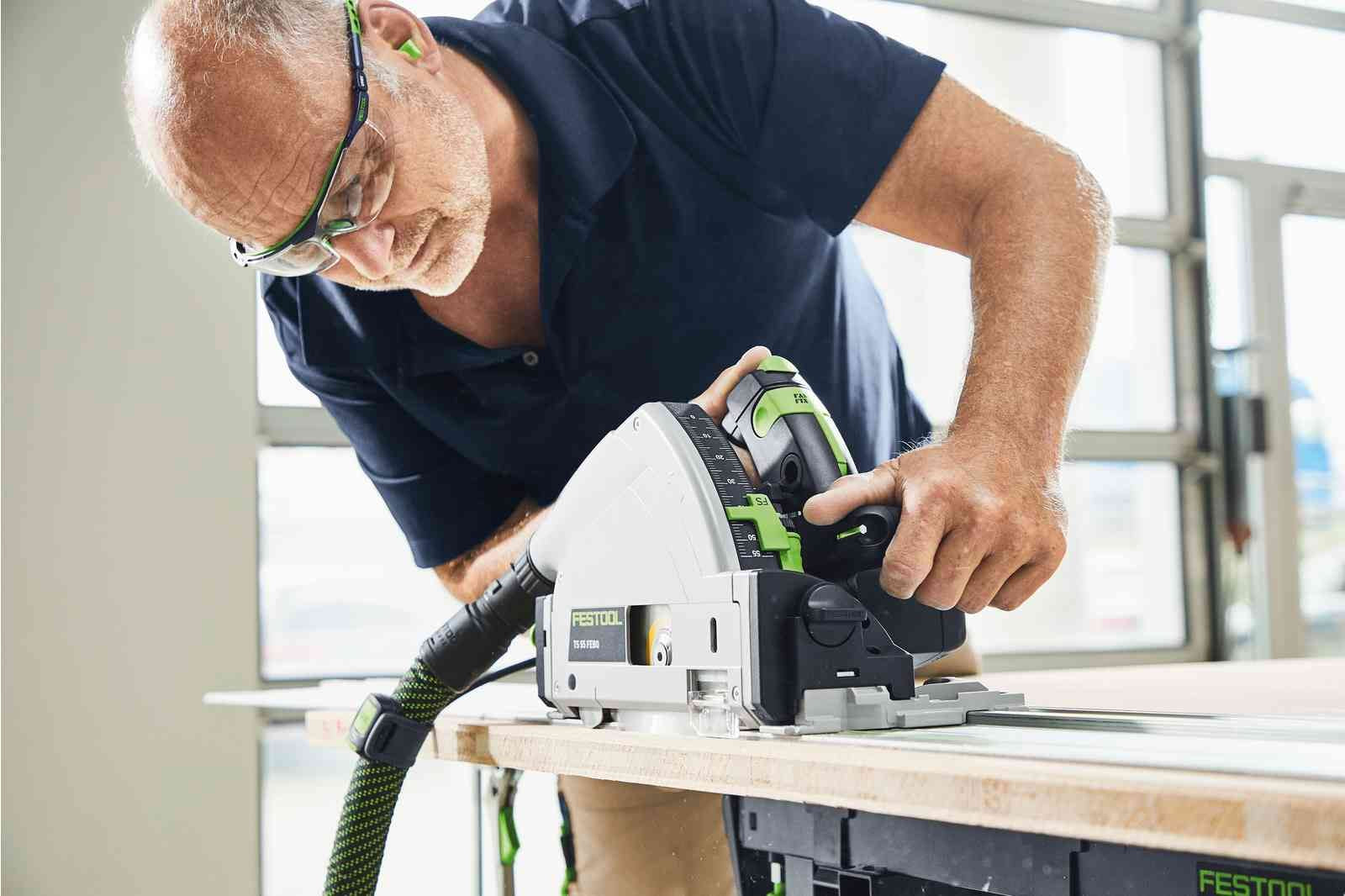

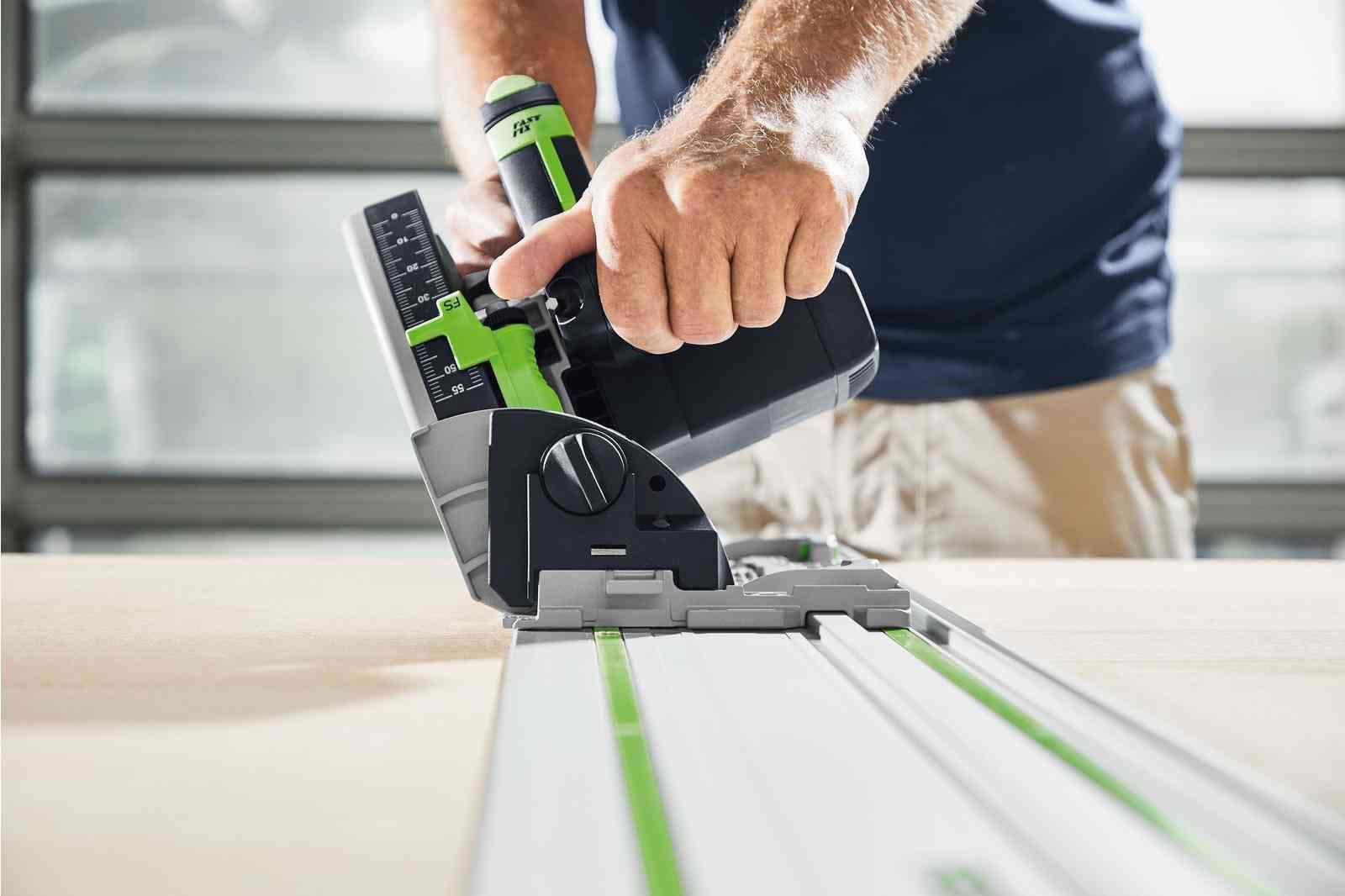

Festool TS 55 FEQ-Plus GB Circular Plunge-Cut Saw:
Angle adjustment with undercut function from -1° to 47°
Concentrated torque and up to twice as fast work progress with an increased saw blade service life
Guide wedge for safer work and simple positioning in existing joint
The cutting edge from 90° to 47° remains unchanged even when the saw swivels
Top-class sawing system thanks to a variety of accessories
Virtually splinter-free on both sides thanks to attachable splinter guard
Festool SYS-AIR M GB Air purifier:
Compact and lightweight: Low weight (under 10 kg), in a practical Systainer M437 format.
Air renewal rate: Extremely powerful air purifier with up to 680 m³/h air circulation. For rooms up to 57 m² at three times the air renewal rate per hour.
Flexibility for every room size: Depending on requirements, up to six air purifiers can be connected in series. This can increase the air renewal rate and improve the air quality.
Electrical outlet module: For connecting additional SYS-AIR air purifiers or power tools.
Adjustable: Two levels of volume flow can be selected depending on the volumes of dust.
Clever: The airflow is dispersed upwards in three directions (left, right, back). This means less swirling up of dust and fewer disruptive air currents.
Preliminary filter: Filters most of the dust and thus protects the main filter. Low-dust, quickly replaceable and cost saving.
Clean: Specially developed main filter in TripleV shape, with particularly large filter surface for less rapid clogging and longer service life. In dust class M.
Healthier work: > 99.9% filtration in dust class M
Signal light: Warns of clogged filters and indicates when a filter change is due
Port: For connecting an air supply hose (accessory) of dia. 200 mm for awkward spots or dust protection walls
Compatible: Can be connected to Systainers and extractors via T-LOC. Can be integrated into bott vehicle equipment
Mobile: Easy to carry thanks to Systainer handle. Easy to transport when connected with SYS-RB roll board or extractor
Safely stored: Power cable fixed and securely stowed in the lid compartment
Mobile air purifier for filtering airborne dust for construction sites and workshops with filter class M

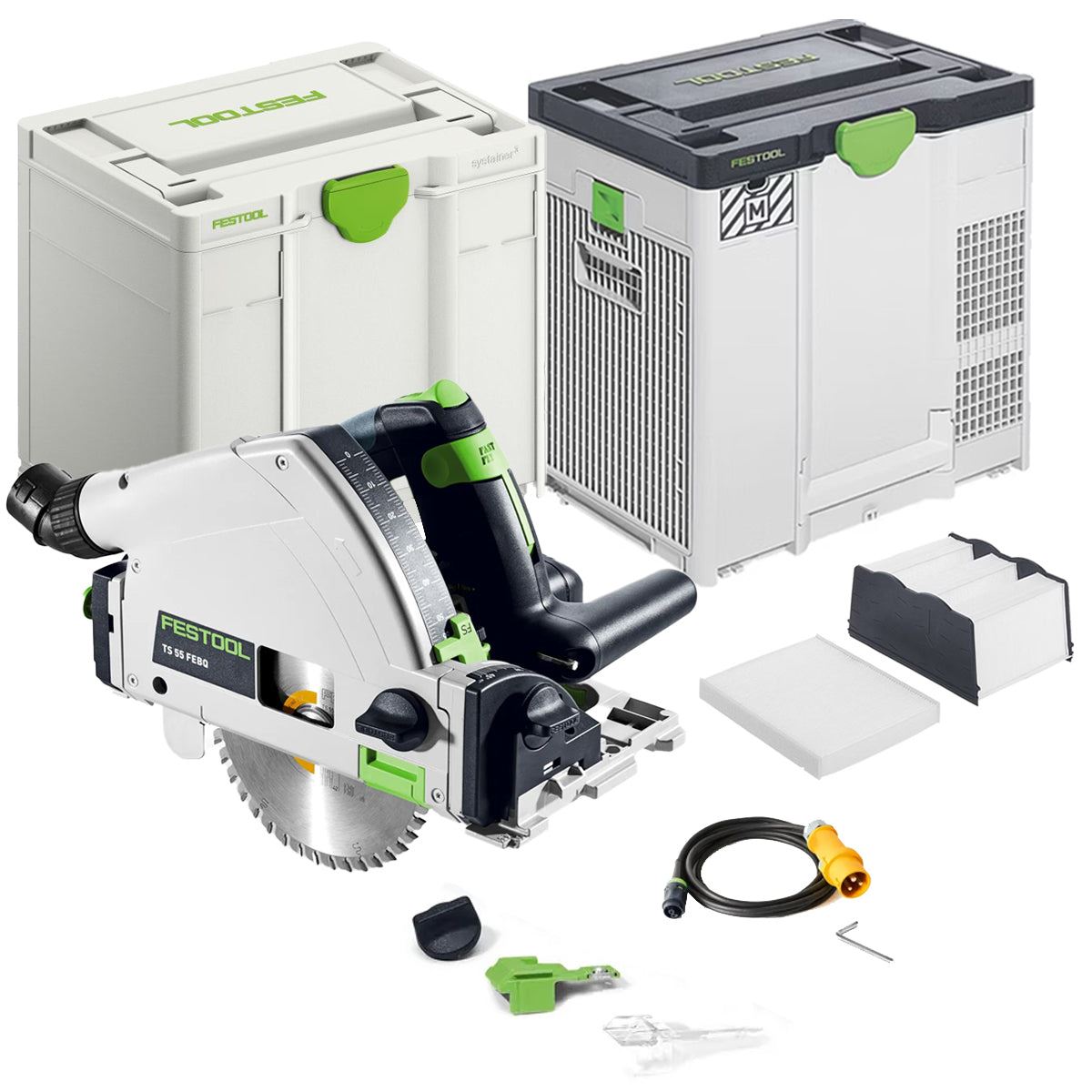

Comes With:
Flag window; vision panel
Systainer SYS3 M 337

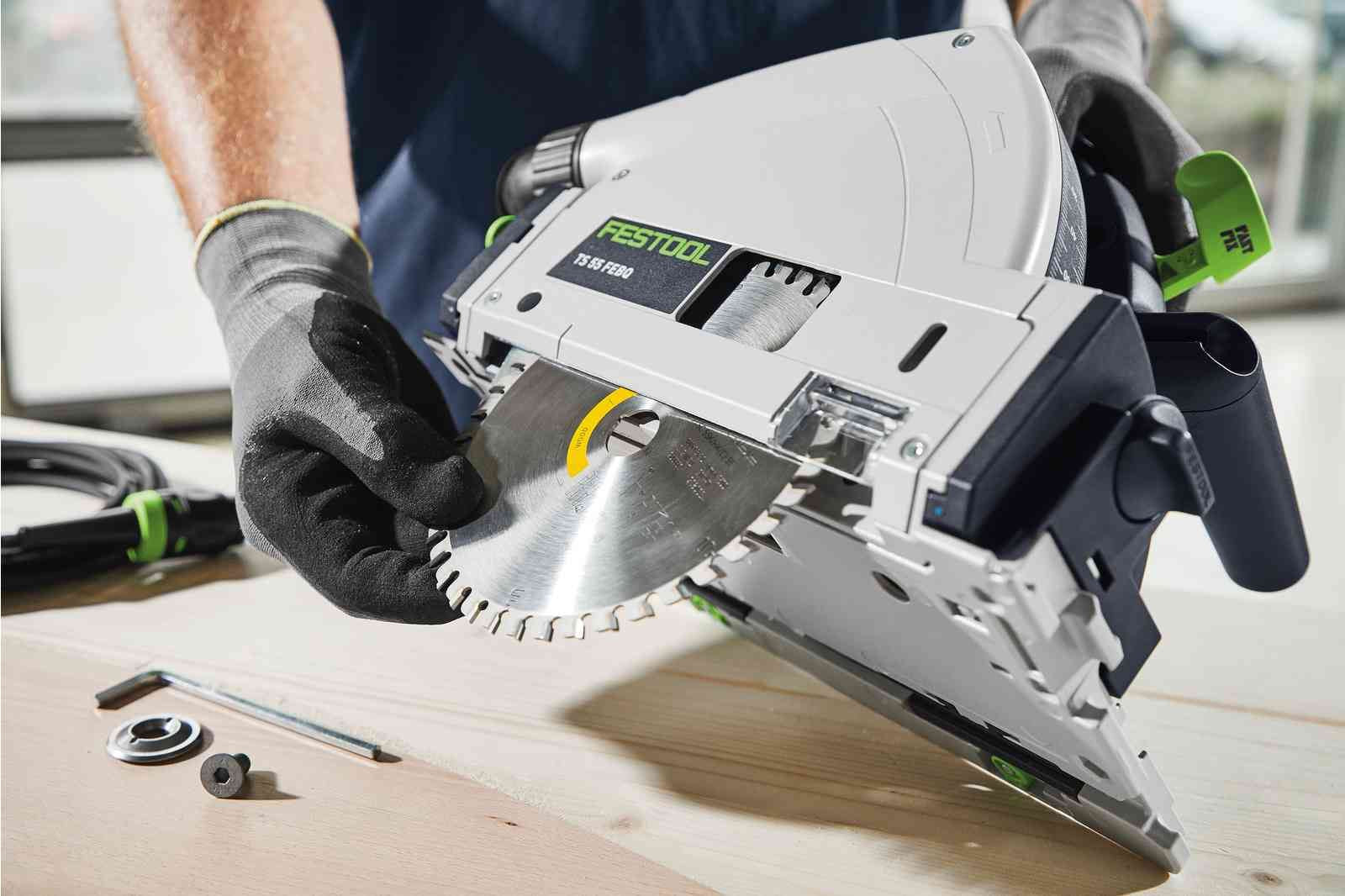

Circular saw blade WOOD FINE CUT HW 160 x 1, 8 x 20 WD42
Hex key, WAF 5
Plug it-power cable (4 m)
Splinterguard

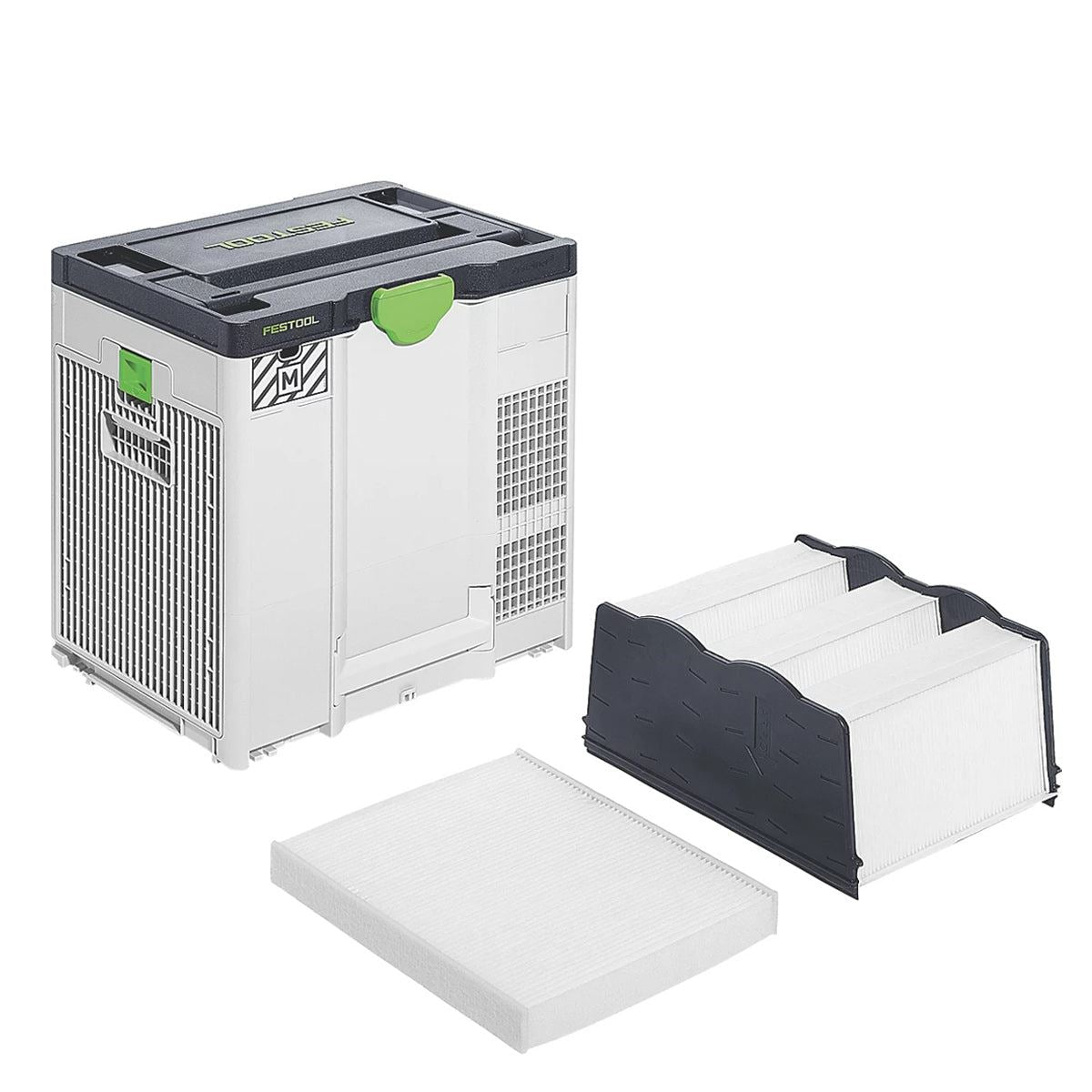

1 x Main Filter HF-SYS-AIR M
1 x Preliminary Filter VF-SYS-AIR
Product Specification:
Festool TS 55 FEQ-Plus GB Circular Plunge-Cut Saw:
Part Number: 576707
Power consumption: 1 200 W
Idle engine speed: 2 000 - 5 800 min?¹
Saw blade diameter: 160 mm
Angular range: -1 - 47 °
Cutting depth: 0 - 55 mm
Cutting depth 45°: 43 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4 m
Sawing metal: A-weighted sound pressure level, LpA: 90 dB(A)
Sawing metal: Total vibration average, Ah: 2.5 m/s²
Sawing metal: Uncertainty (vibration) K: 1.5 m/s²
Sawing metal: A-weighted sound power level, LWA: 101 dB(A)
Sawing metal: Standards series EN:62841
Sawing metal: Uncertainty (noise) K: 3 dB
Sawing wood: Total vibration average, Ah: 2.5 m/s²
Sawing wood: A-weighted sound pressure level, LpA: 90 dB(A)
Sawing wood: Uncertainty (noise) K: 3 dB
Sawing wood: A-weighted sound power level, LWA: 101 dB(A)
Sawing wood: Standards series EN: 62841
Sawing wood: Uncertainty (vibration) K: 1.5 m/s²
Drive type: Mains
Product weight: 4.8 kg
Festool SYS-AIR M GB Air purifier:
Part Number: 577785
Voltage: 230V
Power Consumption: 200 W
Max. Volume Flow: 680.00 m³/h
Filter Surface of Preliminary Filter: 8,600.00 cm²
Filter Surface of main Filter: 24,600.00 cm²
Cable Length: 7.50 m
Noise Level: 55 - 65 dB
Dimensions (L x W x H): 396 x 296 x 437 mm
Max. Appliance Socket Connected Load: 2,200.00 W
Dust Class: M
Product Weight without Accessories: 9.80 kg
Drive Type: Mains
**images for illustrative purposes only – please refer to description and specification for full details of product**
