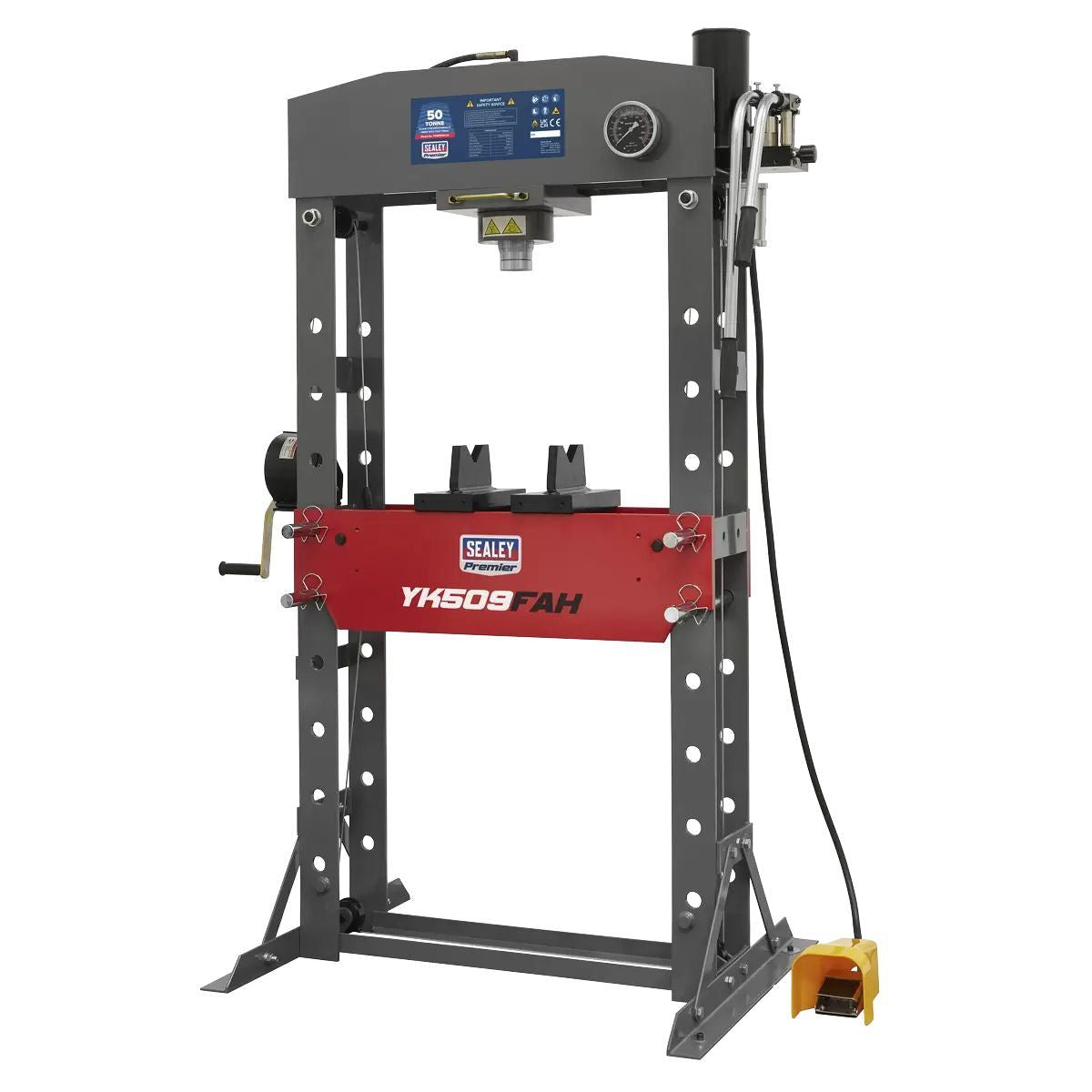

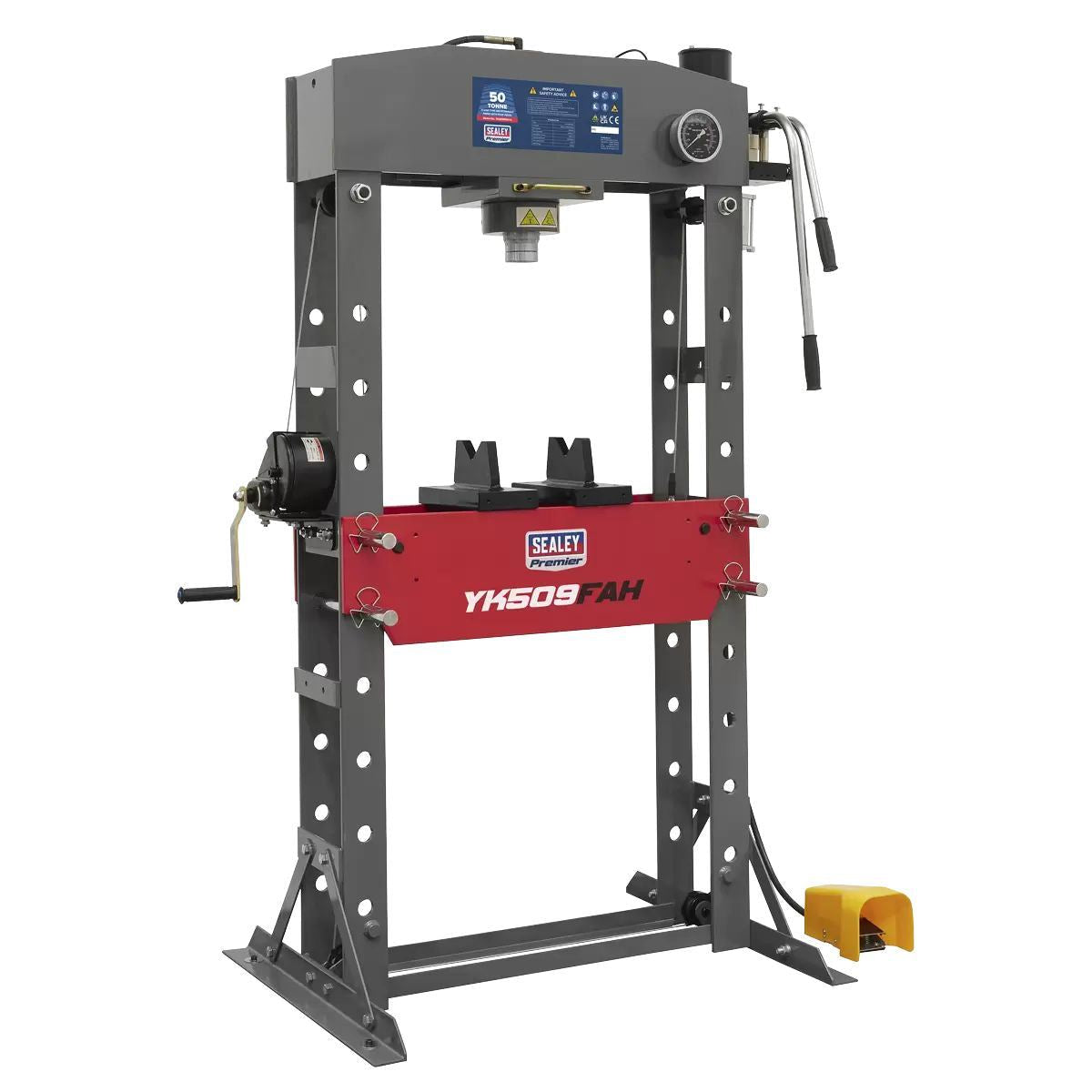

Sealey YK509FAH Air/Hydraulic Press 50 Tonne

Sealey YK509FAH Air/Hydraulic Press 50 Tonne

Note:- Please note upon delivery a forklift will be required to unload this product.

Features:

Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
2-Speed manual operation.
Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge.
Supplied with table winch and flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

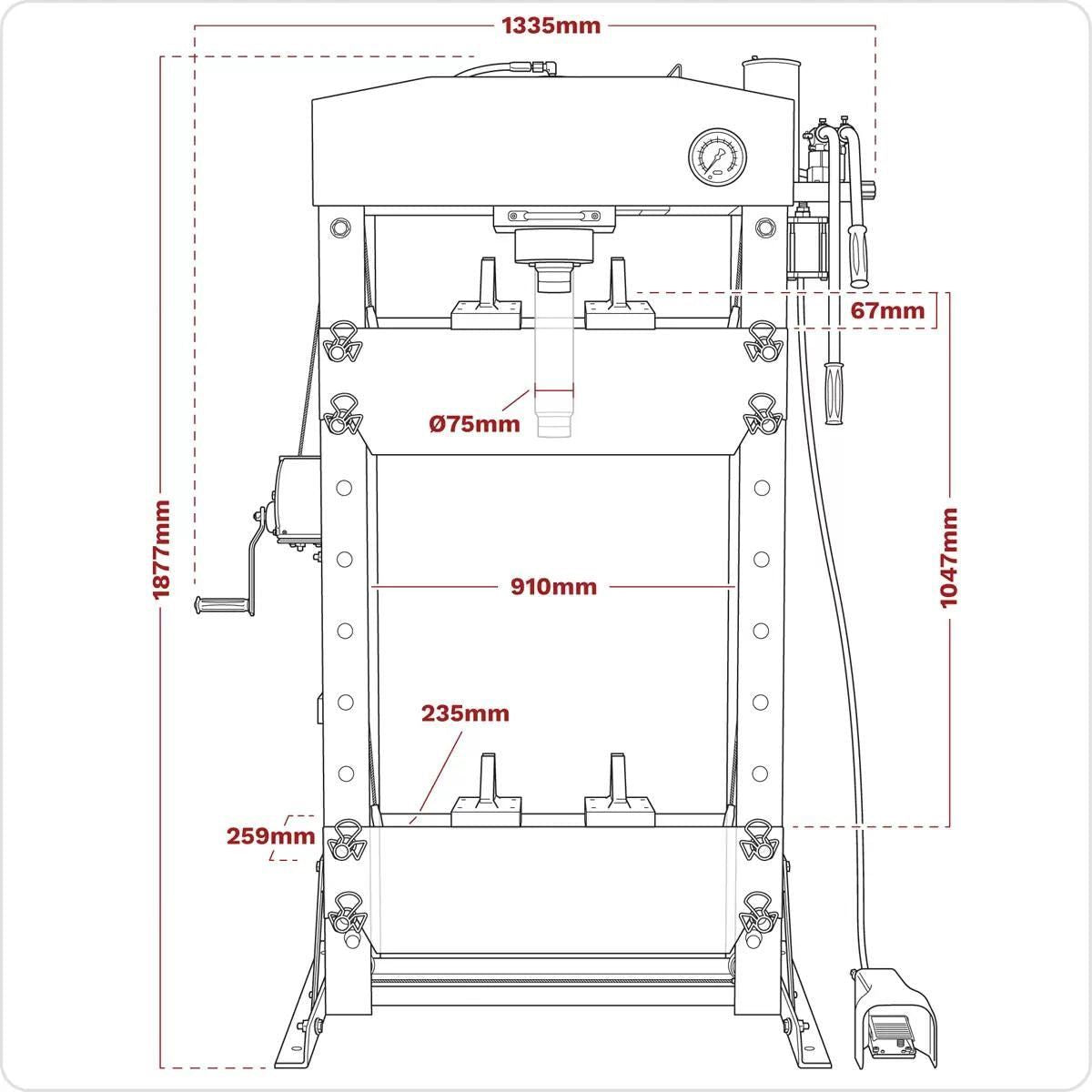

Specification:

Part No: YK509FAH
Barcode: 5054511717051
Air Consumption: 7cfm
Bench or Floor Mounting: Floor
Capacity: 50 Tonne
Gauge Included: Yes
Lateral Ram Travel: 245mm
Maximum Height - Ram to Table: 1047mm
Minimum Height - Ram to Table: 67mm
Nett Weight: 302.5kg
Optional Accessories: YKSG50 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1877mm
Overall Width: 1335mm
Ram Diameter: Ø75mm
Ram Stroke: 200mm
Table Aperture: 235mm
Air/Hydraulic Working Table Depth: 259mm
Working Table Width: 910mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
