Hyundai HY30100V 100L Air Compressor 230V
- Regular price
-
£365.00
£304.16 Ex.VAT -
£468.00
-
£365.00 £304.16 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
Delivery in 2-3 working days
- 100 litre tank capacity
- Portable Design
- Efficient And Compact
- Ideal For Various Jobs
- Powerful Engine

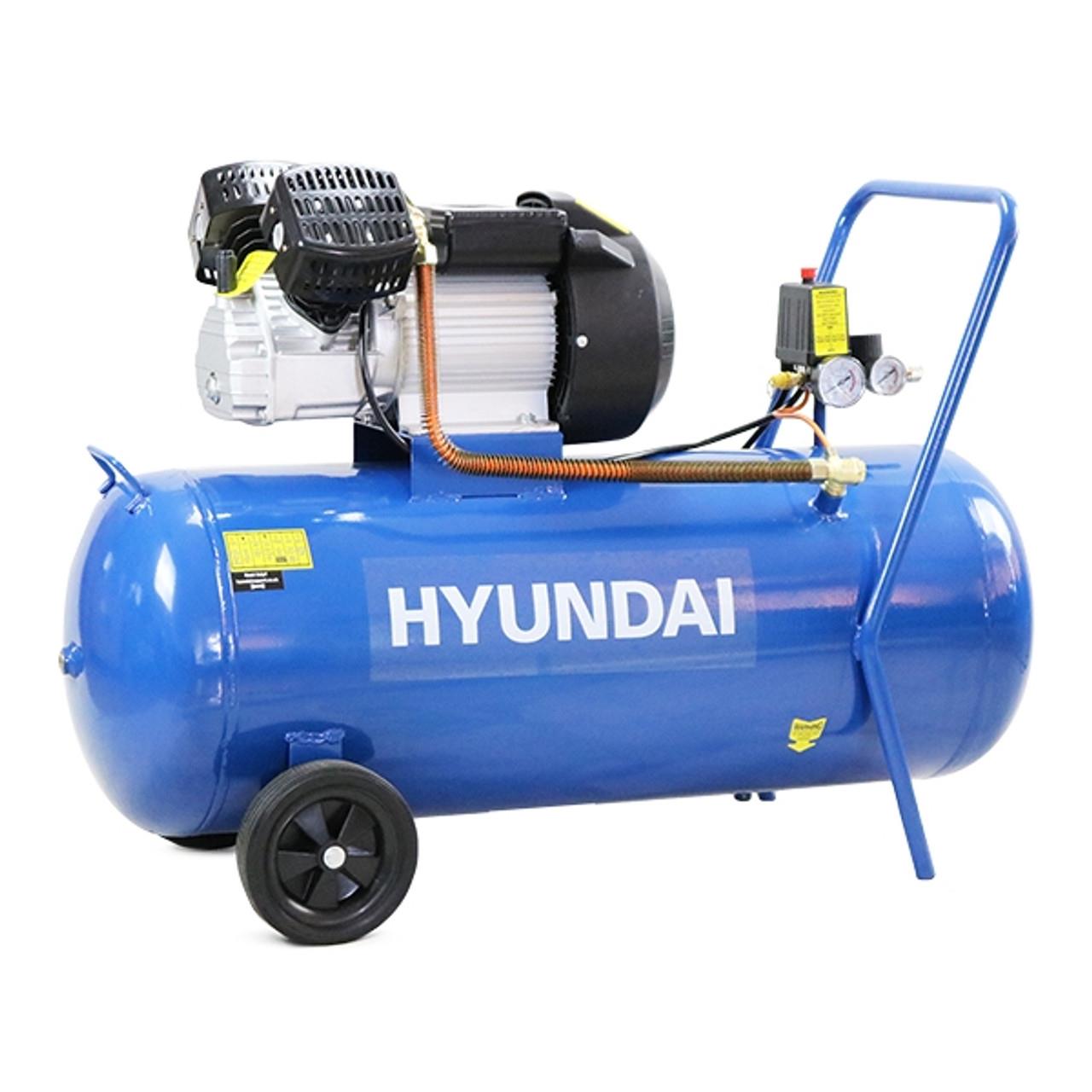

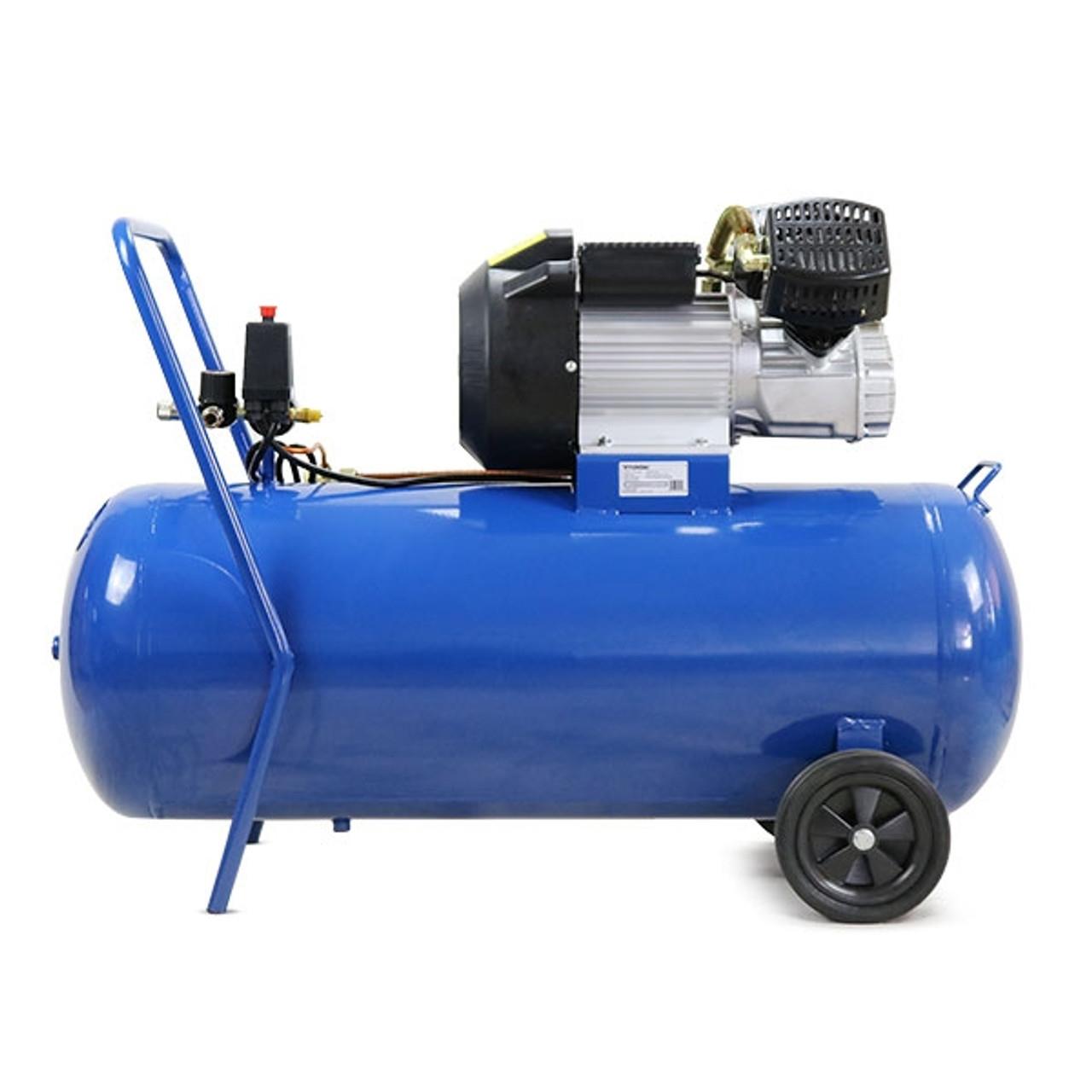

Hyundai HY30100V 100L Air Compressor 230V

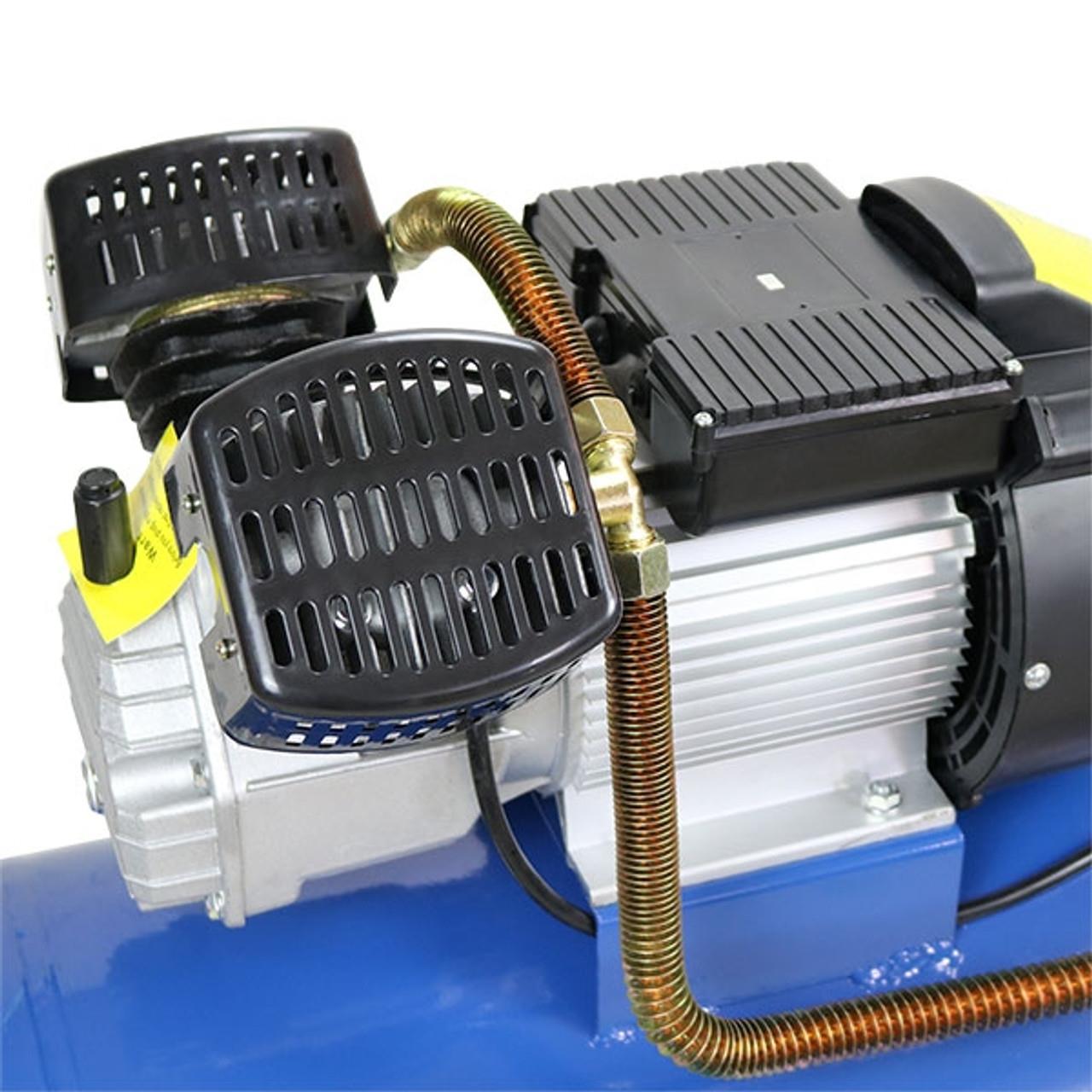

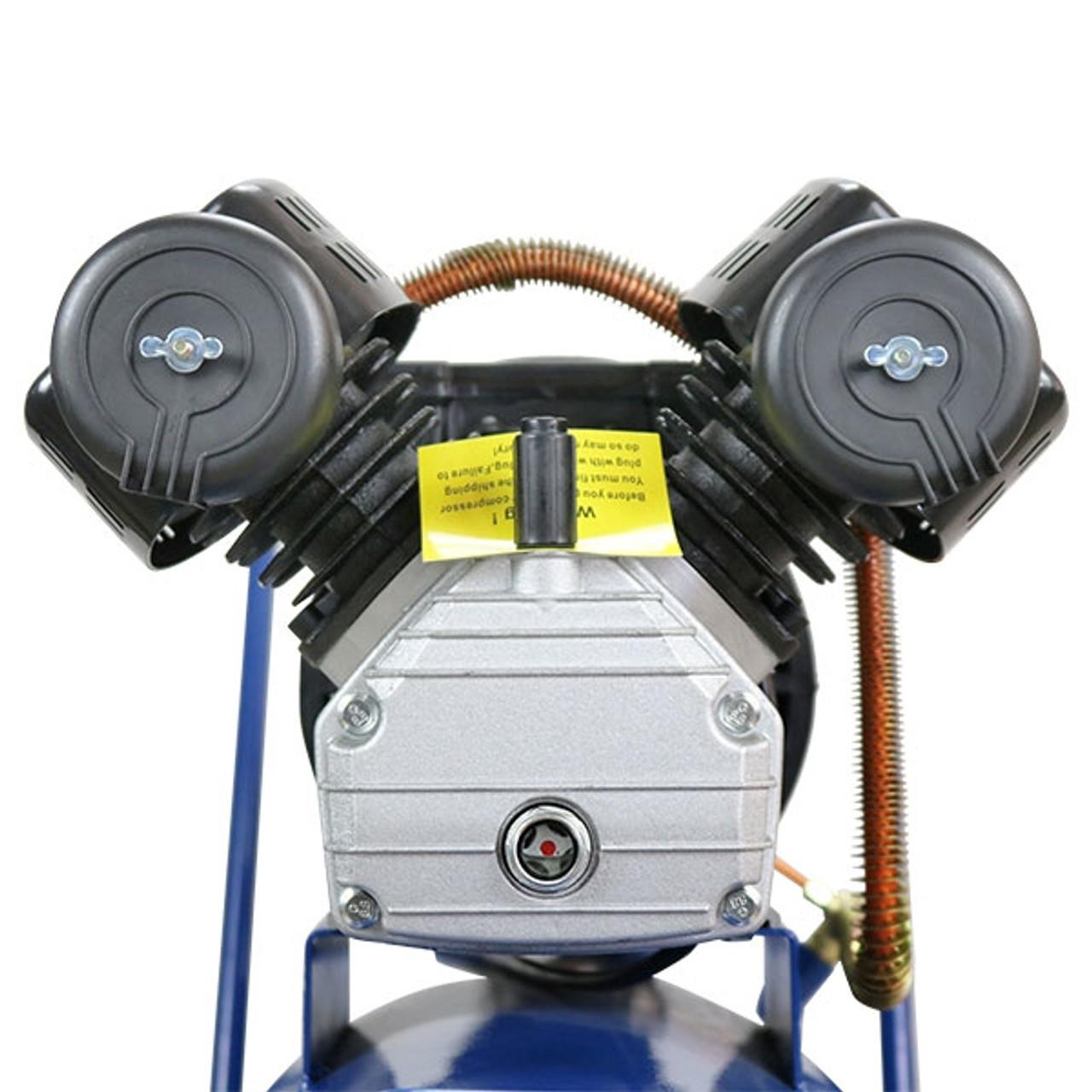

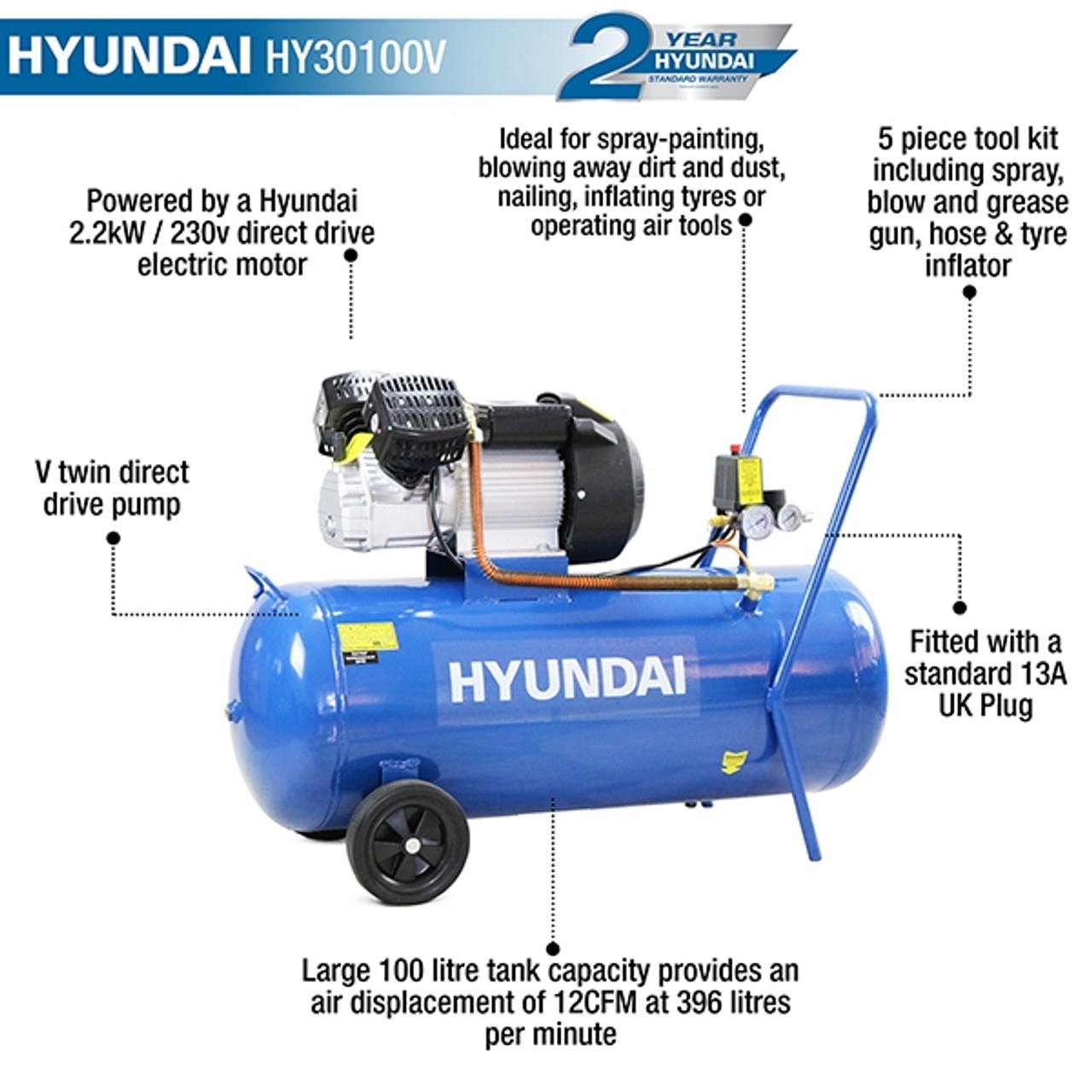

The Hyundai HY30100V is a powerful yet compact 3hp V-twin cylinder direct drive air compressor from Hyundai. The V-Twin pump features long lasting cast iron cylinders and aluminium cylinder heads for improved cooling, and comes ready to go including oil. The V-twin direct drive design connects the motor straight to the pump increasing efficiency, allowing all the 3hp produced by the motor to be used to drive the compressor air pump producing more power in what is a very compact design.
The 100 litre tank capacity provides a constant supply of air for airtools with 14CFM, 396 litres per minute air displacement. Twin quick release air outlets for increased versatility allow two air-lines / tools to be connected at the same time. The pressure regulator allows the outlet pressure to be increased or decreased and the two pressure gauges measure pressure in the tank and the outlet pressure. It's also fitted with an over pressure safety valve, the automatic pressure control system switches the compressor off when the maximum pressure of 8 bar has been reached and restarts it when pressure drops to 6 bar.
Features:
Powered by a Hyundai 2.2kW 3hp 230v motor.
V-twin direct drive pump fitted with a standard 13A UK Plug.
100 litre tank capacity provides an air displacement of 14CFM or 396 litres per minute and 8bar / 116psi.
Fitted with twin Euro quick release connectors.

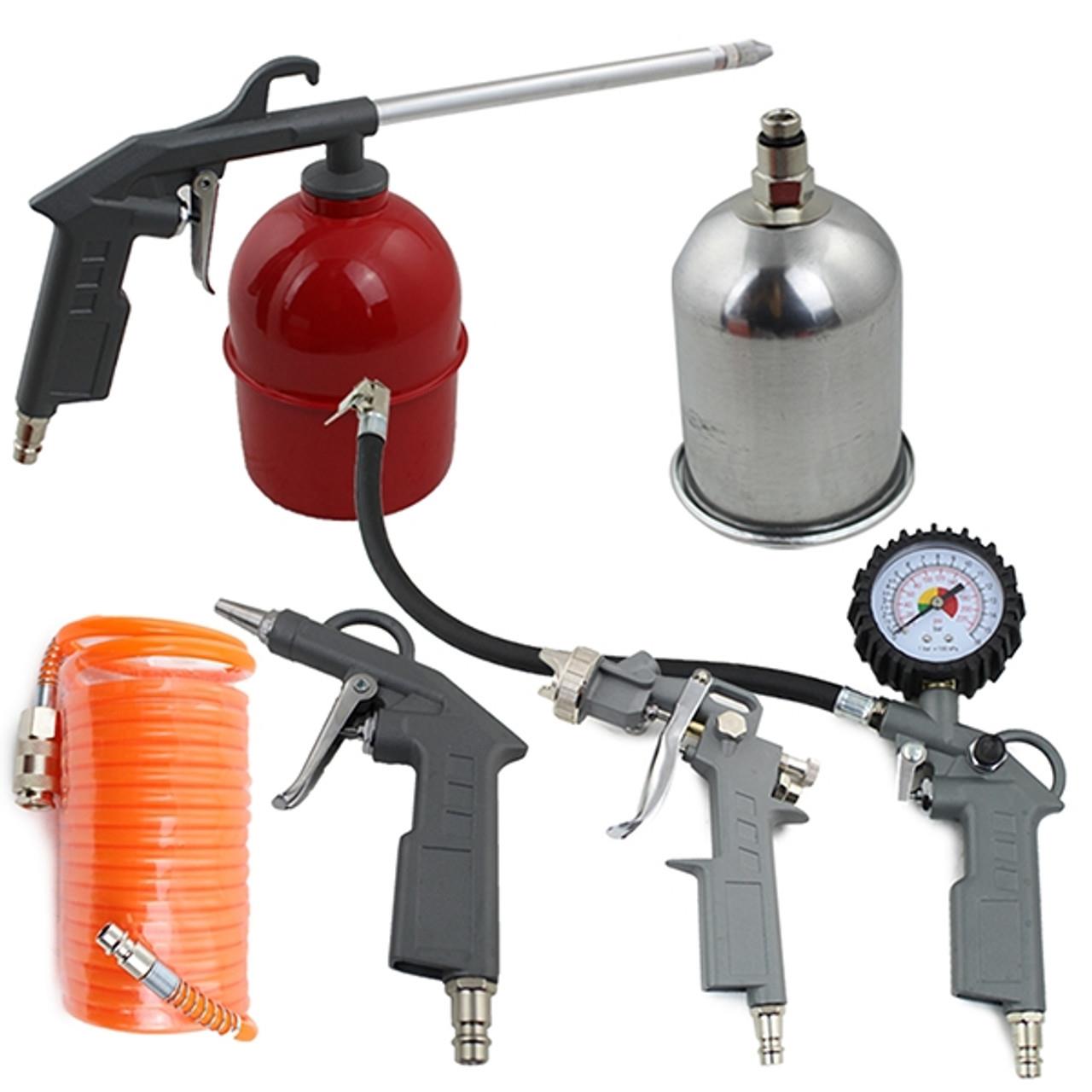

5 piece tool kit including spray gun, air duster/jetter, degreaser gun, hose with Q/R fittings & tyre inflator.

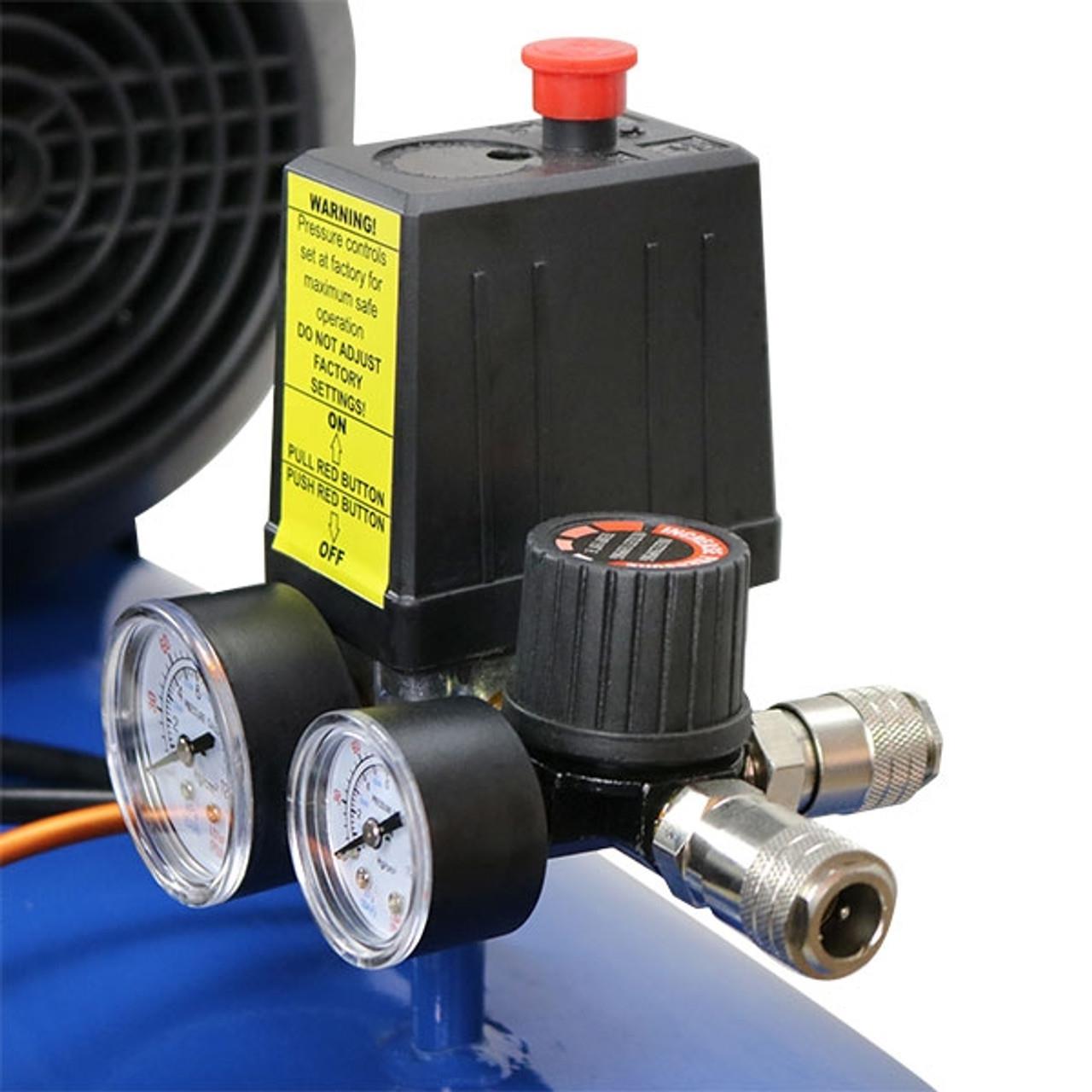

Includes twin pressure gauges, automatic cut out switch, safety valve and pressure regulator/ adjuster.
Specification:
Model: HY30100V
Barcode: 5056275722746
Start Method: 13A UK Plug
Fuel Type / Power Source: Electric
Cable Length (m): 1

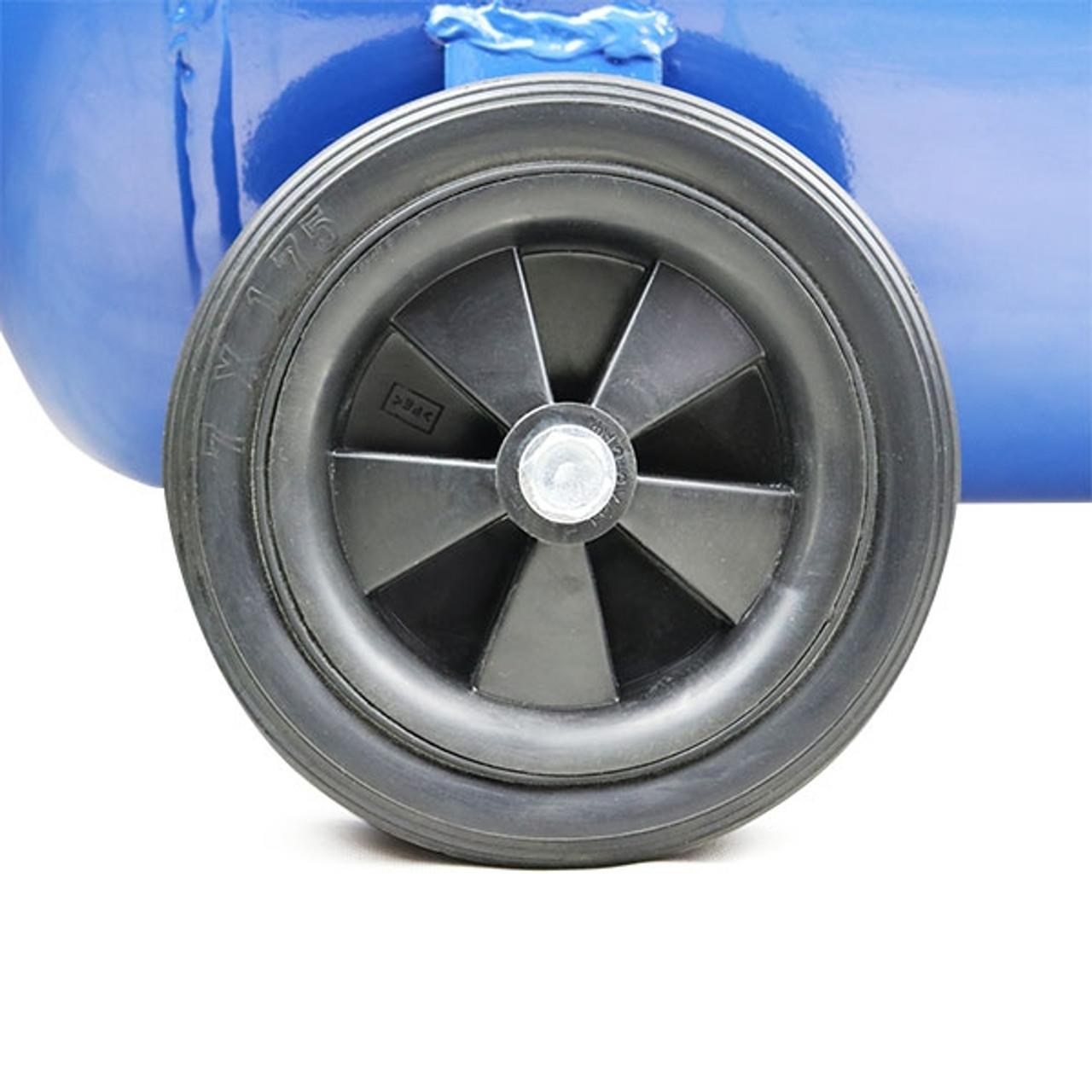

Stationary / Wheeled: Wheeled
Drive Type Direct: Drive V-Twin
Tank Capacity (L): 100
Tank Material: Steel
Duty Cycle: 80%
Discharge Pressure (psi/bar): 116/8
Max Pressure (psi/bar): 116/8
Air Flow FAD (L/min): 200
Air Flow FAD (CFM): 7
Air Displacement (L/min): 396
Air Displacement (CFM): 14
Air Outlet Connection: Euro Quick Release
Voltage: 230
Rated Power (w): 2200
Motor Power kW/hp: 2.2/3
Pump (RPM): 2850
Speed (RPM): 2850
Noise Level @ 7m (dB): 70
Gross Weight (kg): 64.5
Net Weight (kg): 60

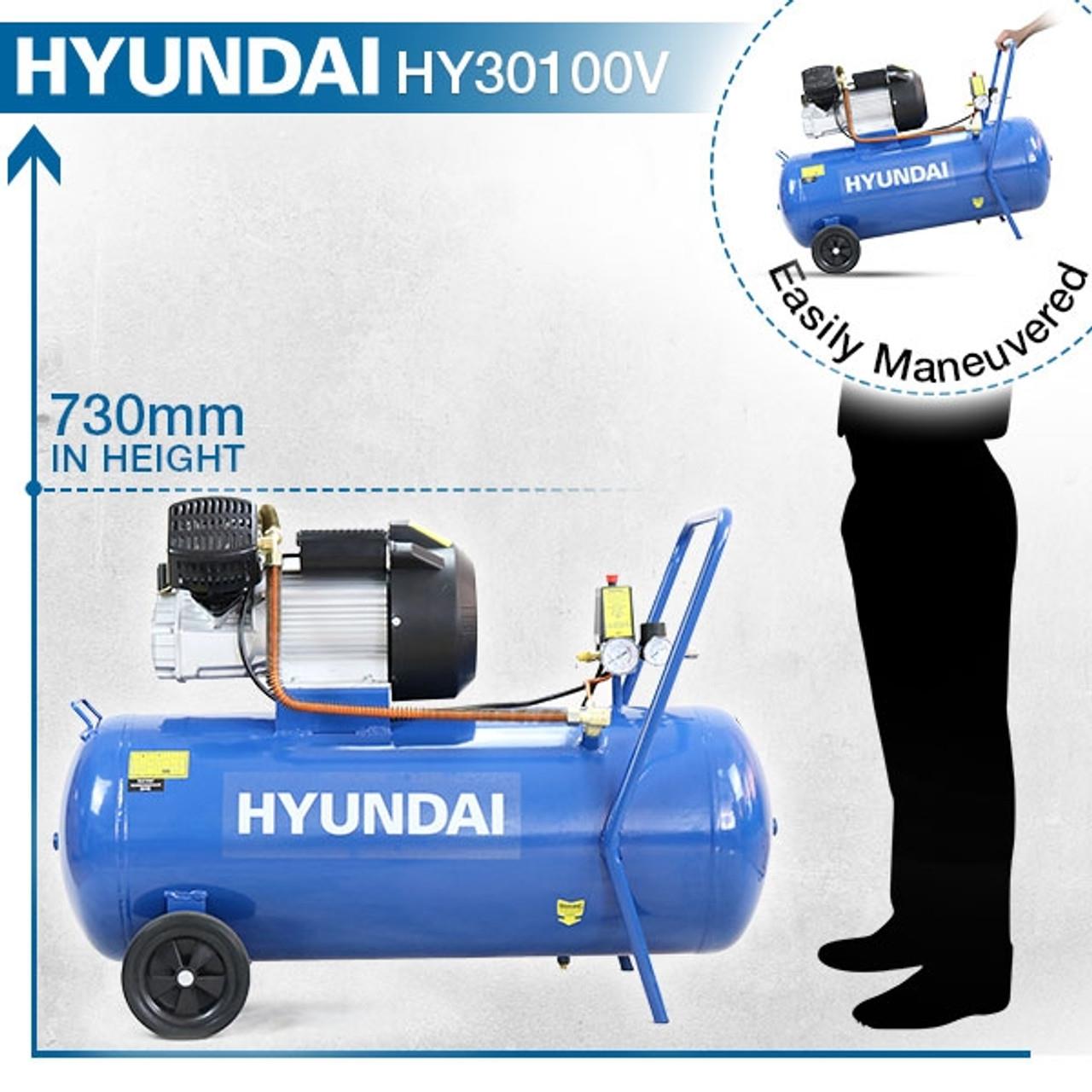

Fully Assembled Dimensions (H x W x L) (mm): 730 x 430 x 1020
Packaged Dimensions (H x W x L) (mm): 800 x 440 x 1100
Product Type: Air Compressor
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
