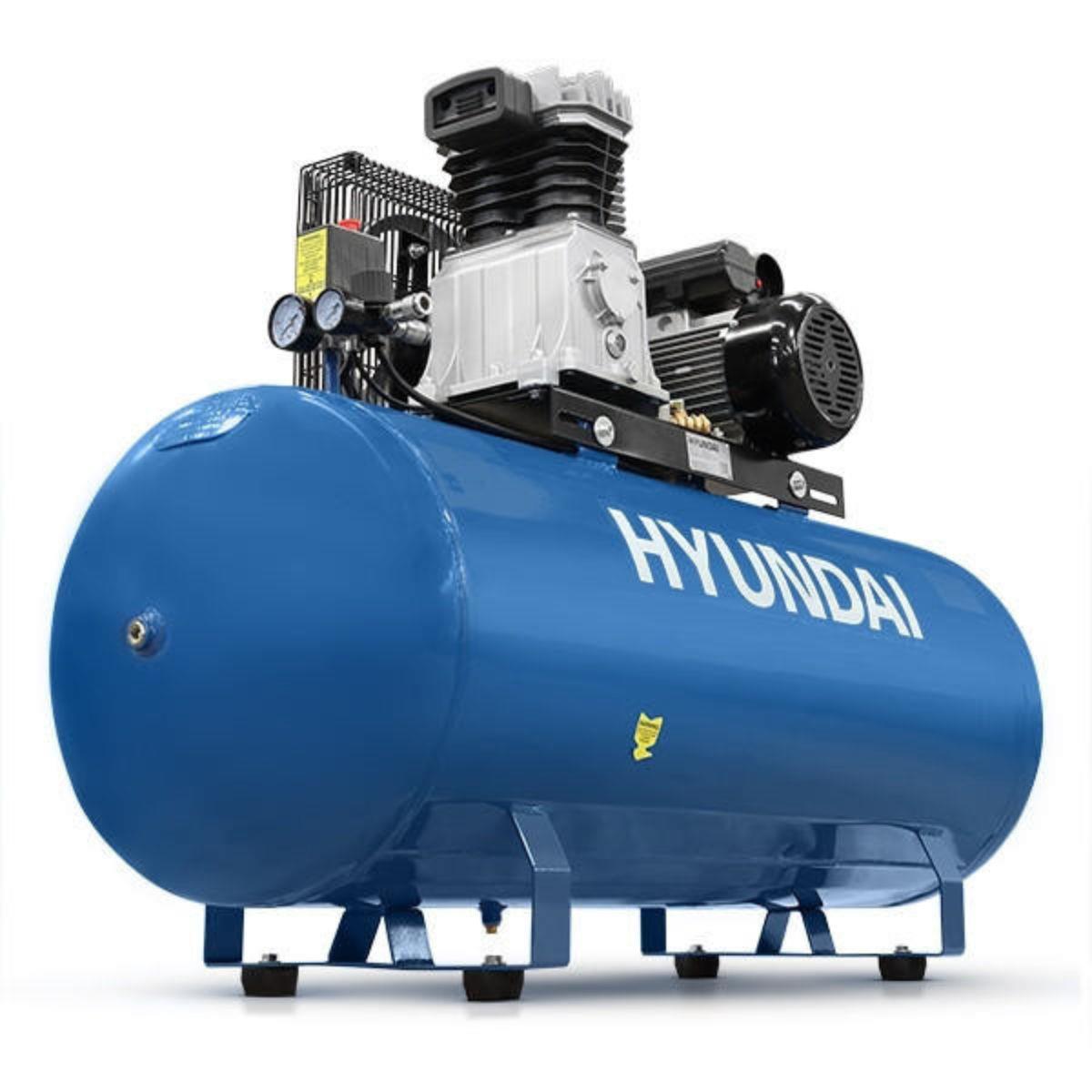

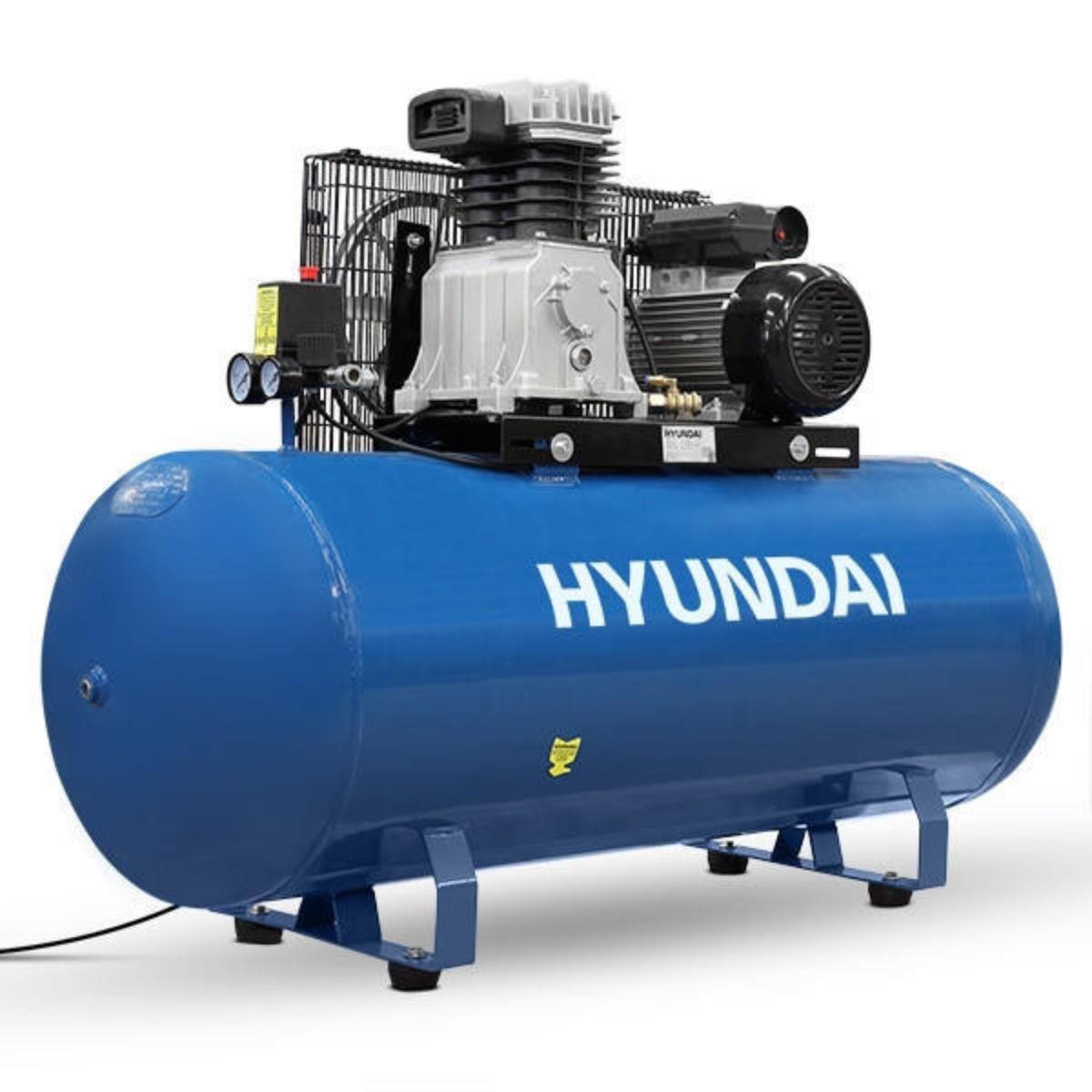

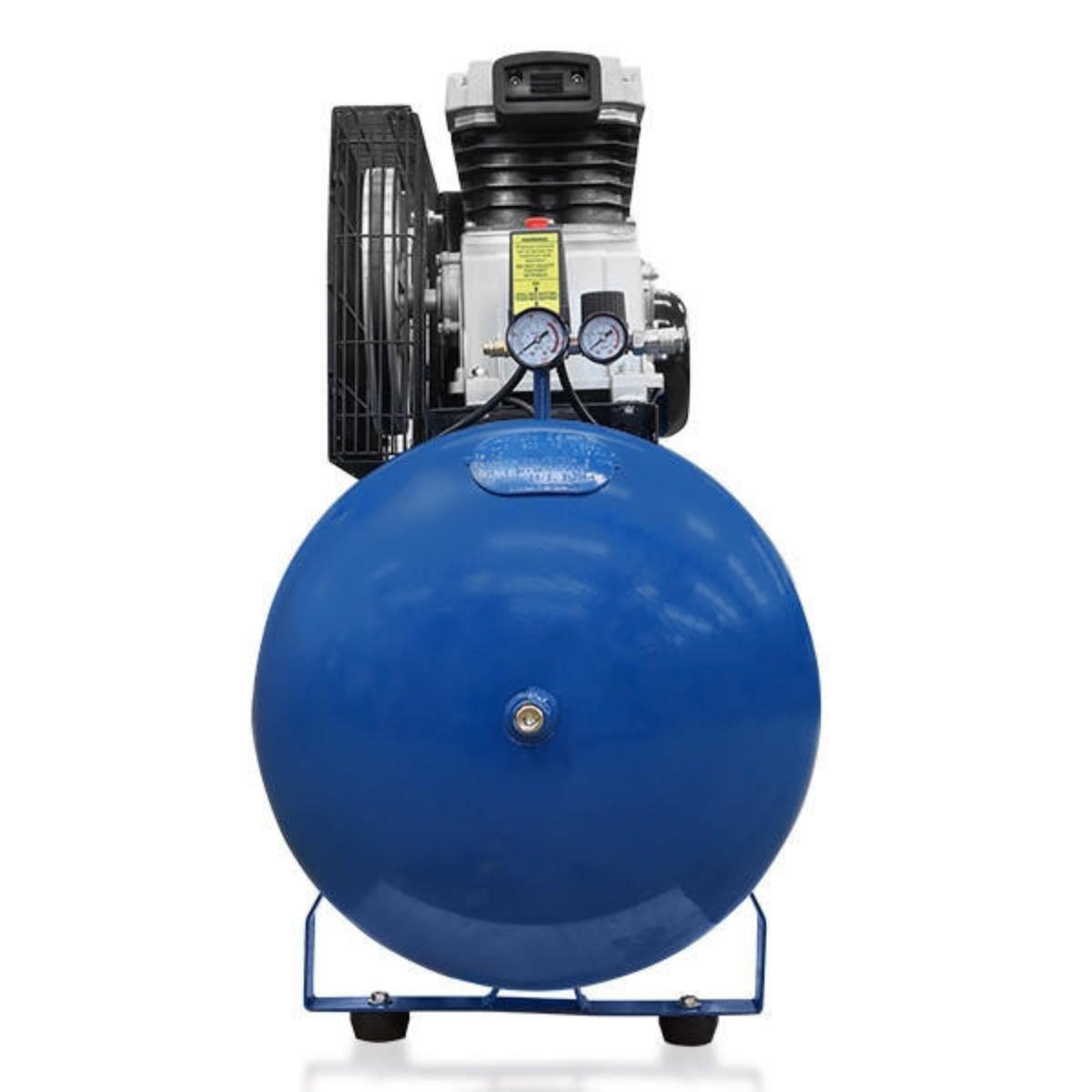

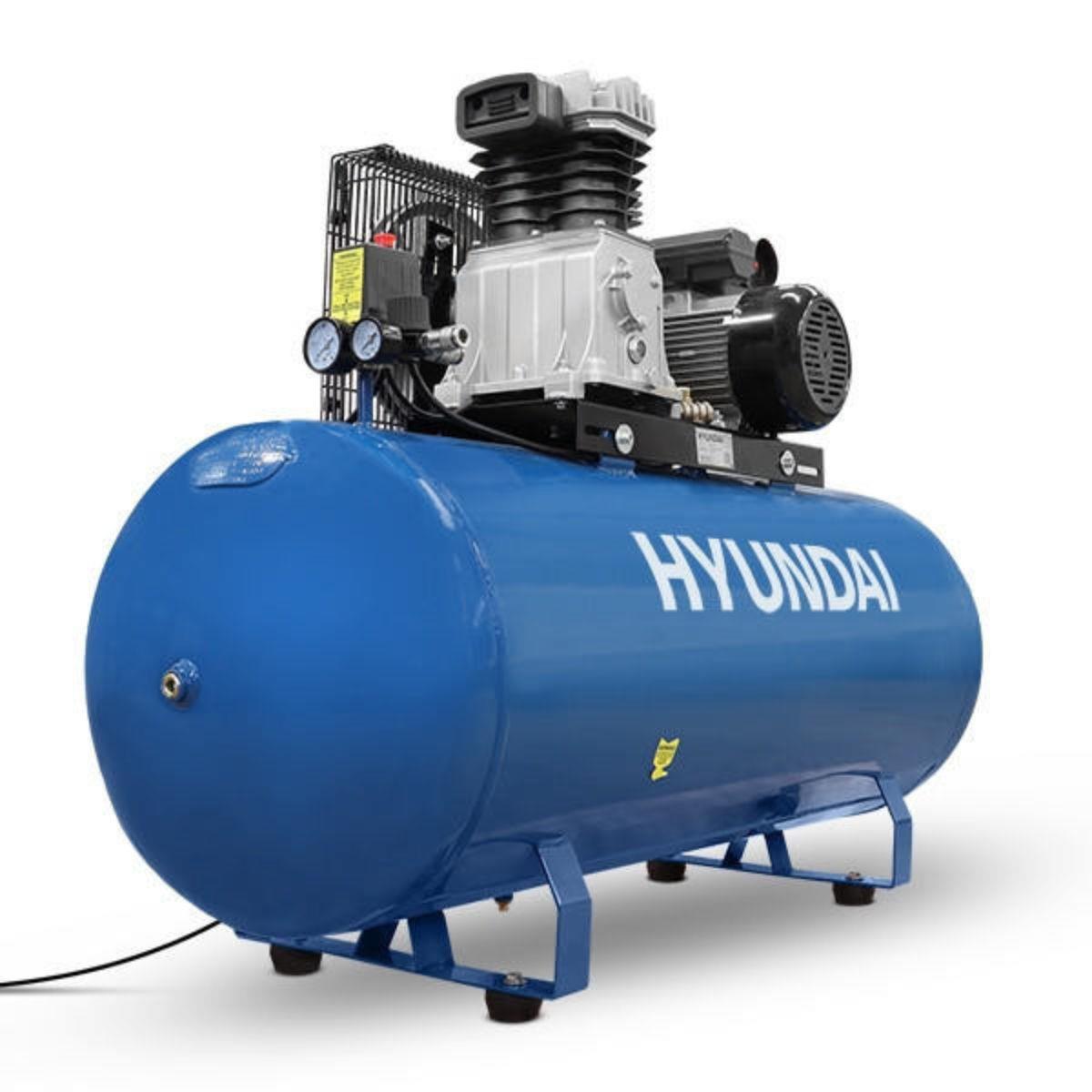

Hyundai HY3200SX 200L Electric Air Compressor 145psi Belt Drive 230V/3hp
Hyundai HY3200SX 200L Electric Air Compressor 145psi Belt Drive 230V/3hp

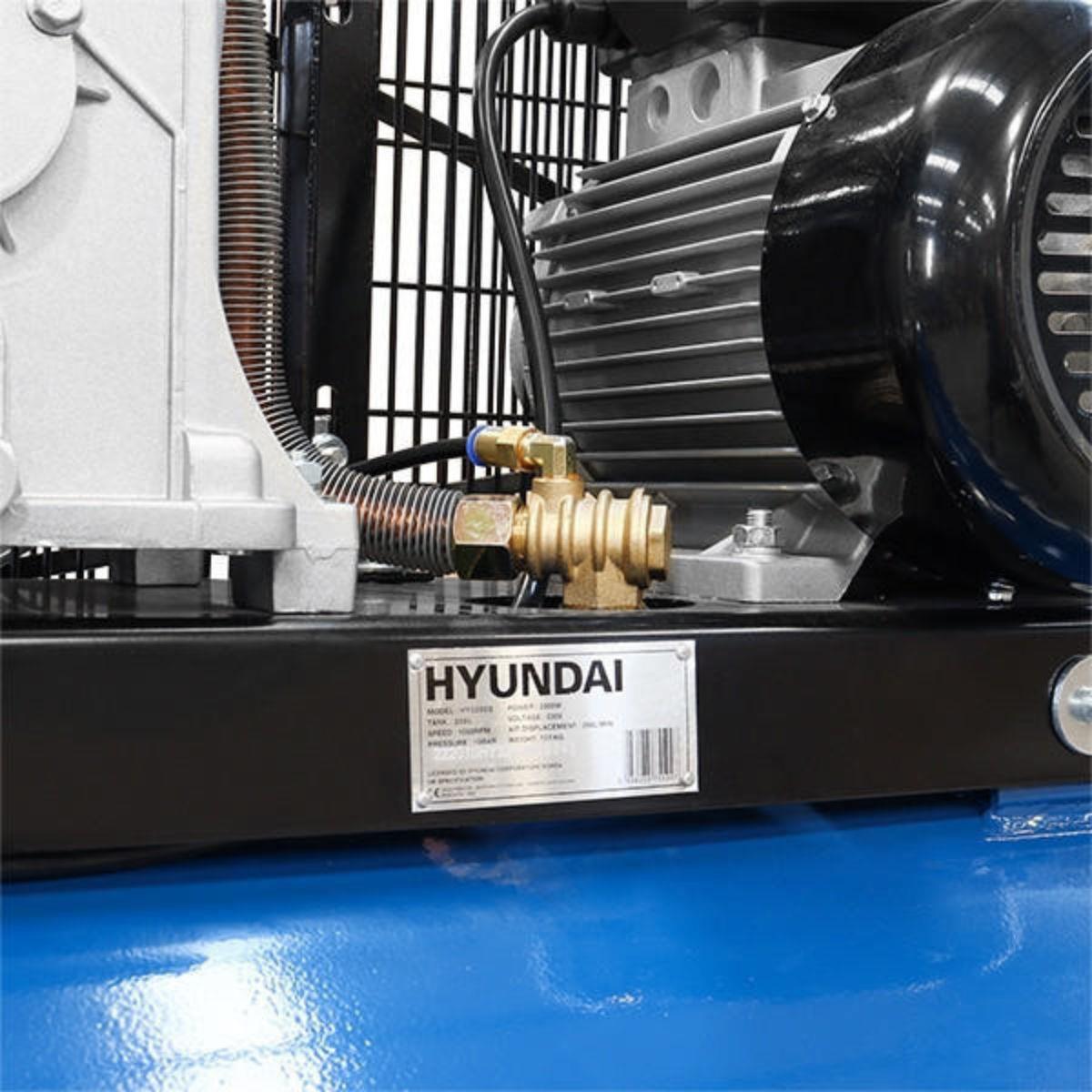

The HY3200SX is slow running belt drive air compressor for professional and commercial users, built to tackle the toughest requirements on a daily basis. Equipped with a large 200L rolled steel air tank, this heavy-duty air compressor has the capacity needed for powering mechanical, industrial and workshop tasks. It's powered by a 3hp 230v electric motor and benefits from a belt drive system, which provides efficient, quiet and cool performance. The HY3200SX produces a maximum pressure output of 145psi / 10bar with a displacement of 14cfm, making it the ideal choice for professional users who have demanding air-powered tools. With a tough cast iron twin cylinder block, this air compressor is built to last and conforms to all of the latest European Standards. With a net weight of 110kg, the HY3200SX is a large air compressor and is ideal for mechanics or engineers who need to carry out repairs in the field. HY3200SX compressors have a 2.2kw/2200w/3hp single phase, 230v 50hz electric motor. They are supplied with a 13amp 3 pin plug. The 13 amp plug will be fine for normal DIY use. However, if the air compressor is being used for more than a 50% duty cycle (motor running for more than half the time) it may be advisable to use a blue 16 amp plug.

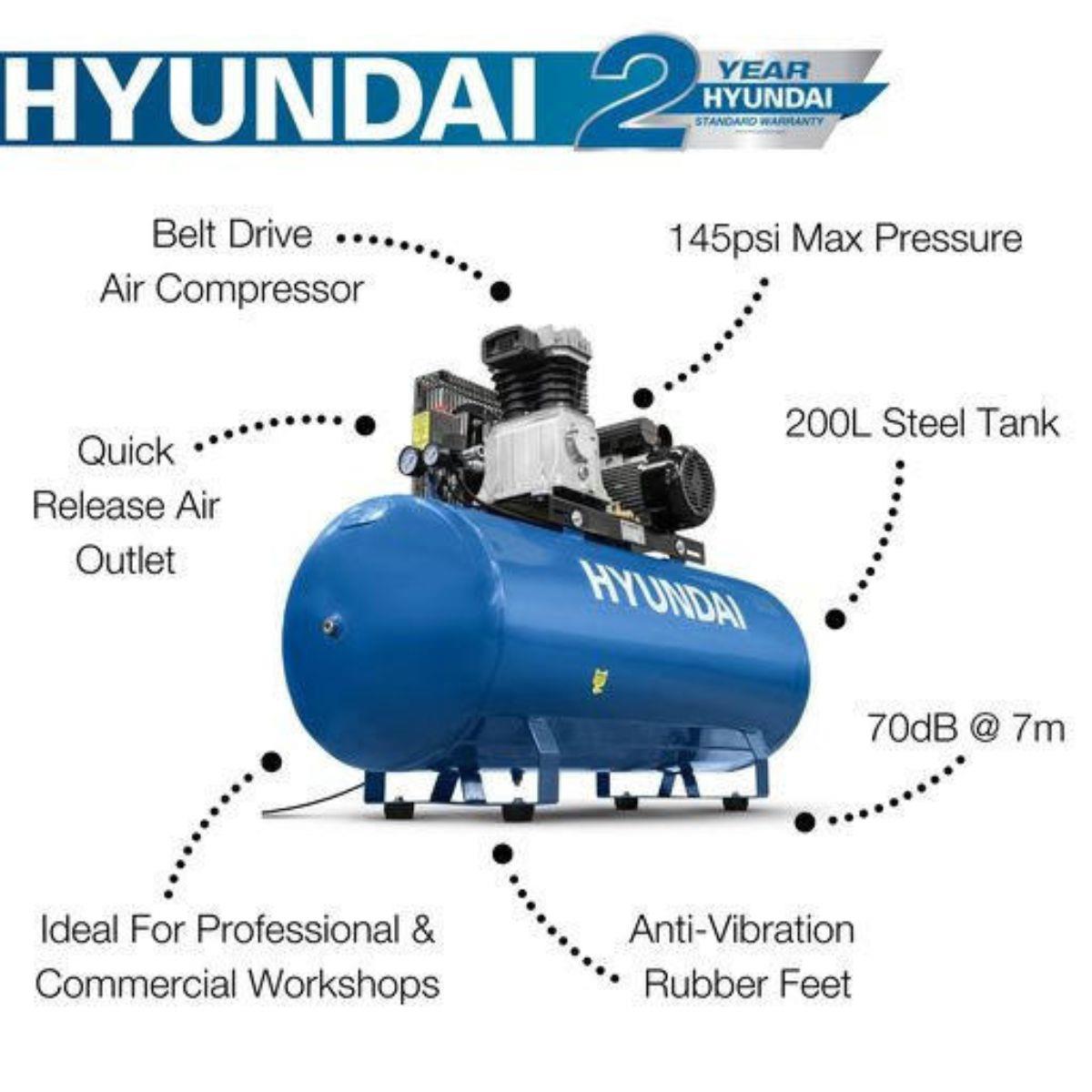

Features:

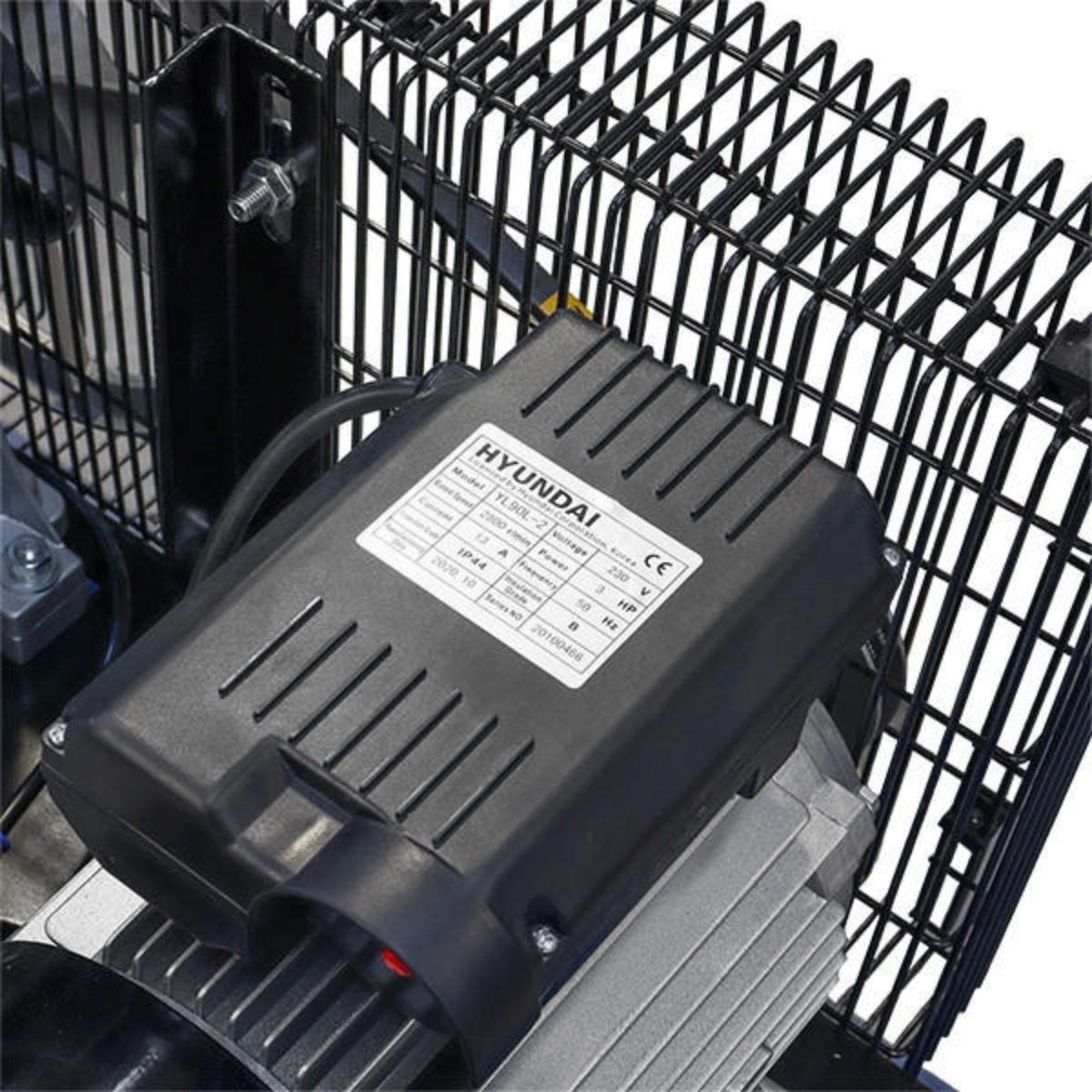

Powerful 3HP (2200W) single-phase motor designed for professional and workshop use.
Large 200L steel air tank suitable for demanding industrial and mechanical tasks.

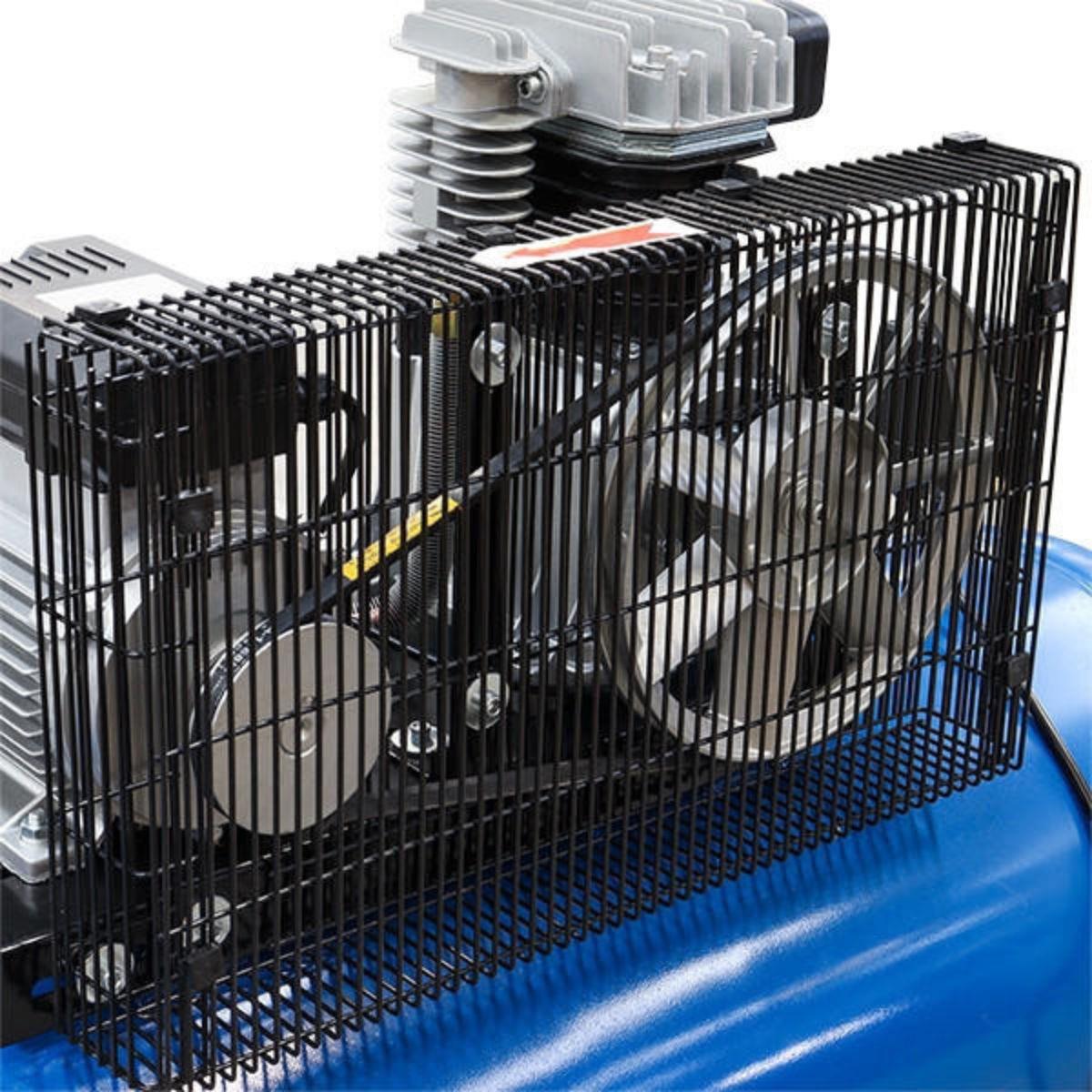

Belt drive system ensures quieter operation, improved cooling and efficient performance.
Twin cylinder cast iron pump designed for durability and long service life.
Delivers up to 145 PSI / 10 bar pressure with 14 CFM air displacement.
Built to European standards with heavy-duty construction for daily commercial use.

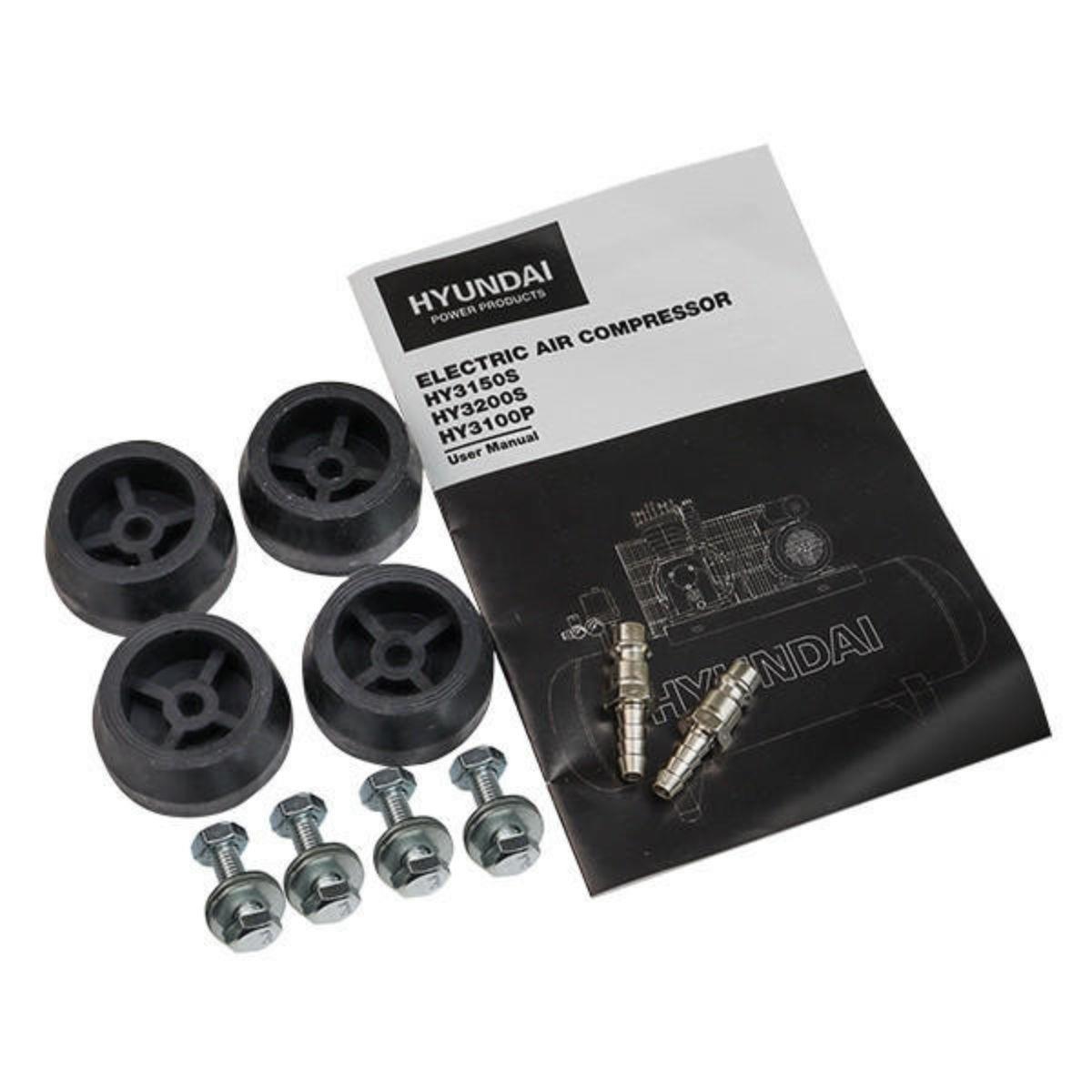

Comes With:
1 X HY3200SX 200L Electric Air Compressor 145psi Belt Drive 230V/3hp
Product Specification:
Part Number: HY3200SX
Barcode number: 747150287775
Start Method: Switch
Fuel/Power Source: Electric
Cable Length (m): 1.4
Stationary / Wheeled: Stationary
Drive Type: Belt Drive
Tank Capacity (L): 200
Tank Material: Steel

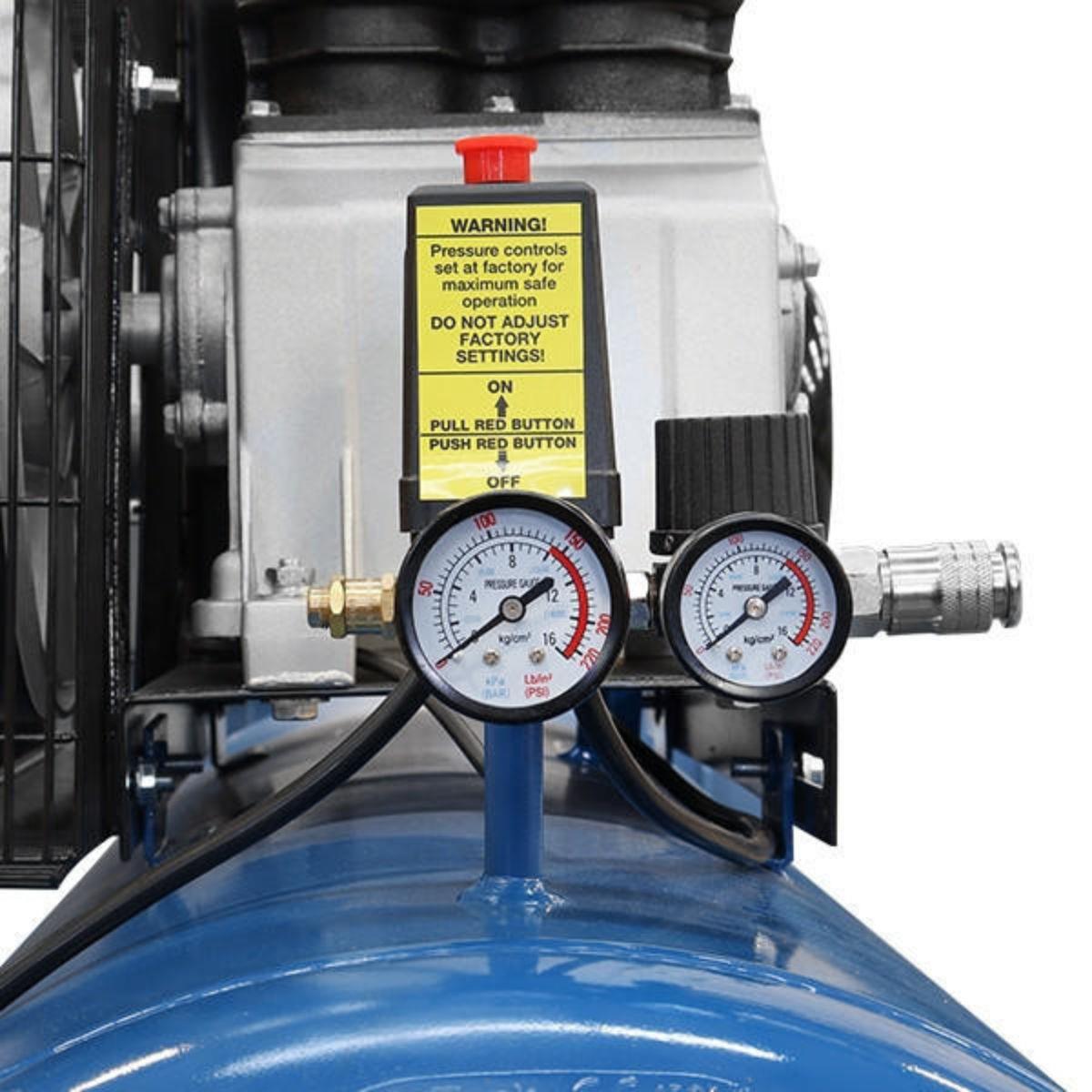

Cut-In Pressure (psi/bar): 116/8
Cut-Out Pressure (psi/bar): 145/10
Discharge Pressure (psi/bar): 145/10
Max Pressure (psi/bar): 145/10
Air Flow FAD (L/min): 300
Air Flow FAD (CFM): 11
Air Displacement (L/min): 396
Air Displacement (CFM): 14

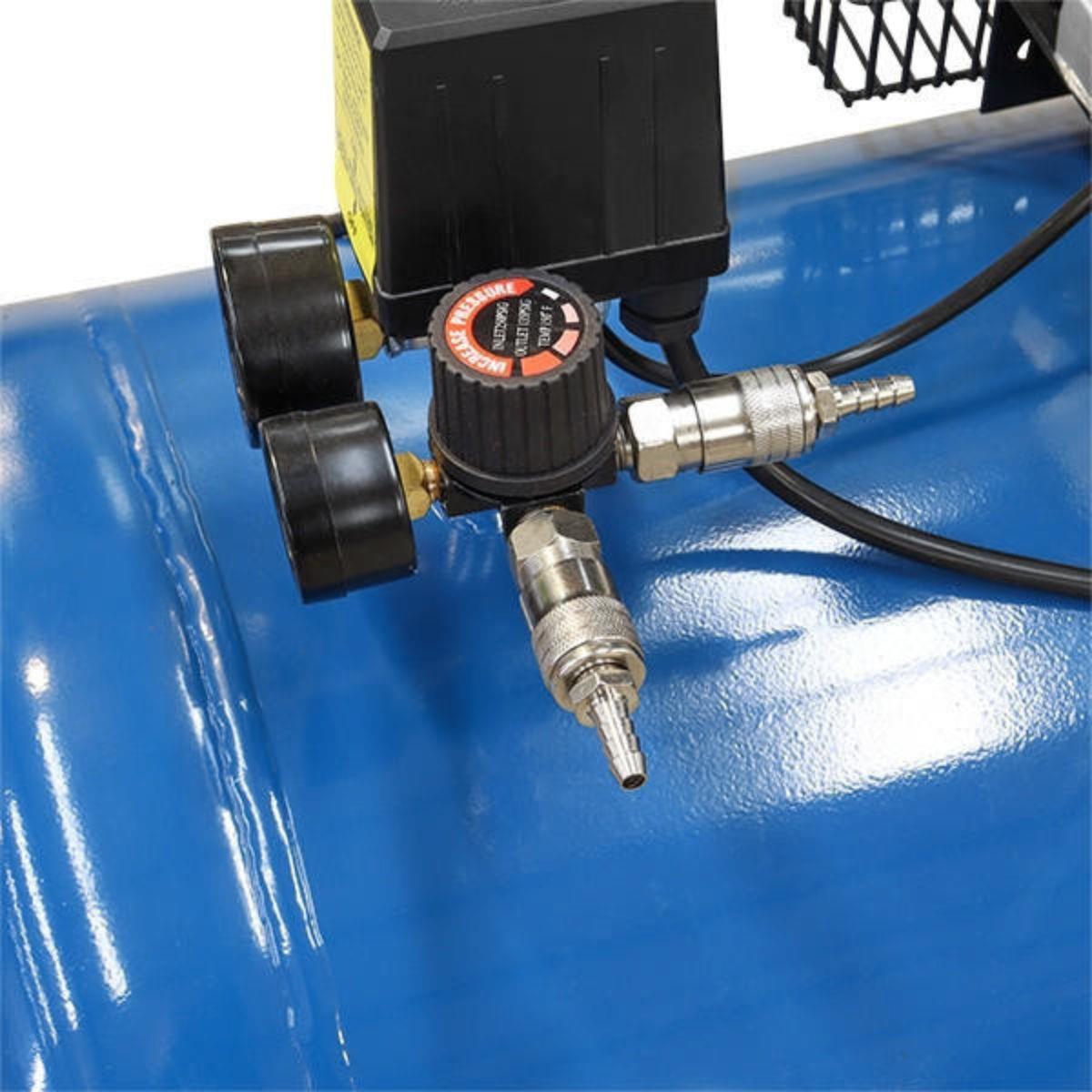

Air Outlet Connection: Euro Quick Release
Outlet Pressure Regulation Type: Adjustable
Phase: Single
Voltage: 230
Rated Power (w): 2200
Motor Power kW/hp: 2.2/3
Pump (RPM): 1050
Motor Speed (RPM): 2850
Frequency (Hz): 50
Noise Level @ 7m (dB): 75
Gross Weight (kg): 115
Net Weight (kg): 105
Fully Assembled Dimensions (H x W x L) (mm): 980 x 500 x 1310
Packaged Dimensions (H x W x L) (mm): 1020 x 520 x 1360
Product Type: Air Compressor
**images for illustrative purposes only – please refer to description and specification for full details of product**
