Hyundai HYCP9070 196cc Petrol Plate Compactor Wacker Plate with Wheel Kit and Paving Pad
Hyundai HYCP9070 196cc Petrol Plate Compactor Wacker Plate with Wheel Kit and Paving Pad
Hyundai HYCP9070 is the flagship compactor plate/wacker, powered by a 196cc 4-stroke petrol engine and equipped with an extra-large plate measuring 540mm x 420mm. With a travelling speed of 15m/min and a compaction depth of 300mm, this compactor plate is suited for jobs both large and small, such as building driveways, patios, block paving and more. The HYCP9070 is more than capable of compacting soil, sand and gravel into a level and solid foundation and the included paving pad will protect patios and block paving from being marked during use.The controls to run the compactor plate are all within easy reach of the guide handle making operation and control simple.
Features:
Flagship Hyundai compactor plate.
Powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
Equipped with a large fuel tank for long running.
Fitted with a large plate for working effectively on large areas.
Has a travelling speed of 15m/min, with a compaction depth of 300mm.

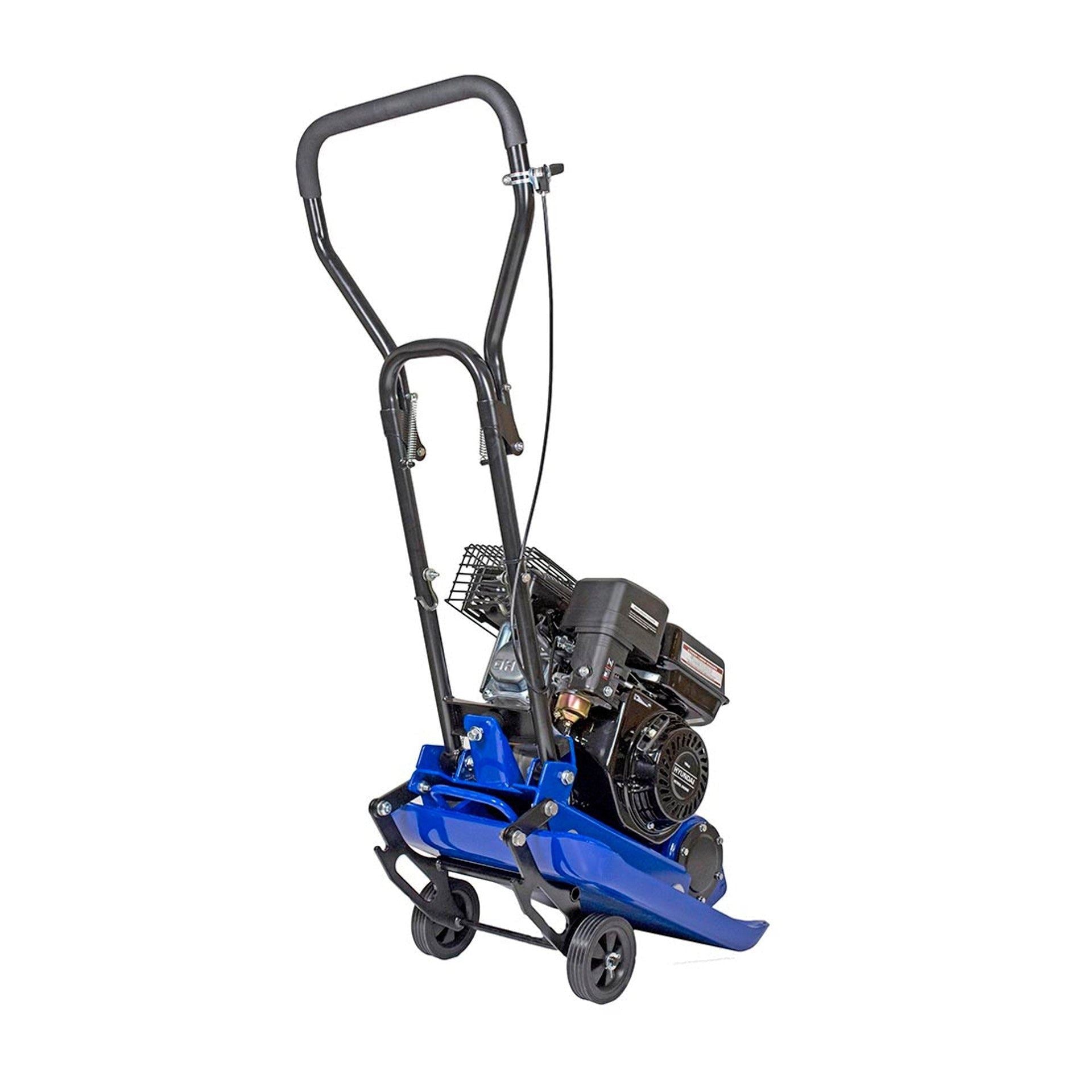

Wheel Kit and Paving Pad included.
Product Specification:
Part number: HYCP9070
Barcode: 0747150287836
Start Method: Recoil
Compaction Depth (mm): 300
Plate Size (mm): 540 x 420
Centrifugal Force (N): 13000
Travel Speed (m/min): 15
Vibration value m/s²: 17.42
Exciter Oil Capacity (ml): 100
Exciter Speed (RPM): 5500
Handle Type: Soft Grip
Safety Features: Oil Alarm
Engine Model: 168F
Engine Type: Hyundai 4-Stroke
Engine Size (cc): 196
Rated Power (hp): 5.2
Rated Speed (RPM): 3600
Fuel: Unleaded Petrol
Fuel Capacity (L): 3.6
Engine Oil: SAE30 or SAE15W40
Engine Oil Capacity (ml): 600
Sound Level (db): 86
Gross Weight (kg) 81.5
Net Weight (kg): 79
Fully Assembled Dimensions (H x W x L) (mm): 860 x 440 x 1220
Package Dimensions (H x W x L) (mm): 475 x 440 x 755
Fuel Type / Power Source: Petrol
Product Type: Compactor Plate
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
