Trend Hinge Jig 2 Piece With Accessories H/JIG/A
Trend Hinge Jig 2 Piece With Accessories H/JIG/A

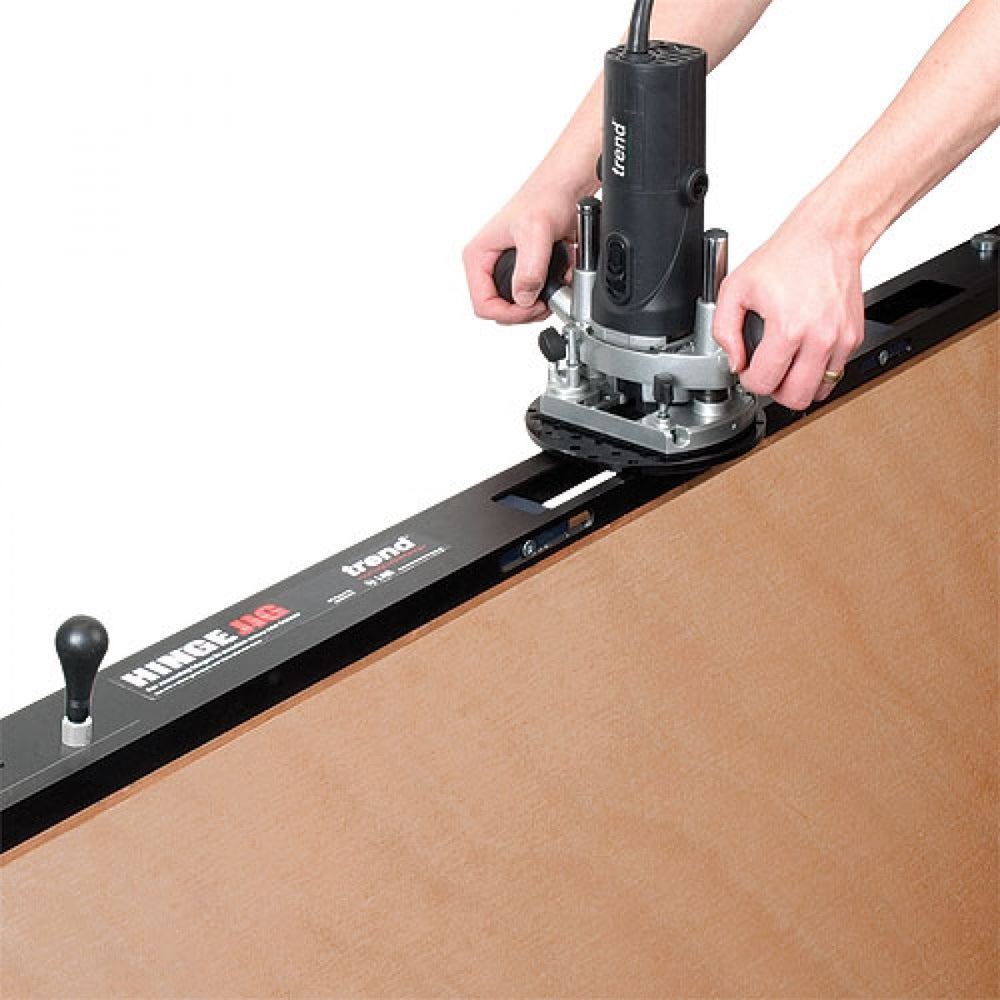

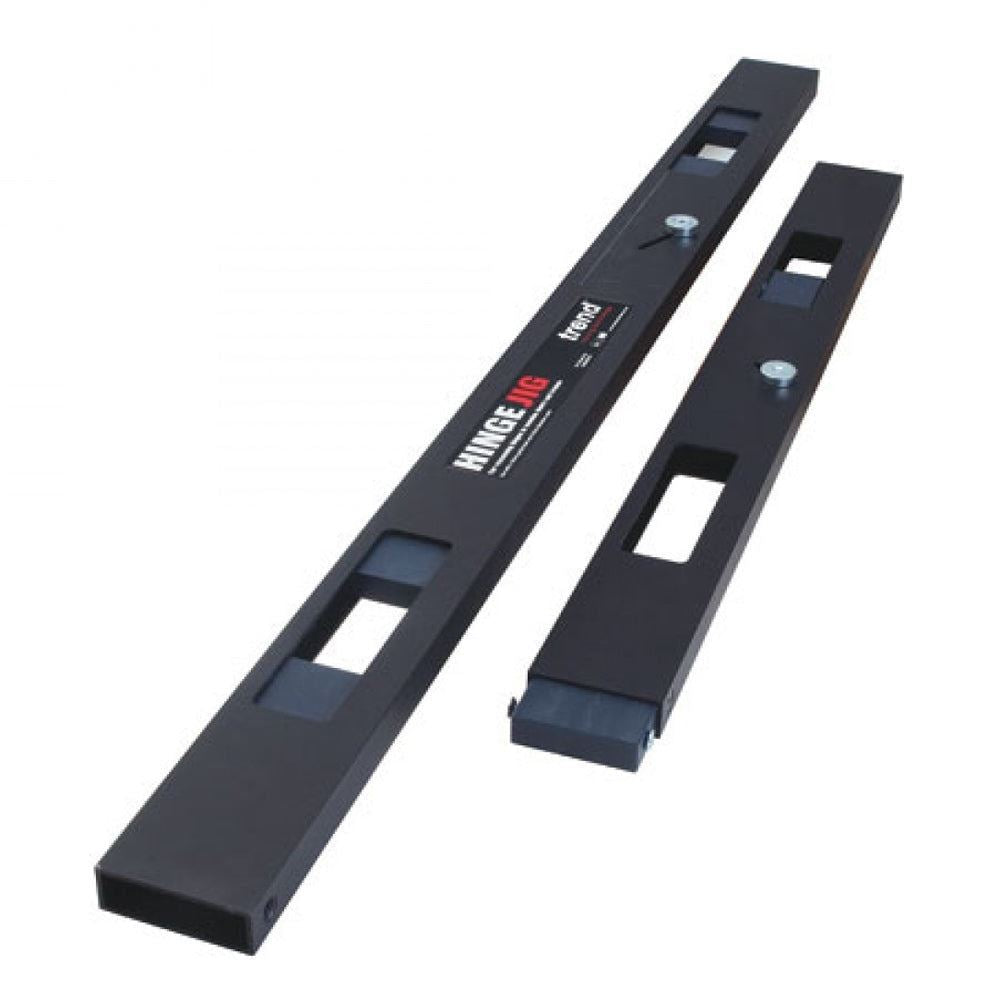

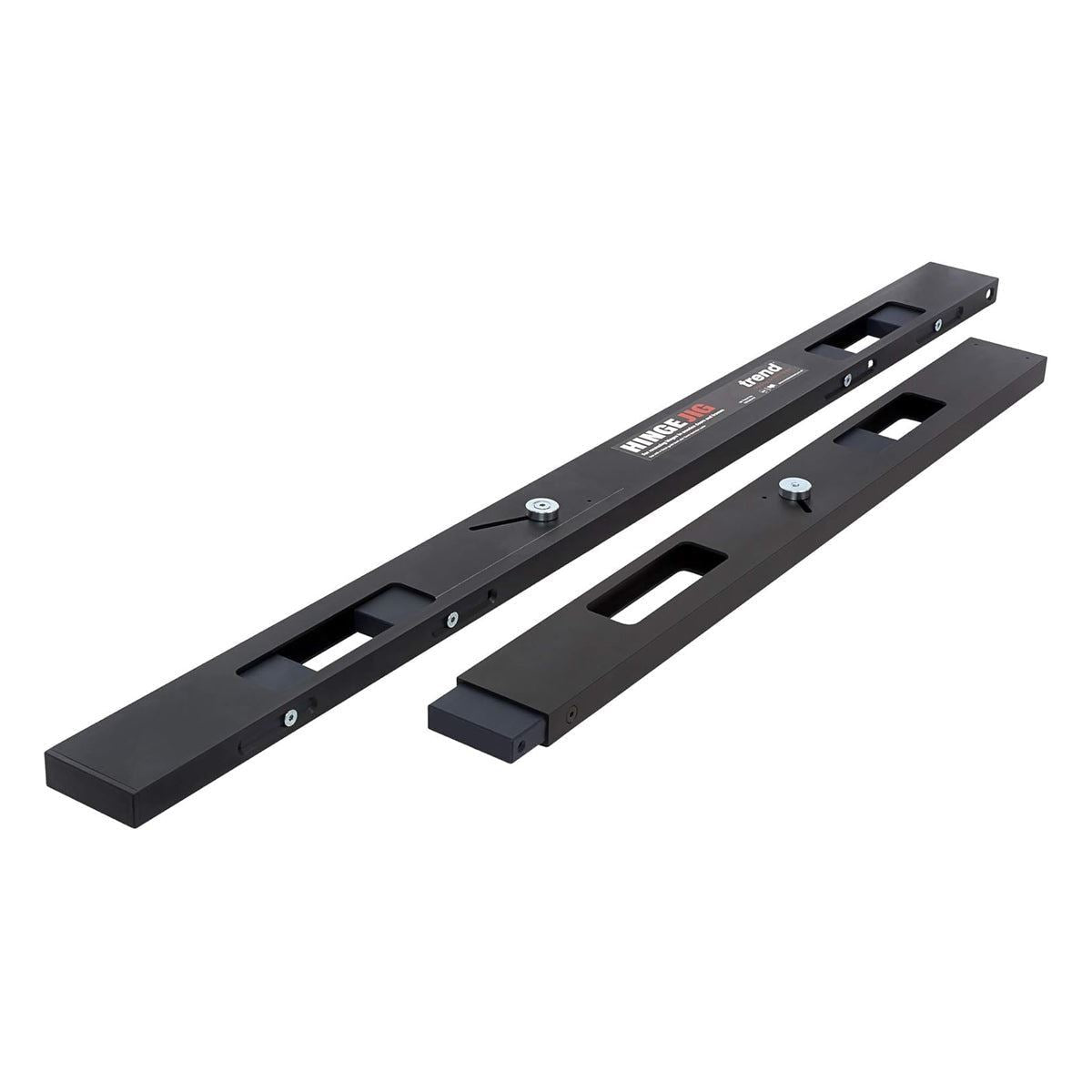

The Trend Hinge Jig A H/JIG/A is a two-piece jig for quick, accurate, repeatable fitting of hinges to doors and frames. The two-part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames using a plunge router.
Features:
It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Four apertures are required for the fire door
There is no need to mark things out in the conventional way
It is quick and simple to set up as the hinge is used as the pattern
Every time, clean and accurate recesses are achieved. Suitable for timber-based doors and square butt hinges
Can be used on both inside and outside doors, rebated frames, and maximum 25mm thick fixed stops
Use with a light-duty plunge router with a 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Angled position slots prevent creep
Unibase may be needed
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160
Comes With:
2 x Bradawls
1 x 16mm guide bush
1 x T-Handle hex key
1 x 4mm spacing gauge
1 x Fabric case
Product Specification:
Part Number: H/JIG/A
Barcode: 5027654536339
Hinge Sizes Possible:
Length min. - 2 5/8" (67 mm)
Length max. - 5" (127 mm)
Width min. - 3/8" (9.5 mm)
Width max. - 1 3/8" (35 mm)
Width max. in 35mm rebate - 20 mm
Width max. in 44mm rebate - 30 mm
Door Sizes Possible:
Height min. - 6' 5" (1955 mm)
Height max. - 2100 mm*
Thickness min. - 5/8" (16 mm)
Thickness max. - 2" (51 mm)
Weight - 3.3 kg
Jig overall length - 1957 mm
Plate thickness - 2 mm
Fixed stop max. thickness - 25 mm**
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
** Max. hinge leaf width 20mm (35mm doors)
