Trend Hinge Jig 2 Piece with Accessories, Corner Chisel HSS & 1/4" Two Flute Cutter

Trend Hinge Jig 2 Piece with Accessories, Corner Chisel HSS & 1/4" Two Flute Cutter

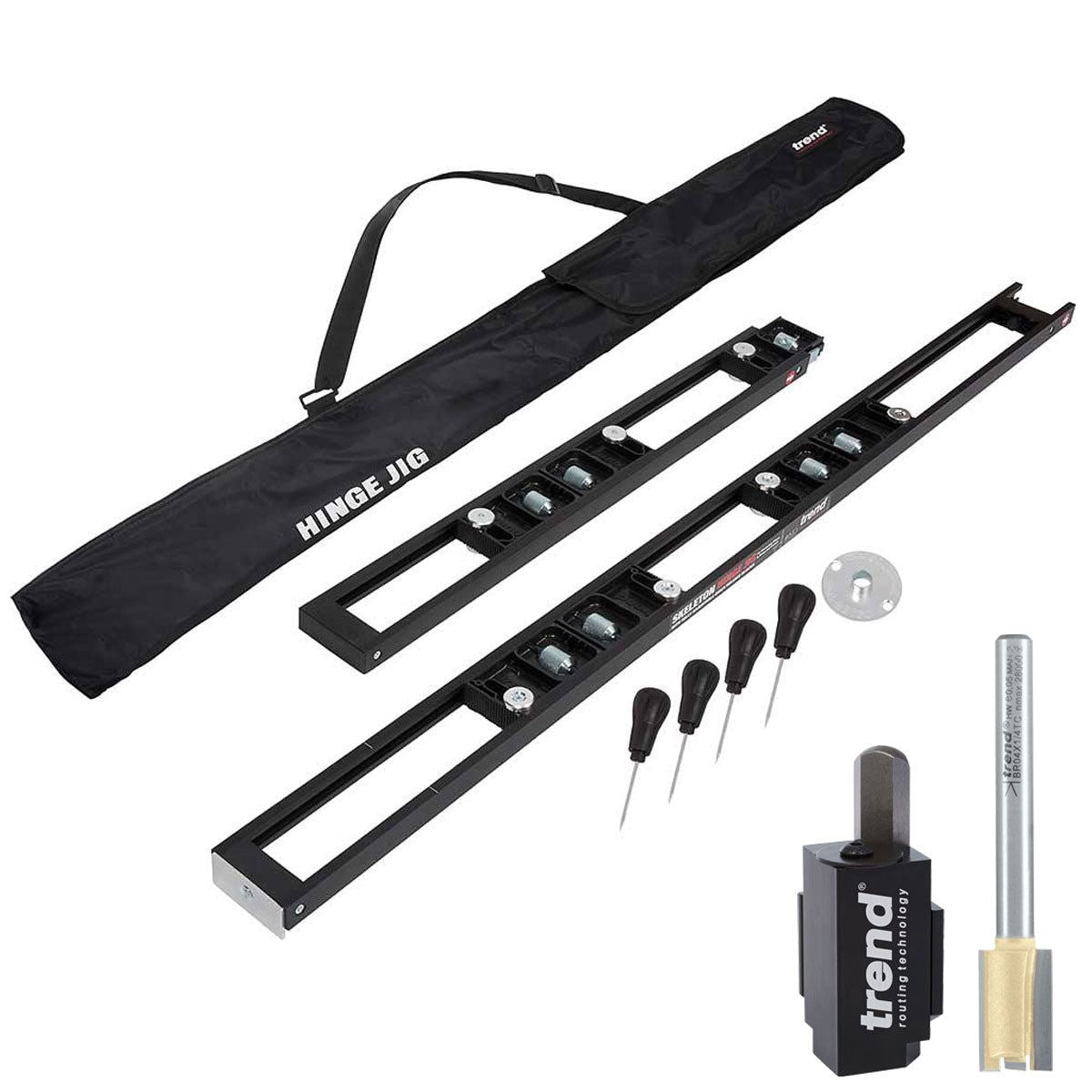

The Trend Hinge Jig Two Part is an adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. It is easy to use with minimal set-up time, ensuring that the job can be completed accurately and quickly.

Features:

Trend Hinge Jig 2 Piece:

It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Four apertures for fire door requirements
No need for marking out in the conventional way
Quick & simple to set-up as the hinge is used as the pattern
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
Use with a light duty plunge router with 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Angled position slots to prevent creep
Unibase may be needed
Patent No. GB2285410
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

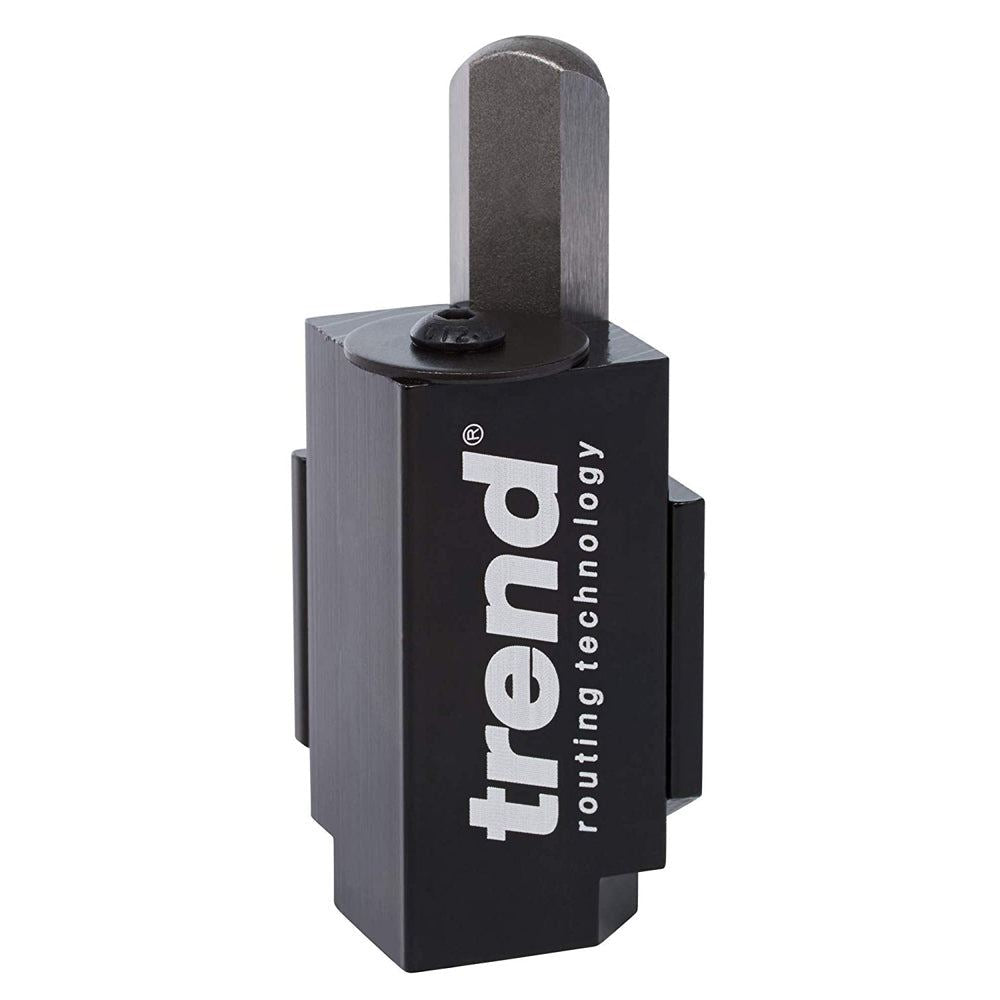

Trend C/CHISEL:

Trend C/CHISEL Corner chisel HSS Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
Light weight aluminium body design
Can be used with the Trend Hinge Jig
Can be resharpened

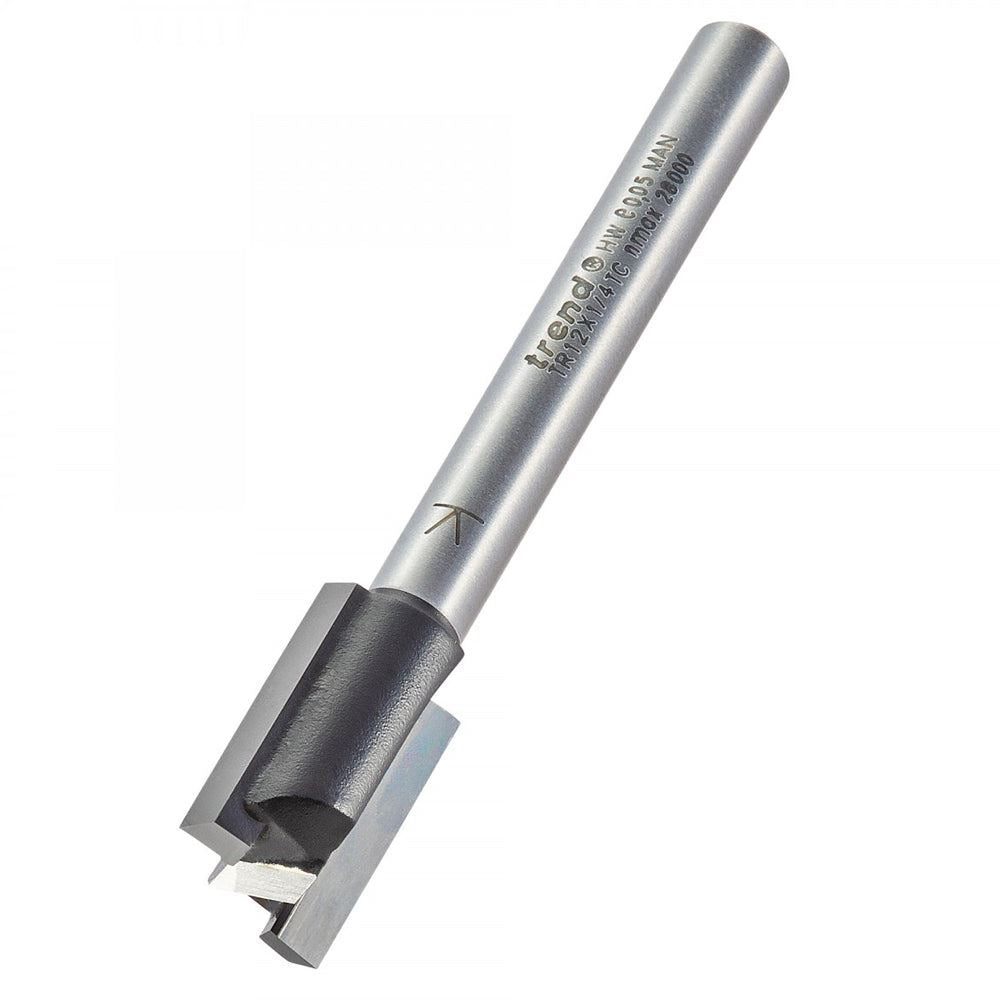

Trend 1/4" Two Flute Cutter:

Suitable for a wide range of applications such as engraving, grooving, rebating and shallow mortising.
Use on softwoods, hardwoods, MDF, plywood and chipboard.
Ideal for use with Trend Hinge Jigs
TC Centre Tip for drilling

Comes With:

4 x Apertures
2 x Bradawls with spacer
1 x 16mm guide bush
1 x T-Handle hex key
1 x 4mm spacing gauge
1 x Carry case
1 x Corner Chisel HSS
1 x 1/4" Two Flute Cutter

Product Specification:

Trend Hinge Jig 2 Piece:

Hinge Sizes Possible:

Length min.= 2 5/8" (67 mm)
Length max.= 5" (127 mm)
Width min.= 3/8" (9.5 mm)
Width max.= 1 3/8" (35 mm)

Door Sizes Possible:

Height min.= 6' 5" (1955 mm)
Height max.= 2100 mm*
Thickness min.= 5/8" (16 mm)

Trend C/CHISEL:

Length: 70 mm
Width: 29 mm
Blade Width: 9.5 mm x 9.5 mm
Max. Radius: 9 mm
Pack Size: 1

Trend 1/4" Two Flute Cutter:

D: 15/32" / 12 mm
C: 3/4" / 19 mm
Shank Diameter: 1/4 inch
Quantity: 1

**images for illustrative purposes only – please refer to description and specification for full details of product**
