Trend Hinge Jig 2 Piece with Accessories, Corner Chisel HSS & 1/4" Two Flute Cutter
Trend Hinge Jig 2 Piece with Accessories, Corner Chisel HSS & 1/4" Two Flute Cutter

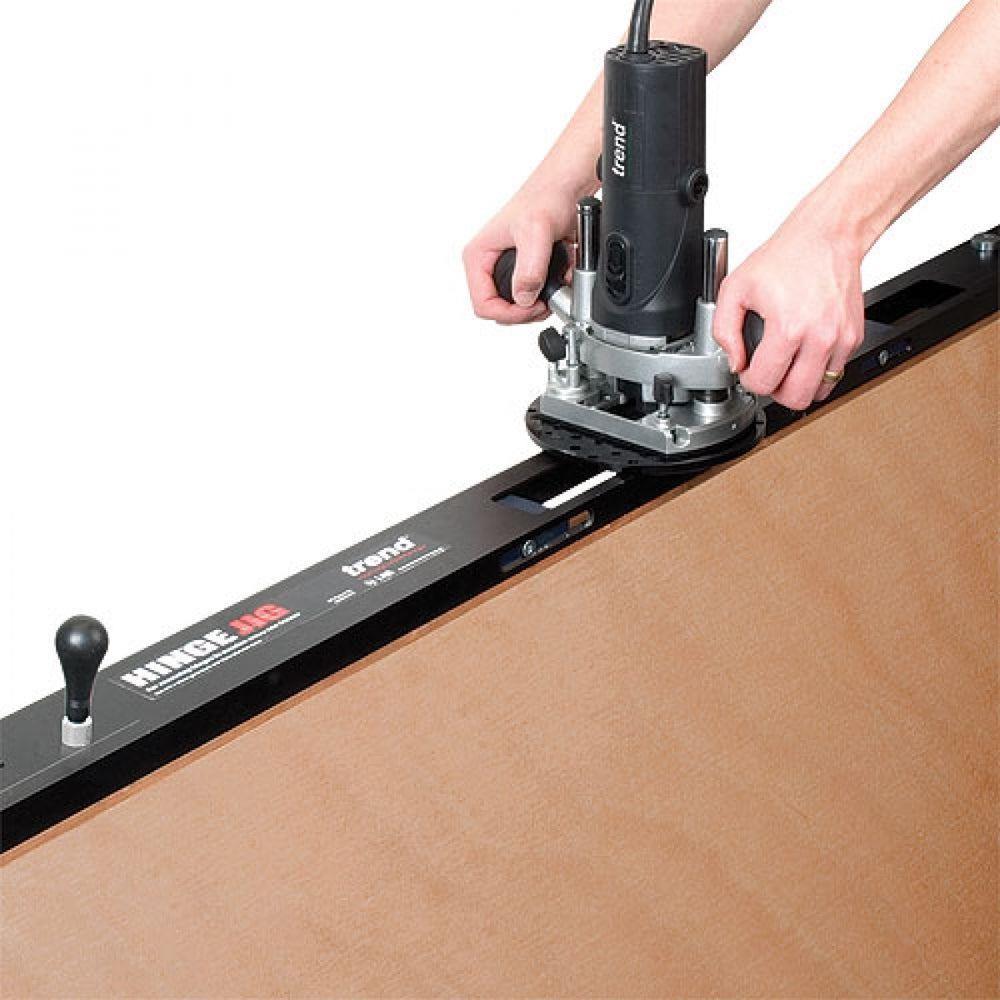

The Trend Hinge Jig Two Part is an adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. It is easy to use with minimal set-up time, ensuring that the job can be completed accurately and quickly.
Features:
Trend Hinge Jig 2 Piece:
It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Four apertures are required for the fire door
There is no need to mark things out in the conventional way
It is quick and simple to set up as the hinge is used as the pattern
Every time, clean and accurate recesses are achieved. Suitable for timber-based doors and square butt hinges
Can be used on both inside and outside doors, rebated frames, and maximum 25mm thick fixed stops
Use with a light-duty plunge router with a 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Angled position slots prevent creep
Unibase may be needed
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

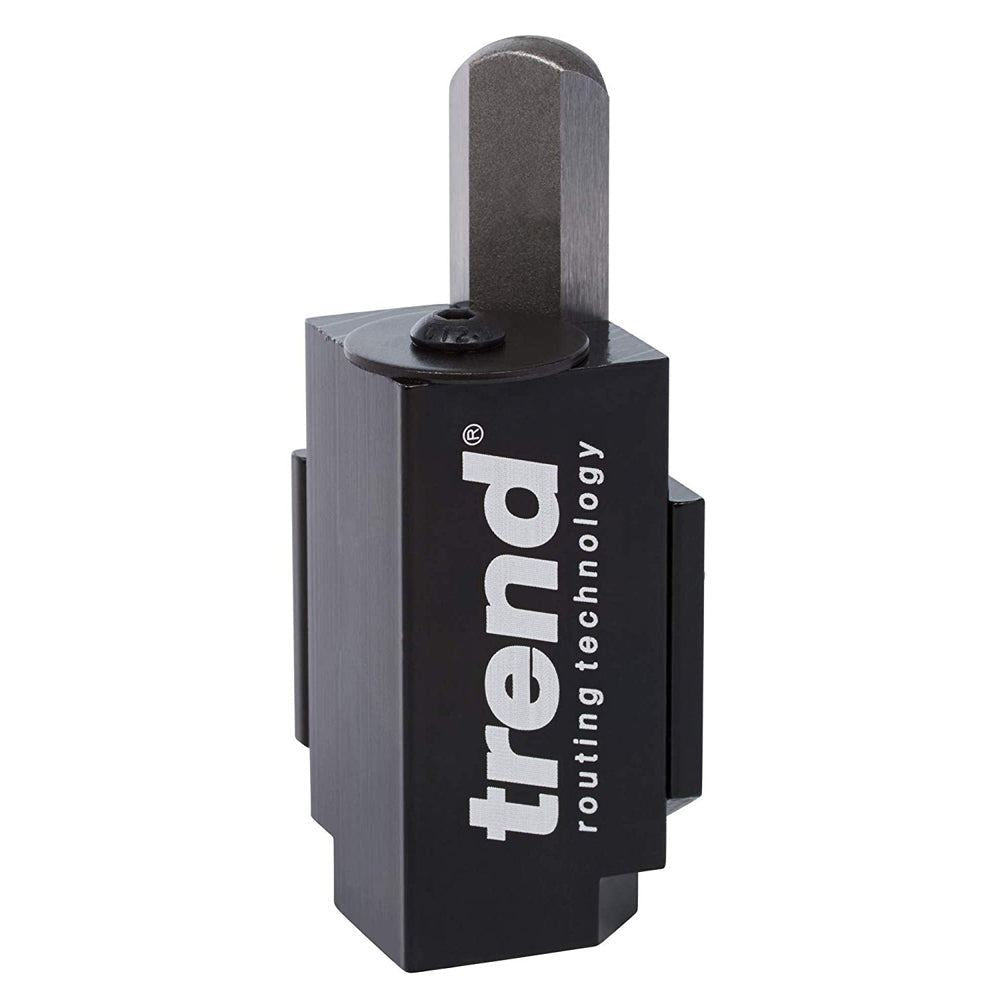

Trend C/CHISEL:
Trend C/CHISEL Corner chisel HSS Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
Light weight aluminium body design
Can be used with the Trend Hinge Jig
Can be resharpened

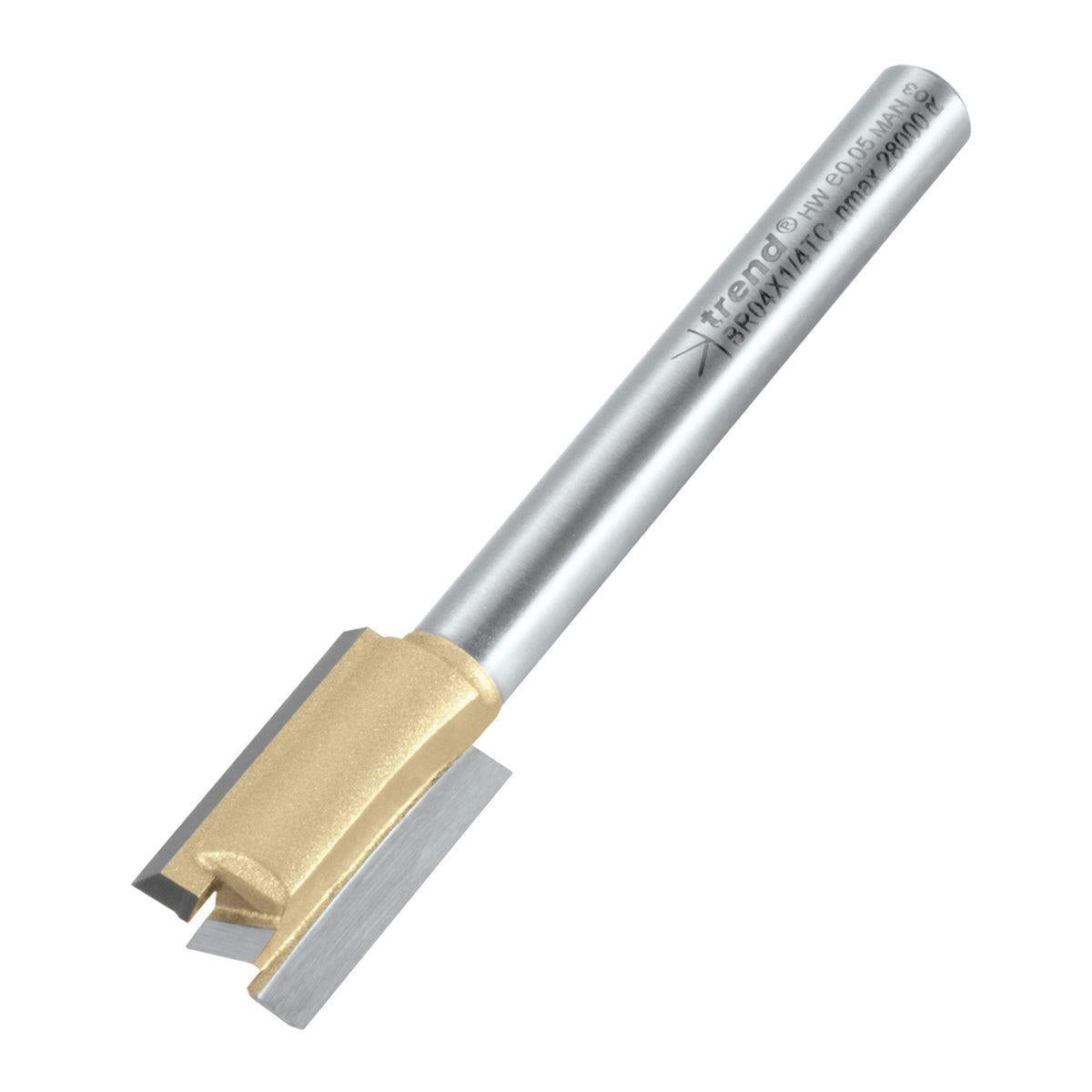

Trend 1/4" Two Flute Cutter:
Suitable for a wide range of applications such as engraving, grooving, rebating and shallow mortising.
Use on softwoods, hardwoods, MDF, plywood and chipboard.
Ideal for use with Trend Hinge Jigs
TC Centre Tip for drilling

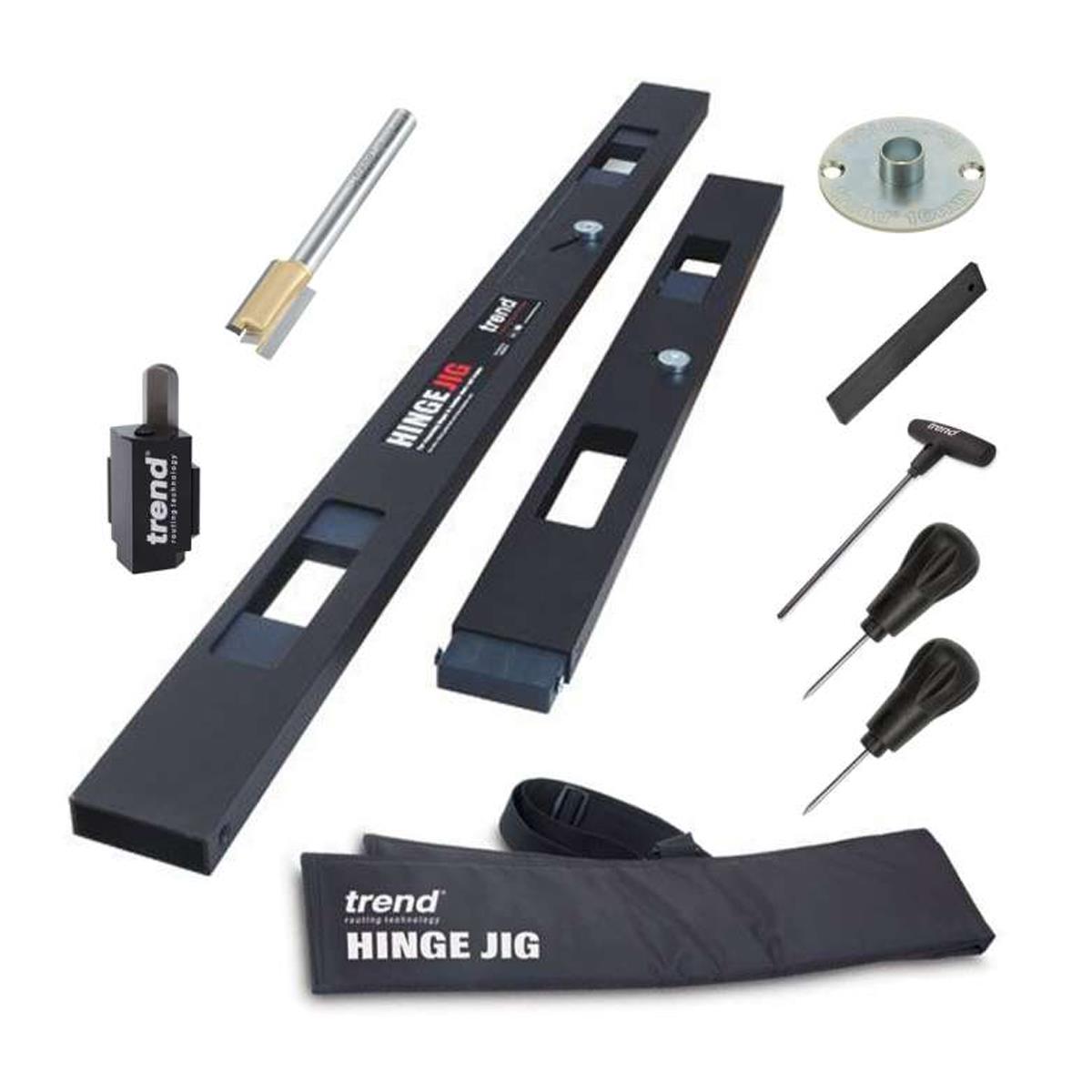

Comes With:
2 x Bradawls
1 x 16mm guide bush
1 x T-Handle hex key
1 x 4mm spacing gauge
1 x Fabric case
1 x Corner Chisel HSS
1 x 1/4" Two Flute Cutter

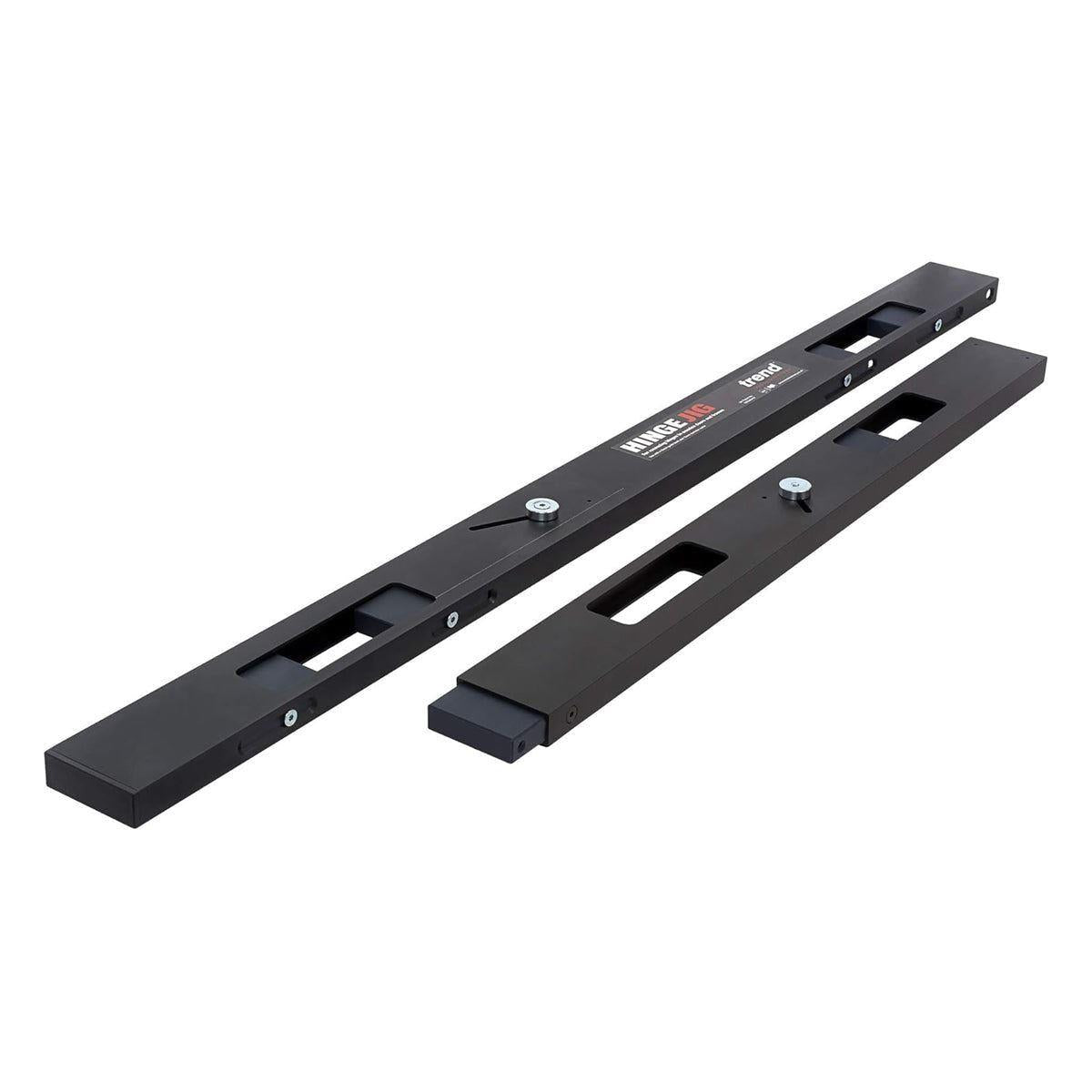

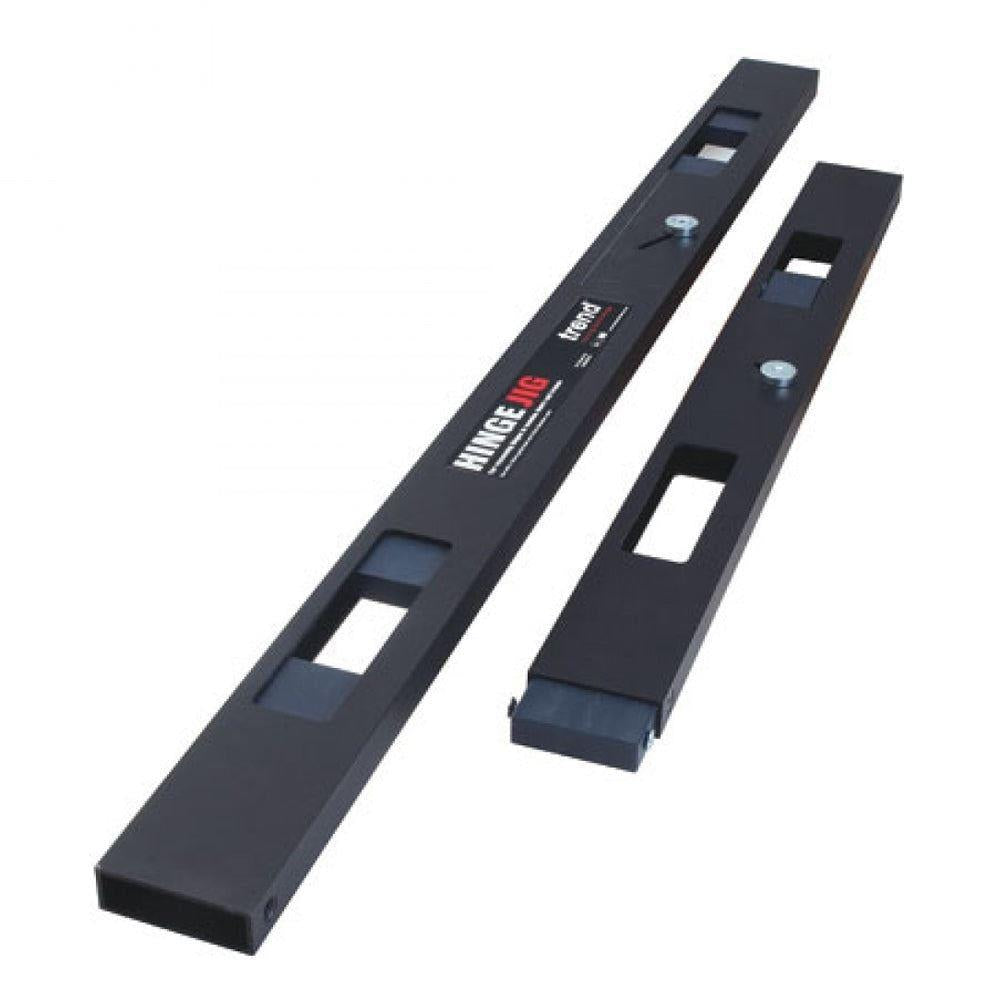

Trend Hinge Jig 2 Piece:
Hinge Sizes Possible:
Length min. - 2 5/8" (67 mm)
Length max. - 5" (127 mm)
Width min. - 3/8" (9.5 mm)
Width max. - 1 3/8" (35 mm)
Width max. in 35mm rebate - 20 mm
Width max. in 44mm rebate - 30 mm
Door Sizes Possible:
Height min. - 6' 5" (1955 mm)
Height max. - 2100 mm*
Thickness min. - 5/8" (16 mm)
Thickness max. - 2" (51 mm)
Weight - 3.3 kg
Jig overall length - 1957 mm
Plate thickness - 2 mm
Fixed stop max. thickness - 25 mm**
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
** Max. hinge leaf width 20mm (35mm doors)
Trend C/CHISEL:
Length: 70 mm
Width: 29 mm
Blade Width: 9.5 mm x 9.5 mm
Max. Radius: 9 mm
Pack Size: 1
Trend 1/4" Two Flute Cutter:
D: 15/32" / 12 mm
C: 3/4" / 19 mm
Shank Diameter: 1/4 inch
Quantity: 1
**images for illustrative purposes only – please refer to description and specification for full details of product**
