Trend KWJ950/PRO/X 950mm Professional Worktop Jig

Trend KWJ950/PRO/X 950mm Professional Worktop Jig

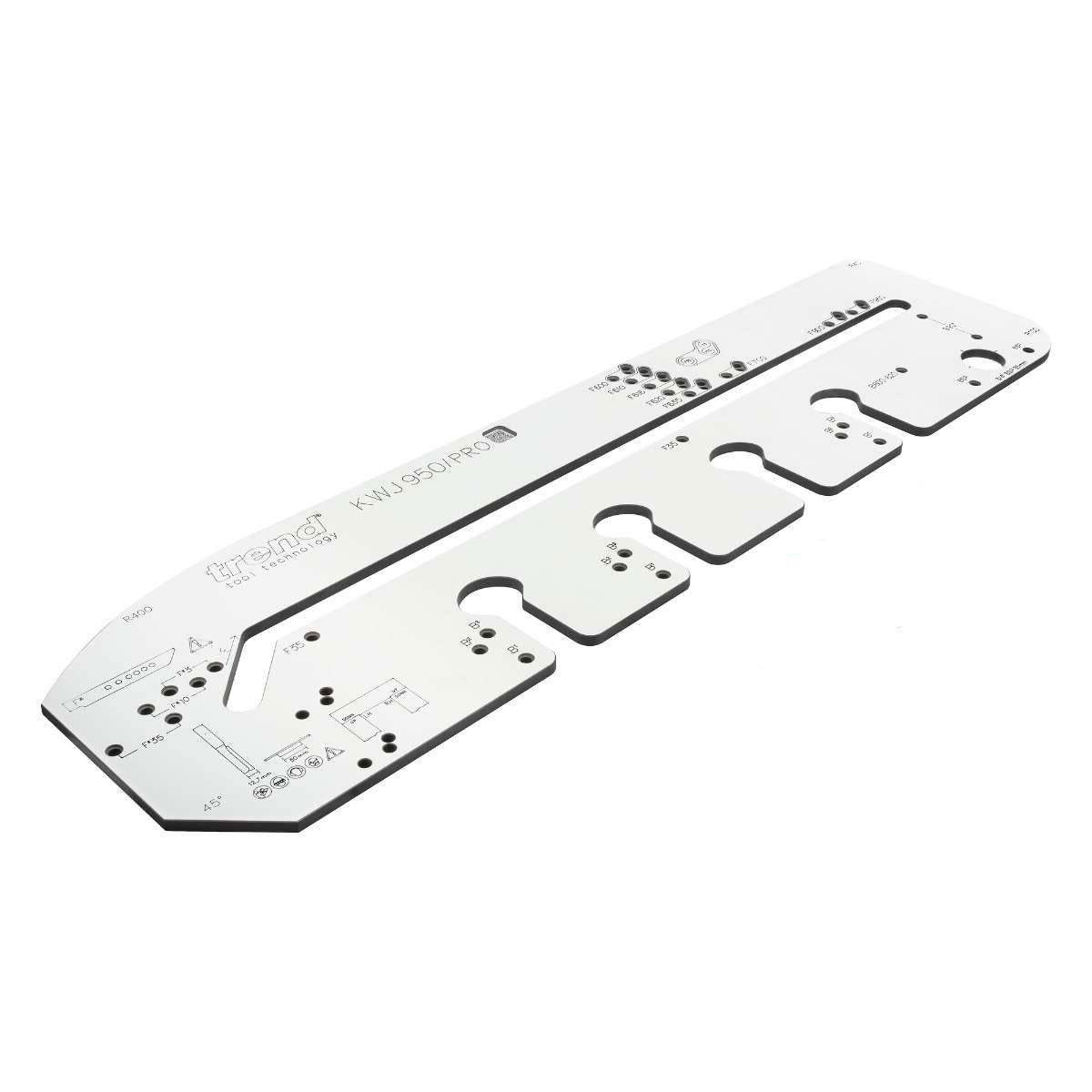

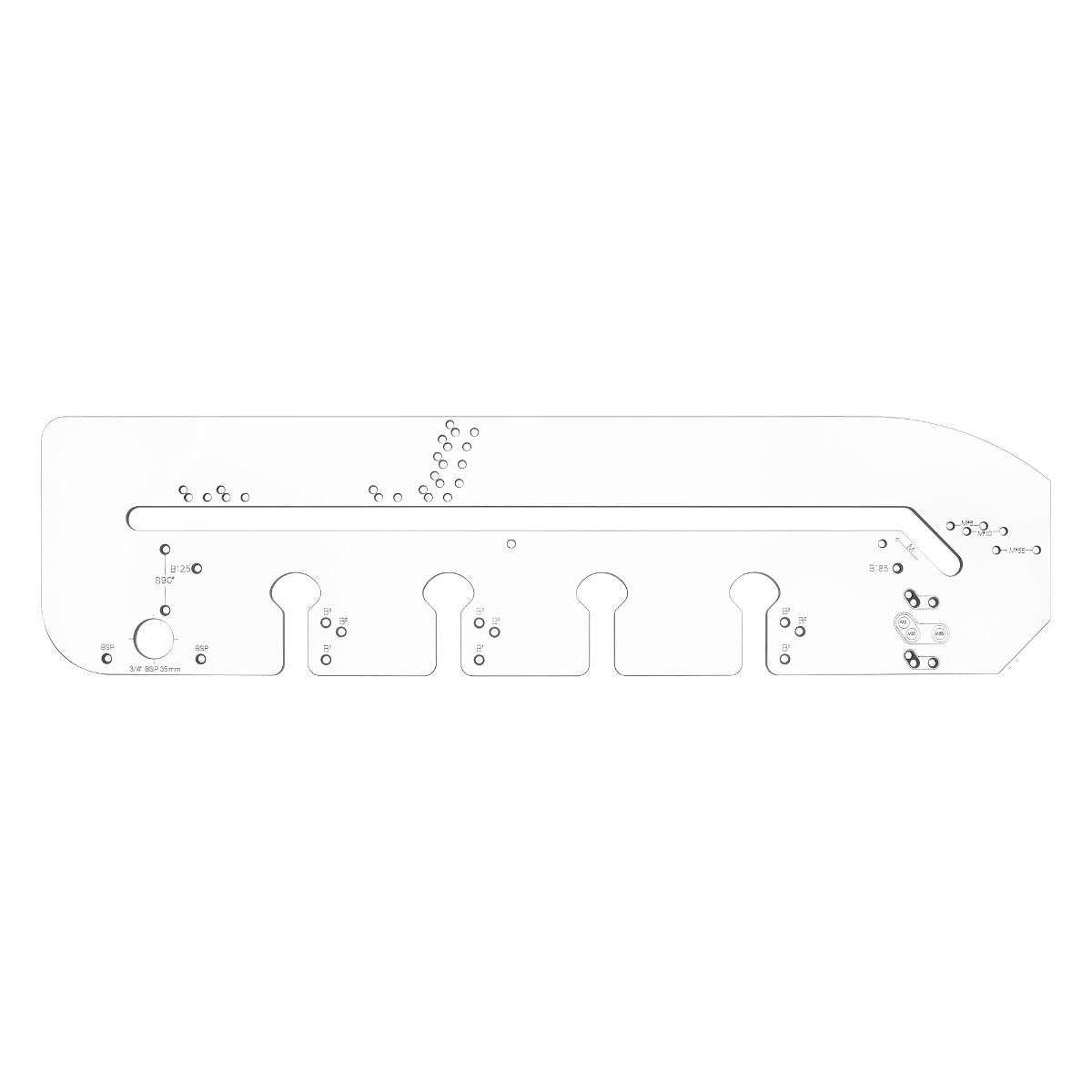

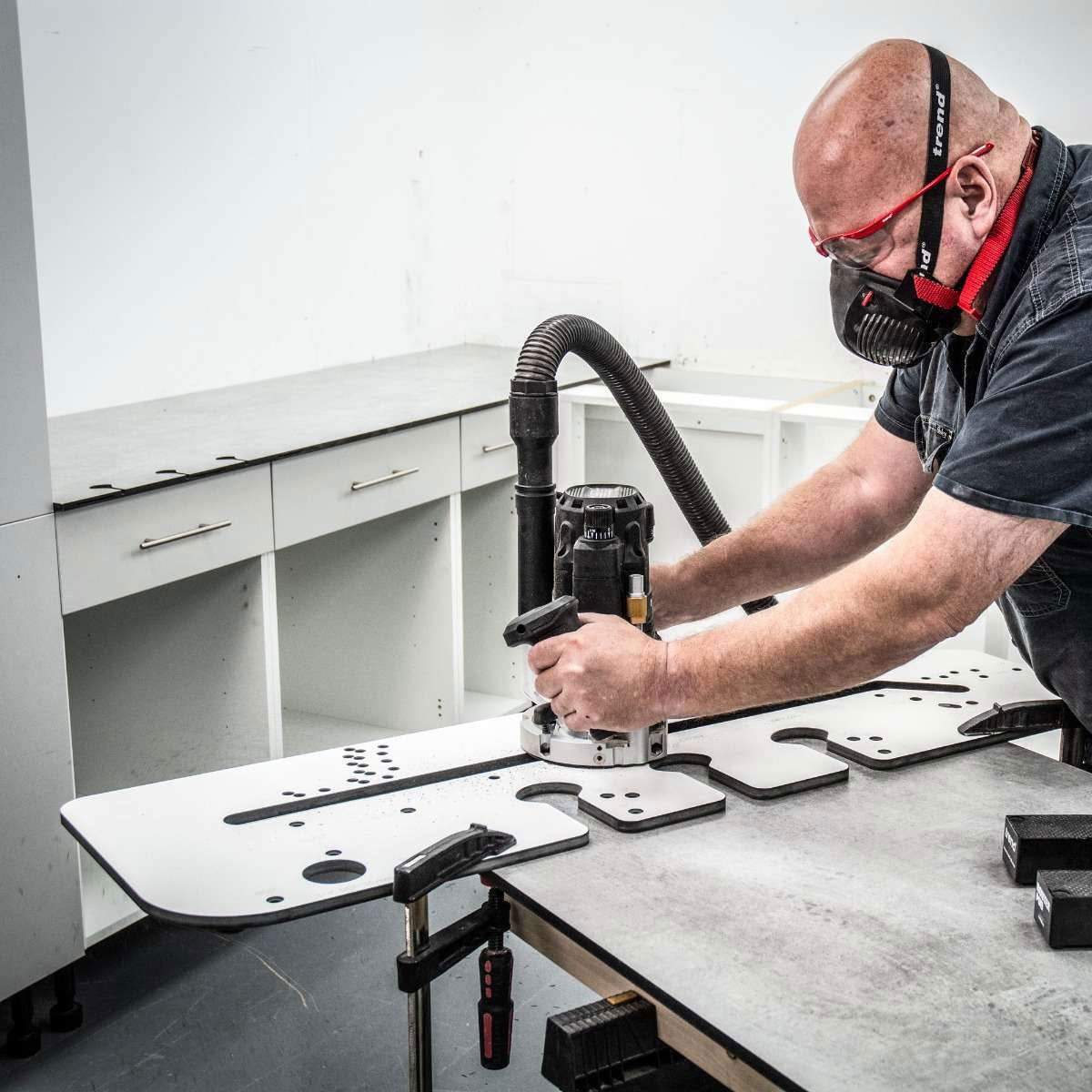

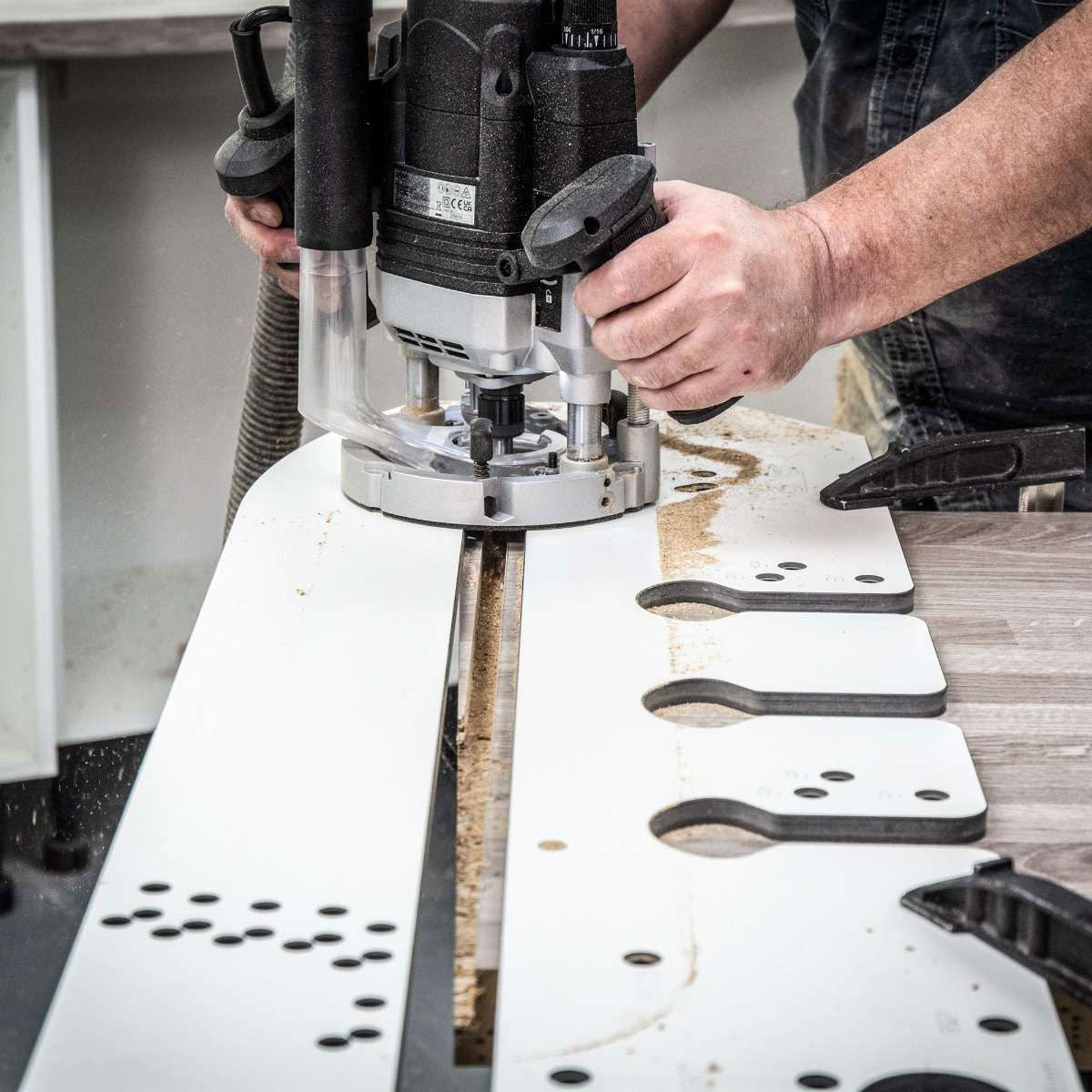

Trend KWJ950/PRO/X 950mm Professional Worktop Jig is a jig designed for routing accurate and repeatable mitre joints in worktops made from laminates, timber and compact laminates.  It's a professional quality tool that  helps to take the guesswork out of creating these joints,  saving you time and  ensuring a perfect finish every time.

Features:

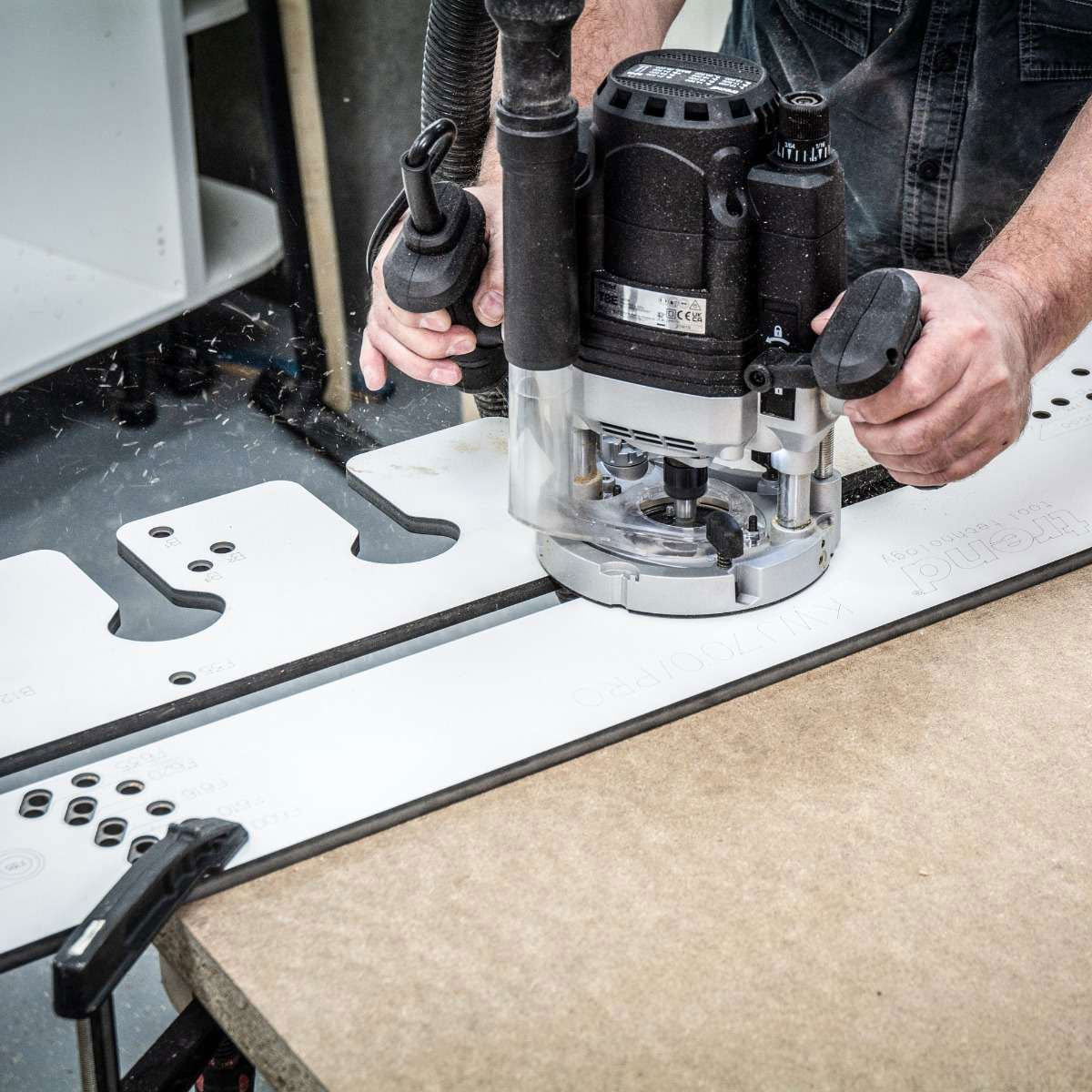

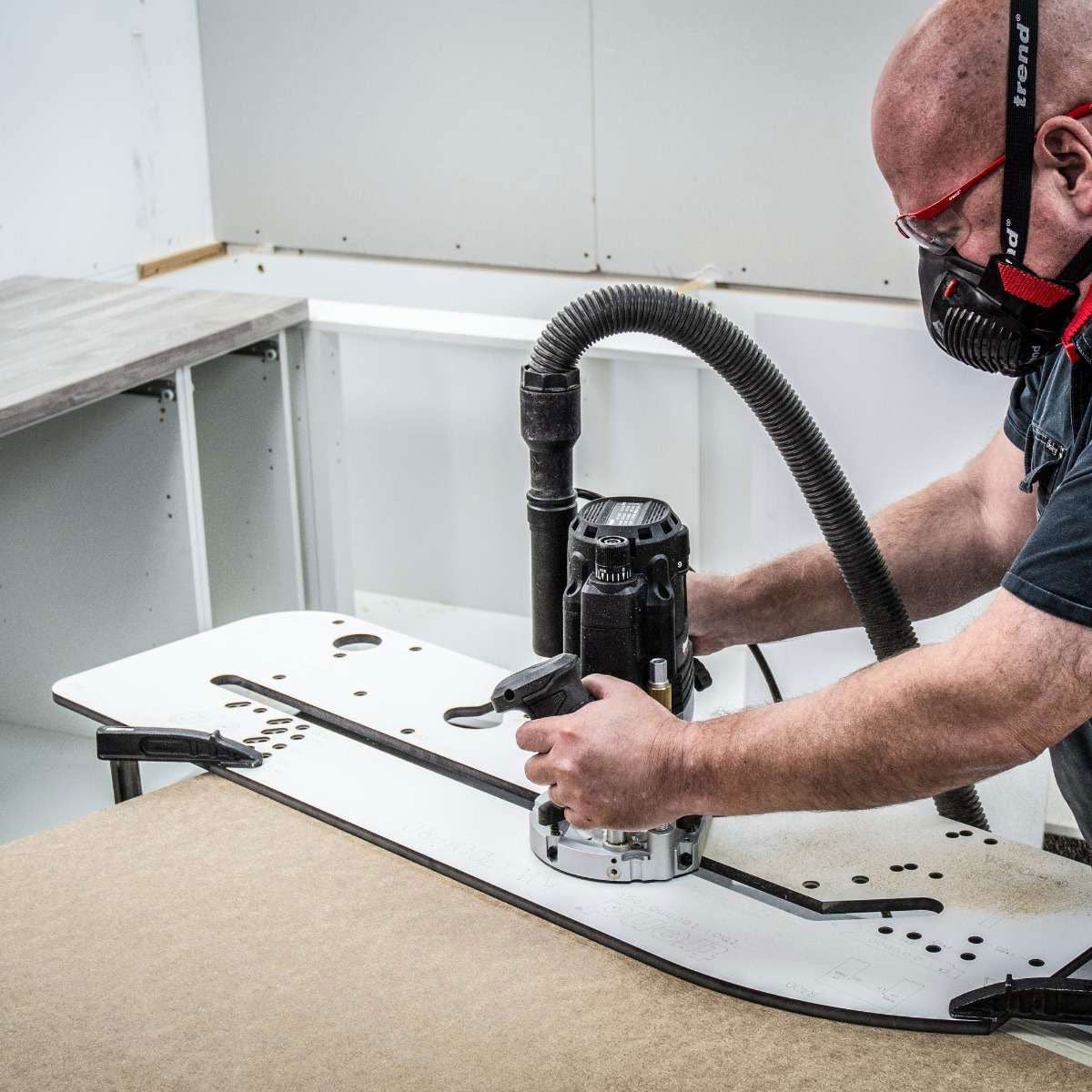

A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces

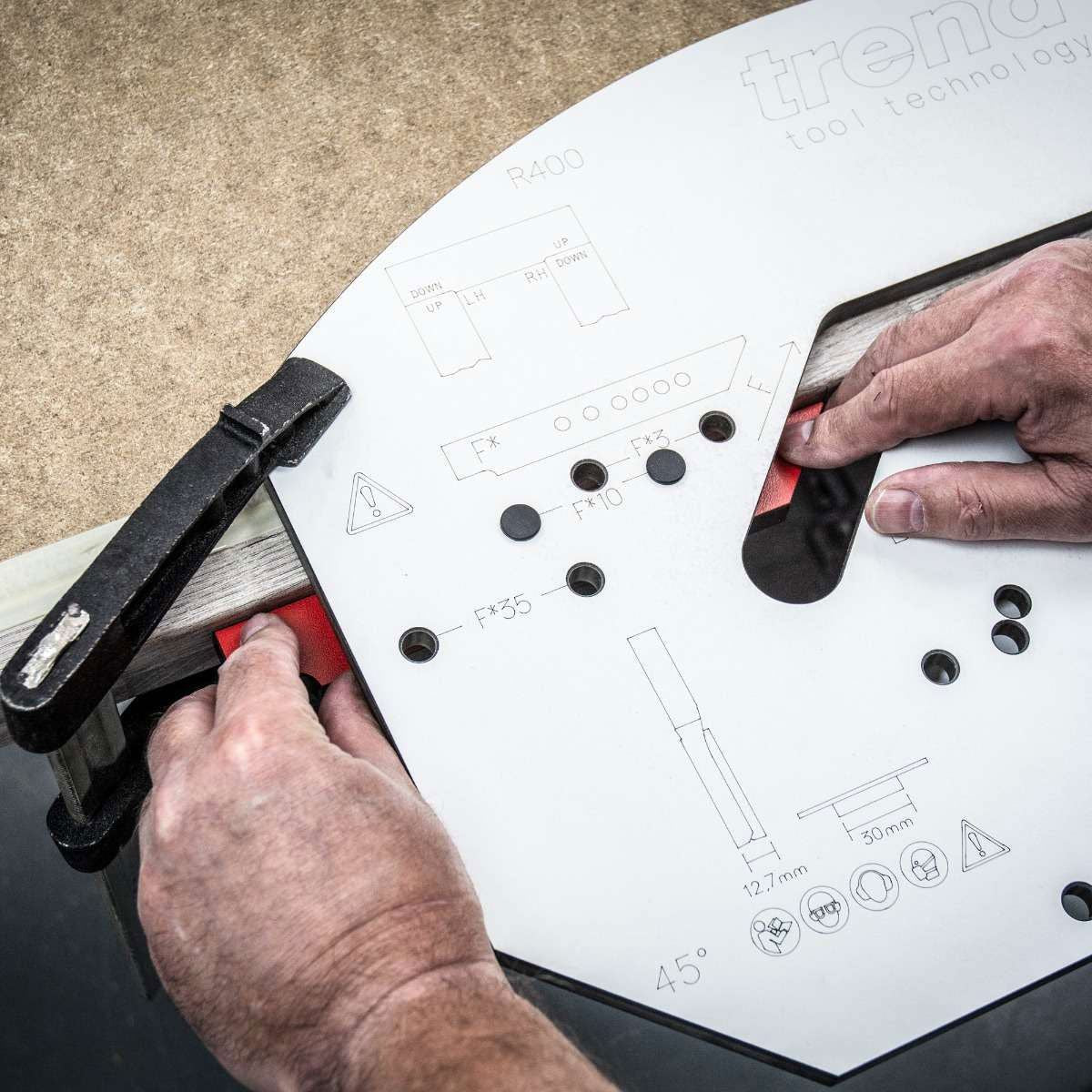

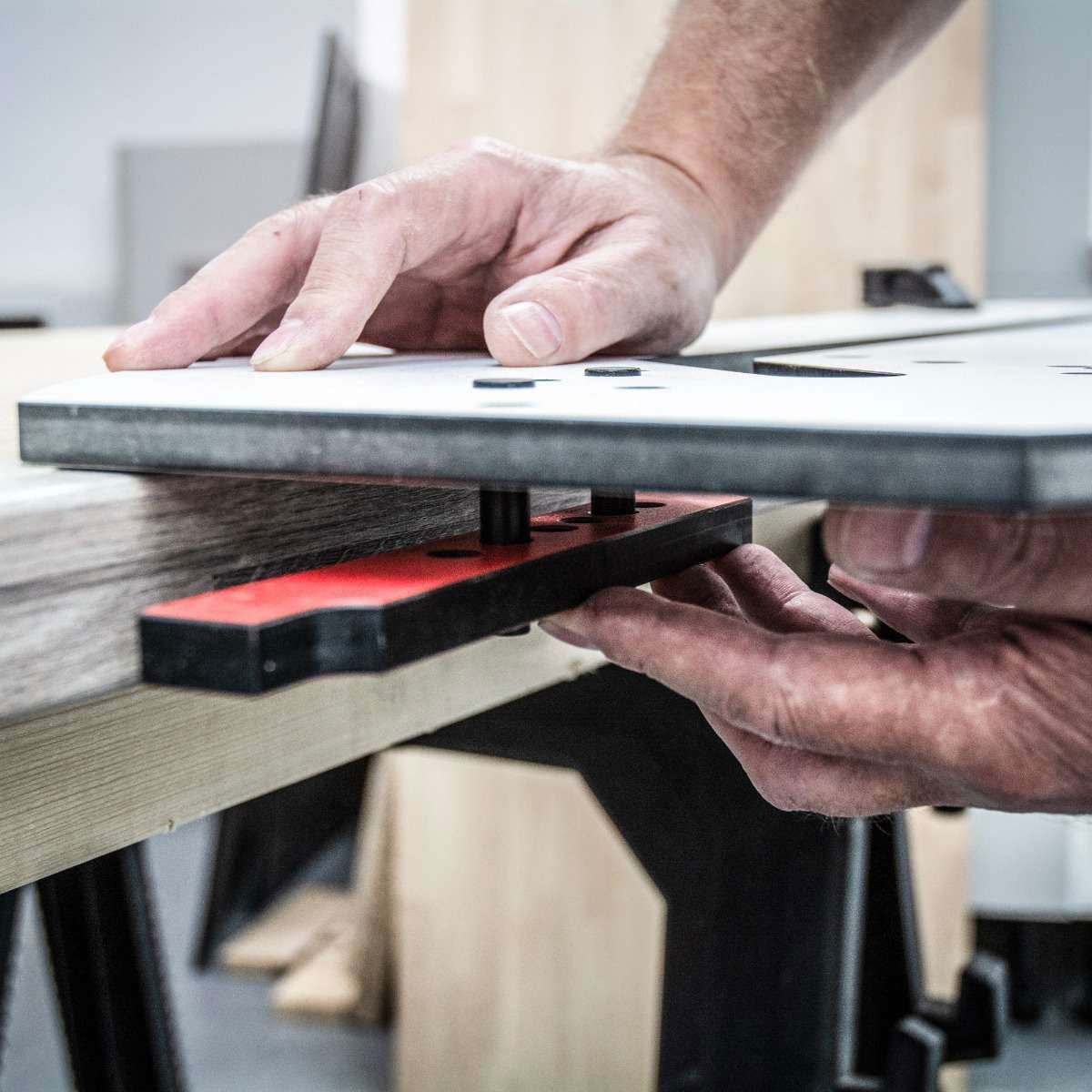

Front Edge Alignment Technology accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width

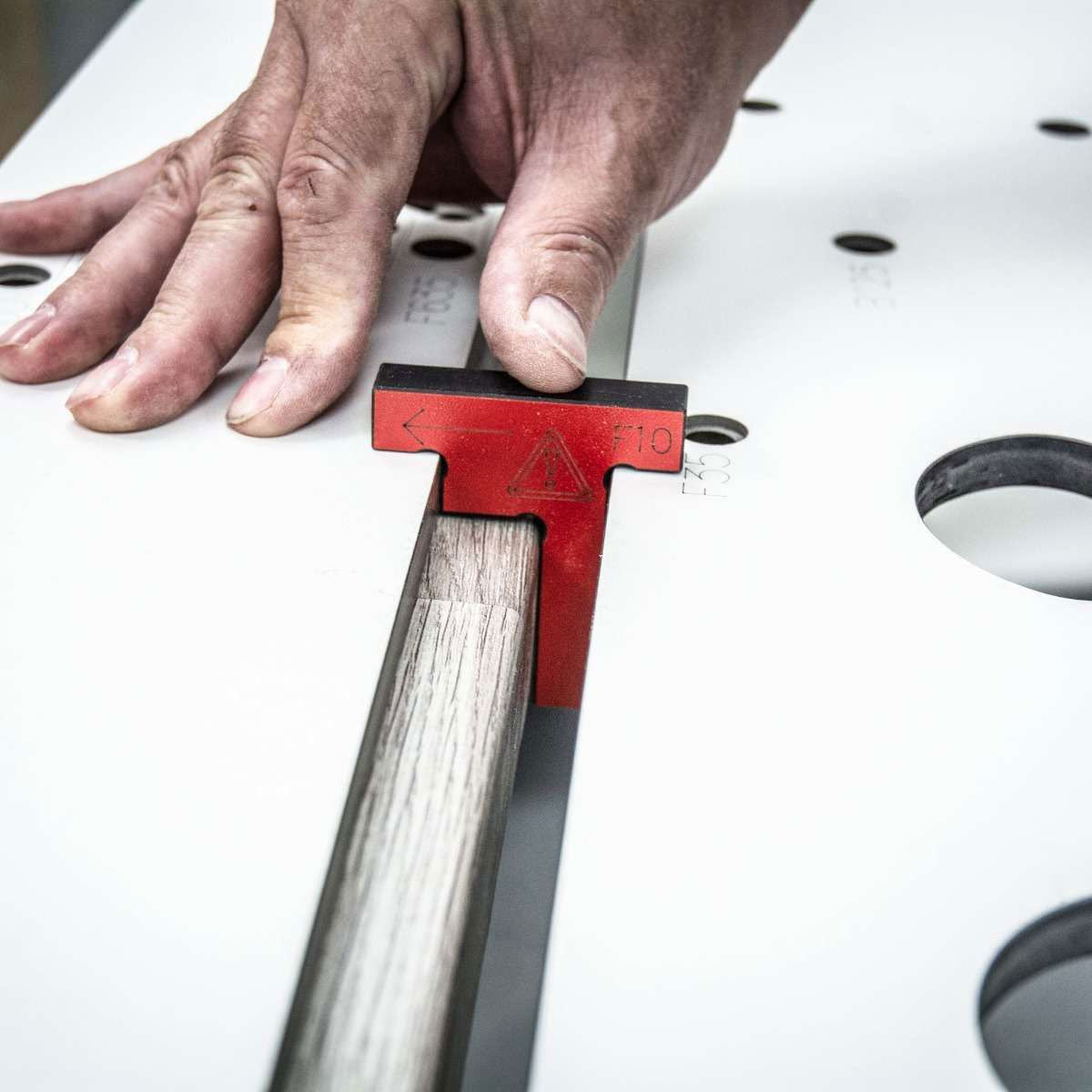

Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime

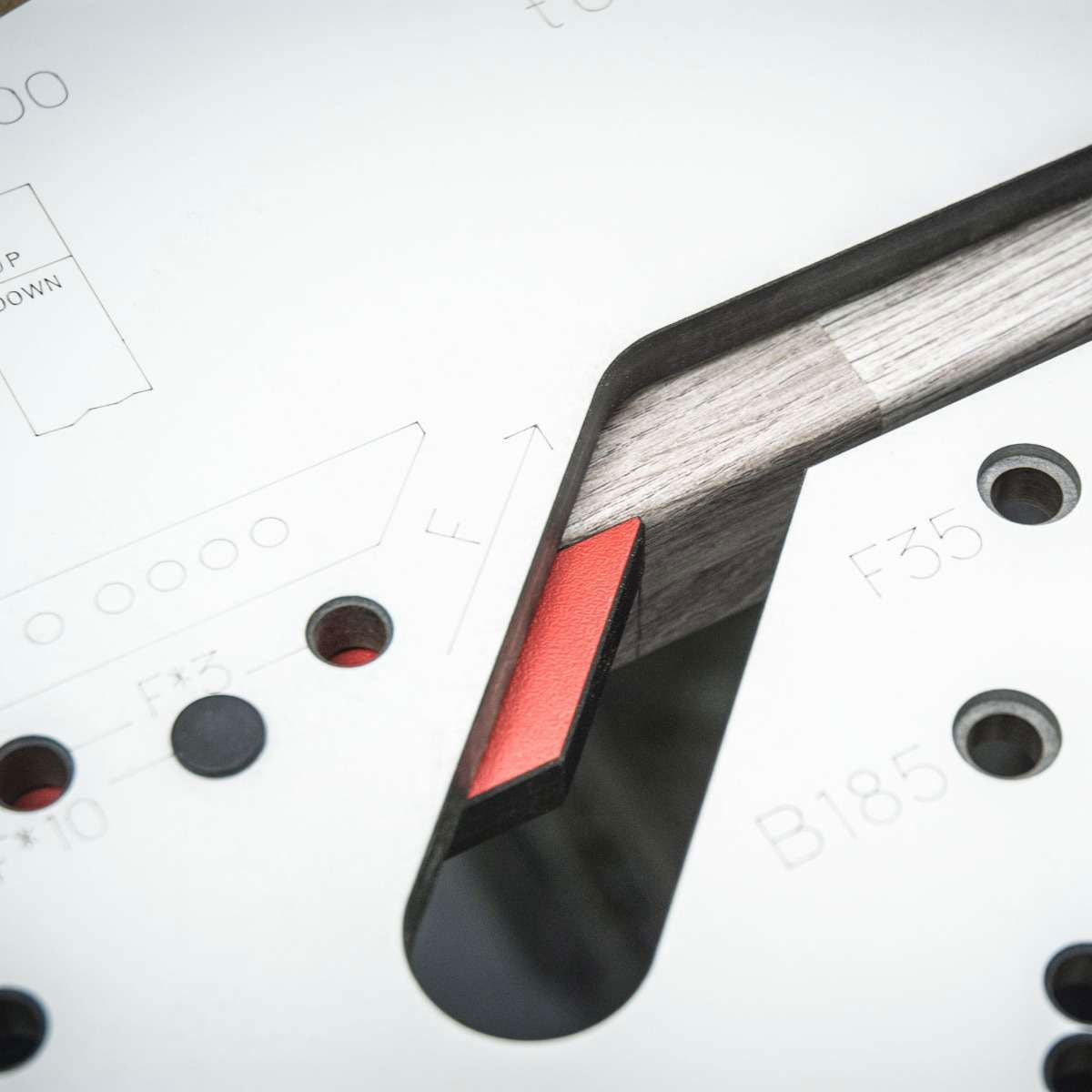

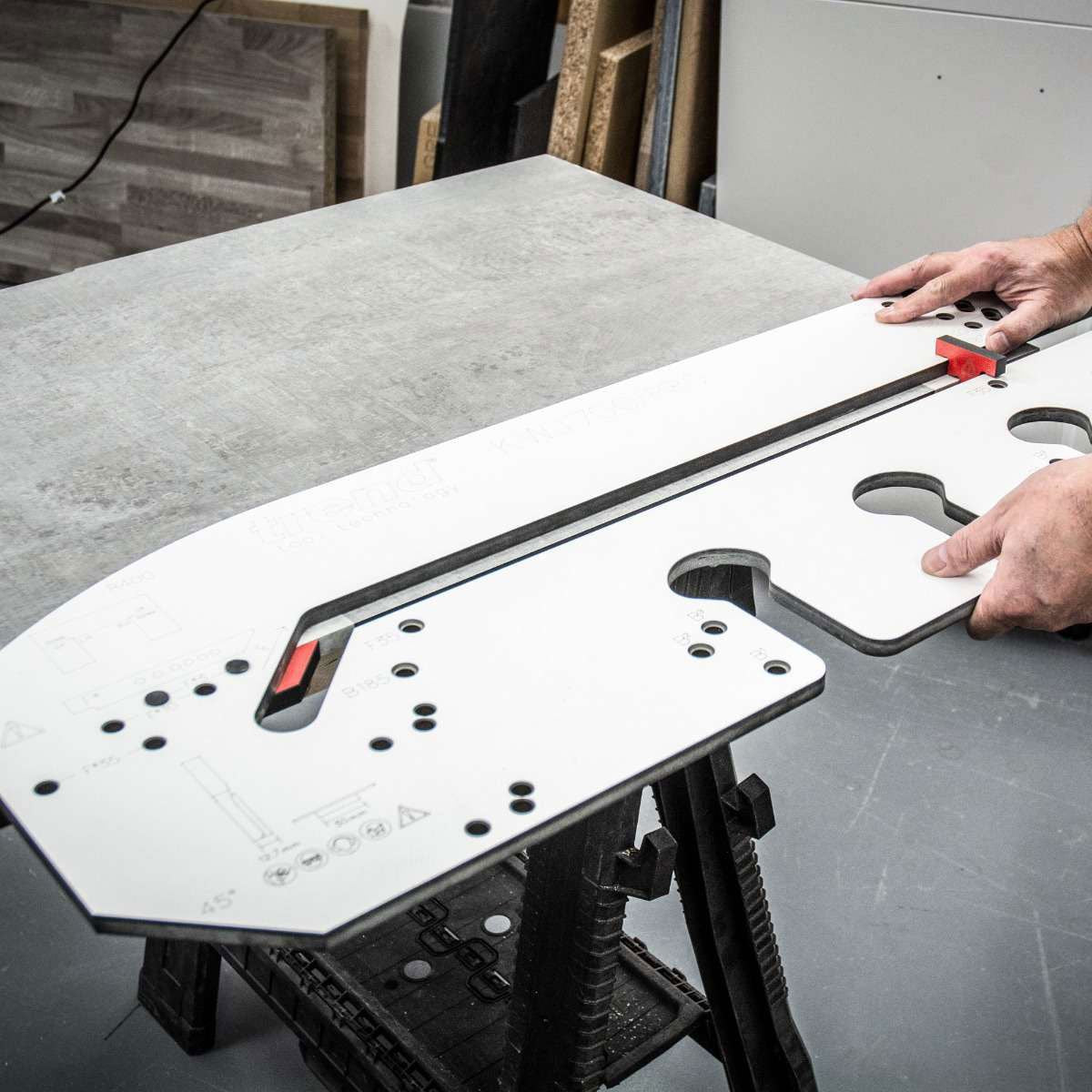

Male Cut-Line Positioning Devices allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations
Ideal for trapped and out-of-square installations
Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts

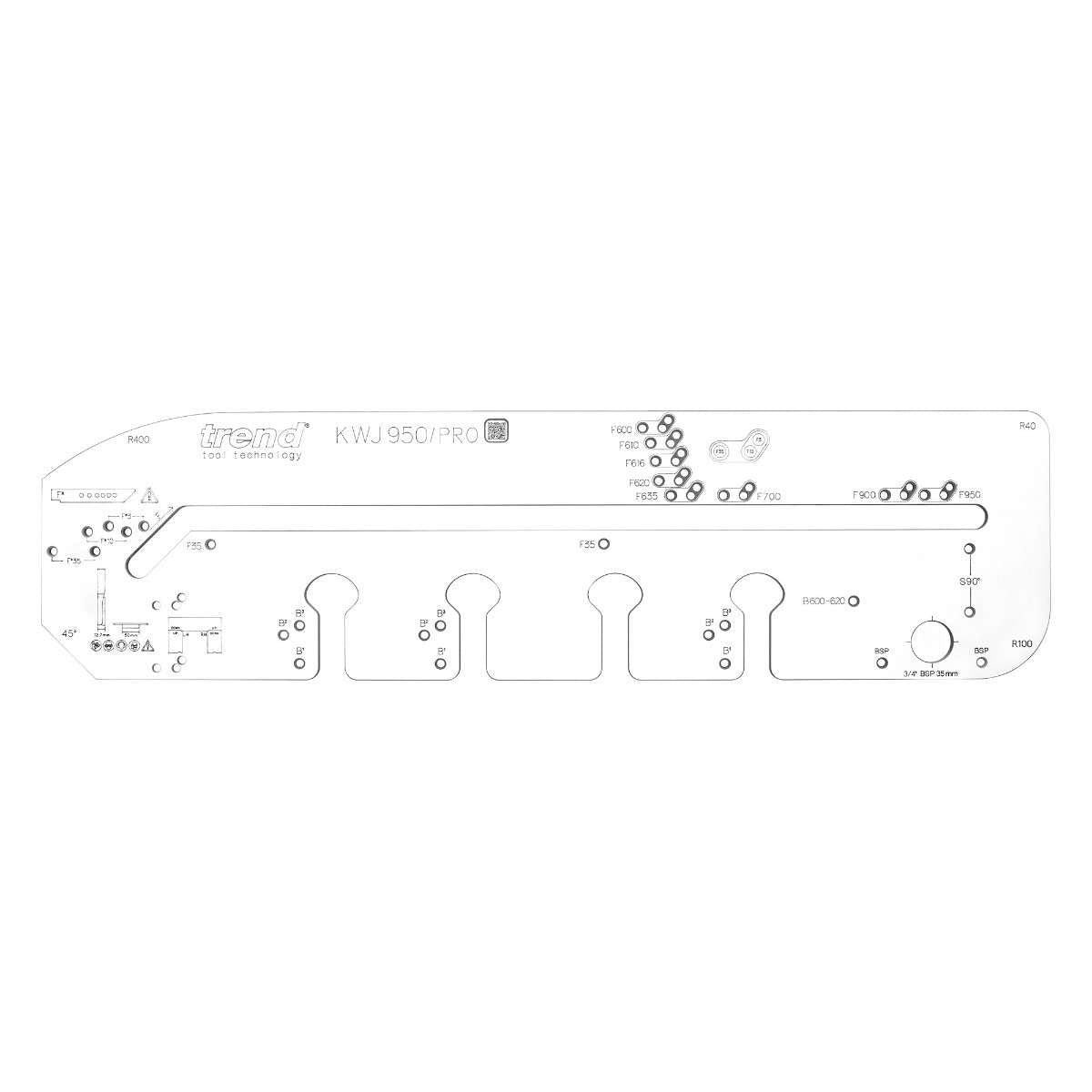

Indexed Backsets for 600, 610, 616, 620, 635, 700, 900 and 950mm worktops for standard 90º installations
400mm Radius for breakfast bar and peninsula trimming
R100mm, R40mm and 45° Corners for edge finishing
90° Straight Cuts for accurate skimming and trimming
35mm Hinge / 3/4” BSP Recess for surface-mount monobloc tap and concealed hinge installation
CNC-Machined Compact Grade HPL provides precision, strength and durability
8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset
8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing

Product Specification:

Part Number: KWJ950/PRO/X
Barcode: 5027654090619
Length: 1260mm
Width: 340mm
Thickness: 12mm
Insets: 3/10/35 mm
Backsets: 600/610/616/620/635/700/900/950 mm
Bolt Recesses: 4
Bolt Recess Centres: 175 mm
Corner Radius: 40/100 mm
Peninsular Radius: 400 mm
Requires:
Guide Bush: 30 mm
Router Cutter: 12.7mm dia. x 50 mm length
Plunge Router: 1/2inch

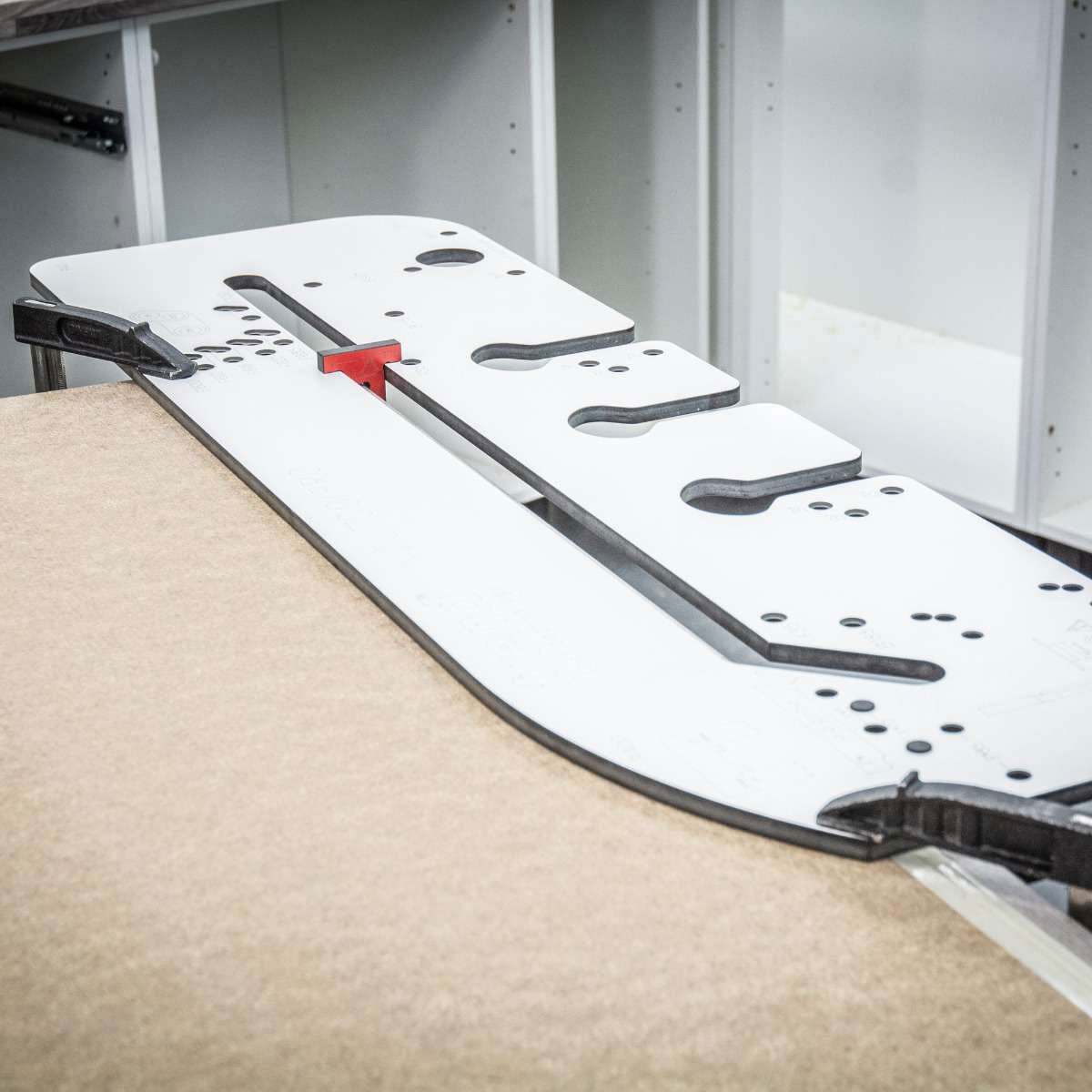

F-Clamps: min. 80 mm throat x 2
