Milwaukee M18BLHX100P-502P 18V M18 Brushless 4 Mode SDS-Plus Hammer Drill With 2 x 5.0Ah Battery, Charger, Drill Bits & Case 4933499039
Milwaukee M18BLHX100P-502P 18V M18 Brushless 4 Mode SDS-Plus Hammer Drill With 2 x 5.0Ah Battery, Charger, Drill Bits & Case 4933499039

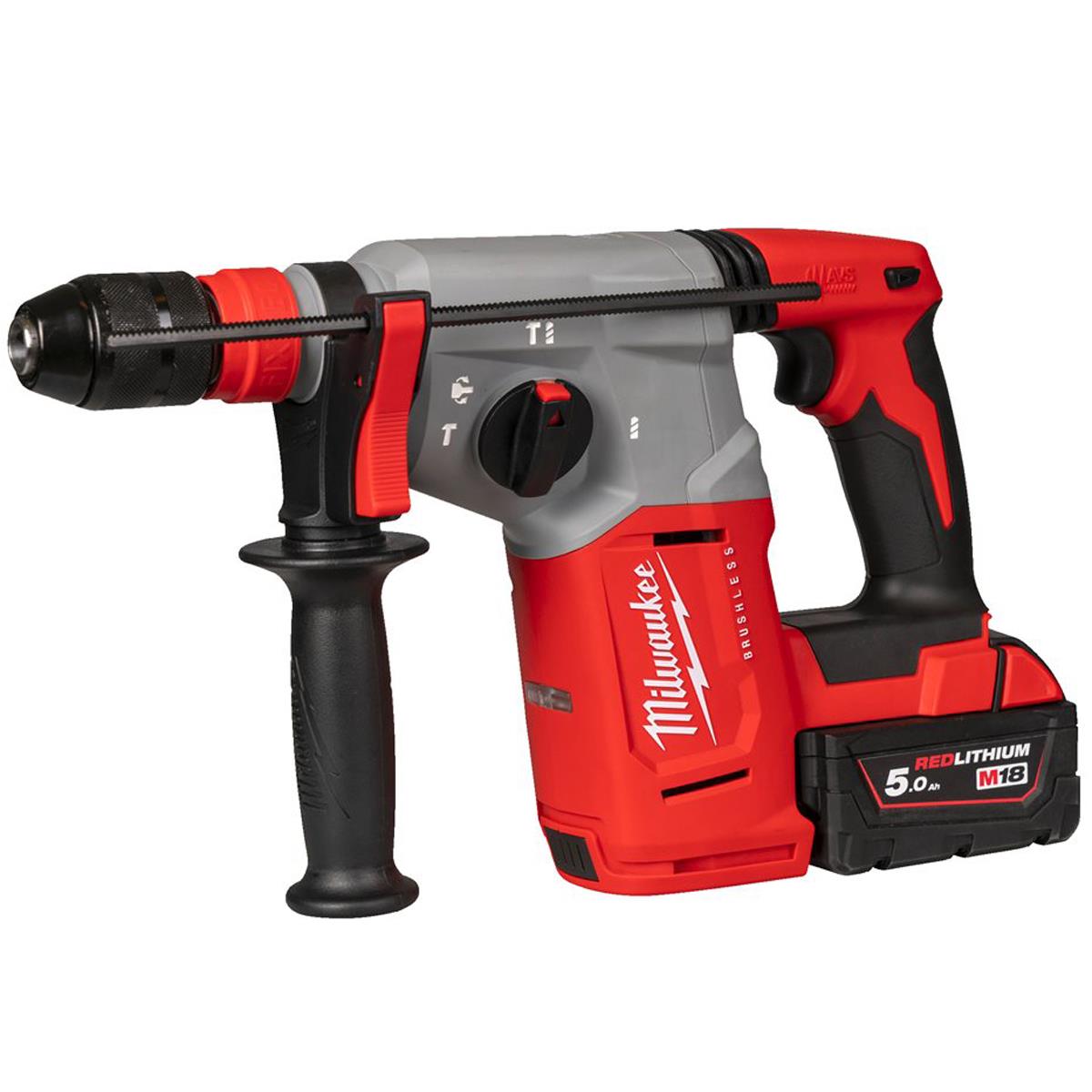

The Milwaukee M18BLHX100P-502P is a professional-grade cordless 18 V SDS+ hammer drill kit built for heavy concrete drilling, light chiselling, and versatile jobsite performance. Its brushless POWERSTATE™ motor delivers efficient drilling in concrete, steel, and wood. The tool features a FIXTEC™ keyless chuck system that lets you easily switch between SDS-Plus and a 13 mm metal chuck. This kit includes two 5.0 Ah M18 batteries, a rapid charger, and a large set of SDS+ drill bits, making it ready for a wide range of holes and applications right out of the case. With four operating modes and ergonomic design, it’s ideal for tradespeople needing power, flexibility, and convenience on site.
Features:
Powerful hammer mechanism and the brushless motor design delivers 2.3 J of impact energy
Compact, ergonomic design for increased end user comfort
FIXTEC™ system for keyless chuck changing between SDS-Plus and 13 mm metal chuck
All metal gear case - optimum seating of the gears for enhanced tool life
4-mode operation: rotary hammer, hammer only, rotation only and selectable work position of the chisel (variolock) for maximum versatility
Anti-vibration side handle for lower vibration exposure
Compatible with M18 CDEX dust extractor
Brushless motor, REDLITHIUM™ battery pack and REDLINK™ electronic deliver power, run time and durability
Flexible battery system: works with all MILWAUKEE® M18™ batteries

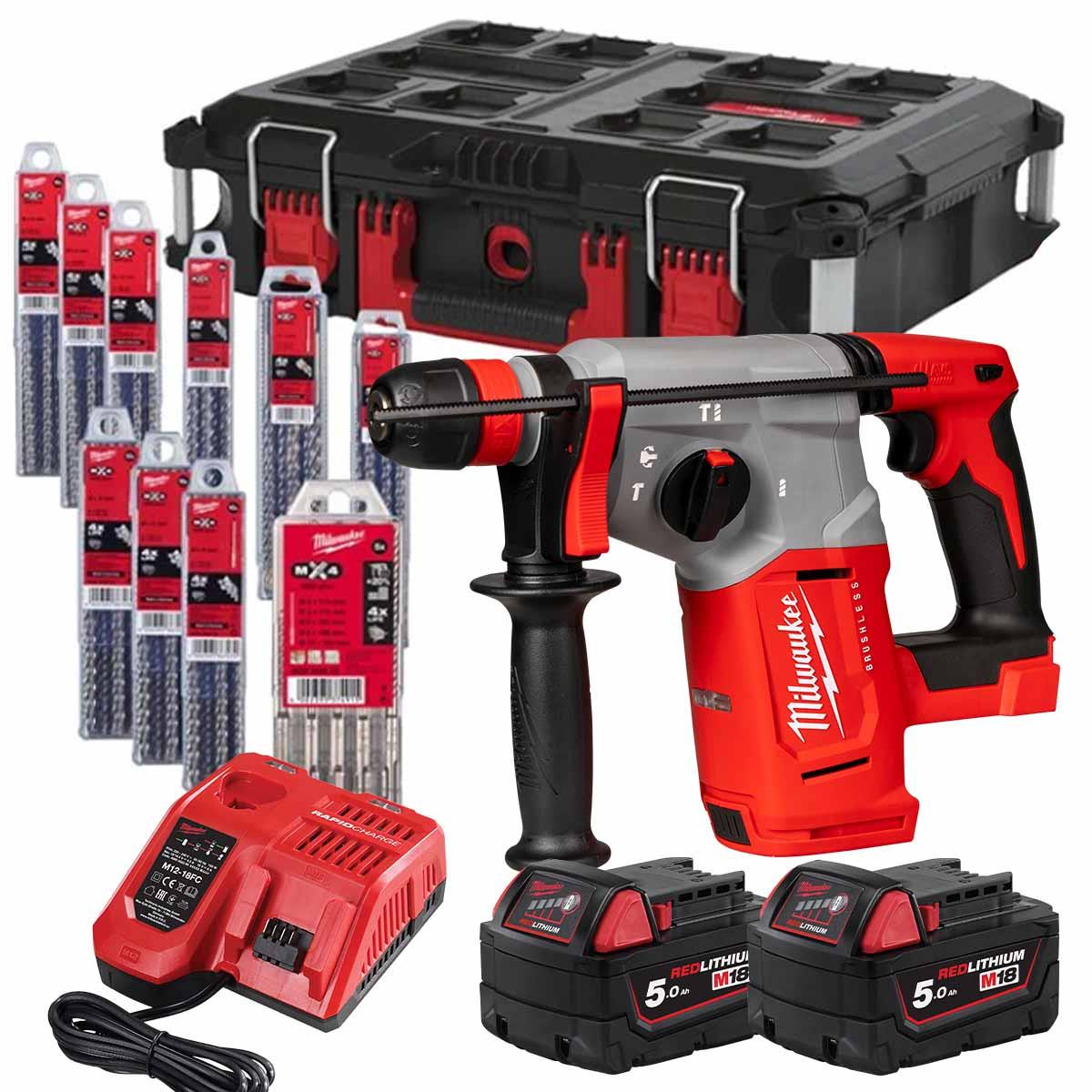

Comes with:
2 x M18B5 5.0Ah Battery
1 x M12-18 FC Charger
3 x SDS+ MX4 6×165 mm (10 Pieces)
3 x SDS+ MX4 8×165 mm (10 Pieces)
1 x SDS+ MX4 10×215 mm (10 Pieces)
1 x SDS+ MX4 12×210 mm (10 Pieces)
1 x SDS+ MX4 12×260 mm (10 Pieces)
1 x SDS+ MX4 Set 1 (5 Pieces)
1 x Heavy-duty carrying case
Product Specification:
Part Number: 4933499039
Barcode: 4058546521127
Battery type: Li-ion
Voltage (V): 18
Blow energy (EPTA)(J): 2.3
Blow energy (J): 2.3
Fits MILWAUKEE® dust extractors: M18 CDEX
FIXTEC™ chuck: Yes
Max. drilling concrete (mm): 26
Max. drilling steel (mm): 13
Max. drilling wood (mm): 26
Max. percussion rate (bpm): 4,900
No load speed (rpm): 0 - 1,400
Optimised drilling capacity in concrete (mm): 6 - 18
Standard equipment: Side handle, depth gauge, grease, FIXTEC™ 13 mm full metal chuck
Supplied in: HD Box
Tool reception: SDS-Plus + Reduced shank 13 mm
Weight with battery pack (EPTA) (kg): 3.5 (M18 B5)
Weight (kg): 2.8
Sound and Vibration
Sound power level (Lwa)(dB(A)): 101.7
Sound power level uncertainty (dB(A)): 3
Sound pressure level (Lpa)(dB(A)): 90.7
Sound pressure level uncertainty (dB(A)): 3
Vibration chiseling (m/s²): 12.7
Vibration chiselling uncertainty (m/s²): 1.5
Vibration drilling (m/s²): 14.9
Vibration drilling uncertainty (m/s²): 1.5
**images for illustrative purposes only – please refer to description and specification for full details of product**
