Trend 3 in 1 Pocket Hole Jig PH/JIG/BK

Trend 3 in 1 Pocket Hole Jig PH/JIG/BK

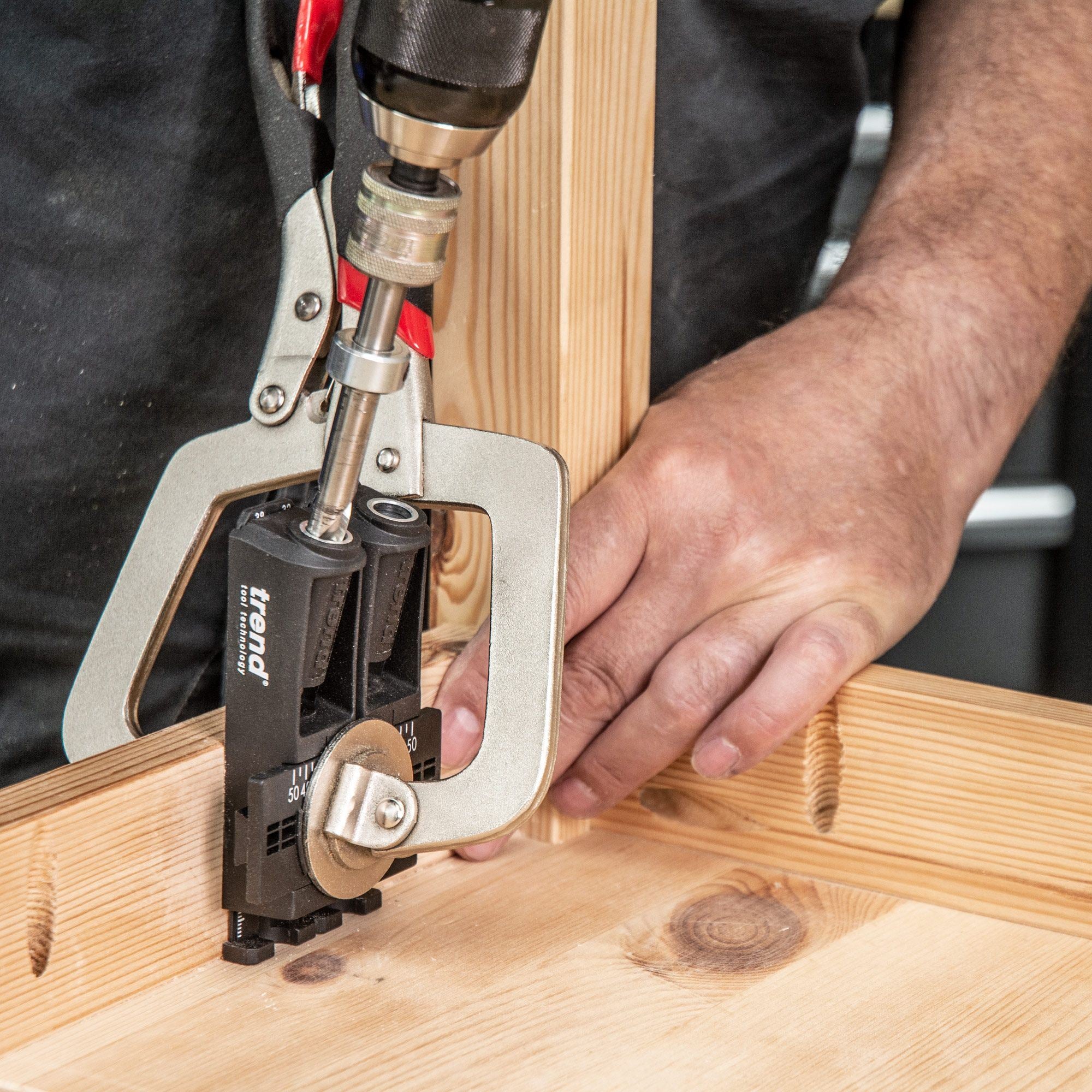

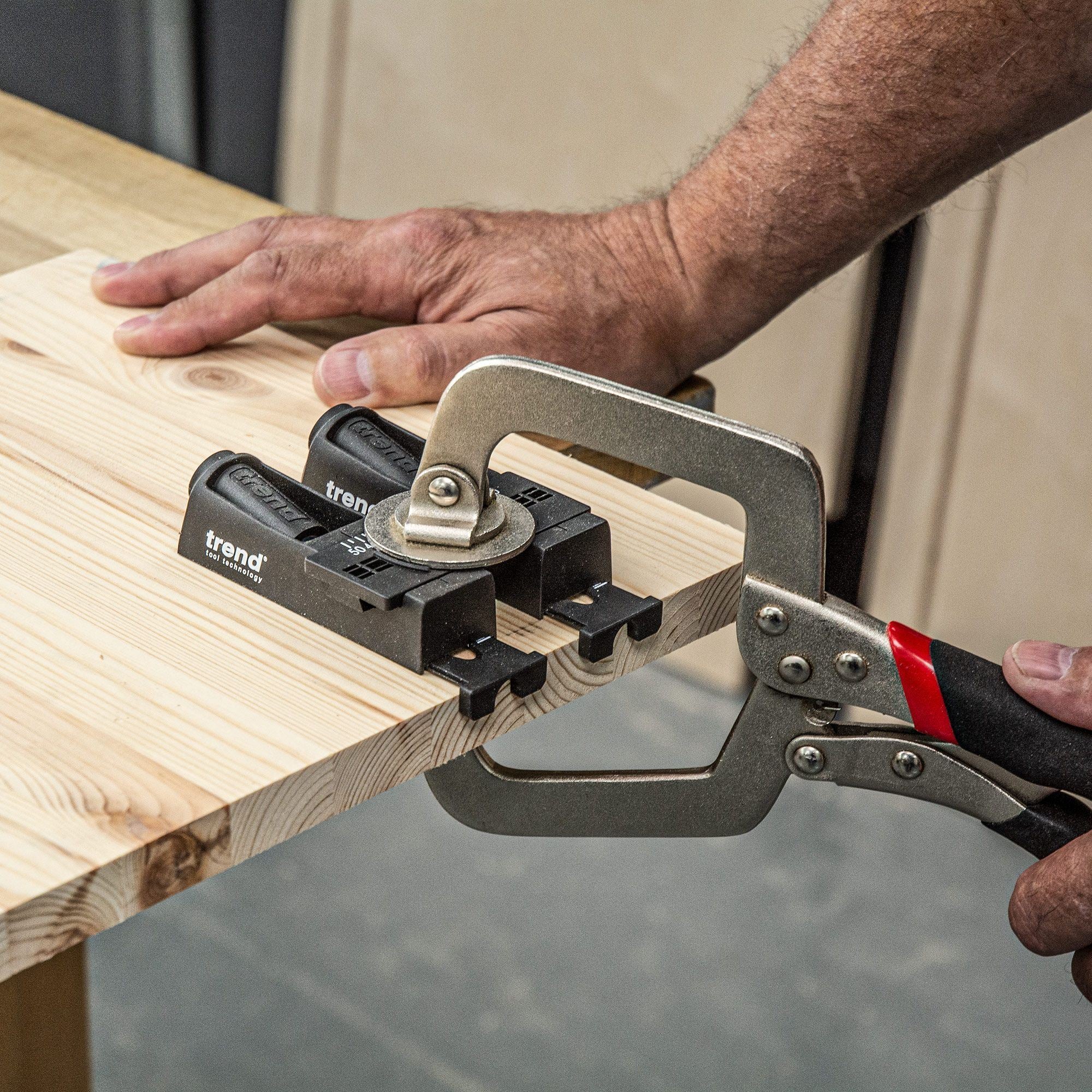

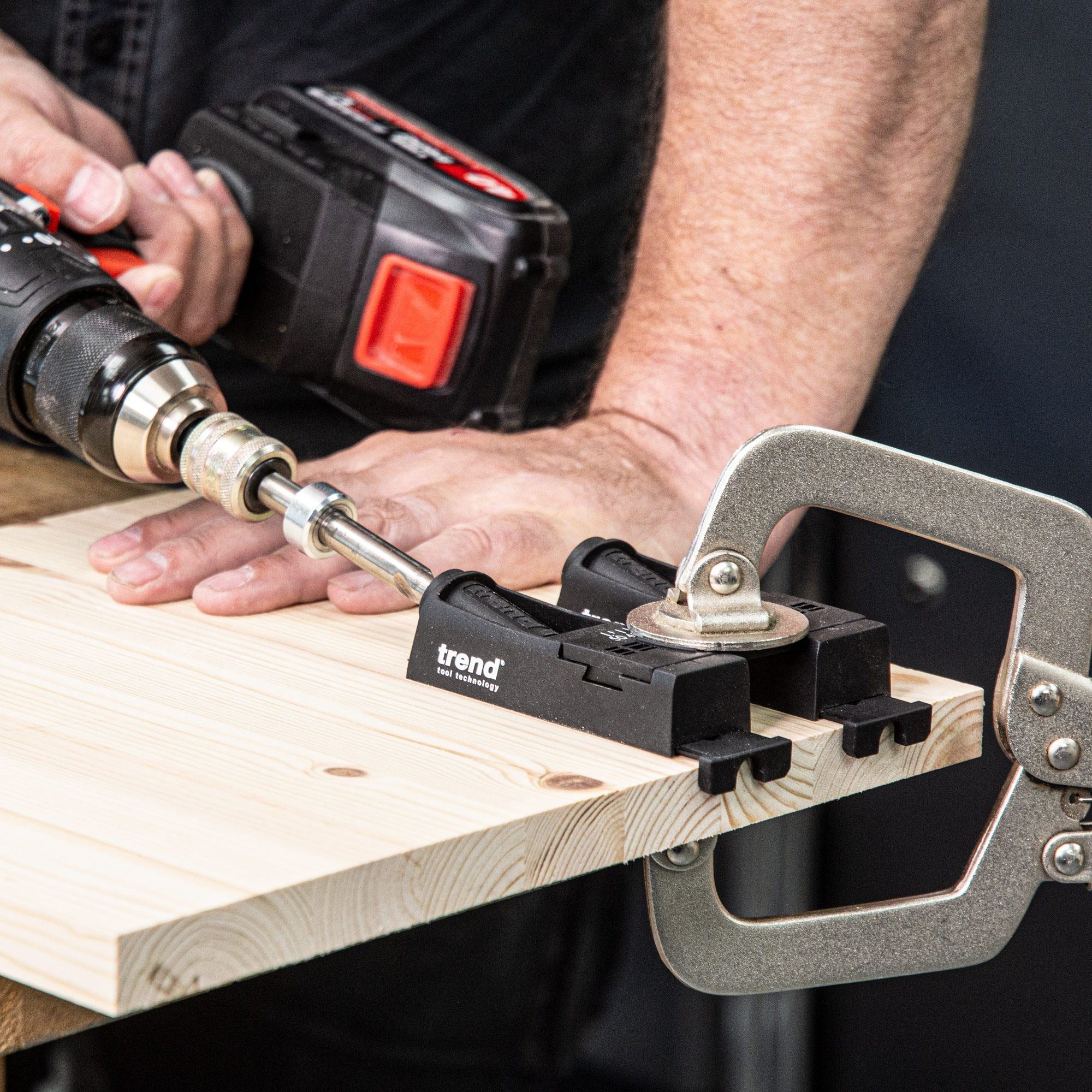

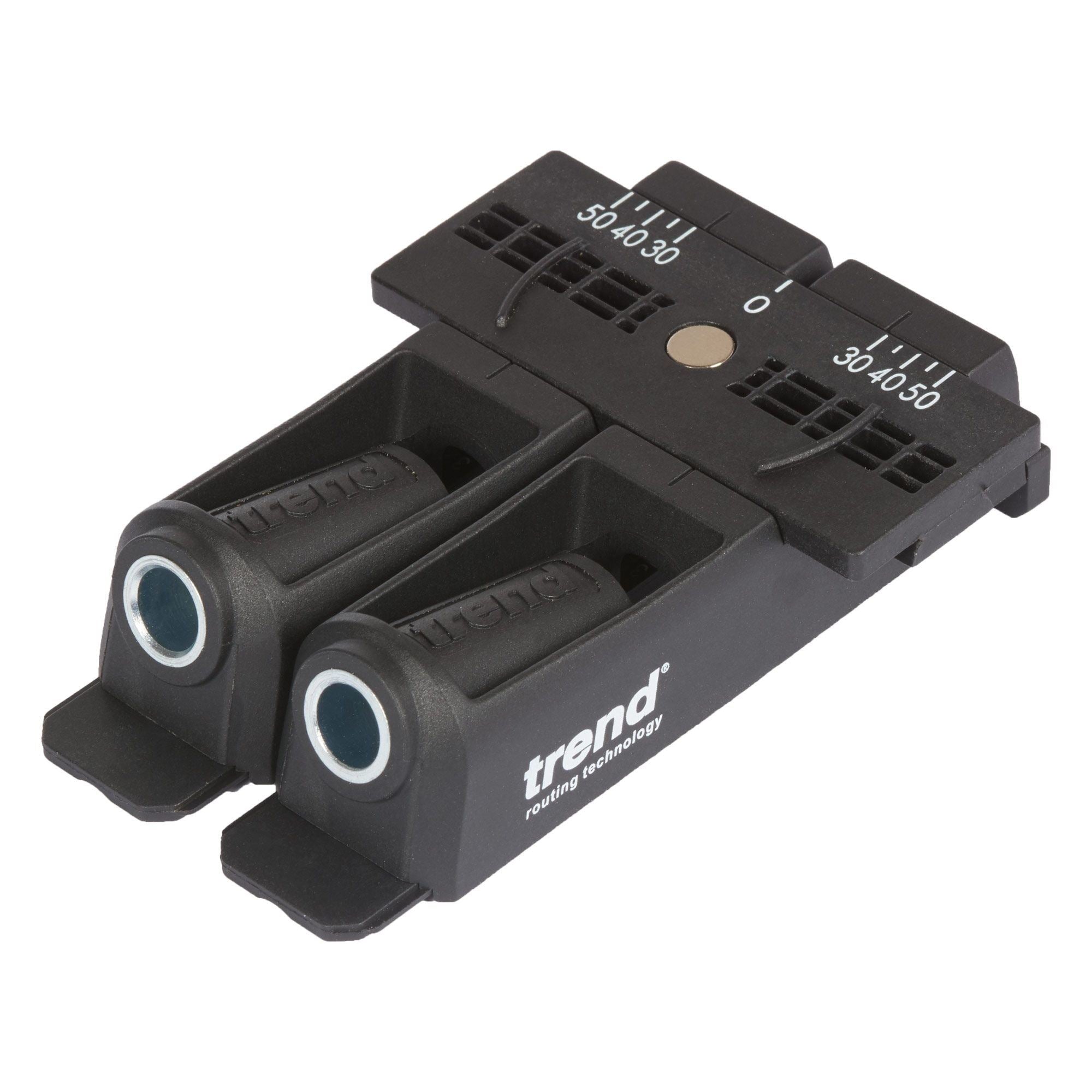

The Trend 3-in-1 Pocket Hole Jig PH/JIG/BK is a compact, lightweight, and versatile pocket hole jig for a multitude of woodworking applications using single or multiple pockets. It is an adaptable design for use as a double pocket jig or single mini jig with quick set-up and adjustments; it is ideal for lightweight joinery, furniture making, and repair work in stock from 12mm to 38mm thick.

Features:

Hardened drilling sleeves for accurate, consistent pockets
Works with timber thicknesses from 12mm to 38mm

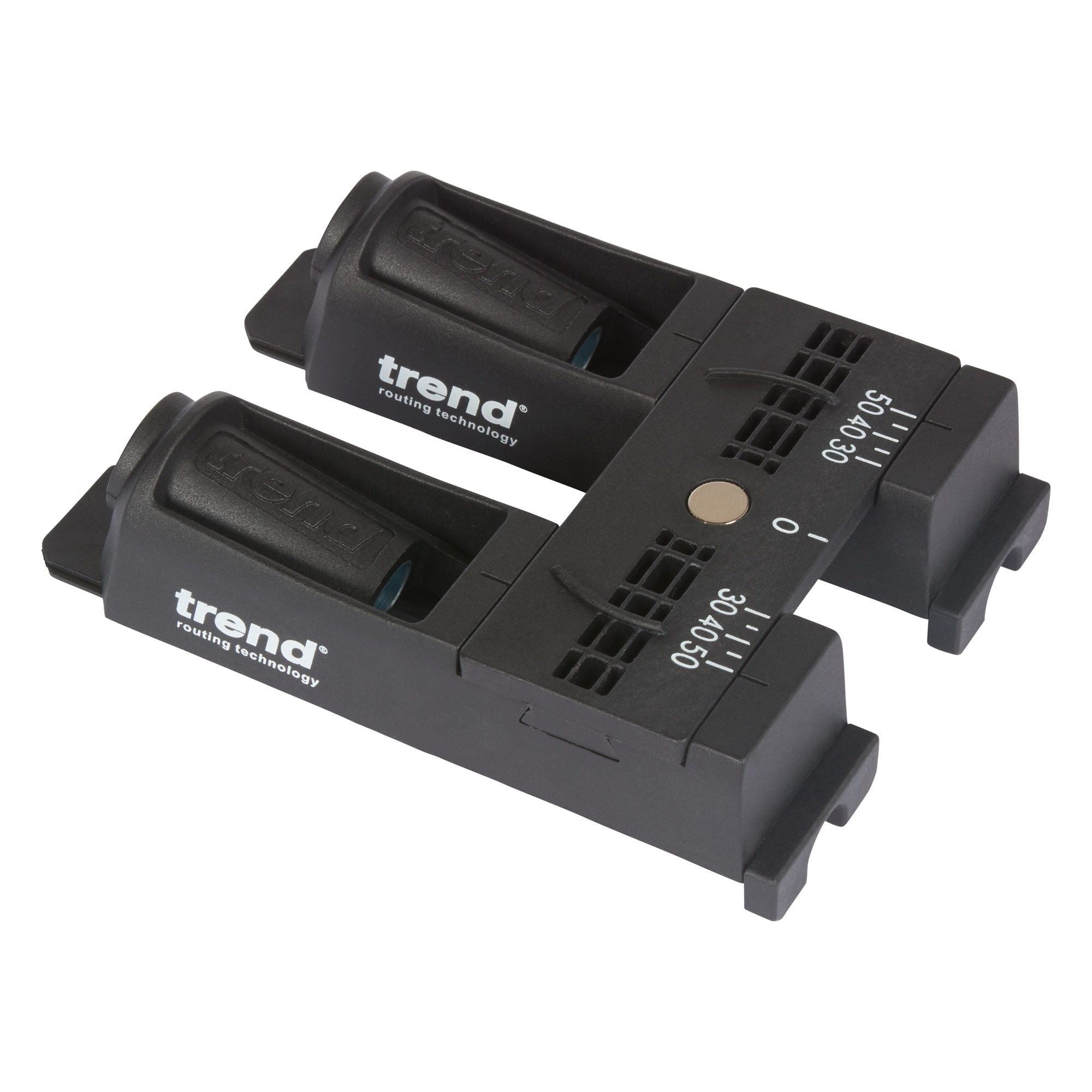

Multi-function design for twin hole or single hole pockets
Perfect for wide or for narrow stock components
Portable and adaptable for multiple jointing styles and applications

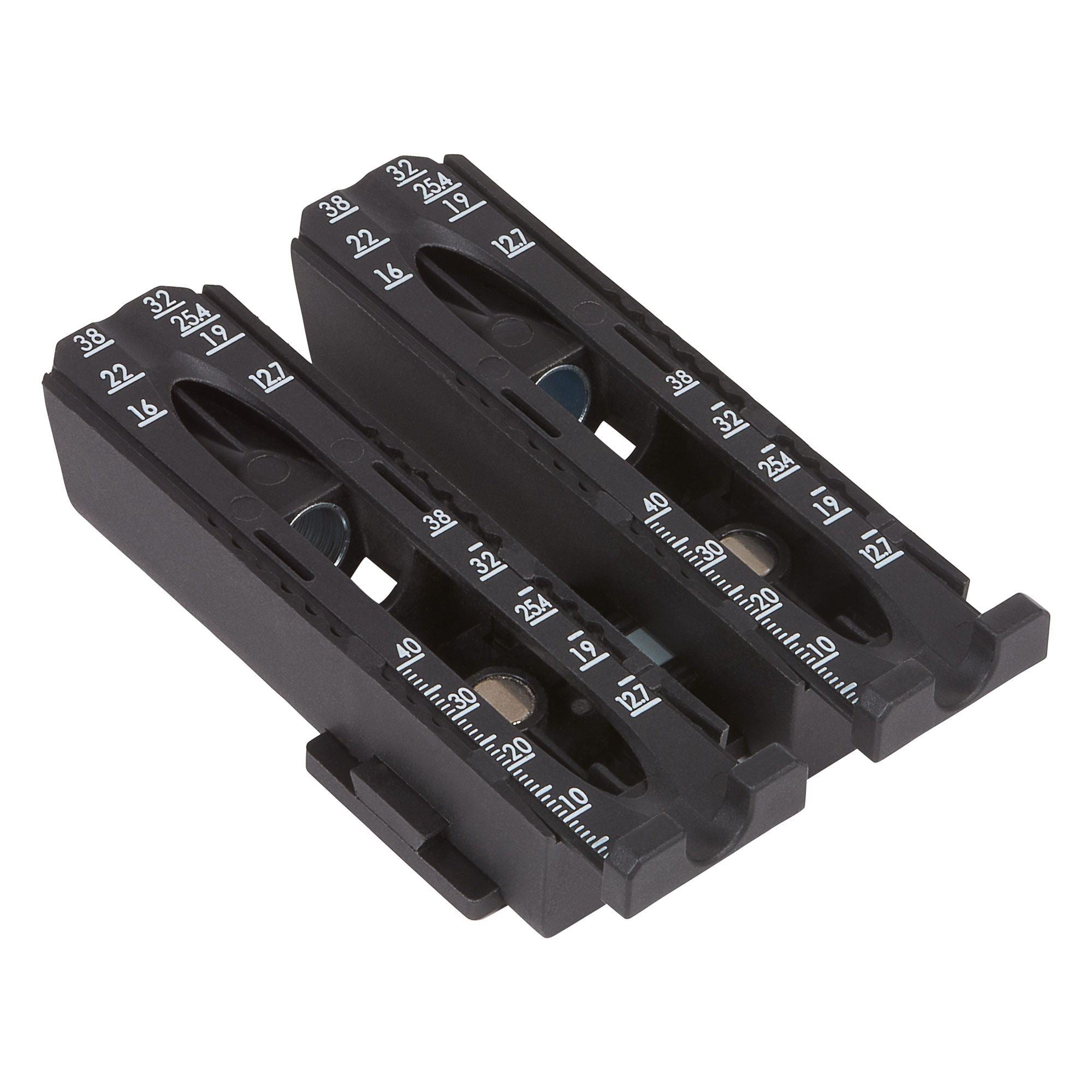

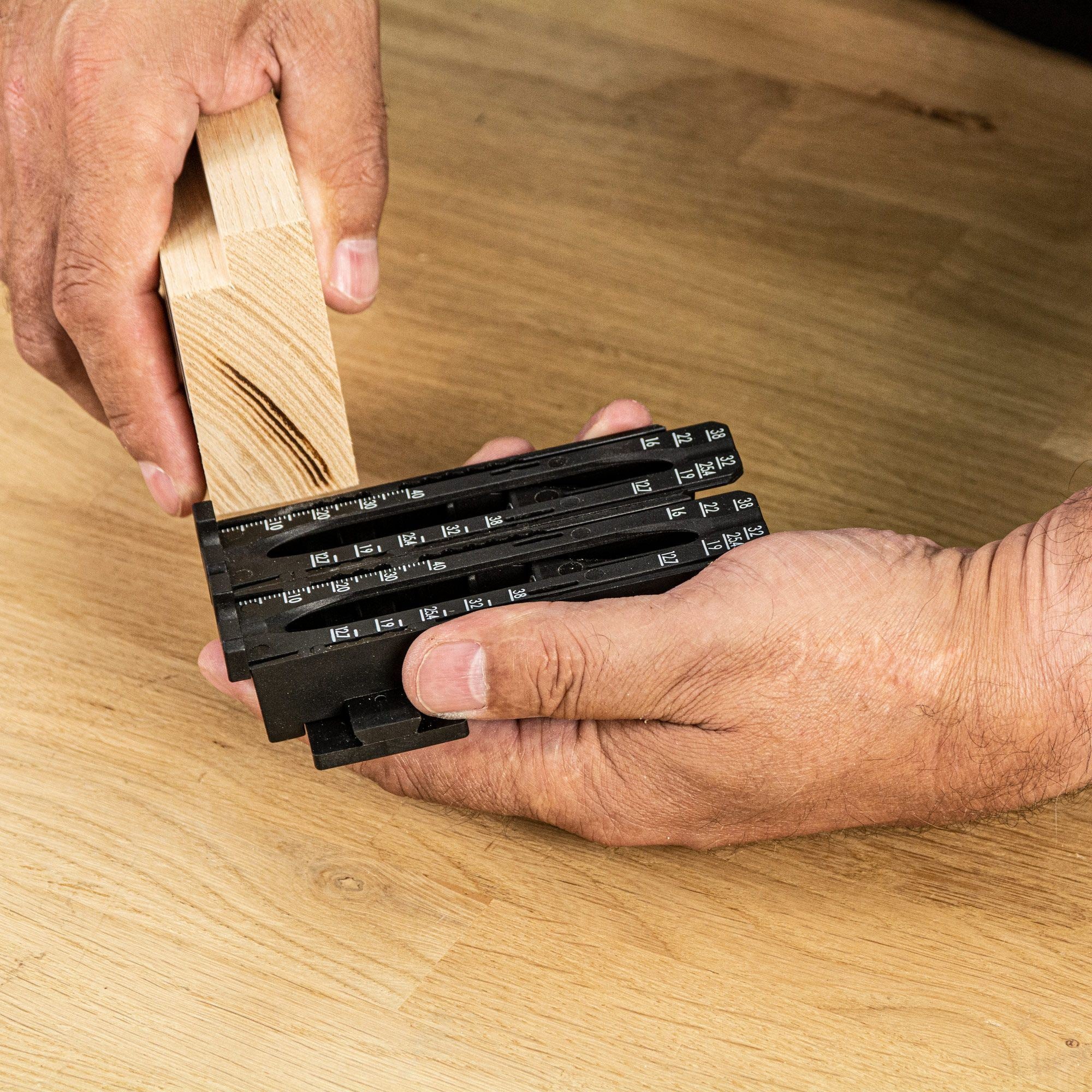

Reversible depth gauges, ideal for new work and repair work

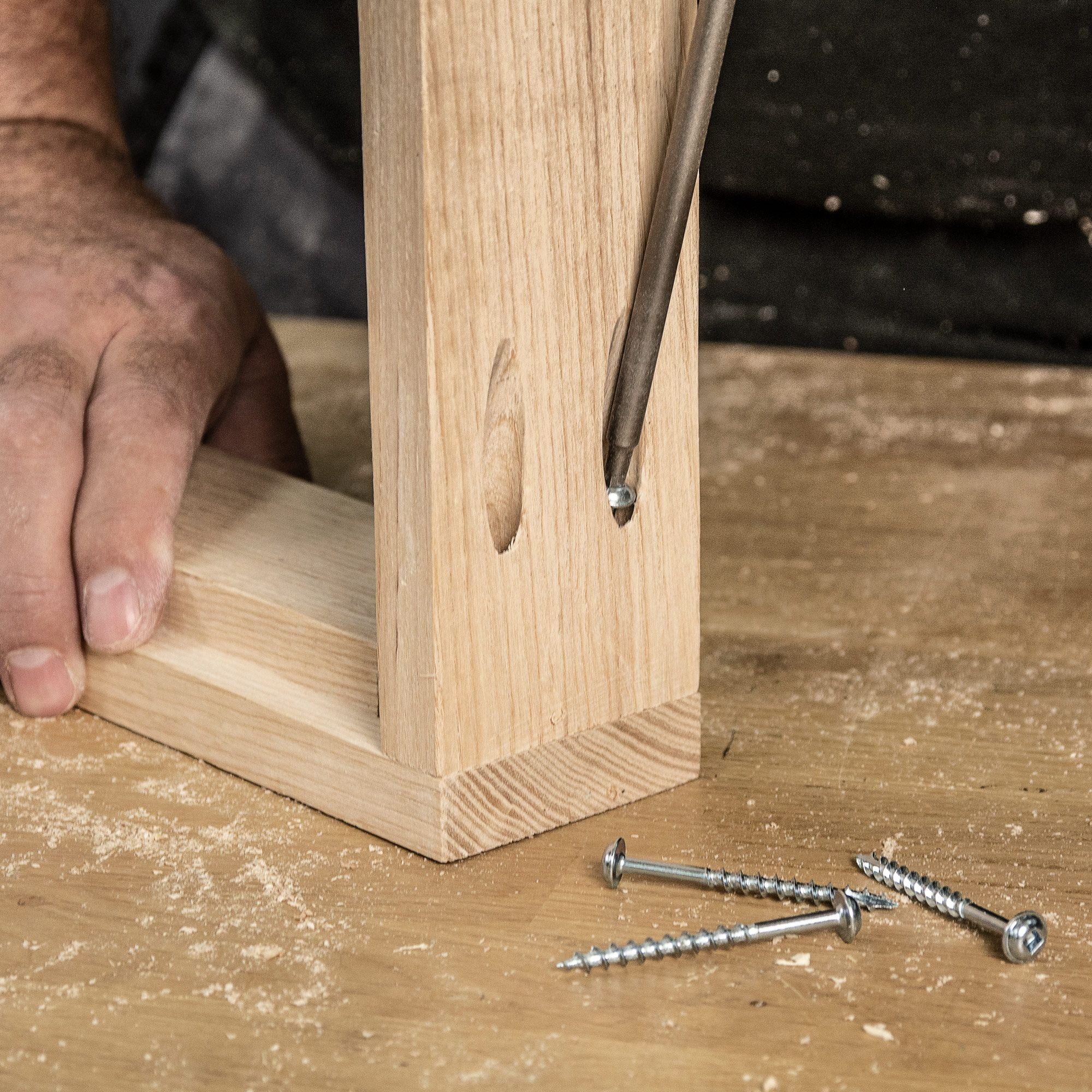

Build cabinets, furniture, and small joinery projects with ease

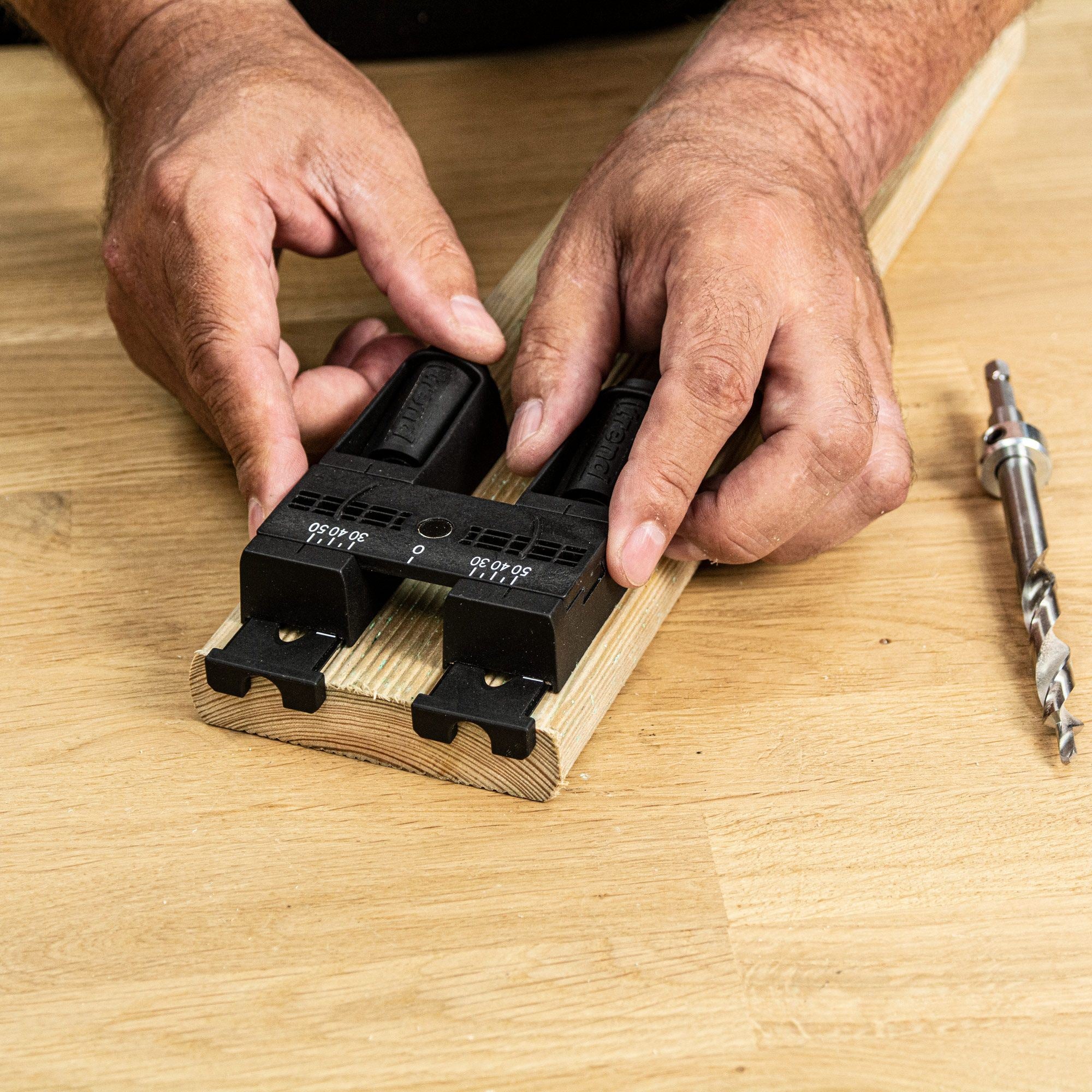

Tool free, fast and easy set up

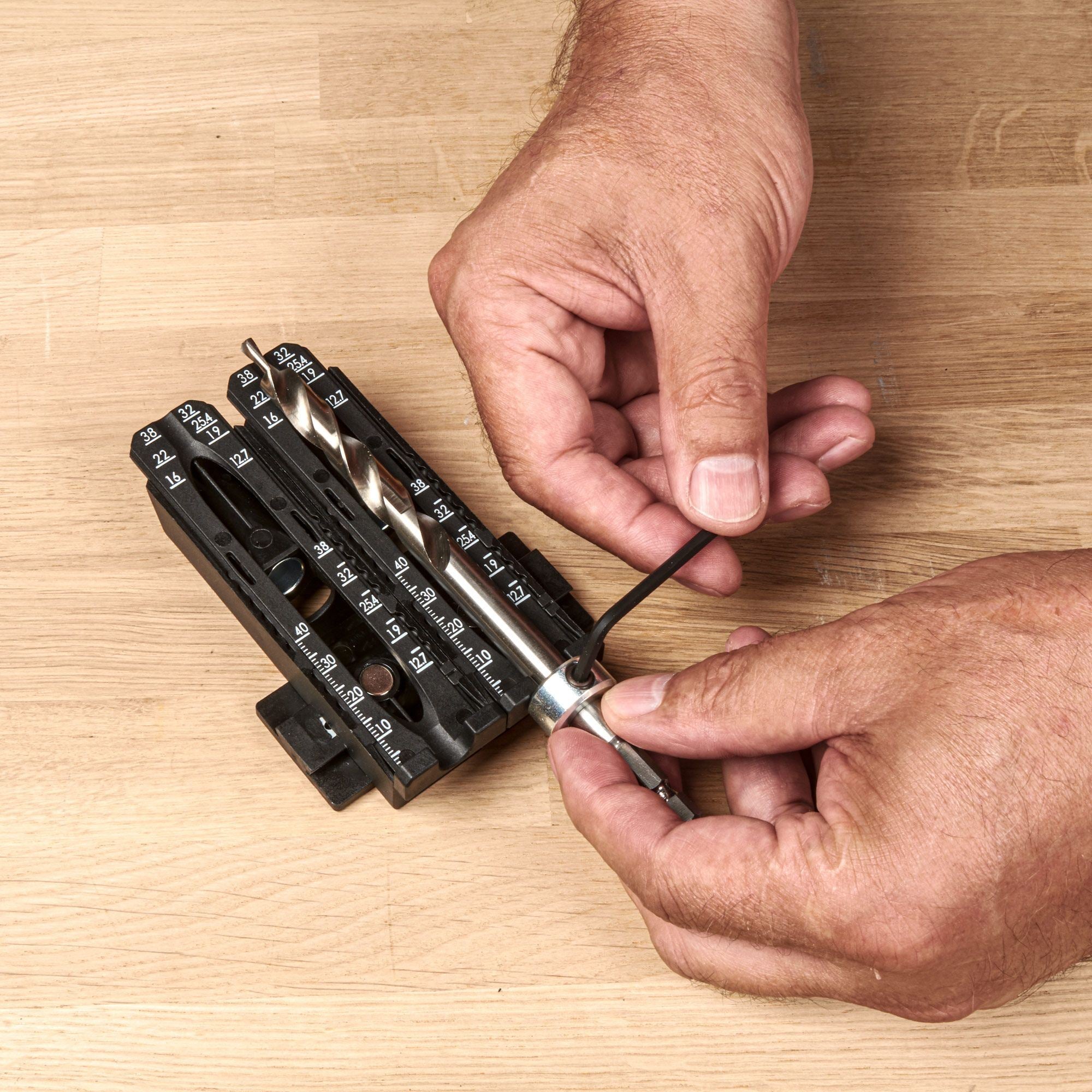

Built in drill depth gauge
Supplied with drill, driver bit and a selection of screws

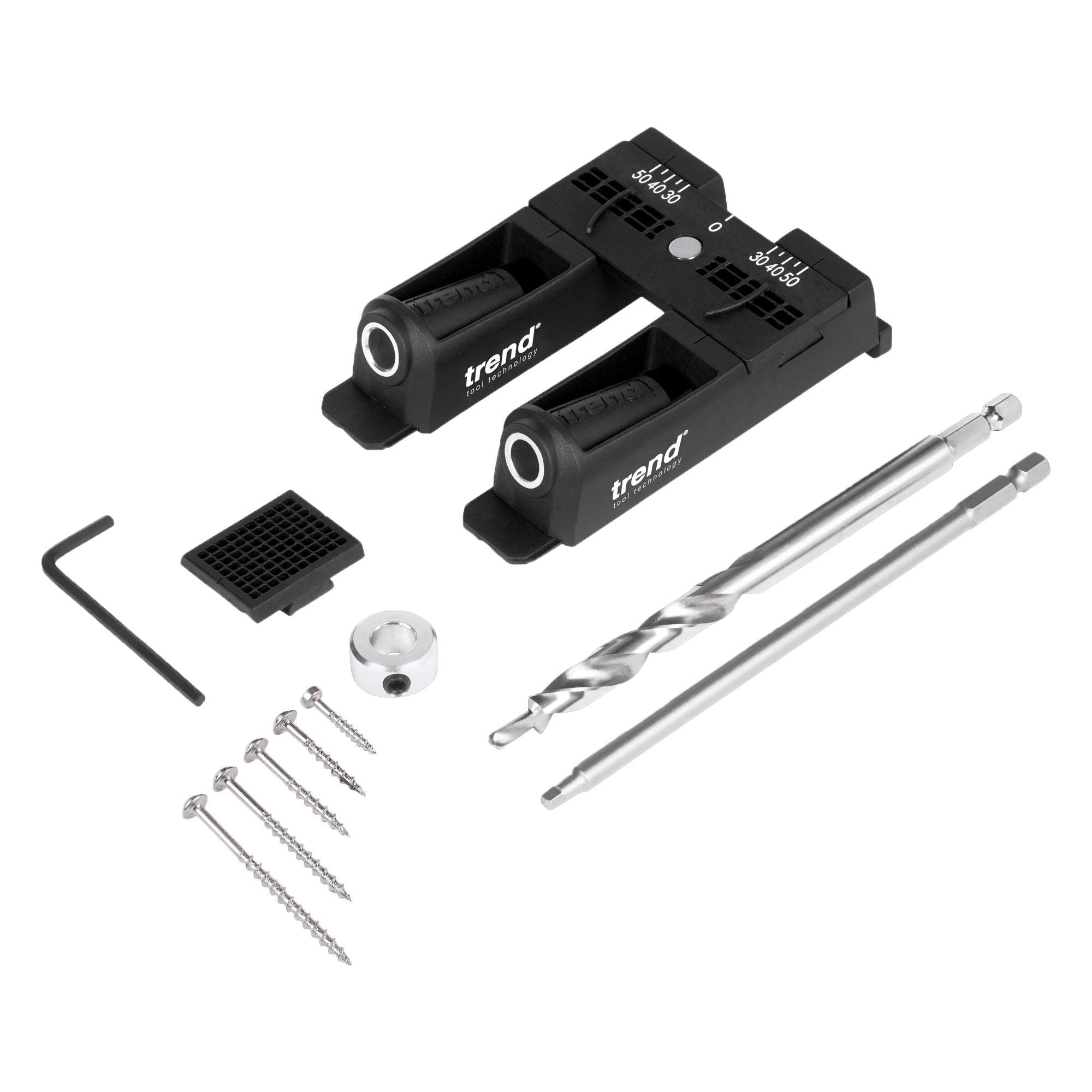

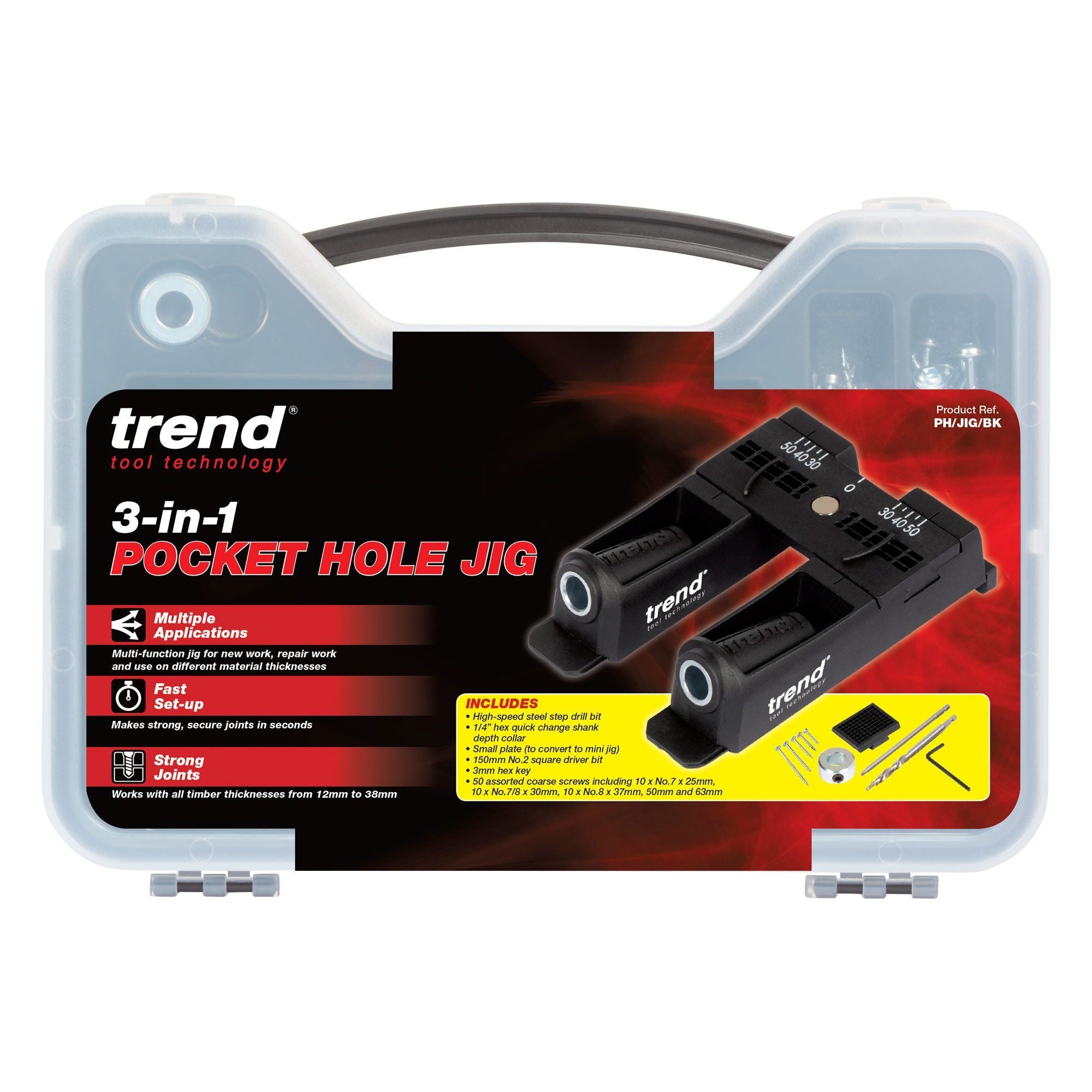

Comes With:

50 x Assorted Screws
1 x HSS Drill Bit with Collar
1 x 150mm Square Drive Bit
1 x Adaptor Plate
1 x Hex Key 3mm A/F
1 x Carry Case

Product Specification:

Part No.: PH/JIG/BK
Barcode: 5027654065228
Material thickness min.: 12.7 mm
Material thickness max.: 38 mm
Hole pitch: 28 to 50 mm
Drilling angle: 15 degrees
Screw size: Fine No.7 x 30 mm
Screw sizes: Coarse No. 7 x 25 mm, No.7/8 x 30 mm, No.8 x 37 mm, No.8 x 50 mm, No.8 x 63 mm

**images for illustrative purposes only – please refer to description and specification for full details of product**
