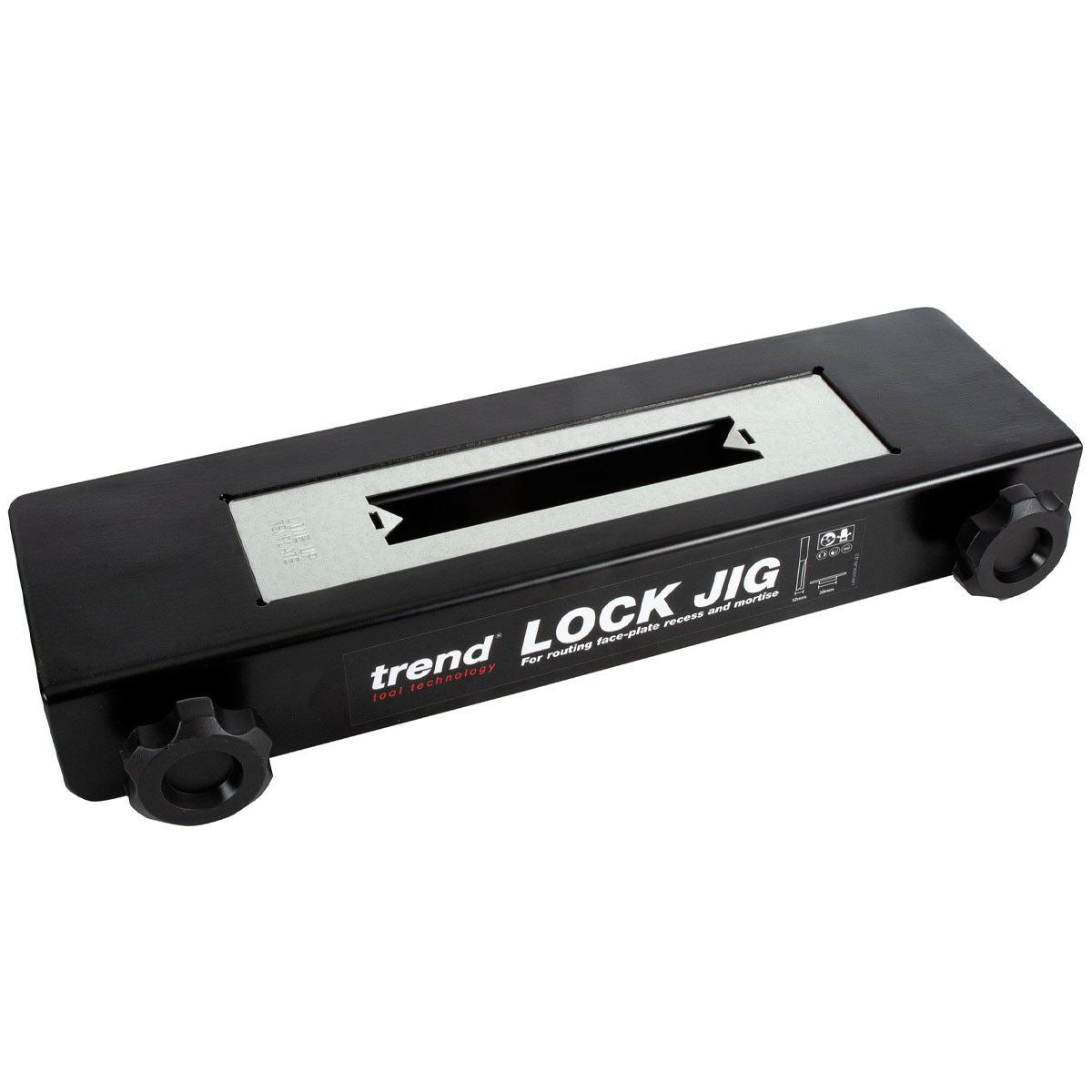

Trend LOCK/JIG/C Professional Lock Jig

Trend LOCK/JIG/C Professional Lock Jig

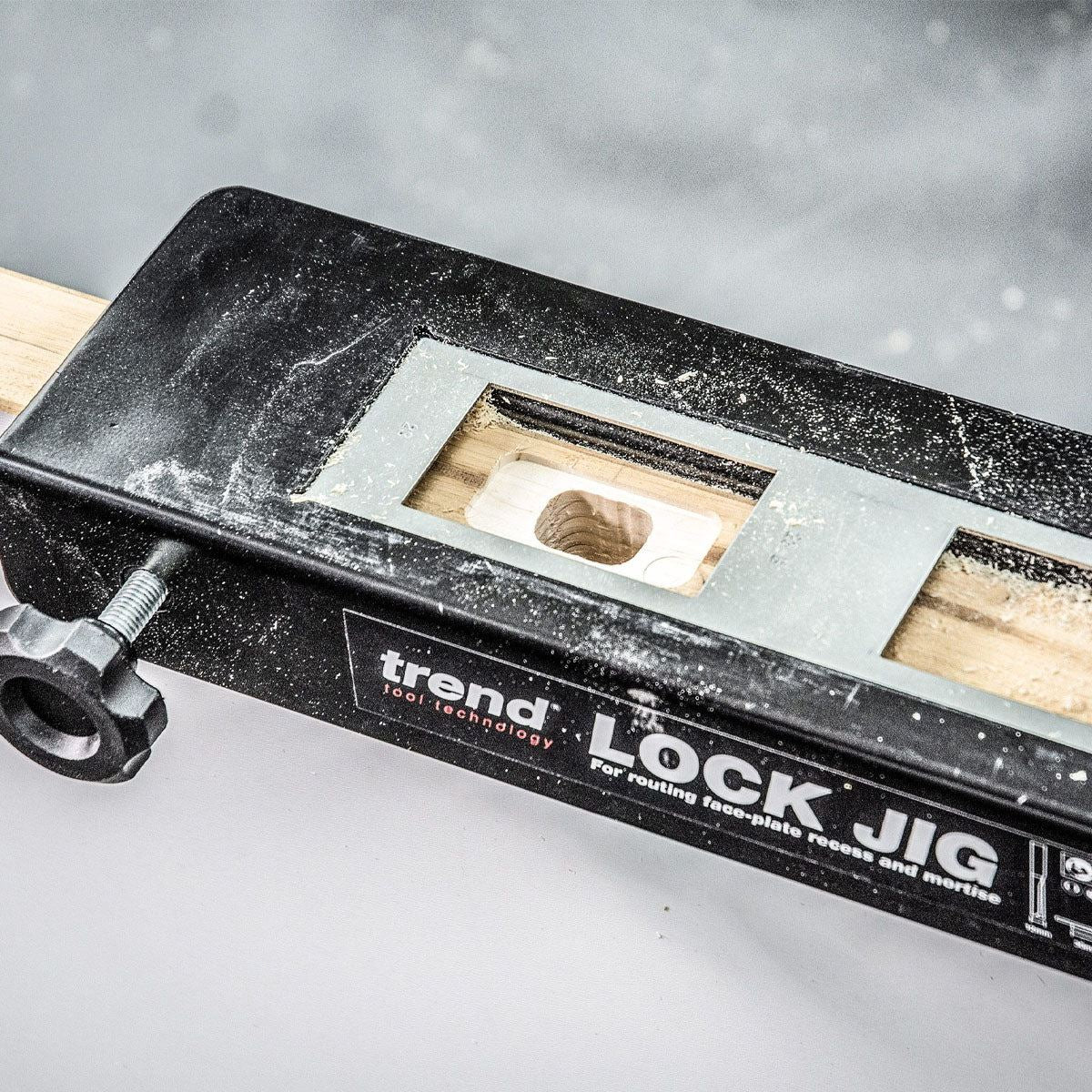

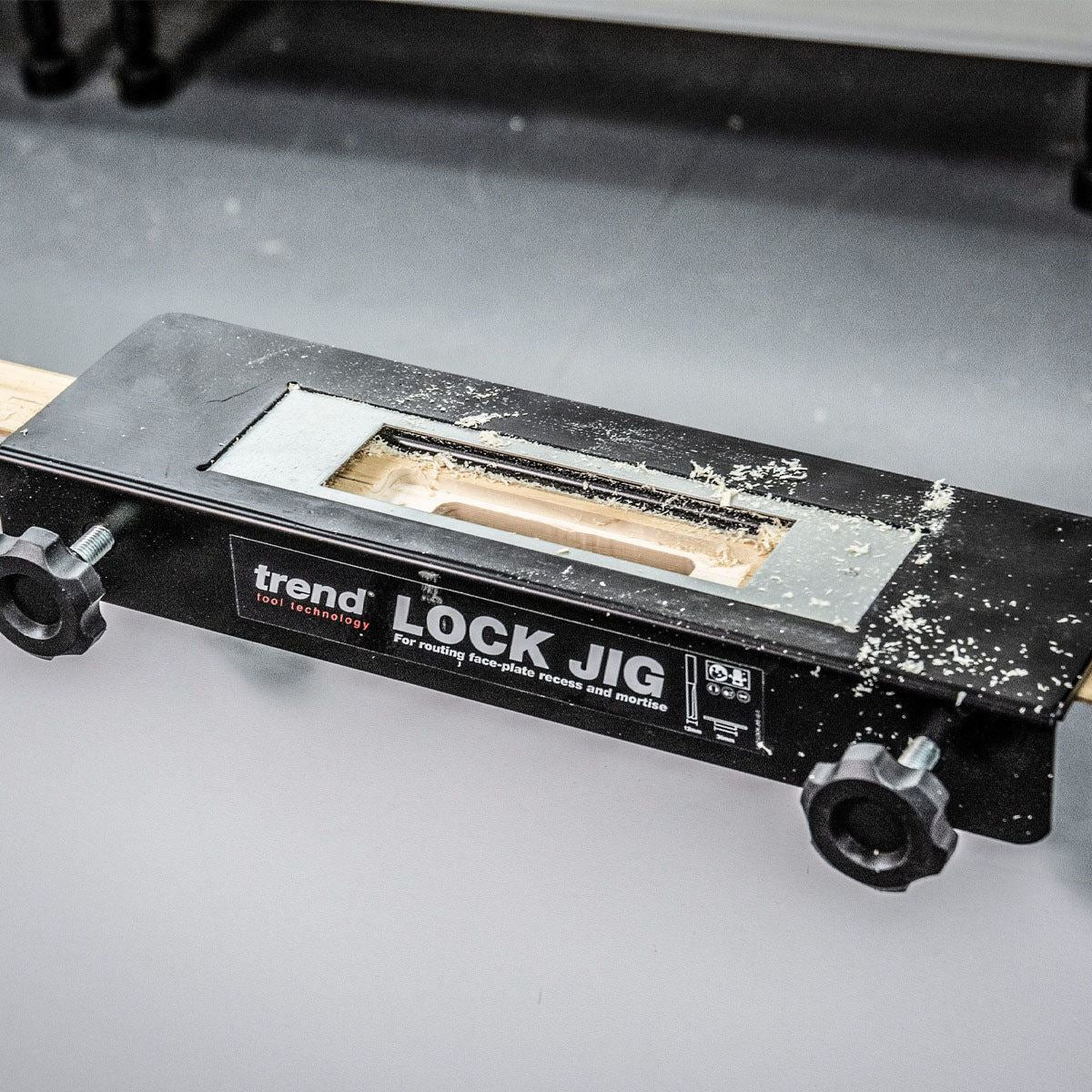

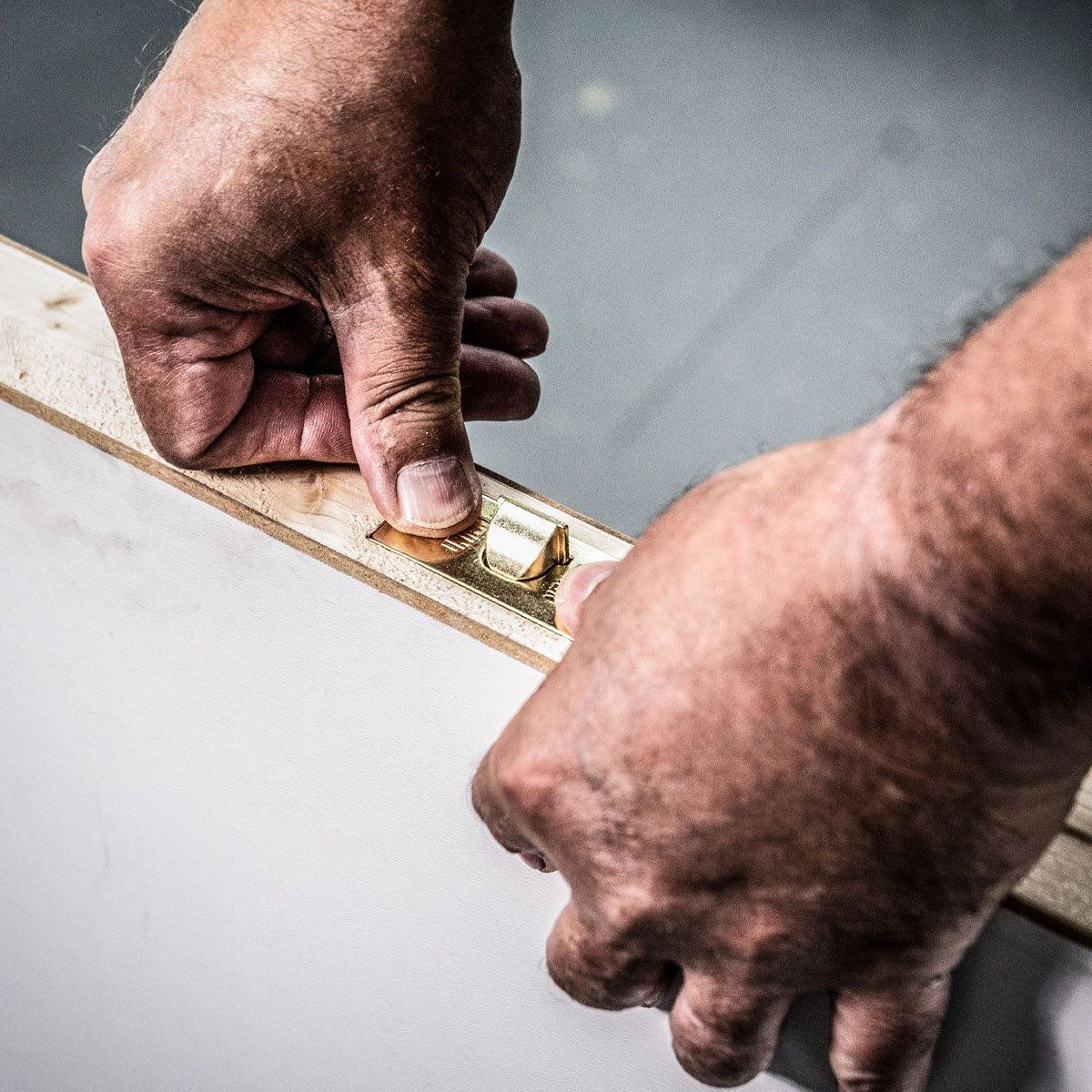

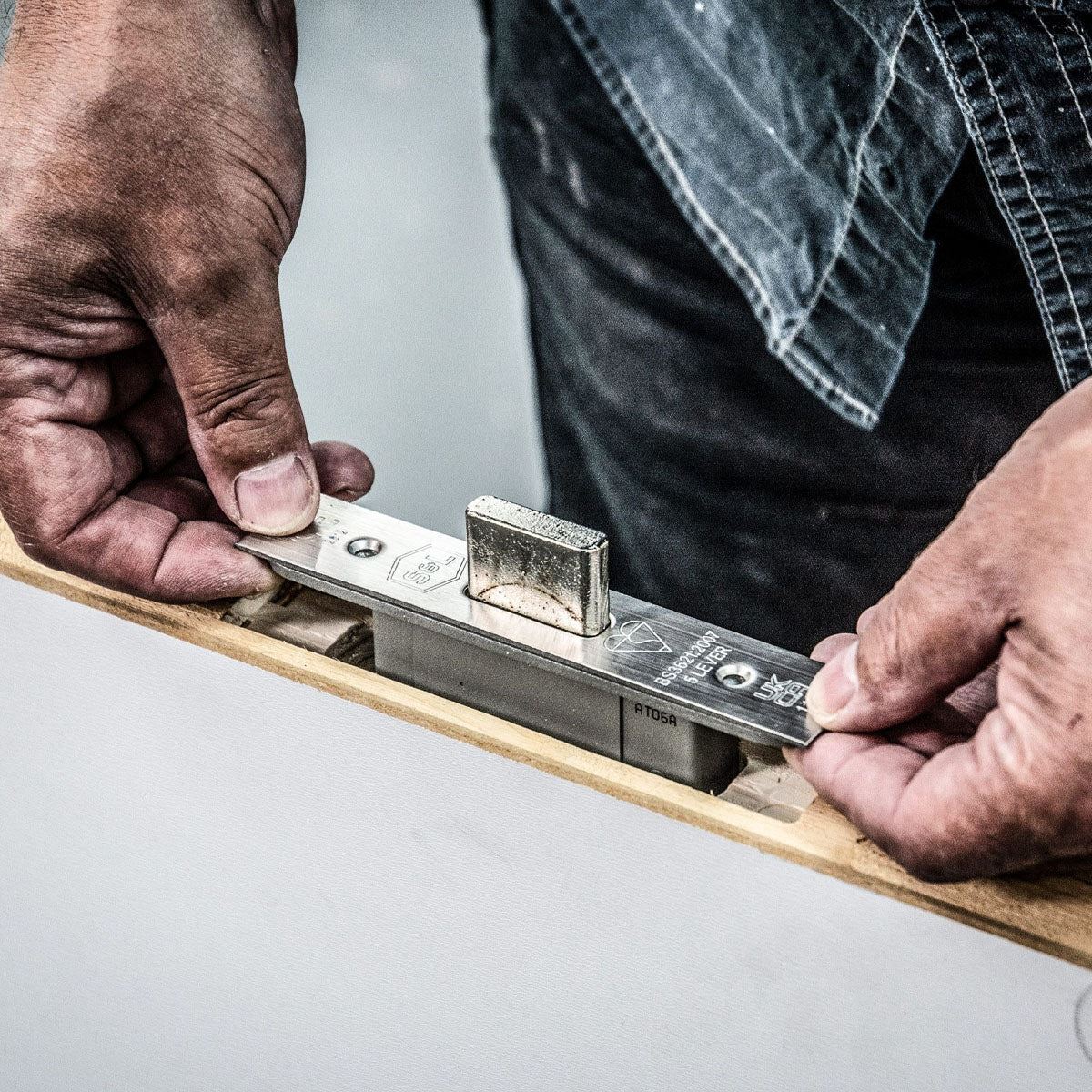

The Trend LOCK/JIG/C Professional Lock Jig is a robust contractor-grade jig designed for precise cutting of mortises and face-plate recesses for popular door locks using a plunge router. Built with durable steel construction, it offers maximum strength, accuracy, and long-lasting performance. Its interchangeable templates, centering guide, and quick-release clamps ensure fast, reliable, and tool-free setup without damaging the door surface. The jig features a full-length adjustable fence for doors between 34mm and 58mm thick, along with height spacers for different guide bush spigots. A handy reference chart provides quick lock-to-template matching, making it ideal for fitting mortise sash locks, dead locks, and latches efficiently.

Features:

Steel Construction: For maximum strength, durability and accuracy.
Centering Template: Ensures jig is perfectly positioned on any door.

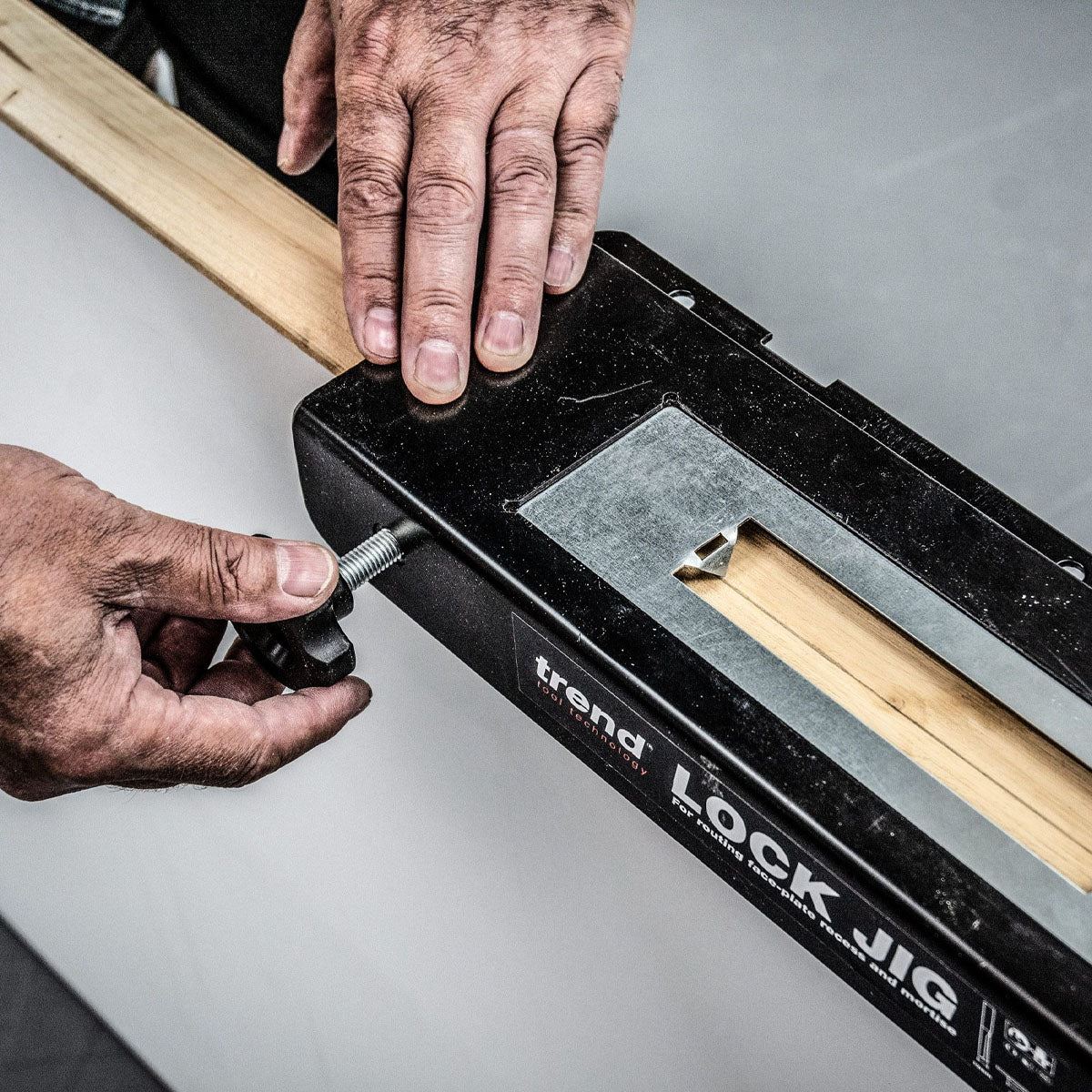

Thumb-Turn Quick-Release Clamps: With non-marring pads, secure the jig quickly and easily.

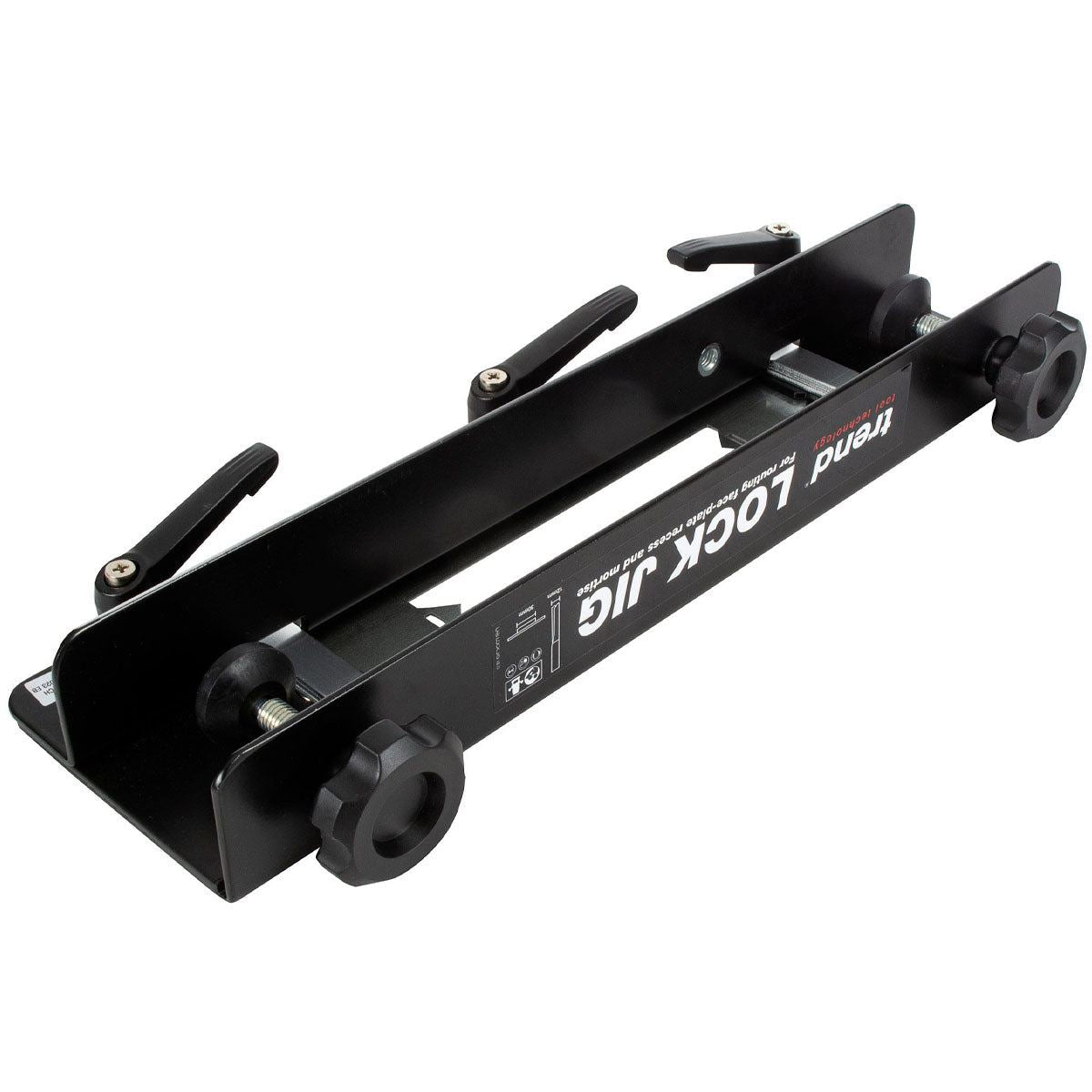

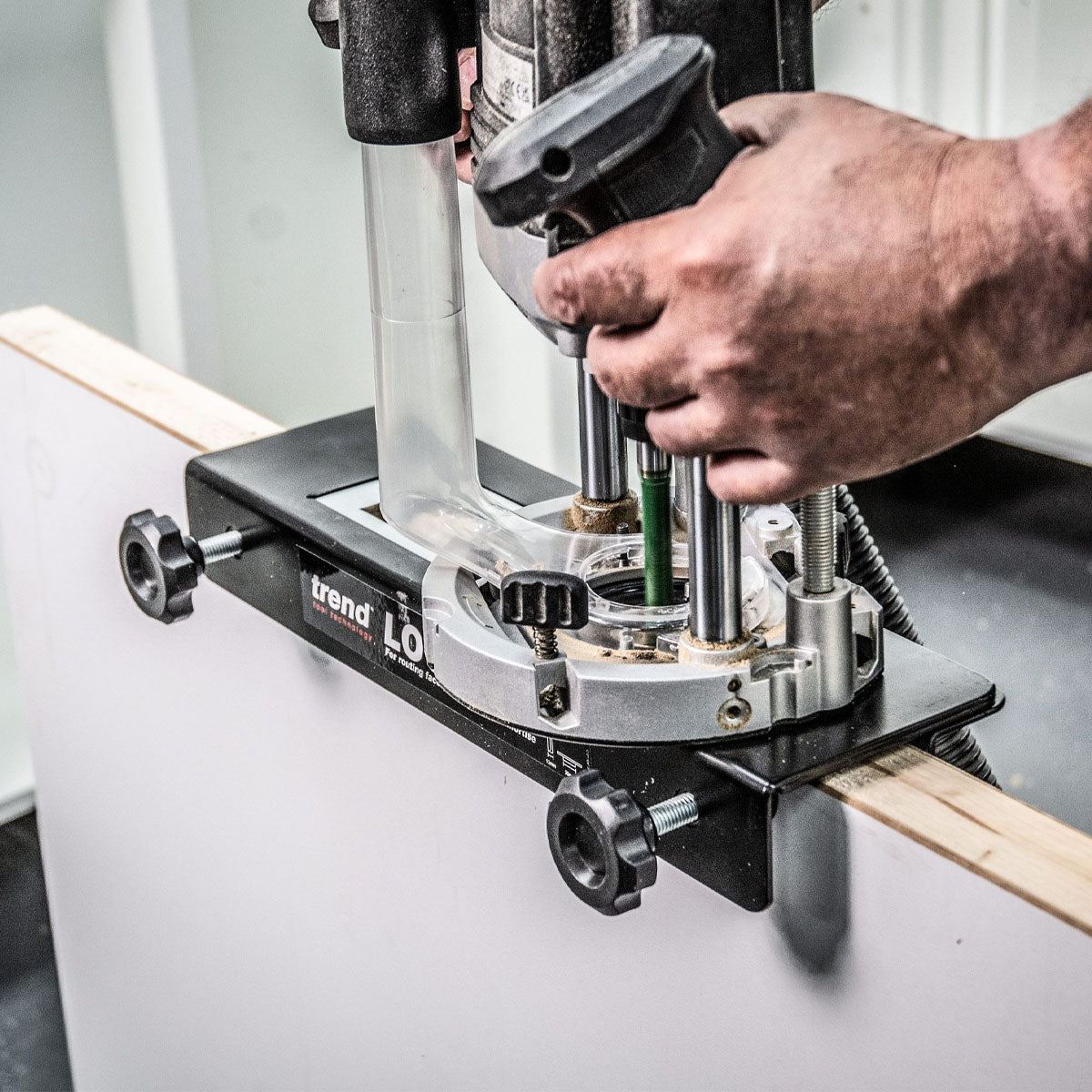

Full-Length Fence: Secured with three locking levers adjusts the jig quickly and securely for all doors between 34mm and 58mm thick.

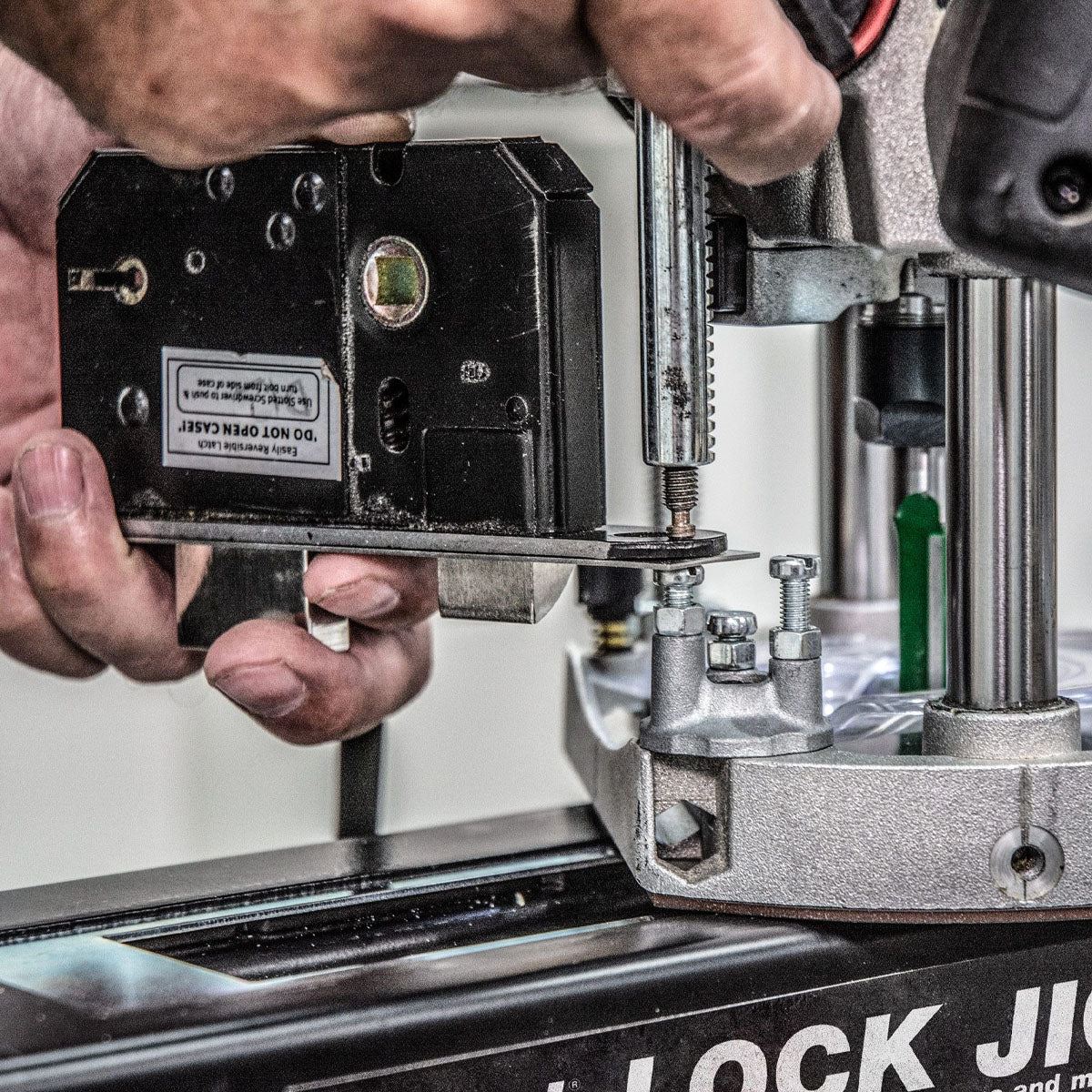

Height Spacers: Can be adjusted to accommodate different guide bush spigots.

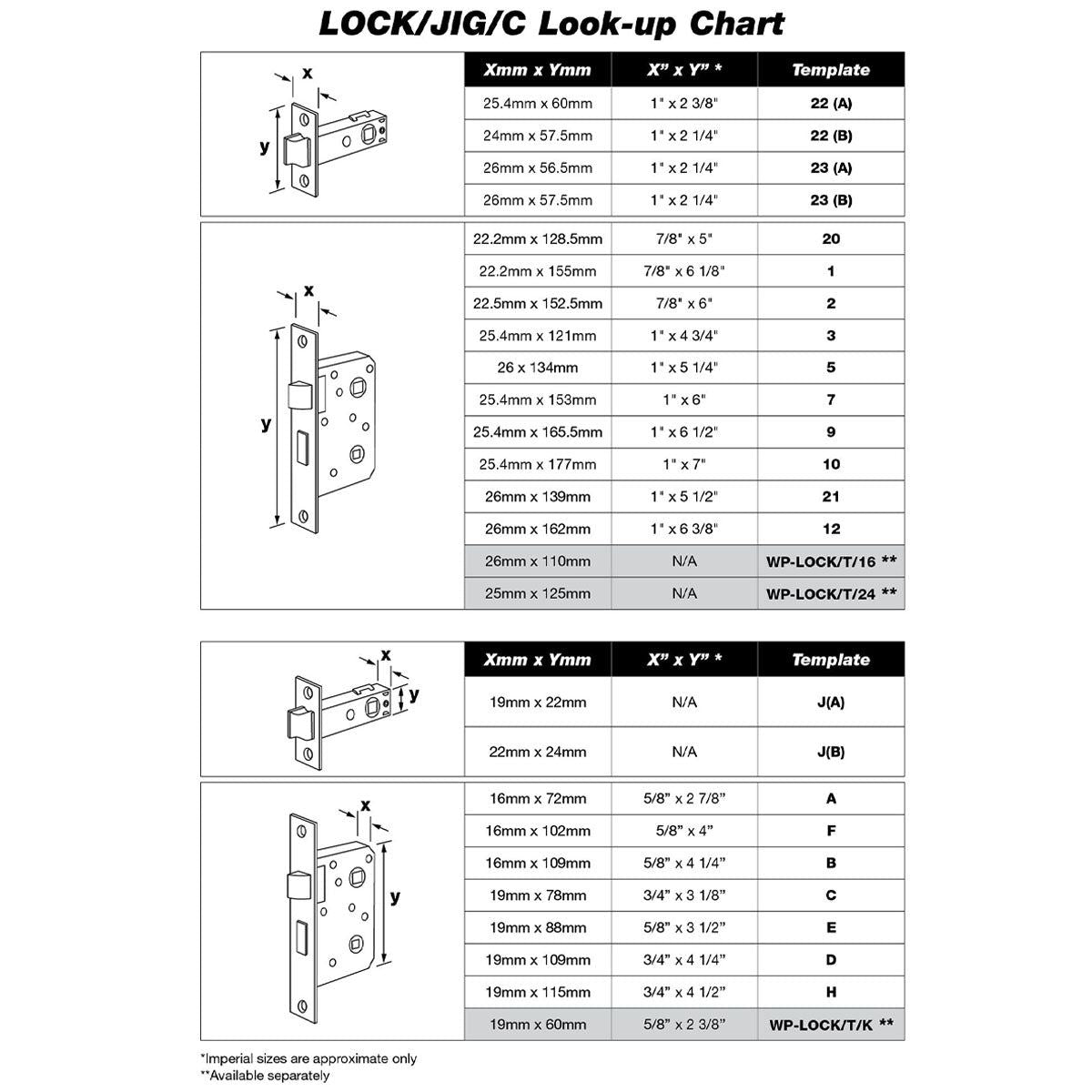

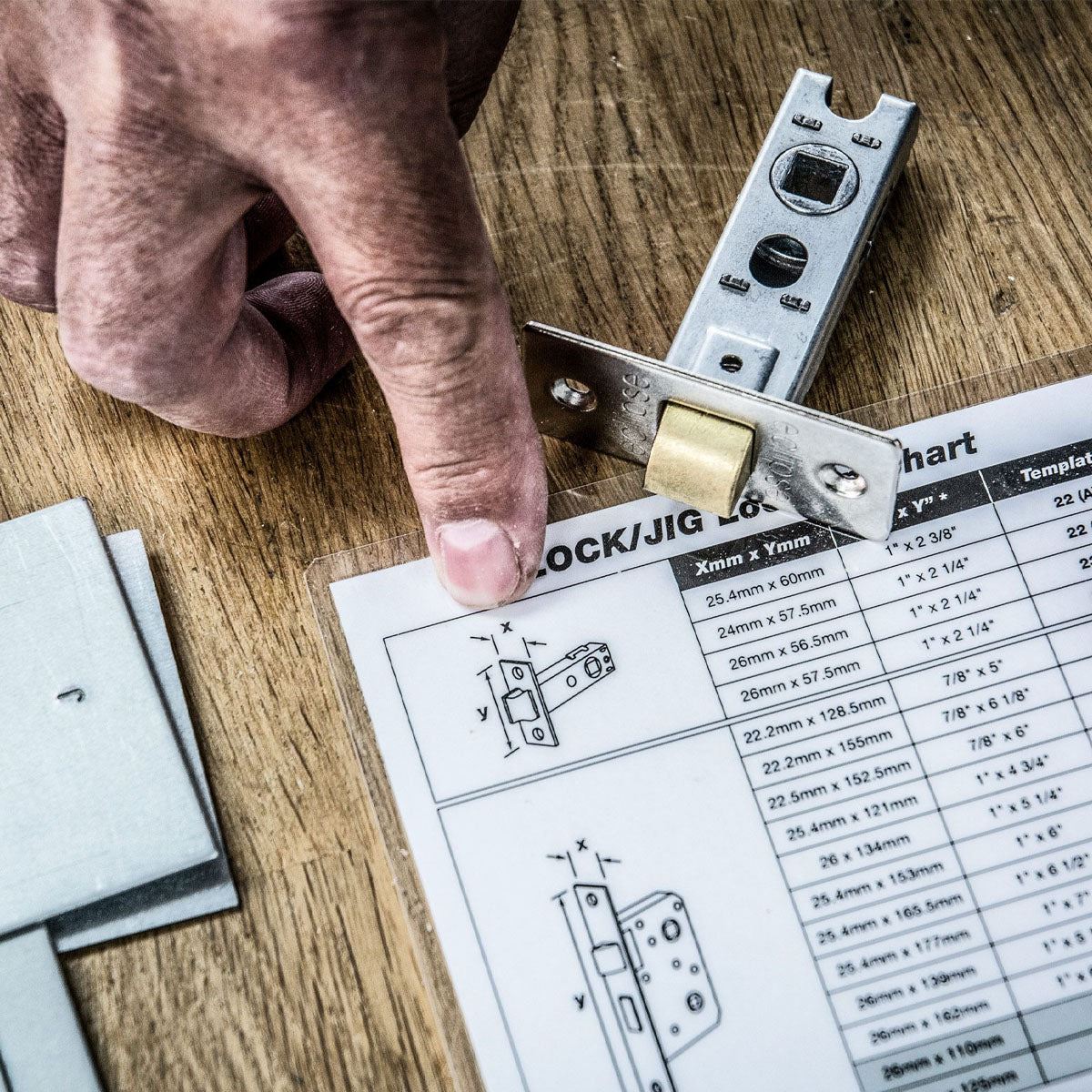

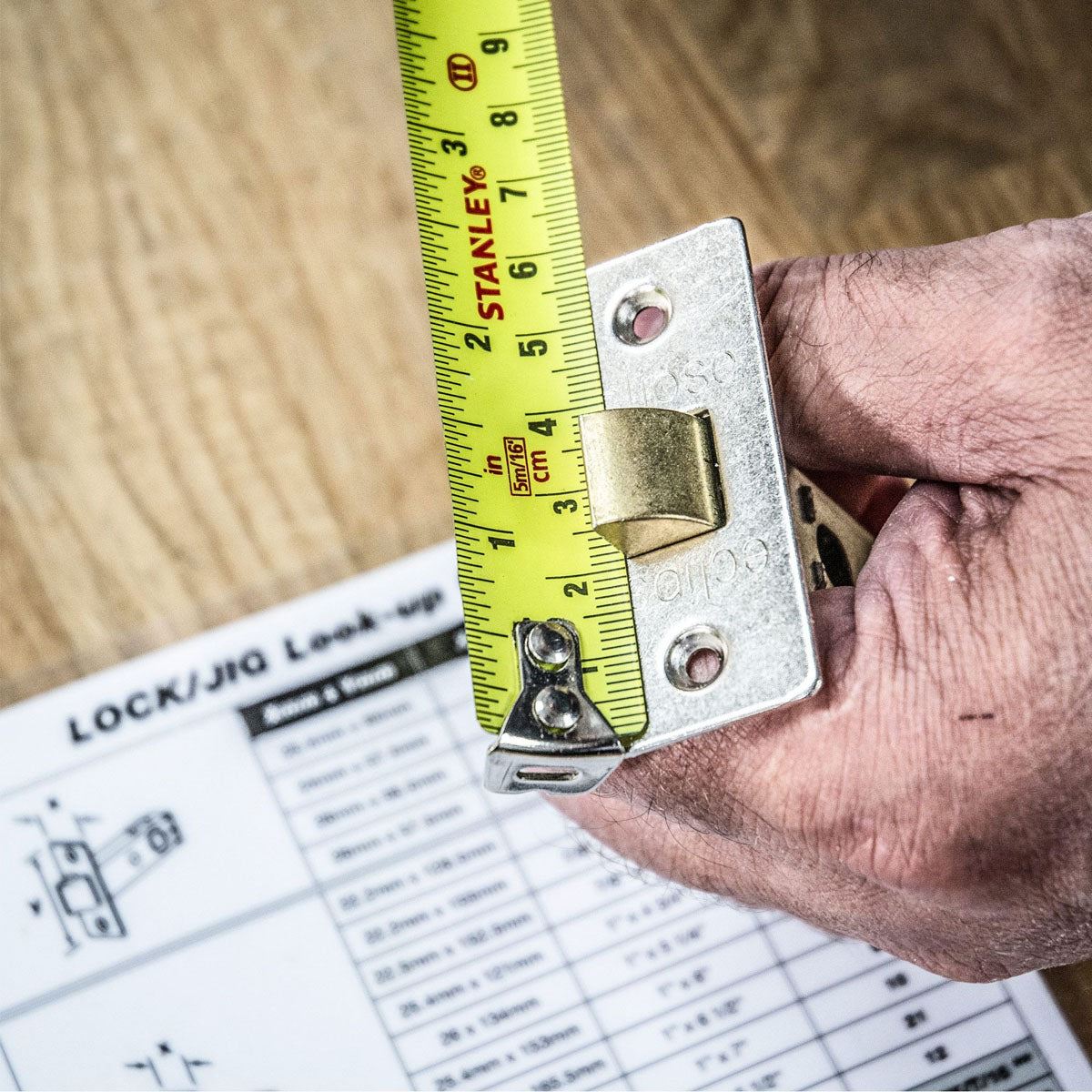

Reference Chart: Provides quick reference between templates and lock sizes.

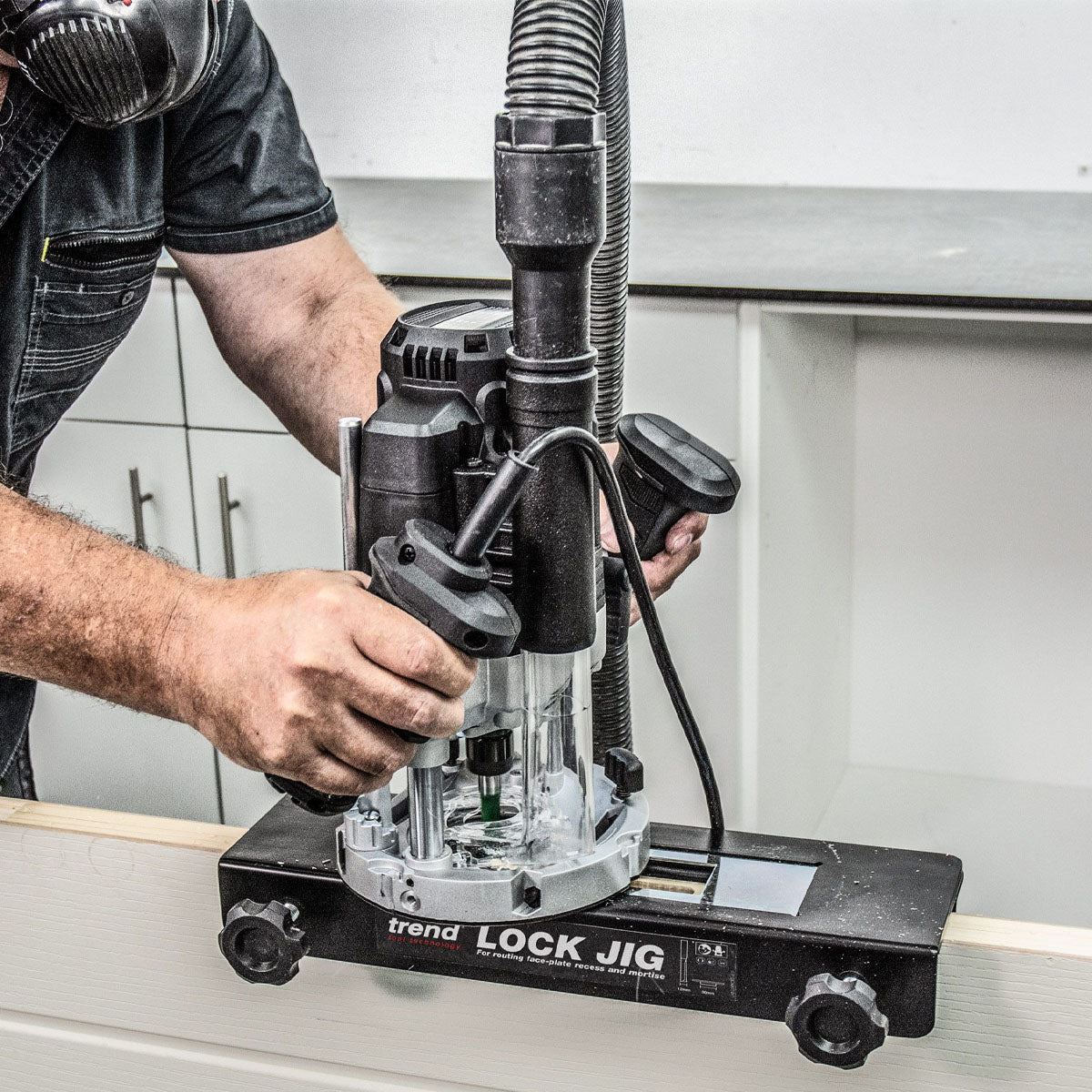

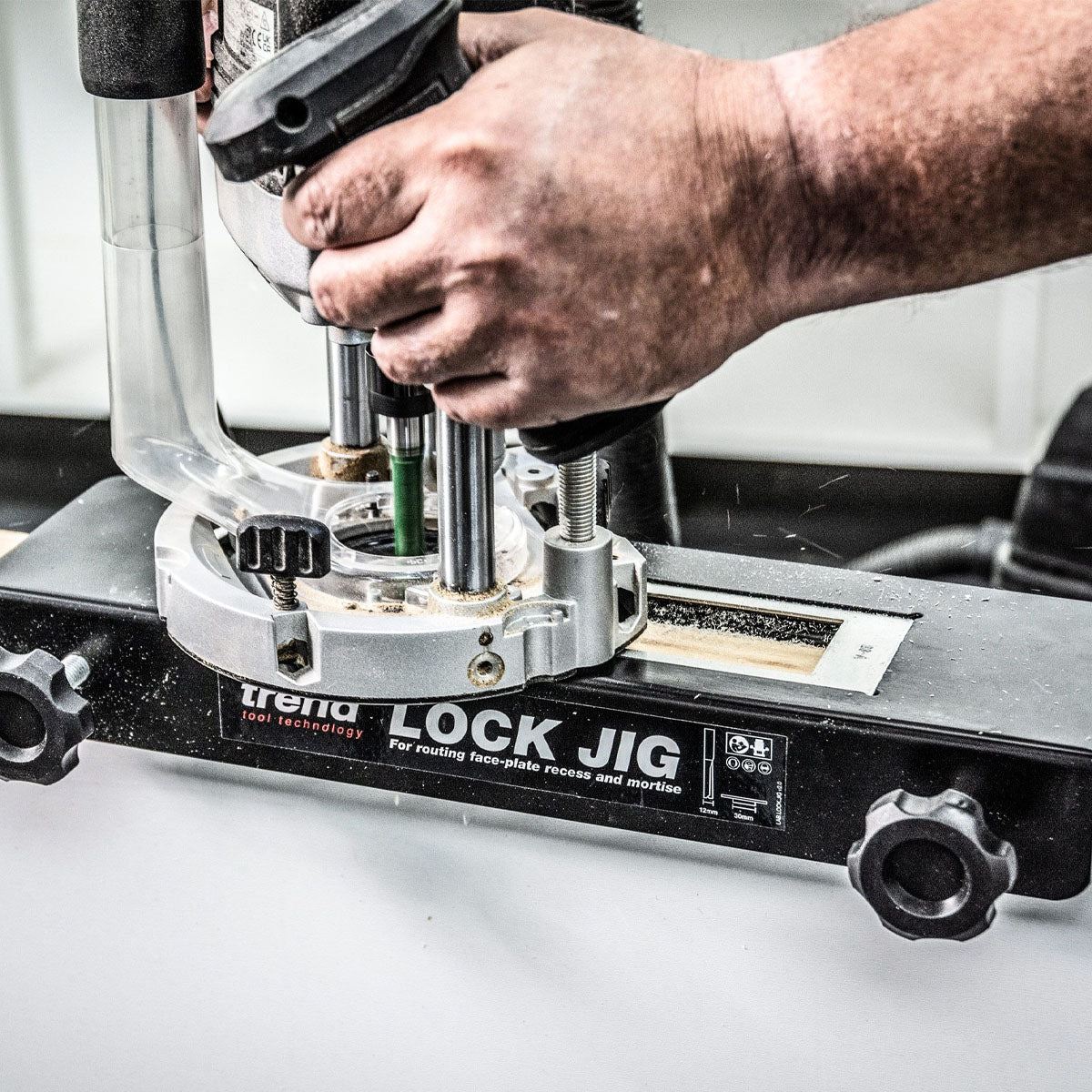

Requires: 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

Comes With:

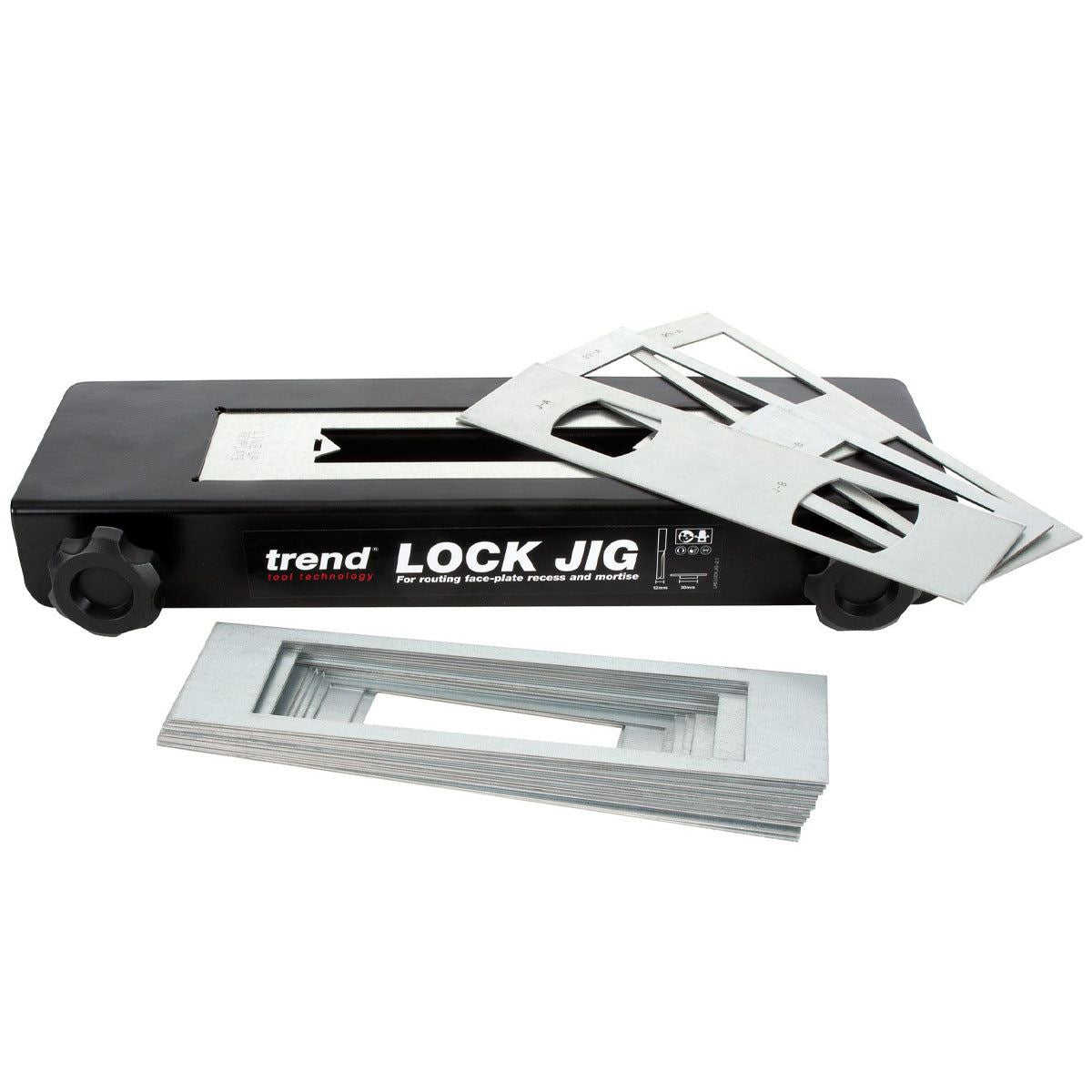

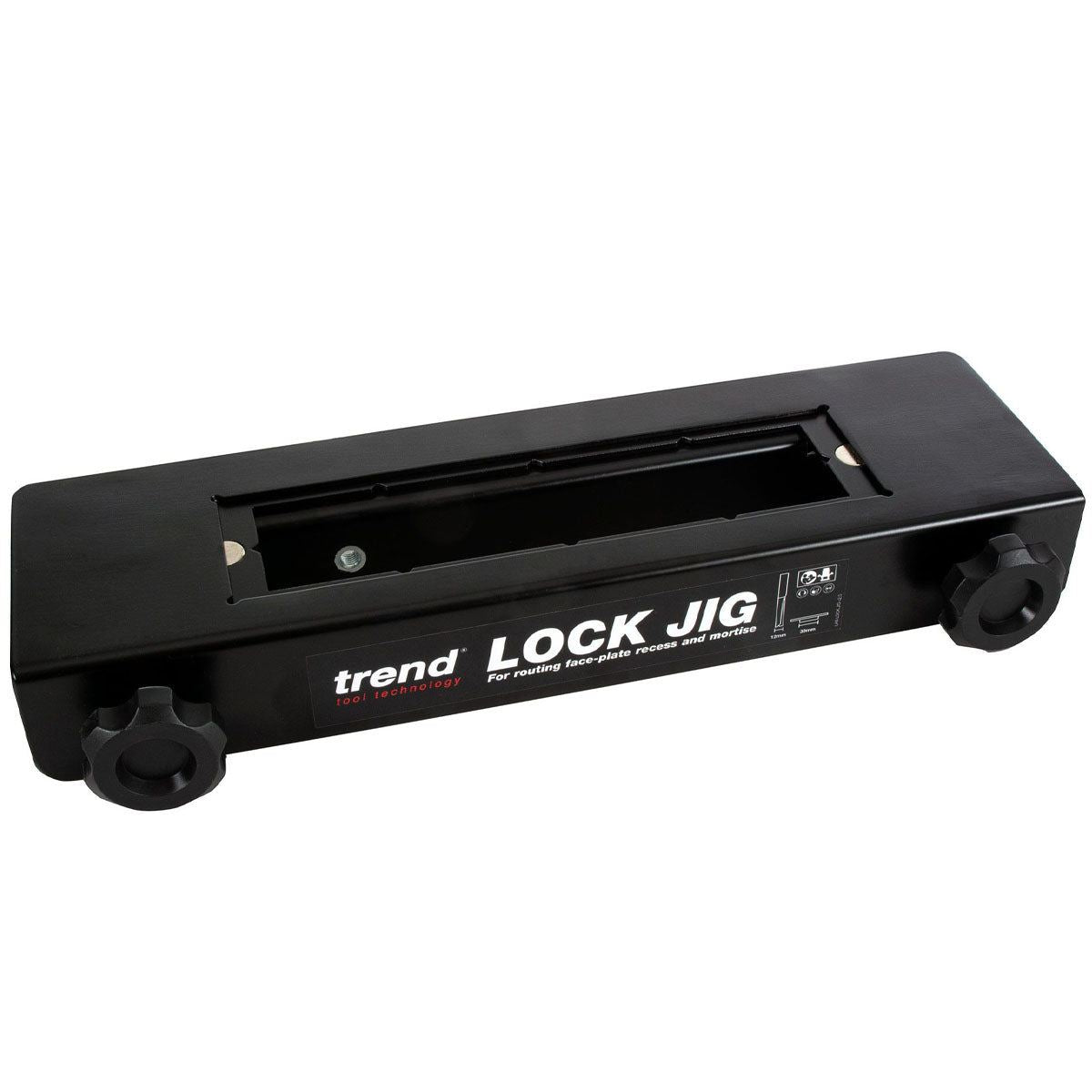

1 x Lock Jig
20 x Templates

Product Specification:

Part Number: LOCK/JIG/C
Barcode: 5027654091500
Door Thickness min.: 34 mm
Door Thickness max.: 58 mm

Faceplate Templates:

25.4 x 60.0mm (Tubular Latch): 22(A)
24.0 x 57.5mm (Tubular Latch): 22(B)
26.0 x 56.5mm (Tubular Latch): 23(A)
26.0 x 57.5mm (Tubular Latch): 23(B)
22.2 x 128.5mm: 20
22.2 x 155.0mm: 1
22.5 x 152.5mm: 2
25.4 x 121.0mm: 3
26.0 x 134.0mm: 5
25.4 x 153.0mm: 7
25.4 x 165.5mm: 9
25.4 x 177.0mm: 10
26.0 x 139.0mm: 21
26.0 x 162.0mm: 12

Mortise Templates:

19 x 22mm (Tubular Latch): J(A)
22 x 24mm (Tubular Latch): J(B)
16 x 72mm: A
16 x 102mm: F
16 x 109mm: B
19 x 78mm: C
19 x 90mm: E
19 x 109mm: D
19 x 115mm: H

**images for illustrative purposes only – please refer to description and specification for full details of product**
