Festool OF 1400 EBQ-Plus 230V Router with Light Module & Case 578942
Festool OF 1400 EBQ-Plus 230V Router with Light Module & Case 578942

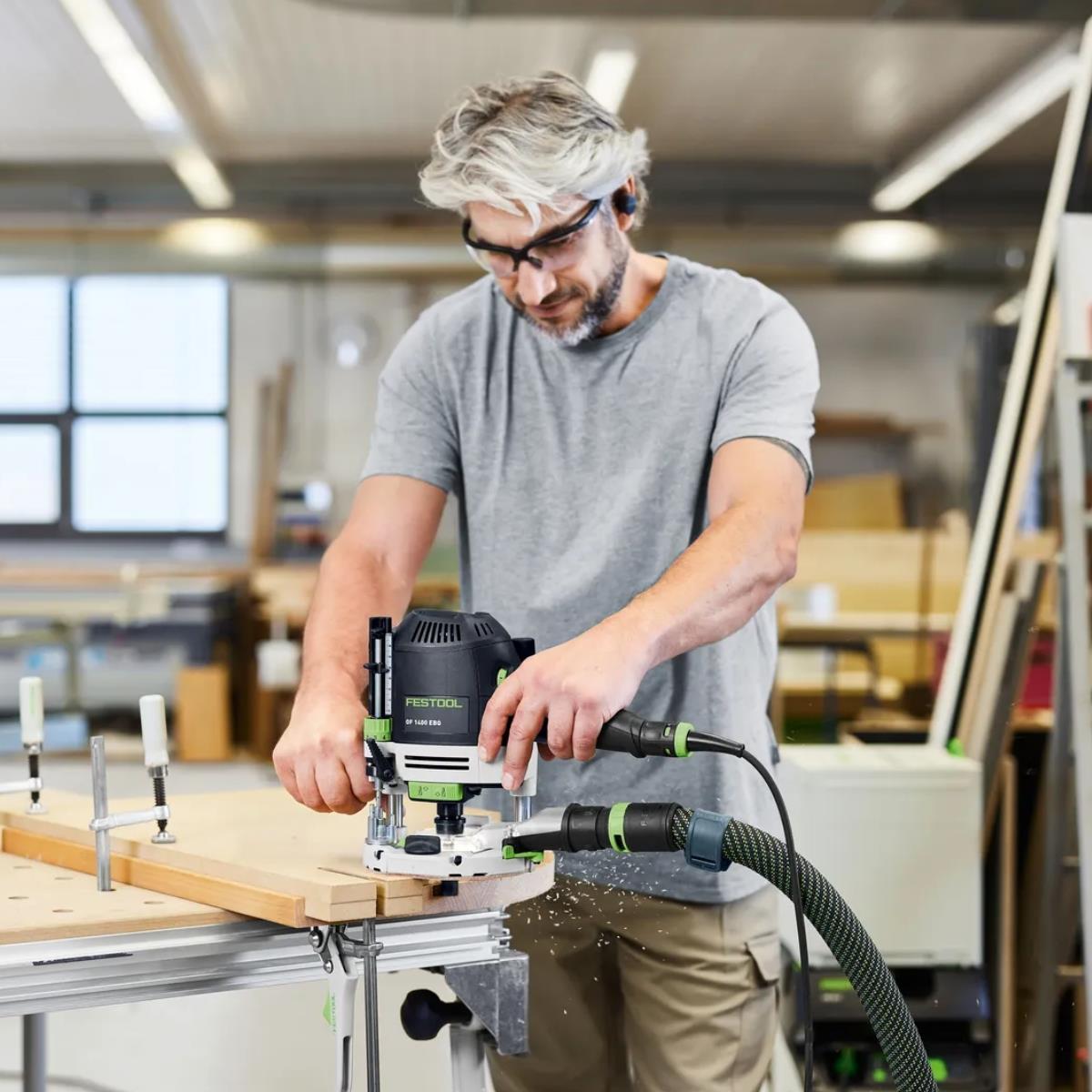

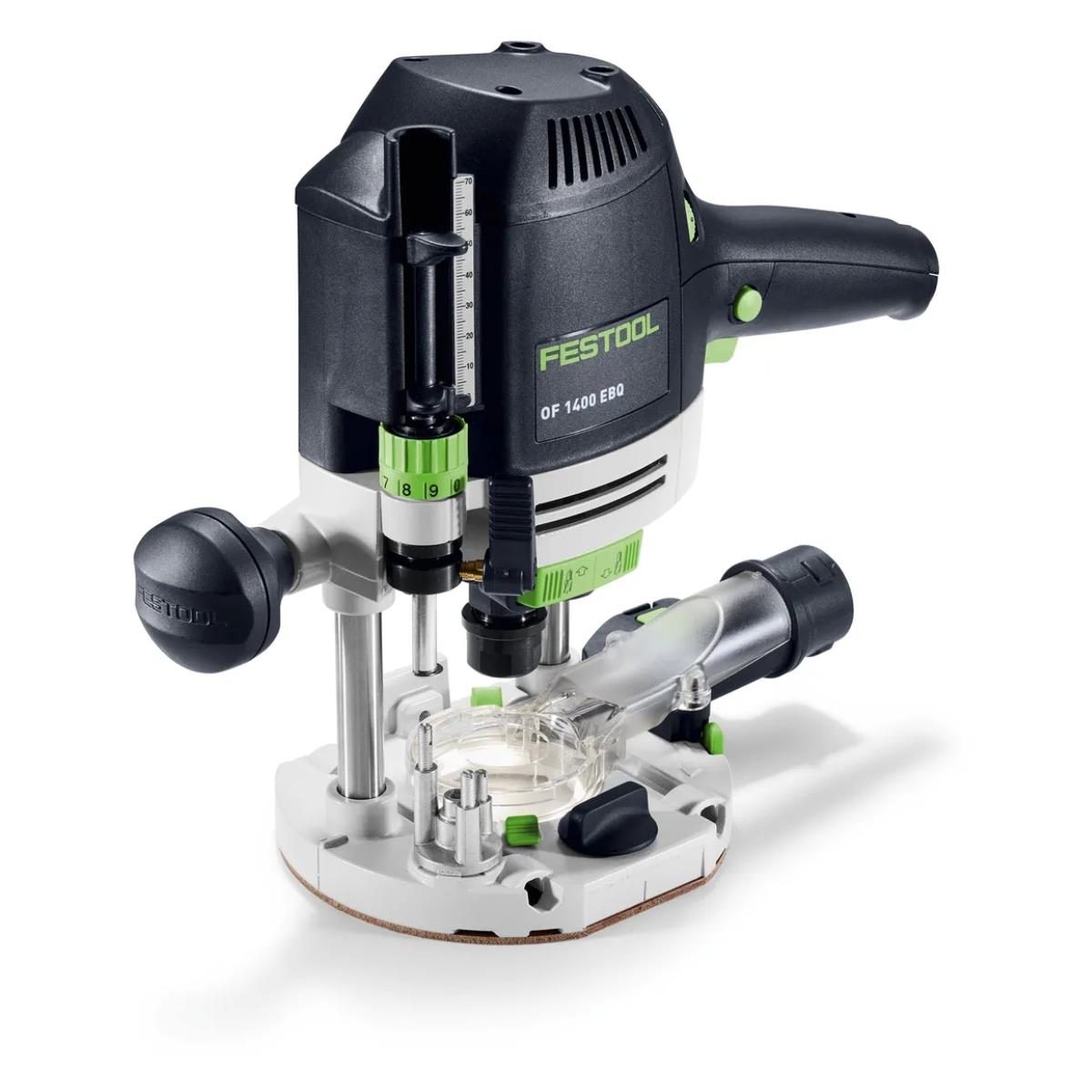

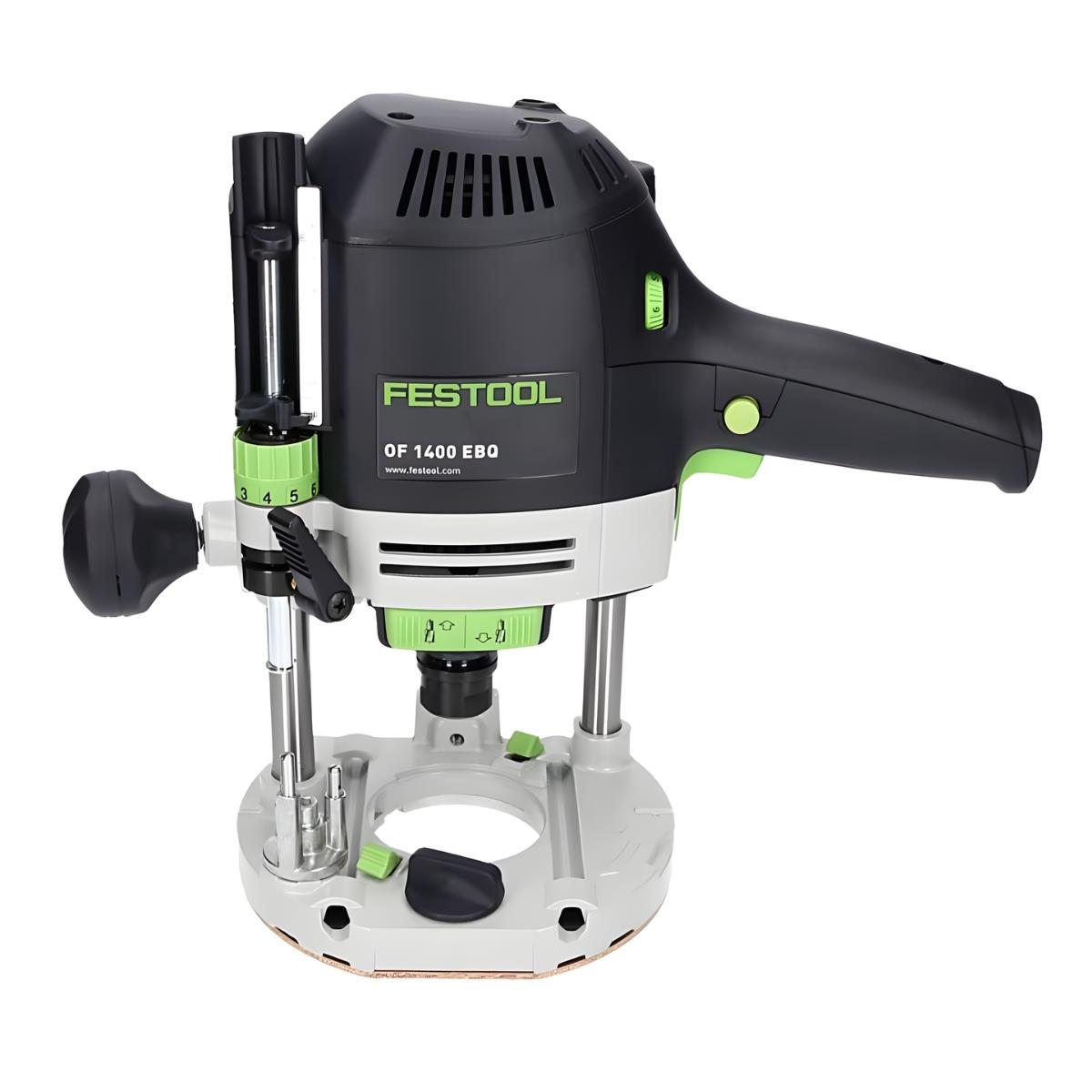

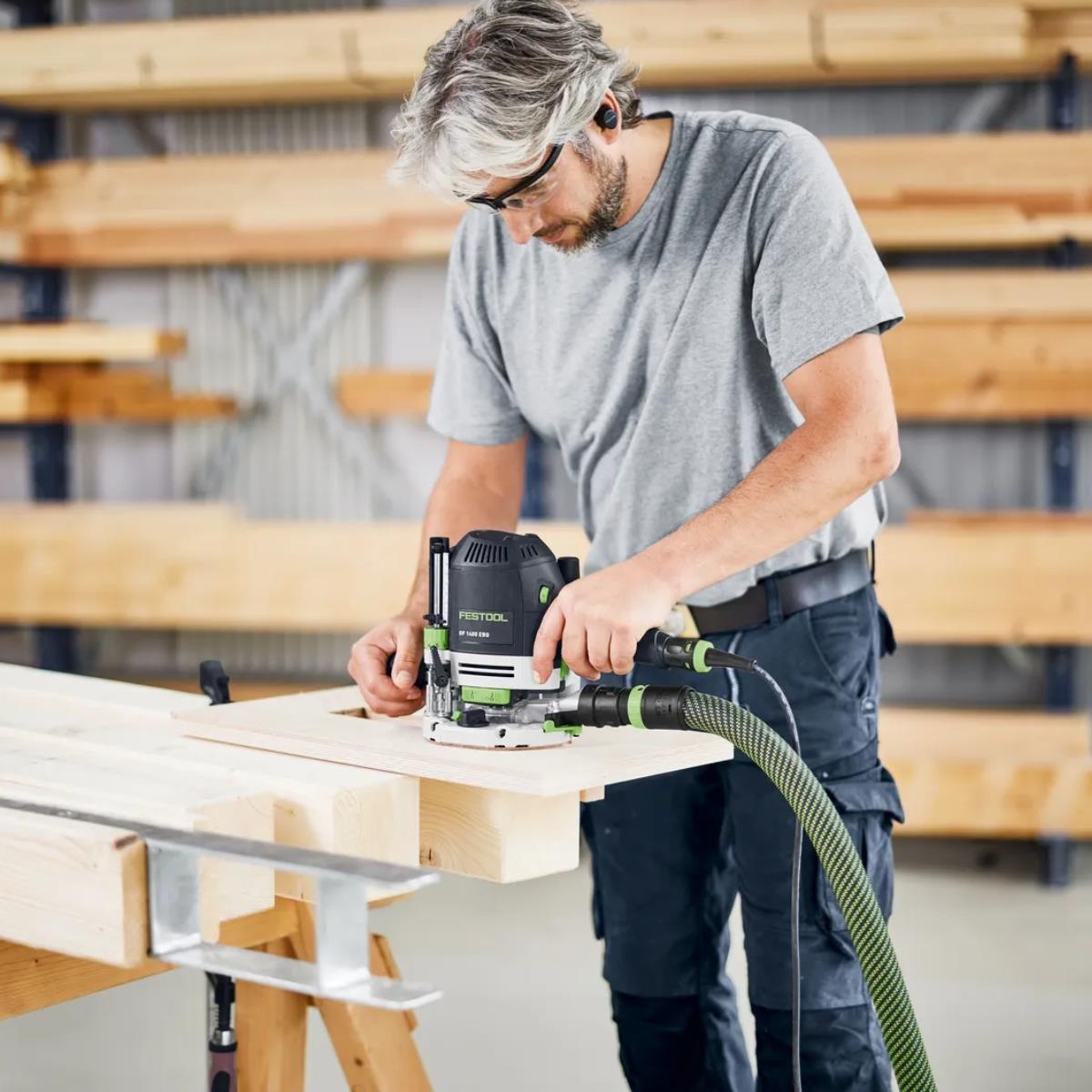

The Festool OF 1400 EBQ-Plus 230V Router is a powerful and highly precise tool designed for professional woodworking applications. It features a 1400W motor with variable speed control, delivering consistent performance across a wide range of materials. Its torsion-resistant construction and fine depth adjustment allow extremely accurate routing, even for detailed tasks. Supplied with a Systainer case and essential accessories, it offers excellent portability, organisation, and reliability for demanding workshop and site use.
Features:
Stable: Torsion-resistant construction with guide column clamped on both sides for optimum routing results.
Practical: Tool-free change of the copying rings and travelling soles for different applications.
Convenient and quick cutter change: thanks to the spindle stop with ratchet principle, you don't need to move the open-end spanner.

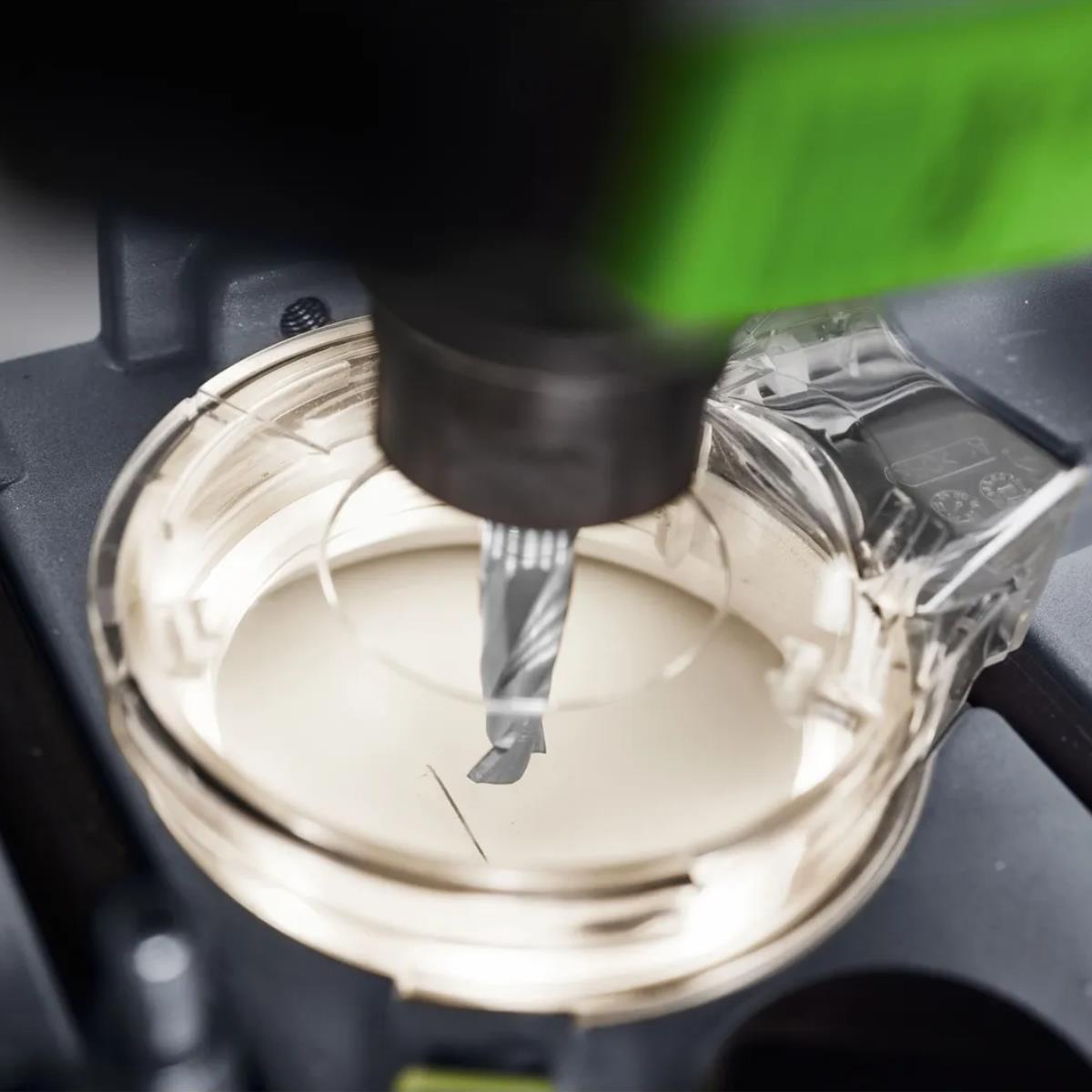

Optimum visibility: thanks to the extraction bonnet with integrated LED light ring.
Precise: Simple and 1/10 mm accurate fine adjustment of the milling depth - with a large adjustment range of 20 mm.
Clean: Up to 99 % extraction with chip catcher and extraction bonnet when routing edges.
Safe: Quick brake and MMC Electronic for material-specific work and speed regulation.
Main applications:

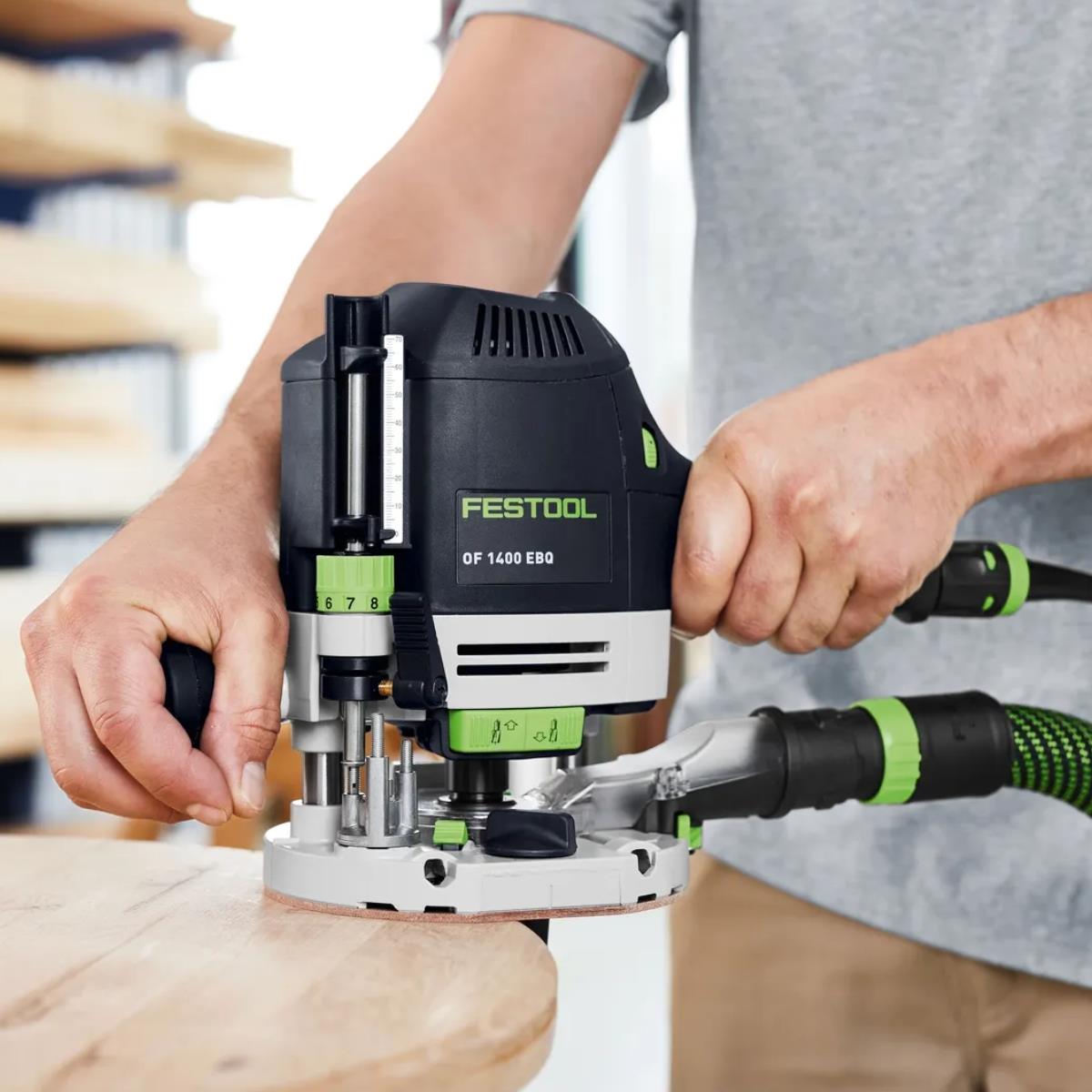

Rounding, chamfering, rebating and profiling edges
Routing circles and cut-outs with the multi-routing template

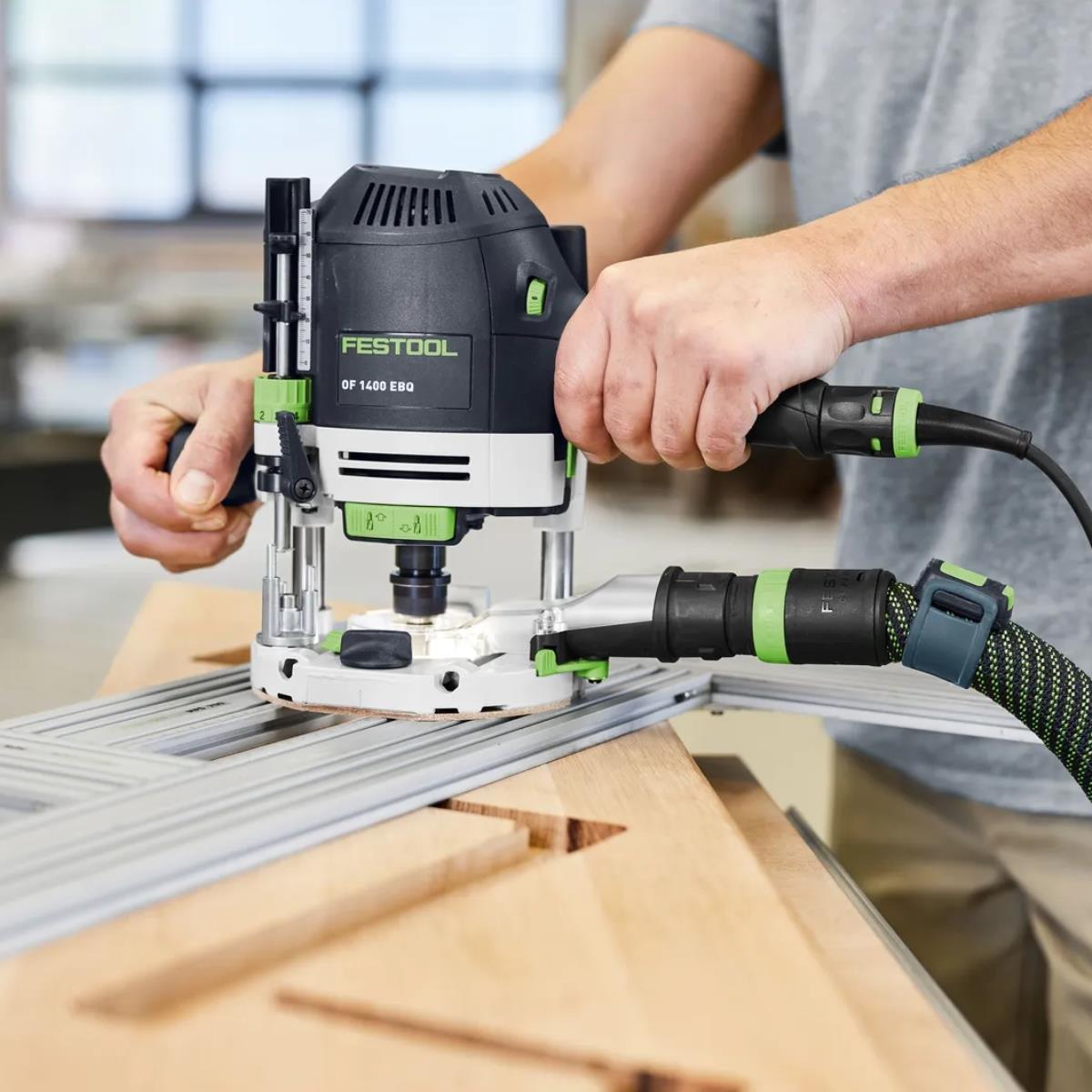

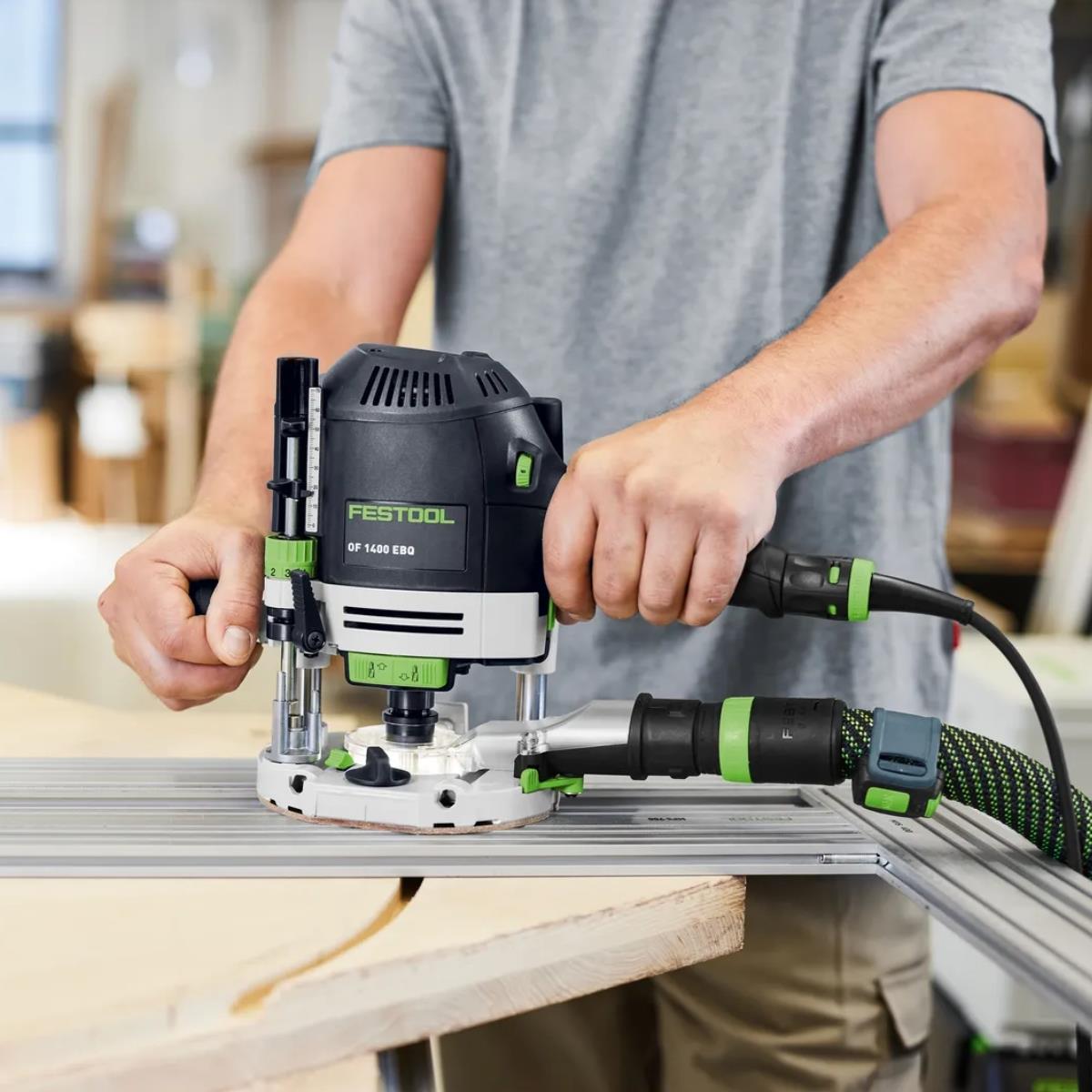

Grooving rear panels or recessing dovetail batons with the guide system
Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
Routing mineral material (max. cutter Ø 45 mm)

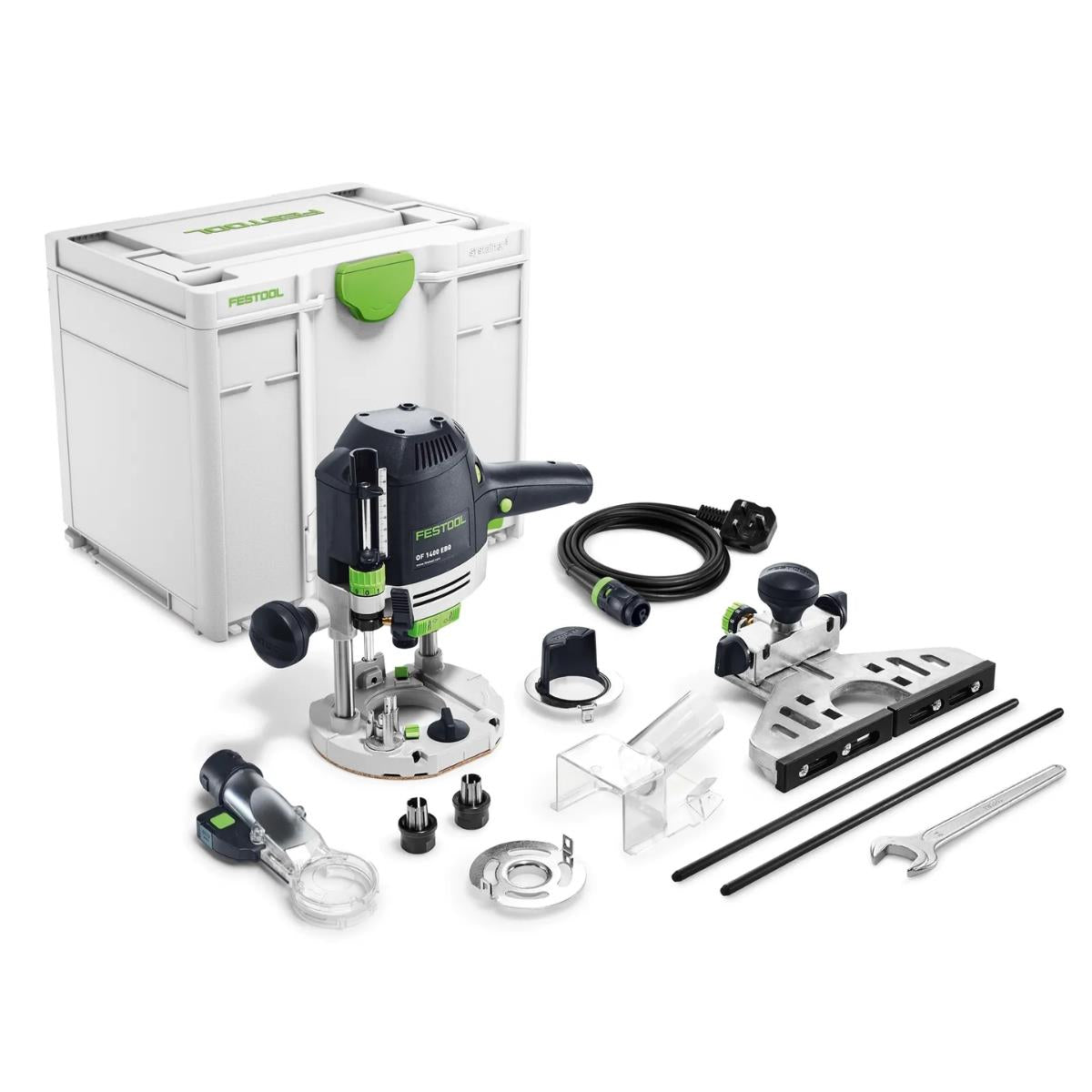

Comes With:
1 x LM-OF 1400 Extraction bonnet with light module
1 x SZ-D 6,35/OF 1400/2000/2200 Collet
1 x SZ-D 12,7/OF 1400/2000/2200 Collet
1 x SA-OF 1400 Parallel side fence
1 x KR-D 30,0/OF 1400 Copying ring
1 x Extraction hood, top
1 x KSF-OF 1400 Chip deflector
1 x Open ended spanner, WAF 24
1 x H05 RN-F-4 plug it-cable
1 x SYS3 M 337 Systainer
Product Specification:
Part Number: 578942
Barcode: 4014549474211
Drive type: Mains
Power consumption: 1400 W
Idle engine speed: 10 000 - 22 500 min⁻¹
Clamp diameter: 6 - 12.7 mm
Routing stroke: 70.00 mm
Routing depth fine adjustment range: 8.00 mm
Bench opening: 63.00 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4.00 m
Product weight without accessories: 4.60 kg
Transport weight incl. accessories: 9.30 kg
Sound and vibration
Routing: Uncertainty (vibration) K: 1.50 m/s²
Routing: Uncertainty (noise) K: 1.50 dB
Routing: Total vibration average, Ah: 2.50 m/s²
Routing: Standards series EN: 62841-2-17
Routing: A-weighted sound pressure level, LpA: 98.00 dB(A)
Routing: A-weighted sound power level, LWA: 106.00 dB(A)
