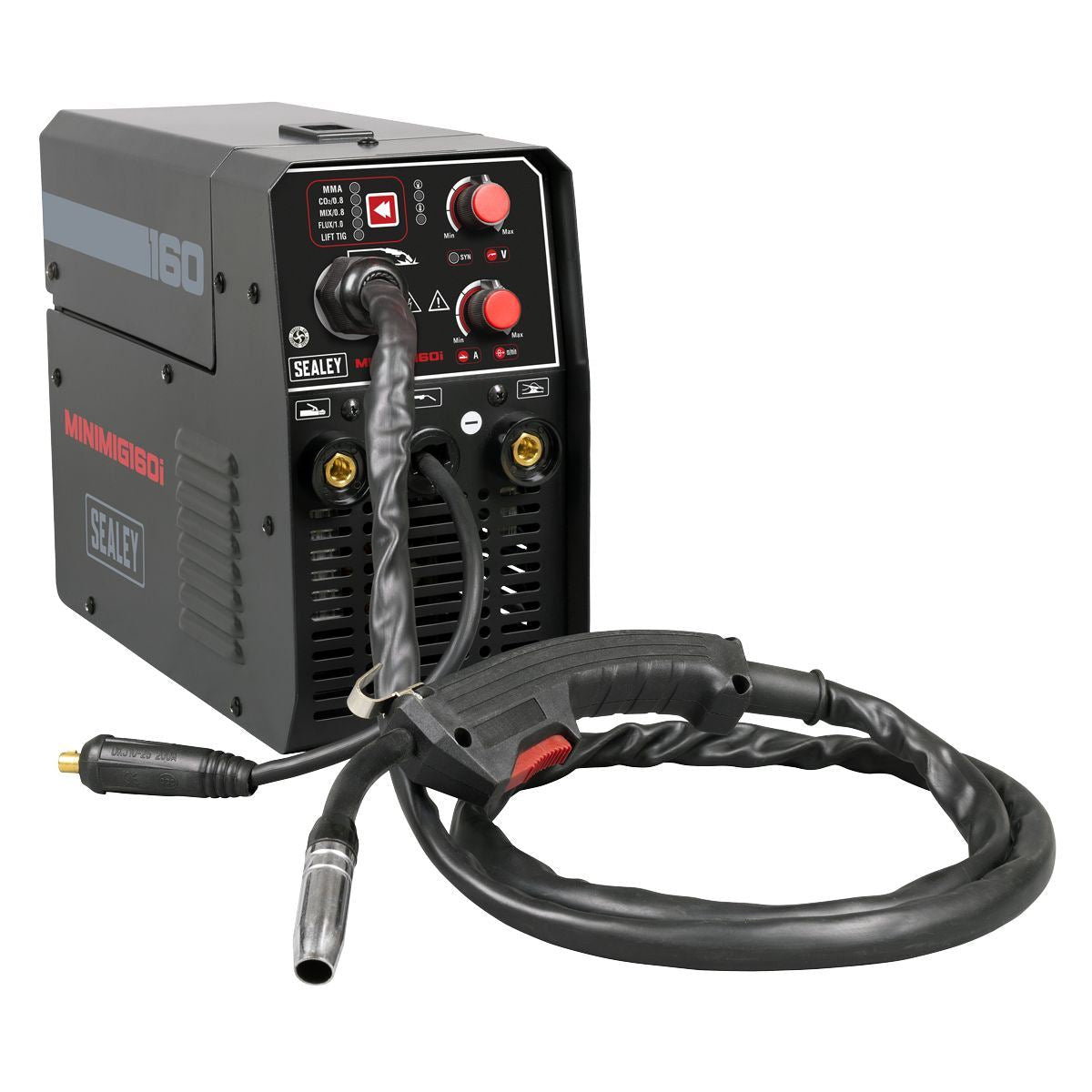

Sealey MINIMIG160i MIG/TIG & MMA ARC/STICK Inverter Welder 160A/230V

Sealey MINIMIG160i MIG/TIG & MMA ARC/STICK Inverter Welder 160A/230V

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A. Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4.0mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.

Features:

IGBT INVERTER TECHNOLOGY: IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A.
3-IN-1 FUNCTION: Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
HIGHLY PORTABLE: Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand.
FEATURING: Hot start, anti-stick, forced air cooling and thermal cut out protection.
WELDING CAPABILITY: Unit can MIG weld using 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4.0mm electrode.

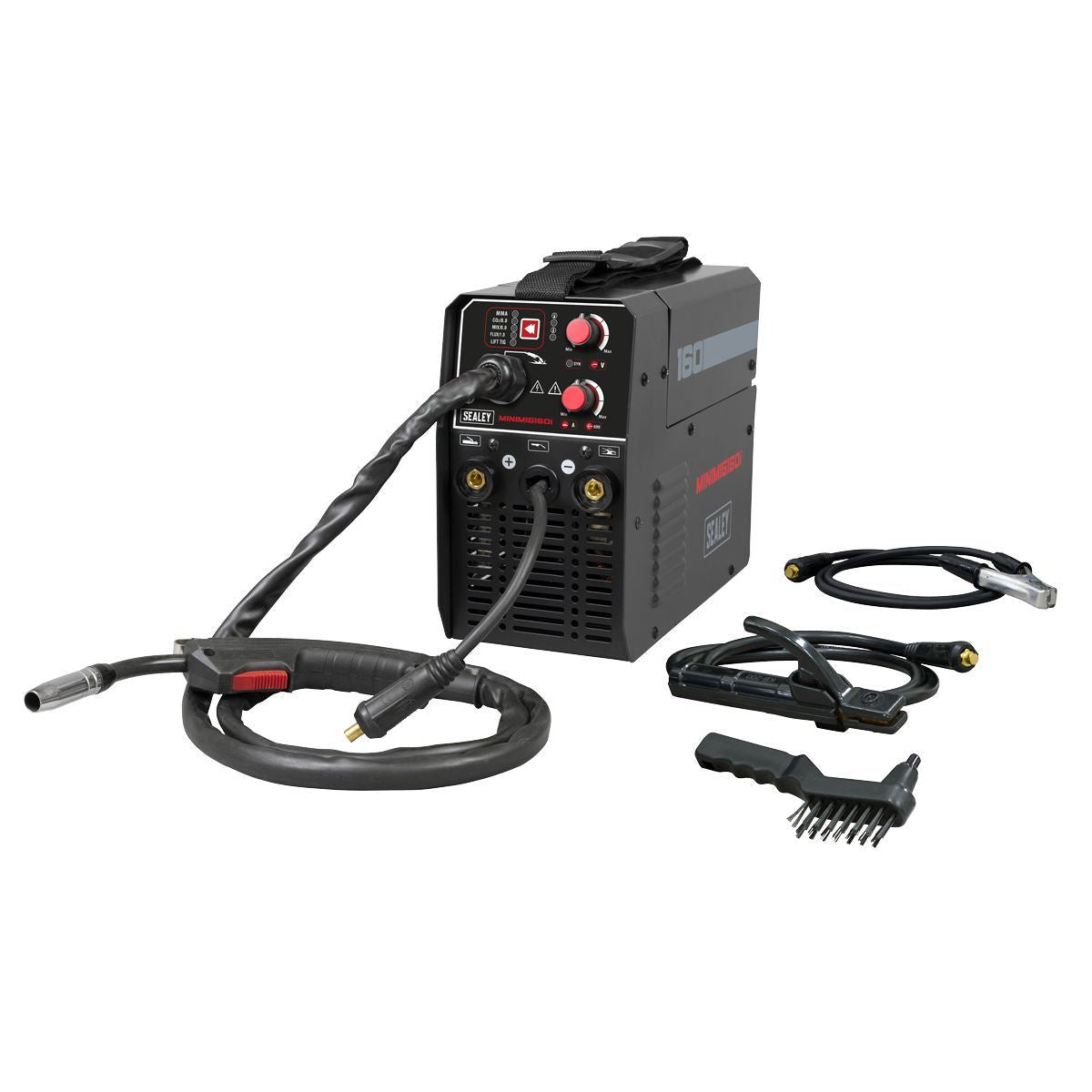

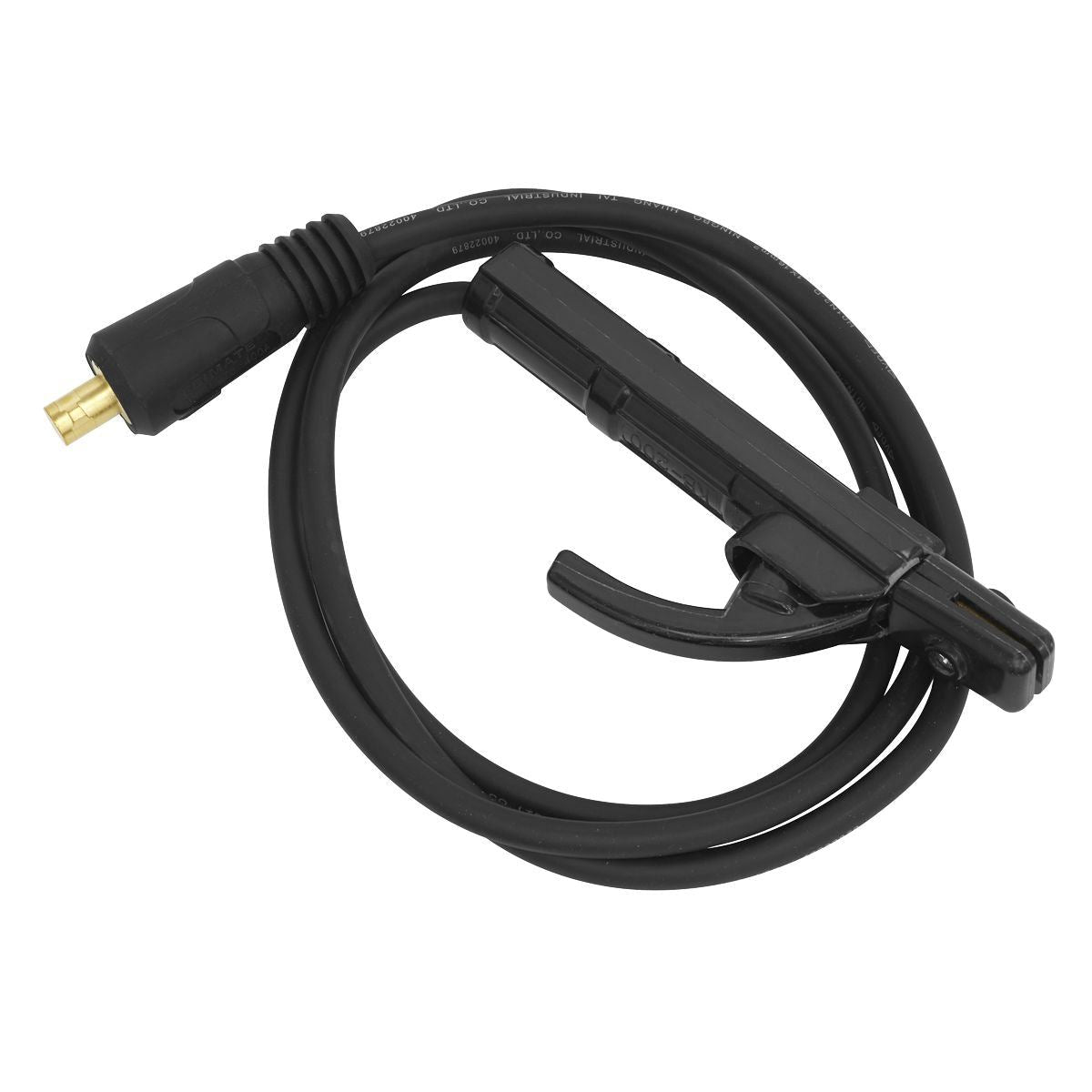

SUPPLIED WITH: Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
DUTY CYCLE: MIG - 60% @ 160A, TIG - 60% @ 160A, MMA/ARC - 60% @ 160A.

Product Specification:

Part number: MINIMIG160i
Barcode: 5054630460814
Nett Weight: 6.9kg
Welding Current: 10-160A
Duty Cycle MIG: 60% @ 160A, 100% @ 124A
Duty Cycle MMA/ARC: 60% @ 160A, 100% @ 124A
Duty Cycle TIG: 60% @ 160A, 100% @ 124A
Wire Capacity: 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire
Electrode Capacity: 1.6-4mm
Absorbed Power: 4.4kW
Supply: 230V 16A*
Insulation Class: H
IP Rating: IP21S

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
