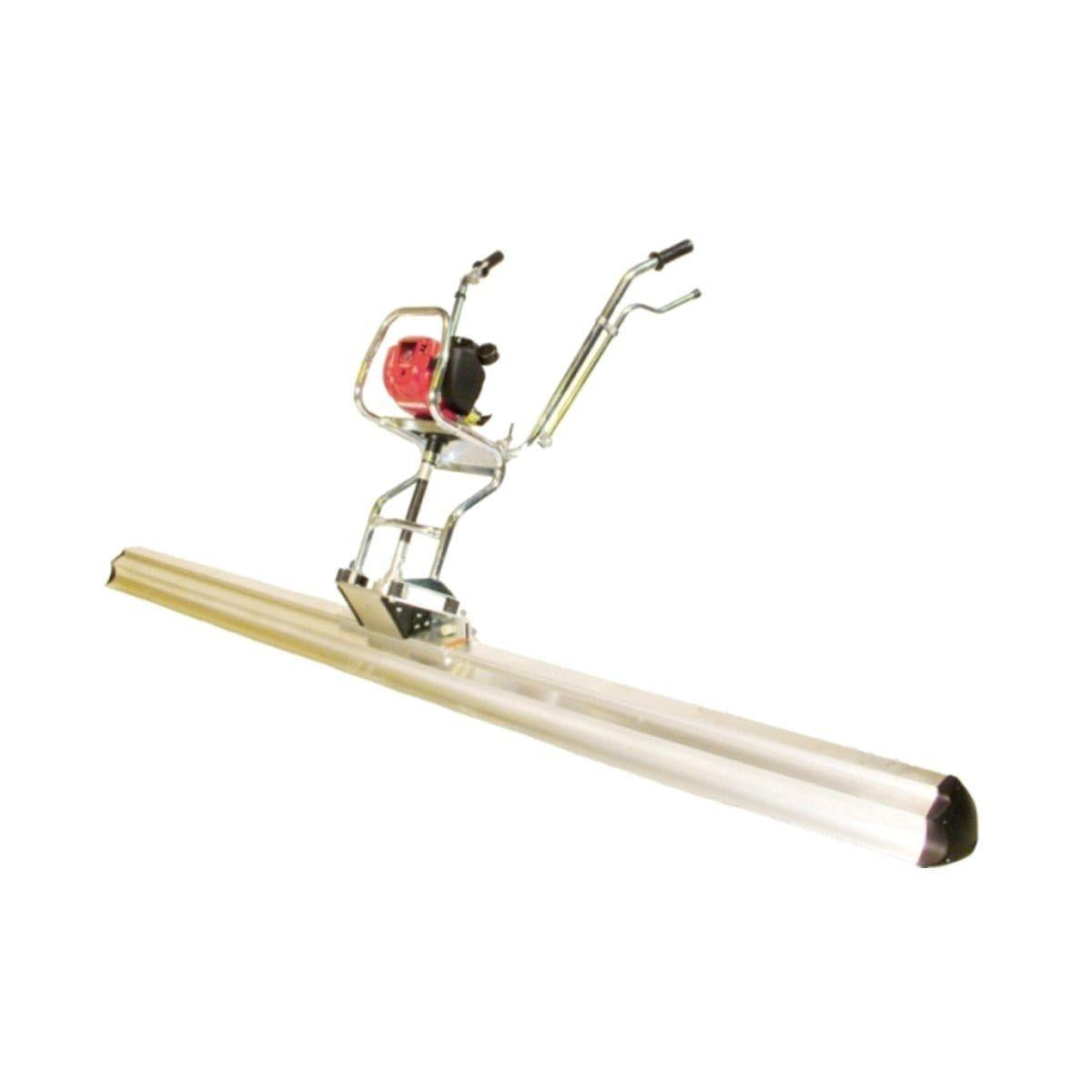

Belle 157.9.010 Easy Screed Pro Honda Petrol Drive Unit Aluminium screed beam is Not Included
Belle 157.9.010 Easy Screed Pro Honda Petrol Drive Unit Aluminium screed beam is Not Included
The Altrad Belle Easy Screed Pro Drive Unit (157.9.010) is a high-performance petrol-powered drive unit designed to provide controlled vibration and compaction for the Belle Easy Screed Pro aluminium beam system. Powered by a Honda GX50 petrol engine, the unit features adjustable centrifugal force, a quick clamp-on system and an adjustable-height twin handle for comfortable operation. It can be used for free screeding without formwork or, by reversing the beam, for striking off across traditional formwork.
Features:
Honda GX50 petrol engine delivering 1.6 hp / 1.2 kW.
83 Hz vibration frequency for effective concrete screeding and compaction.
Up to 75 mm compaction depth.
Adjustable centrifugal force to optimise performance for different concrete slumps and beam lengths.
Quick clamp-on drive unit allows fast attachment and removal from the aluminium beam.
Adjustable-height twin handle improves operator comfort and control.
In-line flexible drive shaft designed for durability and reliability.
Vibration isolators help reduce vibration transmitted to the operator.
Comes With:
1 × Altrad Belle Easy Screed Pro Petrol Drive Unit
1 × Honda petrol engine
1 × Twin adjustable handle assembly
Product Specification:
Part number: 157.9.010
Barcode number: 5031403340696
Model: Easy Screed Pro Drive Unit - Honda GX50 Petrol
Product Type: Petrol Screed Drive Unit
Engine Power (Hp)-(kW): 1.6 - 1.2
Frequency (Hz): 83
Compaction Depth (mm): 75
Dimensions W x L x H (mm): 630 x 1040 x 440
Vibration Level (m/sec2): 3.75
Weight (Kg): 19.5
**images for illustrative purposes only – please refer to description and specification for full details of product**
