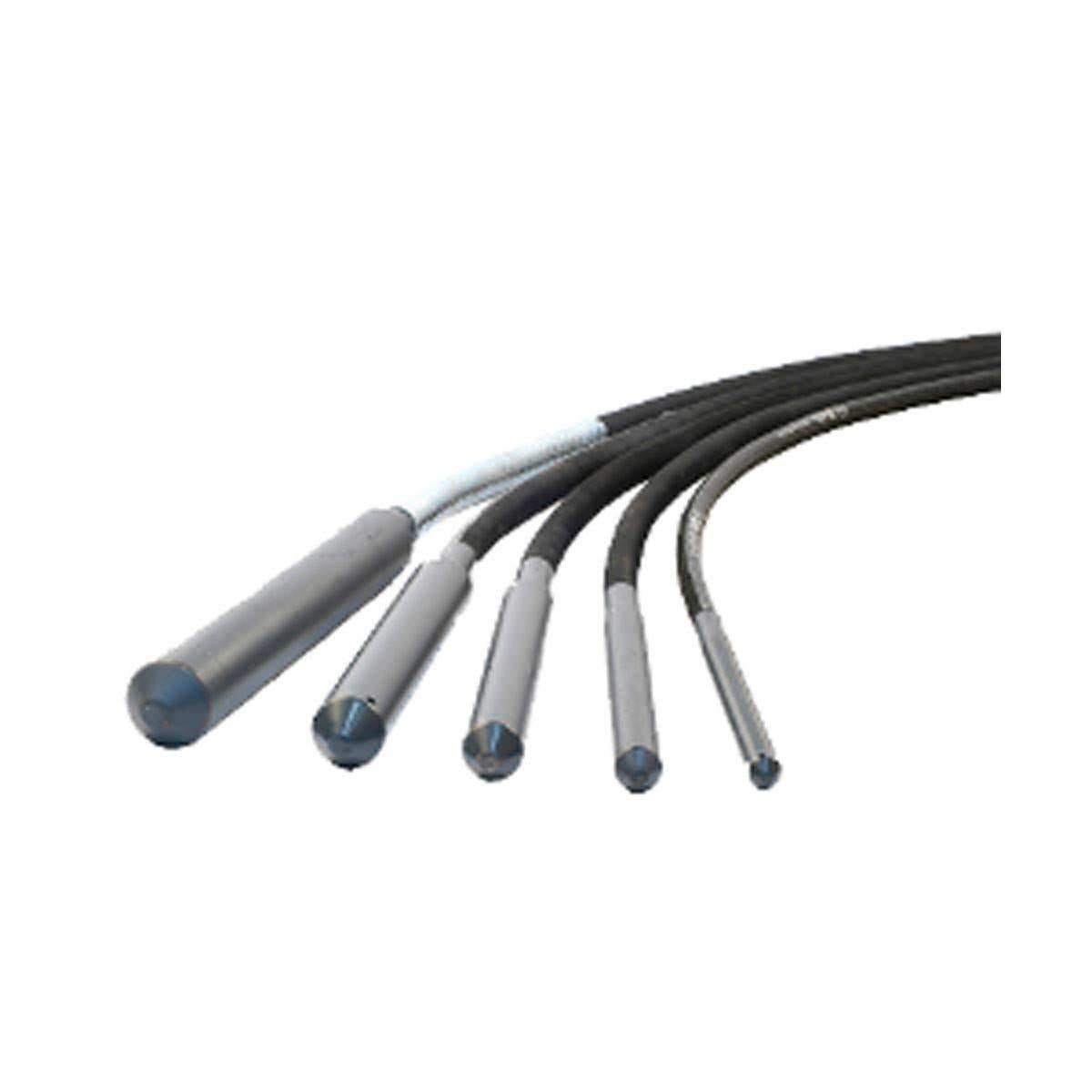

Belle 165.9.082 BGA 45mm Poker
Belle 165.9.082 BGA 45mm Poker
The Altrad Belle BGA 45mm Poker (165.9.082) is a heavy-duty flexible-shaft mechanical concrete vibrator designed to provide high vibration power for efficient concrete compaction and removal of trapped air. It features a 45mm vibrating head, 6m heavy-duty reinforced flexible shaft and industry-standard Two Dog drive coupling, making it suitable for demanding construction-site applications.
Features:
45mm poker diameter for effective concrete consolidation.
6m heavy-duty reinforced flexible shaft for extended working reach.
375mm poker head length.
187Hz operating frequency for effective concrete vibration.
1.2mm amplitude for efficient concrete compaction.
Single-piece rotating pendulum vibrator generating approximately 12,000 vibrations per minute.
Industry-standard Two Dog drive coupling for compatibility with suitable drive units.
Comes With:
1 × Belle 165.9.082 BGA 45mm Poker
Product Specification:
Part number: 165.9.082
Barcode number: 5031403342027
Model: BGA 45 Poker
Product Type: Flexible Shaft Concrete Poker
Poker Diameter (mm) - (In): 45 - 1 3/4
Head Length (mm): 375
Shaft Length (m): 6
Frequency (Hz): 187
Amplitude (mm): 1.2
Weight (Kg): 19.6
Drive Coupling: Two Dog
**images for illustrative purposes only – please refer to description and specification for full details of product**
