Belle 165.9.083 BGA 55mm Poker
Belle 165.9.083 BGA 55mm Poker

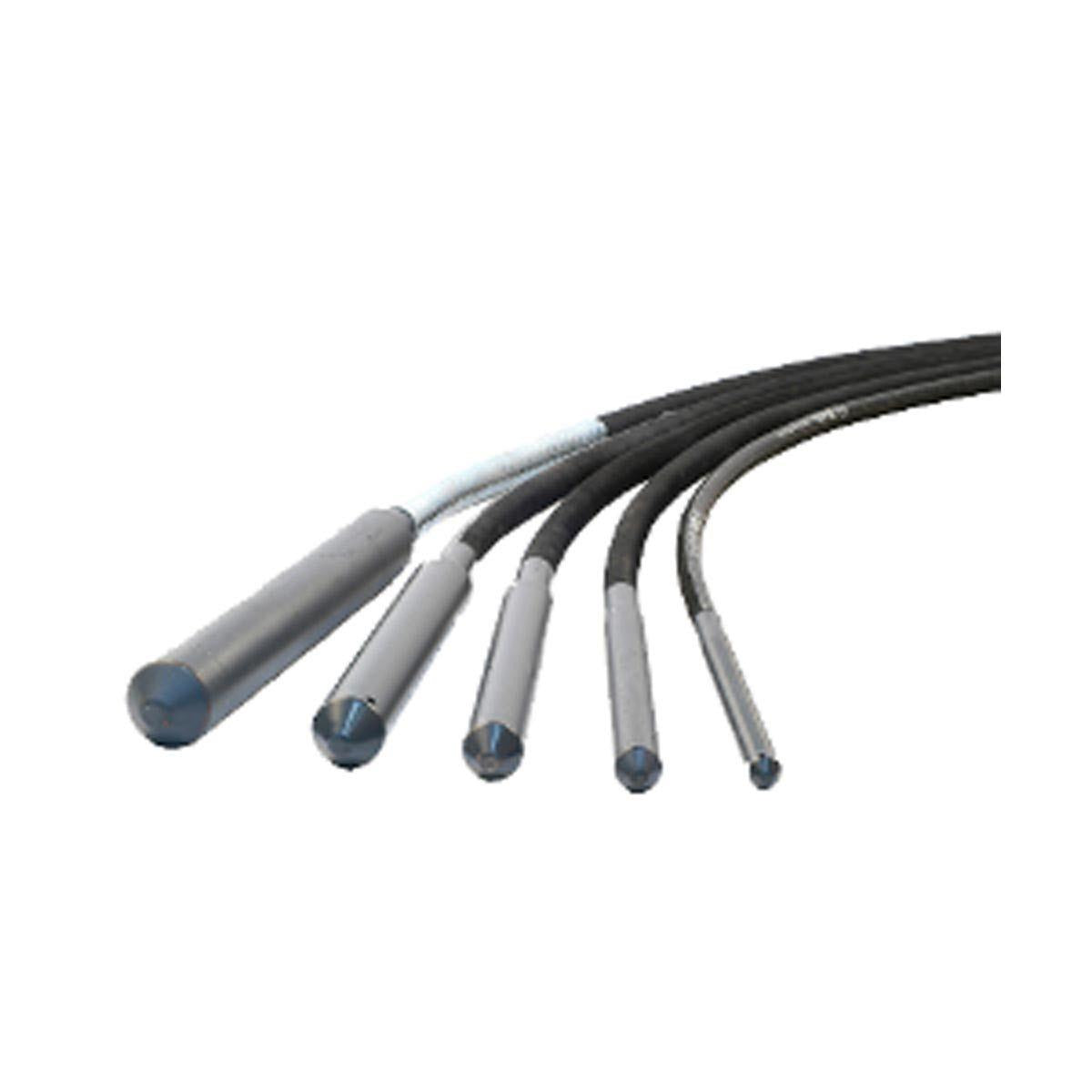

The Altrad Belle BGA 55mm Poker (165.9.083) is a heavy-duty flexible-shaft mechanical concrete vibrator designed to deliver high vibration power for effective concrete compaction and removal of trapped air. With a 55mm vibrating head, 6m reinforced flexible shaft and Two Dog drive coupling, it is designed for demanding construction and site applications.
Features:
55mm poker diameter for effective concrete consolidation.
6m heavy-duty reinforced flexible shaft for extended reach and manoeuvrability.
390mm poker head length.
187Hz operating frequency for powerful concrete vibration.
1.2mm amplitude for effective compaction.
Single-piece rotating pendulum vibrator generating approximately 12,000 vibrations per minute.
Industry-standard Two Dog drive coupling for maximum compatibility with suitable drive units.
Designed and engineered to withstand tough construction-site conditions.
Comes With:
1 × Belle 165.9.083 BGA 55mm Poker
Product Specification:
Part number: 165.9.083
Barcode number: 5031403341860
Model: BGA 55 Poker
Product Type: Flexible Shaft Concrete Poker
Poker Diameter (mm) - (In): 55 - 2 3/16
Head Length (mm): 390
Shaft Length (m): 6
Frequency (Hz): 187
Amplitude (mm): 1.2
Weight (Kg): 20.6
Drive Coupling: Two Dog
**images for illustrative purposes only – please refer to description and specification for full details of product**
