Belle 165.9.084 BGA 68mm Poker
Belle 165.9.084 BGA 68mm Poker
The Altrad Belle BGA 68mm Poker (165.9.084) is a heavy-duty flexible-shaft mechanical concrete vibrator designed to deliver high vibration power for efficient concrete compaction and removal of trapped air. It features a 68mm vibrating head, 6m heavy-duty reinforced flexible shaft and industry-standard Two Dog drive coupling, making it suitable for demanding construction-site applications.
Features:
68mm poker diameter for high-performance concrete consolidation.
6m heavy-duty reinforced flexible shaft providing excellent working reach.
410mm poker head length.
187Hz operating frequency.
1.0mm amplitude.
Single-piece rotating pendulum vibrator generating approximately 12,000 vibrations per minute.
Industry-standard Two Dog drive coupling for compatibility with suitable drive units.
Engineered to withstand demanding construction-site conditions.
Comes With:
1 × Belle 165.9.084 BGA 68mm Poker
Product Specification:
Part number: 165.9.084
Barcode number: 5031403340924
Model: BGA 68 Poker
Product Type: Flexible Shaft Concrete Poker
Poker Diameter (mm) - (In): 68 - 2 11/16
Head Length (mm): 410
Shaft Length (m): 6
Frequency (Hz): 187
Amplitude (mm): 1
Weight (Kg): 24.6
Drive Coupling: Two Dog

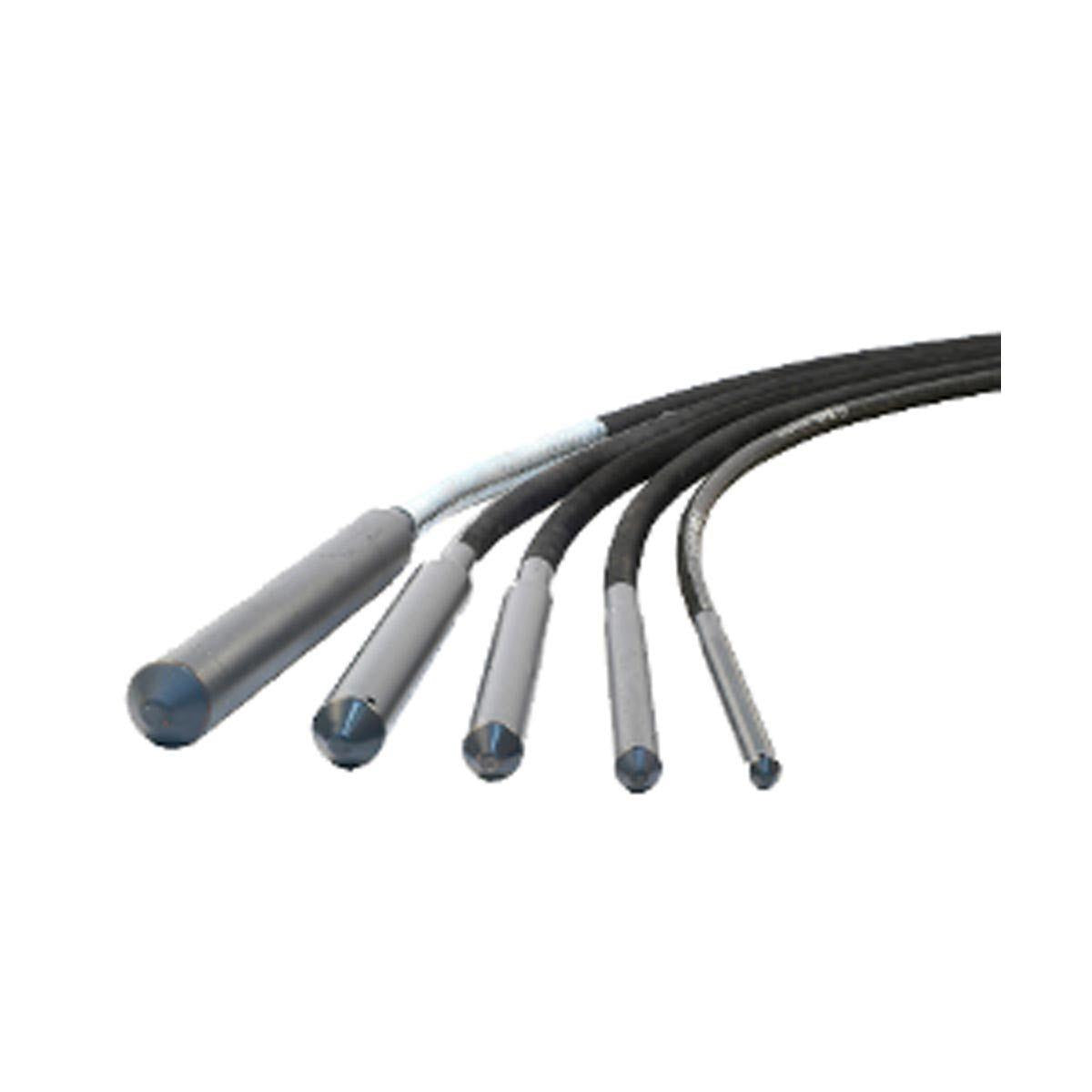

**images for illustrative purposes only – please refer to description and specification for full details of product**
