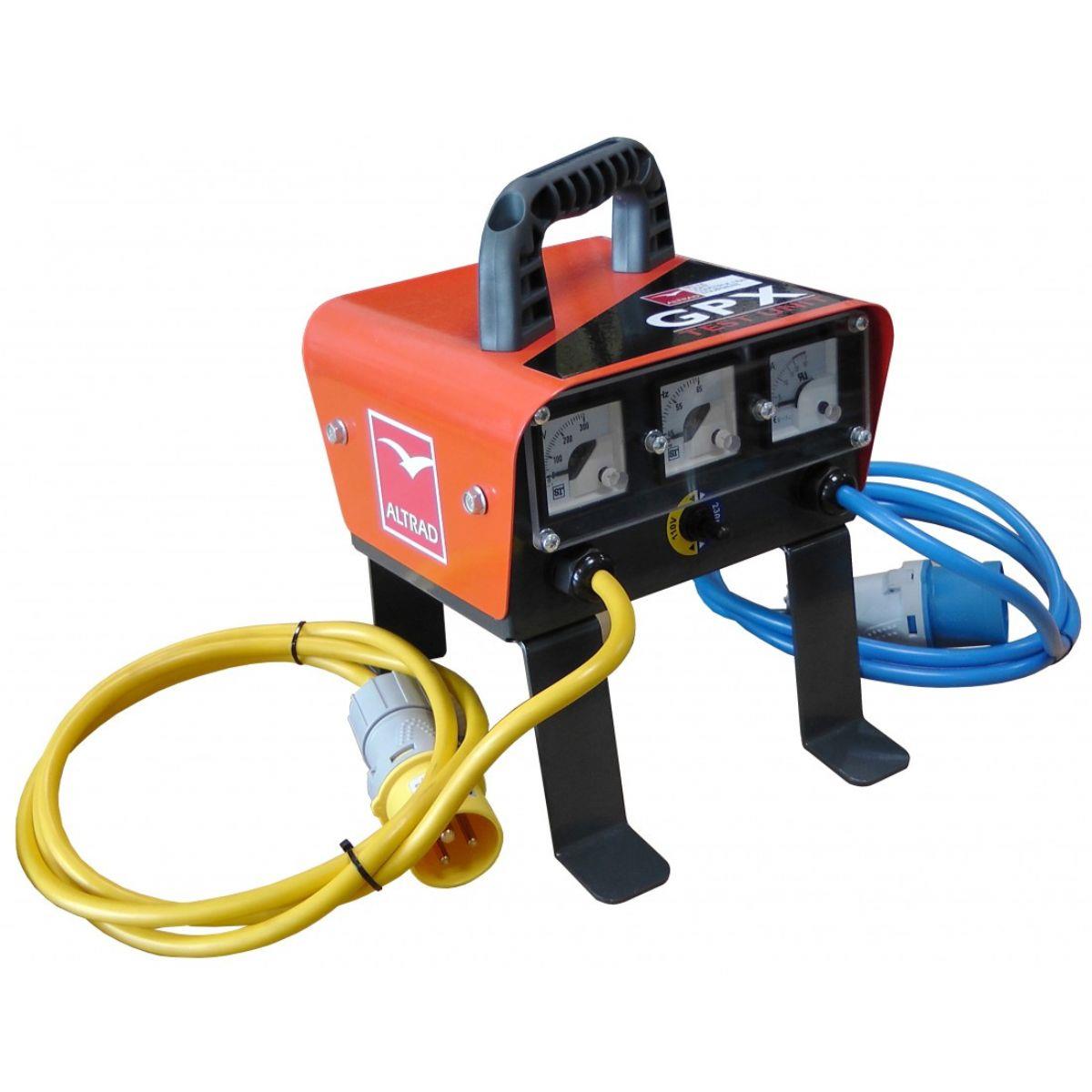

Belle GTB01S GPX Test Unit
Belle GTB01S GPX Test Unit
The Altrad Belle GTB01S GPX Test Unit is a heavy-duty, portable generator testing device designed for safe and straightforward checking of generator outputs. It provides voltage, frequency and amperage readings and can test generator performance both on-load and off-load. Suitable for contractors, site engineers, rental fleets and construction-site diagnostics.
Features:
110v & 230v testing ability.
Voltage, Frequency (Hz) and Amp meters.
Tough, replaceable, polycarbonate meter cover.
Rental-proof, robust, steel electrical enclosure
System breakers for 110v & 230v supplies.
Input: 2m 110v & 230v leads complete with 16A BS4343 plugs.
Output: 1 x 16A 110v & 1 x 16A 230v BS4343 sockets.
Ergonomic carry handle.
Compact and lightweight.
Simple, fast, safe generator testing.
Comes With:
1 × Belle GTB01S GPX Test Unit
Product Specification:
Part number: GTB01S
Barcode number: GTB01S
Model: GPX Test Unit - 1Ph
Nominal Voltage: 110 / 230V
Voltage Range: 110 / 230V
Frequency (Hz): 45 - 65
Max. Load Rating (kW): 4.5
No. of Sockets: 110v 16Amp x 1 & 230v 16Amp x 1
Cable Length (m): 2
Dimensions W x L x H (mm): 220 x 281 x 253
Weight (Kg): 4.2
