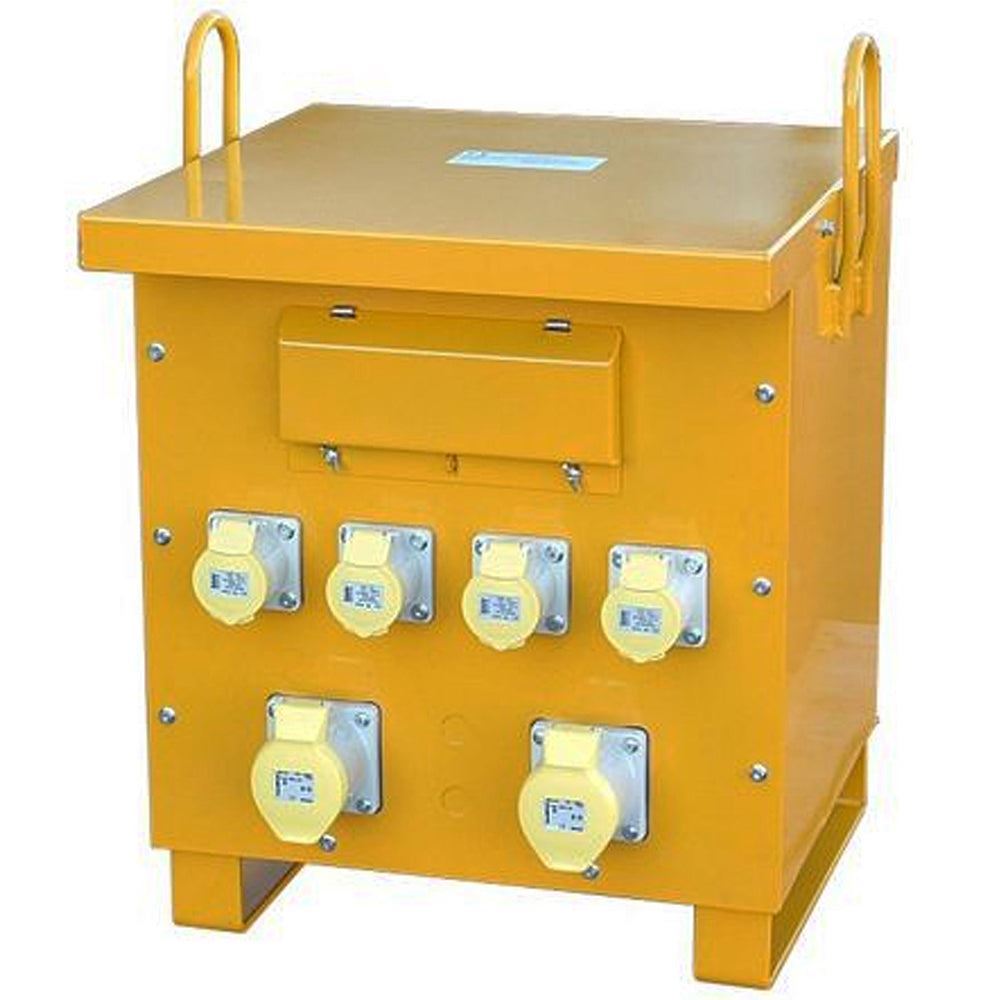

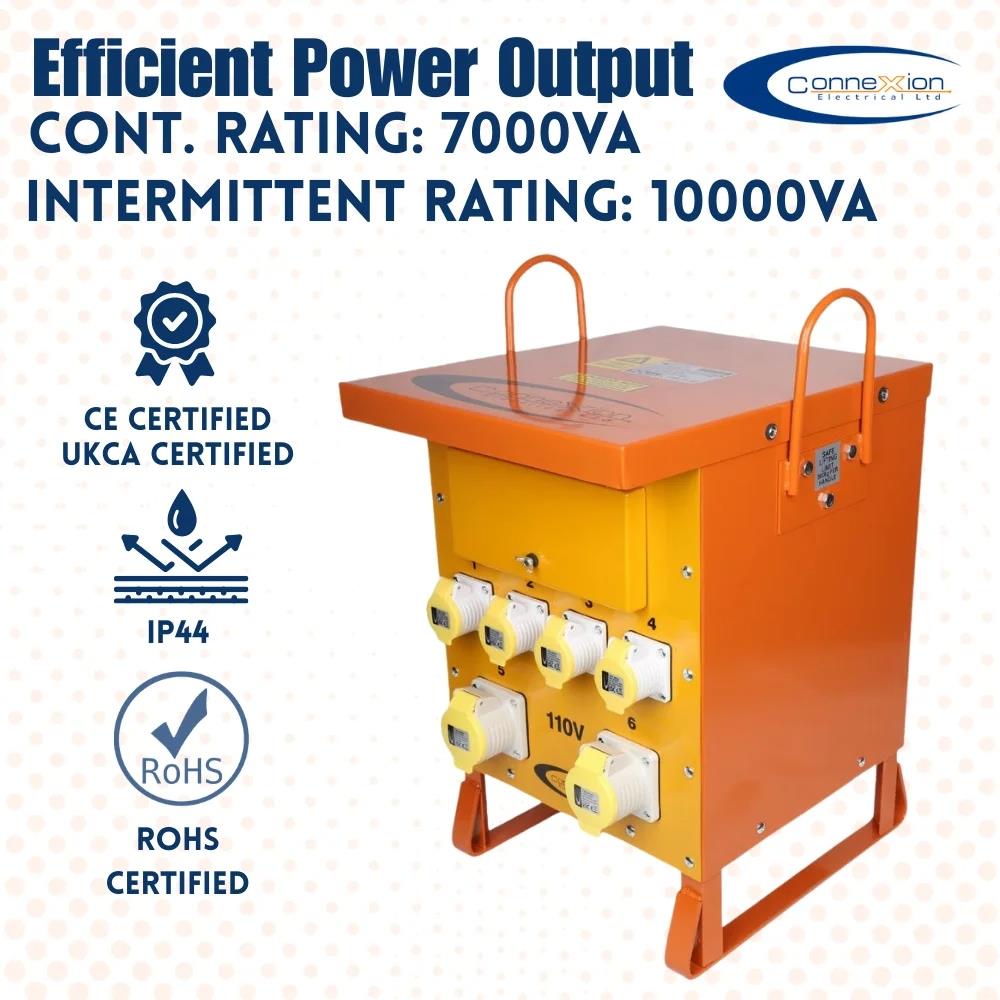

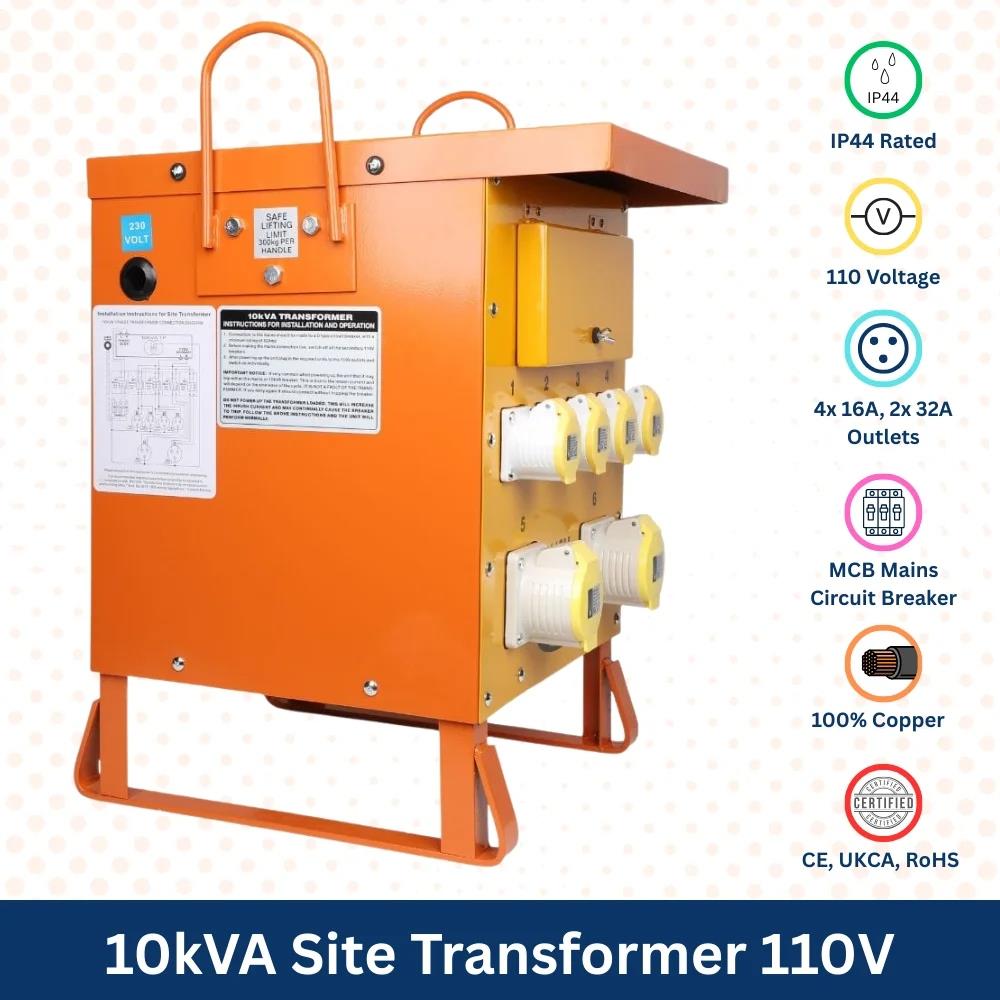

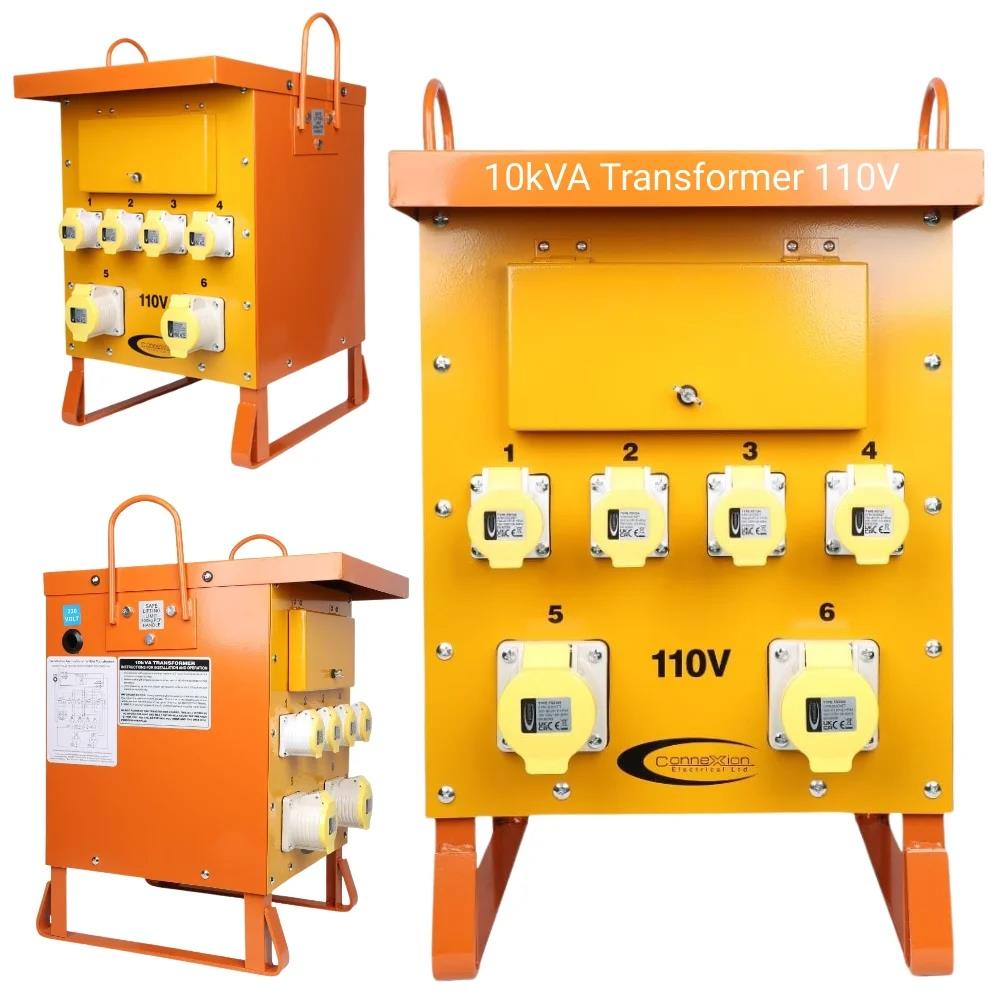

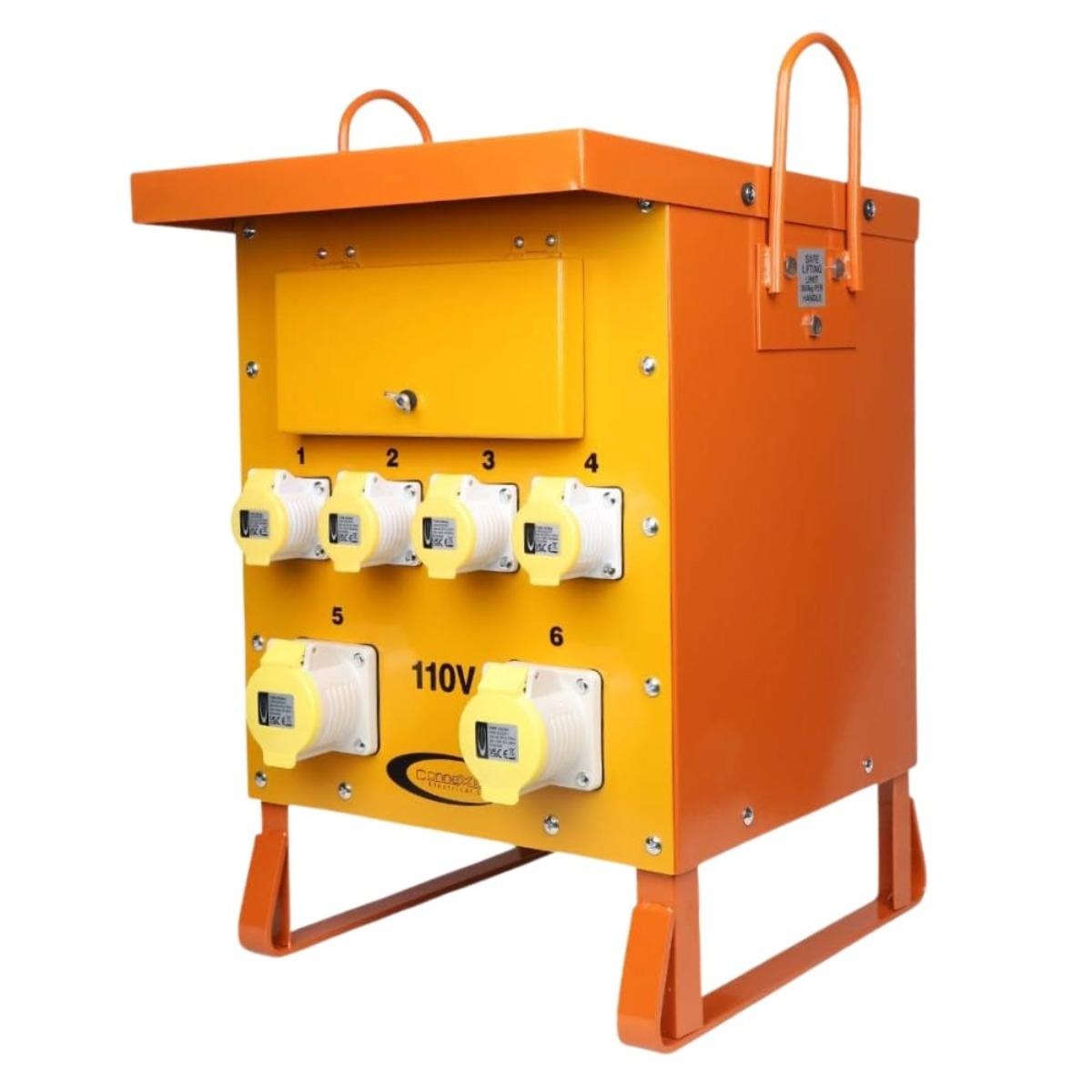

Connexion Continuously Rated Single Phase Site Transformer 10KVA Input 240V Output 110V - 10963
Connexion Continuously Rated Single Phase Site Transformer 10KVA Input 240V Output 110V - 10963

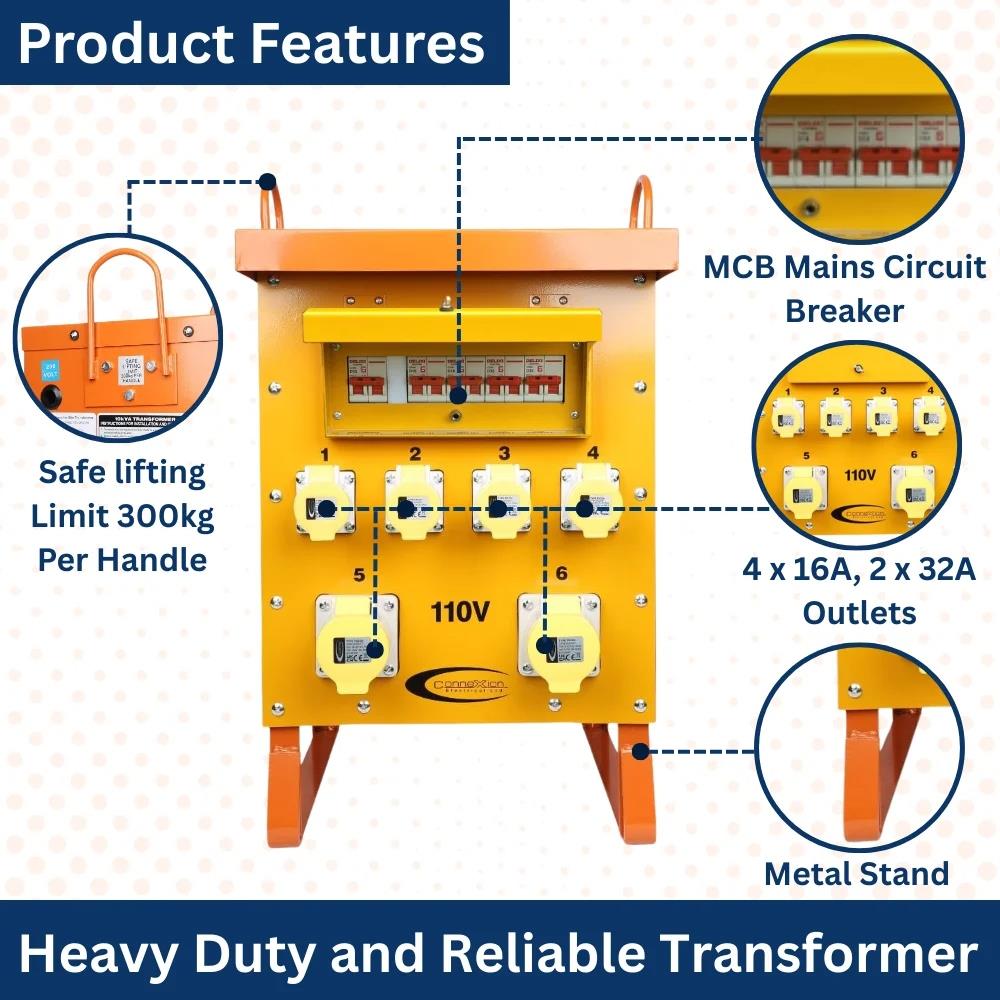

Features:
Double-wound design for mains isolation.
Insulated drip proof portable steel case (IP23).
110v centre tapped to earth (cte) secondary winding to reduce the risk of shocks.
Designed for carrying full & continuous load.
MCB Cover and Carry Handles.
Input terminal strip for hard wired connecting.
Input 40A DP type D MCB reducing the chance of overload.

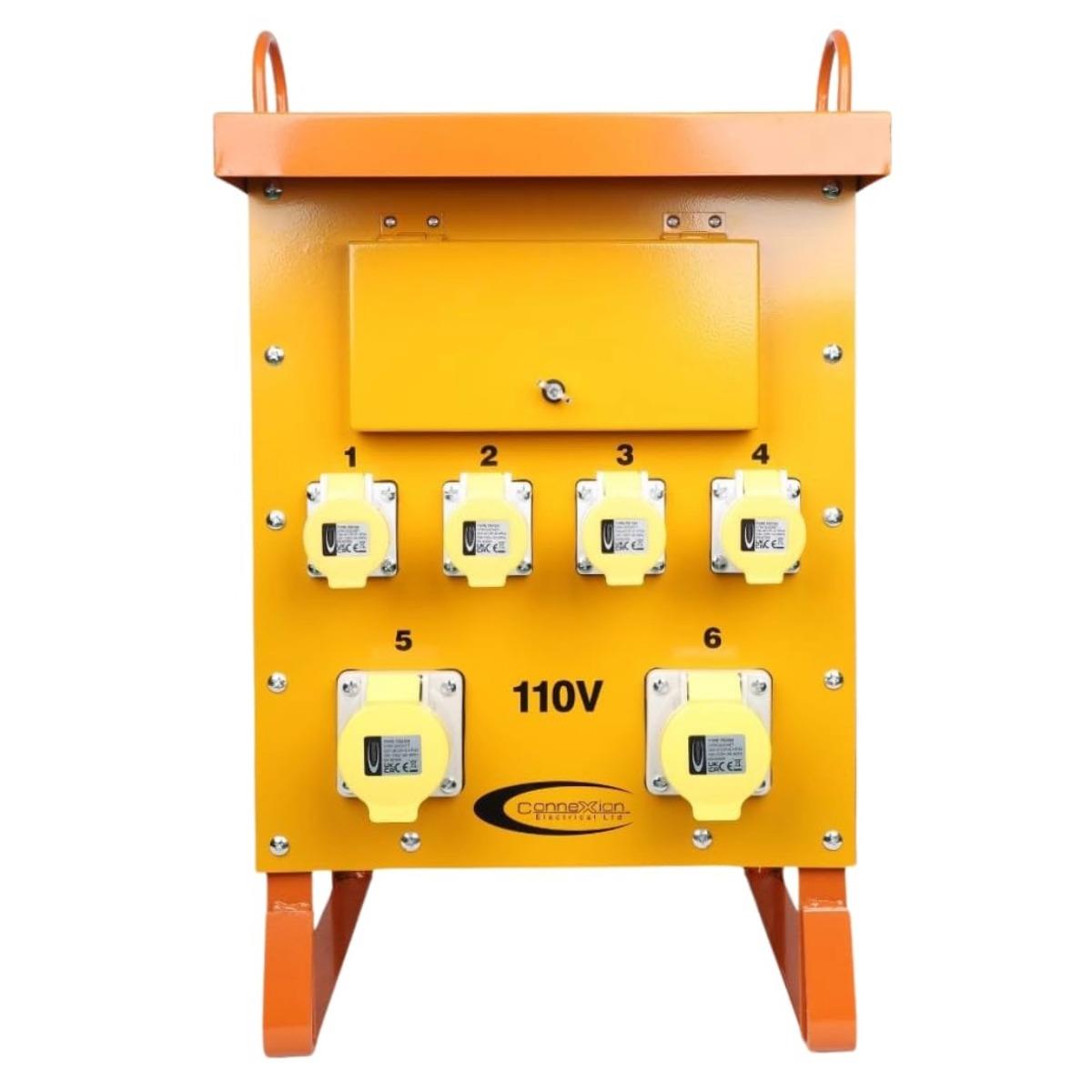

4 x output 16A 3pin sockets, 2 x output 32A 3pin sockets (BSEN 60309).
2 x 20A DP type C MCBs protecting the output 16A sockets.
2 x 32A DP type C MCBs protecting the output 32A sockets.
Heavy duty sheet steel enclosure to IP23.
Manufactured in accordance with BSEN61558 CE & RoHS Compliant.
Product Specification:
Part Number: 10963 / 10kVA Transformer 110V
Barcode: 8906763266245
Power: 10 kVA 1ph
Duty: Continuous
Input voltage: 230vac 1ph
Output voltage: 110vac 1ph
Sockets: 4 x 16A 3pin, 2 x 32A 3pin
Dimensions mm: 605(H) x 440(W) x 420(D)
**images for illustrative purposes only – please refer to description and specification for full details of product**
