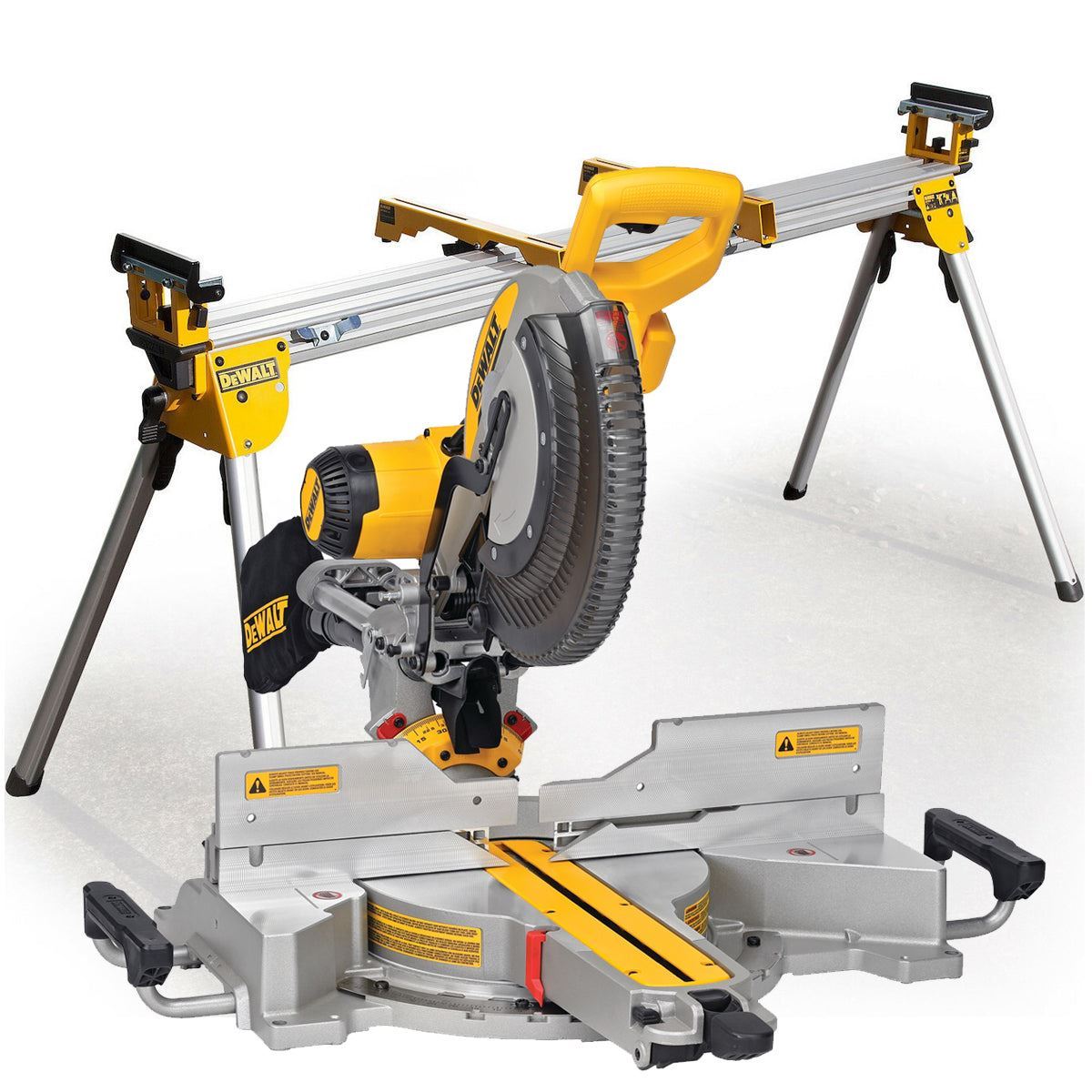

Dewalt DWS780 305mm XPS Sliding Compound Mitre Saw 1675W 240V With Universal Leg Stand
Dewalt DWS780 305mm XPS Sliding Compound Mitre Saw 1675W 240V With Universal Leg Stand
Features:
DWS780 Mitre Saw
The DEWALT DWS780 is a 305mm Compound Slide Mitre Saw offering outstanding cutting performance in both small profiles and large construction timbers.
XPS shadow line cut indicator which provides a fast accurate alignment of the blade while illuminating the workpiece for increased productivity no adjustment required.
Heavy-duty durability with the ability to fully adjust the machine to maintain accuracy over the life of the tool.
Quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right.
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly angles between 0° - 50° left and 0° - 60° right.
DE7023 Universal Leg Stand:
The DEWALT Universal DE7023 Leg Stand is an extendable unit and, from its 1.9m base unit, two telescopic extensions expand the working area up to 3.9m in length, which will support work pieces over 5 metres in length.
The leg stand has a unique bracket mounting system that takes all DEWALT and most competitive mitre saws.
These brackets are also available separately meaning that one mitre saw station can be used in conjunction with a variety of machines.
These brackets can also even be used with a board to create a large surface for supporting work.
The Mitre saw station also features quick release spring-loaded retractable legs, to create a secure working platform on the work site.
A convenient carry handle on the underside of the stand provides easy, balanced single-handed transportation of the stand.
Transportation is aided yet further by a shoulder carry strap, which is also available.
With the lightweight construction of the leg stand and its compact self contained parts, this is the first mitre saw system that provides the user with a truly portable yet versatile and stable mitre saw workstation for site.
Fits the following saws: DW777, DW712, DW717, DW718, DW780.
Comes With:
1 x 305mm 60 Tooth Blade
1 x Blade Spanner
1 x Dust Bag
1 x Material Clamp
2 x work stops / support
1 x Mitre saw brackets
Product Specification:
DWS780 Mitre Saw
Input Power: 1,675W
No Load Speed: 1,900 - 3,800/min
Blade: 305 x 30mm Bore
Capacity (mm): 90°/90°: 303x110, 90°/45°: 211x112, 45°/90°: 268x63, 45°/45°: 212x76
Mitre Capacity (Right/Left): 60°/50°
Bevel Capacity: 49°/49°
DE7023 Universal Leg Stand:
Height: 820mm
Closed Length: 1.7m
Open Length: 3.9m
Max. Loading: 227kg
