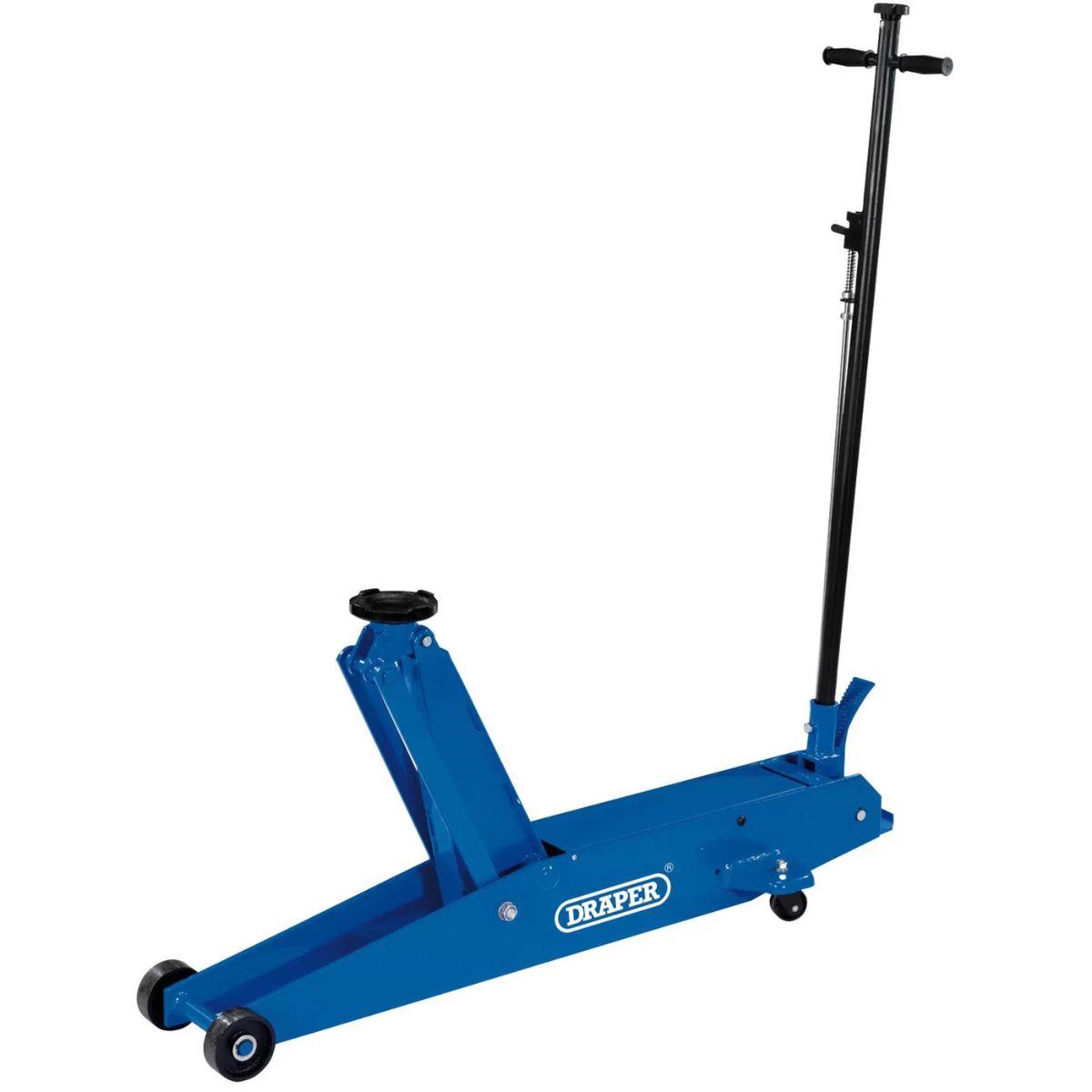

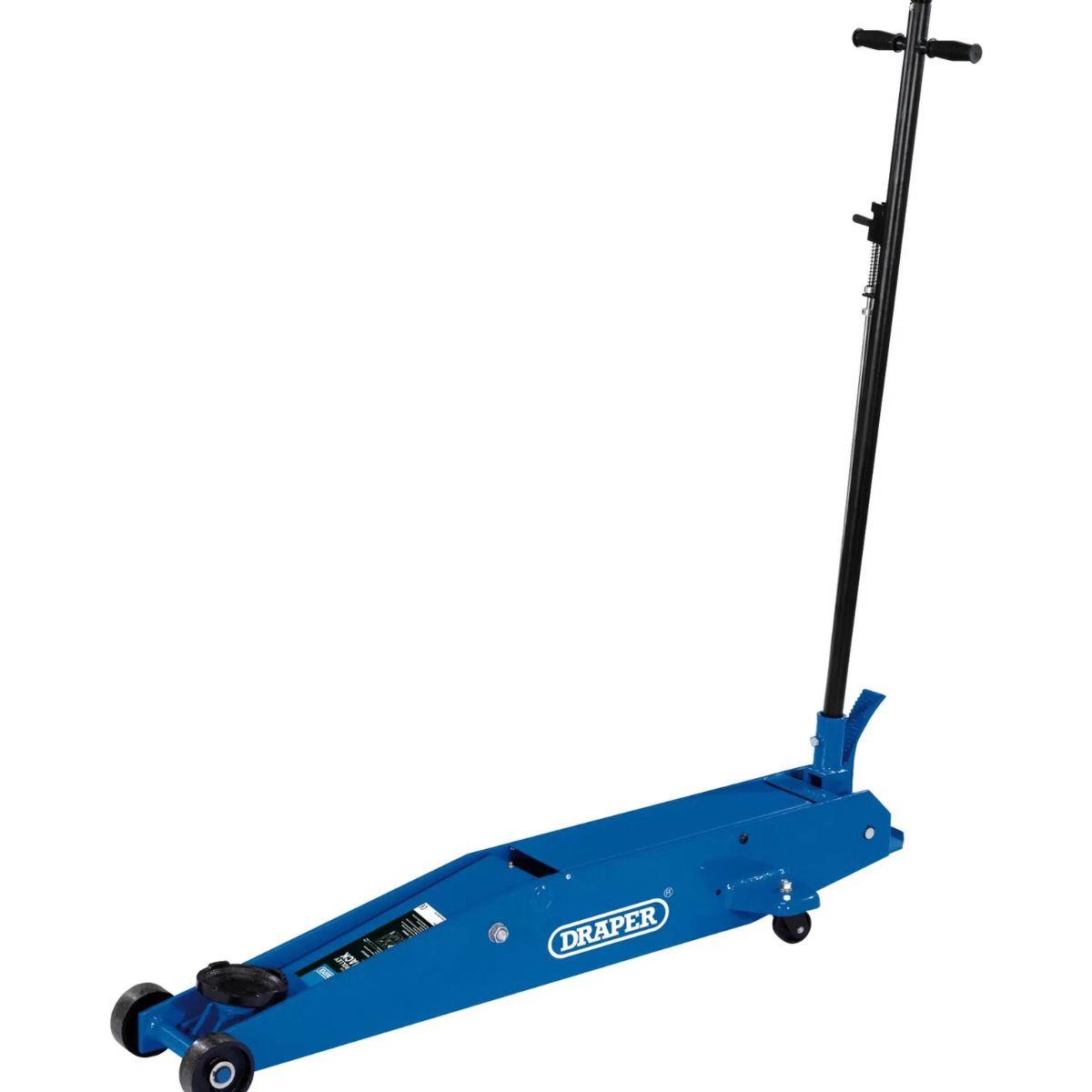

Draper TJ3LR Long Chassis Trolley Jack 3 Tonne 03463
Draper TJ3LR Long Chassis Trolley Jack 3 Tonne 03463
The Draper TJ3LR Long Chassis Trolley Jack is a heavy-duty hydraulic lifting solution designed for professional garages, automotive workshops and vehicle maintenance environments. With a lifting capacity of 3 tonnes (3,000kg), it features an extended chassis for convenient positioning beneath suitable vehicles. The jack is fitted with a quick-lift foot pedal to raise the saddle rapidly towards the vehicle jacking point. Its large 130mm saddle helps with positioning, while the T-shaped handle incorporates a release valve to support controlled lowering. The handle can be locked in three positions for added convenience during operation. Rear swivelling castors and a toe plate improve manoeuvrability, while an integrated safety valve helps prevent overloading. Manufactured and tested to the EN 1494 standard, this jack is supplied with a one-piece handle for workshop use.
Features:
Heavy-duty long chassis construction.
3-tonne (3,000kg) lifting capacity.
Quick-lift foot pedal for faster saddle positioning.
Large 130mm saddle for vehicle jacking points.
Handle locks in three positions.
T-shaped handle with integrated release valve.
Rear swivelling castors for improved manoeuvrability.
Comes With:
1 x Draper TJ3LR Long Chassis Trolley Jack, 3 Tonne
Product Specification:
Part number: TJ3LR
Barcode number: 5010559034635
Stock No: 3463
Product Type: Long Chassis Trolley Jack
Capacity: 3 Tonne (3,000kg)
Minimum Height: 140mm
Maximum Height: 620mm
Saddle Diameter: 130mm
Handle Length: 1,220mm
Chassis Length: 1,390mm
Nett Weight: 68kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
