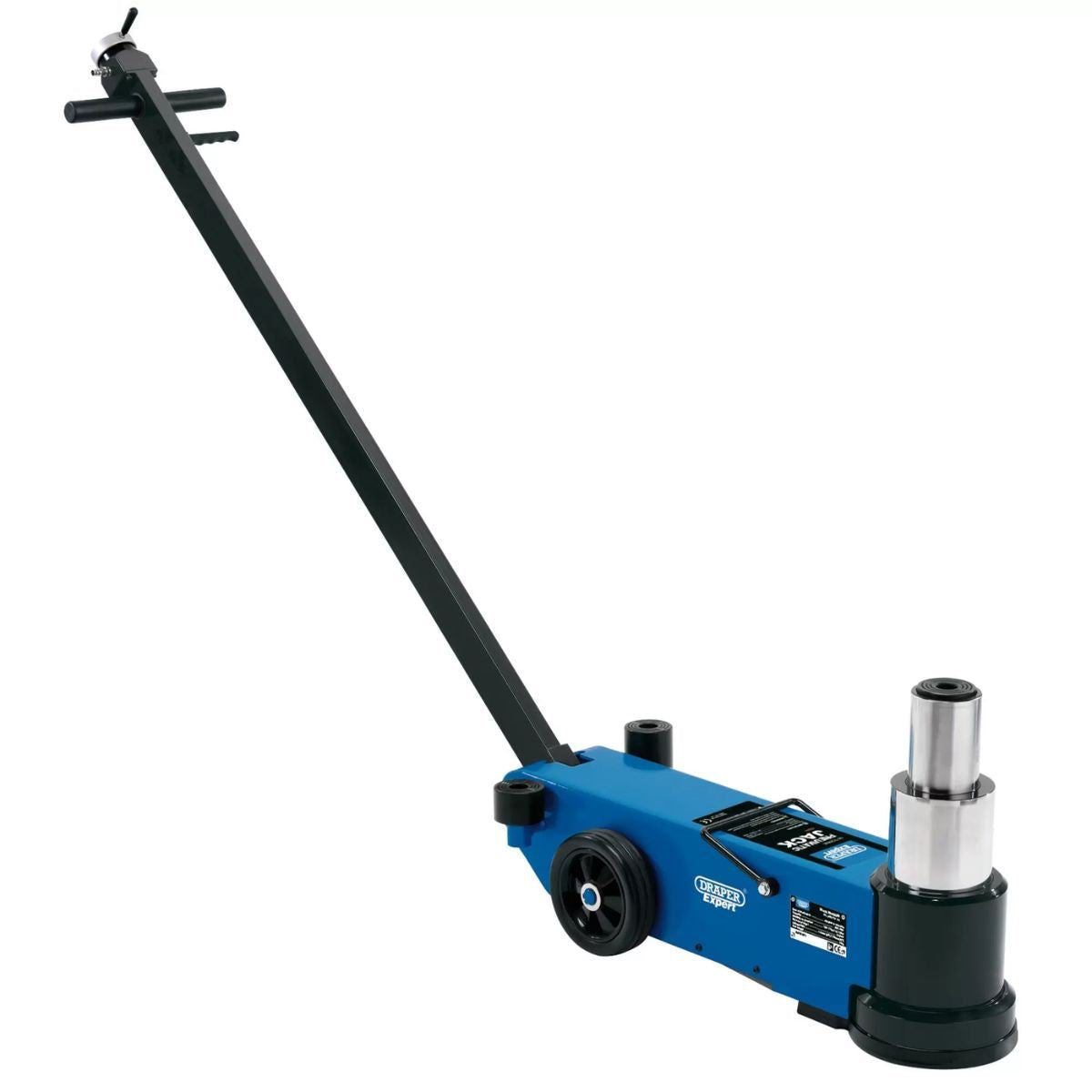

Draper Tools PJ50 Pneumatic Jack 50 Tonne 02081
Draper Tools PJ50 Pneumatic Jack 50 Tonne 02081
Portable and compact twin stage pneumatic jack, capable of lifting 50 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features:
Massive 50 Tonne Lifting Capacity: Suitable for heavy-duty industrial and commercial vehicles.
Twin Stage Pneumatic Operation: Ensures quick and efficient lifting with minimal manual effort.
Compact & Portable Design: Ideal for mobile technicians and workshop use.
Enhanced Safety Features: Includes a “Slow Down” valve and “Self-Return” switch to protect users and equipment.
Durable Industrial-Grade Seals: Extends the life of the jack even in demanding environments.
Certified to EN1494 Standard: Guarantees compliance with European safety and quality regulations.
Product Specification:
Part number: PJ50
Stock number: 02081
Barcode Number: 5010559020812
Capacity stage 1: 50 Tonne (50,000kg)
Capacity stage 2: 25 Tonne (25,000kg)
Minimum height: 215mm
Maximum height stage 1: 450mm (inc extensions)
Maximum height stage 2: 564mm (inc extensions)
Lift height stage 1: 115mm
Lift height stage 2: 114mm
Operating air pressure: 9 - 12BAR (130 - 174psi)
Air consumption: 11.5cfm
Air inlet: 1/4" BSP
Wheel diameter: 165mm
Wheel width: 42.5mm
Saddle diameter: 70mm
Extensions: 45mm and 75mm
Handle length: 1380mm
Chassis size: 805 x 200 x 215mm
Nett weight: 73kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
