Festool BHC 18-Basic 18V Brushless SDS+ Hammer Drill Body Only In Systainer - 577230
Festool BHC 18-Basic 18V Brushless SDS+ Hammer Drill Body Only In Systainer - 577230

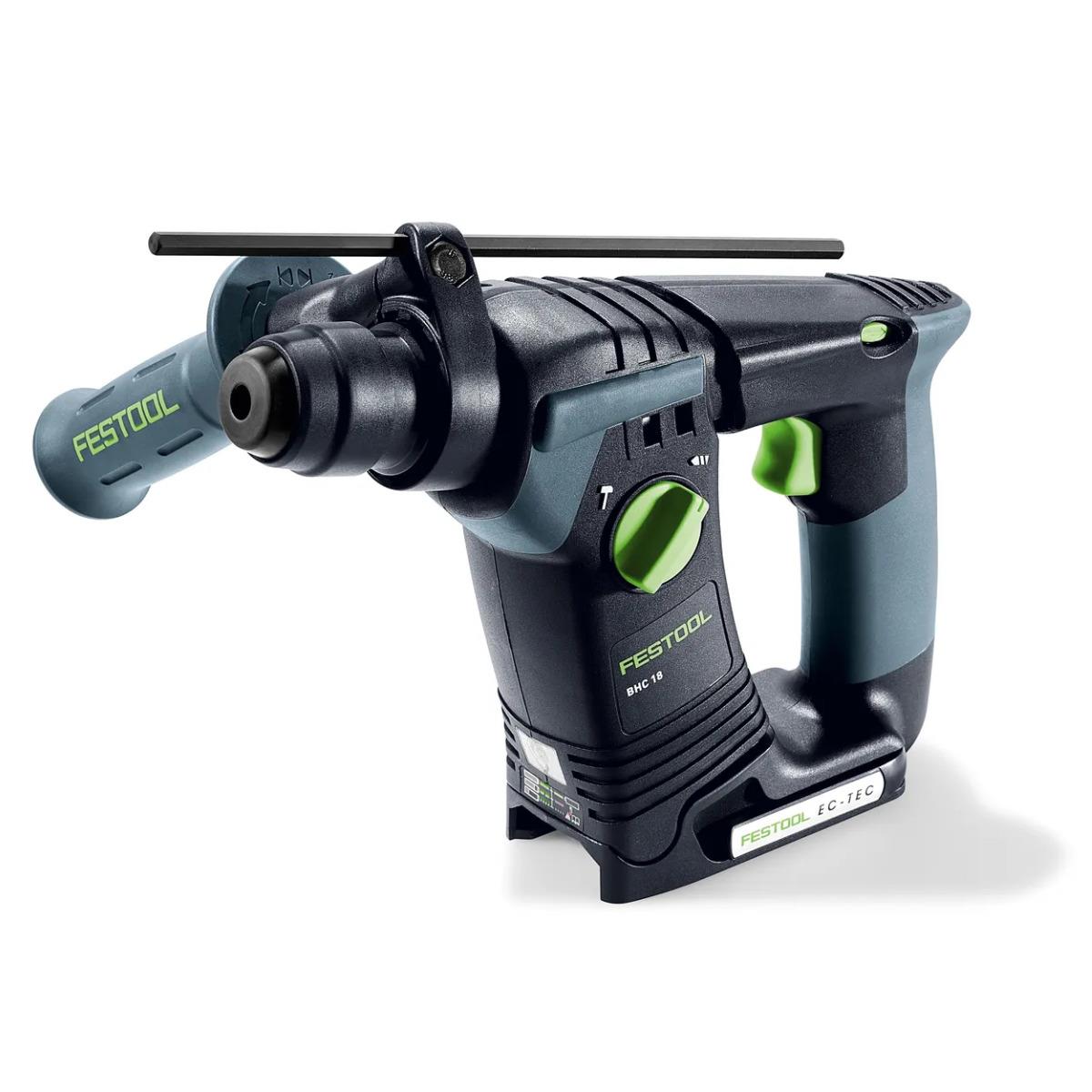

The Festool BHC 18-Basic is a compact 18V cordless SDS-Plus hammer drill designed for powerful drilling in concrete, stone and masonry. Its brushless EC-TEC motor delivers 1.8J of single impact energy and up to 4,895 impacts per minute. The ergonomic C-shape and integrated vibration damping provide comfortable handling during extended use. Supplied in a Systainer³ with auxiliary handle and depth stop.
Features:

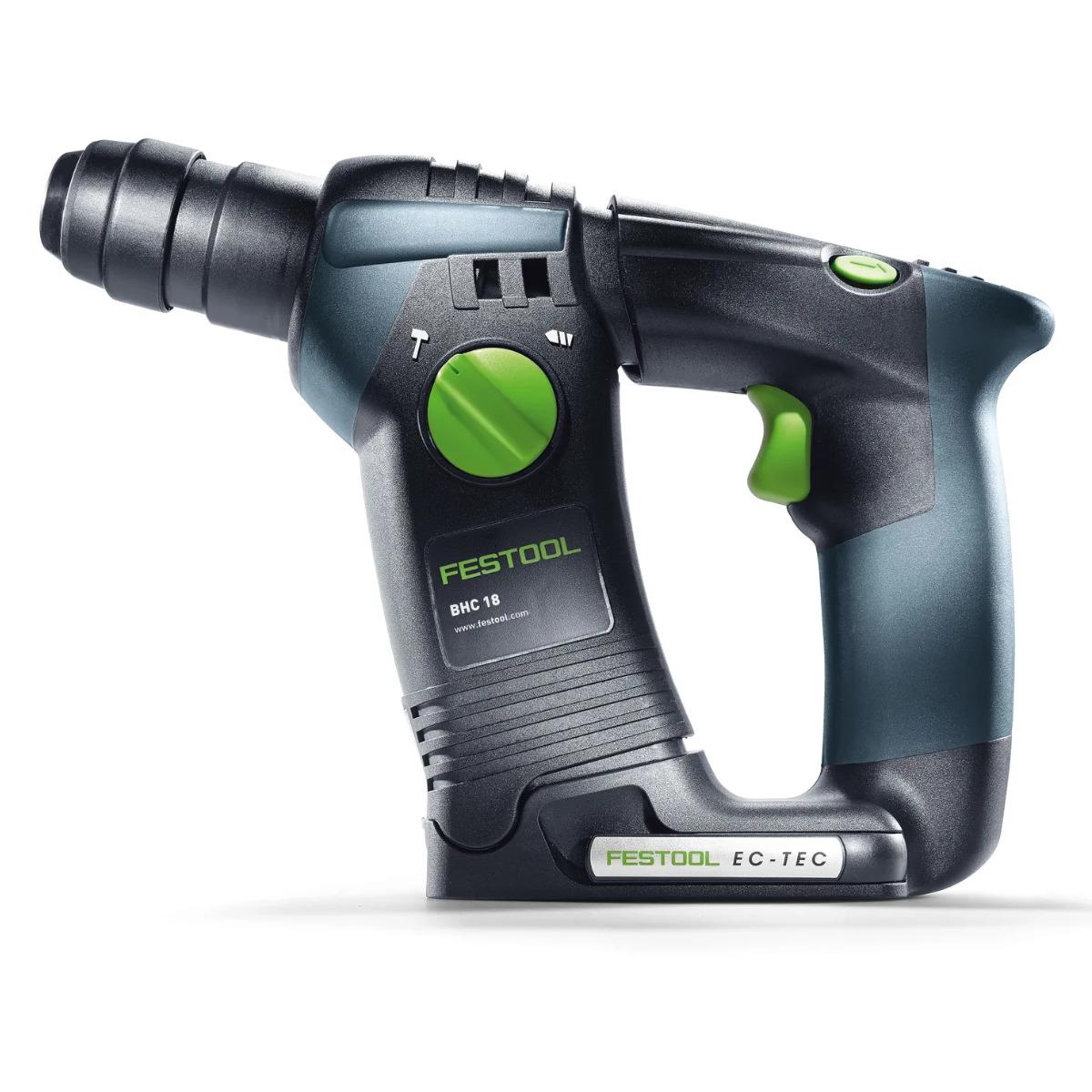

Lightweight, maximum performance: Thanks to the powerful EC-TEC motor and compact C-shape
Work effortlessly: Vibration damping absorbs the impact energy before it is transferred to your hands
Robust: Brushless, maintenance-free EC-TEC motor for a long service life.
Individual battery power: For maximum ease of use for shorter and less demanding applications with the 3.0 Ah Compact battery pack. Or for full power and endurance with the 4.0 Ah Li-HighPower Compact battery pack
Even without impact: Percussive shut-off system possible e.g. for spot-drilling tiles
Convenient extraction: The battery pack communicates via Bluetooth with the Bluetooth® module of the CLEANTEC mobile dust extractor (can be retrofitted to the CT 26/36/48 as an accessory, directly integrated into the CT MINI I and MIDI I) and starts the mobile dust extractor automatically when the cordless tool is switched on
Extremely long-lasting: No matter which battery pack you combine your Basic version with, our battery packs are extremely durable thanks to the high-quality battery cells And, of course, fully covered by
Main Applications:

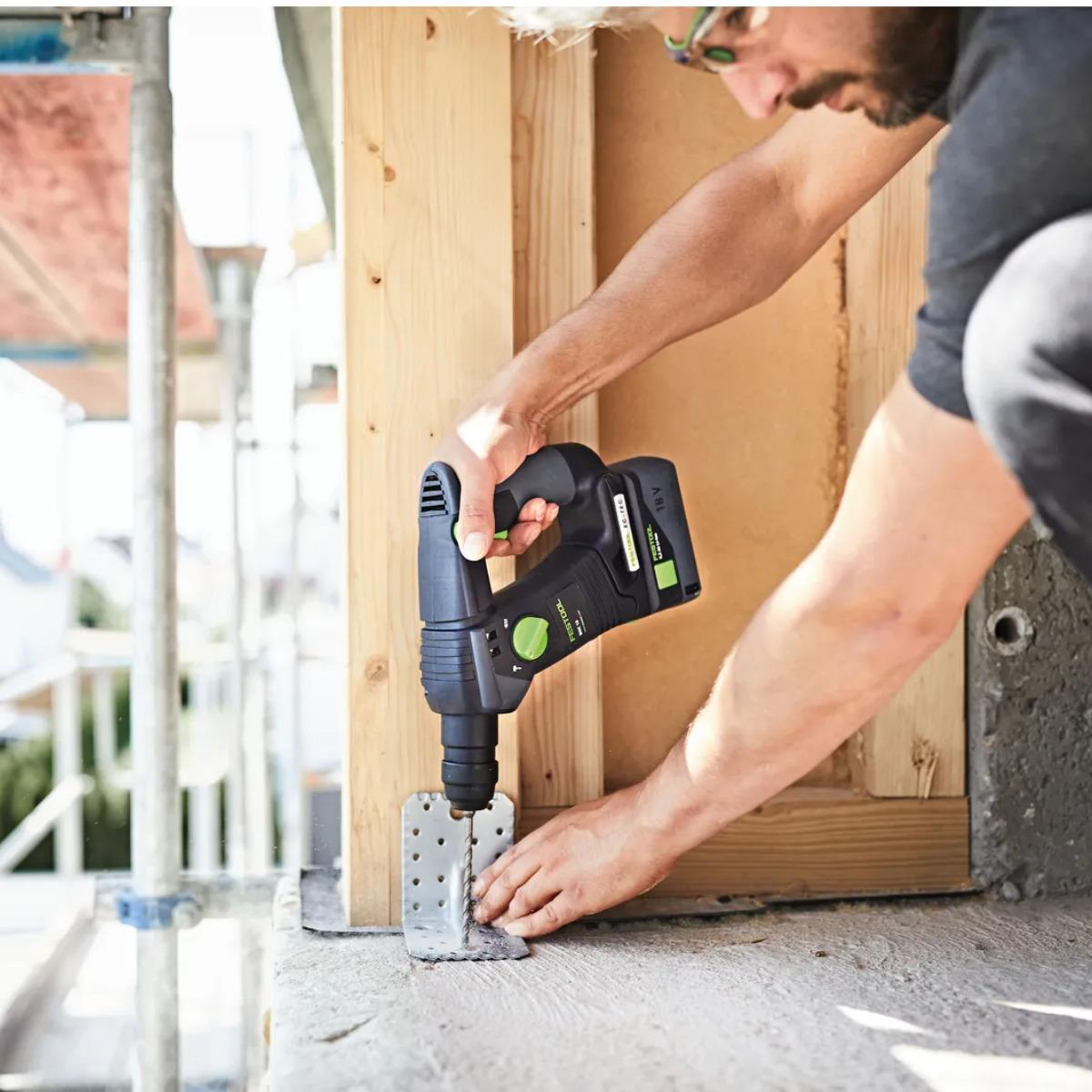

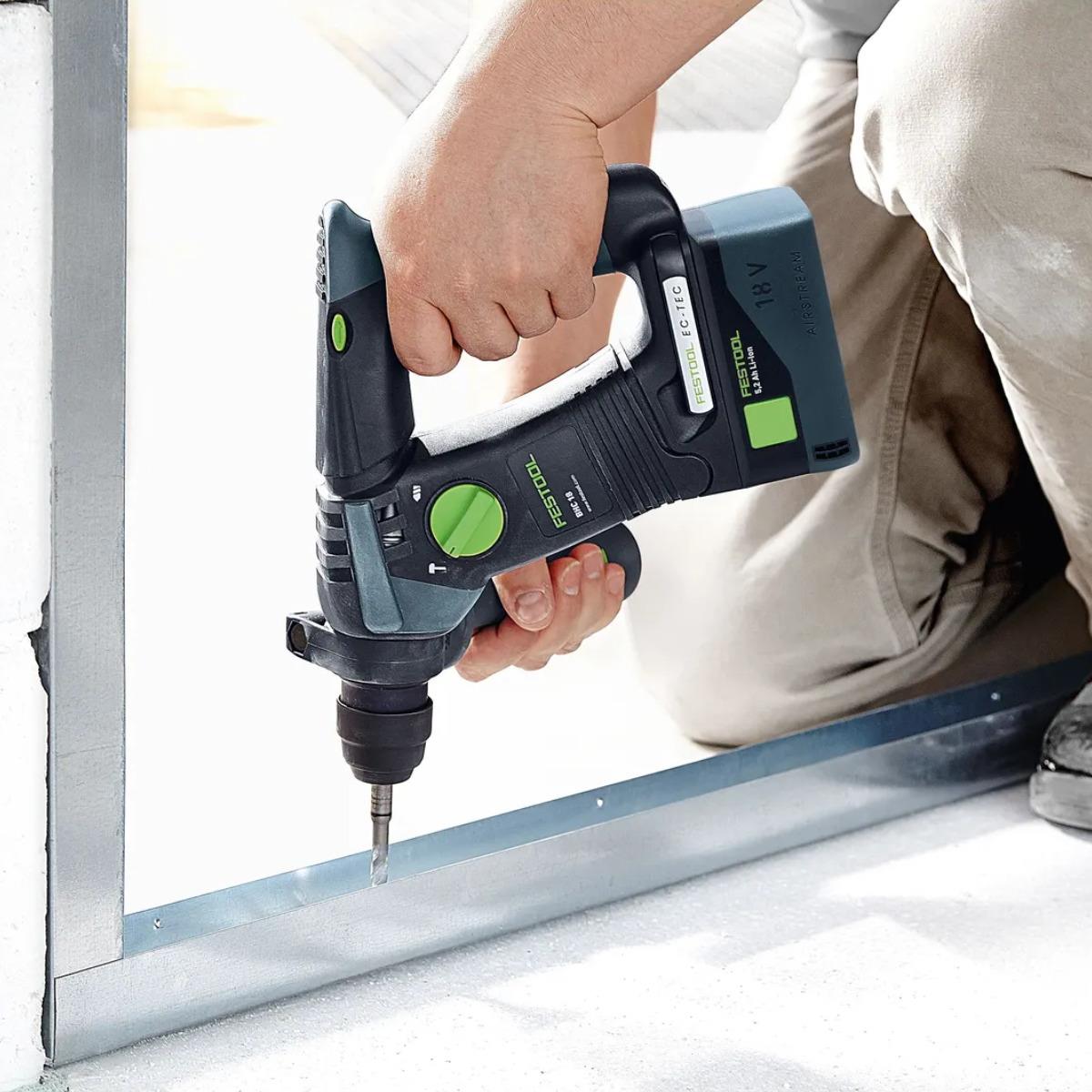

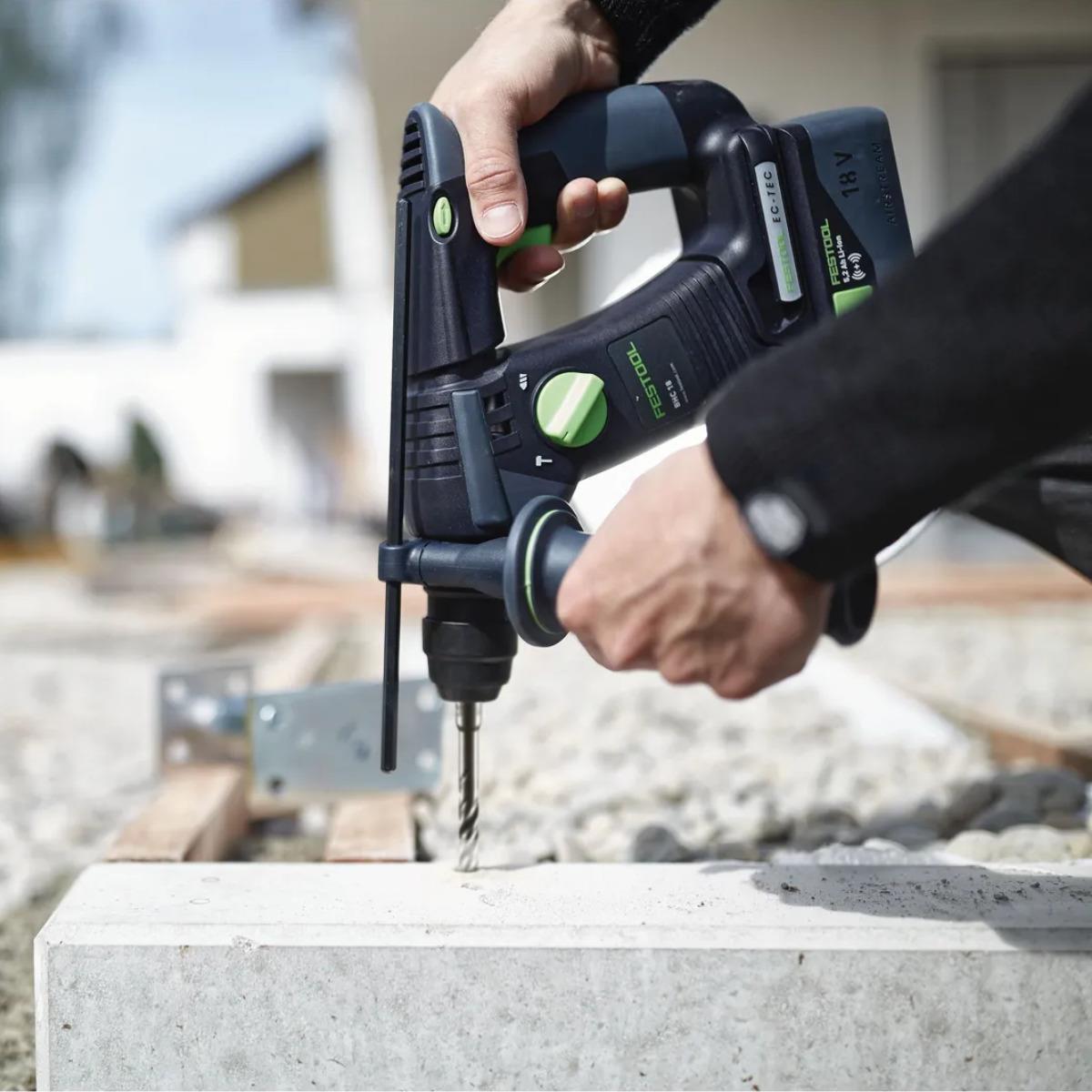

Ideal for hammer drilling up to a diameter of 10 mm in concrete, stone and masonry (maximum diameter of 18 mm possible)

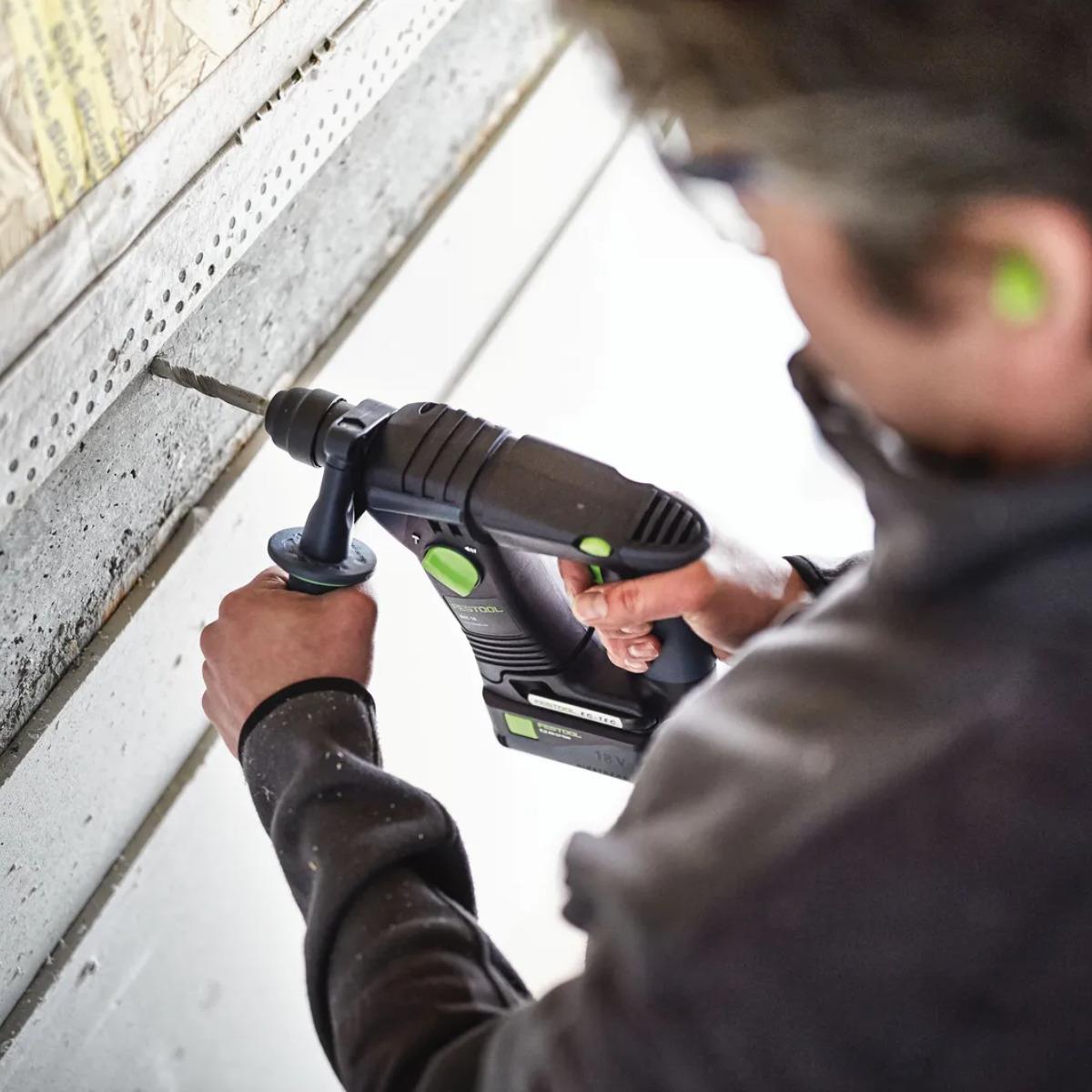

Its light weight and the compact design ensure great balance. It is therefore ideally suited for continuous use for interior finishing and assembly right up to securing EIF systems

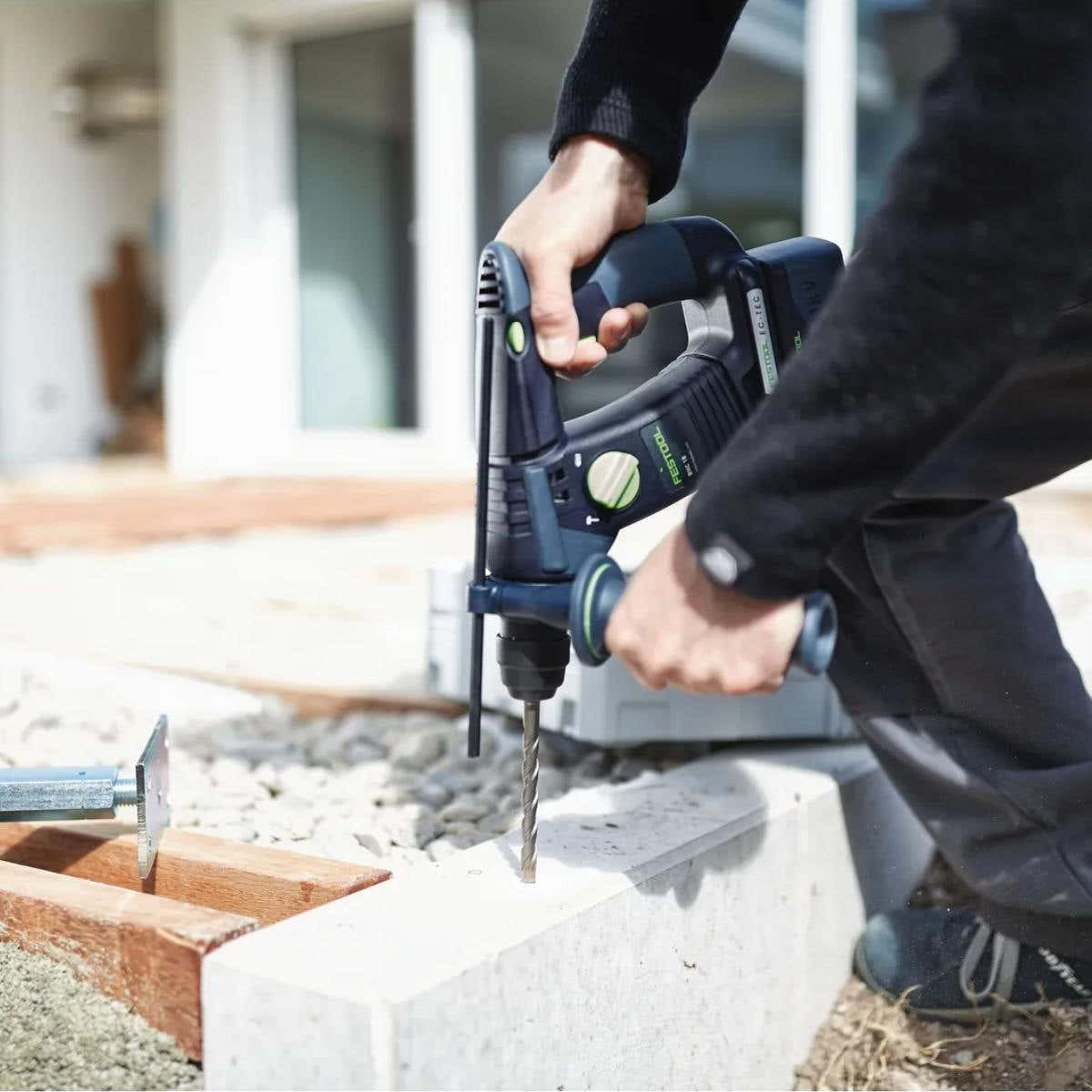

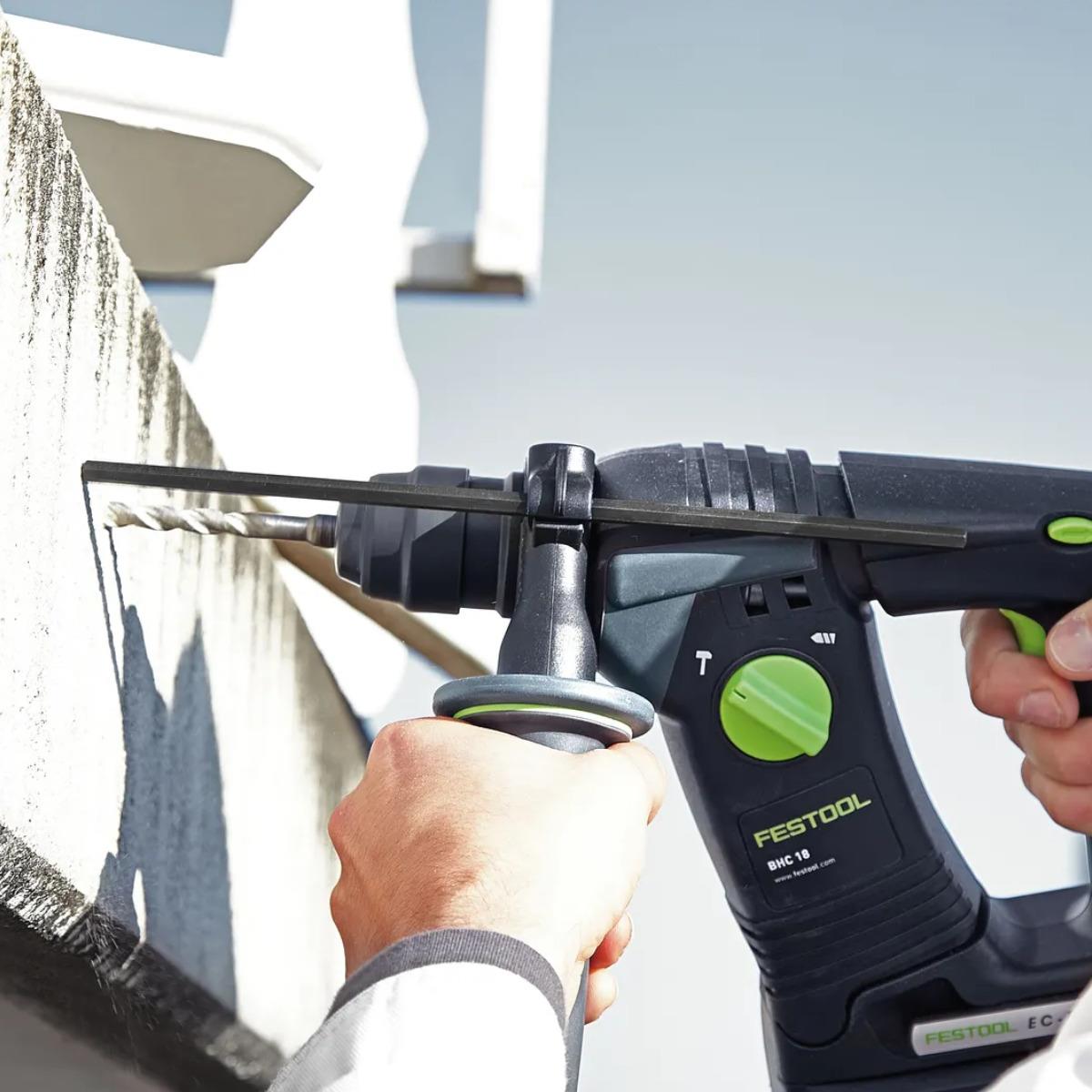

Fastening of substructures, ceiling suspensions and other elements (dia. 5–10 mm) to concrete and masonry
Fastening of kitchen cabinets, wall shelves, sound insulation elements, drywalls, skirting boards
Drilling and screwdriving without impact, such as when spot-drilling floor tiles
Electrical socket cutting up to Ø 68 mm in lime sand brick and masonry

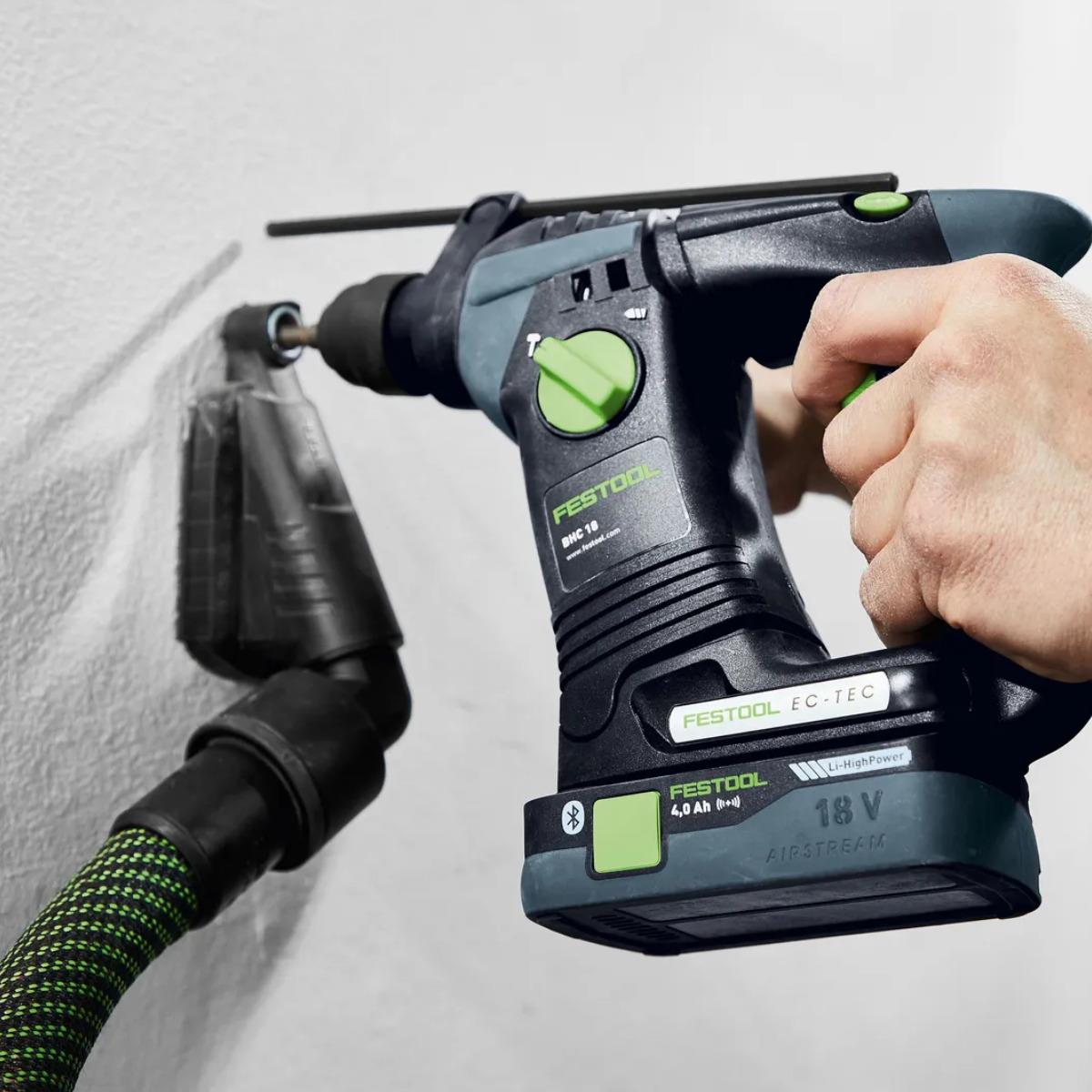

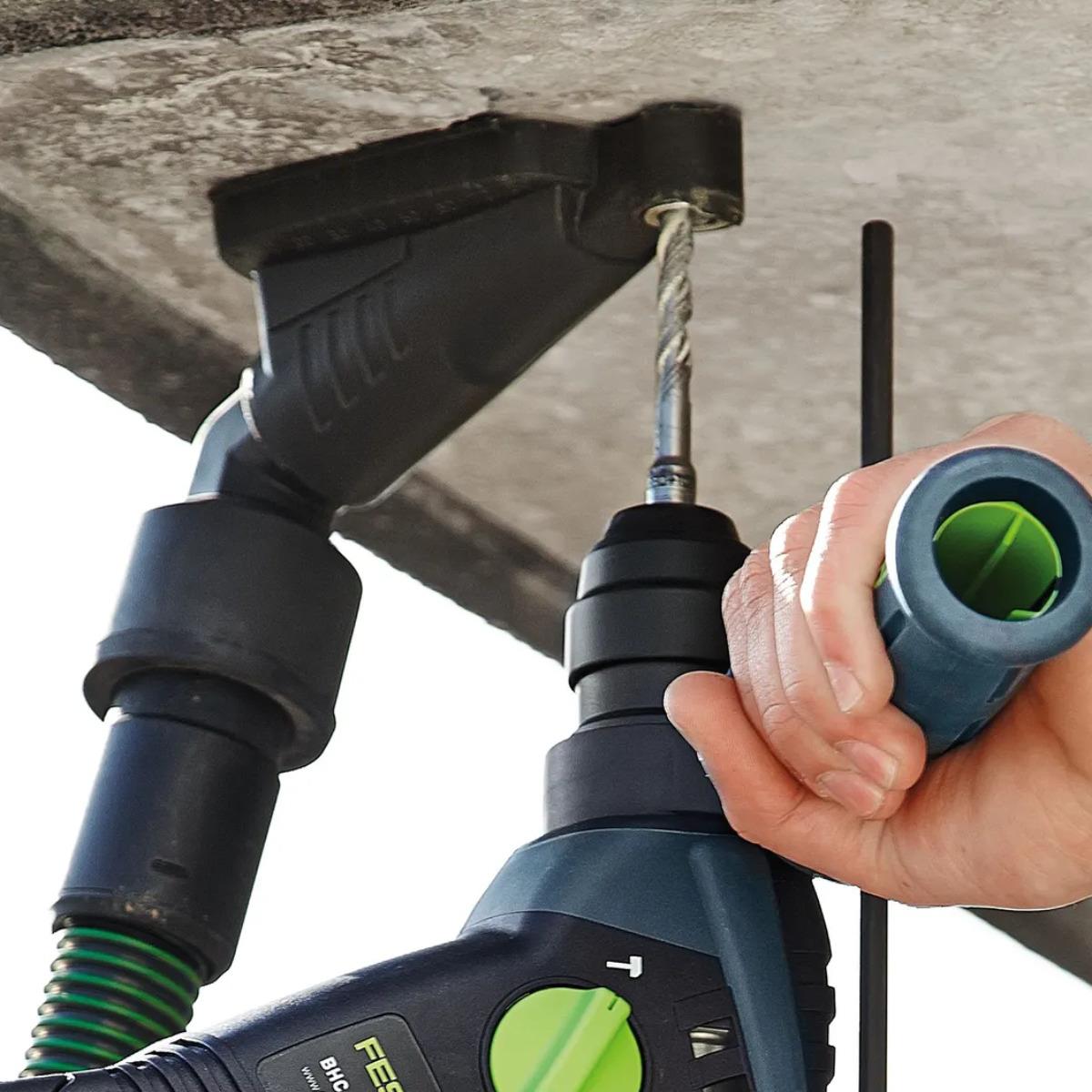

Working with dust extraction – Bluetooth battery pack automatically starts Bluetooth-compatible mobile dust extractor in AUTO mode

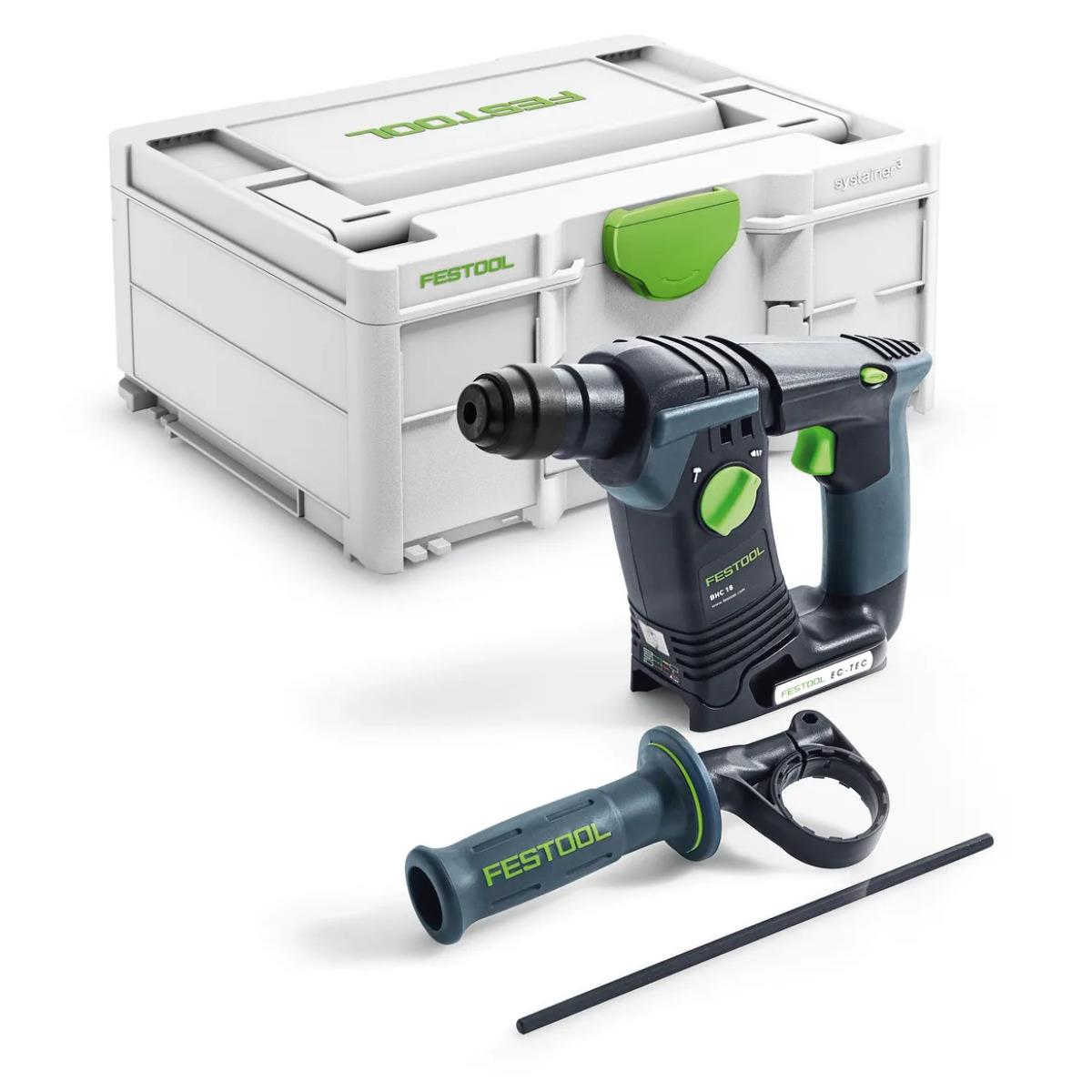

Comes With:

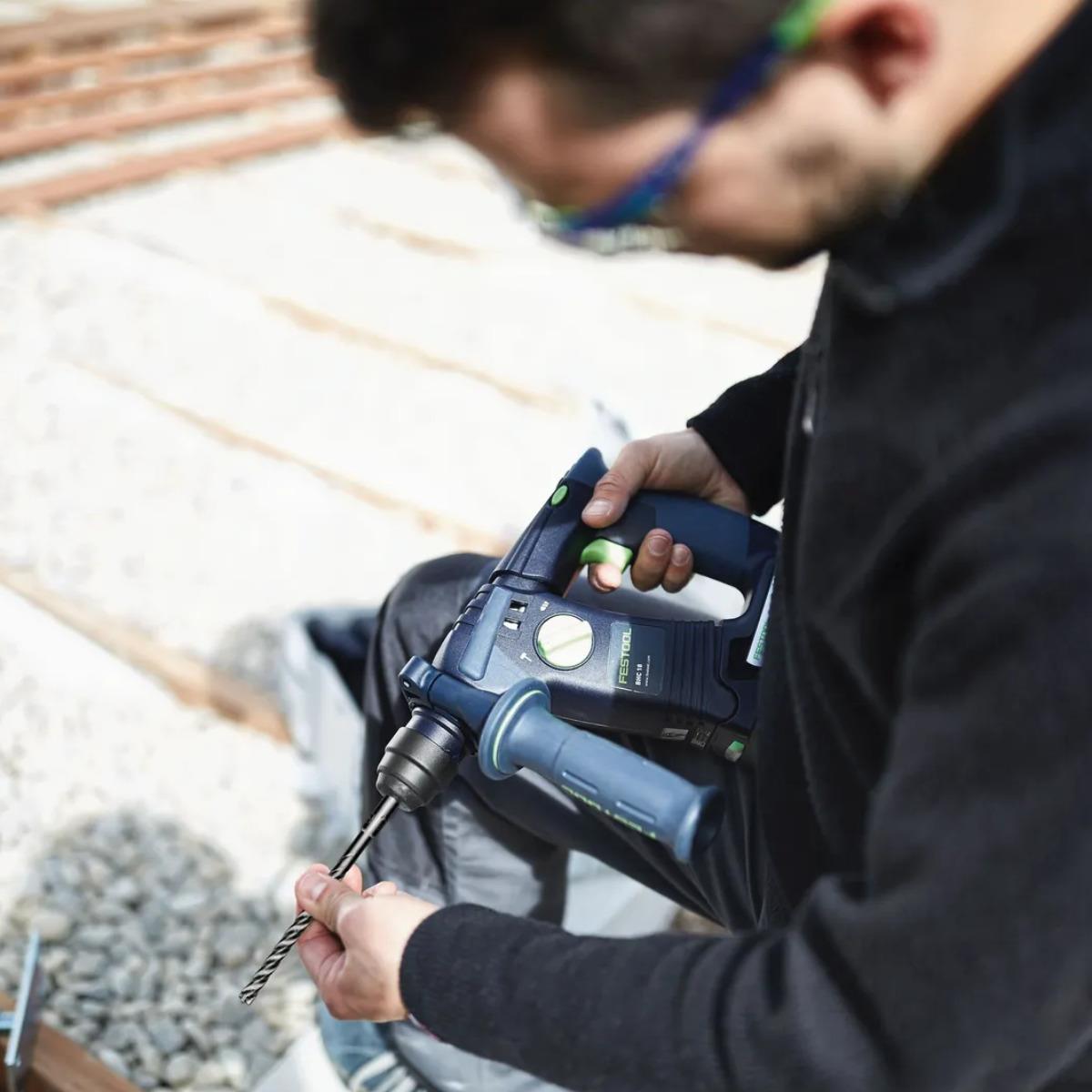

1 x AH-43/185 Auxiliary handle
1 x depth stop
1 x SYS3 M 187 Systainer
Product Specification:
Part Number: 577230
Barcode: 4014549401965
Battery voltage: 18 V
Gears: 1
Idle engine speed: 0 - 1 100 min⁻¹
Max. number of strokes: 4,895.00 min⁻¹
Drilling dia. (concrete): 18.00 mm
Max. crown borer hole diameter: 68.00 mm
Max. torque, wood/steel: 10/25 Nm
Tool holder: SDS-Plus
Single impact energy: 1.80 J
Dimensions (L x W x H): 280 x 88 x 237 mm
Transport weight incl. accessories: 4.22 kg
Product weight without accessories: 1.80 kg
Drive type: Battery
Sound and vibration
Hammer drilling in concrete: Uncertainty (noise) K: 3.00 dB
Hammer drilling in concrete: Total vibration average, Ah: 14.00 m/s²
Hammer drilling in concrete: Uncertainty (vibration) K: 3.00 m/s²
Hammer drilling in concrete: A-weighted sound power level, LWA: 98.00 dB(A)
Hammer drilling in concrete: Standards series EN: 60745-2-6
Hammer drilling in concrete: A-weighted sound pressure level, LpA: 90.00 dB(A)
**images for illustrative purposes only – please refer to description and specification for full details of product**
