Festool ISC 240 EB-Basic 18V Brushless Insulation Material Saw Body Only In Systainer - 577231
Festool ISC 240 EB-Basic 18V Brushless Insulation Material Saw Body Only In Systainer - 577231

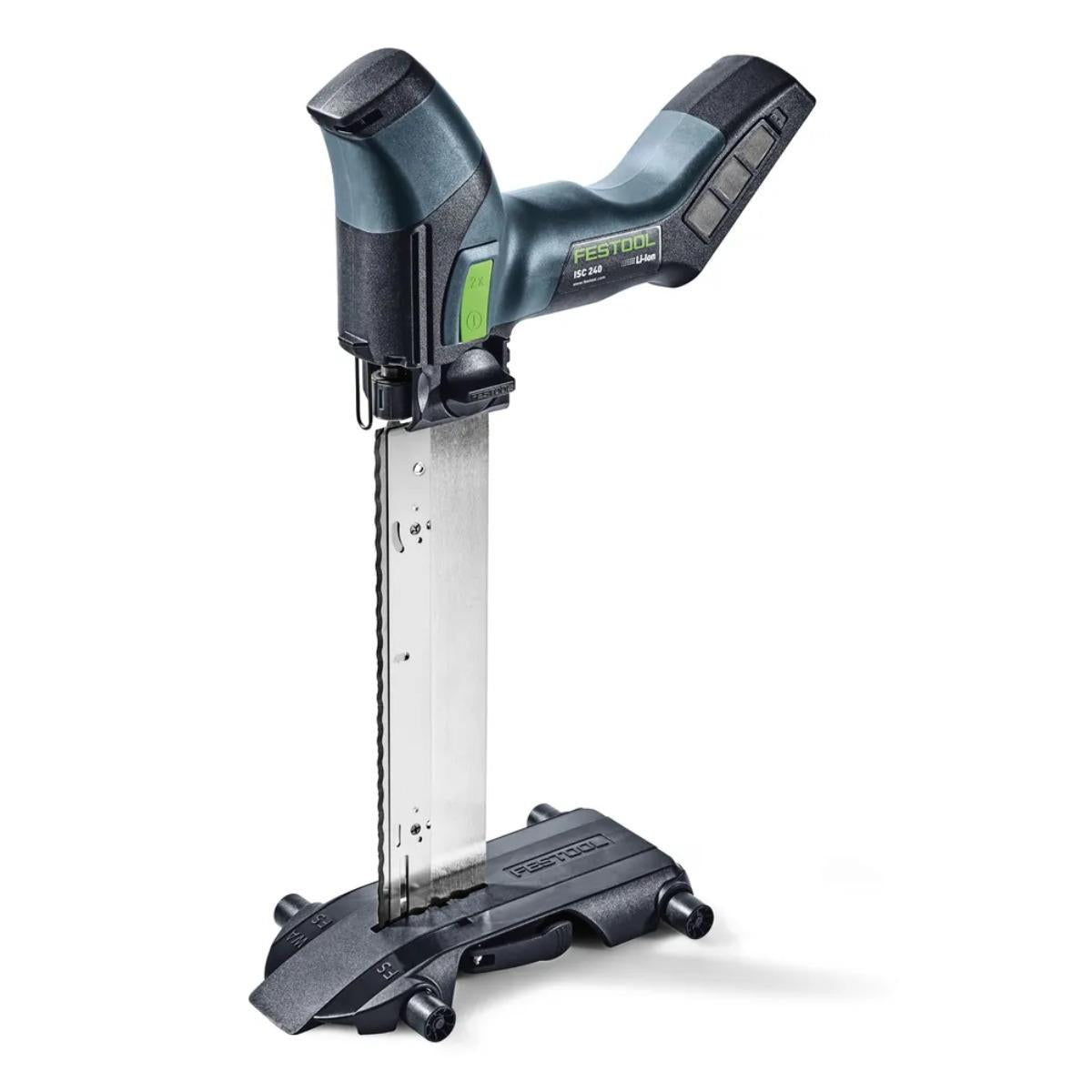

The Festool ISC 240 EB-Basic is a cordless 18V insulation material saw designed for fast and precise cutting of mineral wool, natural-fibre insulation, PUR and polystyrene boards. Its brushless EC-TEC motor delivers 3,000 strokes per minute with a 26mm stroke length. The saw provides a 240mm standard cutting depth, while suitable cutting sets can handle insulation up to 350mm thick. Supplied in a Systainer with cutting set, adapter table and guide rail slide; battery and charger are not included.
Features:
Perfectly coordinated cutting sets for precise and fast cutting of flexible mineral and natural fibre insulating materials as well as PUR insulating materials
For cutting material efficiently: With the guide rail and angle stop (available in a set or as accessories), reproducible angled cuts can be made with precise dimensions
Work without tiring thanks to a perfectly balanced design and low weight – for maximum comfort when working, even in one-handed operation
Cut even the thickest insulating materials effortlessly: Thanks to the cutting set for cutting depths up to 350 mm

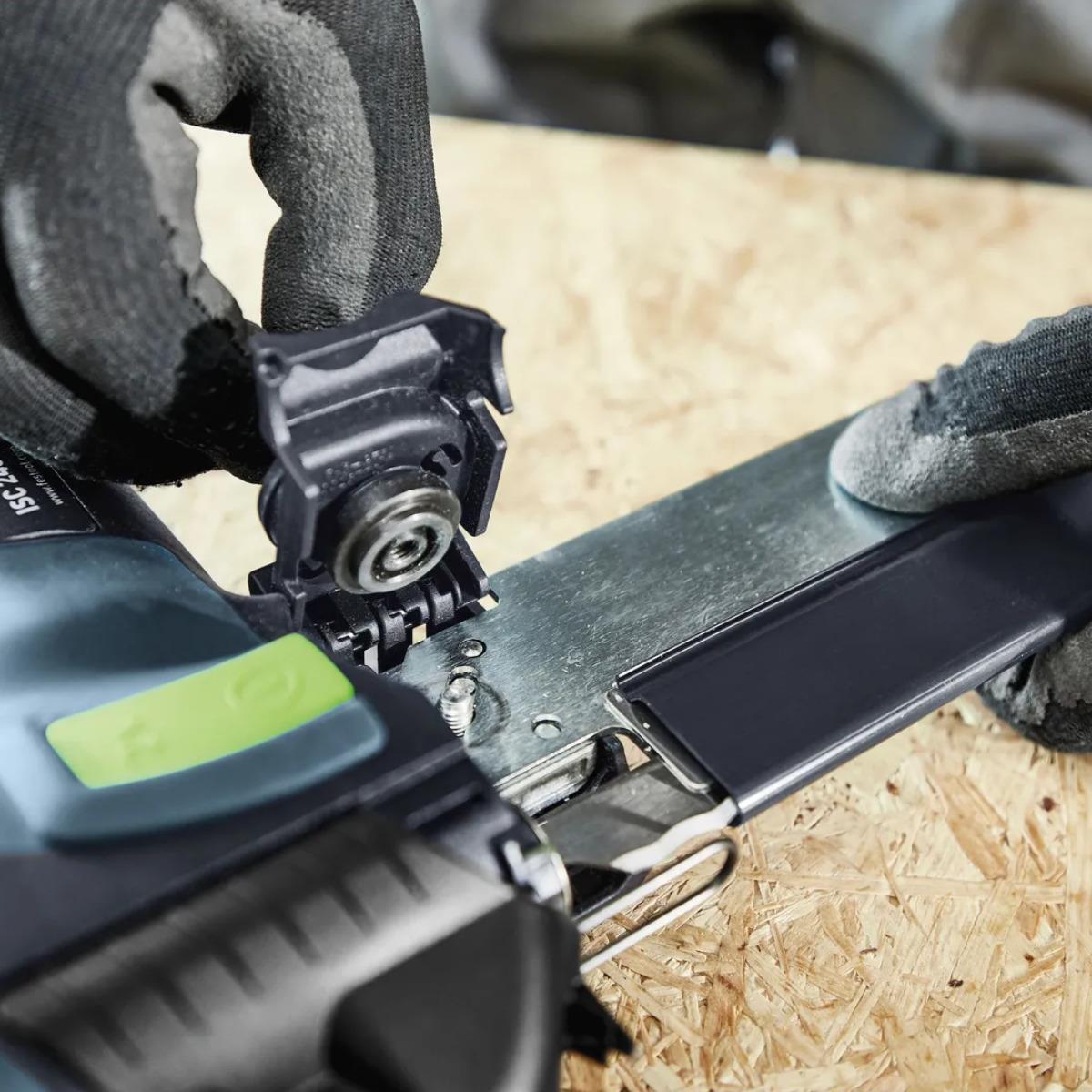

Replacement of the cutting sets without the need to use tools for efficient work adapted to the material
Ideal in combination with the Li-HighPower battery pack: Weighing not even 600 grams, it is both 20% lighter and 50% more compact than a 5.0 Ah standard battery pack
Main applications:

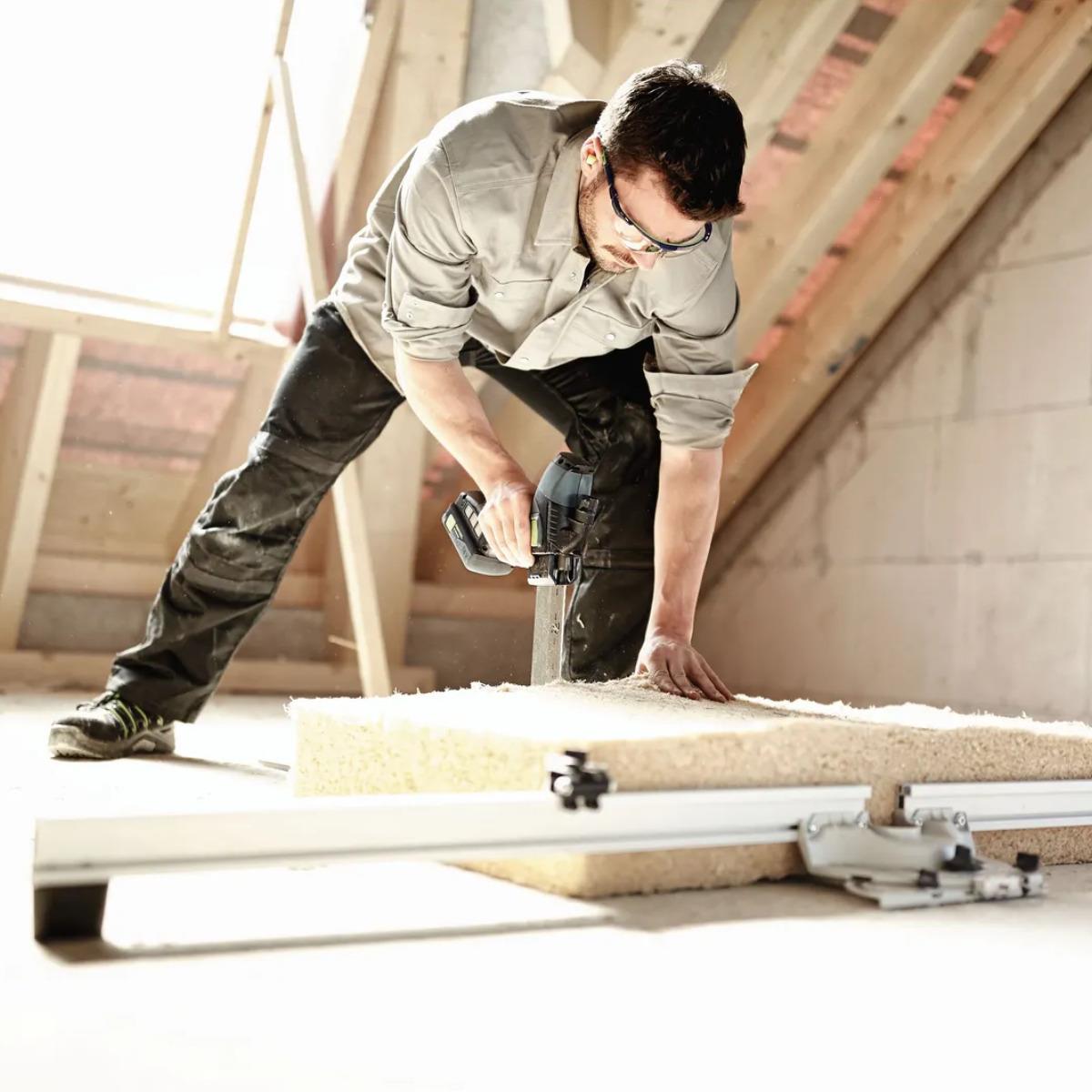

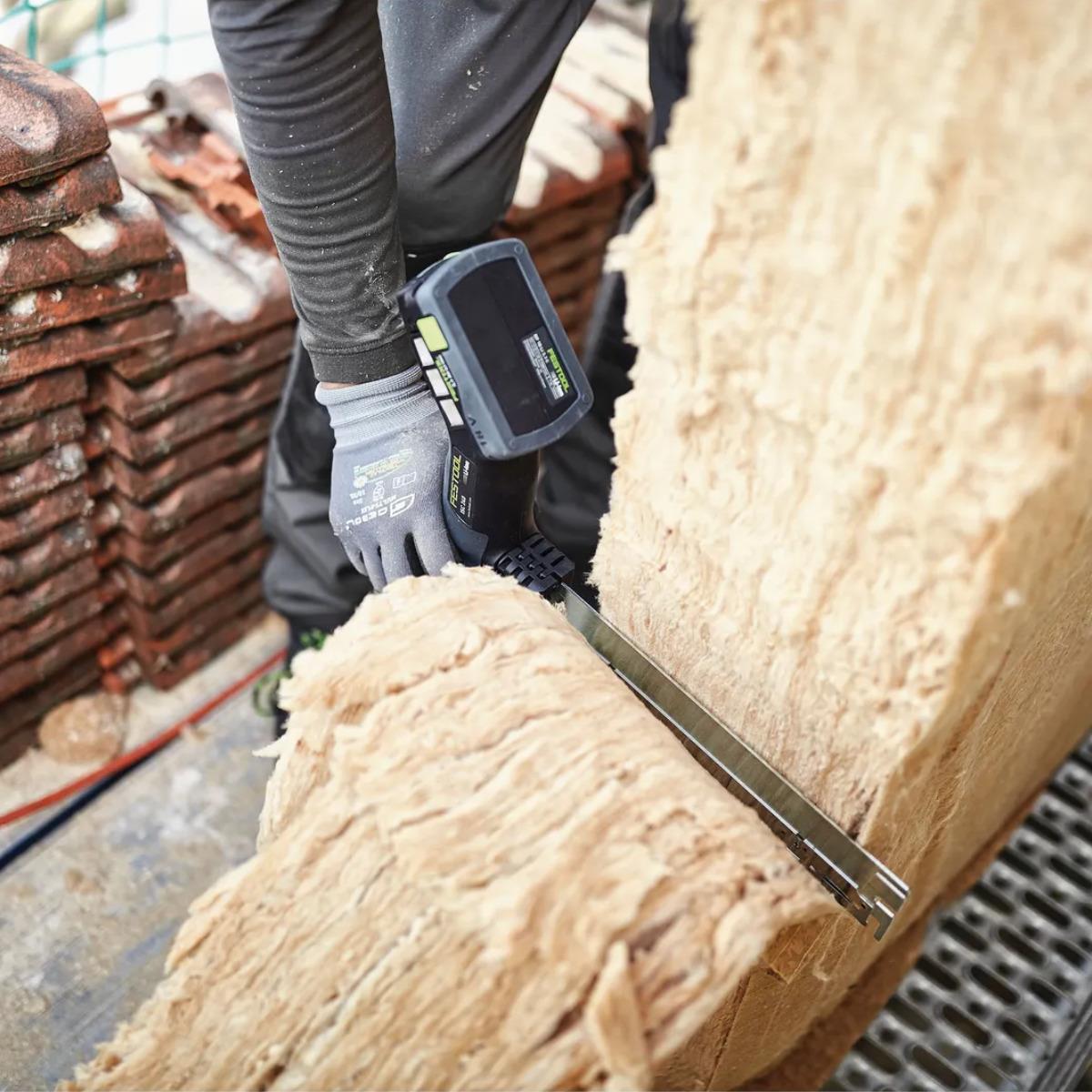

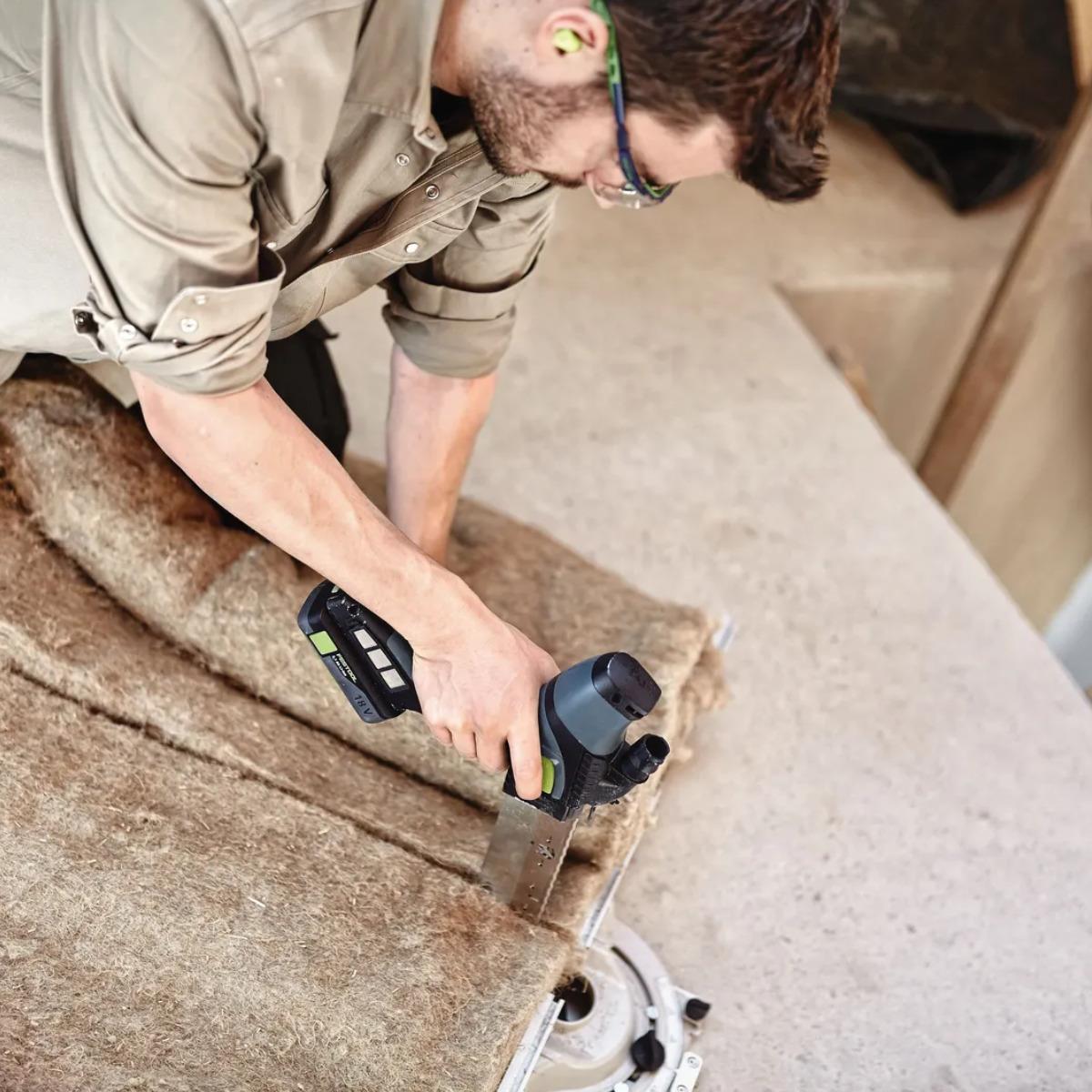

For cutting flexible insulating materials such as glass wool, rock wool and natural fibres (with serrated saw blade cutting set)

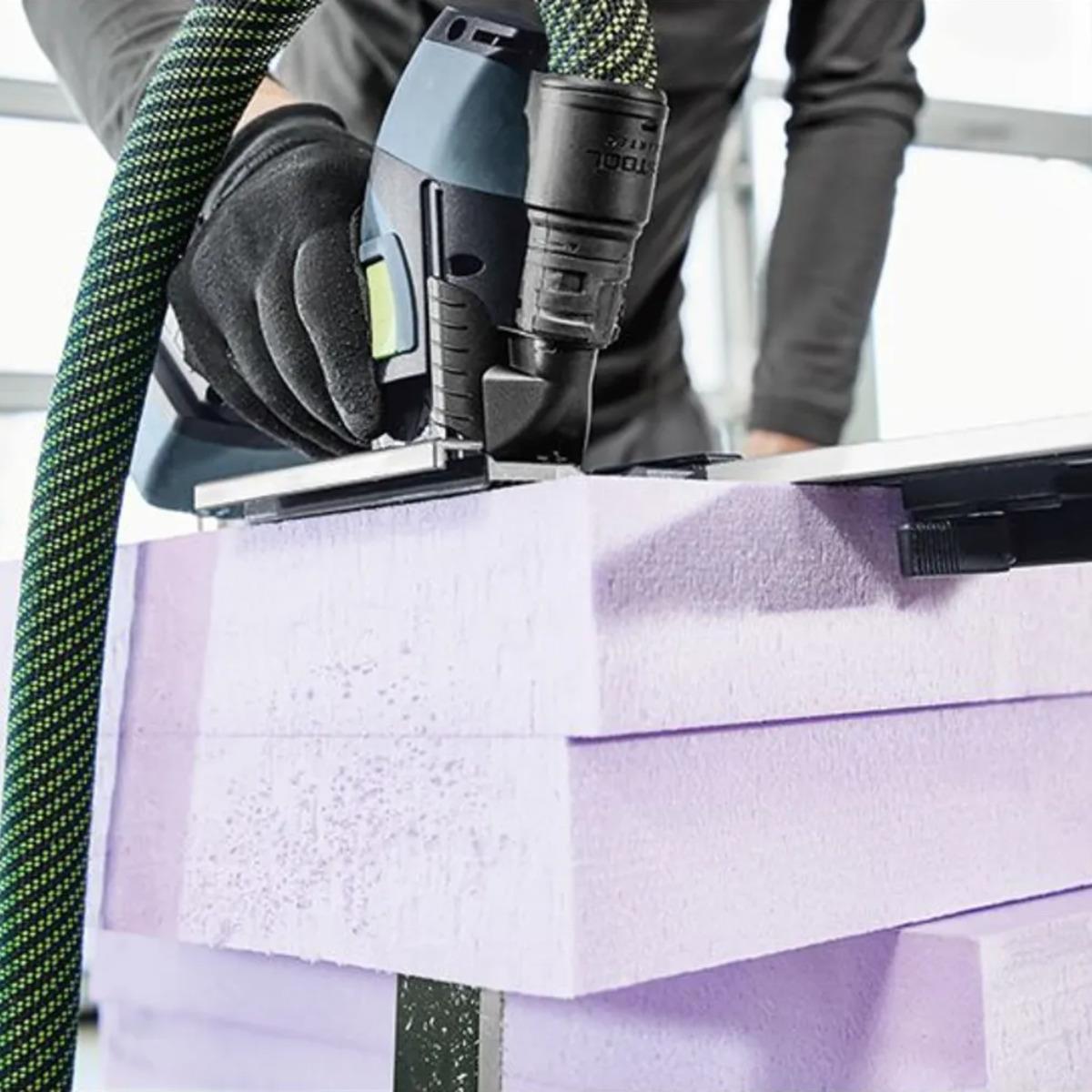

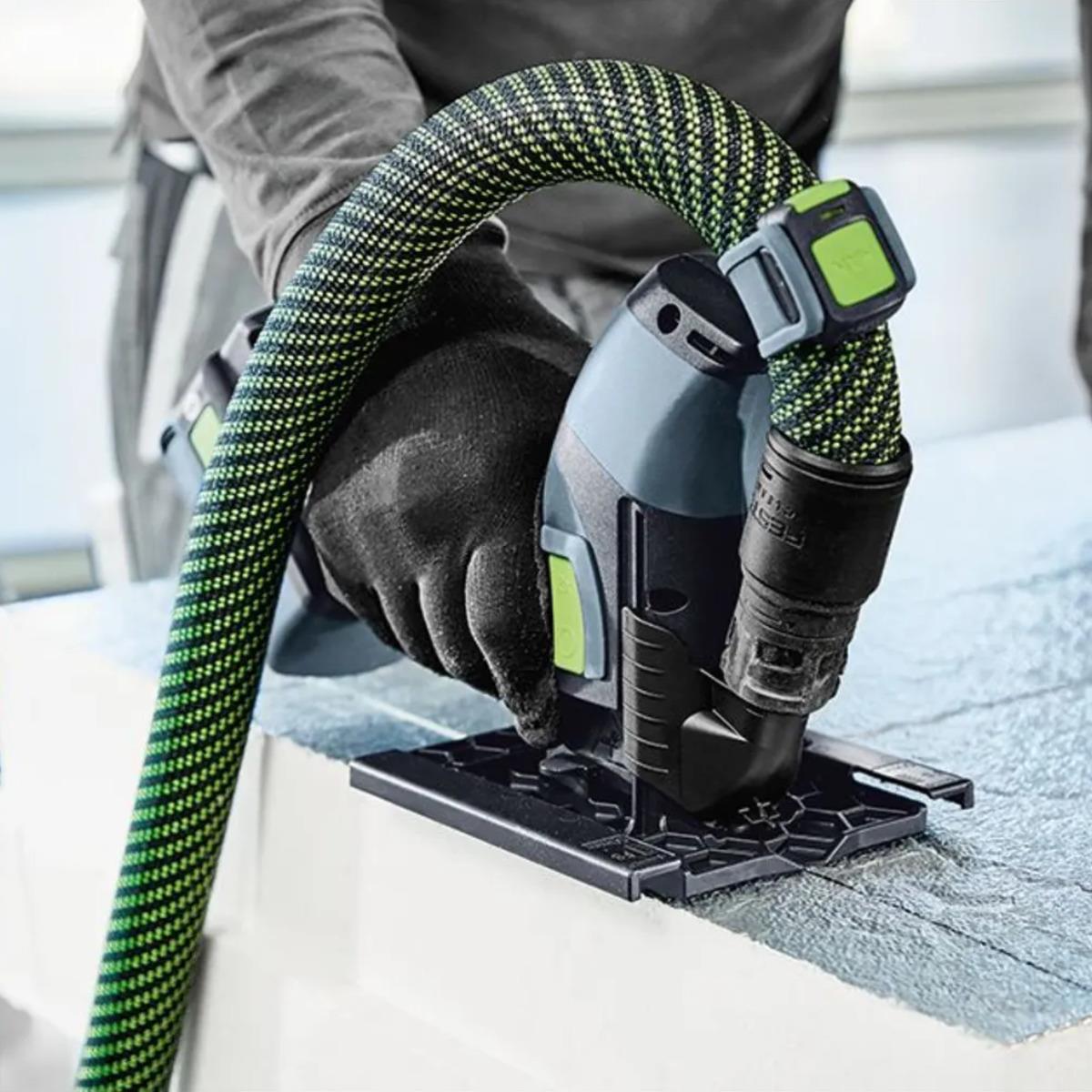

For cutting PUR (polyurethane hard foam) and polystyrene insulating boards (with cross-set saw blade cutting set)

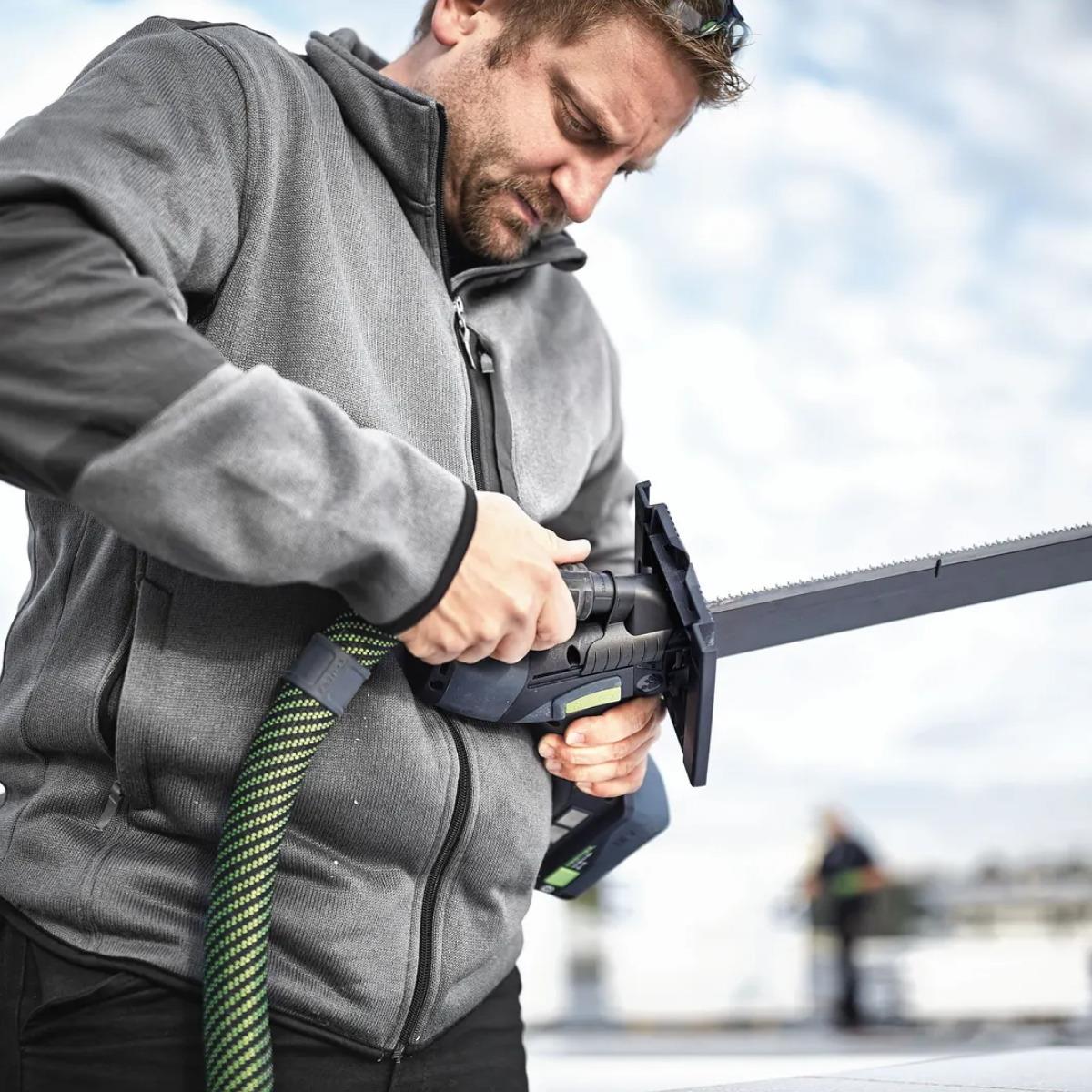

Cable-free cutting where there is no power connection or where this is difficult to access (e.g. outdoors, on scaffolding)
Ideal for mobile use in assembly applications

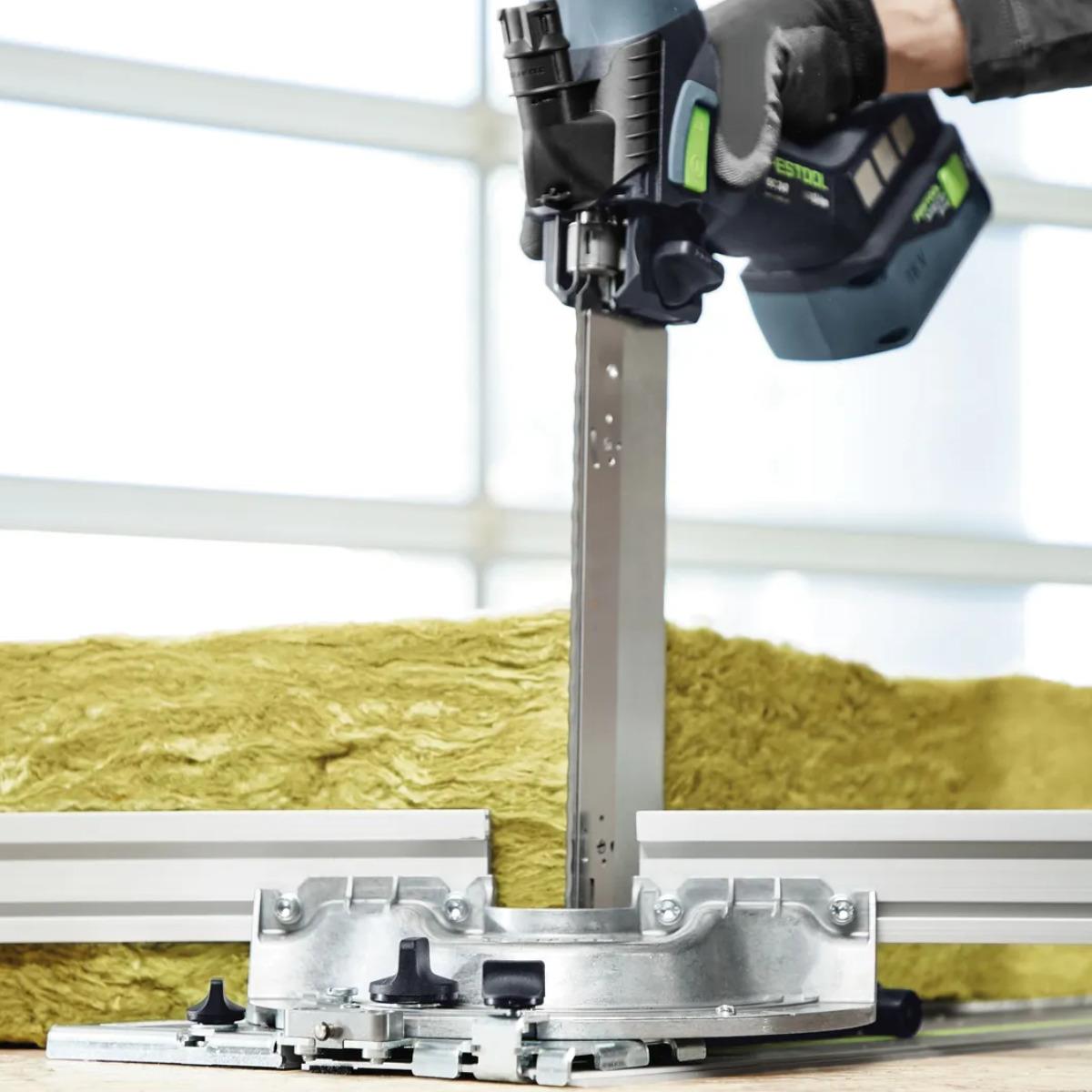

Cutting of flexible insulating materials with precise angles and accurate dimensions – when used together with the guide rail and the FS-WA-ISC angle stop
Alternate top bevel saw blade (W/PW)

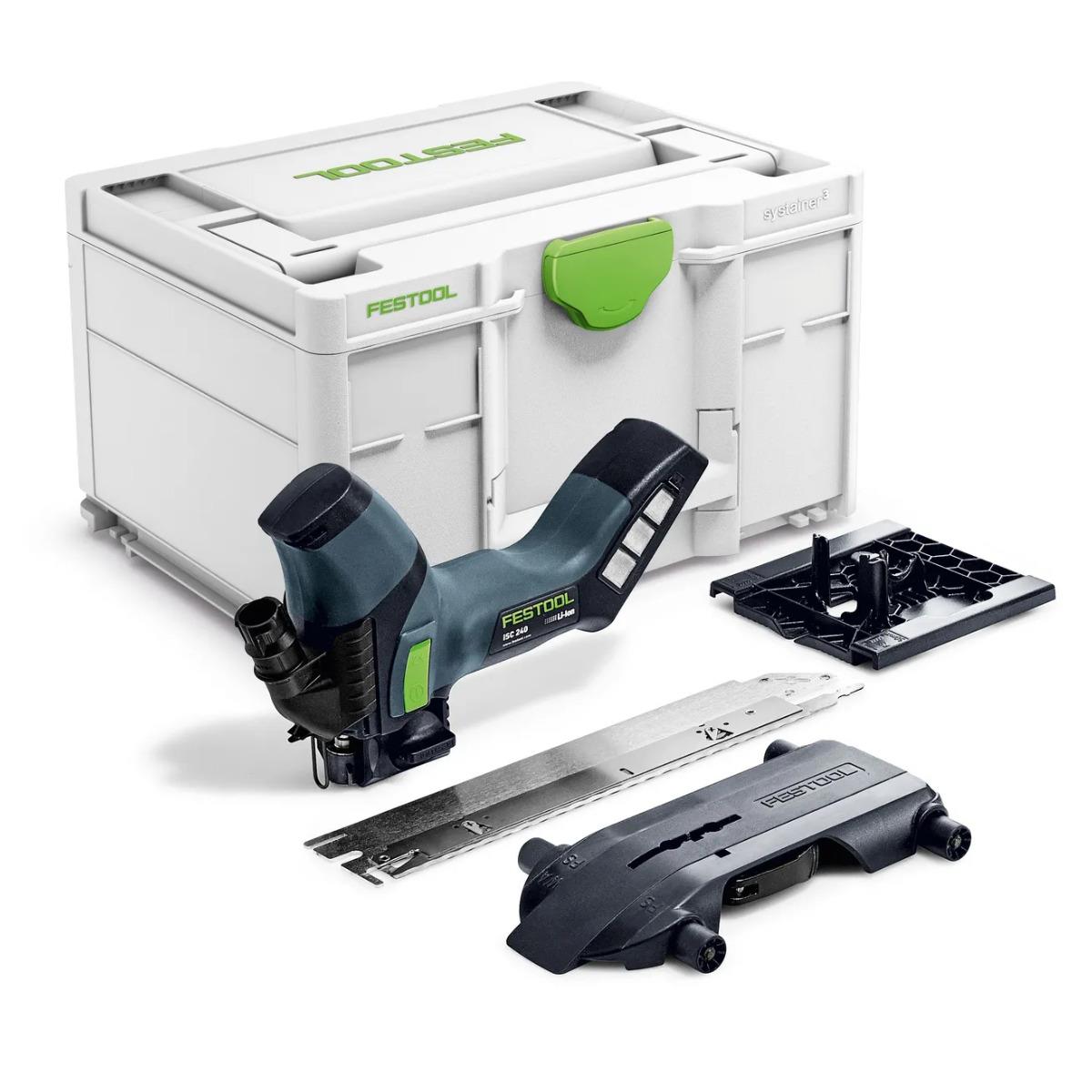

Comes With:
1 x SG-240/W-ISC Cutting set
1 x Adapter table (204160)
1 x Guide rail slide
1 x SYS3 M 237 Systainer
Product Specification:
Part Number: 577231
Barcode: 4014549401941
Battery voltage (rated voltage): 18 V
Stroke rate: 3,000.00 min⁻¹
Cutting depth: 240 mm
Stroke length: 26.00 mm
Dust extraction connection diameter: 27 mm
Drive type: Battery
Transport weight incl. accessories: 4.71 kg
Product weight without accessories: 1.40 kg
Sound and vibration
Sawing flexible mineral wool: Uncertainty (vibration) K: 2.00 m/s²
Sawing flexible mineral wool: Total vibration average, Ah: 2.50 m/s²
Sawing flexible mineral wool: Standards series EN: 62841-2-11
Sawing flexible mineral wool: A-weighted sound power level, LWA: 97.00 dB(A)
Sawing flexible mineral wool: A-weighted sound pressure level, LpA: 89.00 dB(A)
Sawing flexible mineral wool: Uncertainty (noise) K: 5.00 dB
Sawing PUR: Standards series EN: 62841-2-11
Sawing PUR (350 mm): Total vibration average, Ah: 8.50 m/s²
Sawing PUR: Uncertainty (noise) K: 5.00 dB
Sawing PUR (240 mm): Total vibration average, Ah: 4.50 m/s²
Sawing PUR (240 mm): Uncertainty (vibration) K: 2.00 m/s²
Sawing PUR: A-weighted sound pressure level, LpA: 89.00 dB(A)
Sawing PUR (350 mm): Uncertainty (vibration) K: 5.00 m/s²
Sawing PUR: A-weighted sound power level, LWA: 97.00 dB(A)
