Festool TDC 18/4-Basic QUADRIVE 18V Brushless Drill Driver Body Only In Systainer - 577223
Festool TDC 18/4-Basic QUADRIVE 18V Brushless Drill Driver Body Only In Systainer - 577223

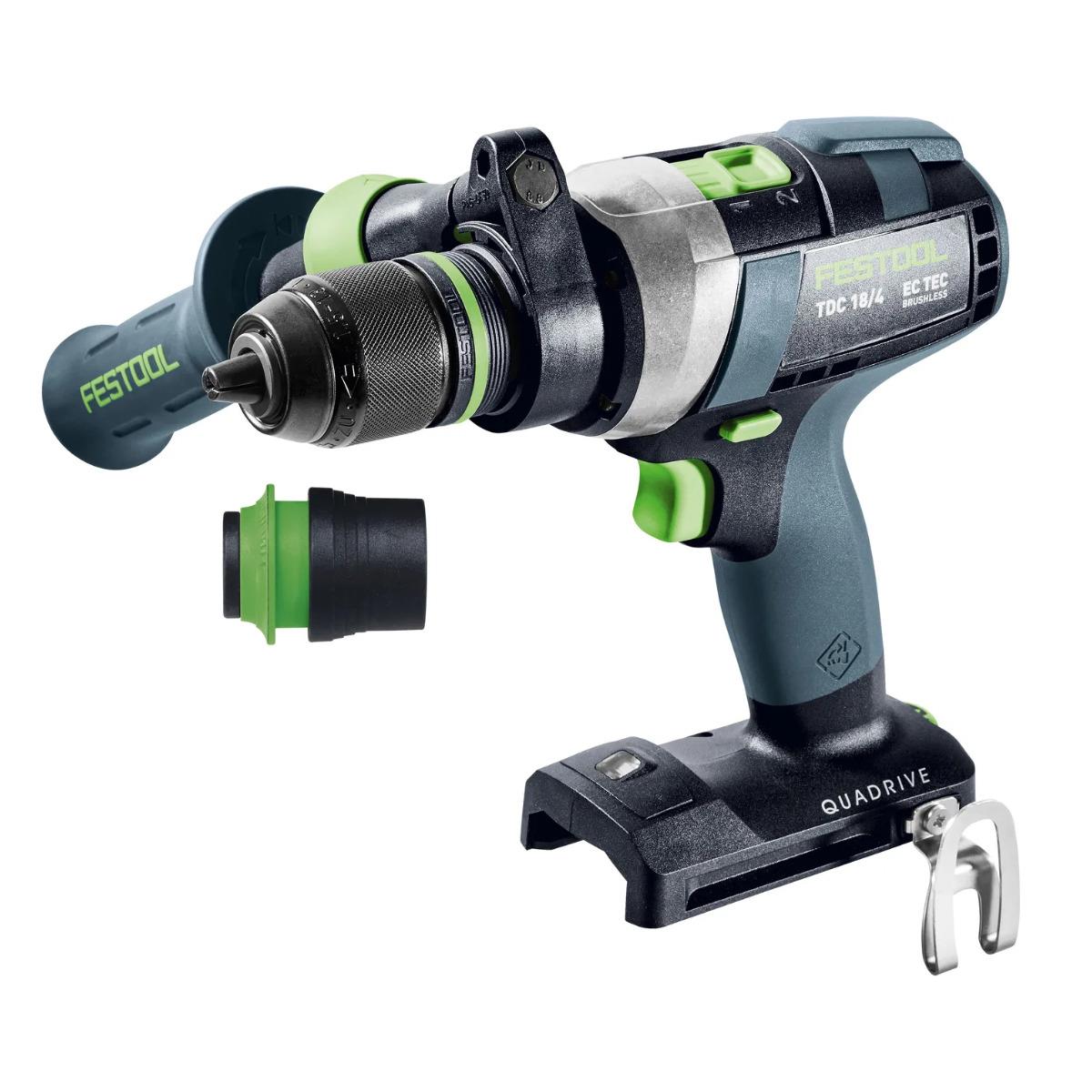

The Festool DWC TDC 18/4-Basic QUADRIVE is a powerful 18V cordless drill driver featuring a brushless EC-TEC motor and robust four-speed metal gearbox. It delivers up to 75Nm maximum torque and speeds up to 3,600rpm for demanding drilling and screwdriving applications. The FastFix interface allows quick, tool-free attachment changes, while electronic KickbackStop helps reduce the risk of wrist twisting if the drill jams. Supplied in a Systainer with CENTROTEC chuck, keyless chuck, auxiliary handle and other accessories; battery and charger are not included.
Features:
Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear

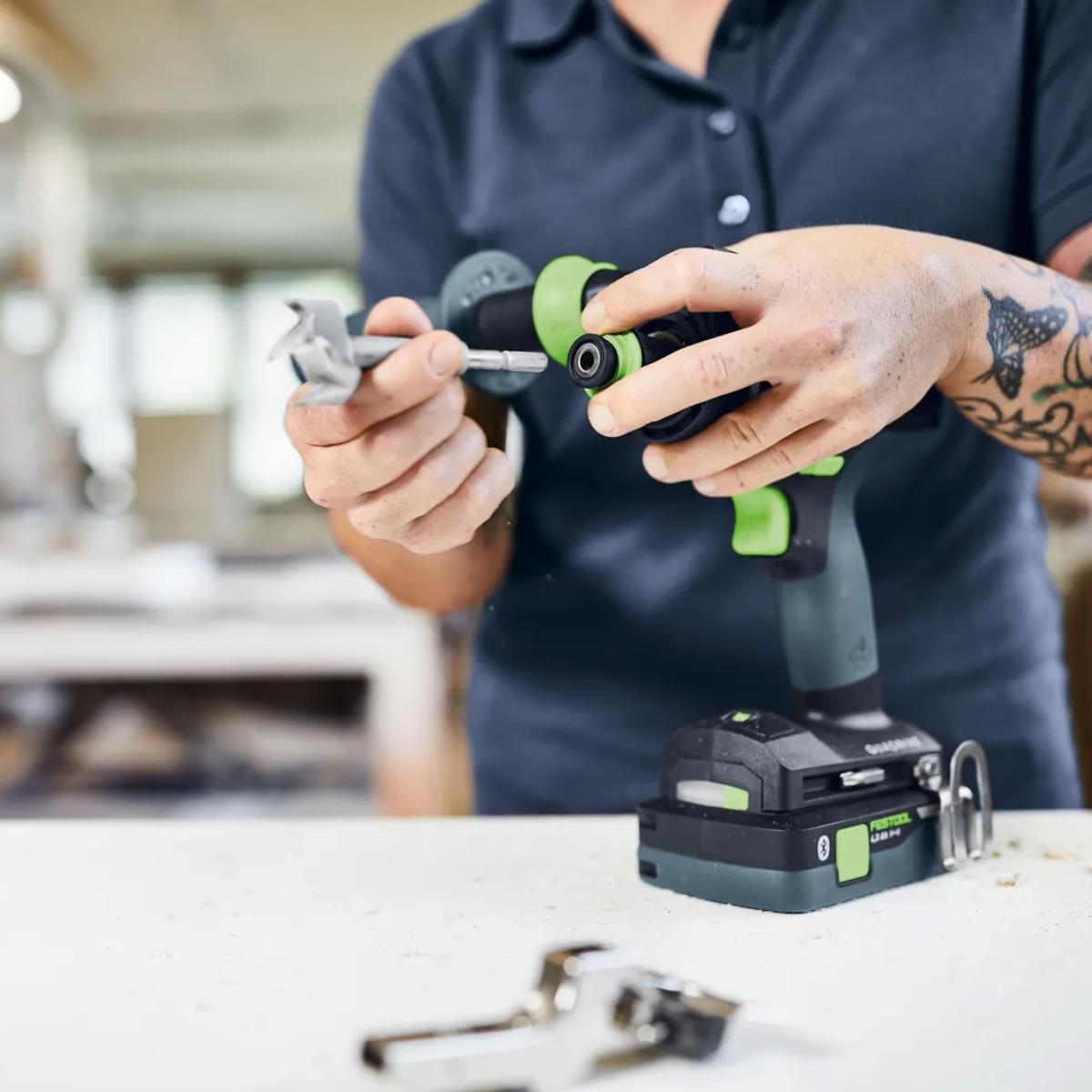

Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
Mobile: The QUADRIVE comes in a Systainer and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site
Main Applications:
Production of wooden substructures, frame structures
Installation of doors and windows

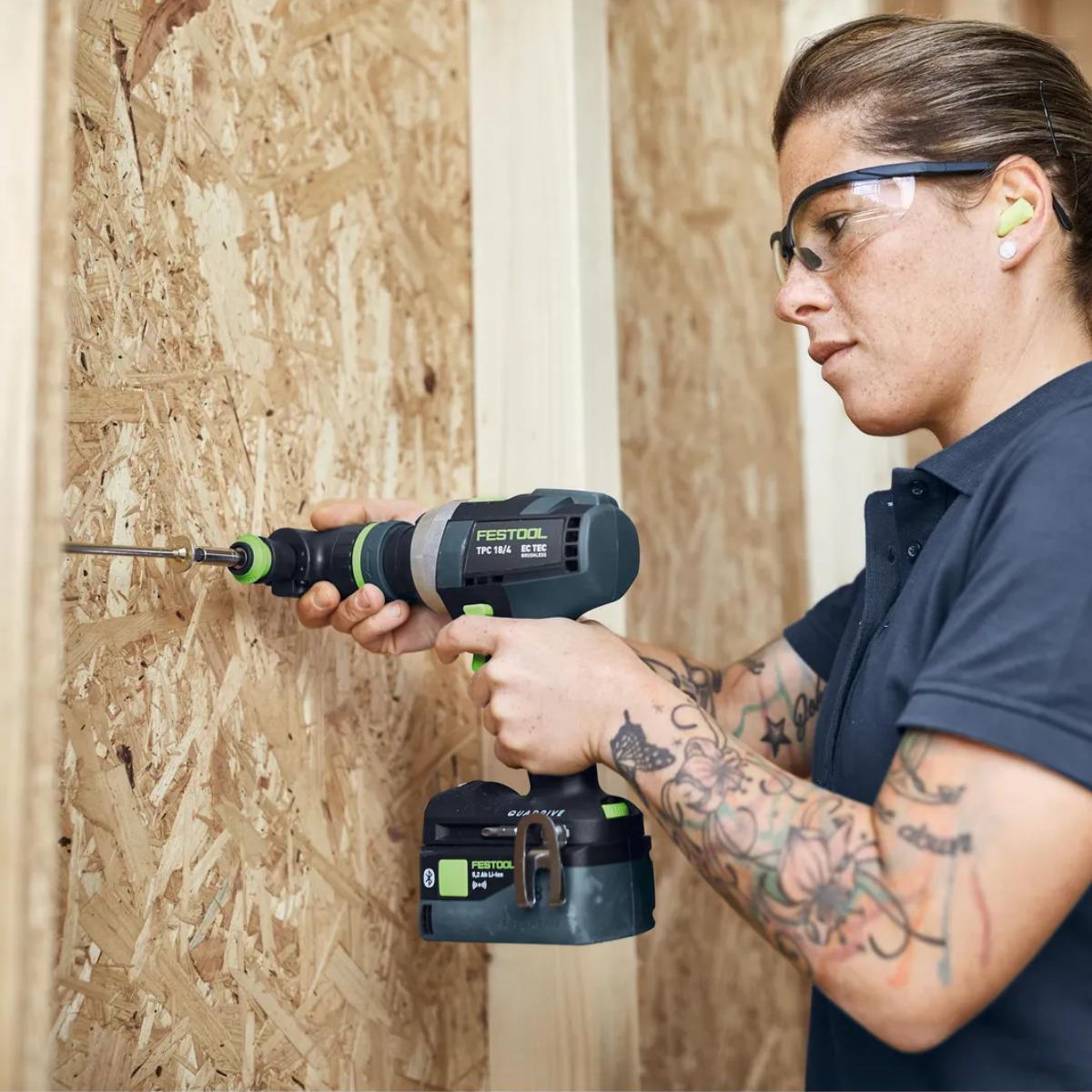

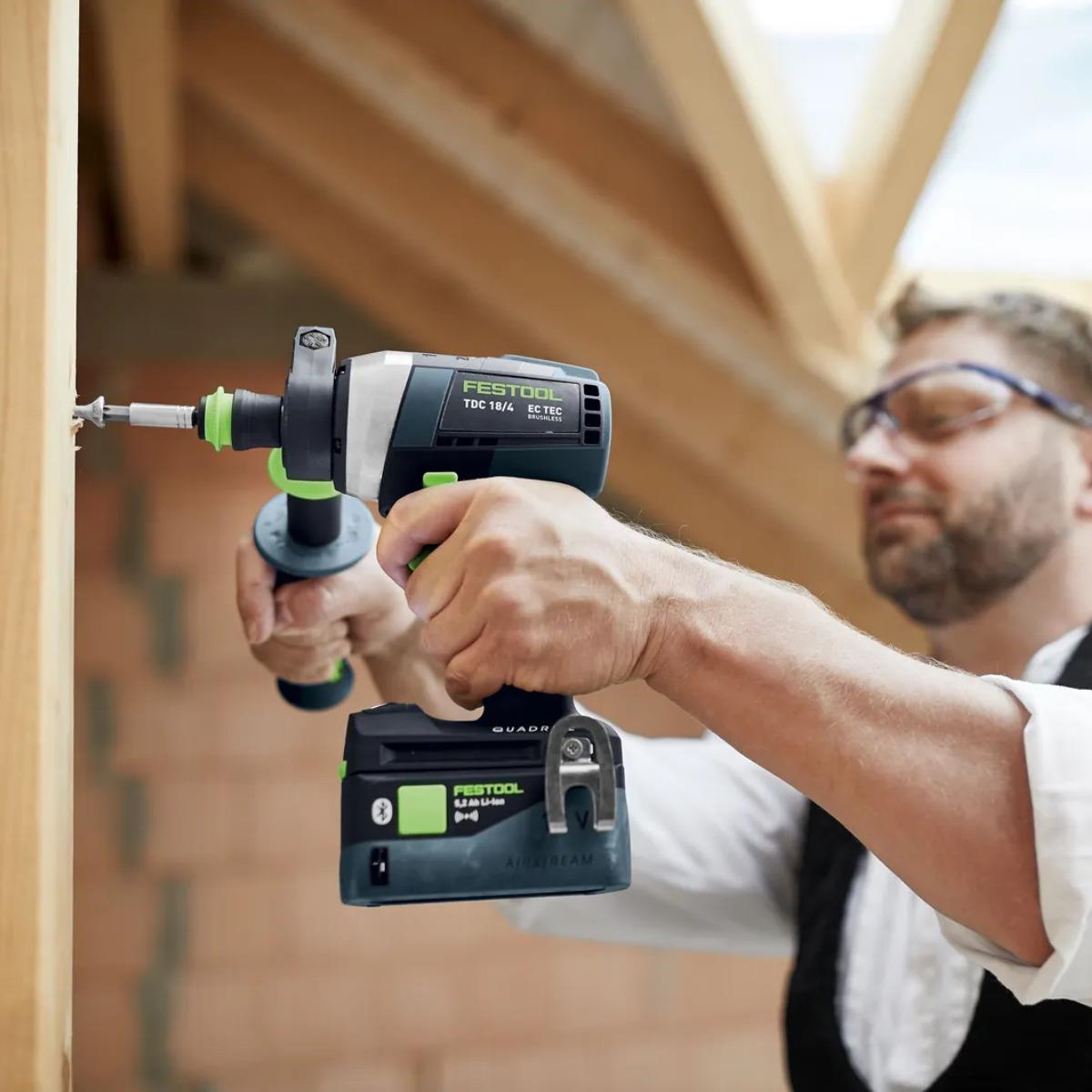

Drilling and screwdriving in wood, metal and plastic

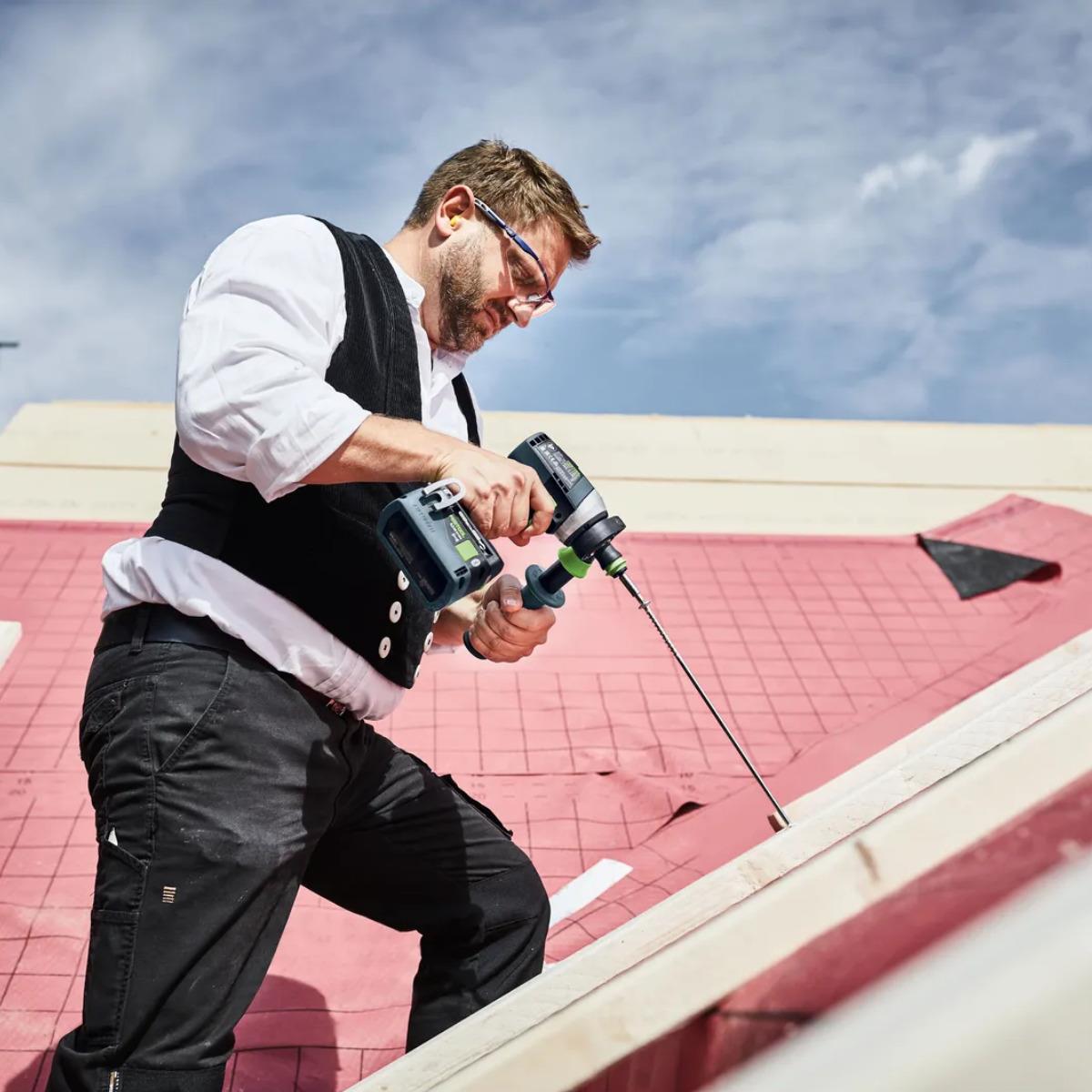

Drive screws into wood up to 10x300 mm

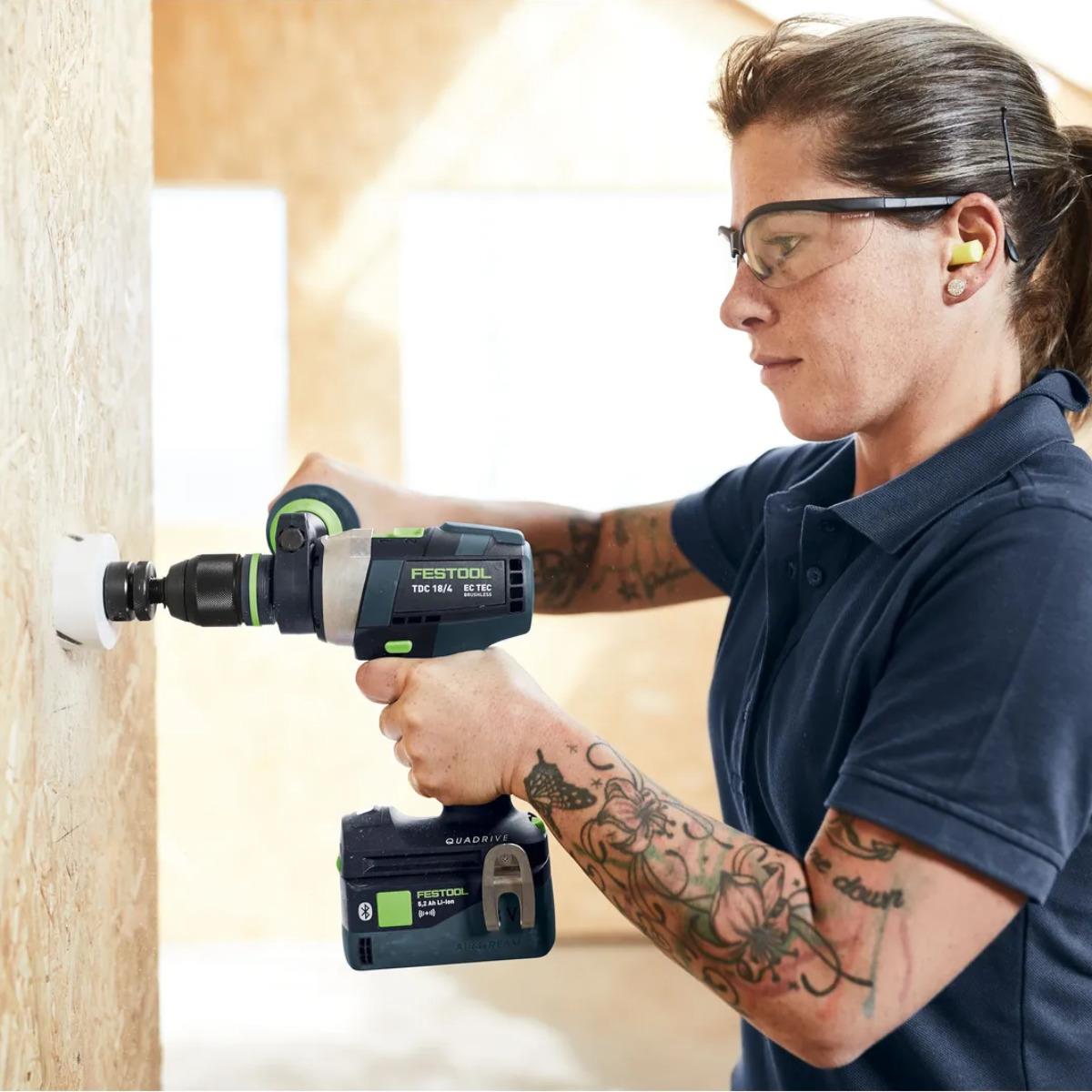

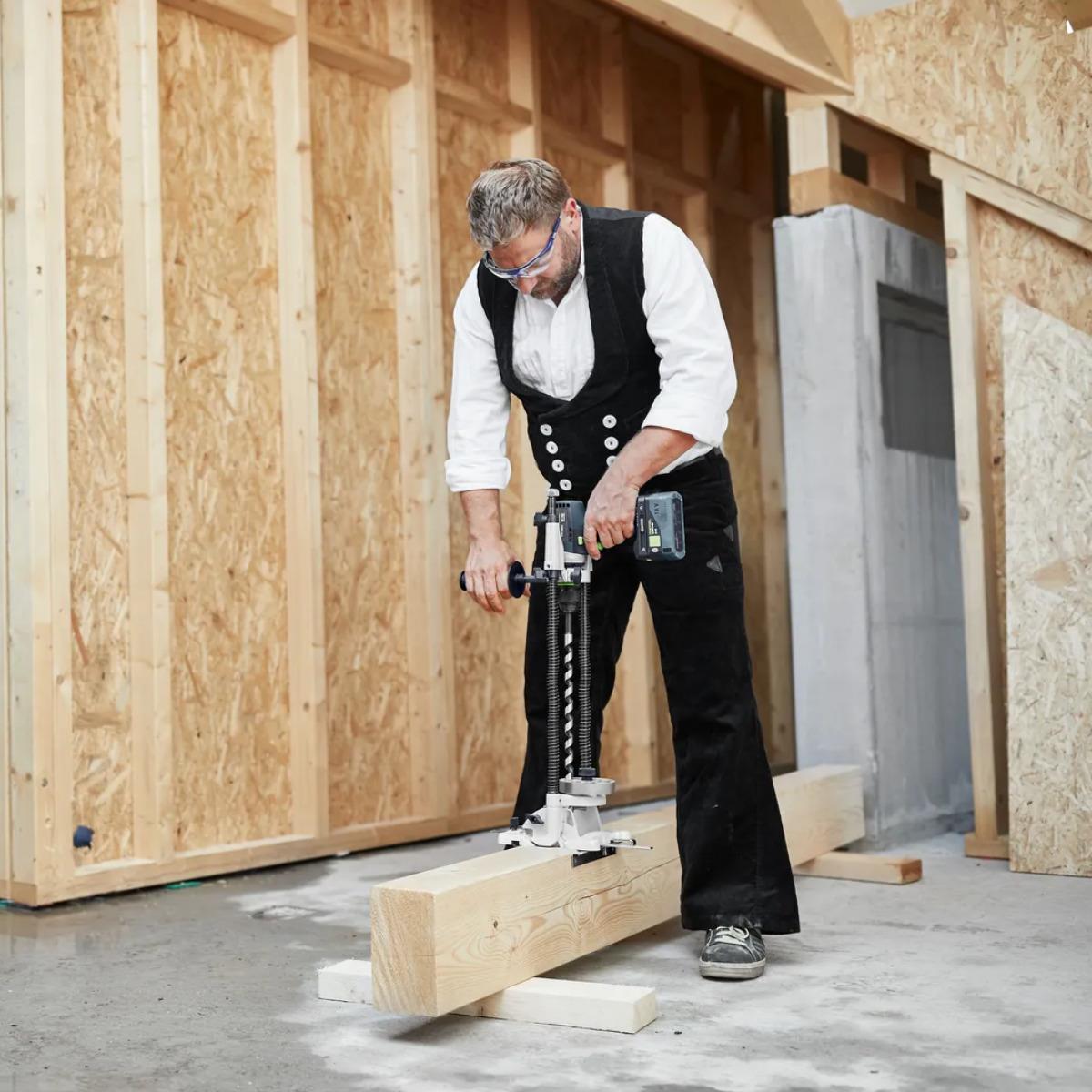

Drilling in wood up to 70 mm with Forstner drill bits

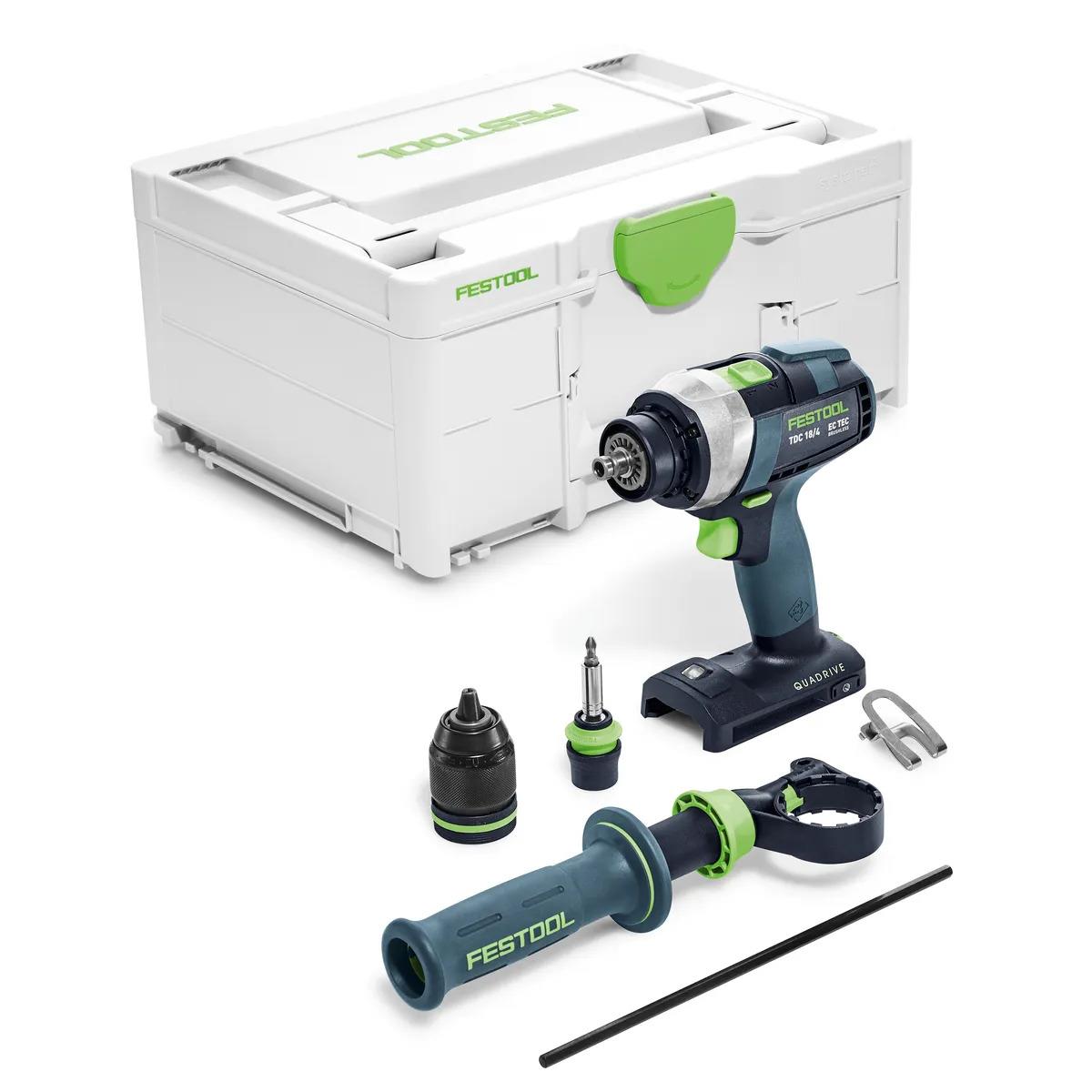

Comes With:
1 x WH-CE CENTROTEC Tool chuck
1 x BH 60 CE-Imp Bit holder
1 x KC 13-1/2-MMFP Keyless chuck

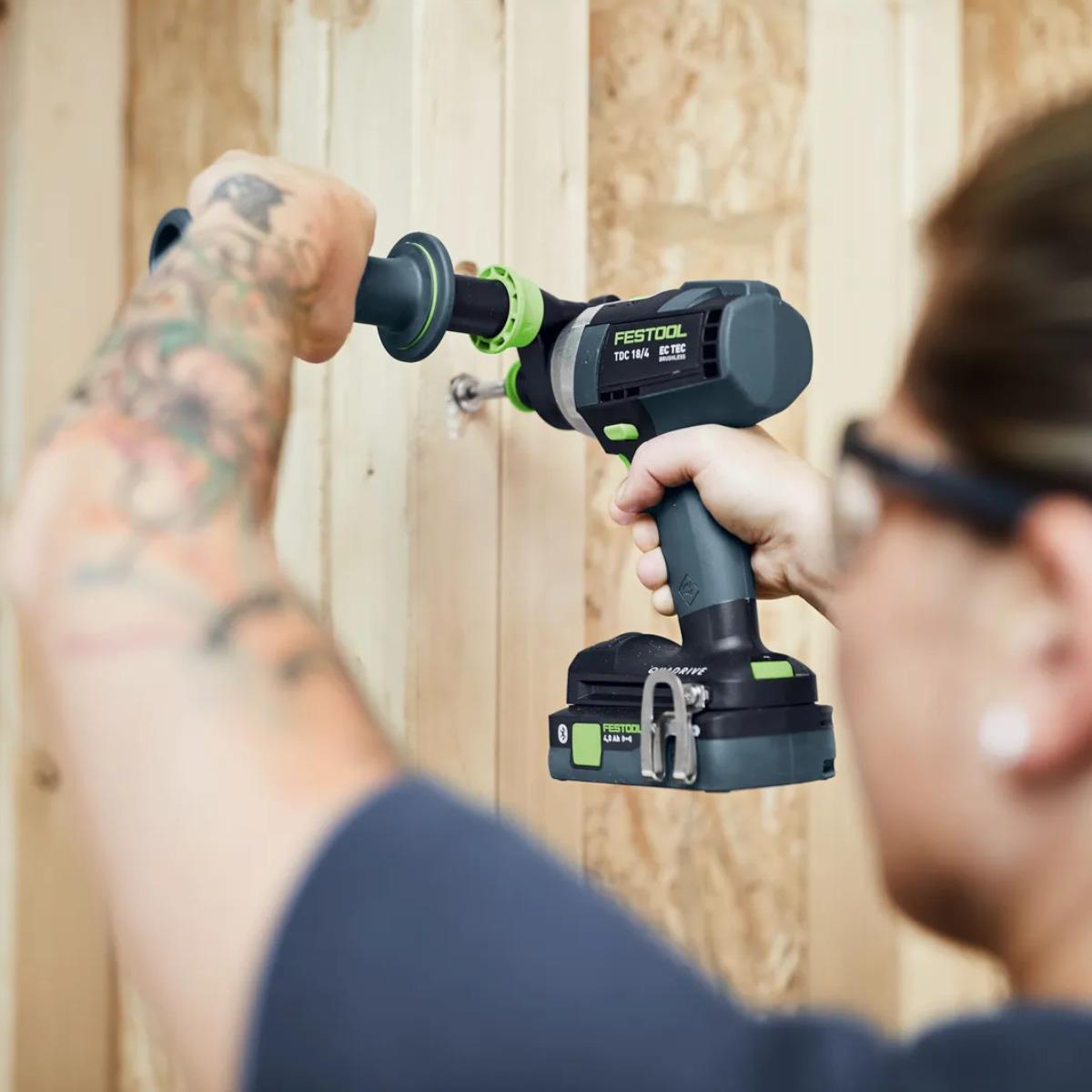

1 x AHS-43/230 Auxiliary handle
1 x PZ 2 Bit
1 x Belt clip
1 x SYS3 M 187 Systainer
Product Specification:
Part Number: 577223
Barcode: 4014549401934
Battery voltage: 18 V
Gears: 4
Idling speed, 1st gear/2nd gear: 0 - 500/0 - 800 min⁻¹
Idling speed, 3rd/4th gear: 0 - 2350/0 - 3600 min⁻¹
Drilling diameter, wood/steel: 70/13 mm
Torque adjustment 1st/2nd gear: 2 - 20/2 - 20 Nm
Max. torque, wood/steel: 50/75 Nm
Chuck range: 1.5 - 13 mm
Transport weight incl. accessories: 4.22 kg
Product weight without accessories: 1.20 kg
Drive type: Battery
Sound and vibration
Drilling in metal: Total vibration average, Ah: 3.00 m/s²
Drilling in metal: Standards series EN: 62841
Drilling in metal: Uncertainty (noise) K: 5.00 dB
Drilling in metal: Uncertainty (vibration) K: 1.50 m/s²
Drilling in metal: A-weighted sound pressure level, LpA: 76.00 dB(A)
Drilling in metal: A-weighted sound power level, LWA: 84.00 dB(A)
Fastening: Total vibration average, Ah: 2.50 m/s²
Fastening: Standards series EN: 62841
Fastening: Uncertainty (noise) K: 5.00 dB
Fastening: Uncertainty (vibration) K: 1.50 m/s²
Fastening: A-weighted sound pressure level, LpA: 76.00 dB(A)
Fastening: A-weighted sound power level, LWA: 84.00 dB(A)
