Festool TS 75 EBQ-Plus 230V GB Circular Plunge Cut Saw - 576114 With Mobile Dust Extractor 578321
Festool TS 75 EBQ-Plus 230V GB Circular Plunge Cut Saw - 576114 With Mobile Dust Extractor 578321
Features:

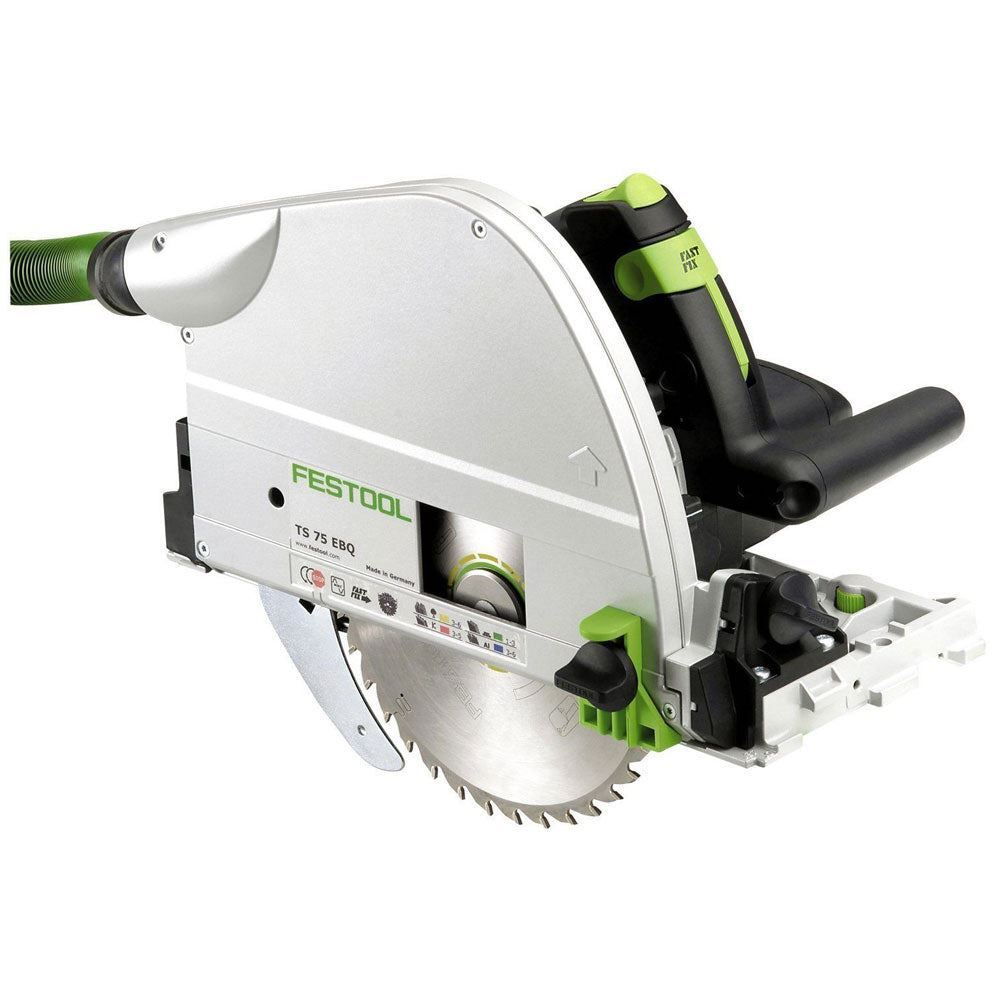

Festool 576114 Circular Plunge Cut Saw:
75 mm cutting depth for even more application possibilities
Attachable splinterguard for high-quality working results
FastFix: quick and easy saw blade changing and adapting to the working material
Quick-acting brake system for safe, convenient sawing
Safe and convenient – with sliding clutch and KickbackStop
Spring-loaded spacer wedge for unhindered plunge cuts
Tool-less play setting on the guide rail
Areas of application:
Accurately cutting false floors to size
Cutting and machining conservatory profiles
Cutting cable ducts to length cleanly and easily
Cutting house doors to length using guide rail and circular saw
Cutting multilayered boards
Precise circular in materials up to 75 mm thick

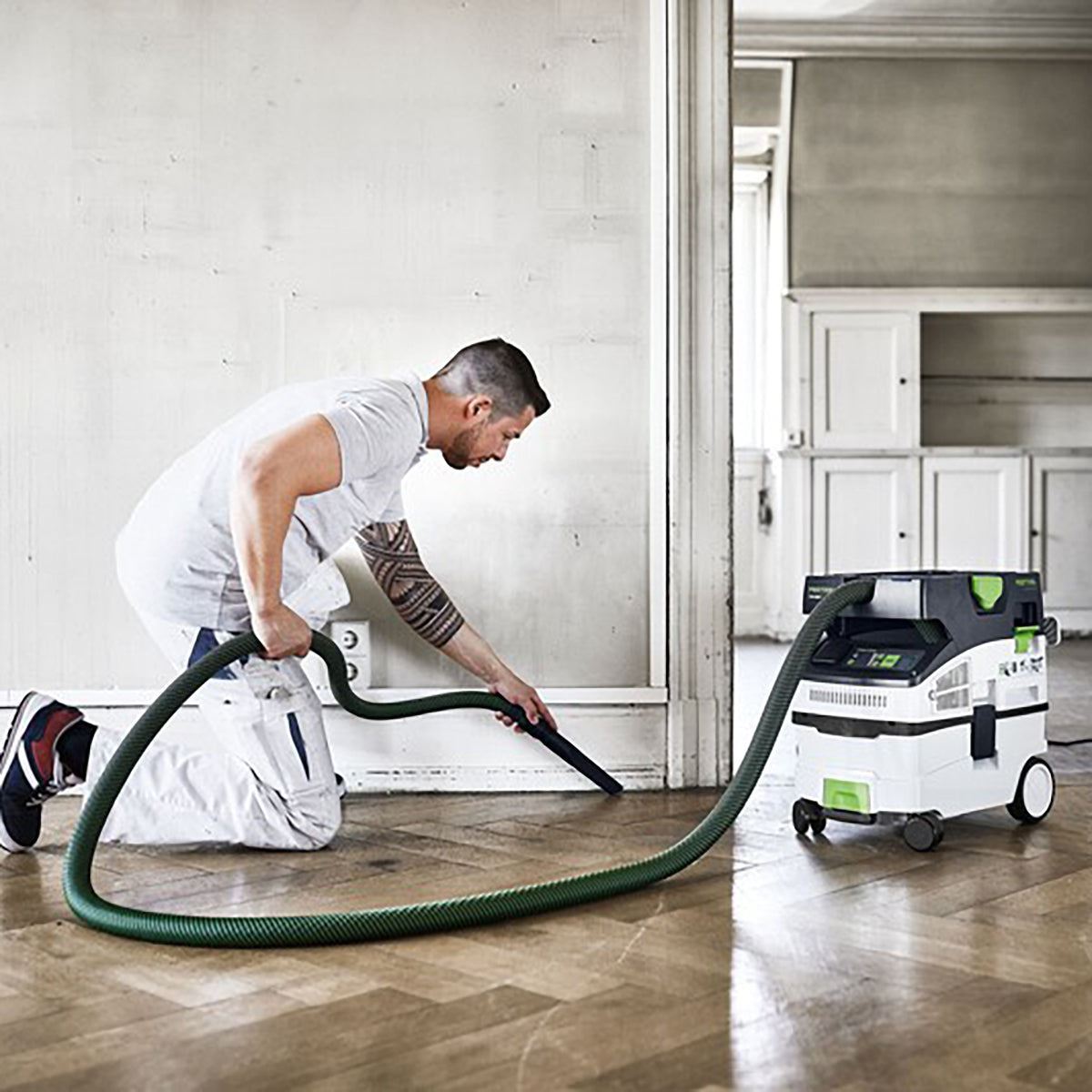

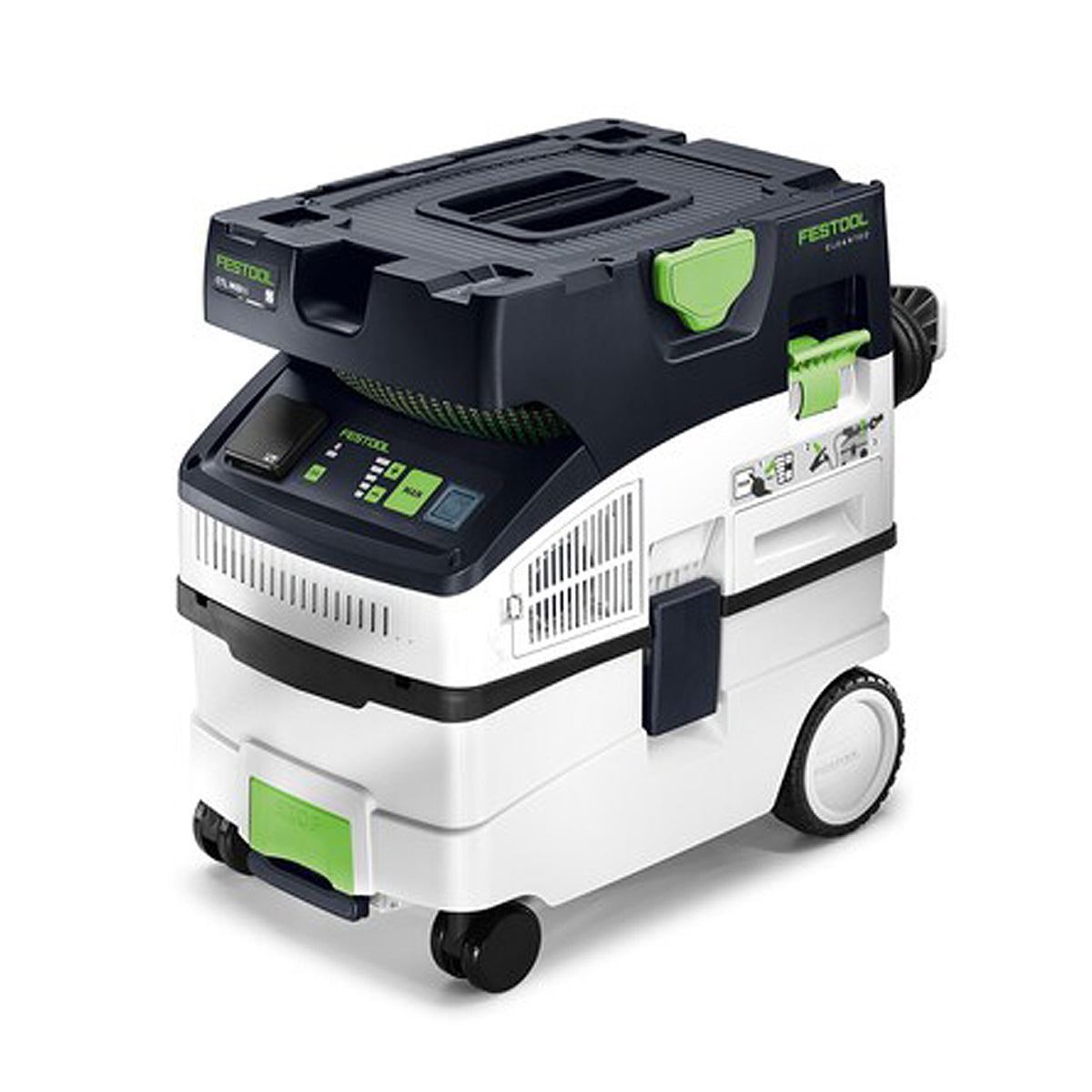

Festool 578321 Mobile Dust Extractor:
Antistatic function: Prevents static developing during work.
Approval: Dust category L
Automatic electrical outlet module: For corded power tools. Starts up the power tool and automatically starts up your extractor too.
Clever: Simple replacement of the main filter from the outside.
Convenient: T-LOC function makes it easy to install Systainers on the mobile dust extractor.
Flat storage area: Ideal for storing tools and working materials
Gross equals net: Maximum container volume utilisation
Intuitive: Touch operation for intuitive control of the extractor.
Manual dedusting: Keep working until the filter bag is full thanks to manual dedusting
Mobile: Ideal for use on the go thanks to compact dimensions, low weight and robust chassis.
Neat and tidy: Hose holder and cable winder for greater tidiness and safety
Powerful: Consistently high suction power thanks to compact high-performance turbine – can be set to five levels.
Smart: The integrated Bluetooth® technology starts the dust extractor automatically via Bluetooth® battery packs or remote control.
Smooth suction hose: with conical geometry for high suction power and seamless processes without catching.
Suitable for wet extraction: When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected
Areas of application:
For dust with limit values > 1 mg/m³
Ideal for mobile use in service and installation work and for final cleaning
On-site extraction for electric power tools for minor or brief sanding, routing, sawing and drilling work
Suitable for both wet and dry extraction (special wet filter required for wet extraction)

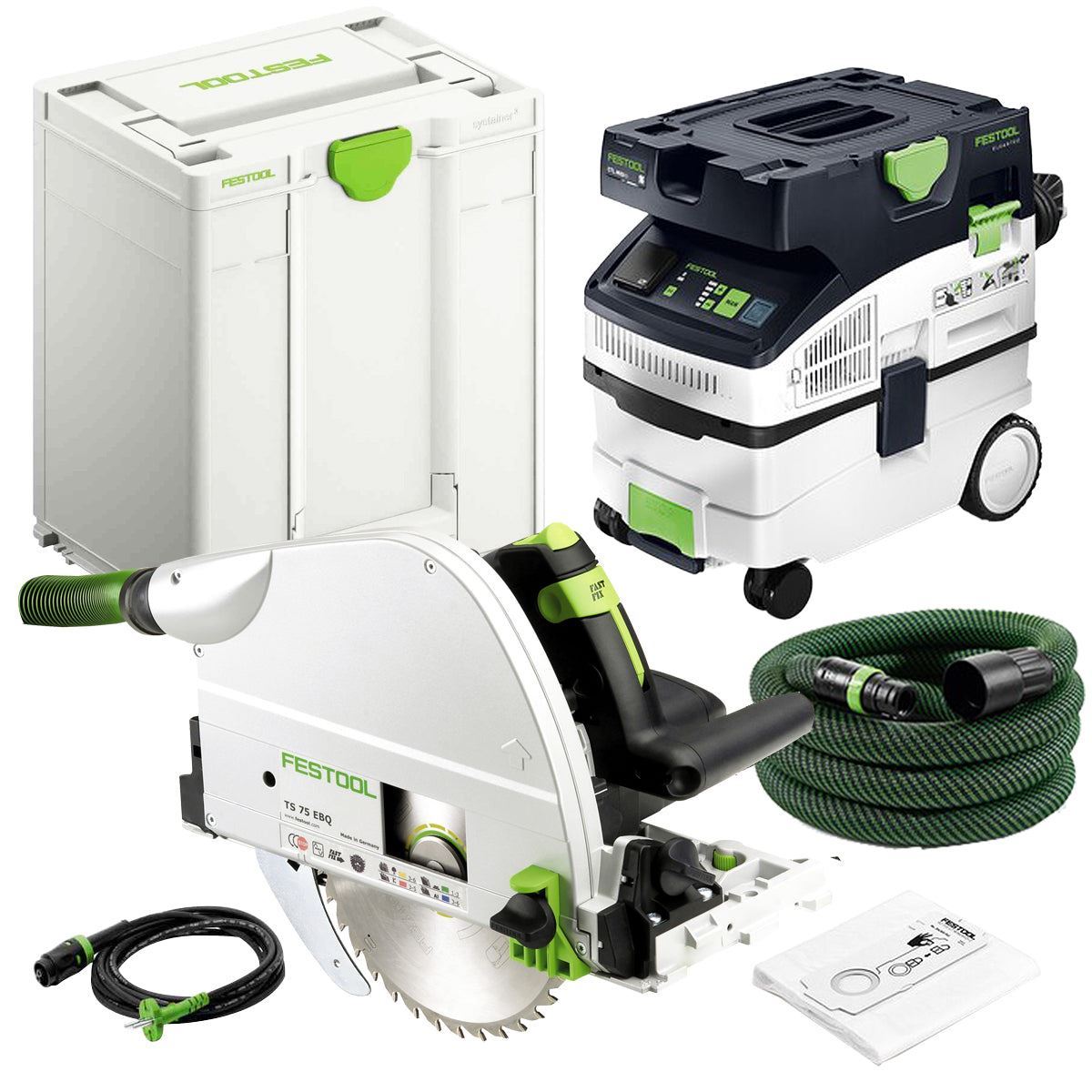

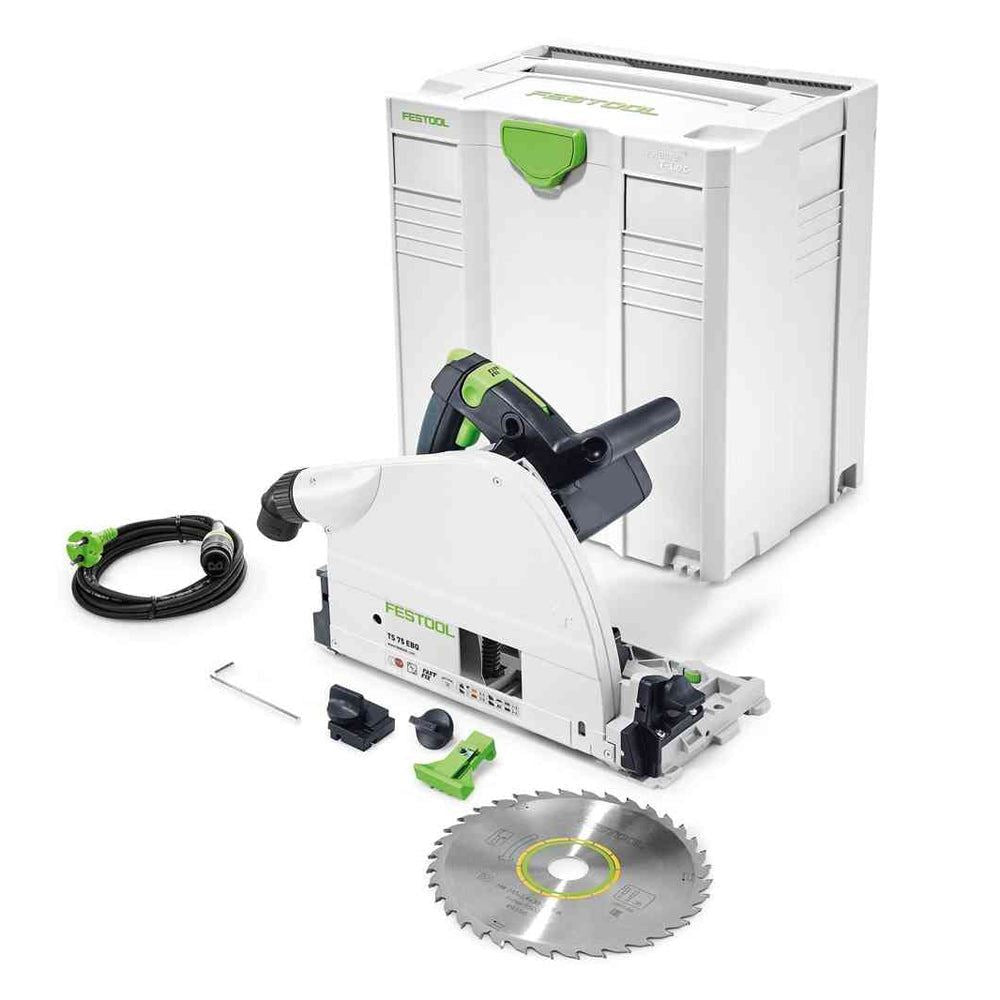

Comes With:
1 x Systainer SYS3 M 437
1 x Circular saw blade WOOD UNIVERSAL HW 210 x 2, 4 x 30 W36
1 x Hex key, WAF 5
1 x Plug it-power cable (4 m)
1 x Set-back stop FS-RSP
1 x Splinterguard
1 x 578321 Mobile Dust Extractor
Festool 578321 Mobile Dust Extractor Contents:
1 x SC FIS-CT SELFCLEAN filter bag
1 x Main filter
1 x Smooth suction hose diameter 27/32 x 3.5 m AS/CTR
Product Specification:
Festool 576114 Circular Plunge Cut Saw:
Part Number: 576114
Power consumption: 1 600 W
Idle engine speed: 1 350 - 4 400 min⁻¹
Saw blade diameter: 210 mm
Angular range: 0 - 47 °
Cutting depth: 0 - 75 mm
Cutting depth 45°: 55 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4 m
Sawing metal: A-weighted sound pressure level, LpA: 88 dB(A)
Sawing metal: Total vibration average, Ah: 3.5 m/s²
Sawing metal: Uncertainty (vibration) K: 1.5 m/s²
Sawing metal: A-weighted sound power level, LWA: 99 dB(A)
Sawing metal: Standards series EN: 62841
Sawing metal: Uncertainty (noise) K: 3 dB
Drive type: Mains
Sawing wood: Total vibration average, Ah: 3.4 m/s²
Sawing wood: Standards series EN: 62841
Sawing wood: Uncertainty (noise) K: 3 dB
Sawing wood: Uncertainty (vibration) K: 1.5 m/s²
Sawing wood: A-weighted sound pressure level, LpA: 88 dB(A)
Sawing wood: A-weighted sound power level, LWA: 99 dB(A)
Festool 578321 Mobile Dust Extractor:
Part Number: 578321
Barcode: 4014549445181
Power consumption: 350 – 1 200 W
Max. volume flow: 3700 l/min
Max. vacuum: 24000 Pa
Filter surface area: 3508 cm²
Container/filter bag capacity: 15/12.5 l
Dimensions (L x W x H): 472 x 322 x 495 mm
Max. appliance socket connected load: 1800 W
Dust class: L
Cable length: 7.5 m
Drive type: Mains
Technology: Bluetooth®
Dust extraction: A-weighted sound pressure level, LpA: 70 dB(A)
Dust extraction: Standards series EN 60745: 60335-2-69
Dust extraction: Uncertainty (noise) K: 3 dB
Product weight without accessories: 11.4 kg
Transport weight incl. accessories: 14.3 kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
