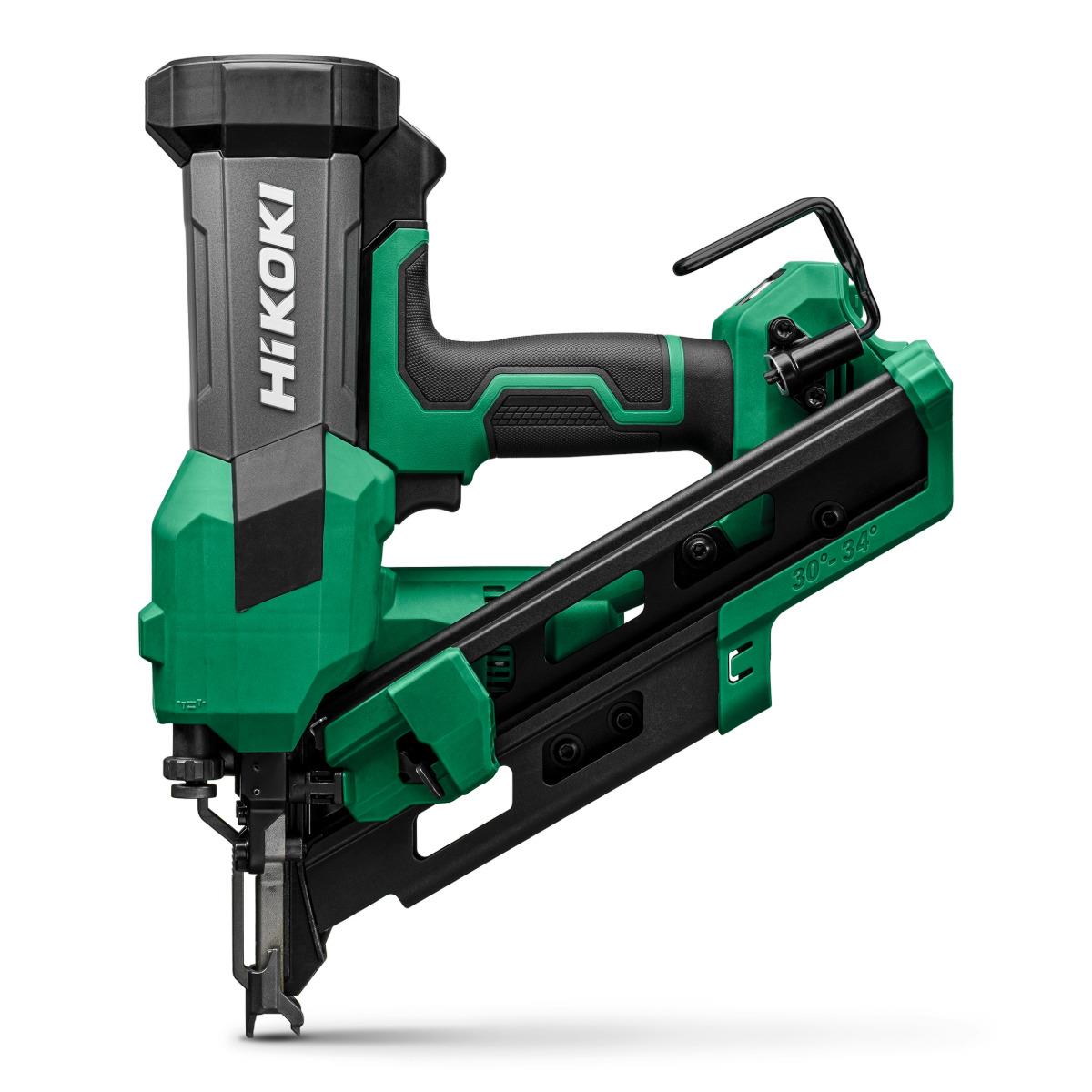

HiKOKI NR1890DCB 18V 90mm Brushless Speed Series First Fix Framing Nailer Body Only in Case
HiKOKI NR1890DCB 18V 90mm Brushless Speed Series Gen 3 First Fix Framing Nailer Body Only in Case
The HiKOKI NR1890DCB 18V Speed Series Gen 3 Framing Nailer is a lightweight, brushless cordless nailer designed for demanding first-fix and framing applications. Its Air Spring Drive System+ delivers firing speeds of up to 4.5 nails per second, while the gas-free design eliminates the need for fuel cells, hoses or compressors. It drives 30°–34° paper-collated nails from 50–90mm and features a magnesium-alloy construction for reduced weight. This body-only version is supplied with a carry case and accessories.
Features:
High speed to drive up to 4.5 nails per second
HiKOKI Air Spring Drive System +: Unique mechanism for highest firing speed, compact design, and maximum service life
Gas‑free battery power - no fumes, no hoses, no compressors
High-powered to effortlessly drive ring shank nails up to 90mm length into tough materials
Ultra-light magnesium components for maximum robustness and lightest weight in its class
Lightweight magazine for quick loading, easy cleaning, and trouble-free operation

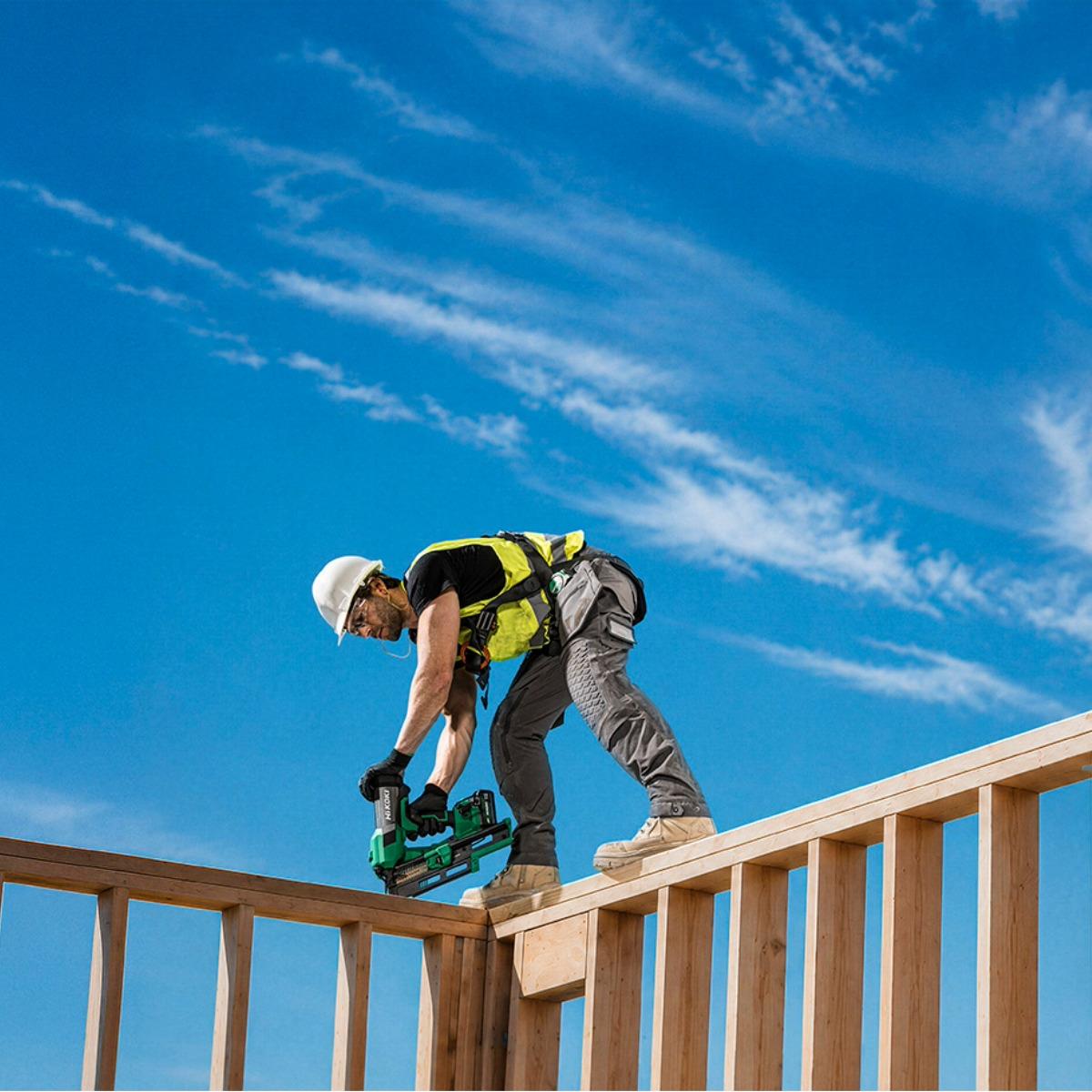

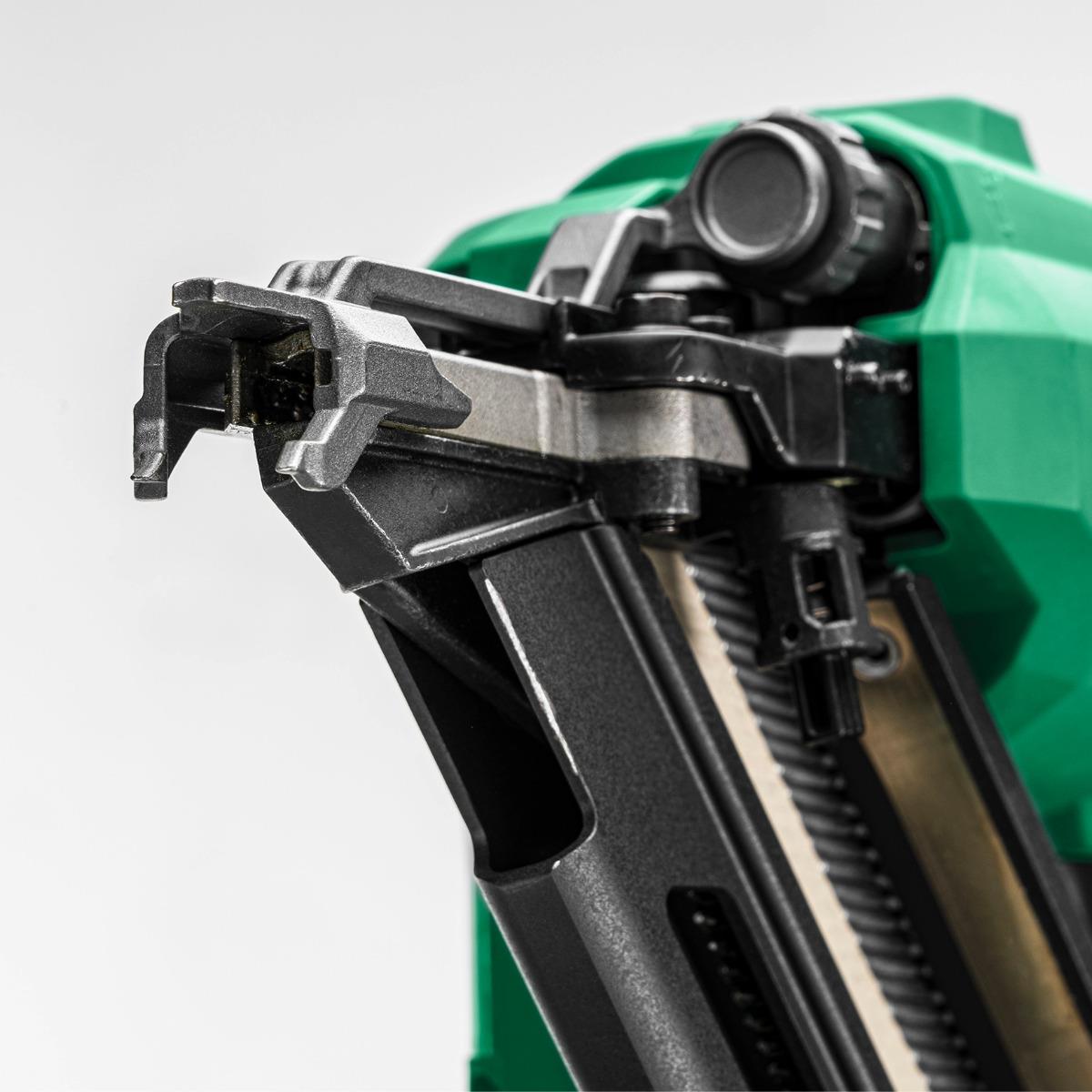

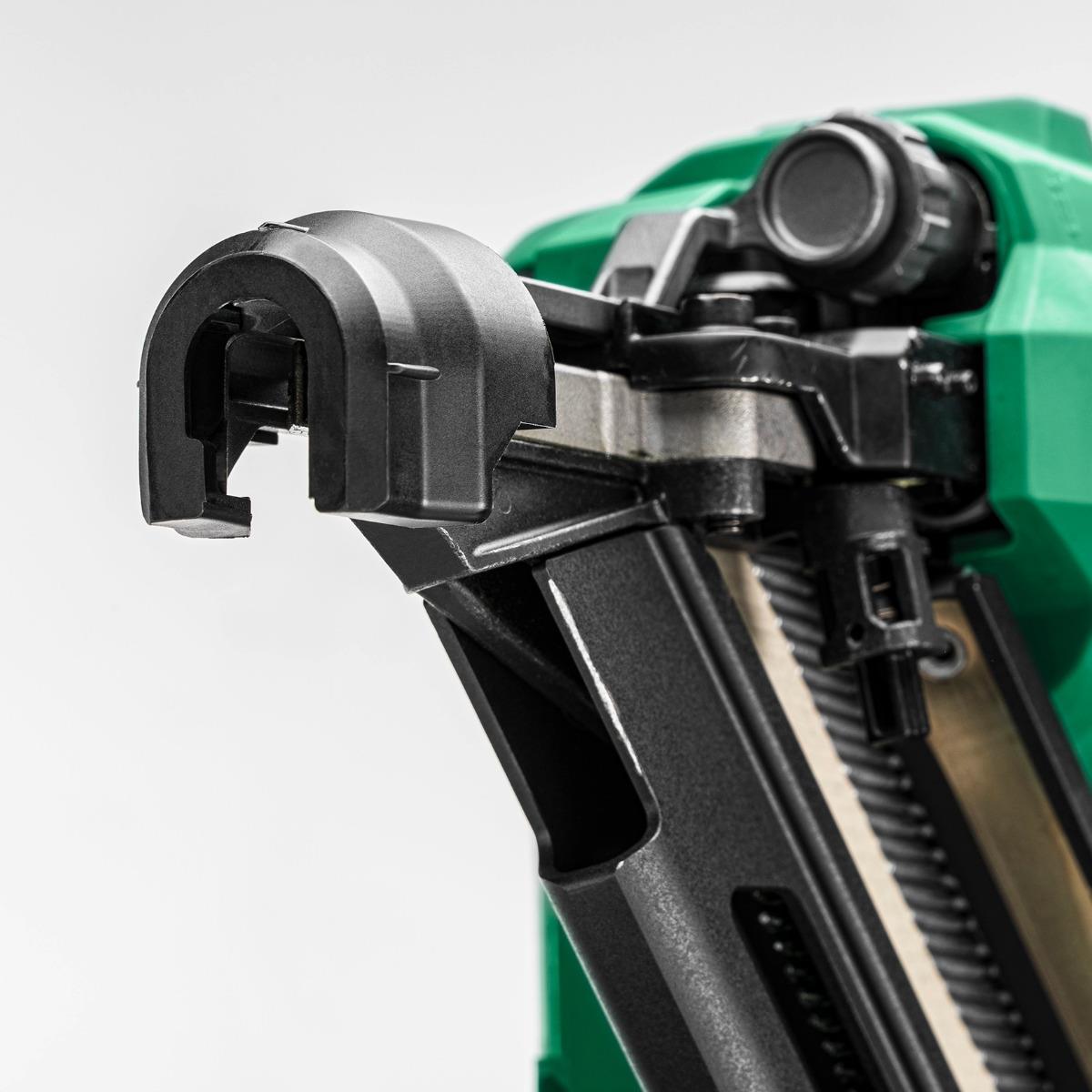

Aggressive nose prevents slippage on angled shots, for better skew nailing
Electrical dry-fire lockout mechanism activates when a few nails remain, preventing firing to protect the workpiece and flashing the LED light

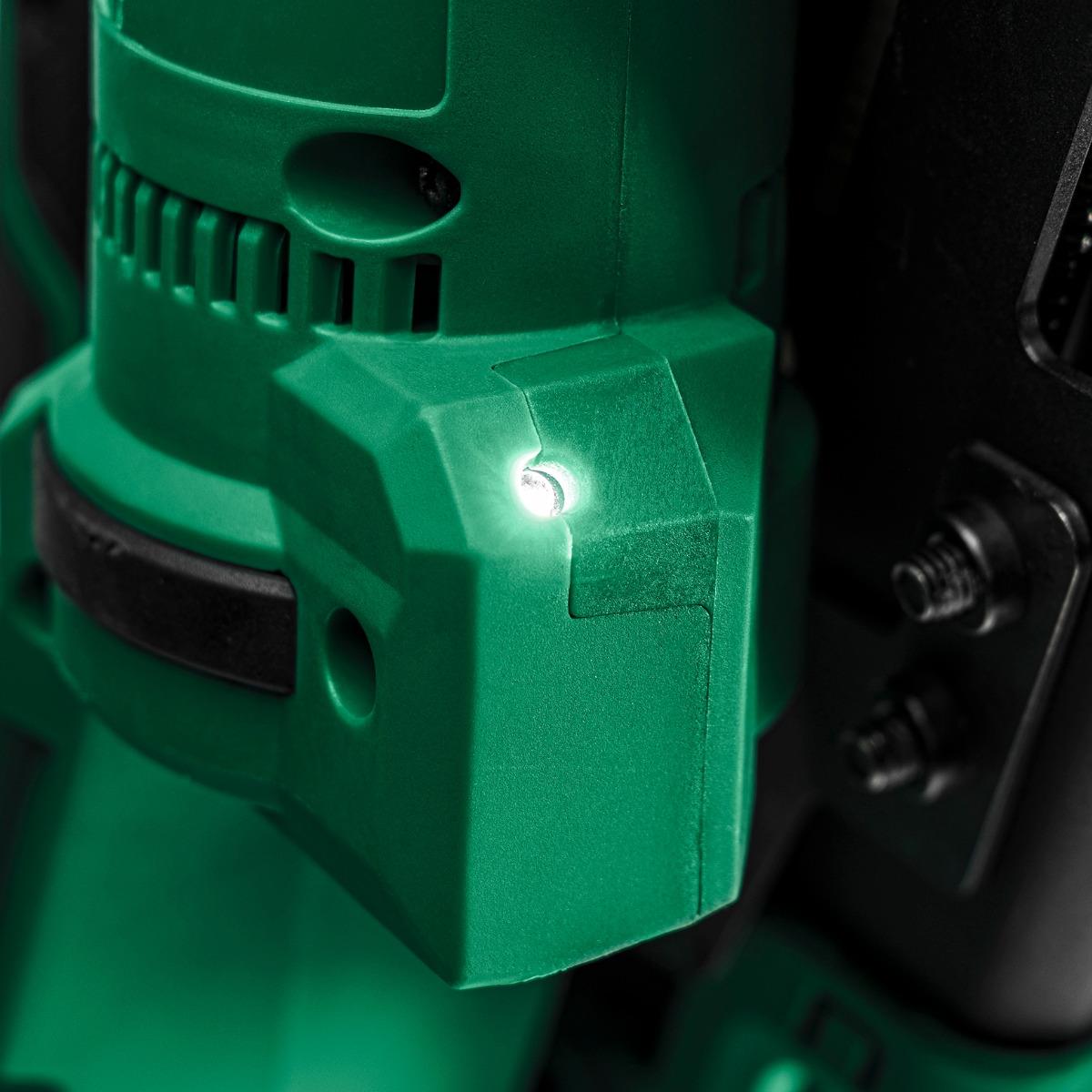

Powerful LED light provides excellent visibility for precision in low-light conditions
Versatile use on the construction site: Compatible with magazines for framing nailers, metal connector nailers, and duplex nailers
Comes With:
1 x Torx bar wrench
1 x Nose cap
1 x Safety glasses
1 x Battery cover

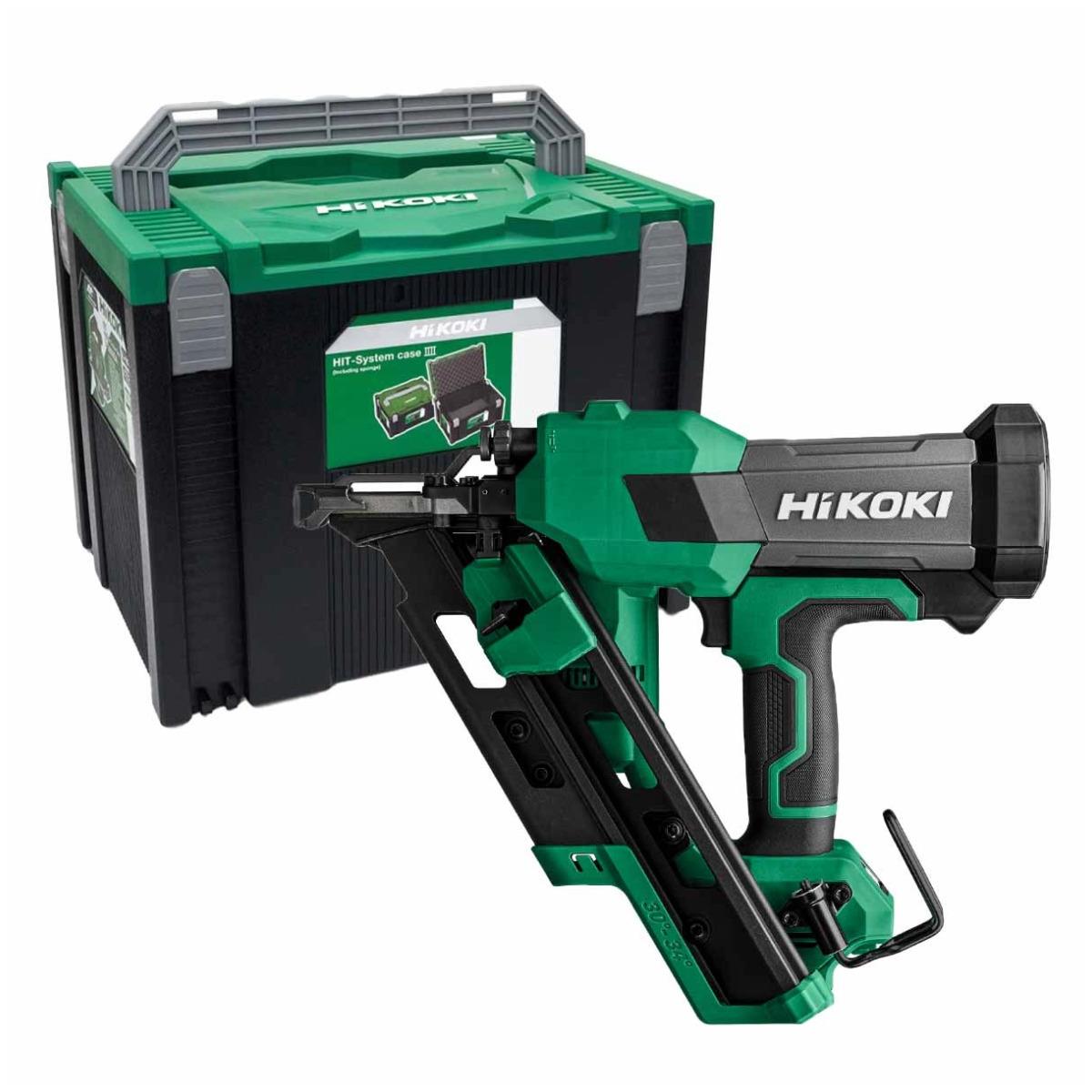

1 x HSC4 Type 4 Carry Case
Product Specification:
Part Number: NR1890DCB
Voltage: 18V
Motor: Brushless
Drive system: DC Air Spring Drive System+
Nail collation: Paper collated
Collation angle: 30°–34°
Nail length: 50–90 mm
Nail shank diameter: 2.8 – 3.3 mm
Standard magazine capacity: 54 – 57 nails
Firing speed with MultiVolt battery: Up to 4 nails per second
Firing speed with compatible T-Power battery: Up to 4.5 nails per second
Response time: 43 ms
Body-only weight: 3.3 kg
Weight with one BSL36A18X battery :4.04 kg
Dimensions: 324 × 139 × 354 mm (L × W × H)
Sound pressure level: 92 dB
Sound power level: 105 dB
**images for illustrative purposes only – please refer to description and specification for full details of product**
