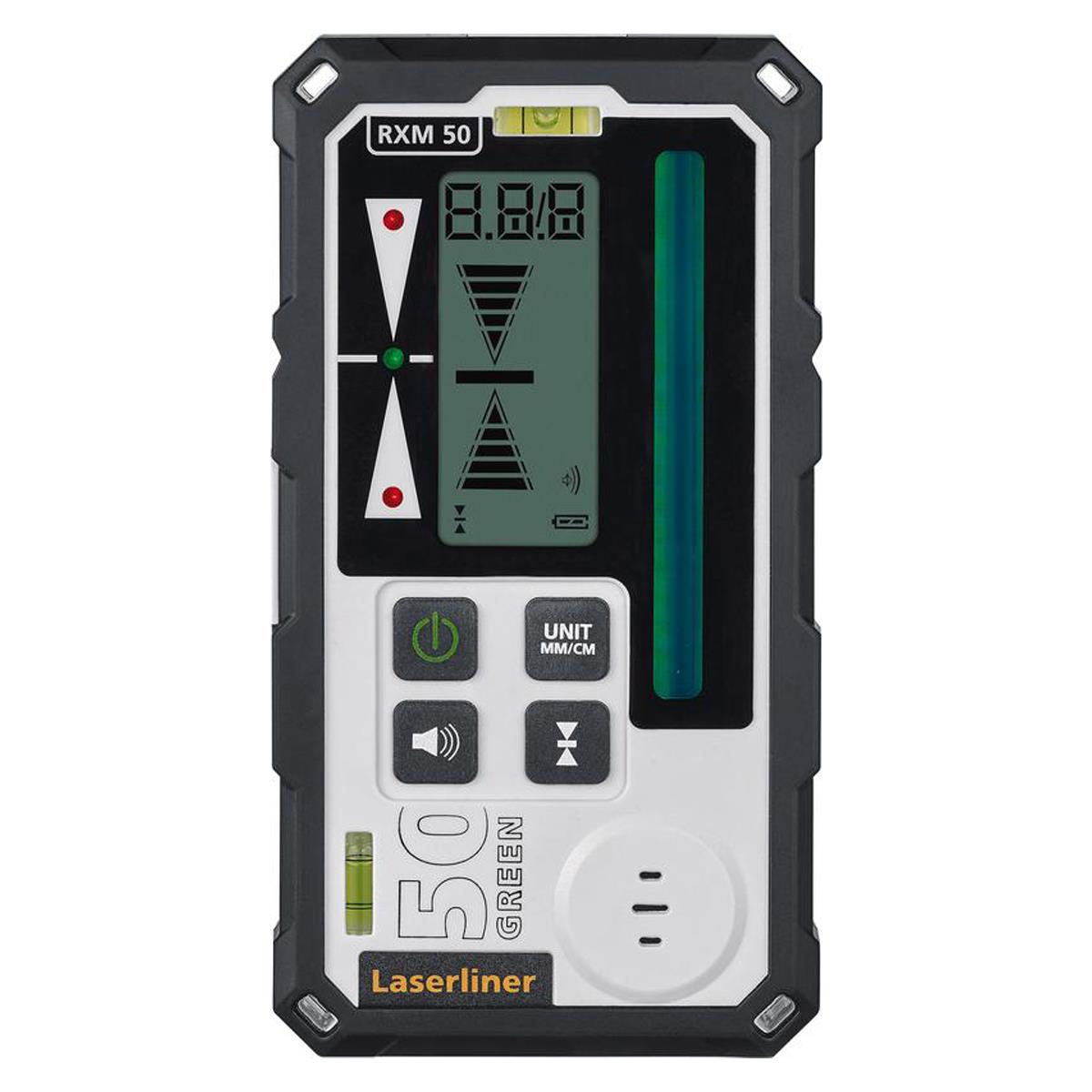

Laserliner 033.70A RangeXtender M 50 Laser Receiver 32172
Laserliner 033.70A RangeXtender M 50 Laser Receiver 32172
This laser receiver facilitates very fast alignment work over close or long ranges and is suitable for all green line lasers with GRX-READY technology. It quickly detects pulsating, high-frequency laser lines up to a maximum distance of 50 metres. The arrow symbol and millimetre display provide users with the exact height difference between the laser beam and the marking level. The measured value can be quickly and easily read from the large LC displays on both sides of the receiver. The display on the rear of the device allows the user to work in the opposite direction to the laser beam’s direction of emission and read the measured values. Supplied with universal mount, batteries and a carrying case.
Features:
Fast alignment over short and long distances.
Compatible with green GRX-READY line lasers.
Detects high-frequency pulsating laser lines.
Maximum working range up to 50 metres.
Arrow indicator with millimetre height display.
Large dual-sided LC displays for easy reading.
Rear display for reverse-direction working.
Accurate height difference measurement.
Comes With:
1 x Laserliner 033.70A RangeXtender M 50 Laser Receiver
1 x Universal mount
1 x Batteries
1 x Carrying case
Product Specification:
Part number: 033.70A
Barcode: 4021563726042
Stock no: 32172
Battery operation: Yes
Laser Reception Range: max. 50 m
Power Supply: 2 x 1.5V LR03 (AAA)
Operating Time: approx. 20 hours
Operating Conditions; -10°C 40°C
Storage Conditions: -20°C 70°C
Dimensions (W x H x D): 80 mm x 149 mm x 25 mm
Weight: 400g
**images for illustrative purposes only – please refer to description and specification for full details of product**
