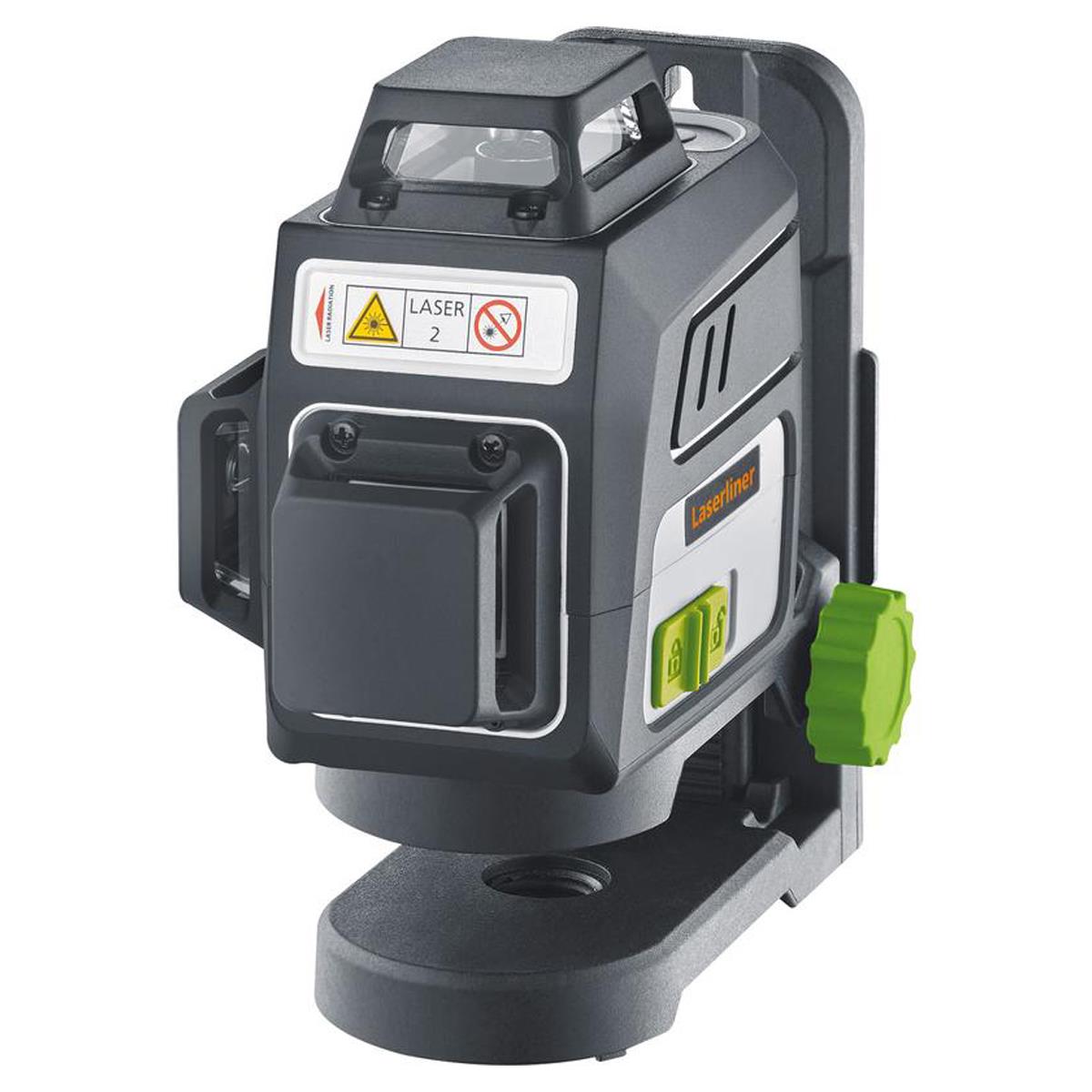

Laserliner 036.700A Pocket Plane-Laser 3G Three-Dimensional Laser 32164
Laserliner 036.700A Pocket Plane-Laser 3G Three-Dimensional Laser 32164
This three-dimensional, practical and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is a particularly useful tool for demanding projects due its the comprehensive range of accessories. The Pocket Wall Holder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery pack.
Features:
3D green laser with high visibility.
Projects 1 horizontal & 2 vertical circles.
Precise alignment of objects.
Laser crosses with plumb function.
Suitable for floor & ceiling work.
Manual slope mode for gradients.
Comprehensive accessory range.
Pocket Wall Holder: height-adjustable magnetic bracket.
Mounts to walls, metal & tripods (¼” / 5/8”).
Comes With:
1 x Laserliner 036.700A Pocket Plane-Laser 3G Three-Dimensional Laser
1 x Pocket Wall Holder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Product Specification:
Part number: 036.700A
Barcode: 4021563724574
Stock no: 32164
Horizontal/vertical levelling: Yes
Manual slope function: Yes
Battery and mains operation: Yes
Hand receiver mode: Yes
Self-Levelling Range: ± 3.5° (horizontal)
Accuracy: ±0.3 mm/m
Levelling: automatic
Visibility (Typical)*: 30 m
Laser Wavelength: 515 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Operating Time: with 3 laser levels: approx. 9 hours
Dimensions (W x H x D): 104 mm x 97 mm x 76 mm
Weight: 388g (incl. Akkupack)
**images for illustrative purposes only – please refer to description and specification for full details of product**
