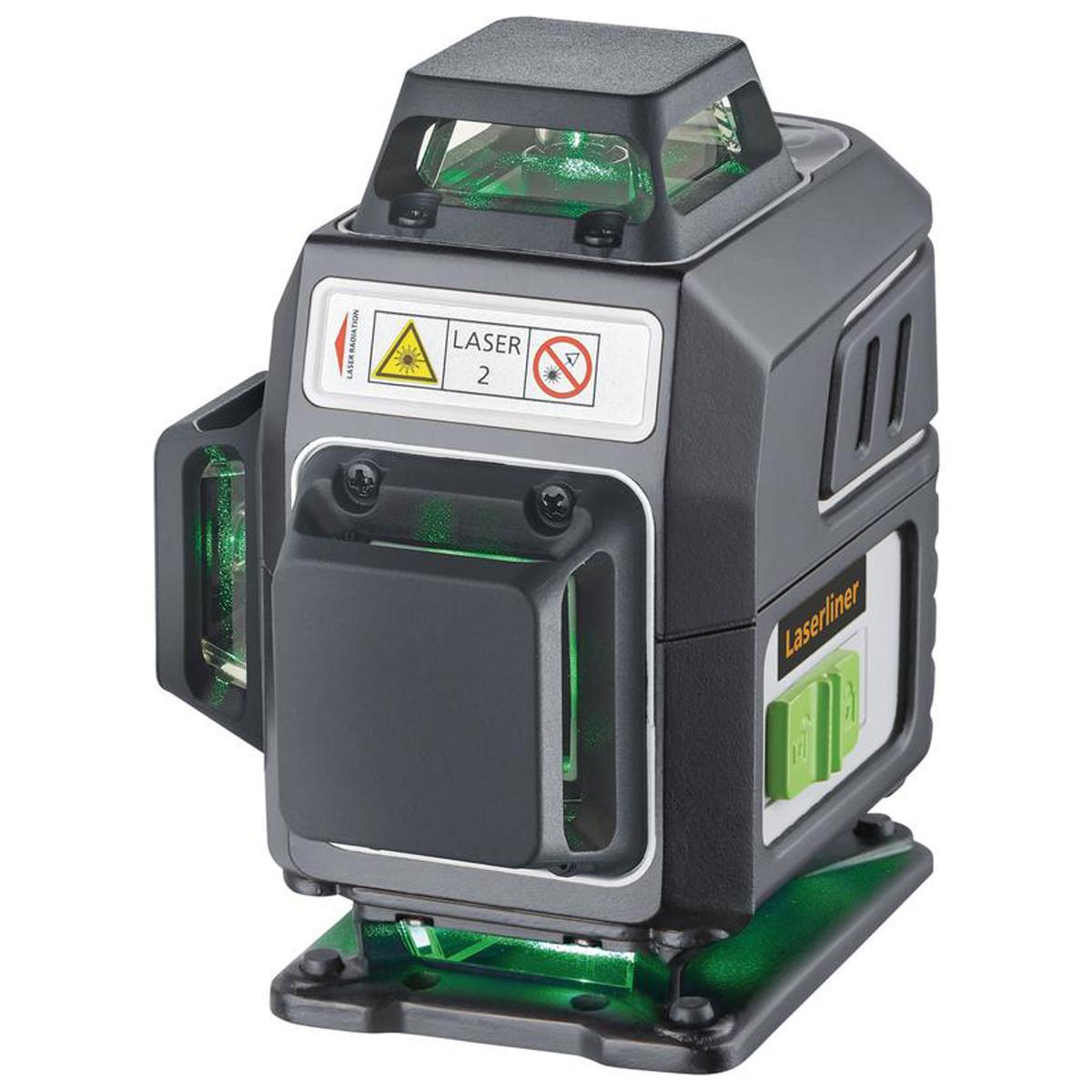

Laserliner 036.705A Pocket Plane-Laser 4G Three-Dimensional Laser 32166
Laserliner 036.705A Pocket Plane-Laser 4G Three-Dimensional Laser 32166
This three-dimensional, practical and highly visible green laser projects two horizontal and two vertical laser circles for precise alignment of objects. Thanks to the horizontal laser circle at the very bottom, the device is particularly suited to applications close to the floor, such as determining floor heights and aligning skirting boards. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is an extremely useful tool for demanding projects due its the comprehensive range of accessories. The Pocket Wall Holder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. Battery not supplied.
Features:
Projects 2 horizontal and 2 vertical 360° green laser circles.
Bottom horizontal circle ideal for floor-level applications.
Perfect for floor height checks and skirting alignment.
Plumb function for simultaneous floor and ceiling work.
Manual slope mode for precise gradient creation.
High-visibility green beams for accurate alignment.
Pocket Wall Holder with magnetic, height-adjustable mount.
1/4" and 5/8" tripod compatibility.
Comes With:
1 x Laserliner 036.705A Pocket Plane-Laser 4G Three-Dimensional Laser
1 x Pocket Wall Holder
1 x Top Holder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Product Specification:
Part number: 036.705A
Barcode: 4021563740284
Stock no: 32166
Horizontal/vertical levelling: Yes
Manual slope function: Yes
Battery and mains operation: Yes
Hand receiver mode: Yes
Self-Levelling Range: ± 3.5° (horizontal)
Accuracy: ±0.3 mm/m
Levelling: Automatic
Visibility (Typical)*: 30 m
Laser Wavelength: 515 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply: Li-ion battery pack 3.7V / 4.0Ah / 14.8Wh
Operating Time; with 3 laser levels: approx. 7 hours
Operating Conditions: 0°C 50°C
Storage Conditions: -10°C 70°C
Dimensions (W x H x D): 103 mm x 106 mm x 76 mm
Weight: 464g
**images for illustrative purposes only – please refer to description and specification for full details of product**
