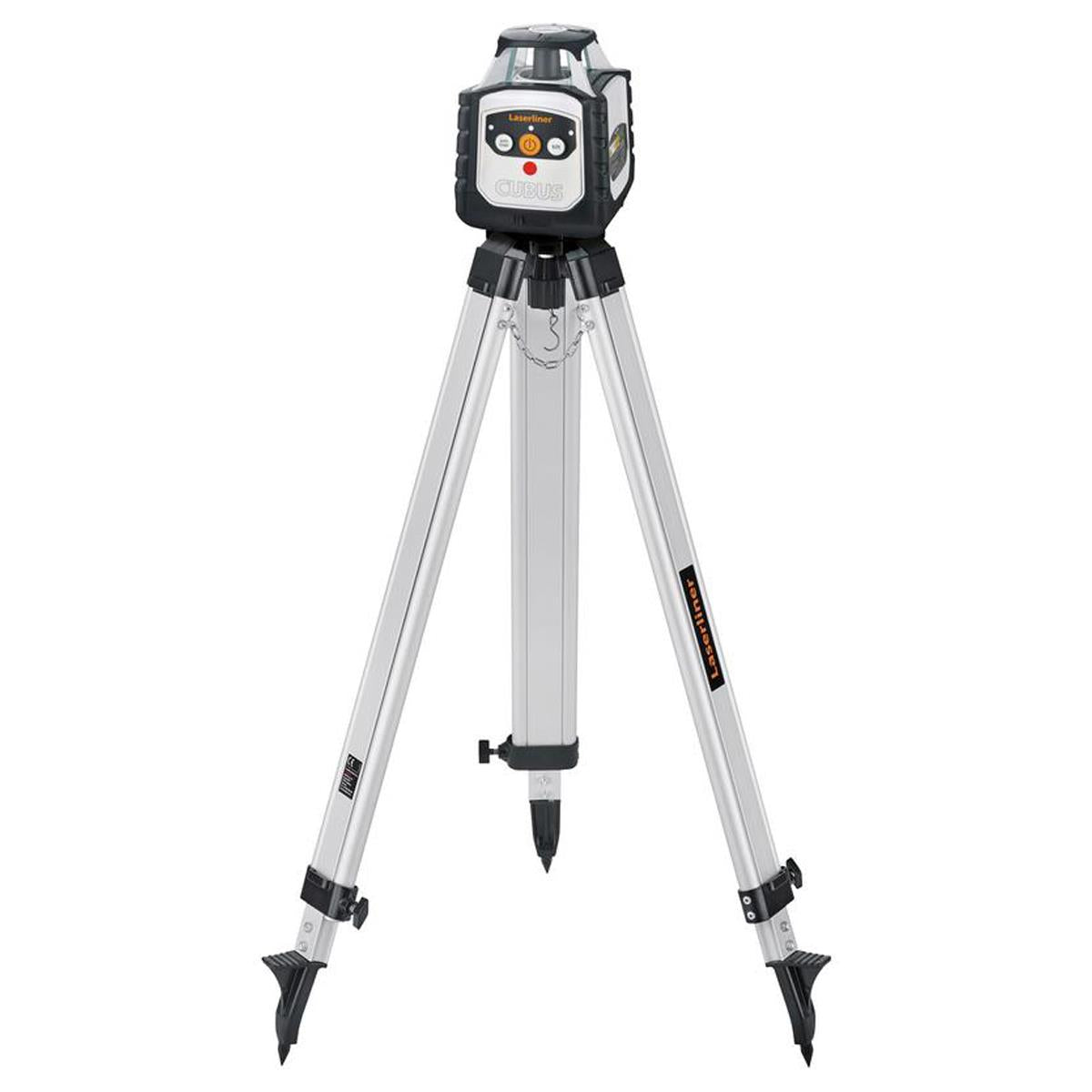

Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser 150cm 32173

Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser 150cm 32173

The sturdy, fully automatic rotary laser is perfect for precise alignment of horizontals. Furthermore, the device can be used for the levelling of verticals and slopes. Aligning partitions is easy thanks to an additional reference beam. The laser receiver can be easily attached to measuring staffs and allows a height reference to be marked. This has the advantage that the laser can be reset to the specified height at any time. The remote control for operating all of the functions at a distance of up to 40 metres is particularly handy. In the event of external influences, the automatic shut down prevents measurement errors. The High Capacity Pack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.

Features:

Fully automatic rotary laser for precise horizontal alignment.
Suitable for levelling verticals and creating accurate slopes.
Additional reference beam for easy partition alignment.
Laser receiver with staff mount for marking height references.
Reset laser to defined height at any time.
Remote control operation up to 40 m range.
Automatic shut down prevents errors from external influences.
High Capacity Li-ion pack usable while charging.

Comes With:

1 x Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm
1 x Senso Lite 110
1 x Light-weight tripod 150 cm
1 x Tripod/wall bracket
1 x Universal mount
1 x Telescopic levelling staff LT 4 m
1 x Remote control
1 x High Capacity Pack (Li-Ion)
1 x Batteries
1 x Network/charging device incl. international adapter
1 x Carrying strap
1 x Carrying case

Product Specification:

Part number: 052.325A
Barcode: 4021563731985
Stock no: 32173
Horizontal/vertical/angle levelling: Yes
Hand receiver mode: Yes
Scan mode: Yes
Spot mode: Yes
Manual slope function: Yes
Precision sensor levelling: Yes
Battery and mains operation: Yes
Anti-Drift-System (ADS): Yes
Tilt warning function: Yes
Self-Levelling Range: ± 4°
Accuracy: ±0.15 mm/m
Levelling: Automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength: 635 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Reception Range: 1 - 100 m
Protection Class: IP 66
Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time: approx. 20 hours
Battery Recharging Time: approx. 4 hours
Dimensions (W x H x D): 130 mm x 160 mm x 145 mm
Weight: 1300g

**images for illustrative purposes only – please refer to description and specification for full details of product**
