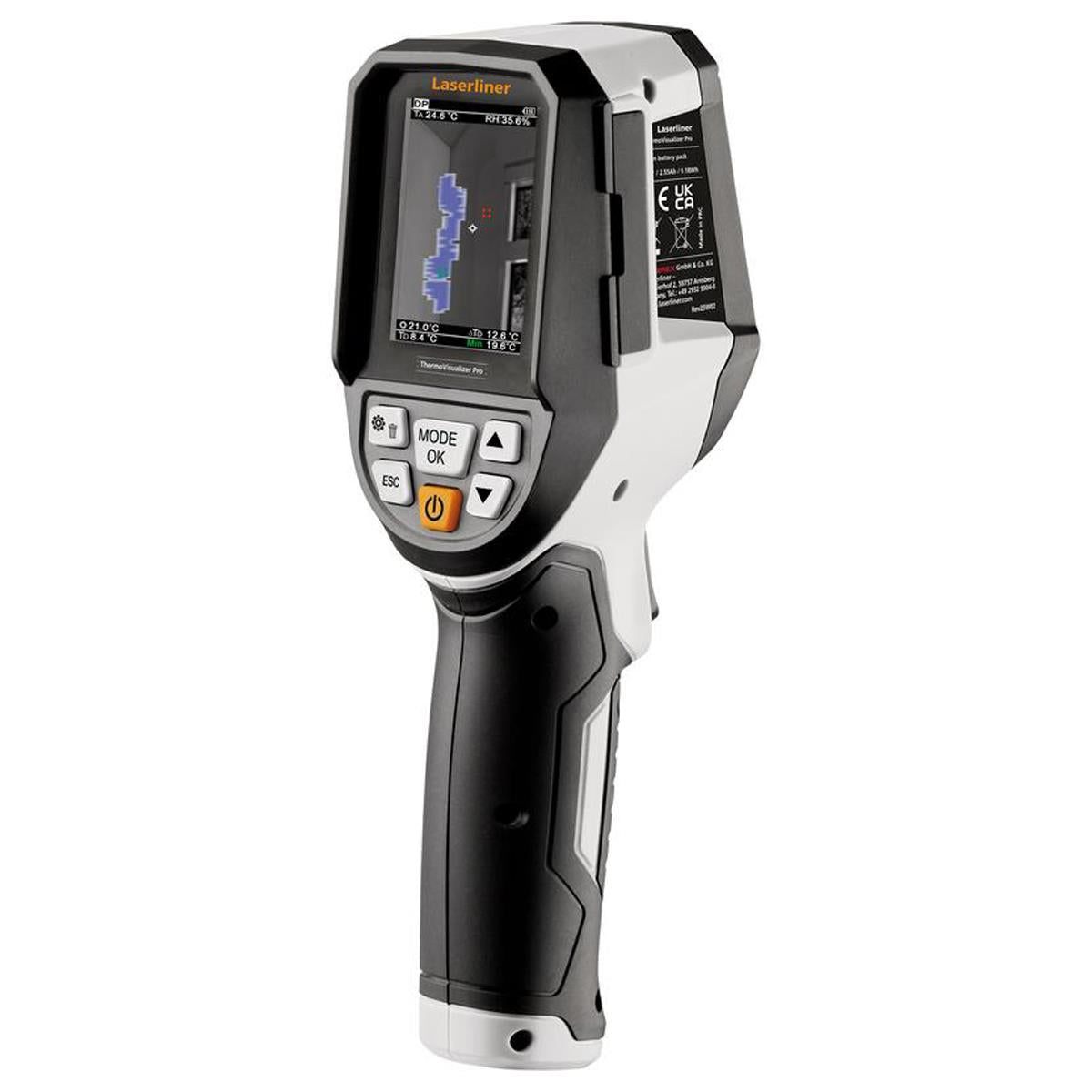

Laserliner 082.078A Thermo Visualizer Pro Thermal Imaging Camera 31986
Laserliner 082.078A Thermo Visualizer Pro Thermal Imaging Camera 31986
This innovative thermal camera determines surface temperatures, relative humidity, ambient temperature and dew point temperature. It reliably visualises temperature curves, thermal bridges and condensation. A fusion from the thermal camera, digital camera and hydrometer forms the visual dew point function. It generates reliable thermal images with precise marking of surfaces that have reached or fallen below the dew point, ideal for critical interior space inspections. In addition to building inspections, the many possible uses include working on electrical systems, machines, heating and ventilation systems as well as locating heat sources or cold spots. Supplied with battery pack, USB-C-cable and softbag.
Features:
Measures surface temperatures accurately.
Displays relative humidity.
Detects ambient and dew point temperature.
Visualises thermal bridges and condensation.
Visual dew point function (fusion technology).
Combines thermal, digital camera & hygrometer.
Highlights surfaces at dew point risk.
Ideal for interior space inspections.
Suitable for electrical and HVAC systems.
Detects heat sources and cold spots.
Supplied with battery pack, USB-C cable & soft bag.
Comes With:
1 x Laserliner 082.078A ThermoVisualizer Pro Thermal Imaging Camera
1 x Micro SD card
1 x Integrated Li-ion battery pack
1 x USB-C-cable
1 x Softbag
Product Specification:
Part number: 082.078A
Barcode: 4021563735426
Stock no: 31986
Image recording: Yes
Data transfer: Yes
Digital camera: Yes
Time stamp: Yes
Adjustable emissions level: Yes
Humidity: Yes
Min/Max: Yes
MIX image: Yes
Ambient temperature: Yes
Thermal image: Yes
Thermal bridge warning :Yes
Dew point temperature: Yes
Mains operation: Yes
Screen Type: 2,4" Colour TFT
Sensor Type: uncooled microbolometer
Display Resolution: 320 x 240 pixels
Image Frequency: 9 Hz
Thermal Sensitivity (NETD): 60 mK @25°C
Measuring Range Infrared Temperature: -20°C 150°C, 0°C 400°C
Power Supply: Li-ion battery pack 3.6V / 2.55Ah / 9.18Wh
Operating Time: approx. 4 hours
