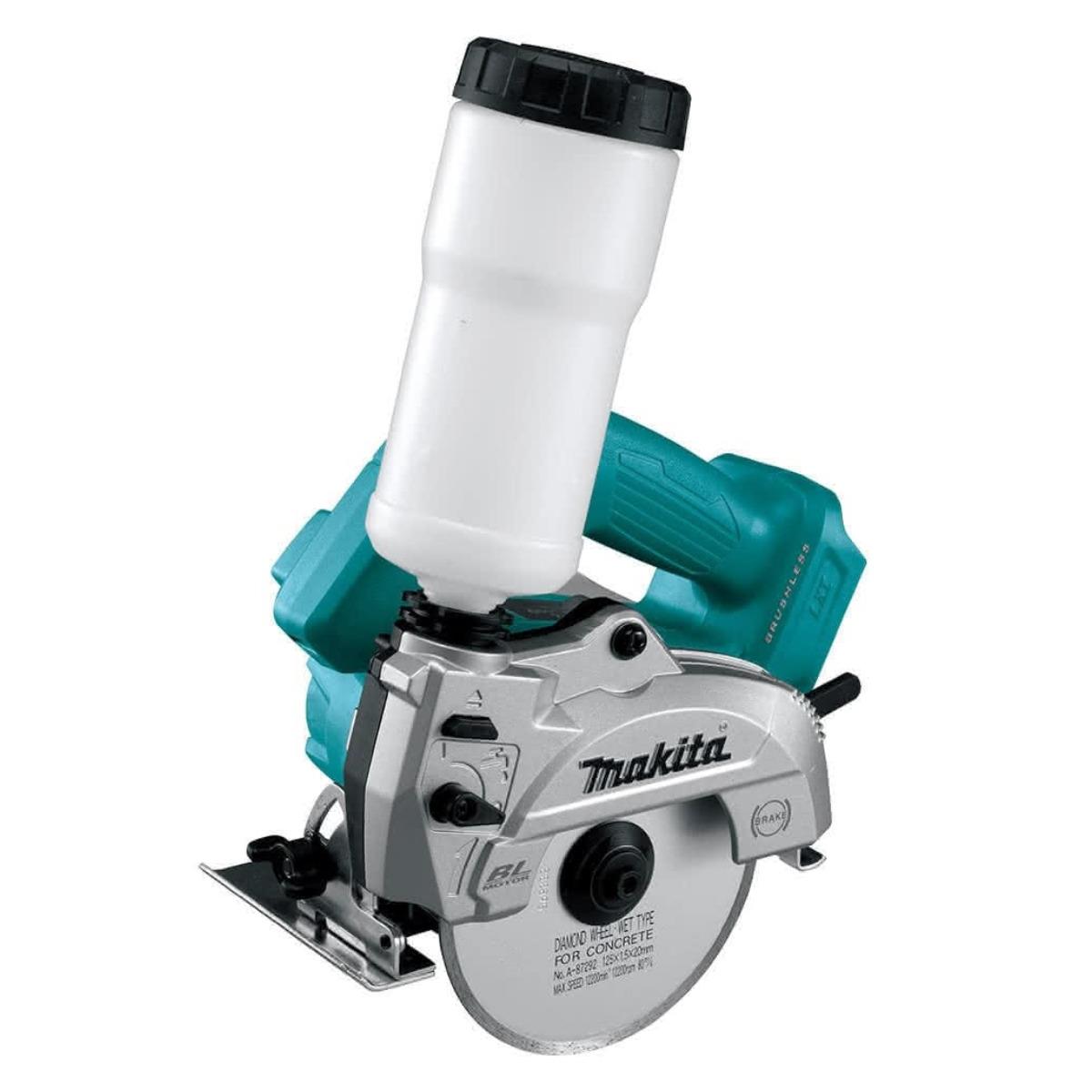

Makita DCC501ZX1 18V LXT Brushless 125mm Cutter Body Only
Makita DCC501ZX1 18V LXT Brushless 125mm Cutter Body Only
The Makita DCC501ZX1 18V LXT Brushless 125mm Cutter is a compact and powerful cordless cutting tool designed for professional construction and renovation applications. Its high-efficiency brushless motor delivers strong cutting performance with extended runtime and reduced maintenance requirements. The 125mm blade capacity allows precise cutting of metal, tile, masonry, and other construction materials. Supplied as a body-only unit, it features an ergonomic design and integrated dust collection capability for improved control and cleaner operation.
Features:
Brushless motor provides high power and excellent cutting performance
eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

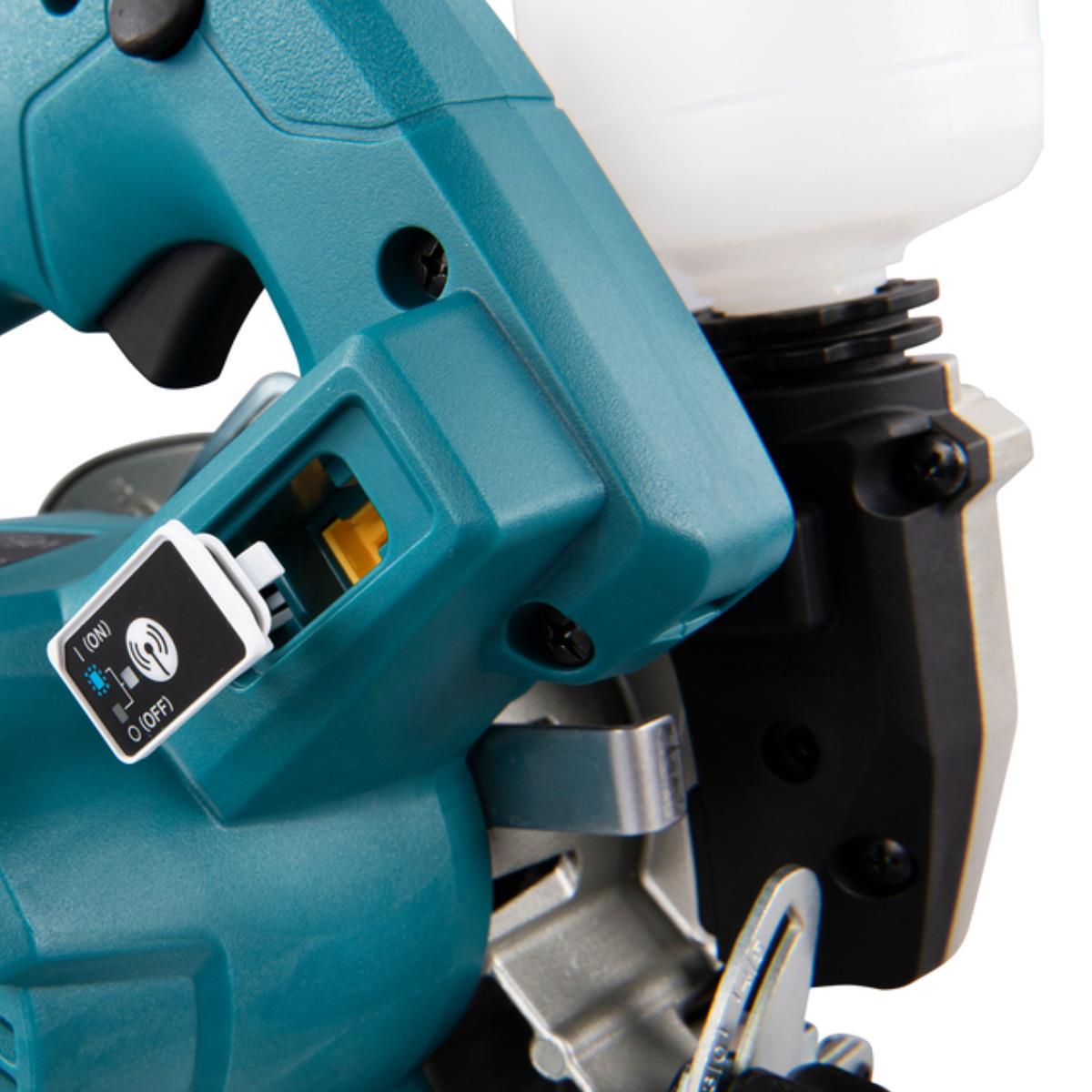

Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
Two-stage safety trigger switch minimises accidental start up
Large top handle design for increased comfort
Wide blade case enables use of curved diamond wheel
Battery protection system automatically shuts off power when the battery level is low

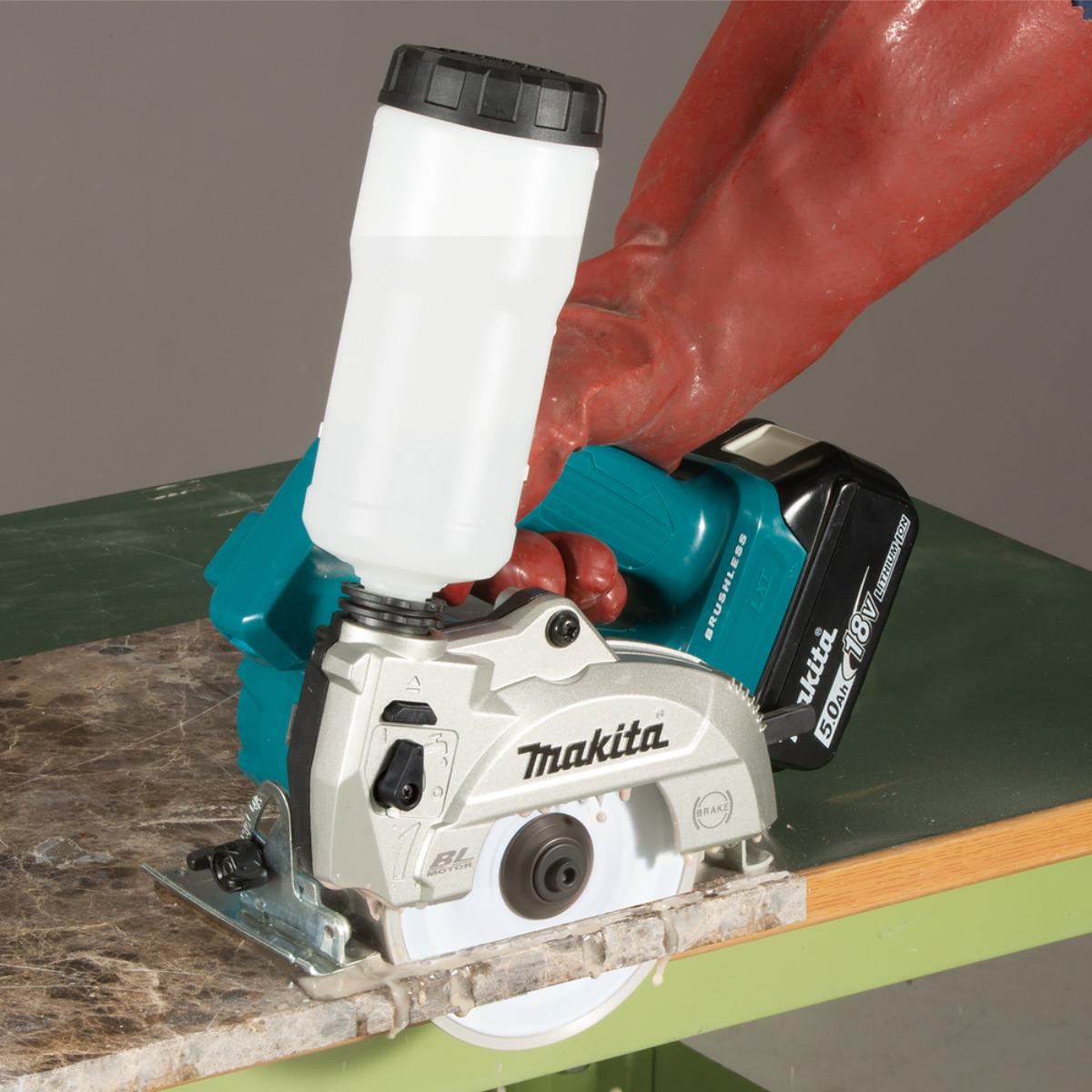

Powerful cutting in stone, masonry, tile & concrete

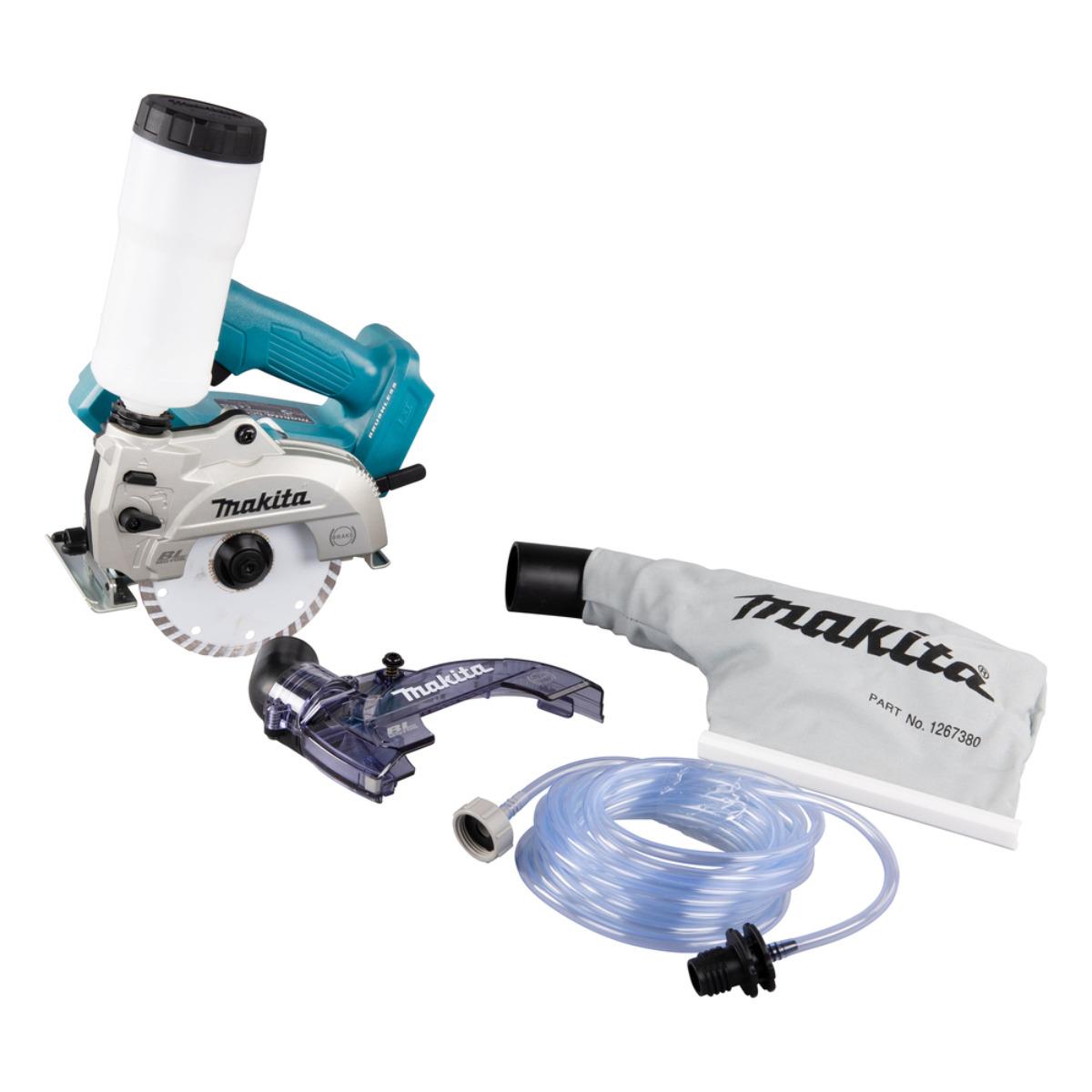

Comes With:
1 x Diamond Wheel (B-16748)
1 x Dust Bag (126738-0)
1 x Water Supply Cover Set A (191X01-4)
Product Specification:
Part Number: DCC501ZX1
Barcode: 0088381738446
Voltage: LXT
Brushless Motor: Yes
Nominal Battery Voltage: 18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
No load speed: 8800 min⁻¹
Max. Cutting Depth at 45°: 27 mm
Bore Size (Arbor Diameter): 20 mm
AWS ready: Yes
Max. Cutting Depth at 90°: 40 mm
Disc Diameter: 125 mm
Product Dimensions (L x W x H): 283 x 163 x 172 mm
Tool weight with battery: 2,7 - 3,0 kg
Product net weight: 2,4 kg
Sound and Vibration
Sound Power Level (LWA): 107 dB(A)
Sound Pressure Level (LpA): 96 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level, Concrete Cutting: 4,0 m/s²
Vibration Uncertainty (K Factor), Concrete Cutting: 1,5 m/s²
**images for illustrative purposes only – please refer to description and specification for full details of product**
