Makita DLX2566TJ 18V LXT Brushless Combi Drill & Impact Driver Kit With 2 x 5.0Ah Batteries, Charger & Case
Makita DLX2566TJ 18V LXT Brushless Combi Drill & Impact Driver Kit With 2 x 5.0Ah Batteries, Charger & Case

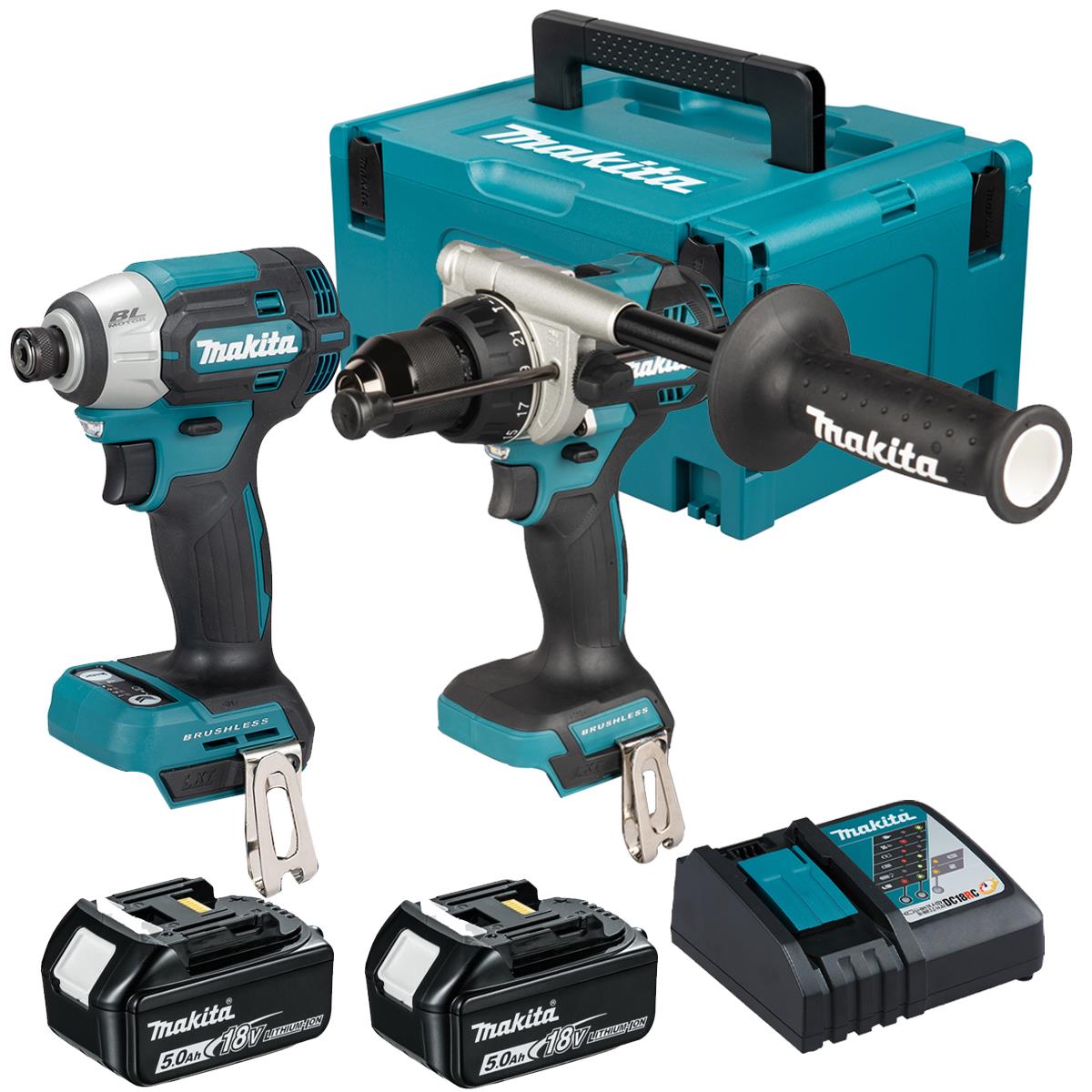

Kit Content:
Makita DHP492 Brushless Combi Drill
Makita DTD201 Brushless Impact Driver
2 x BL1850 5.0Ah Batteries
1 x DC18RC Fast Charger
1 x 821551-8 Makpac Case Type 3
Features:

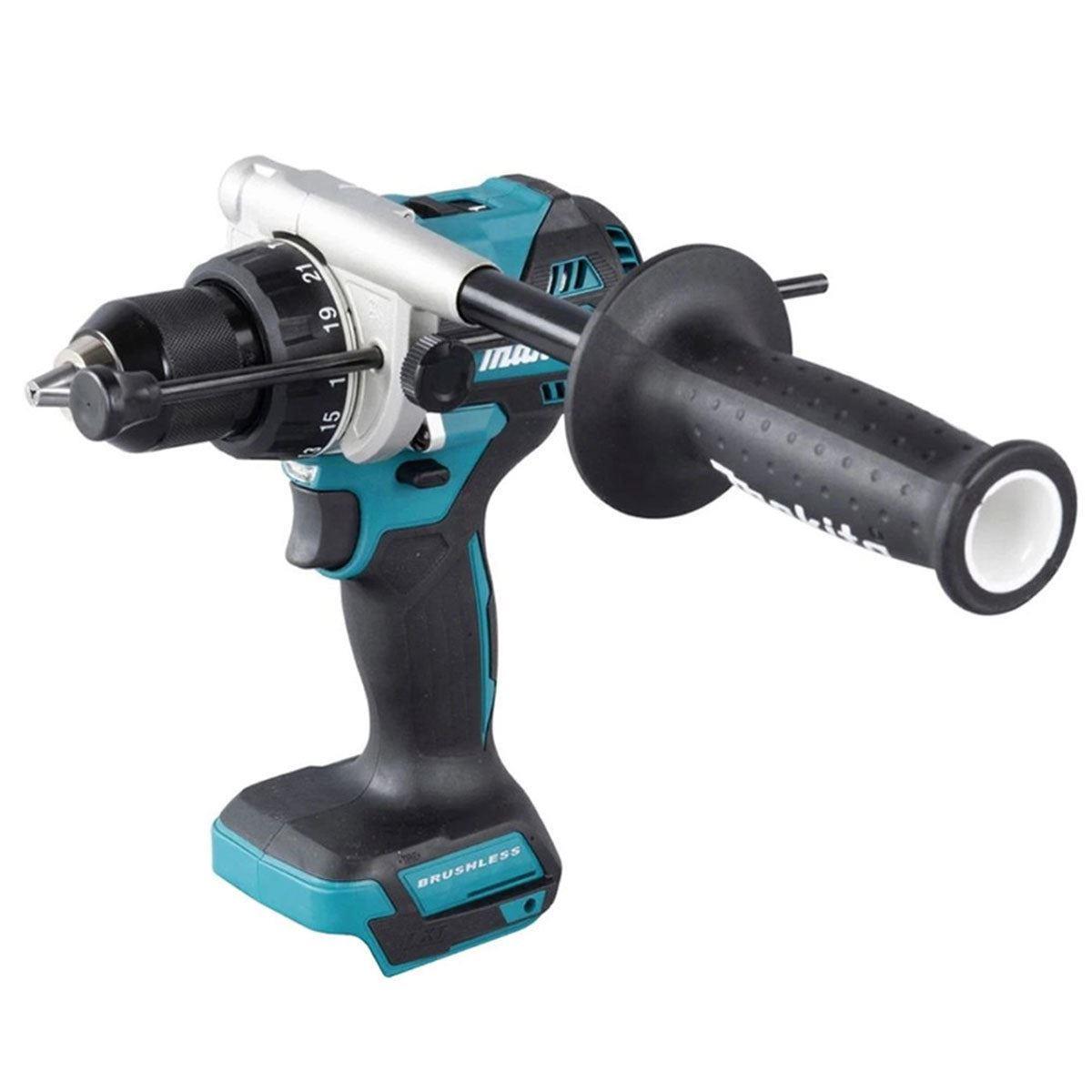

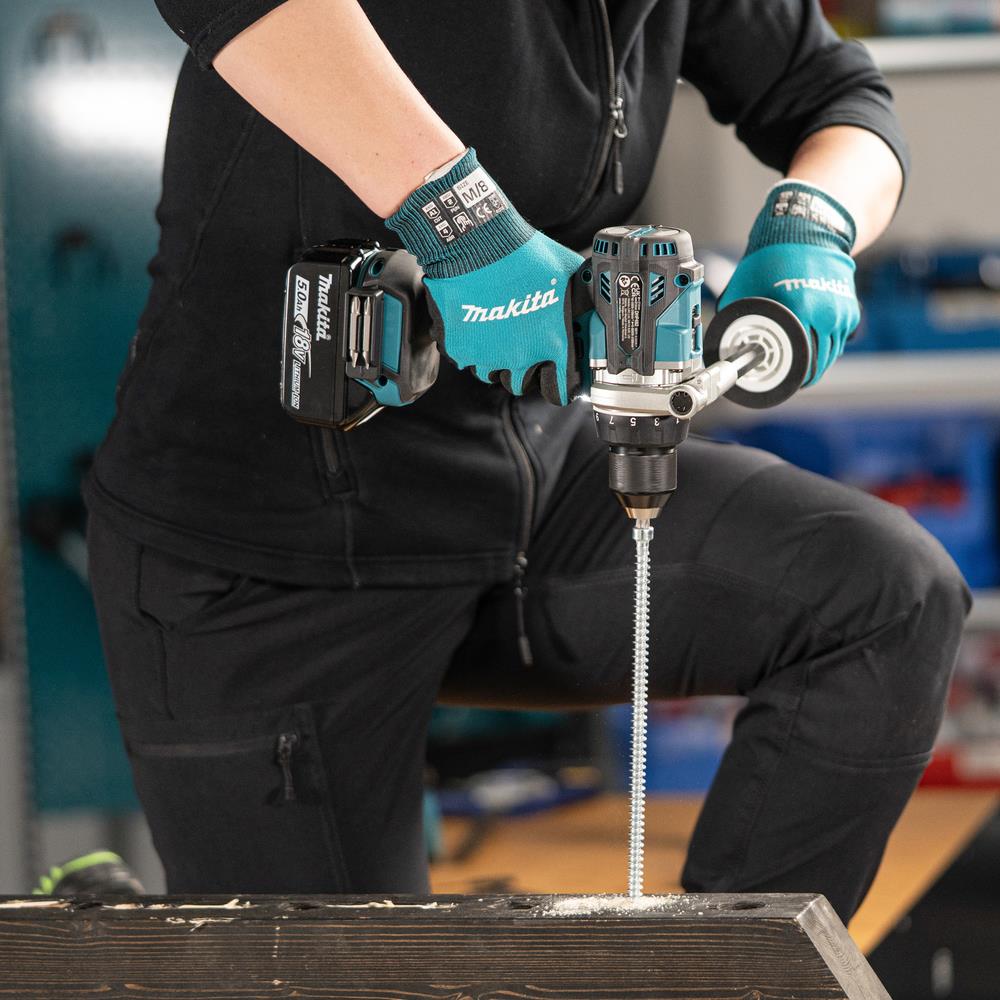

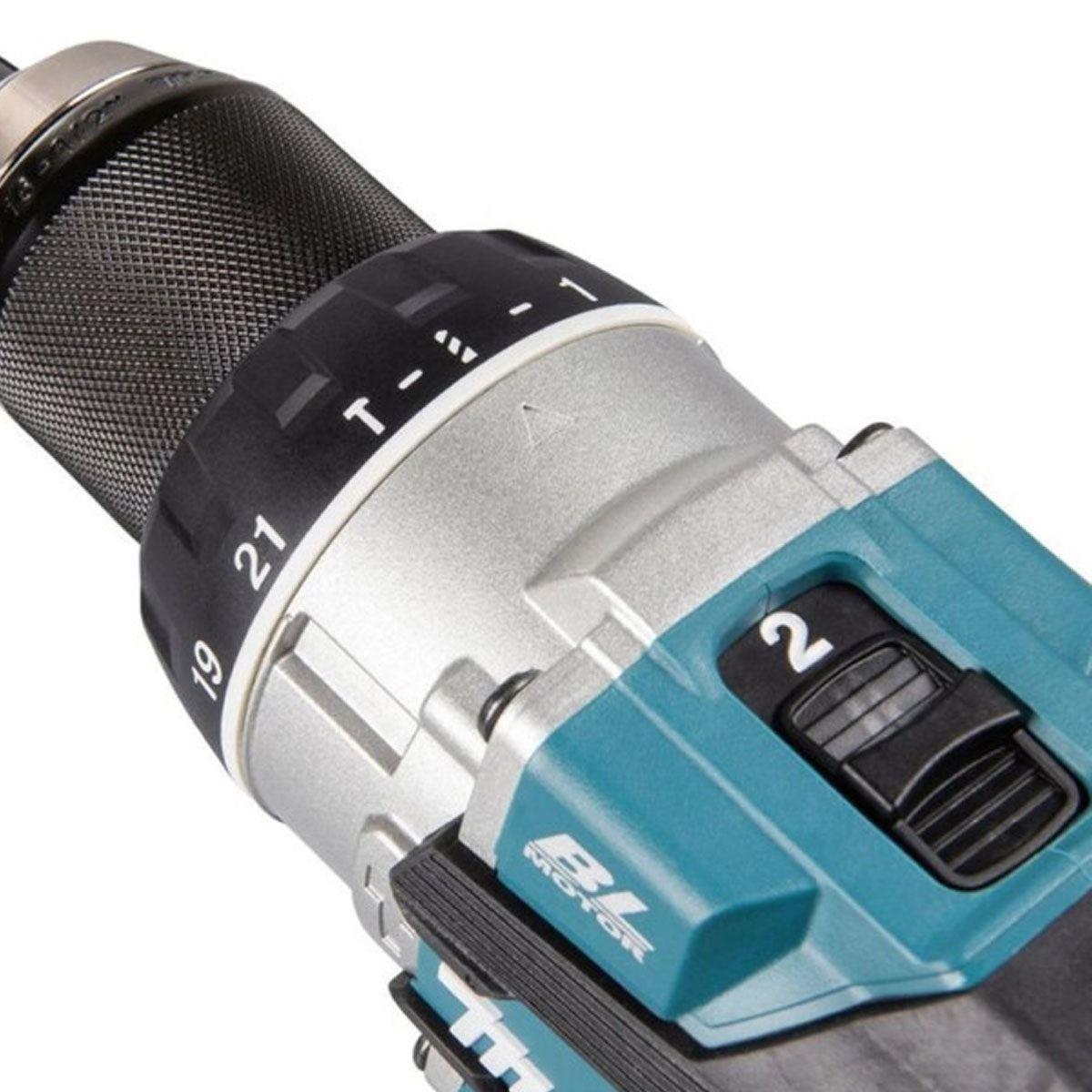

Makita DHP492 Brushless Combi Drill:
Powerful Brushless Motor delivers longer runtimes, less maintenance and better battery control
Highly efficient and compact machine for professional use
LED light illuminates the work site
Battery protection system automatically shuts off power when the battery level is low
Electronic overload protection protects the user and the device

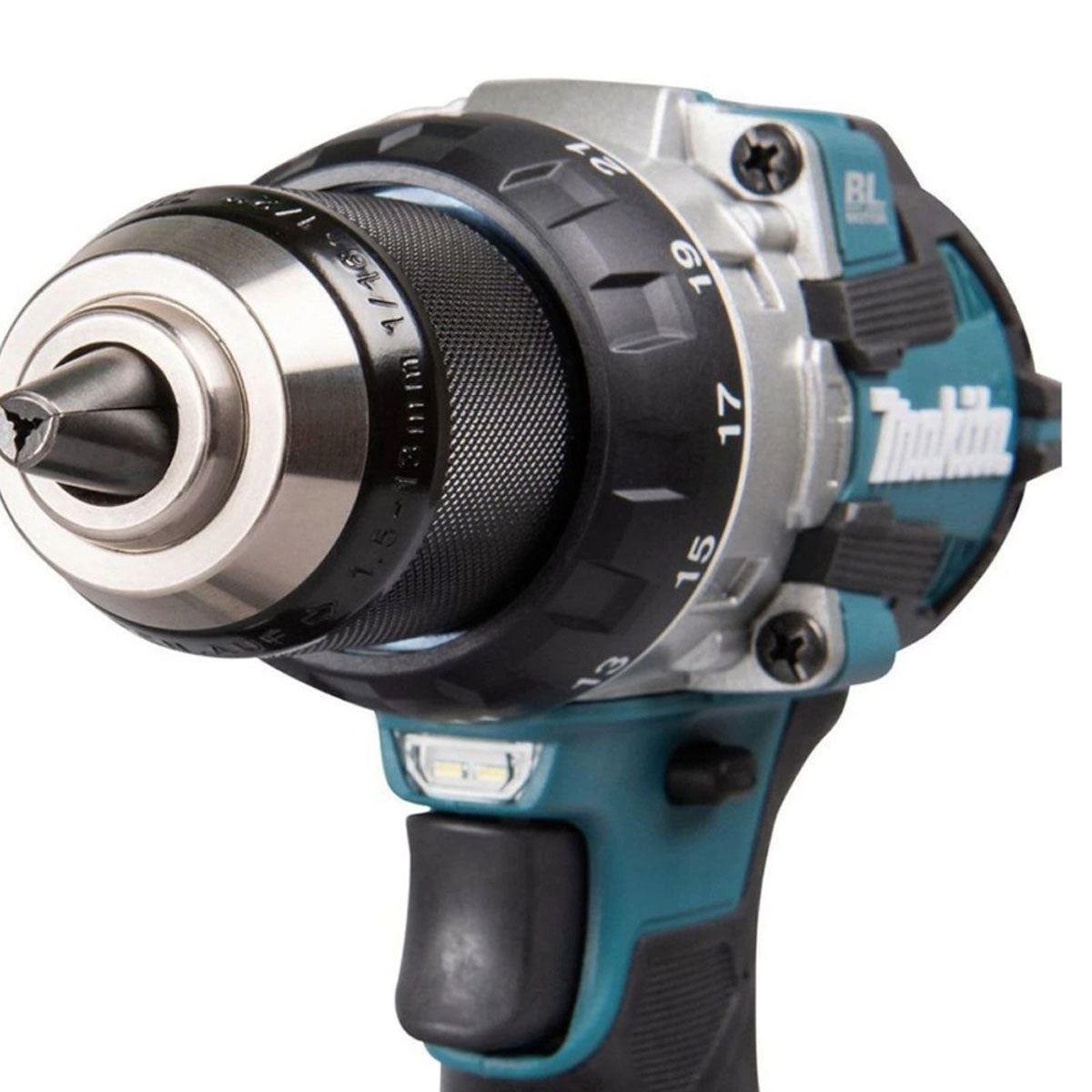

Keyless chuck for easy bit installation and removal
Compact and lightweight for reduced operator fatigue
Electric brake for maximum productivity and increased operator safety

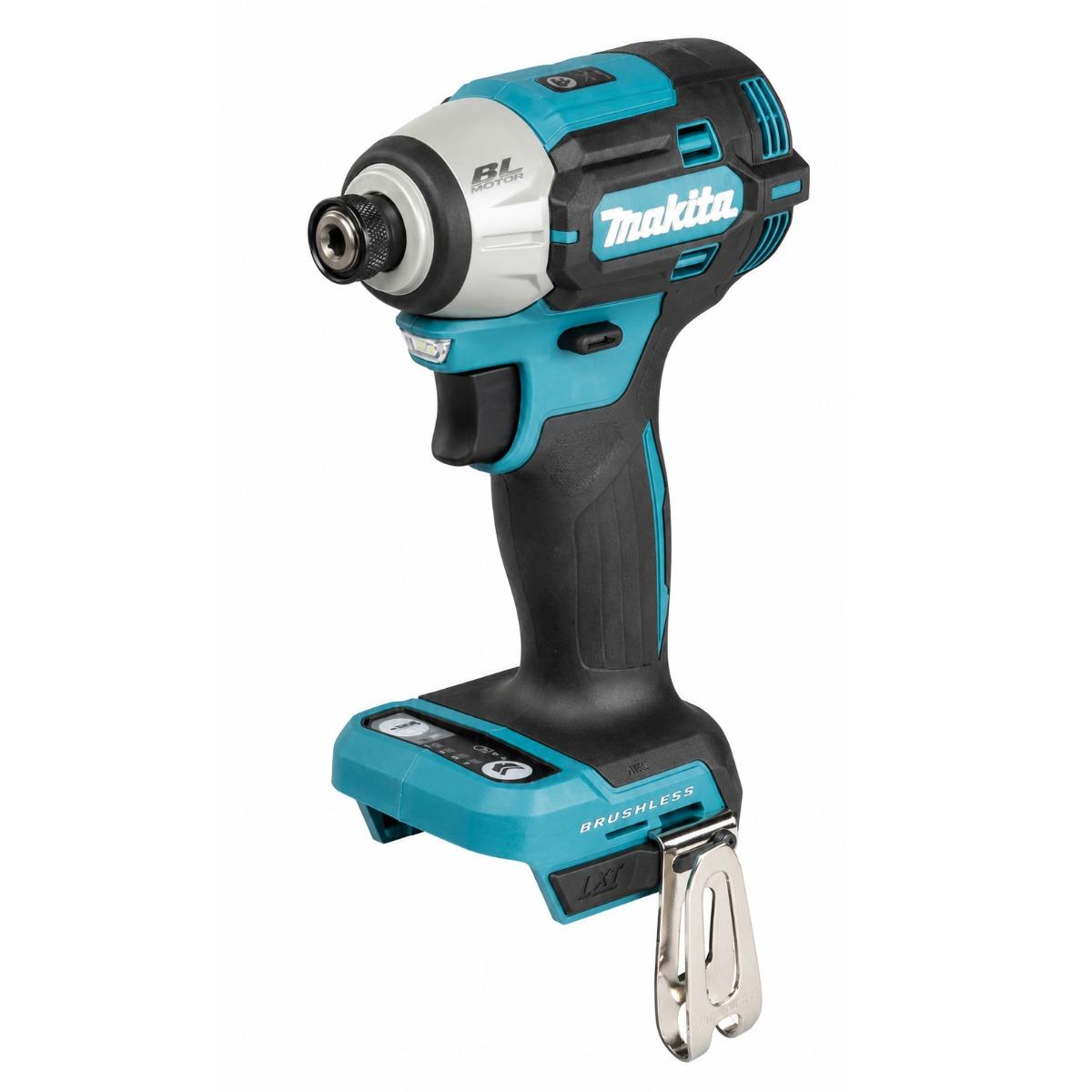

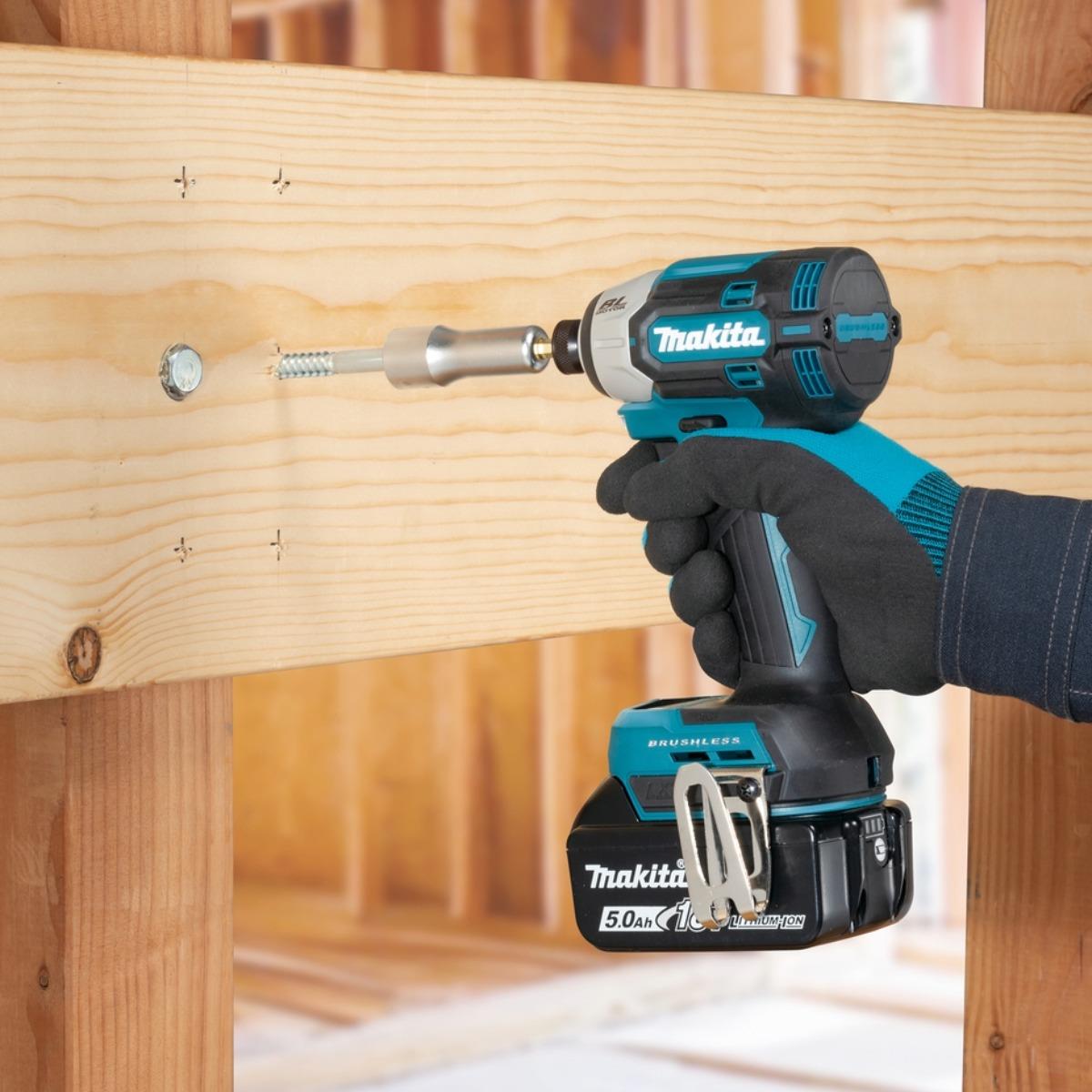

Makita DTD201 Brushless Impact Driver:
The brushless motor provides longer work hours per charge and extended tool life.
Lightweight design minimizes fatigue during extended use.
Compact design measuring 121mm in length for easy access in tight spaces
Delivers up to 210 Nm of fastening torque and a high-speed rotation of 3,700 rpm
Four selectable speed settings make it easy to adjust the tool for a wide range of applications.
Quick mount for 1/4 "screwdriver

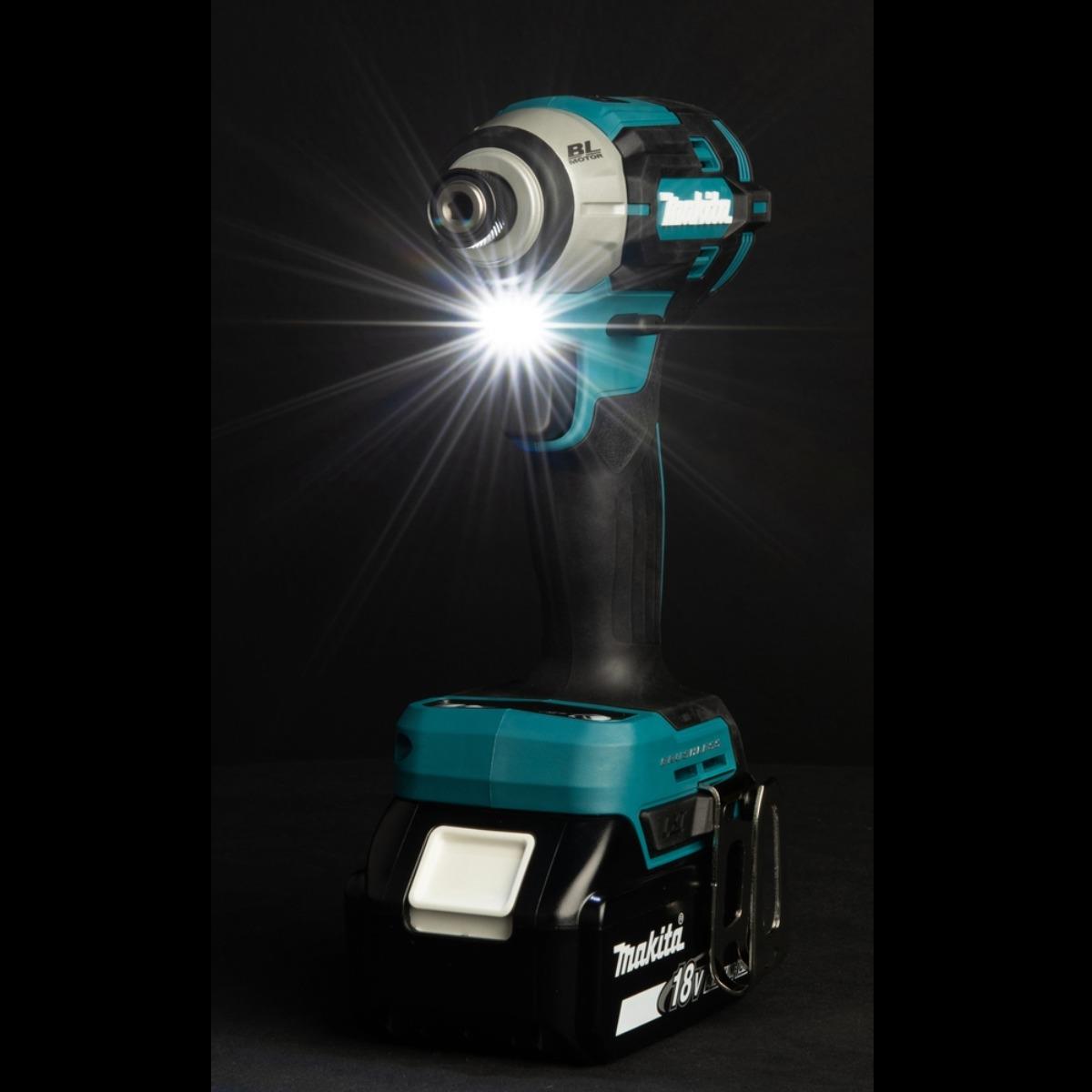

LED light illuminates the work site
Variable speed control dial enables user to match the speed to the application for greater versatility
Electric brake for maximum productivity and increased operator safety
The rubber coating on the handle ensures a firm working grip
Battery protection system automatically shuts off power when the battery level is low
Comes With:
2 x BL1850 5.0Ah Batteries
1 x DC18RC Fast Charger
1 x 821551-8 Makpac Case Type 3
Product Specification:
Part Number: DLX2566TJ
Barcode: 0197050015556
Makita DHP492 Brushless Combi Drill:
Part Number: DHP492Z
Barcode: 0197050011770
Nominal Battery Voltage: 18V
Voltage LXT: Yes
Battery Chemistry: Li-ion
Brushless Motor: Yes
No load speed: 0 - 550 / 2100 min⁻¹
Max. fastening torque Hard/Soft: 130 / 65 Nm
Max Torque: 141 Nm

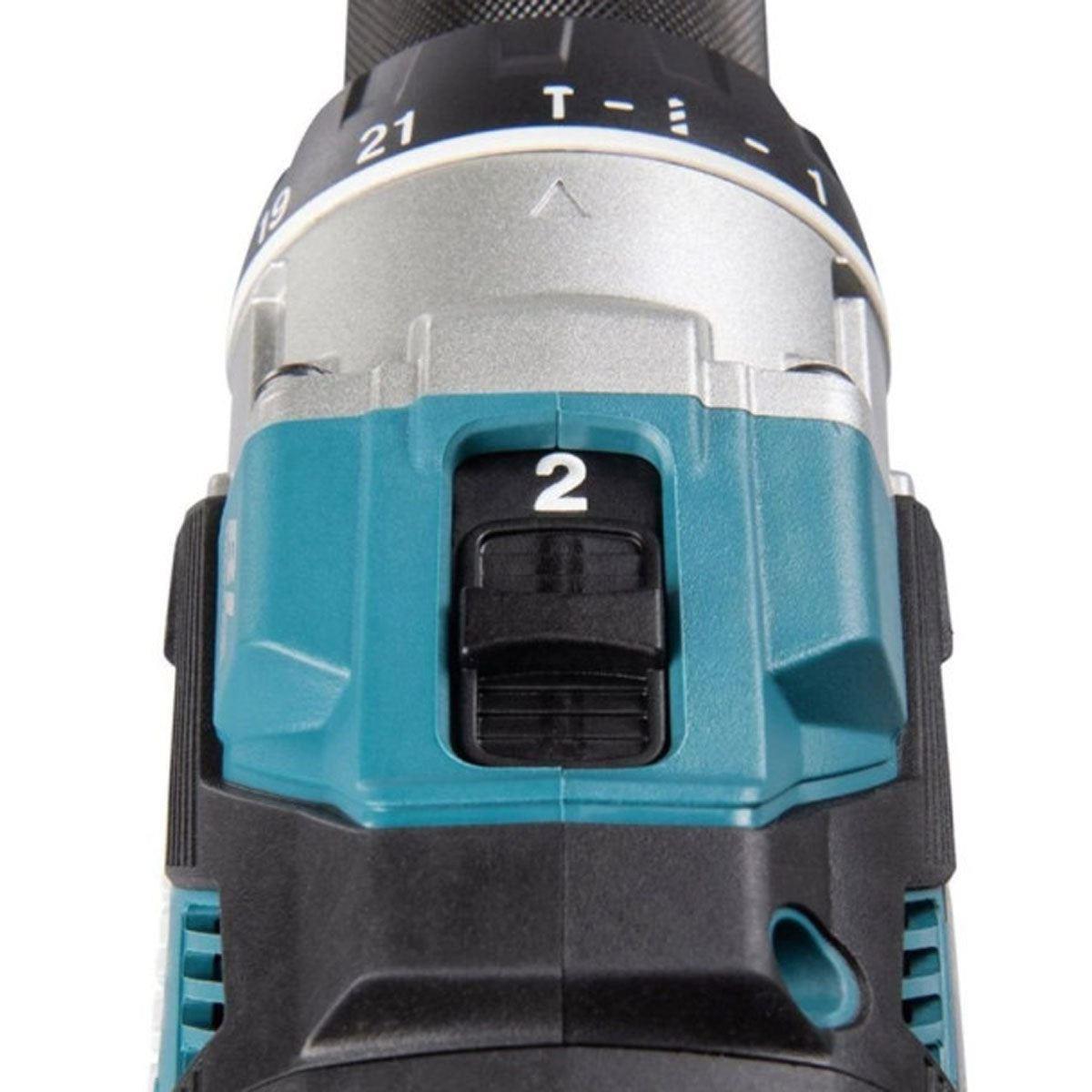

Torque setting: 21
Impacts per Minute (IPM): 0 - 8250 / 31500 min⁻¹

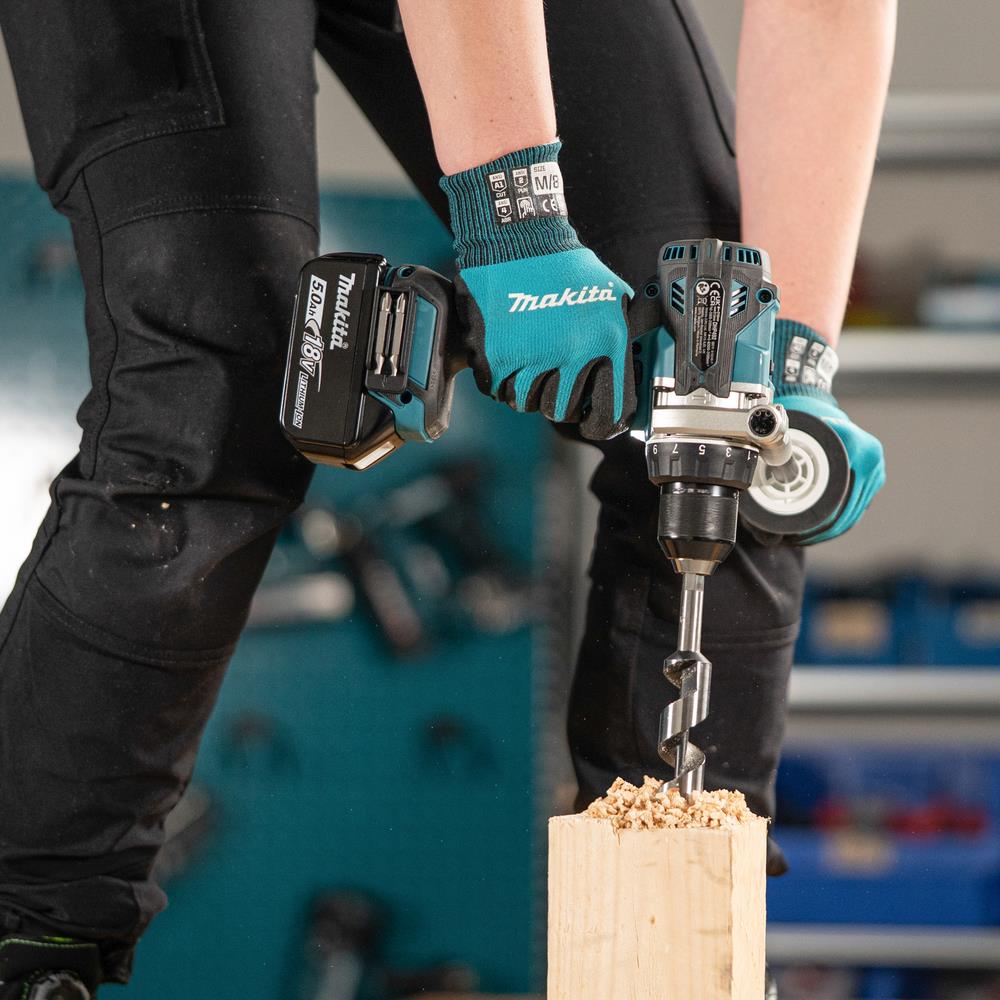

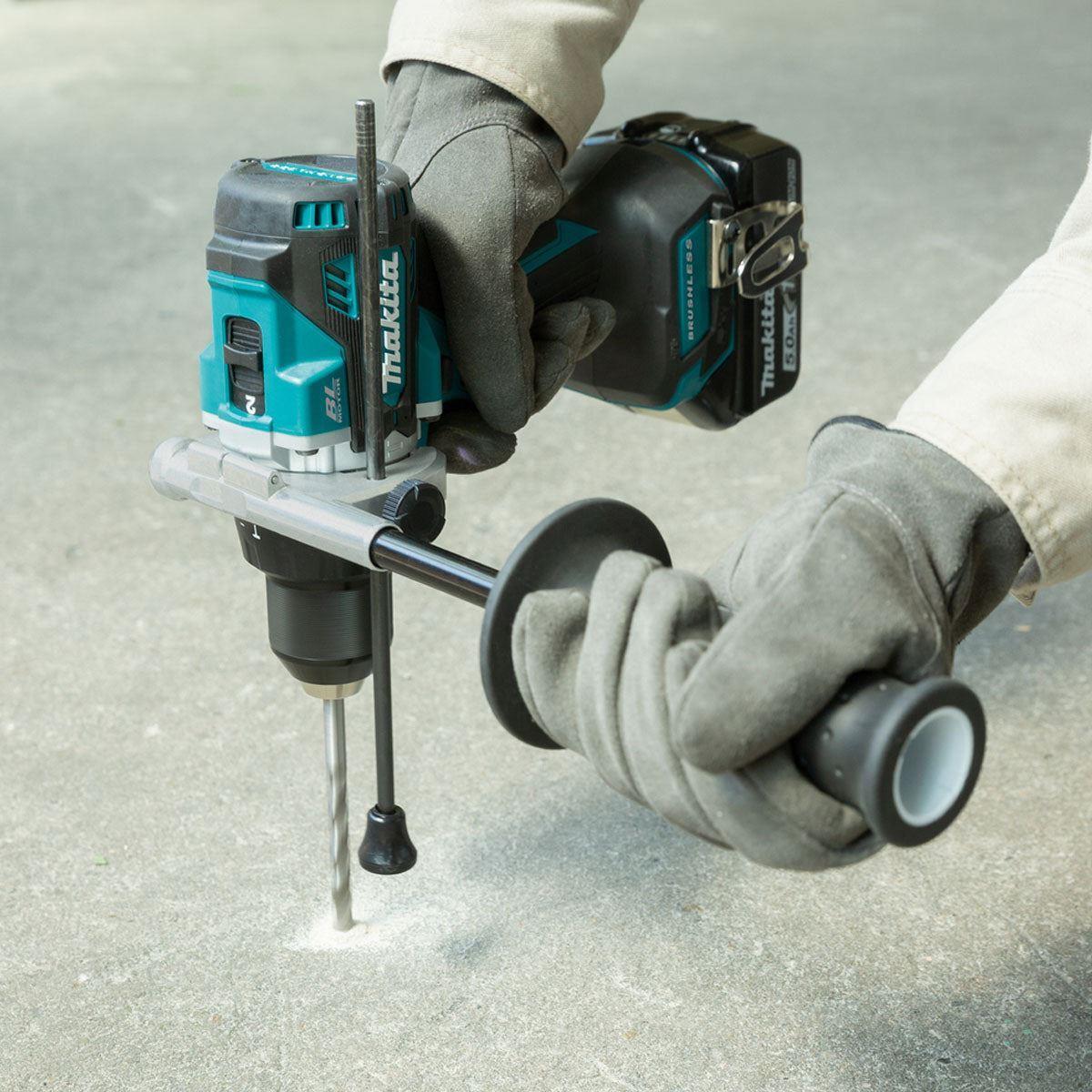

Max. Drilling Diameter in Masonry: 16 mm
Max. Drilling Diameter in Steel: 13 mm
Drilling Capacity Wood (Auger Bit): 50 mm

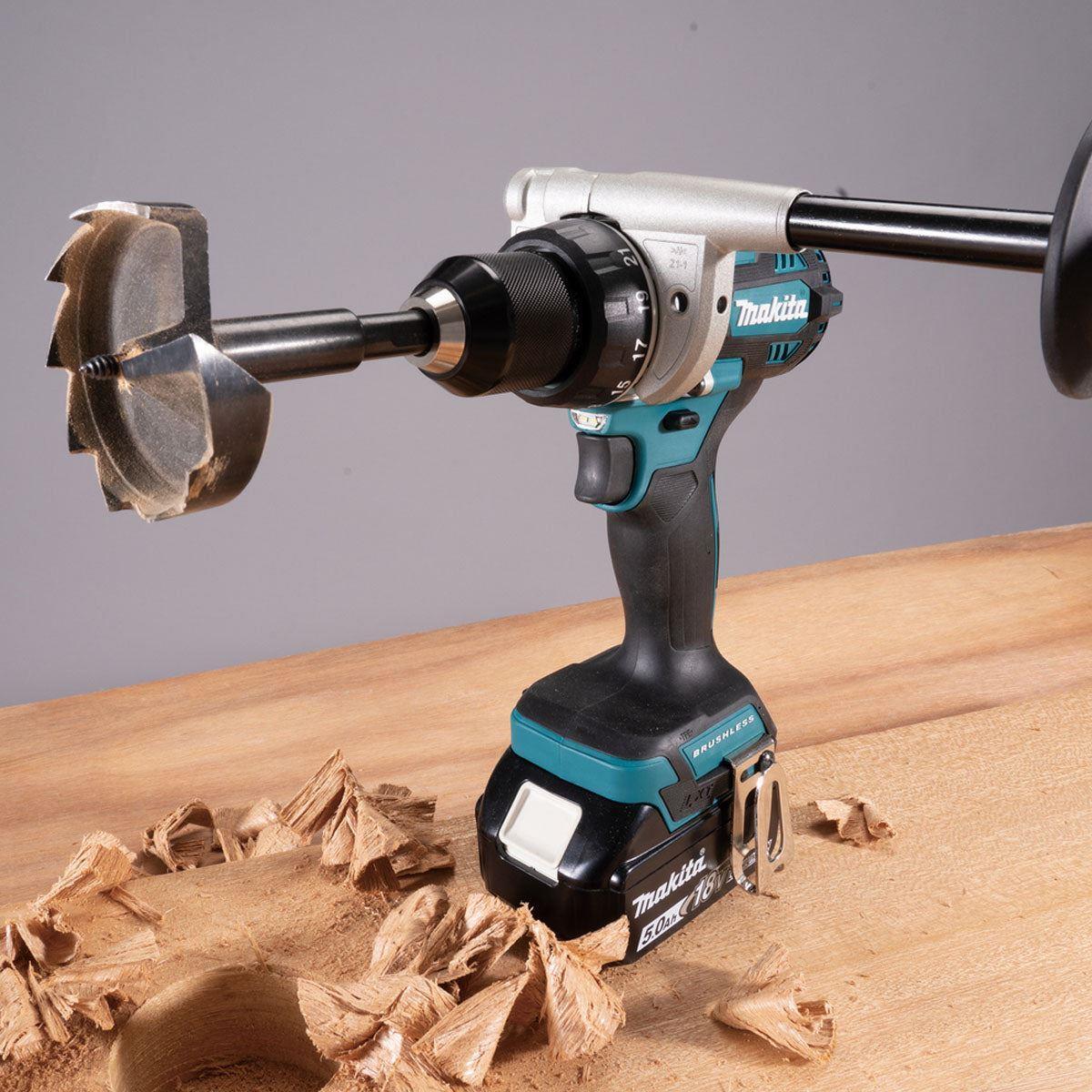

Drilling Capacity Wood (Self-feed bit): 76 mm
Drilling Capacity Flat bit: 40 mm

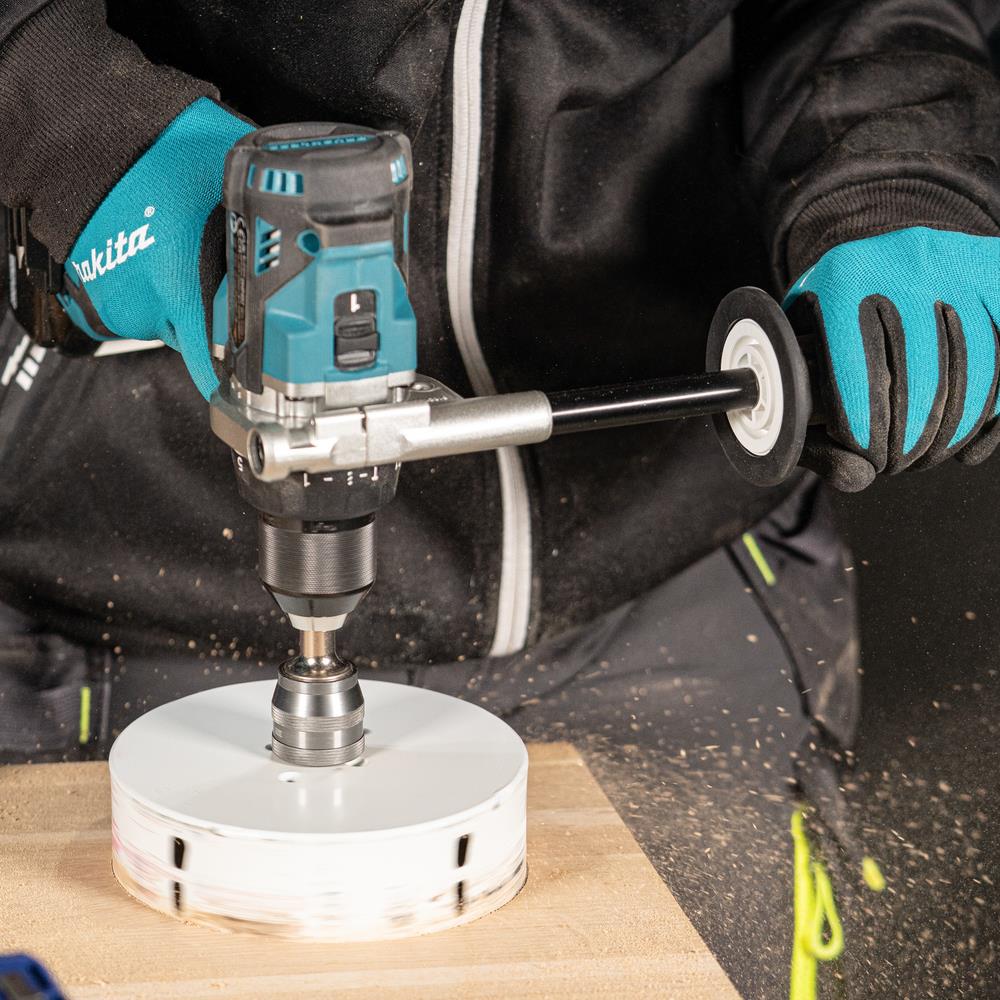

Drilling Capacity Hole Saw: 152 mm
Driving Shank: 1/2"-20UNF "
Drill Chuck Capacity: 1,5 - 13 mm
Electronic brake: Yes
Vibration Level, Drilling into metal: ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal: 1,5 m/s²
Vibration Level, Impact Drilling into Concrete: 8,6 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete: 1,5 m/s²
Sound Power Level (LWA): 95 dB(A)
Sound Pressure Level (LpA): 87 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Product Dimensions (L x W x H): 180 x 81 x 265 mm
Tool weight with battery: 2.3 - 2.7 kg
Product net weight: 1.7 kg
Makita DTD201 Brushless Impact Driver:
Part Number: DTD201
Nominal Battery Voltage: 18V
Voltage LXT: Yes
Battery Chemistry: Li-ion
No load speed: 0 - 1100 / 2100 / 3200 / 3700 min⁻¹
Max Fastening Torque Impact Drill: 20 / 150 / 190 / 210 Nm
Impacts per Minute (IPM): 0 - 2000 / 3600 / 4200 / 4400 min⁻¹
Tightening Capacity Standard Bolt: M5 - M16
Capacity machine screw: M4 - M8
Tightening Capacity High Tensile Bolt: M5 - M14
Driving Shank: 1/4 "
Sound Power Level (LWA): 105 dB(A)
Sound Pressure Level (LpA): 97 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool: 9,9 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool: 1,5 m/s²
Product Dimensions (L x W x H): 121 x 81 x 246 mm
Tool weight with battery: 1.3 - 2.3 kg
Product net weight: 0.98 kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
