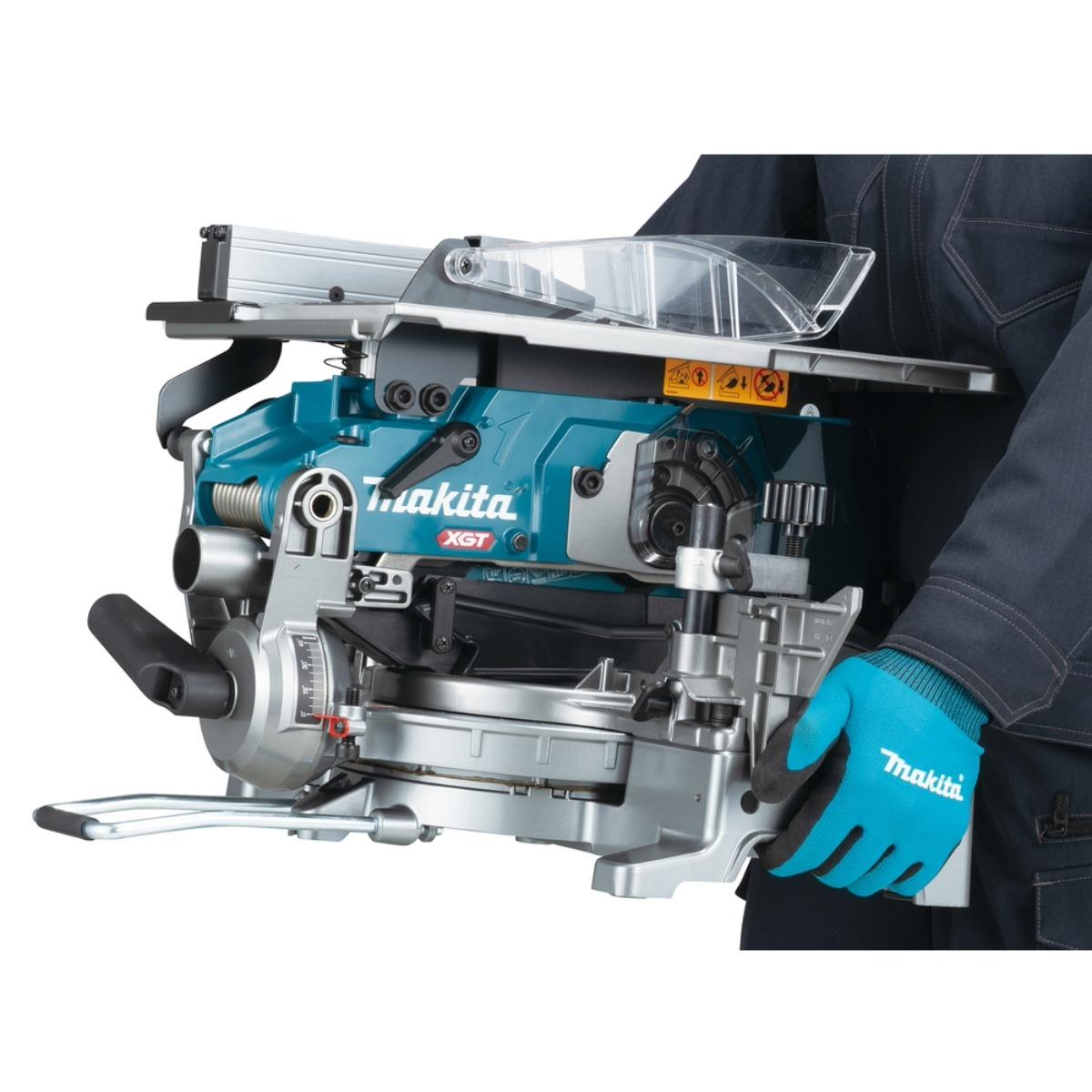

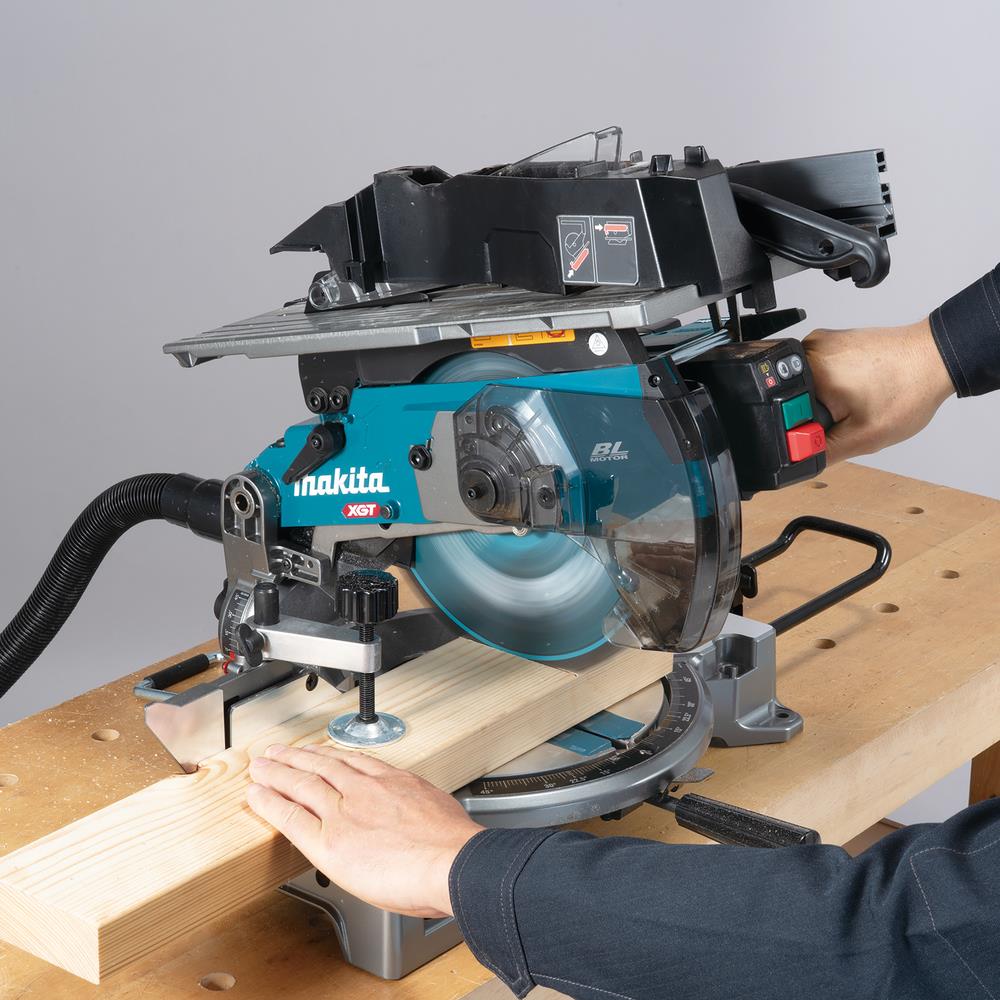

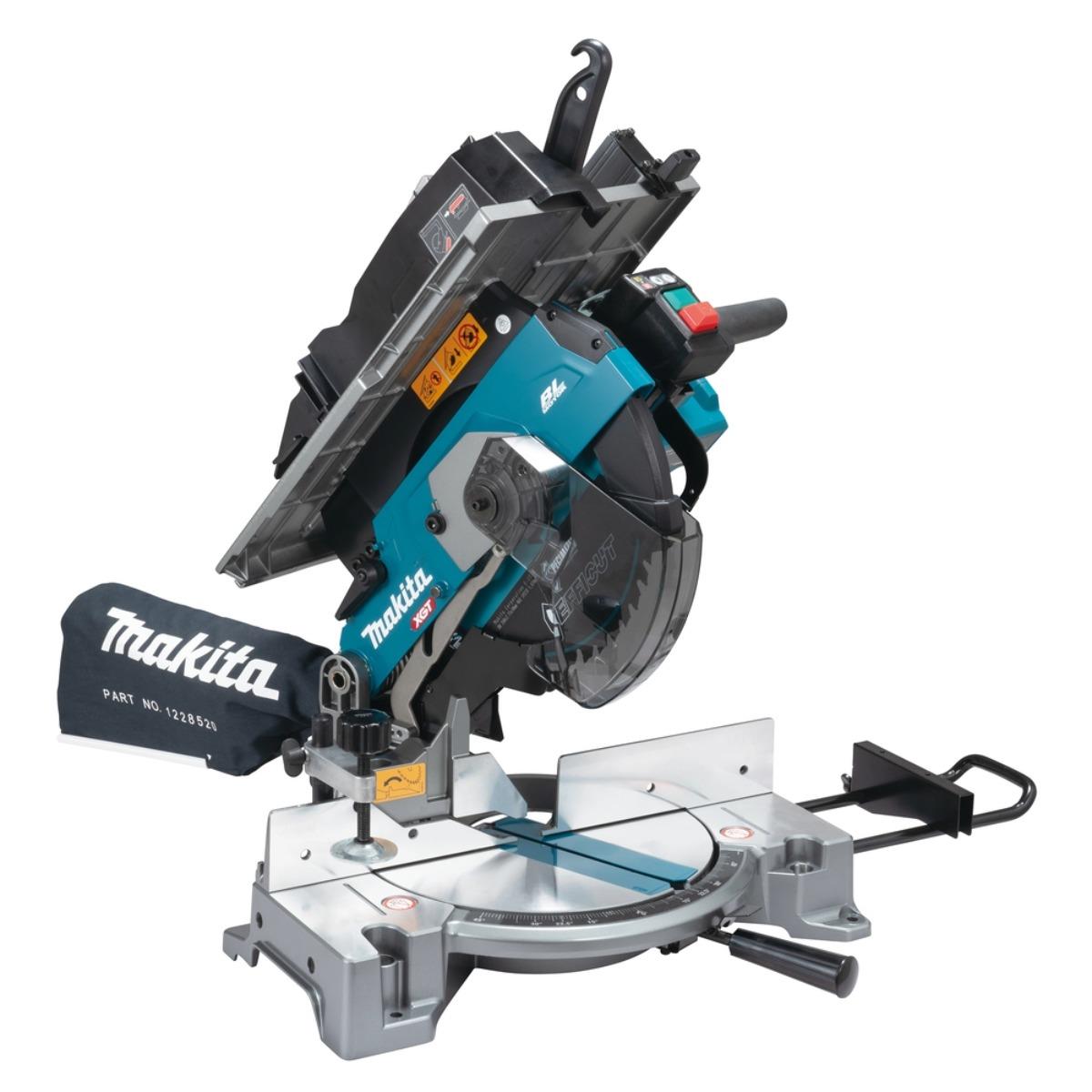

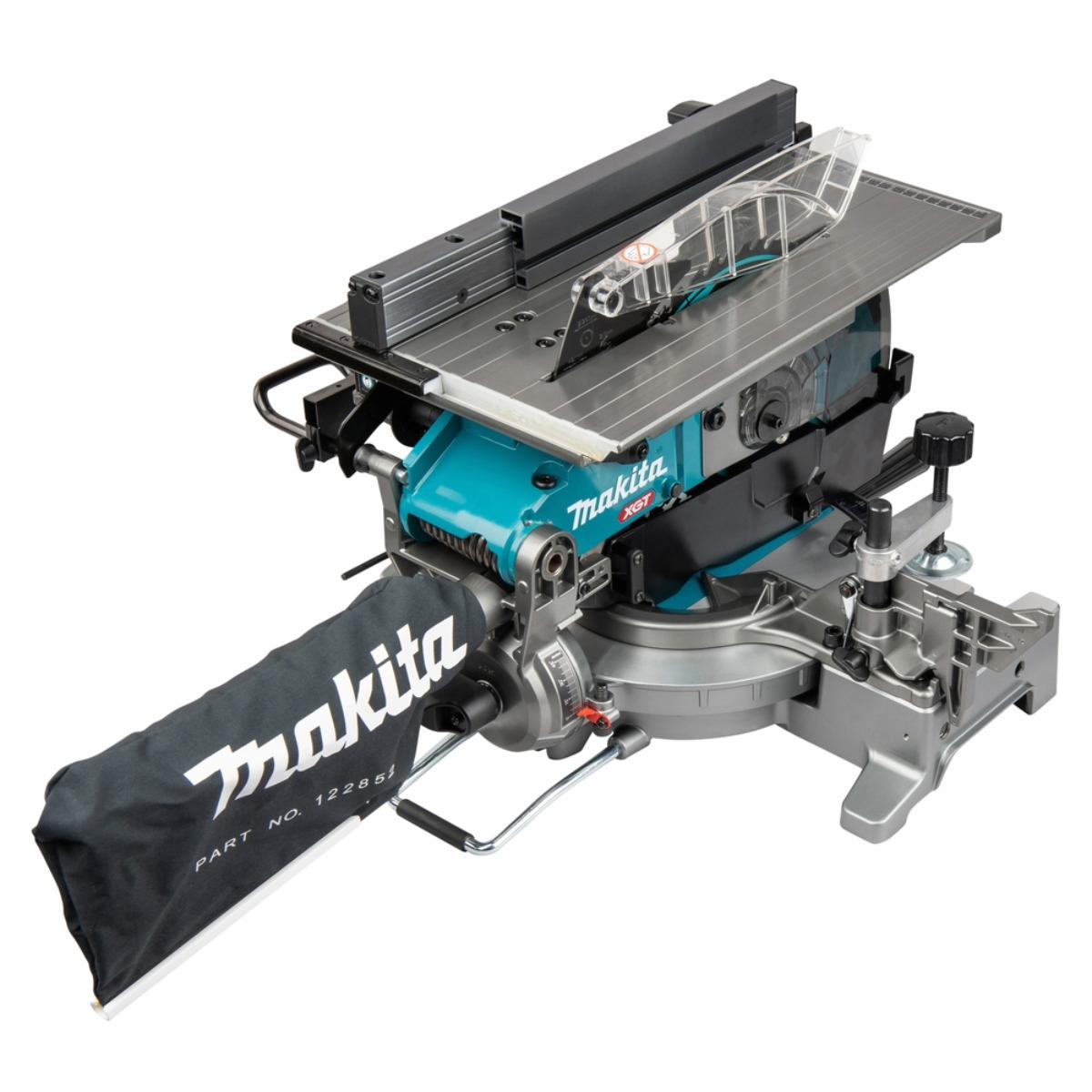

Makita LH001GZ 40V Max XGT Brushless 260mm Table Top Mitre Saw Body Only
Makita LH001GZ 40V Max XGT Brushless 260mm Table Top Mitre Saw Body Only

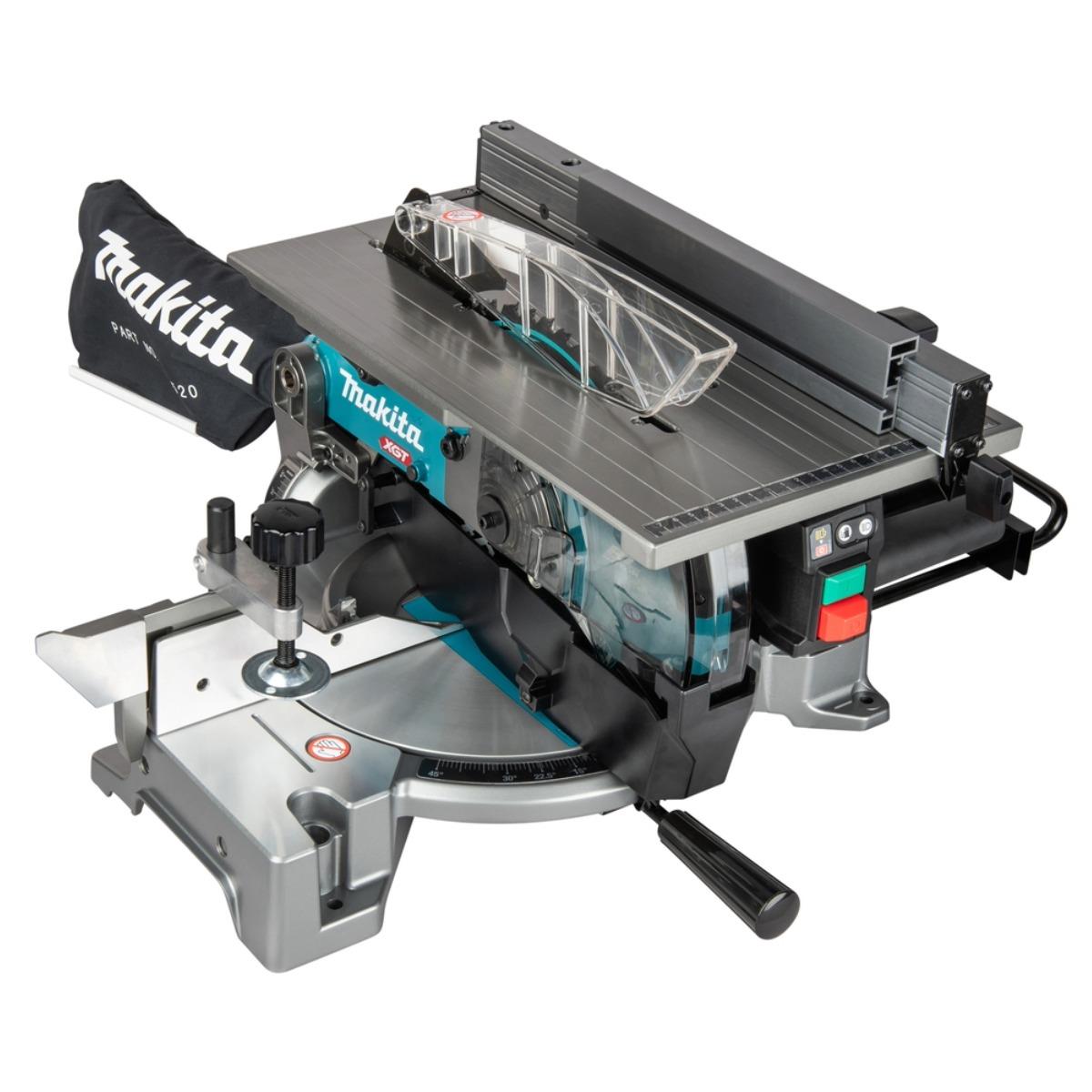

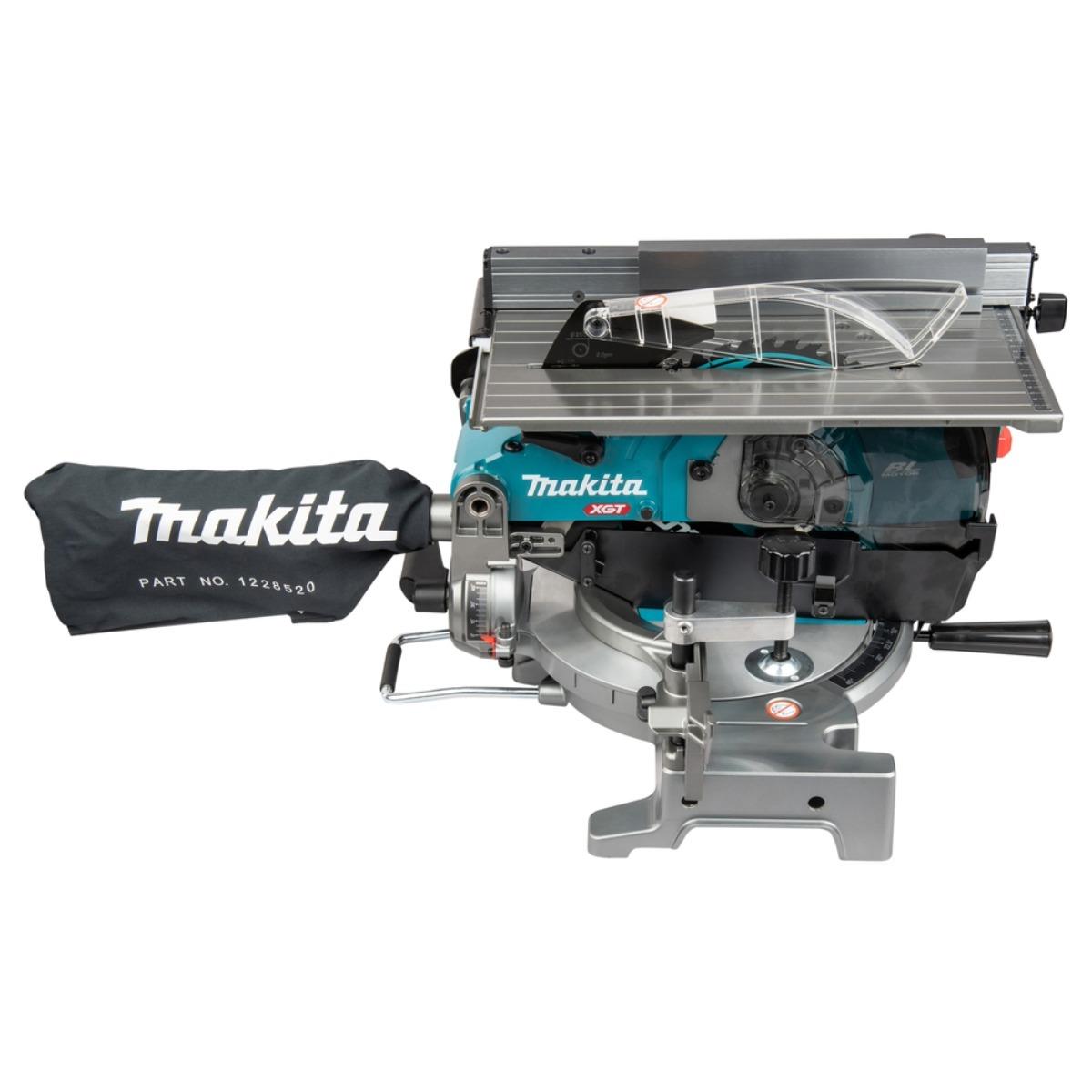

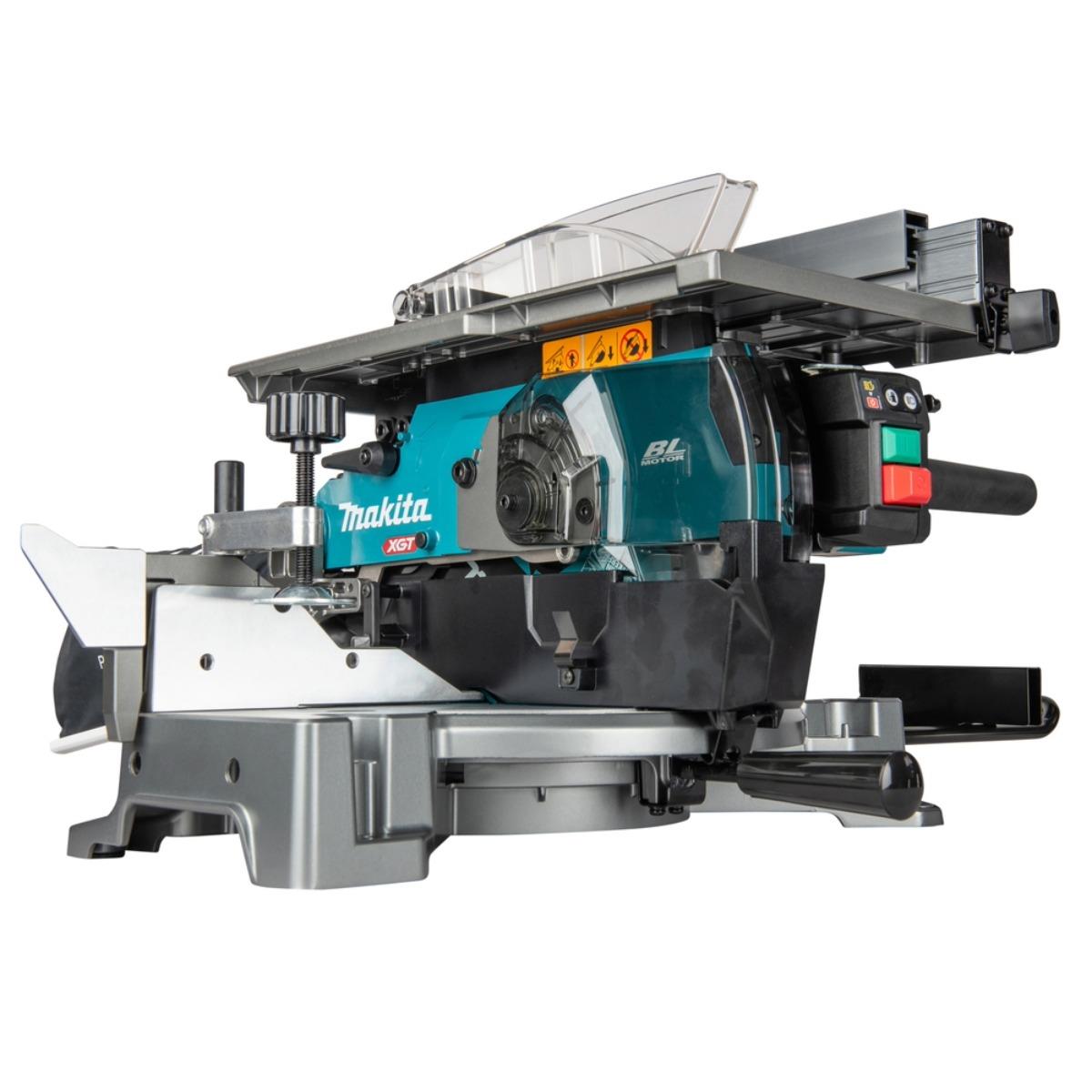

The Makita LH001GZ 40V Max XGT Brushless Table Top Mitre Saw combines the functionality of a mitre saw and table saw in one versatile, portable machine. Powered by the advanced XGT platform and fitted with an EFFICUT blade, it delivers corded-level cutting performance with exceptional efficiency and precision. Features such as AWS Bluetooth connectivity, constant speed control, soft start and an integrated LED work light enhance productivity and accuracy on every cut. Ideal for professional woodworking and construction applications, it offers stable cutting operations with its dual-secured rip fence and adjustable table height.
Features:

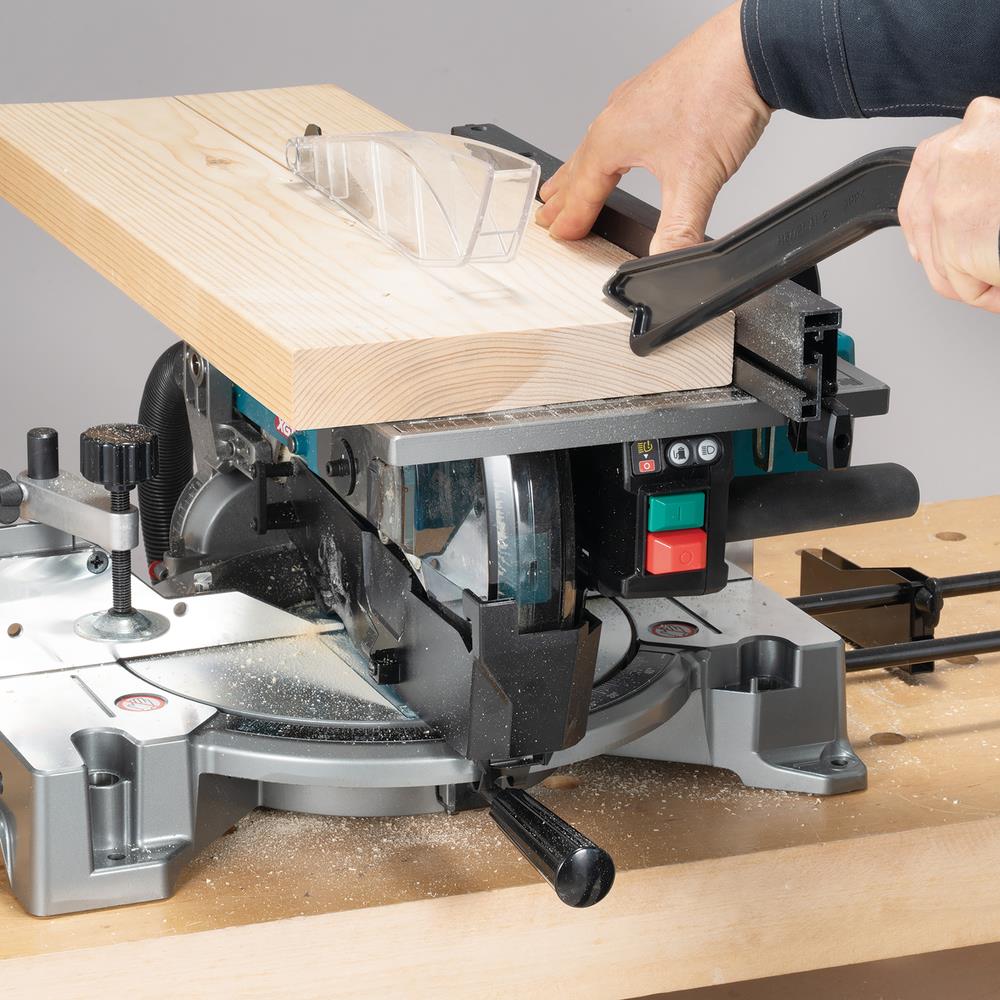

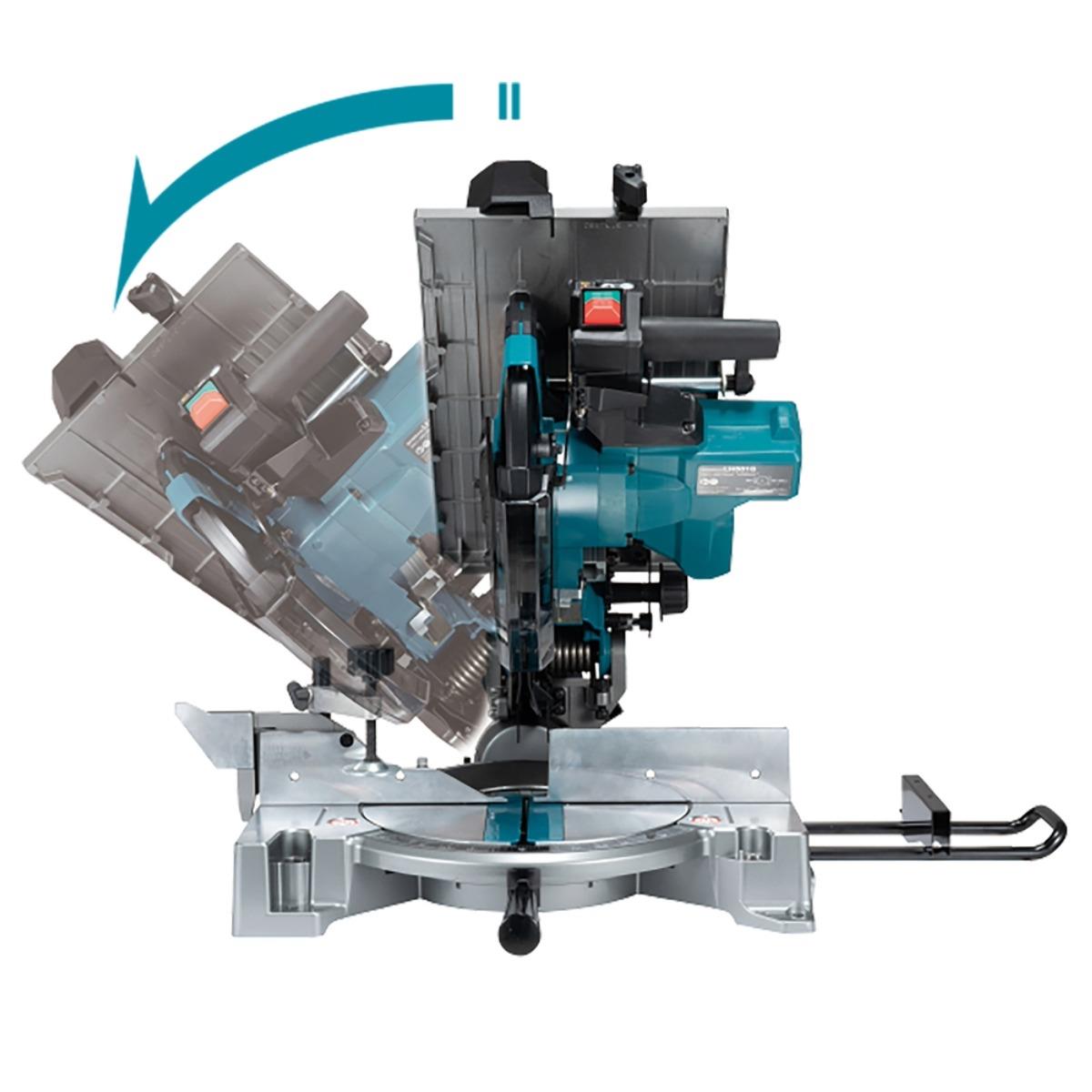

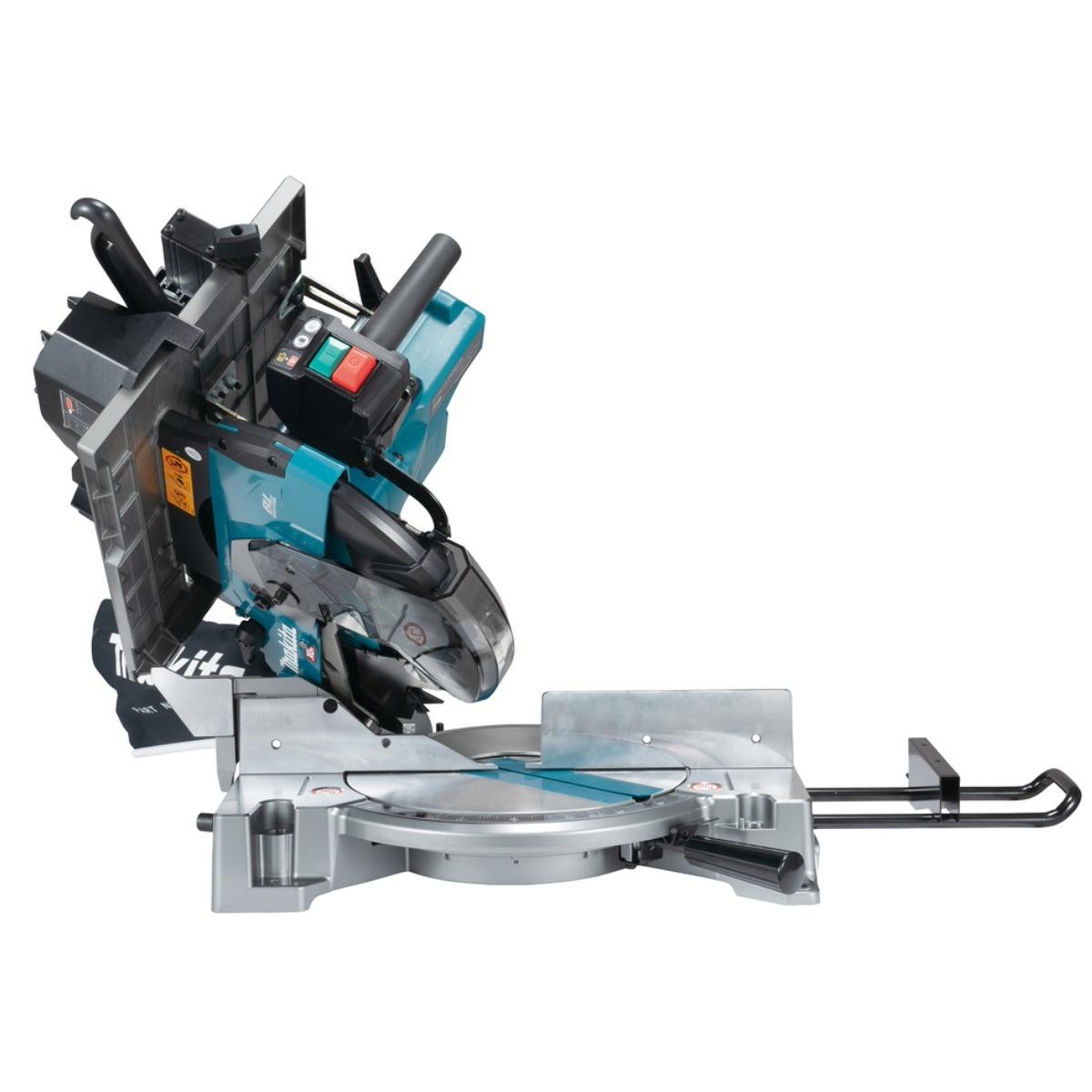

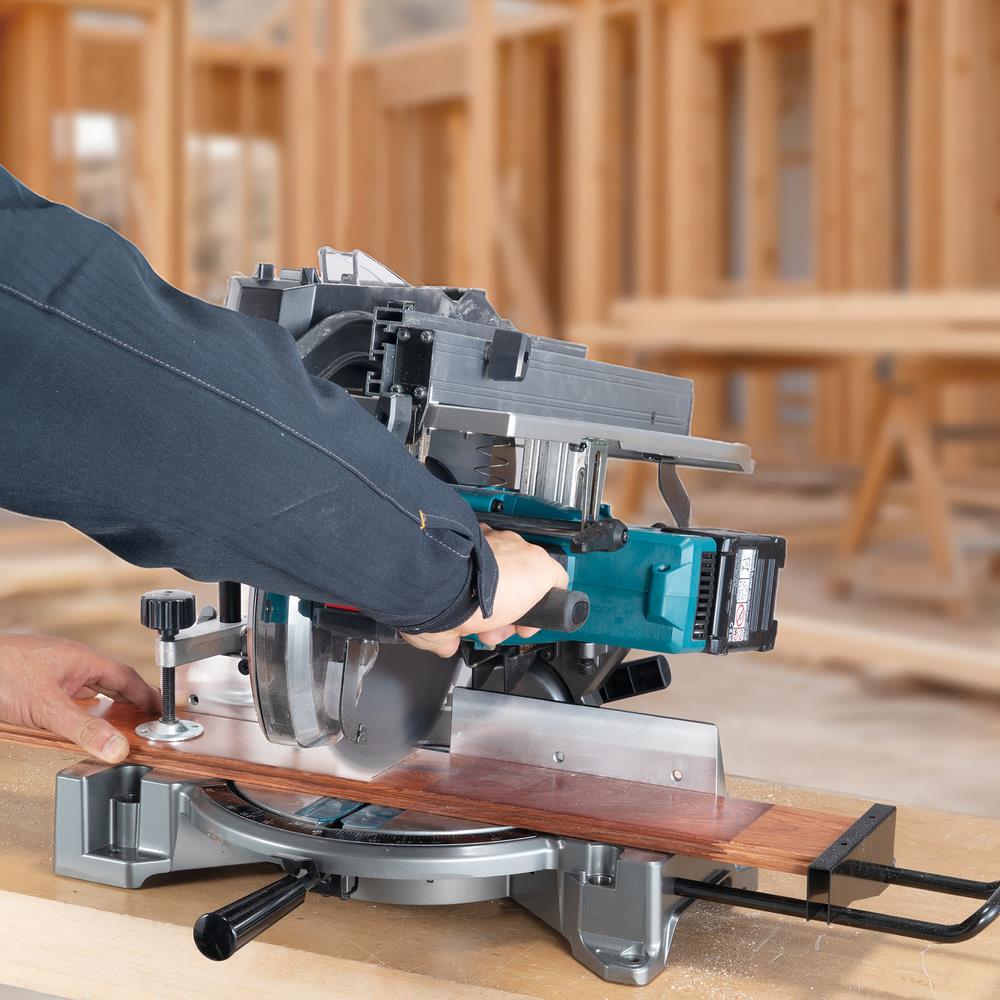

Mitre saw and table saw packed in one tool for great versatility
Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
Table height adjustment

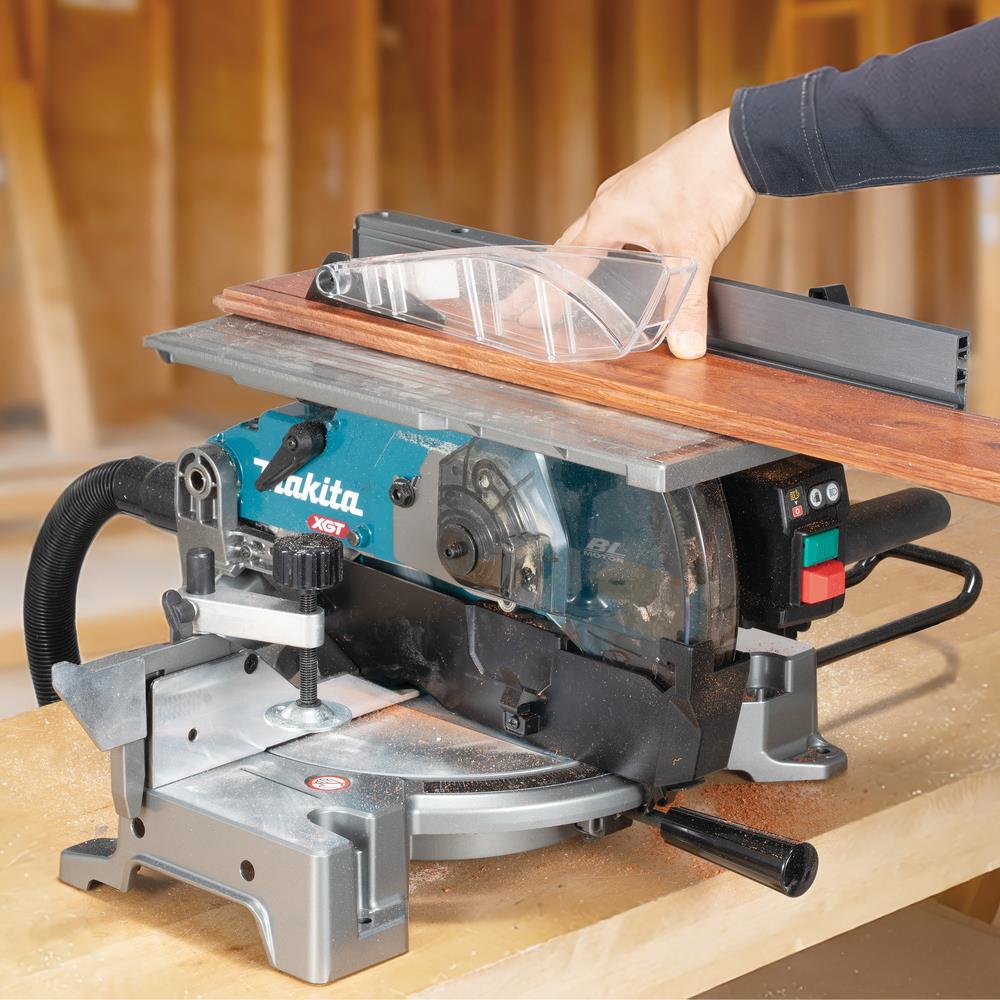

Rip fence secured at both ends enable stable cutting operations
Built-in LED light illuminates the line of cut for increased accuracy
Constant speed control maintains constant speed under load
Soft start for smooth start-ups
Comes With:
1 x EFFICUT T.C.T. Circular Saw Blade (E-27763)
1 x Vertical Vice Assembly (122536-0)
1 x Dust Bag (122852-0)
1 x Extension Wing (322312-4)
1 x Set Plate (345709-0)
1 x Hex Wrench (781044-6)
1 x Rip Fence Assembly (122K39-0)v 1 x Blade Cover (122K40-5)
Product Specification:
Part Number: LH001GZ
Barcode: 0197050016867
Nominal Battery Voltage: 40V
Voltage XGT: Yes
Blade Diameter: 260 mm
Bore Size (Arbor Diameter): 30 mm
Table size: 260 x 415 mm
Max. kerf thickness of the saw blade: 3,2 mm
Brushless Motor: Yes
Capacity 90°: 69 x 130 mm
Capacity 45° left: 35 x 130 mm
No load speed: 4300 min⁻¹
Capacity 45°: 69 x 85 mm
Max. Cutting Height (above Table) at 90°: 40 mm
Product net weight: 14,1 kg
Tool weight with battery: 14,8 - 16,0 kg
Product Dimensions (L x W x H): 545 x 476 x 585 mm
Sound Power Level (LWA): 103 dB(A)
Sound Pressure Level (LpA): 91 dB(A)
Noise Uncertainty (K factor), Sound Power: 3 dB(A)
Noise Uncertainty (K factor), Sound Pressure: 3 dB(A)
Vibration Level (3 axes): 0,8 m/s²
Vibration Uncertainty (K Factor): 1,5 m/s²
**images for illustrative purposes only – please refer to description and specification for full details of product**
