Makita LS003GZ01 40Vmax XGT Brushless Slide Compound Mitre Saw with Universal Folding Stand
Makita LS003GZ01 40Vmax XGT Brushless Slide Compound Mitre Saw with Universal Folding Stand
Features:
Makita LS003GZ01 40Vmax XGT Brushless Mitre Saw:
High power delivered by 40V max Brushless motor enables to cut as fast as if you were using a corded slide compound Mitre saw
Vacuum cleaner activation switch for increased comfort
LED light with ink line aligning function
Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
Large turn base supports workpiece securely for increased stability
Holders are provided on both sides of the tool to hold long workpieces horizontally
Front knob for easy bevel angle adjustment
Integrated guide fences for increased rigidity and high cutting accuracy
Battery protection system automatically shuts off power when the battery level is low

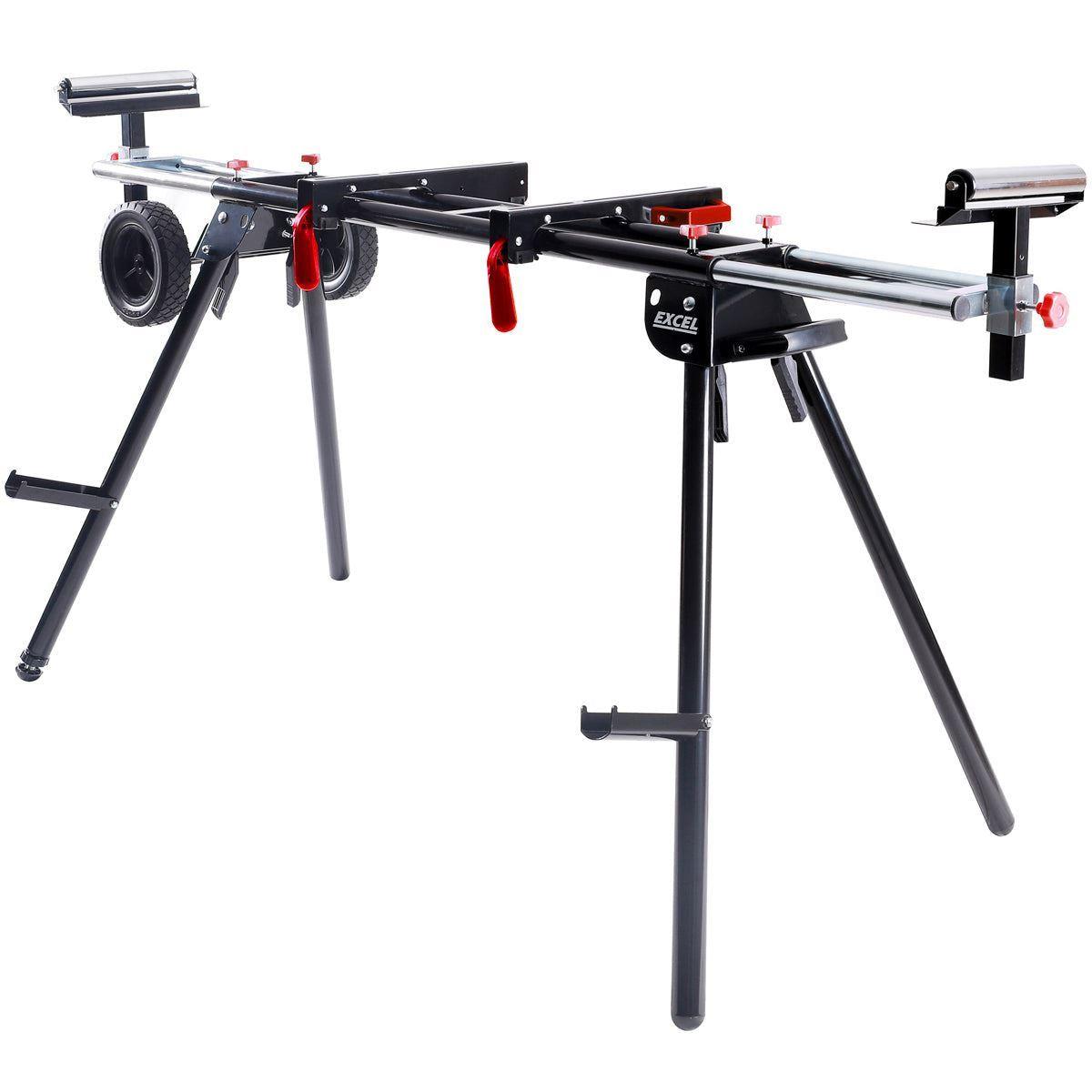

Excel Universal Mitre Saw Stand:
Design: Excel Miter Saw Stand with wheels is the ultimate portable saw workstation. Innovative mobile saw stand constructed with round steel tubing and two 38cm steel rollers insure a smooth feed.
Capacity: The stand is constructed with steel tubing and locking steel legs which provides a weight capacity up to 150kg. It can safely be stored with or without a saw attached in the horizontal position.
Adjustable: For stability, the leveling feet are adjustable for uneven surfaces. For ease of mobility, this stand comes with two 8-inch rubber wheels; just roll the stand to your preferred location and work away.
Easy to Use: Spring-loaded locking legs for easy set-up and break down. Universal quick-release mounting brackets included and support arms extend to 200cm.
Application: Miter saws, other bench top saws and planers can be easily secured & removed with quick-dash release universal mounts. Two adjustable steel rollers support your workpiece along the stand length smoothly and accurately. Useful flip- down supports for lumber or material storage offer easy accessibility to work materials. A foot or bracket is not provided that would allow for vertical storage. However, with the saw removed, the stand can be stored vertically if supported or lashed.
Comes With:
1 x Dust bag ( 122852-0 )
1 x Vertical Vise Assembly ( 126617-2 )
1 x Hex Wrench 6 ( 781044-6 )
1 x Excel Universal Mitre Saw Stand
Product Specification:
Makita LS003GZ01 40Vmax XGT Brushless Mitre Saw:
Part Number: LS003GZ01
Nominal Battery Voltage: 40 V
Capacity 90°: 107 x 363 / 92 x 382 mm
No load speed: 3600 min⁻¹
Capacity 45° left: 71 x 363 / 61 x 382 mm
Max. Bevel Range (Left): 48 / 48 º
Max. Mitre Range (Left): 60 / 60 º
Capacity 45°: 107 x 255 / 92 x 268 mm
Bevel capacity right 45°: 54 x 363 / 44 x 382 mm
Blade Diameter: 305 mm
Bore Size (Arbor Diameter): 30 mm
Product Dimensions (L x W x H): 898 x 690 x 725 mm
Tool weight with battery: 30,5 - 31,7 kg
Product net weight: 28,9 kg
Sound and Vibration
Sound Power Level (LWA): 100 dB(A)
Sound Pressure Level (LpA): 91 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (3 axes): ≤ 2,5 m/s²
Vibration Uncertainty (K Factor): 1,5 m/s²
Vacuum cleaner connection Ø in / out: 35/40 mm
Excel Universal Mitre Saw Stand:
Brand: Excel
Open Size: (120-203) x 63.2 x (90-100)cm
Packing Size: 135 x 30 x 21cm
Height: 81.5cm
Extended Width: 2000mm
Maximum Load Capacity: 150 kg
Net Weight: 40 lbs. (18 kg)
Gross Weight: 42 lbs. (19 kg)
**images for illustrative purposes only – please refer to description and specification for full details of product**
