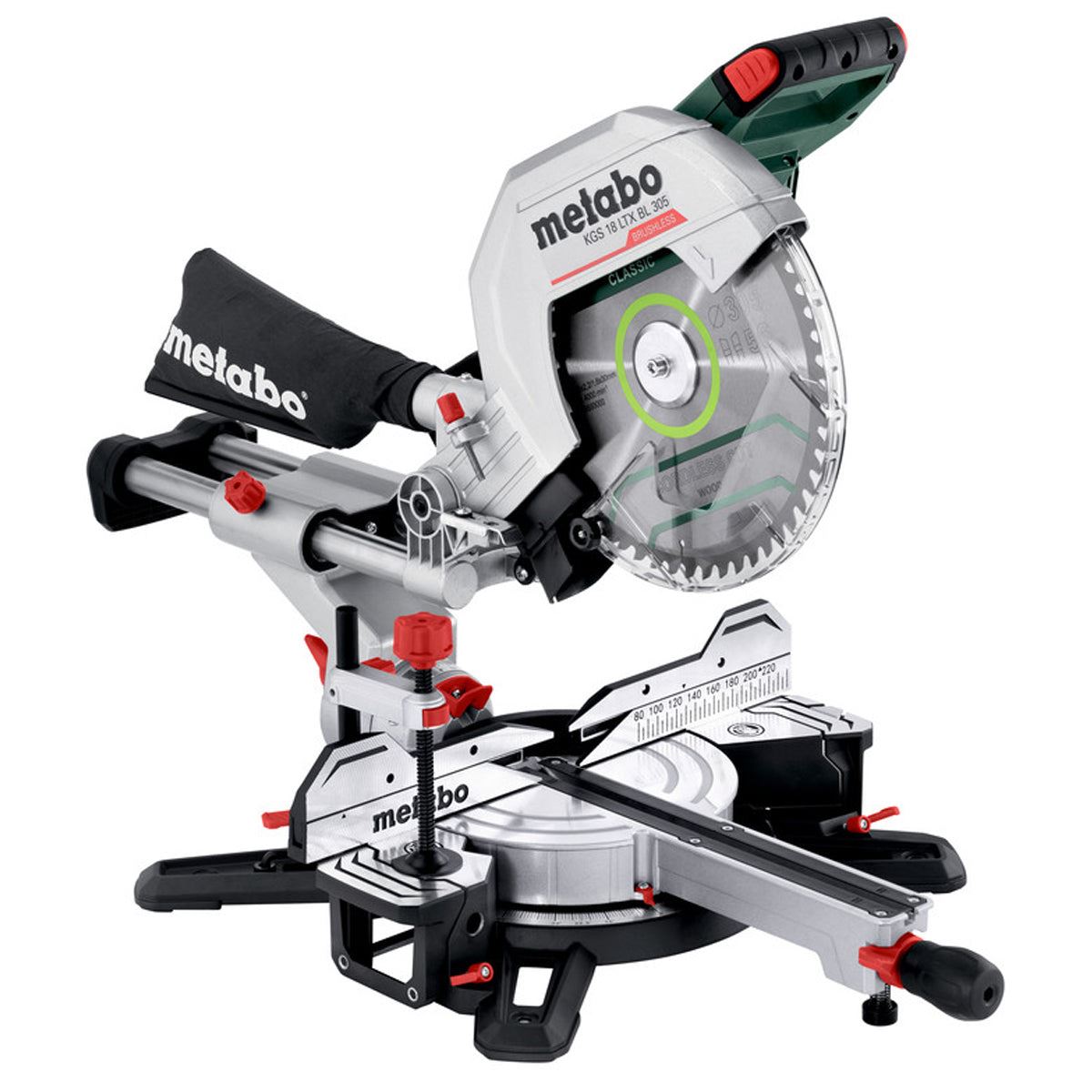

Metabo KGS 18 LTX BL 305 18V Brushless 305mm Double Bevel Sliding Mitre Saw Body Only 614305850
Metabo KGS 18 LTX BL 305 18V Brushless 305mm Double Bevel Sliding Mitre Saw Body Only 614305850
The Metabo KGS 18 LTX BL 305 is a high-performance 18V cordless sliding mitre saw designed for mobile, precision cutting. Powered by a brushless motor, it delivers cutting power comparable to mains-powered tools, with up to 120 cuts per charge in soft wood using a 10Ah battery. The saw features a large 305mm blade with a double bevel and sliding function for wide workpieces. Its Precision Cut Line system ensures accurate cuts using an LED shadow line, while the die-cast aluminium construction adds durability. Additional conveniences include a dust extraction scoop, quick-action clamp, depth guide, and ergonomic handles for easy transport.
Features:
Largest cordless crosscut and mitre saw of mobile M-class - light, precise, user-friendly
Powerful Brushless motor for powerful sawing like with a mains-powered tool
Up to 120 cuts in soft wood 100 x 100 mm per battery pack charge (LiHD 10 Ah) (not included)
Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
Large cutting capacity thanks to sliding function for wide work pieces
Turntable with fast, precise setting of common angles using stop points
Saw blade inclination on both sides up to 47° for maximum flexibility
Robust die-cast aluminium design for the highest demands
Effective dust extraction via integrated dust scoop
Soft start and overload protection for long service life of motor and drive
Extendable table width extensions, also removable to put underneath extremely long work pieces
Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
All scales and operating elements are visible from the working position and can be operated intuitively
Ergonomic handle areas for carrying with one or two hands
Comes With:
Saw blade "cordless cut wood - classic", 305x30 Z56
2 Table length extensions
Length Guide
Material clamp
Tool for saw blade change
Chip Collection Bag
Specification:
Part Number: 614305850
Barcode: 4061792230439
Battery voltage: 18V
Support surface: 345 x 770 mm
Maximum cutting width 90°/45°: 305 / 215 mm
Maximum cutting depth at 90°/45°: 110 / 67 mm
Cutting capacity 90°/90°: 305 x 110 mm
Cutting capacity 45°/45°: 215 x 67 mm
Turntable setting left/right: 50 / 60 °
Saw blade tilt left/right: 47 / 47 °
Saw blade: 305 x 30 mm
No-load speed: 3700 rpm
Max. cutting speed: 59 m/s
Weight without battery pack: 17.4 kg
Noise emission
Sound pressure level: 98 dB(A)
Sound power level (LwA): 107 dB(A)
Uncertainty of measurement K: 3 dB(A)
**images for illustrative purposes only – please refer to description and specification for full details of product**
