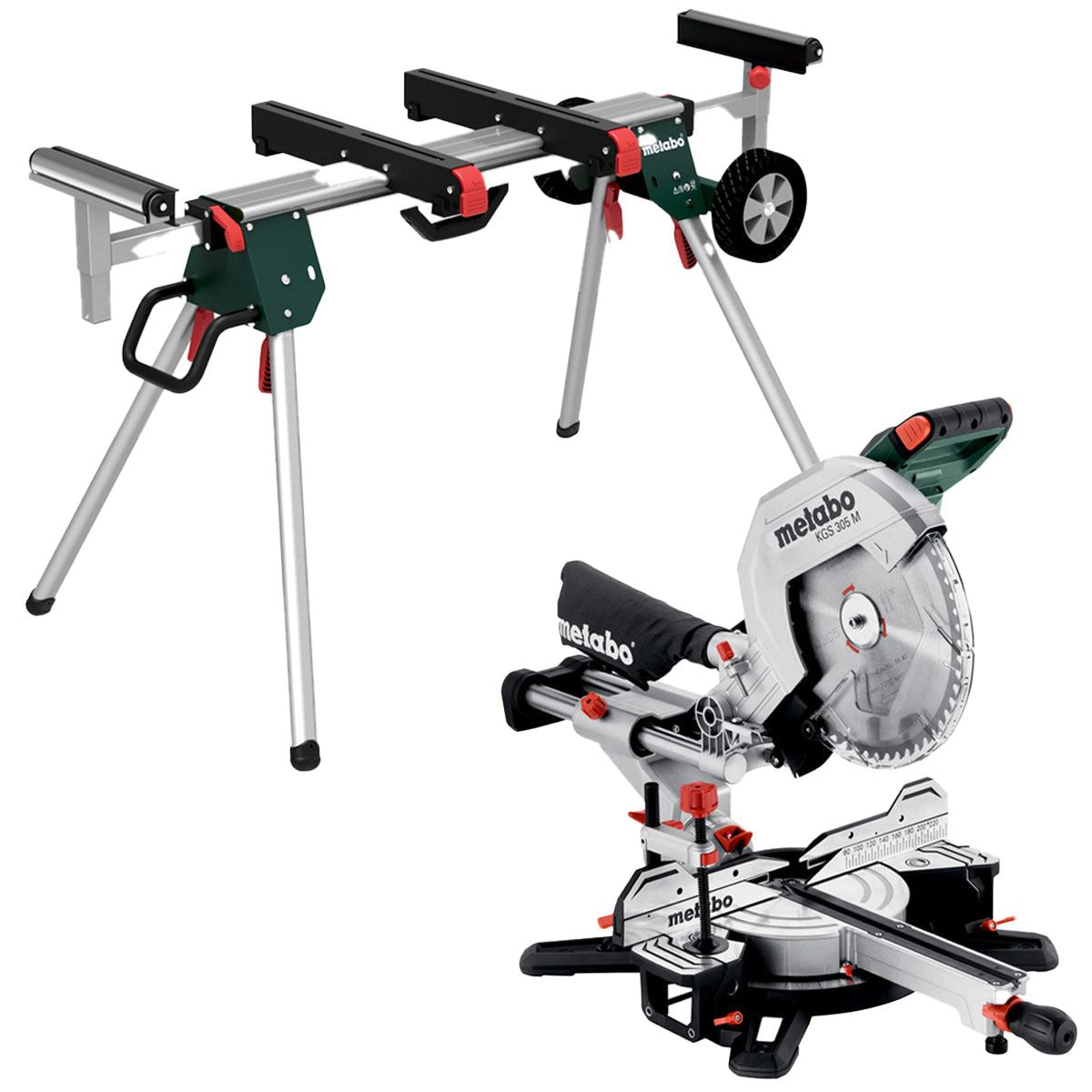

Metabo KGS 305 M 305mm Double Bevel Sliding Compound Mitre Saw 240V/1600W with KSU 251 Stand
Metabo KGS 305 M 305mm Double Bevel Sliding Compound Mitre Saw 240V/1600W with KSU 251 Stand
Features:

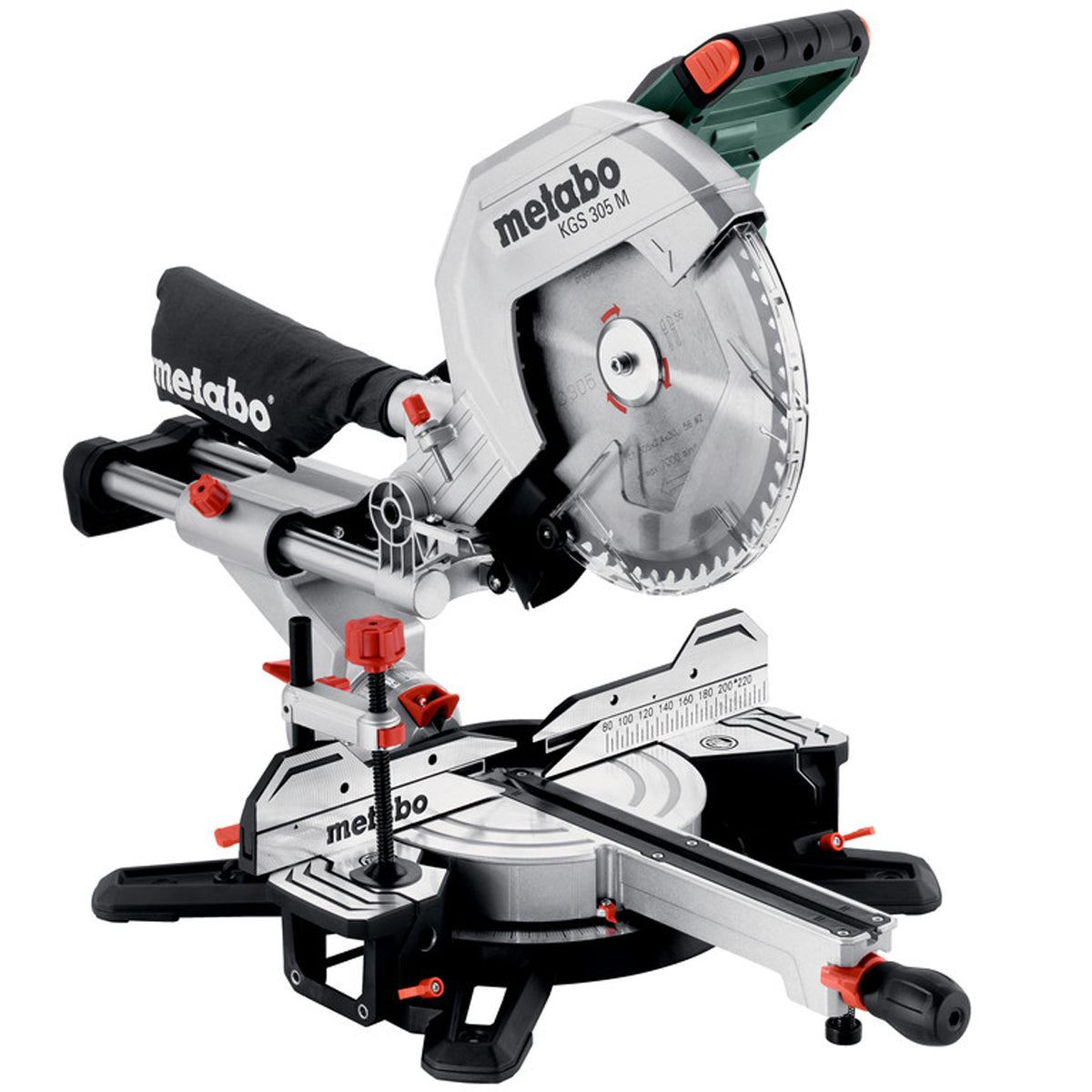

Metabo KGS 305 M 305mm Mitre Saw:
Largest crosscut and mitre saw of mobile M-class - light, precise, user-friendly

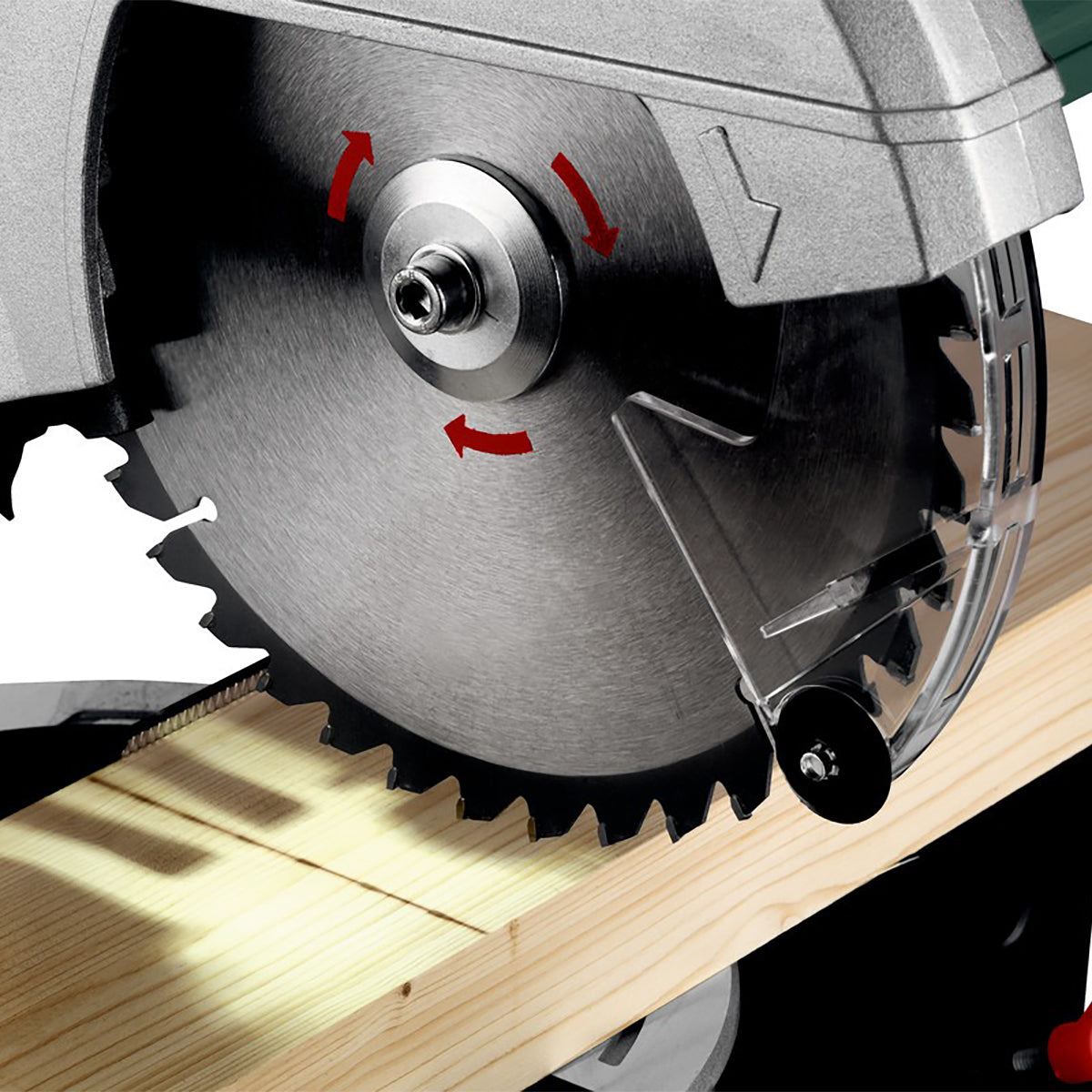

Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
Enormous cutting performance due to extremely powerful universal motor and large saw blade
Turntable with fast, precise setting of common angles using stop points

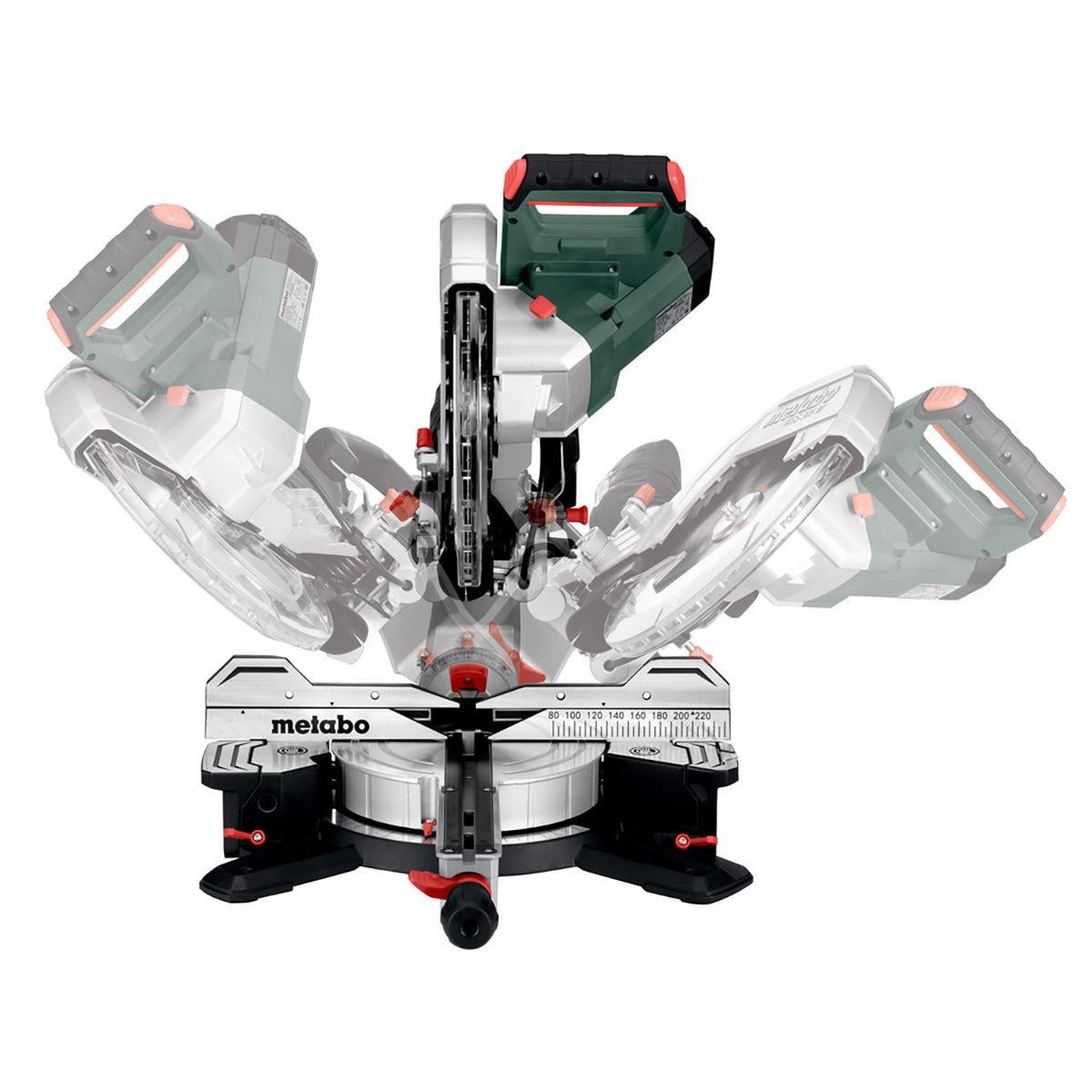

Saw blade inclination on both sides up to 47° for maximum flexibility
Robust die-cast aluminium design for the highest demands
Effective dust extraction via integrated dust scoop
Soft start for long service life of motor and drive
Extendable table width extensions, also removable to put underneath extremely long work pieces
Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
All scales and operating elements are visible from the working position and can be operated intuitively
Ergonomic handle areas for carrying with one or two hands

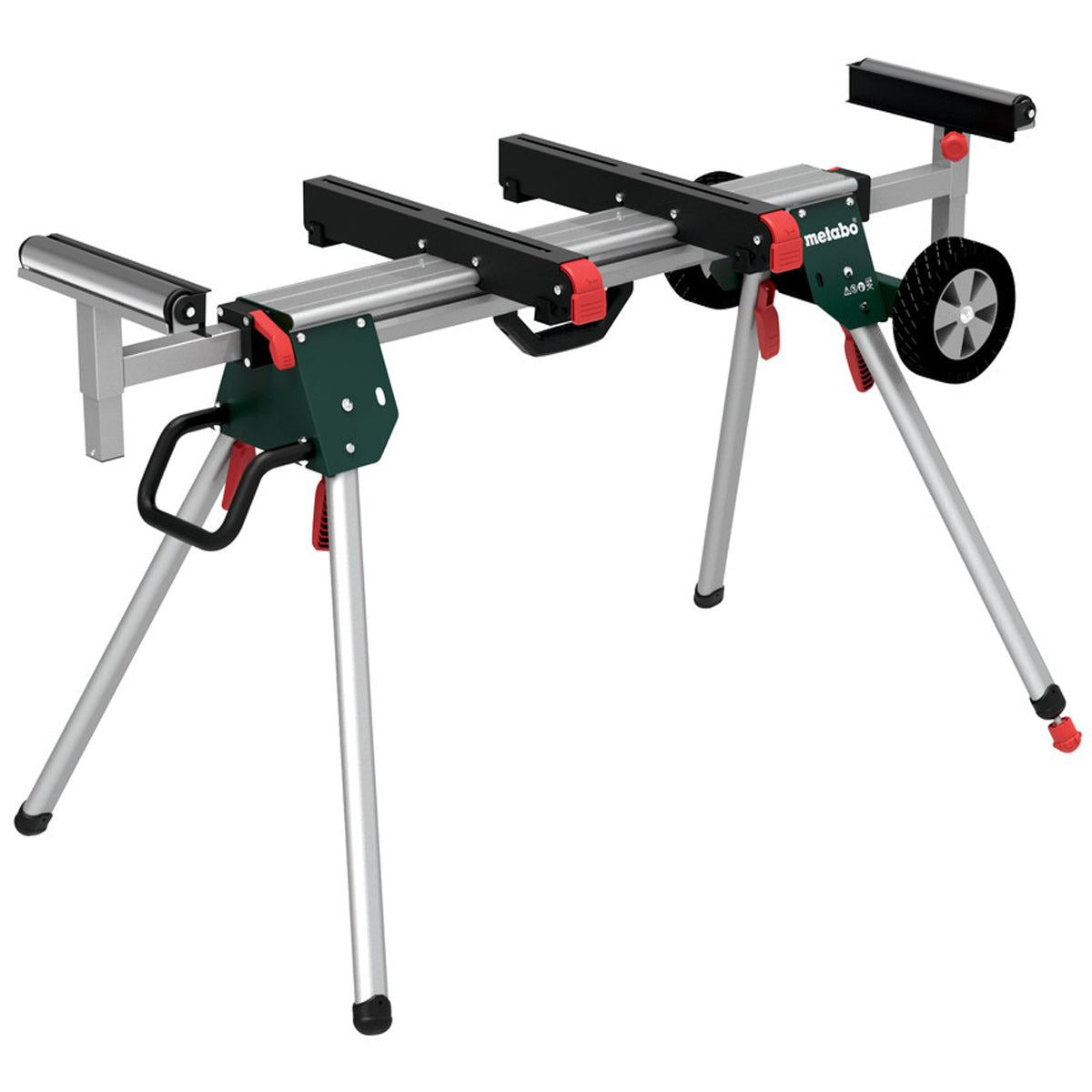

Metabo KSU 251 Extendable Stand:

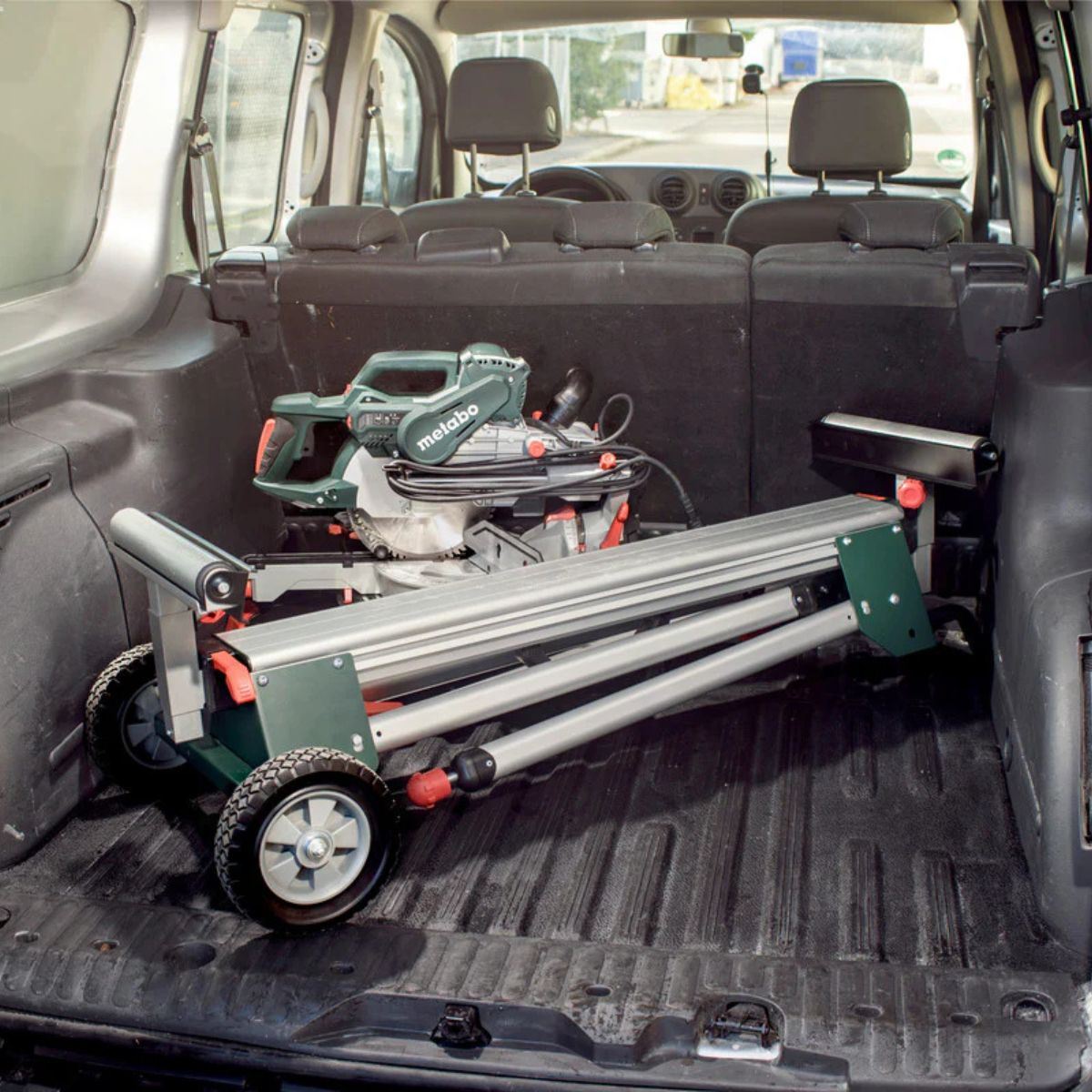

Light and robust stand for mitre saw with trolley function for mobile use also with the saw mounted
Quickly ready to use thanks to lockable folding legs and adjustment option for safe positioning
Extendable workpiece supports with rollers and folding guide for precise cutting in series
Machine carrier (installation without tools) makes it suitable for all the conventional mitre saws of well-known manufacturers
Maximum weight load in central part: 250 kg
Comes with:
1 x Saw blade "precision cut wood - classic", 305x30 Z56
2 x Table length extensions
1 x Length guide
1 x Material clamp
1 x Tool for saw blade change
1 x Cable winder
1 x Chip collection bags
1 x Metabo KSU 251 Extendable Stand
Product Specification:
Metabo KGS 305 M 305mm Mitre Saw:
Part Number: 613305380
Support surface: 345 x 770 mm
Maximum cutting width 90°/45°: 305 / 215 mm
Maximum cutting depth at 90°/45°: 110 / 67 mm
Cutting capacity 90°/90°: 305 x 110 mm
Cutting capacity 45°/45°: 215 x 67 mm
Turntable setting left/right: 50 / 60 °
Saw blade tilt left/right: 47 / 47 °
Saw blade: 305 x 30 mm
Rated input power: 1600 W
Rated input power S1 100%: 1600 W
Rated input power S6 20%: 2000 W
No-load speed: 3700 rpm
Speed at rated load: 3000 rpm
Cutting speed: 59 m/s
Cable length: 2 m
Sound pressure leve: l87 dB(A)
Sound power level (LwA): 100 dB(A)
Uncertainty of measurement K: 3 dB(A)
Dimensions: 780 x 500 x 657 mm
Weight: 18.6 kg
Metabo KSU 251 Extendable Stand:
Part Number: 629005000
Overall length: 127 cm – 250 cm
Height of workpiece supports: 92 cm - 99 cm
Maximum weight load in central part: 250 kg
Weight: 23 kg
