Sealey DBG5010 Dial Bore Gauge 50-160mm
Sealey DBG5010 Dial Bore Gauge 50-160mm

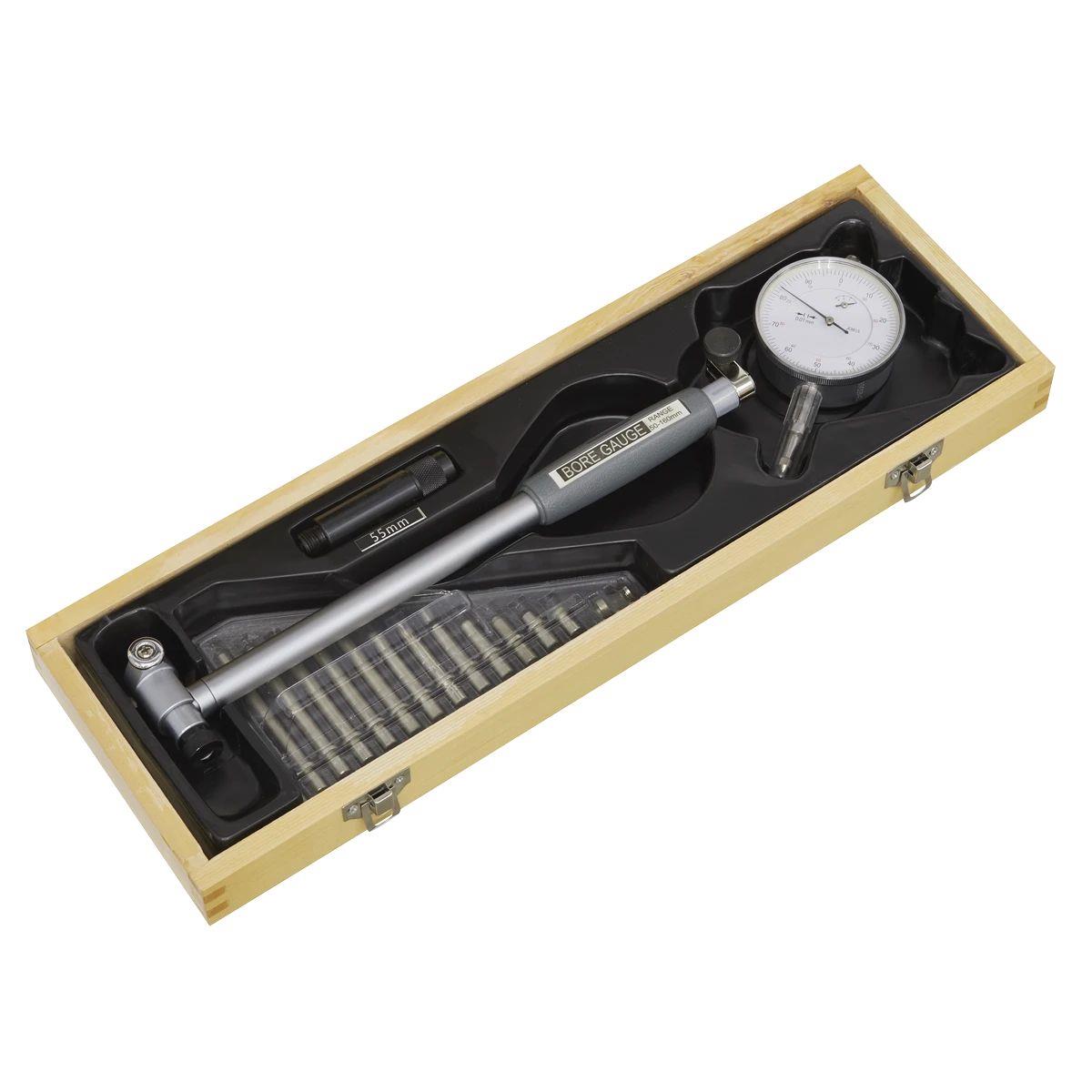

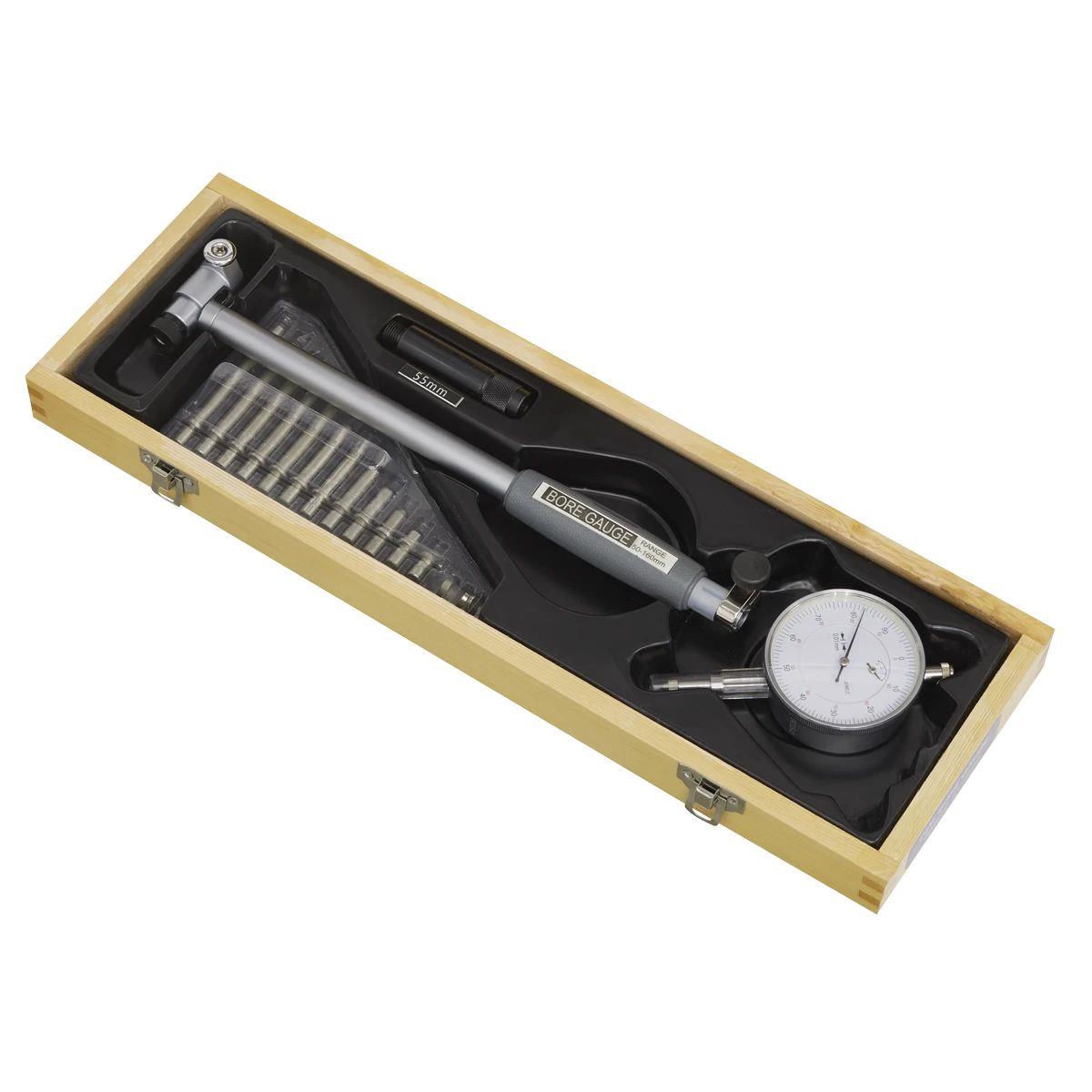

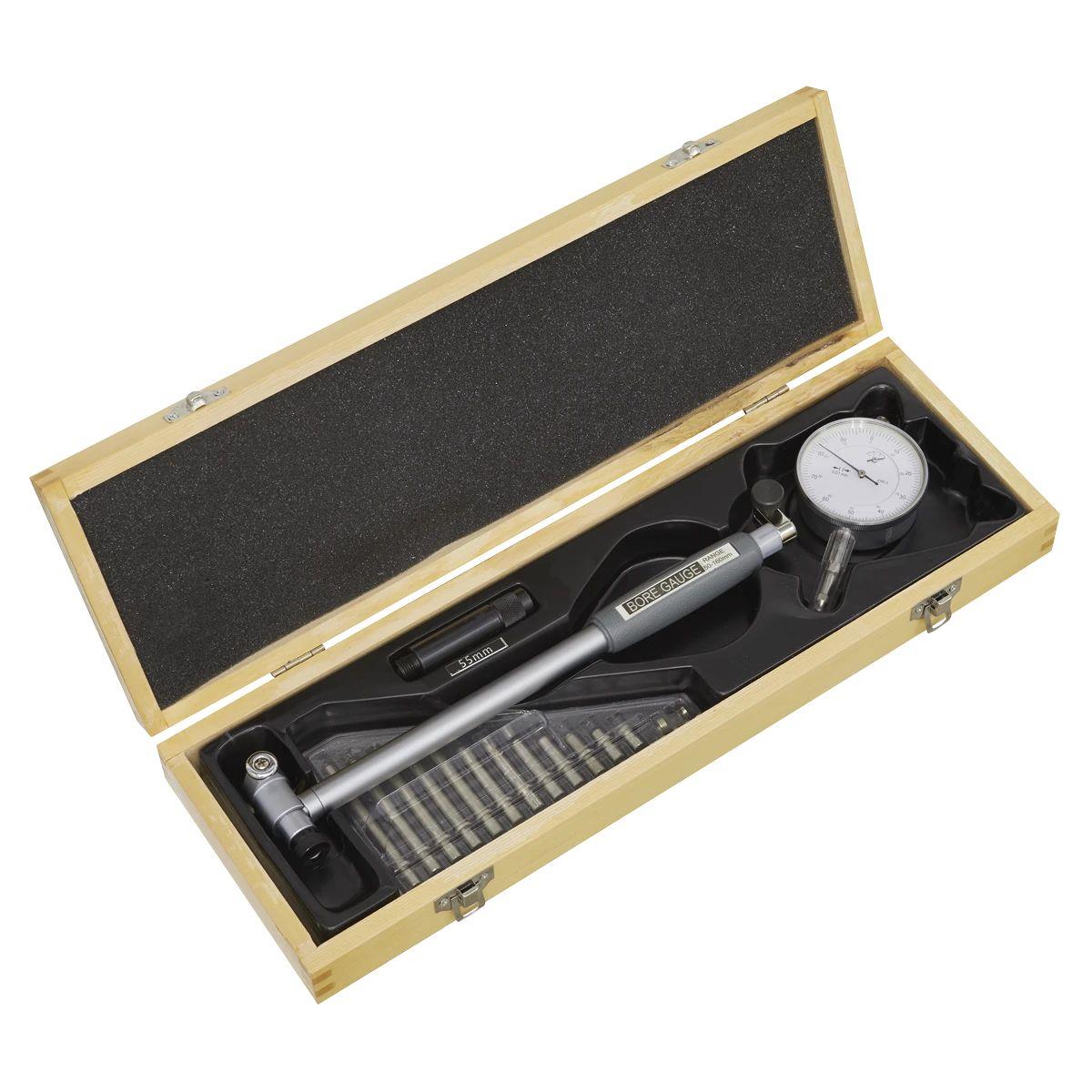

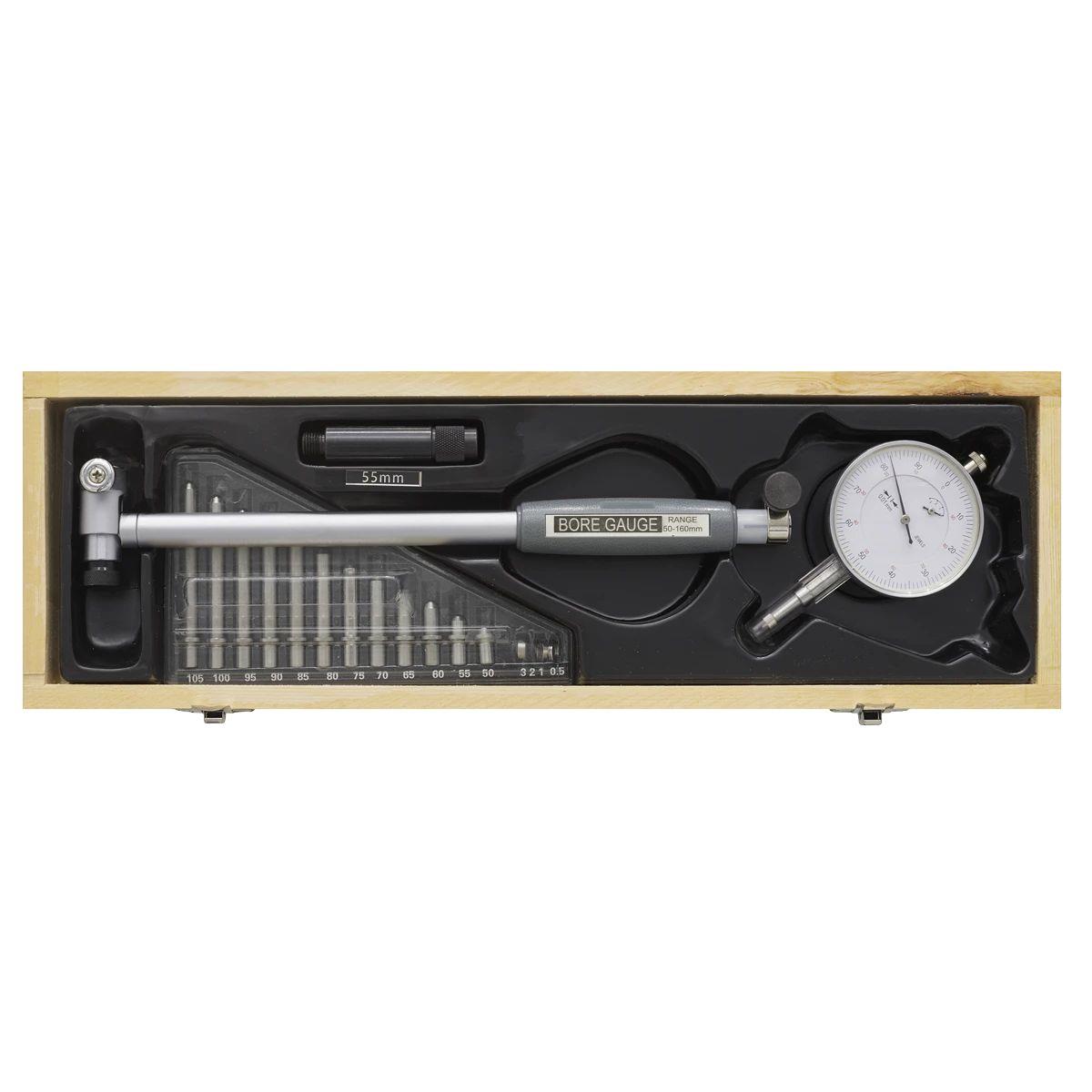

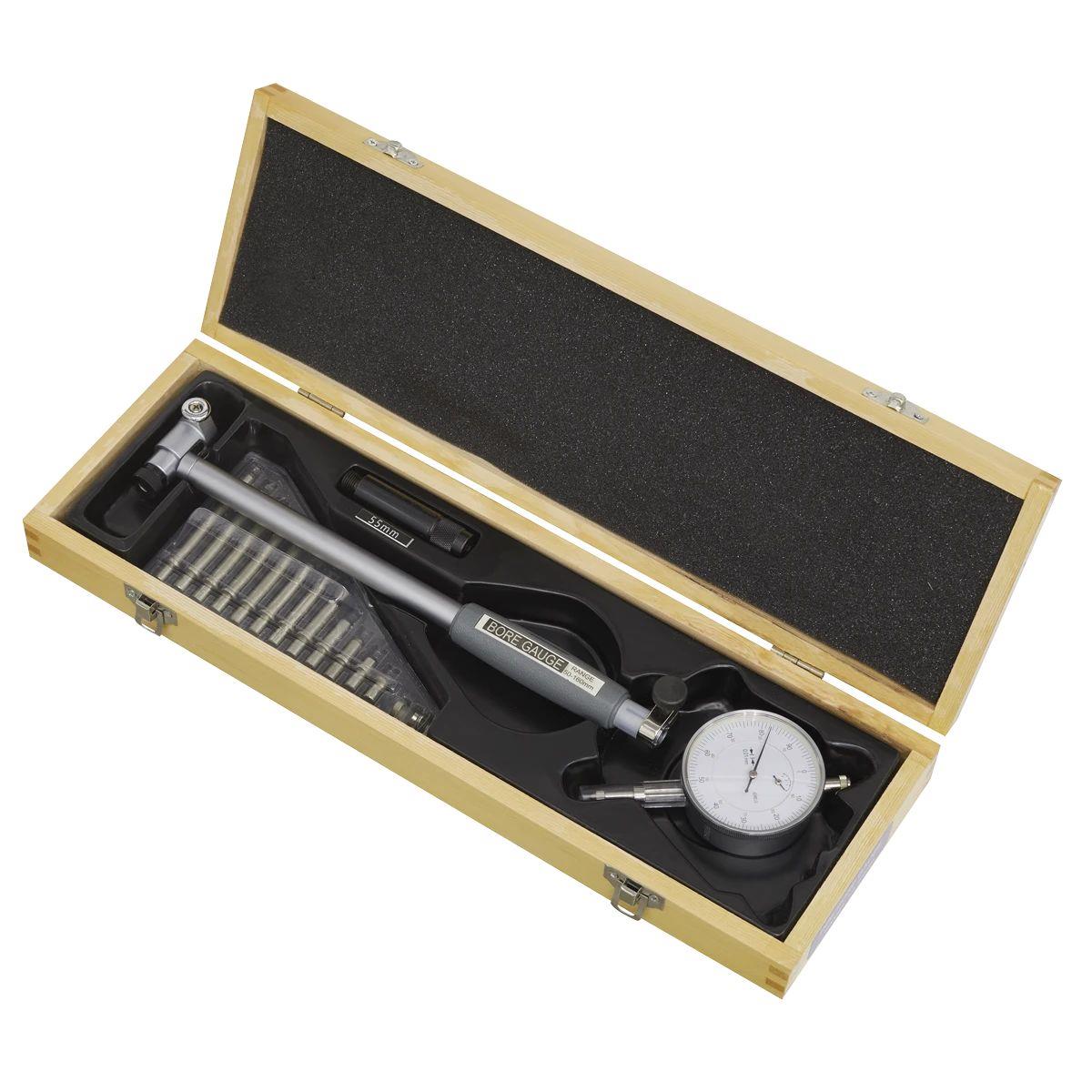

The Sealey DBG5010 Dial Bore Gauge features a precision mechanism with a Ø55mm dial and locking rotating bezel, providing an accurate method of measuring internal bores and detecting taper or ovality. Covering a 50-160mm measuring range, the gauge indicates deviation from a set size by up to 3mm with an accuracy of 0.01mm. Supplied with a probe body, dial indicator, anvils and spacer rings in a protective wooden storage case.
Features:
Precision mechanism for accurate bore measurement.
50-160mm measuring range.
Ø55mm dial with locking rotating bezel.
Measures deviation from a set size up to 3mm.
0.01mm measurement accuracy.
Suitable for detecting bore taper and ovality.
Includes multiple anvils and spacer rings.
Supplied in a wooden storage case.
Comes With:
1 x Probe Body
1 x Sealey DBG5010 Dial Bore Gauge 50-160mm
Product Specification:
Part number: DBG5010
Barcode number: 5054511878547
Product Type: Dial Bore Gauge
Measuring Range: 50-160mm
Dial Diameter: Ø55mm
Maximum Deviation with Stem: 1mm
Maximum Deviation, Gauge: 3mm
Accuracy: 0.01mm
Applications: Bore measurement, taper and ovality detection
Storage: Wooden Storage Case
Nett Weight: 1.12kg
