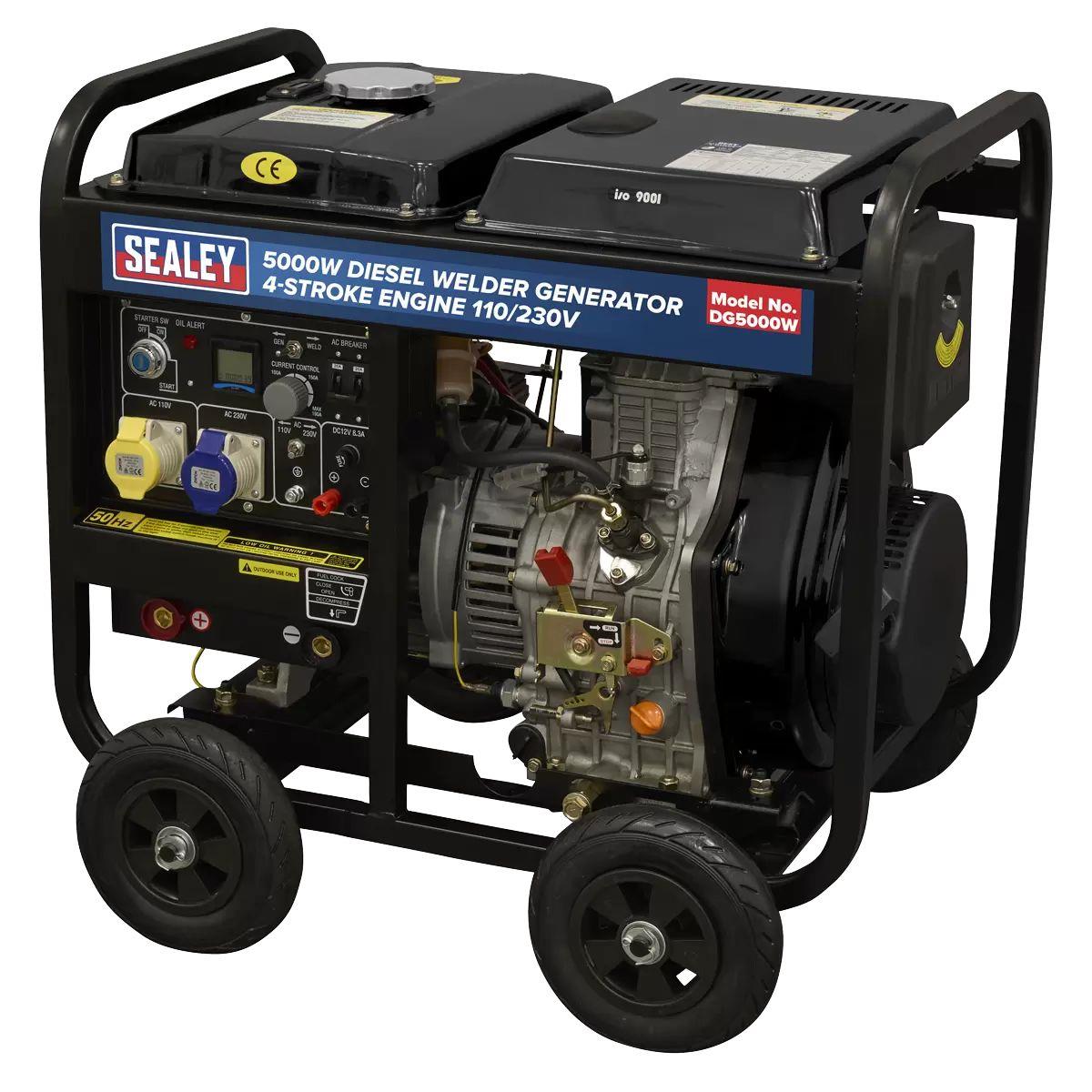

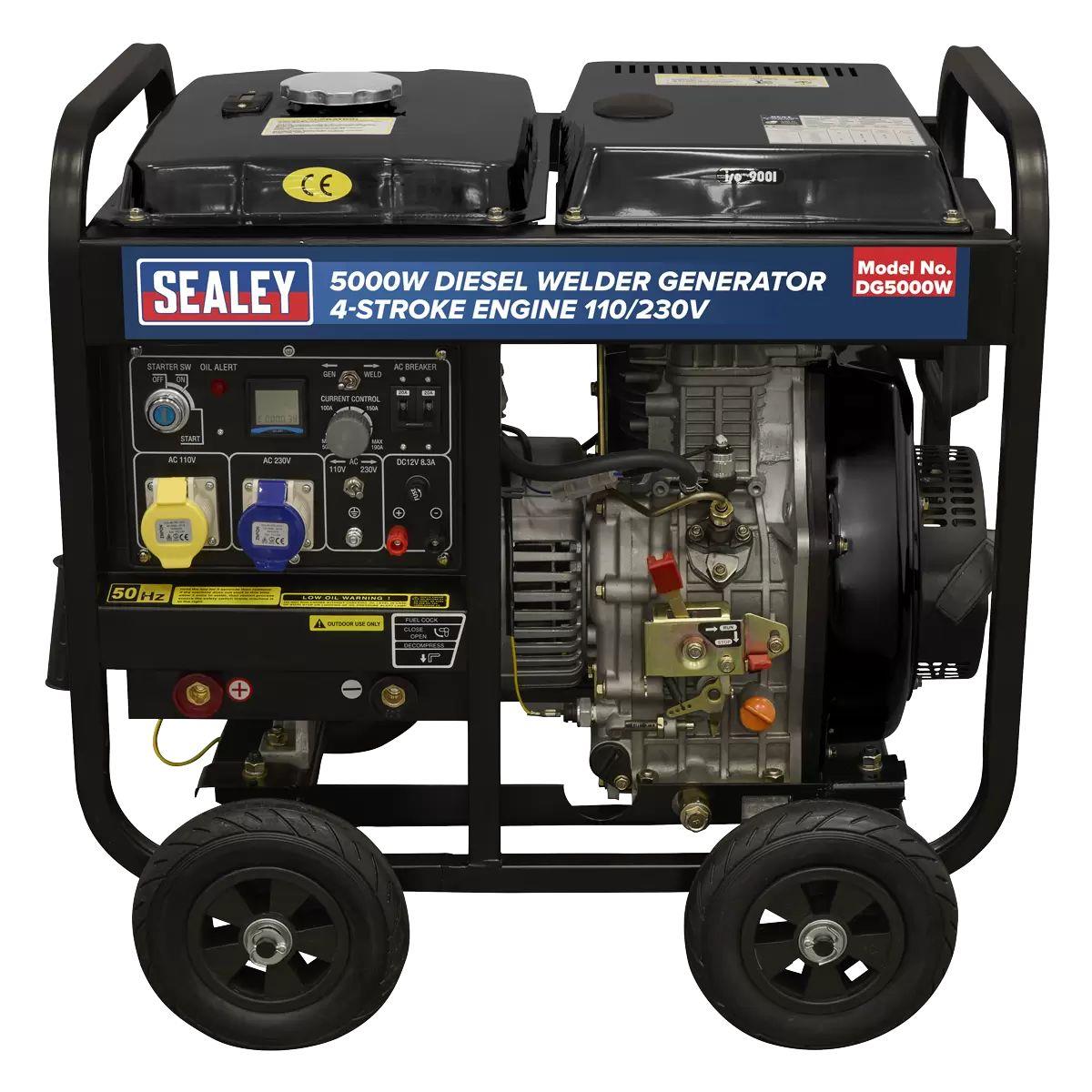

Sealey DG5000W 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
Sealey DG5000W 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
Features:
DUAL VOLTAGE OUTPUT – Supplies both 110V and 230V AC for flexible power options on-site.
WELDER FUNCTION – Built-in electric welding capability with adjustable current ranges from 80–180A.
DIESEL ENGINE POWER – Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5kW.
RECOIL & KEY START – Manual recoil start, and Key Start Function.
LARGE FUEL TANK – 15L capacity allows extended operation without frequent refuelling.
WELDING CAPACITY – Rated for 80–180A welding current and suitable for electrodes from Ø2.5-4mm.

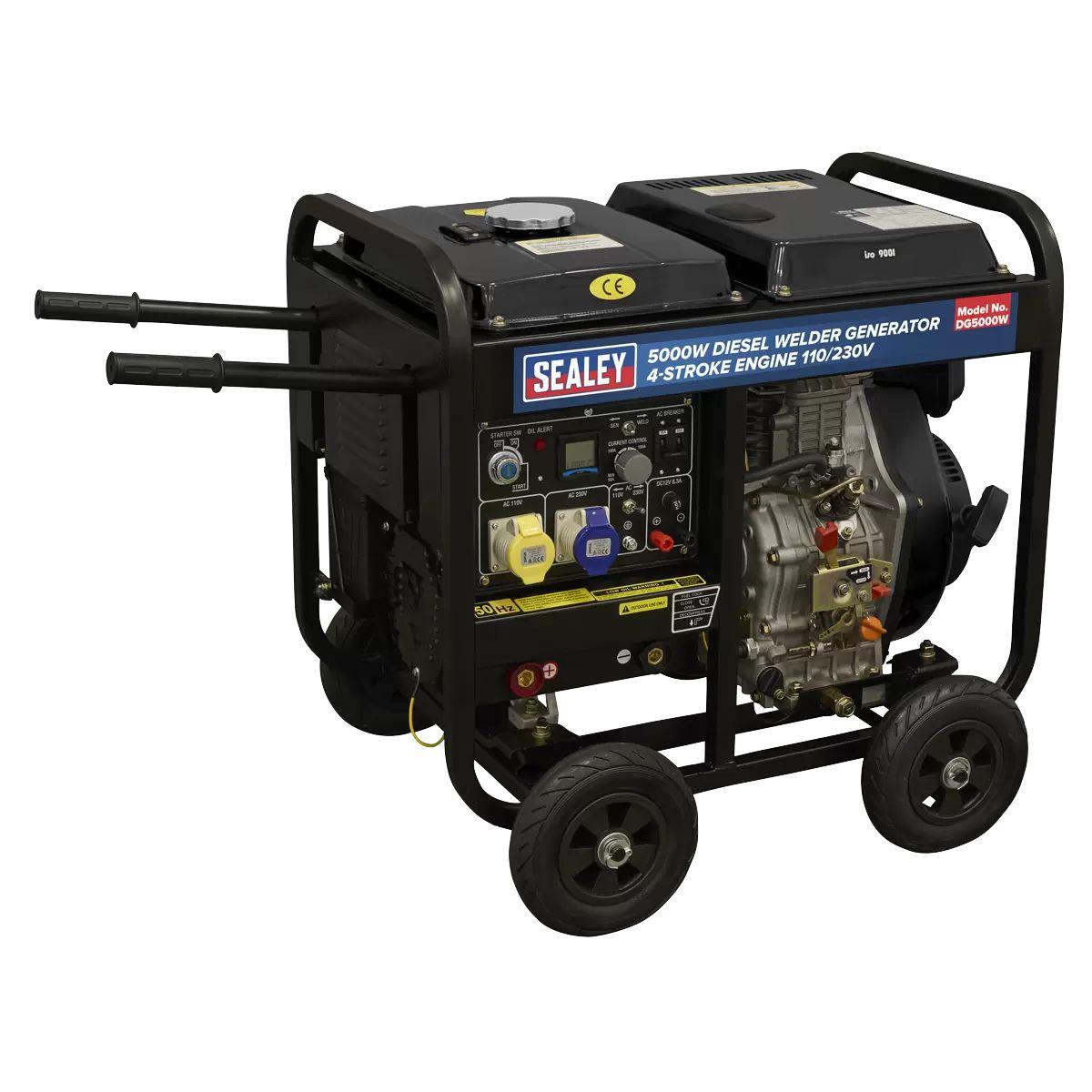

COMPACT & PORTABLE – Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
IDEAL FOR REMOTE WORK – Perfect for construction, agricultural, and industrial applications.

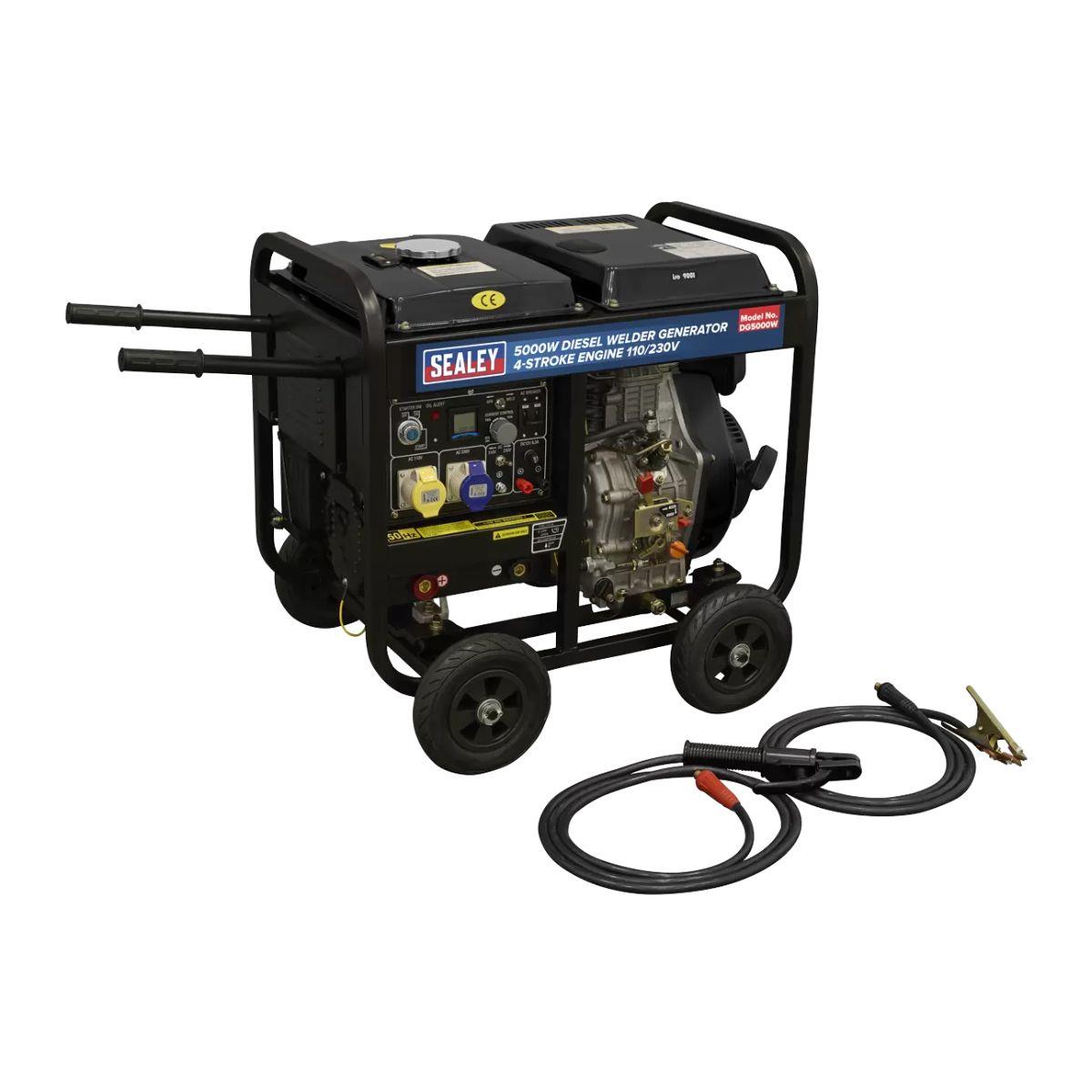

SUPPLIED WITH – Two Keys, 2.8m electrode holder and 2.8m earth clamp.
Comes With:
1 x DG5000W 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
Product Specification:
Part number: DG5000W
Barcode number: 5054630662492
Welding Current: 80-180A
Electrode Capacity: 1.6-4mm
Quality Class A
Power Rating Category: COP
Performance Class: G1
Rated Power Factor: (COS ∮) 0.8 kW
Maximum Power Rating: 5000W
Maximum Running Time: 12hrs
Motor Power: 5.7kw/3600rpm
Motor Type: 4-Stoke Diesel
Noise Rating: 97db(A)
Oil Capacity: 1.65L
Output: 110/230V
Nett Weight: 120kg
IP Rating: IP23
Fuel: Diesel
Fuel Tank: 15L
Dimensions (W x D x H): 720 x 485 x 600mm
Current Rating: 20A
Continuous Power Rating: 4600w
**images for illustrative purposes only – please refer to description and specification for full details of product**
