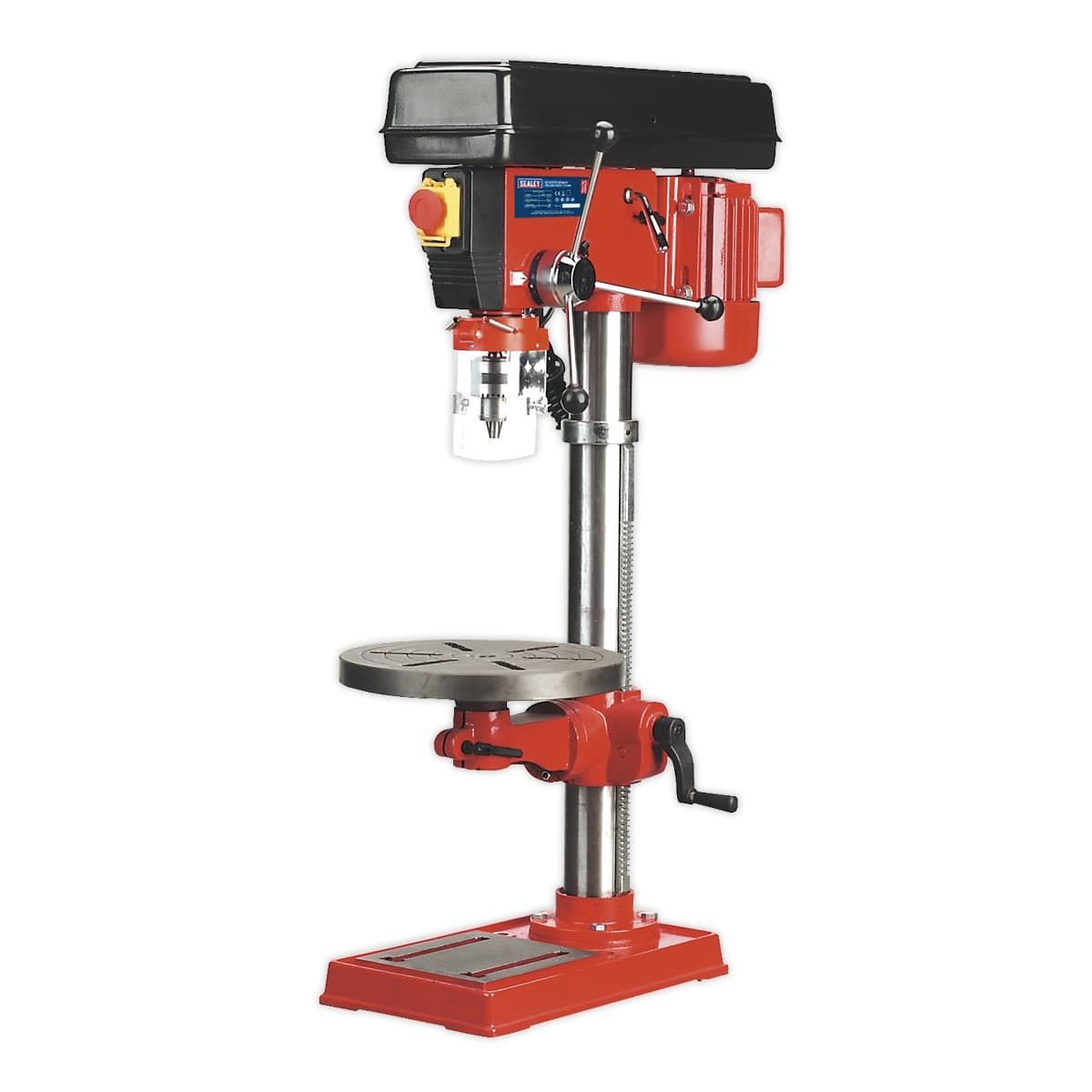

Sealey GDM120B 16-Speed Pillar Drill Bench 1000mm 230V
Sealey GDM120B 16-Speed Pillar Drill Bench 1000mm 230V

Sealey GDM120B 16-Speed Pillar Drill Bench 1000mm 230V

Regular price
£325.00
£270.83 Ex.VAT
£325.00 £270.83 Ex.VAT
Translation missing: en.products.product.price.unit_price_label
per
Delivery in 2-3 working days

Delivery in 2-3 working days

- +

Sealey GDM120B 16-Speed Pillar Drill Bench 1000mm 230V

Features:

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
Mortise attachment available, order Model No. MA10.
16mm(5/8") Capacity chuck, MT2.
Height: 960mm.
Spindle Centre to Column: 165mm.
Motor Power: 350W, Input Power: 550W.
Column Diameter: 70mm.
Spindle Travel: 80mm.
Weight: 47kg.

Specification:

Part no: GDM120B
Barcode: 5024209365642
Base Size: 420 x 250mm
Brand: Sealey
Collar Diameter: 60mm
Column Diameter: 70mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 600mm
Maximum Distance Spindle to Table: 410mm
Motor Power (Start): 350W(550W)
Nett Weight: 47kg
Number of Speeds: 16
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 960mm
Speed Range: 210-3340rpm
Spindle Centre to Column: 165mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 330mm
Working Base Surface Size: 210 x 190mm
Working Table Surface Size: Ø310mm


Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
