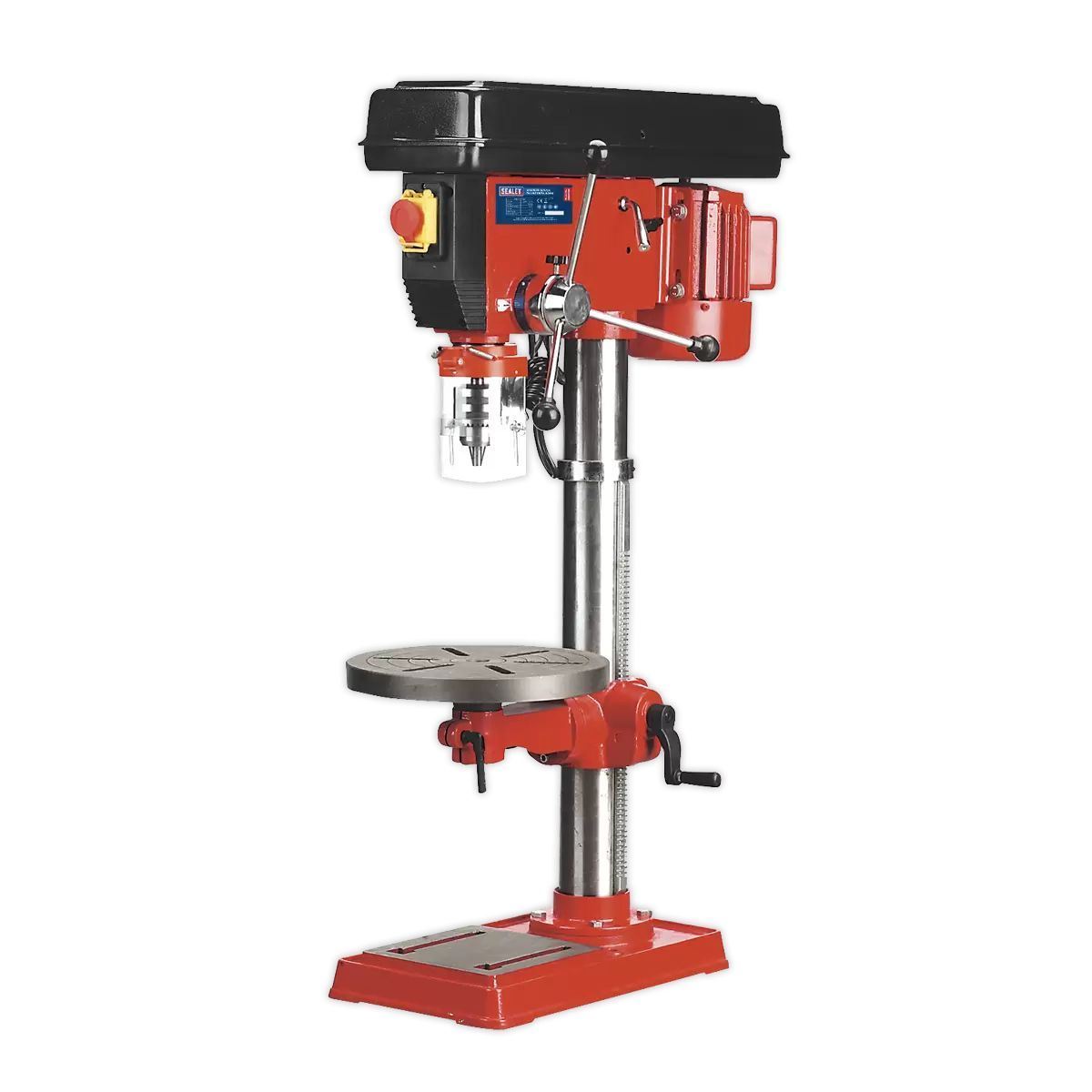

Sealey GDM150B Pillar Drill Bench 16-Speed 650W/230V
Sealey GDM150B Pillar Drill Bench 16-Speed 650W/230V

Sealey GDM150B Pillar Drill Bench 16-Speed 650W/230V

Regular price
£420.00
£350.00 Ex.VAT
£420.00 £350.00 Ex.VAT
Translation missing: en.products.product.price.unit_price_label
per
3-5 WORKING DAYS DELIVERY

3-5 WORKING DAYS DELIVERY

  • 16-speed Pillar Drill Bench
  • No voltage release switch
  • Rack and pinion feed shafts
- +

Sealey GDM150B Pillar Drill Bench 16-Speed 650W/230V

The Sealey GDM150B is a 16-speed Pillar Drill Bench fitted with rack and pinion feed shafts with preset depth control for repetitive work. The safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments.

Features:

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
Mortise attachment available, order Model No. MA10.
16mm(5/8") Capacity chuck No. 2MT.

Specification:

Model no: GDM150B
Barcode: 5024209365659
Brand: Sealey
Base Size: 460 x 275mm
Collar Diameter: 60mm
Column Diameter: 80mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 670mm
Maximum Distance Spindle to Table: 480mm
Motor Power (Start): 450W(650W)
Nett Weight: 60kg
Number of Speeds: 16
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1070mm
Speed Range: 120-3000rpm
Spindle Centre to Column: 178mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 356mm
Working Base Surface Size: 200 x 220mm
Working Table Surface Size: Ø310mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
