Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V
Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V

Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V

Regular price
£486.00
£405.00 Ex.VAT
£486.00 £405.00 Ex.VAT
Translation missing: en.products.product.price.unit_price_label
per
Delivery in 2-3 working days

Delivery in 2-3 working days

  • Heavy-duty construction
  • Fitted include a no-volt release switch
  • Maximum throat depth of 420mm
  • Speed Range: 500-2450rpm
- +

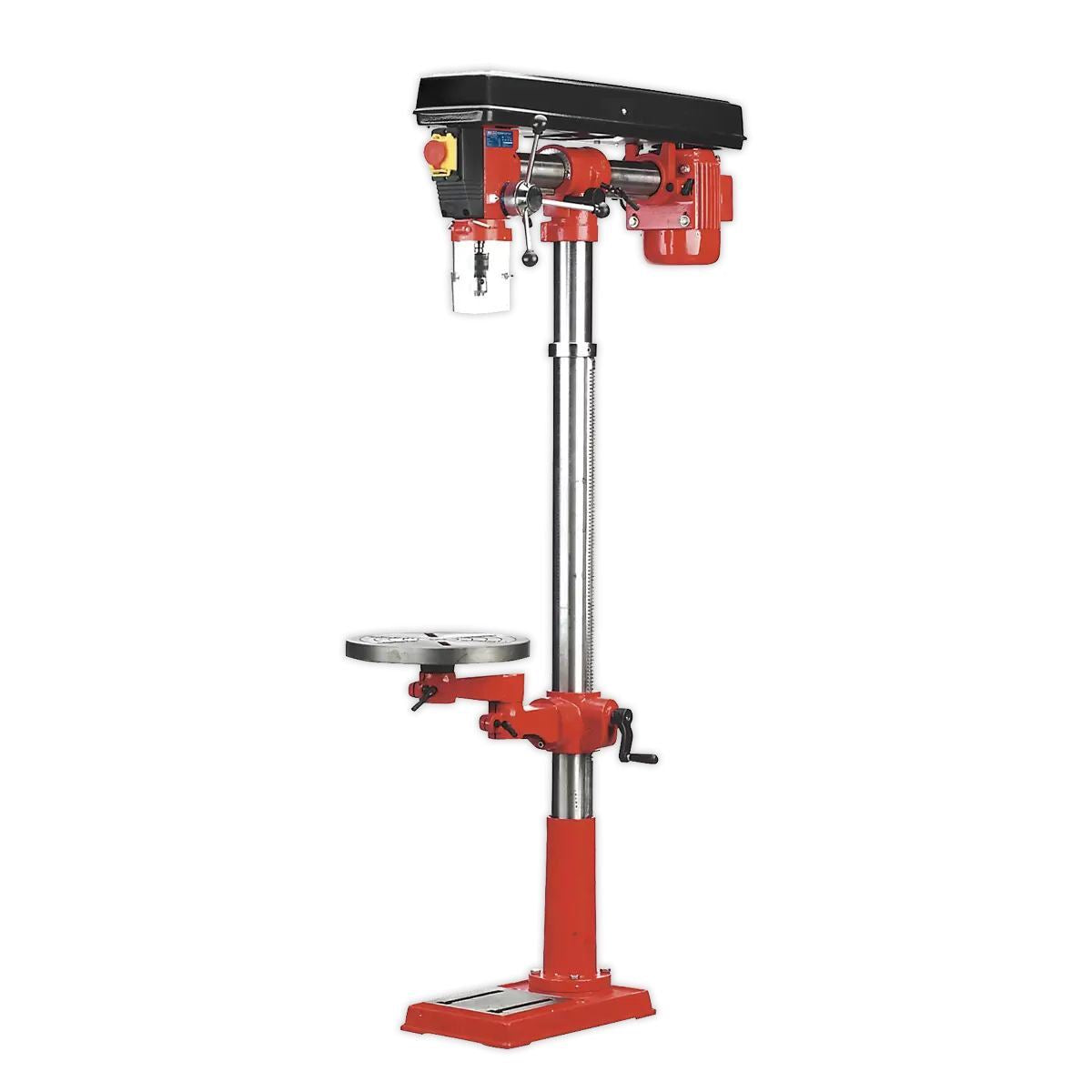

Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V

Features:

Heavy-duty construction.

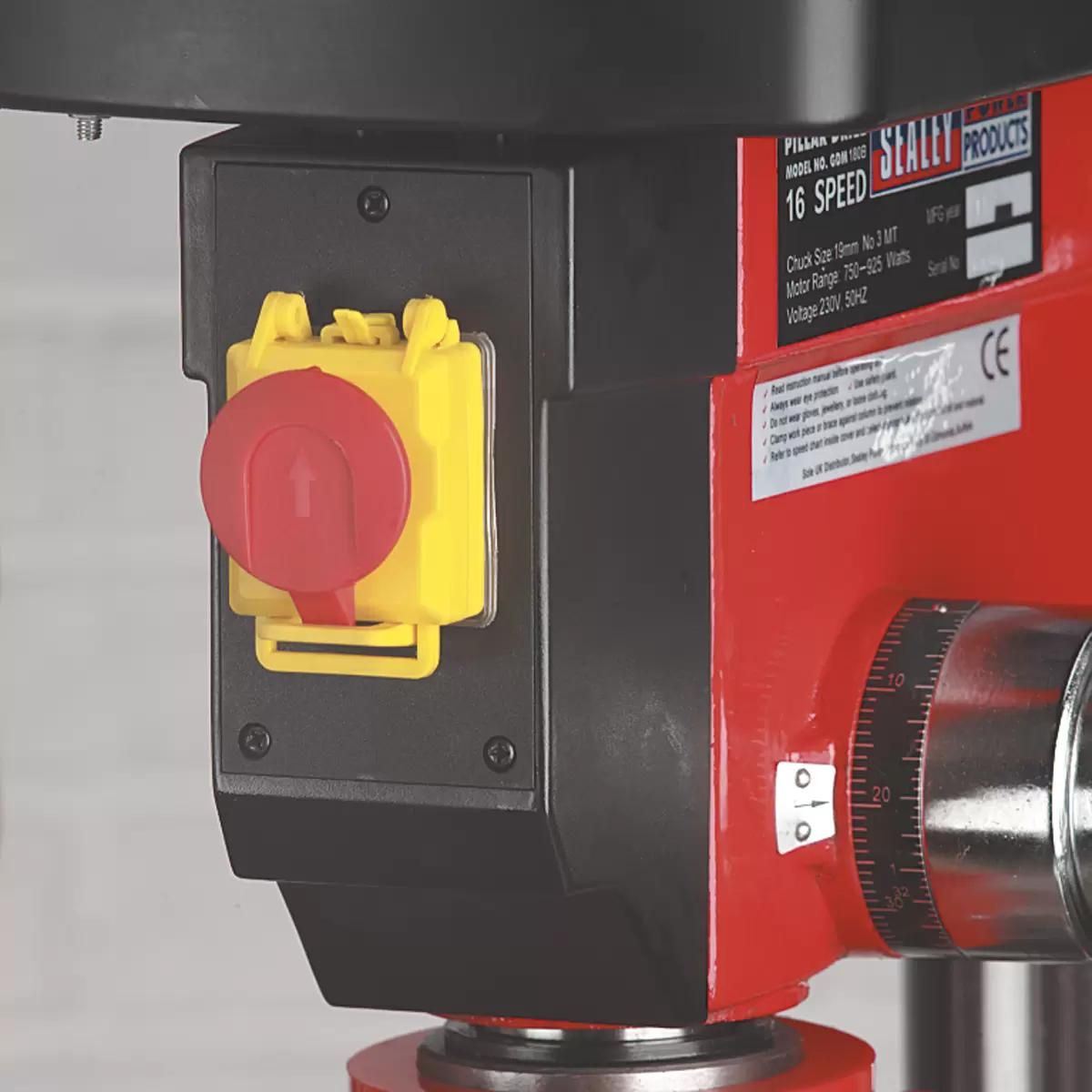

Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

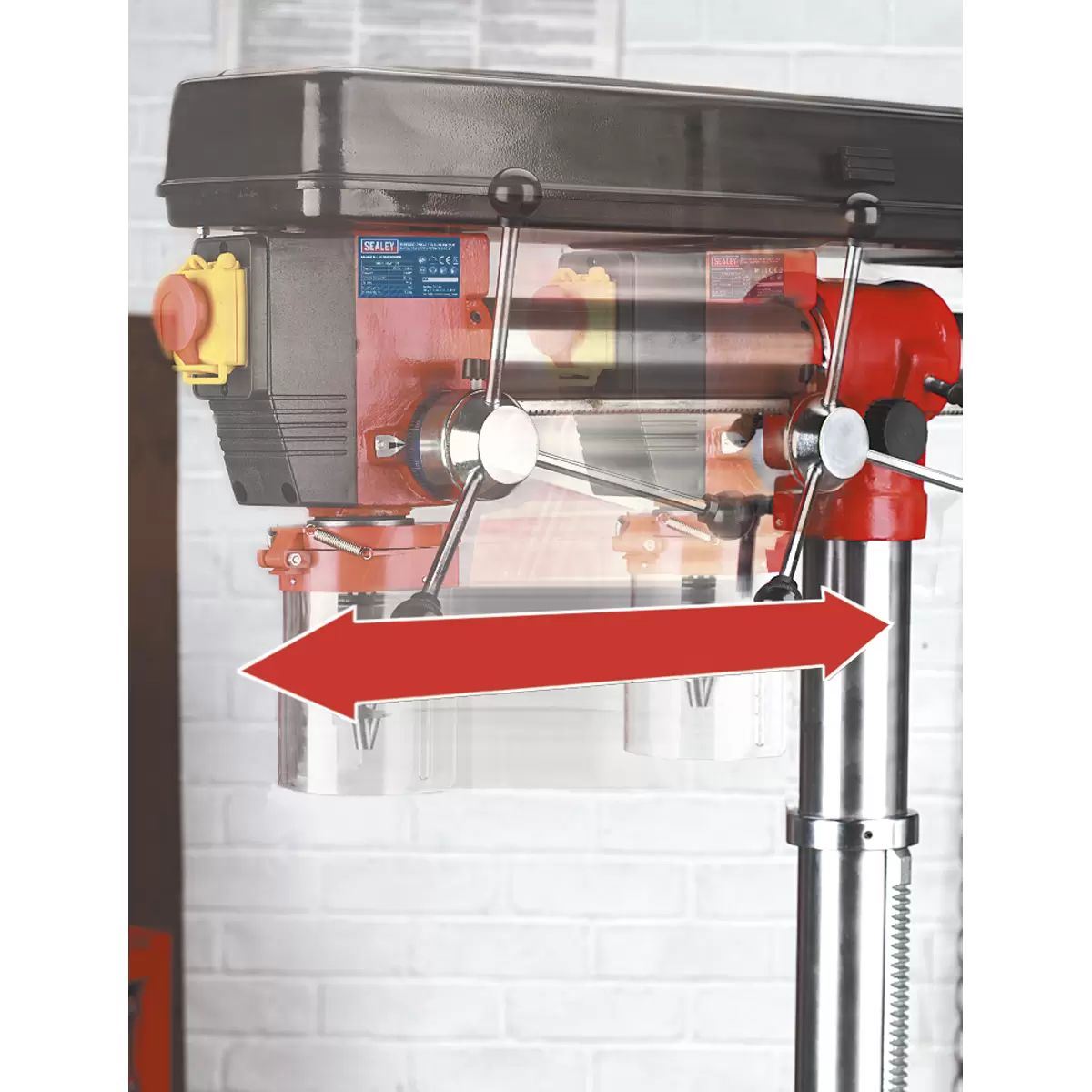

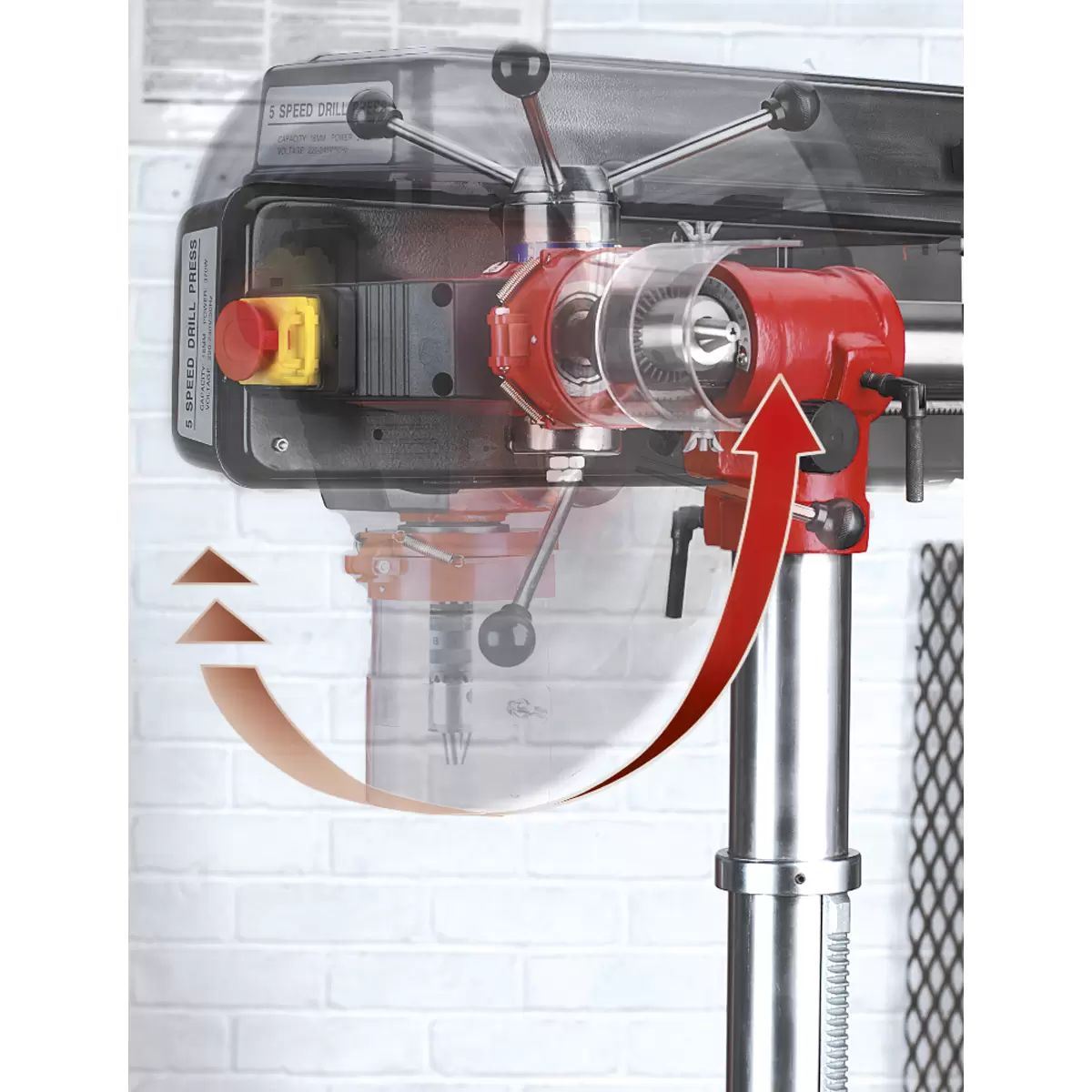

Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.

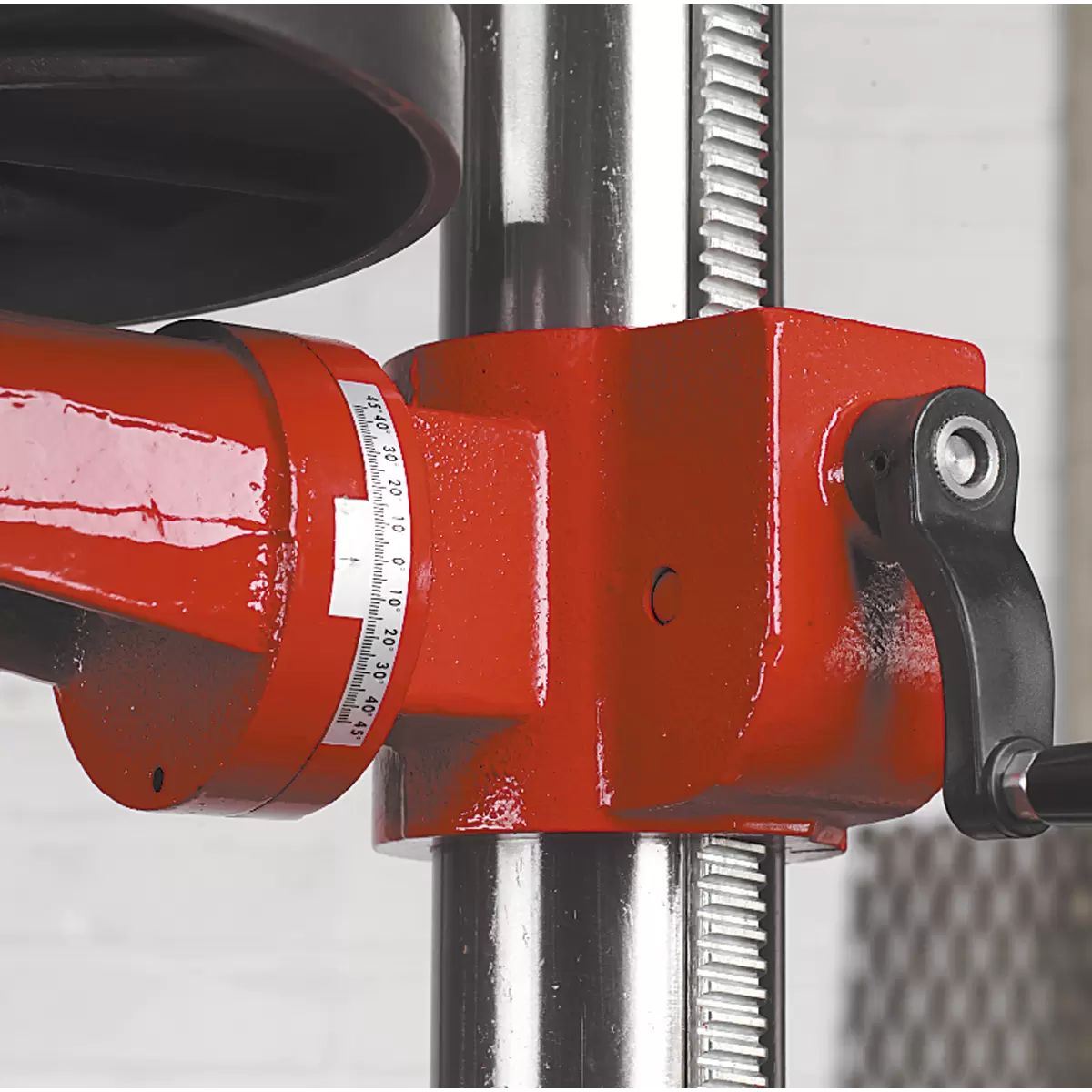

Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as bench mounting type - GDM790BR.
Mortise attachment available, order Model No. MA10.
16mm(5/8") Capacity chuck, MT2.
Height: 1620mm.
Spindle Centre to Column - Max: 420mm.
Motor Power: 550W.
Column Diameter: 70mm.

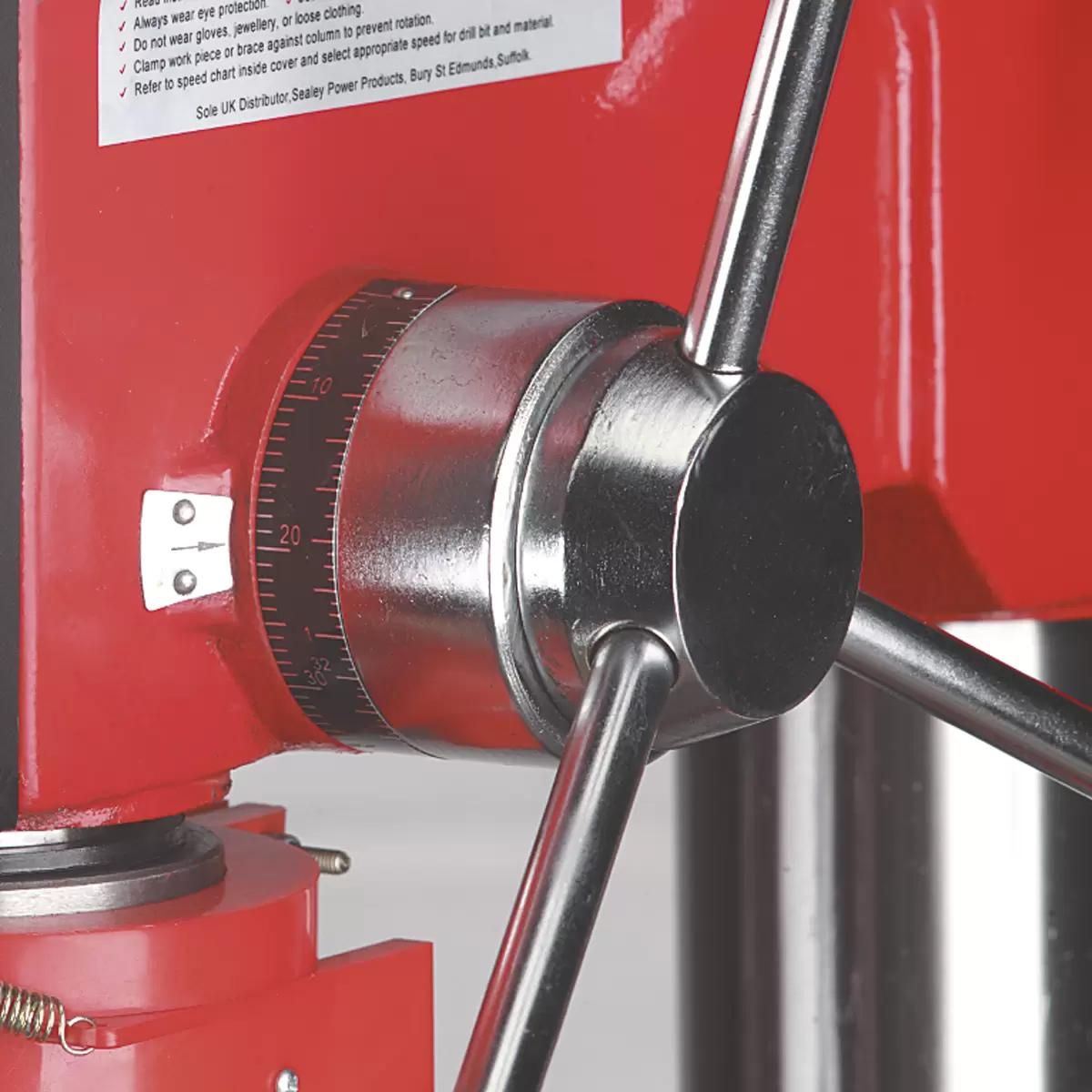

Spindle Travel: 80mm.
Weight: 59kg.

Specification:

Part No: GDM1630FR
Barcode: 5024209116817
Base Size: 420 x 250mm
Collar Diameter: Ø60mm
Column Diameter: Ø70mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 1280mm
Maximum Distance Spindle to Table: 830mm
Nett Weight: 59kg
Number of Speeds: 5
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1620mm
Radial Arm Travel: 285mm
Speed Range: 500-2450rpm
Spindle Centre to Column: 420mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 840mm
Working Base Surface Size: 210 x 190mm
Working Table Surface Size: Ø310mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
